2016 JEEP GRAND CHEROKEE SRT Owners Manual

OKbutton. To reset the oil change indicator system (after
performing the scheduled maintenance), refer to the
following procedure.
Oil Change Reset Procedure
1. Without pushing the brake pedal, push and release the ENGINE START/STOP button and place the ignition
to the ON/RUN position (do not start the engine).
2. Fully push the accelerator pedal, slowly, three times within 10 seconds.
3. Without pushing the brake pedal, push and release the ENGINE START/STOP button once to return the
ignition to the OFF/LOCK position.
NOTE: If the indicator message illuminates when you
start the vehicle, the oil change indicator system did not
reset. If necessary, repeat this procedure. Secondary Method For Oil Change Reset
1. Without depressing the brake pedal, push and release
the ENGINE START/STOP button and place the igni-
tion to the ON/RUN position (do not start the engine).
2. Navigate to Oil Lifesubmenu in Vehicle Info on
DID.
3. Push and Hold the OKbutton until the gauge resets to
100%.
Performance Shift Indicator (PSI) – If Equipped
The Performance Shift Indicator (PSI) is enabled on
vehicles with manual transmission, or when a vehicle
with automatic transmission is in Auto-Stick mode. The
PSI provides the driver with a visual indication within
the cluster information display when the driver config-
ured gear shift point has been reached and the driver is
still accelerating. This indication notifies the driver to
change gear corresponding to the configured RPMs in the
4
UNDERSTANDING YOUR INSTRUMENT PANEL 327

head unit. When the shift up indicator is shown on the
display, the PSI is advising the driver to engage a higher
gear.
NOTE:The PSI is configured and turned on or off in the
head unit “Shift Light: Set Up” page.
The PSI indicator in the cluster information display
remains illuminated until the driver changes gear, or the
driving conditions return to a situation where changing
gear is not required, corresponding to the configured
RPMs in the head unit.
NOTE: Refer to “Uconnect Settings” in “Understanding
Your Instrument Panel” for further information on en-
abling, disabling, and configuring the Performance Shift
Indicator.
DID Messages
Includes the following, but not limited to:
• Front Seatbelts Unbuckled •
Driver Seat Belt Unbuckled
• Passenger Seat Belt Unbuckled
• Traction Control Off
• Washer Fluid Low
• Oil Pressure Low
• Oil Change Due
• Fuel Low
• Service Anti-lock Brake System
• Service Electronic Throttle Control
• Service Power Steering
• Cruise Off
• Cruise Ready
• ACC Override
328 UNDERSTANDING YOUR INSTRUMENT PANEL

•Cruise Set To XXX MPH
•
Tire Pressure Screen With Low Tire(s) “Inflate Tire to XX”
• Service Tire Pressure System
• Speed Warning Set to XXX MPH
• Speed Warning Exceeded
• Parking Brake Engaged
• Brake Fluid Low
• Service Electronic Braking System
• Engine Temperature Hot
• Lights On
• Right Front Turn Signal Light Out
• Right Rear Turn Signal Light Out
• Left Front Turn Signal Light Out •
Left Rear Turn Signal Light Out
• Ignition or Accessory On
• Vehicle Not In Park
• Remote Start Active Push Start Button
• Remote Start Canceled Fuel Low
• Remote Start Canceled Too Cold
• Remote Start Canceled Door Open
• Remote Start Canceled Hood Open
• Remote Start Canceled Liftgate Open
• Remote Start Canceled Time Expired
• Remote Start Disabled Start To Reset
• Service Air Bag System
• Service Air Bag Warning Light
4
UNDERSTANDING YOUR INSTRUMENT PANEL 329

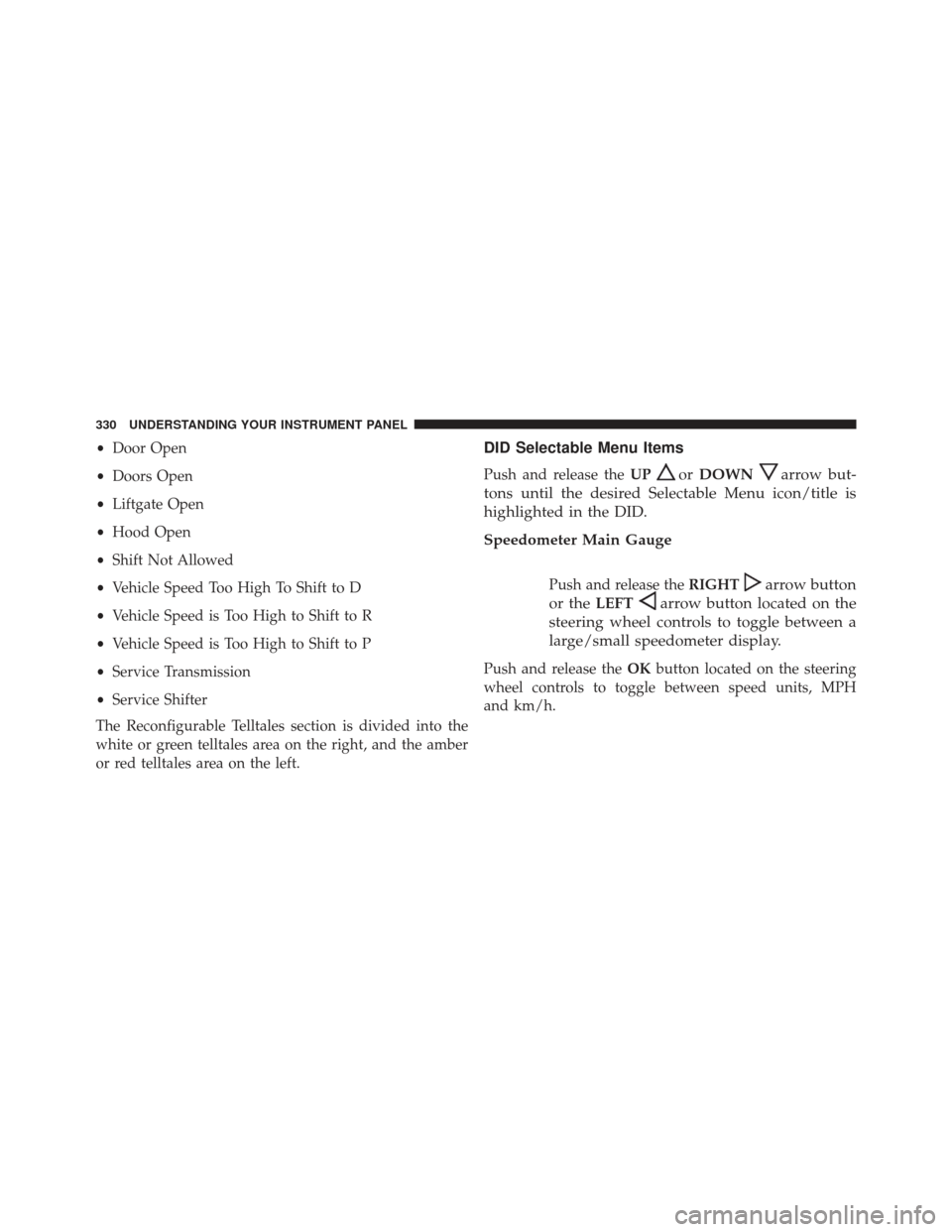

•Door Open
• Doors Open
• Liftgate Open
• Hood Open
• Shift Not Allowed
• Vehicle Speed Too High To Shift to D
• Vehicle Speed is Too High to Shift to R
• Vehicle Speed is Too High to Shift to P
• Service Transmission
• Service Shifter
The Reconfigurable Telltales section is divided into the
white or green telltales area on the right, and the amber
or red telltales area on the left.DID Selectable Menu Items
Push and release the UPorDOWNarrow but-
tons until the desired Selectable Menu icon/title is
highlighted in the DID.
Speedometer Main Gauge
Push and release the RIGHTarrow button
or the LEFT
arrow button located on the
steering wheel controls to toggle between a
large/small speedometer display.
Push and release the OKbutton located on the steering
wheel controls to toggle between speed units, MPH
and km/h.
330 UNDERSTANDING YOUR INSTRUMENT PANEL

NOTE:
•When warnings notifications and other DID pop-ups
are present, the large centered speedometer digital
image will switch to the small digital image located to
the right side on the tachometer.
• When all pop-ups clear, the DID display will return to
the large centered speedometer digital image.
Vehicle Info (Customer Information Features)
Push and release the UPorDOWNar-
row button until the Vehicle Info icon/title is
highlighted in the DID. Push and release the
LEFT
or RIGHTarrow button to scroll
through the information submenus and push and
release the OKbutton to select or reset the resettable
submenus:
Tire Pressure
Coolant Temperature
Transmission Temperature
Oil Temperature
Oil Pressure
Oil Life
Battery Voltage
Intake Air Temperature
Engine Torque
Engine Power
4
UNDERSTANDING YOUR INSTRUMENT PANEL 331

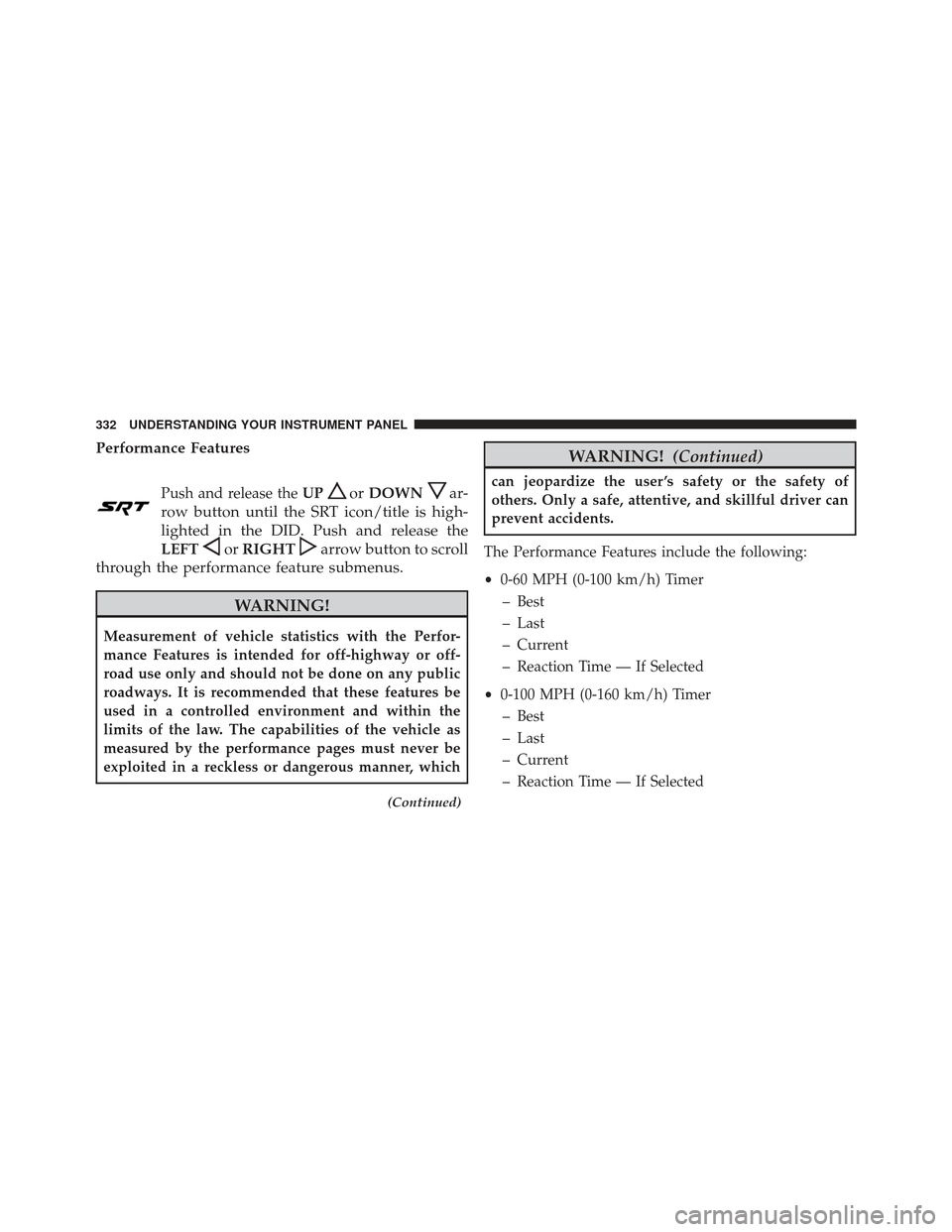

Performance Features
Push and release theUPorDOWNar-
row button until the SRT icon/title is high-
lighted in the DID. Push and release the
LEFT
or RIGHTarrow button to scroll
through the performance feature submenus.
WARNING!
Measurement of vehicle statistics with the Perfor-
mance Features is intended for off-highway or off-
road use only and should not be done on any public
roadways. It is recommended that these features be
used in a controlled environment and within the
limits of the law. The capabilities of the vehicle as
measured by the performance pages must never be
exploited in a reckless or dangerous manner, which
(Continued)
WARNING! (Continued)
can jeopardize the user ’s safety or the safety of
others. Only a safe, attentive, and skillful driver can
prevent accidents.
The Performance Features include the following:
• 0-60 MPH (0-100 km/h) Timer
– Best
– Last
– Current
– Reaction Time — If Selected
• 0-100 MPH (0-160 km/h) Timer
– Best
– Last
– Current
– Reaction Time — If Selected
332 UNDERSTANDING YOUR INSTRUMENT PANEL

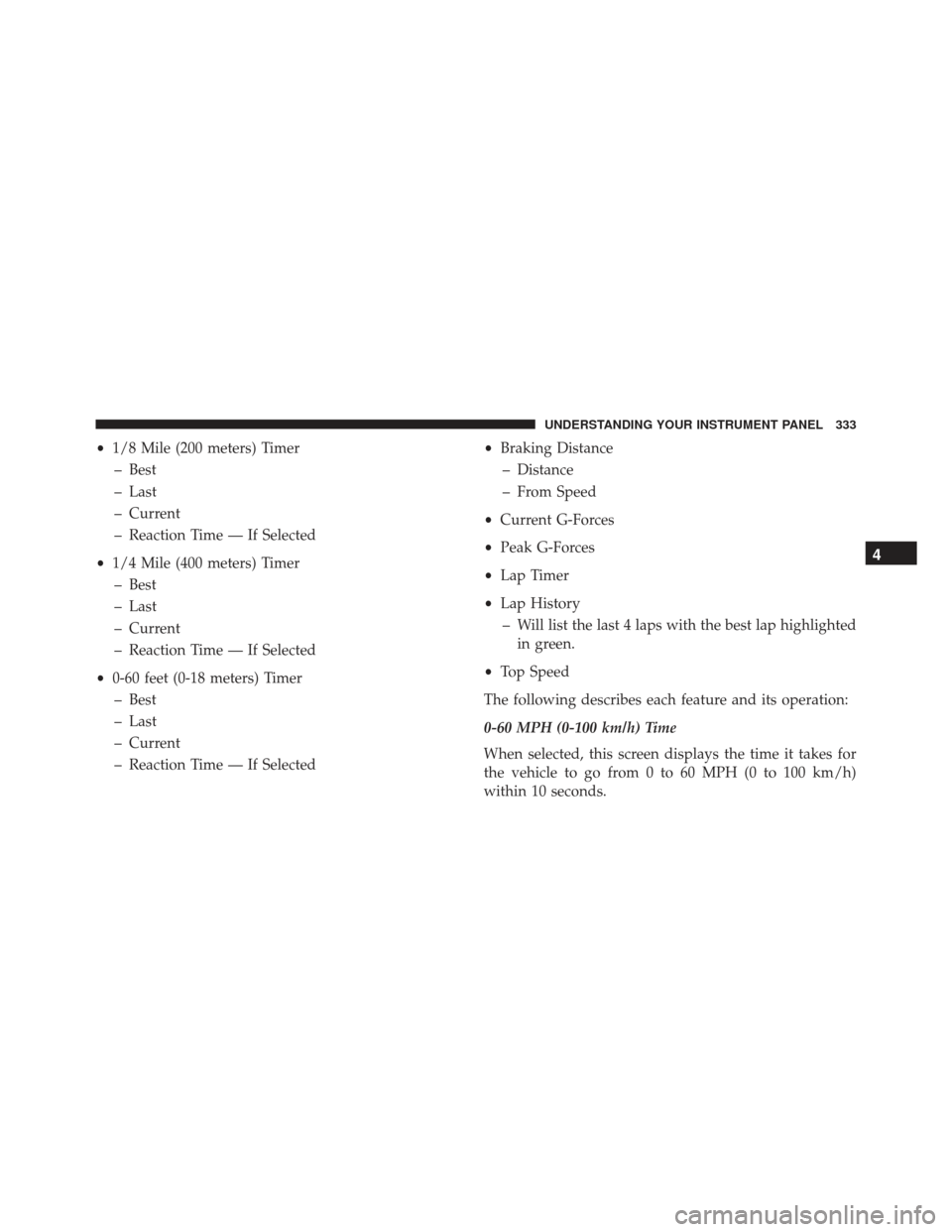

•1/8 Mile (200 meters) Timer
– Best
– Last
– Current
– Reaction Time — If Selected
• 1/4 Mile (400 meters) Timer
– Best
– Last
– Current
– Reaction Time — If Selected
• 0-60 feet (0-18 meters) Timer
– Best
– Last
– Current
– Reaction Time — If Selected •
Braking Distance
– Distance
– From Speed
• Current G-Forces
• Peak G-Forces
• Lap Timer
• Lap History
– Will list the last 4 laps with the best lap highlighted in green.
• Top Speed
The following describes each feature and its operation:
0-60 MPH (0-100 km/h) Time
When selected, this screen displays the time it takes for
the vehicle to go from 0 to 60 MPH (0 to 100 km/h)
within 10 seconds.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 333

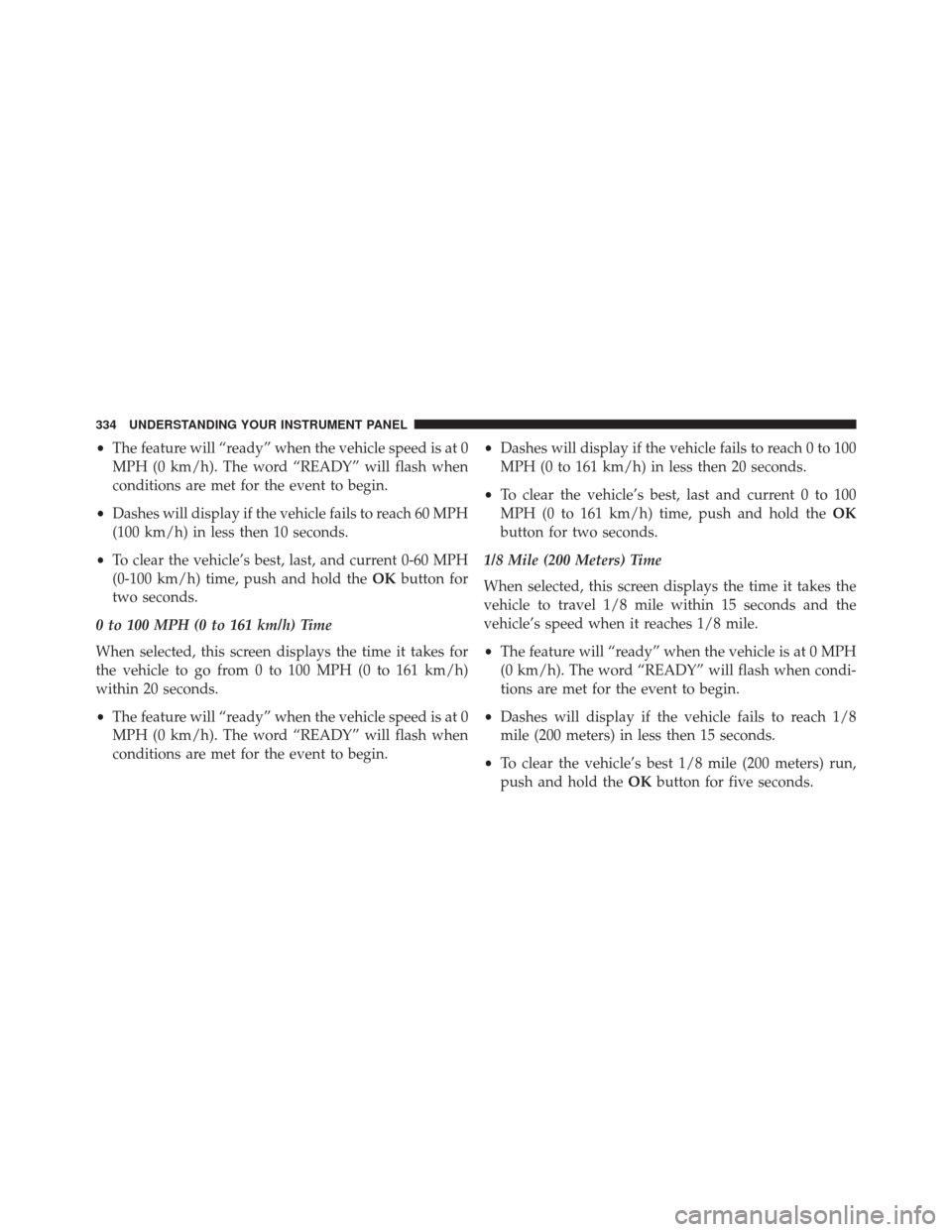

•The feature will “ready” when the vehicle speed is at 0
MPH (0 km/h). The word “READY” will flash when
conditions are met for the event to begin.
• Dashes will display if the vehicle fails to reach 60 MPH
(100 km/h) in less then 10 seconds.
• To clear the vehicle’s best, last, and current 0-60 MPH
(0-100 km/h) time, push and hold the OKbutton for
two seconds.
0 to 100 MPH (0 to 161 km/h) Time
When selected, this screen displays the time it takes for
the vehicle to go from 0 to 100 MPH (0 to 161 km/h)
within 20 seconds.
• The feature will “ready” when the vehicle speed is at 0
MPH (0 km/h). The word “READY” will flash when
conditions are met for the event to begin. •
Dashes will display if the vehicle fails to reach 0 to 100
MPH (0 to 161 km/h) in less then 20 seconds.
• To clear the vehicle’s best, last and current 0 to 100
MPH (0 to 161 km/h) time, push and hold the OK
button for two seconds.
1/8 Mile (200 Meters) Time
When selected, this screen displays the time it takes the
vehicle to travel 1/8 mile within 15 seconds and the
vehicle’s speed when it reaches 1/8 mile.
• The feature will “ready” when the vehicle is at 0 MPH
(0 km/h). The word “READY” will flash when condi-
tions are met for the event to begin.
• Dashes will display if the vehicle fails to reach 1/8
mile (200 meters) in less then 15 seconds.
• To clear the vehicle’s best 1/8 mile (200 meters) run,
push and hold the OKbutton for five seconds.
334 UNDERSTANDING YOUR INSTRUMENT PANEL
