2016 FORD F250 SUPER DUTY Owners Manual

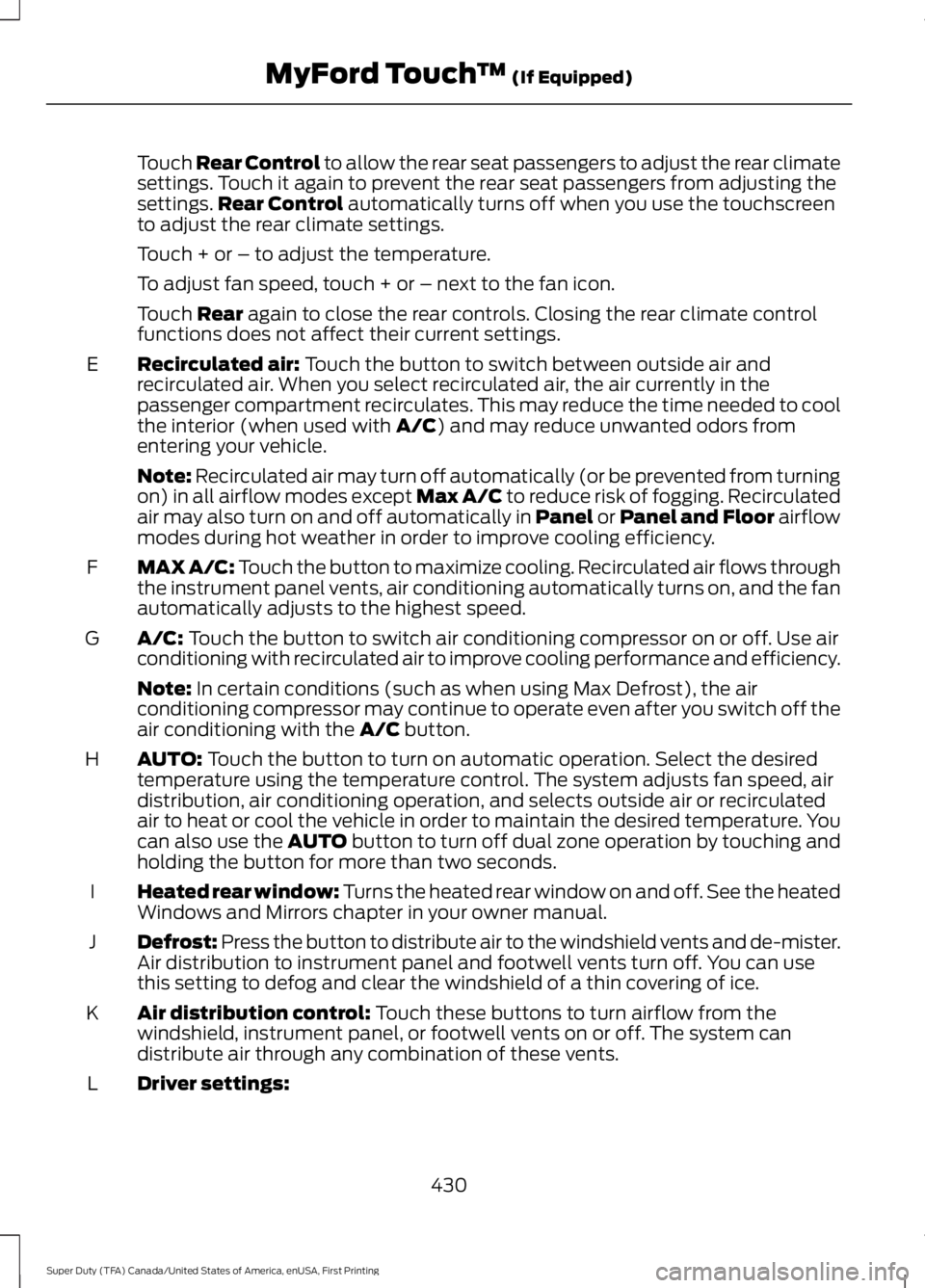

Touch Rear Control to allow the rear seat passengers to adjust the rear climatesettings. Touch it again to prevent the rear seat passengers from adjusting thesettings.Rear Control automatically turns off when you use the touchscreento adjust the rear climate settings.
Touch + or – to adjust the temperature.
To adjust fan speed, touch + or – next to the fan icon.
Touch Rear again to close the rear controls. Closing the rear climate controlfunctions does not affect their current settings.
Recirculated air: Touch the button to switch between outside air andrecirculated air. When you select recirculated air, the air currently in thepassenger compartment recirculates. This may reduce the time needed to coolthe interior (when used with A/C) and may reduce unwanted odors fromentering your vehicle.
E
Note: Recirculated air may turn off automatically (or be prevented from turningon) in all airflow modes except Max A/C to reduce risk of fogging. Recirculatedair may also turn on and off automatically in Panel or Panel and Floor airflowmodes during hot weather in order to improve cooling efficiency.
MAX A/C: Touch the button to maximize cooling. Recirculated air flows throughthe instrument panel vents, air conditioning automatically turns on, and the fanautomatically adjusts to the highest speed.
F
A/C: Touch the button to switch air conditioning compressor on or off. Use airconditioning with recirculated air to improve cooling performance and efficiency.G
Note: In certain conditions (such as when using Max Defrost), the airconditioning compressor may continue to operate even after you switch off theair conditioning with the A/C button.
AUTO: Touch the button to turn on automatic operation. Select the desiredtemperature using the temperature control. The system adjusts fan speed, airdistribution, air conditioning operation, and selects outside air or recirculatedair to heat or cool the vehicle in order to maintain the desired temperature. Youcan also use the AUTO button to turn off dual zone operation by touching andholding the button for more than two seconds.
H
Heated rear window: Turns the heated rear window on and off. See the heatedWindows and Mirrors chapter in your owner manual.I
Defrost: Press the button to distribute air to the windshield vents and de-mister.Air distribution to instrument panel and footwell vents turn off. You can usethis setting to defog and clear the windshield of a thin covering of ice.
J
Air distribution control: Touch these buttons to turn airflow from thewindshield, instrument panel, or footwell vents on or off. The system candistribute air through any combination of these vents.
K
Driver settings:L
430
Super Duty (TFA) Canada/United States of America, enUSA, First Printing

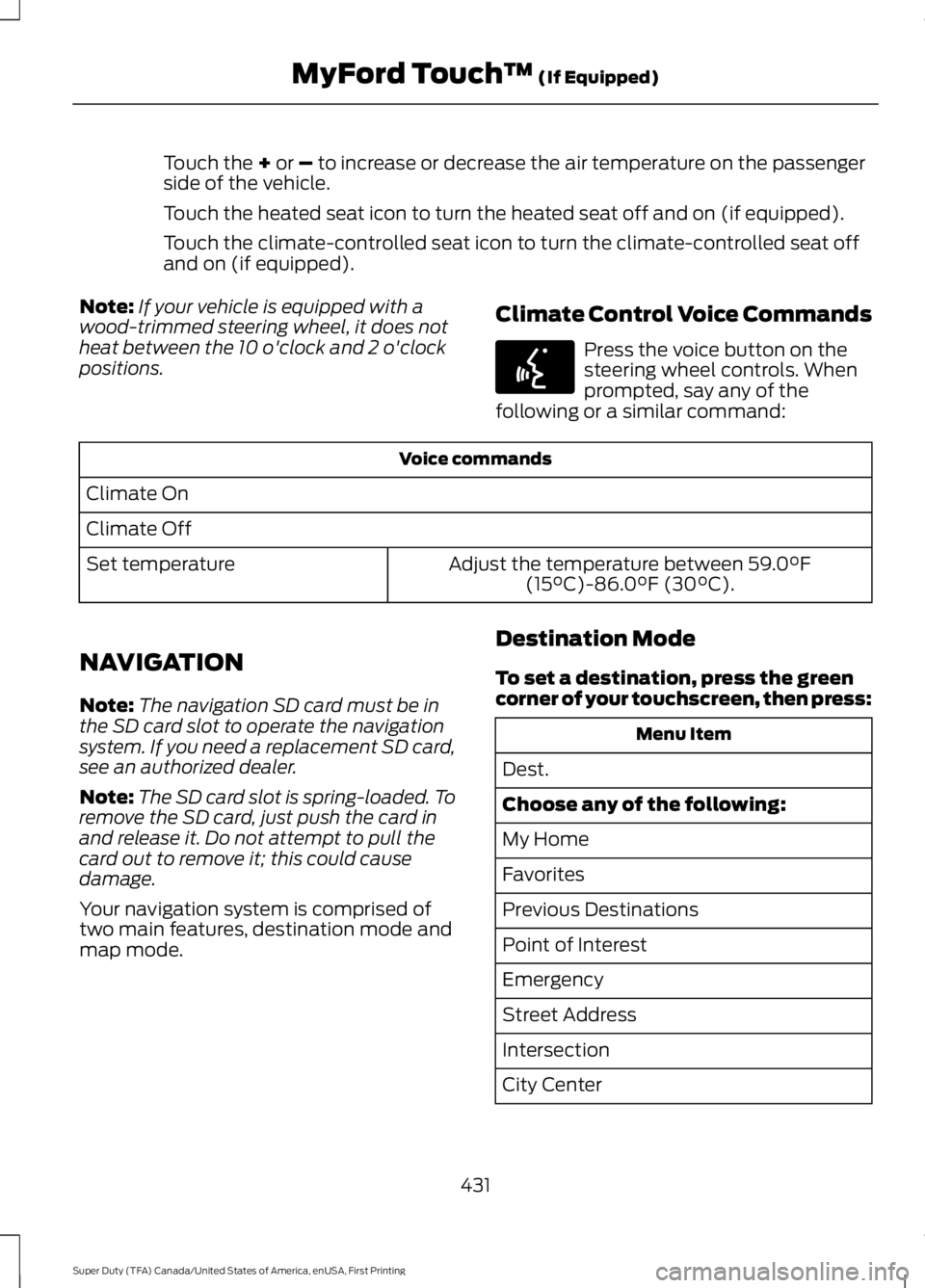

MyFord Touch™ (If Equipped)

Touch the + or – to increase or decrease the air temperature on the passengerside of the vehicle.
Touch the heated seat icon to turn the heated seat off and on (if equipped).
Touch the climate-controlled seat icon to turn the climate-controlled seat offand on (if equipped).
Note:If your vehicle is equipped with awood-trimmed steering wheel, it does notheat between the 10 o'clock and 2 o'clockpositions.
Climate Control Voice Commands
Press the voice button on thesteering wheel controls. Whenprompted, say any of thefollowing or a similar command:
Voice commands
Climate On
Climate Off
Adjust the temperature between 59.0°F(15°C)-86.0°F (30°C).Set temperature
NAVIGATION
Note:The navigation SD card must be inthe SD card slot to operate the navigationsystem. If you need a replacement SD card,see an authorized dealer.
Note:The SD card slot is spring-loaded. Toremove the SD card, just push the card inand release it. Do not attempt to pull thecard out to remove it; this could causedamage.
Your navigation system is comprised oftwo main features, destination mode andmap mode.
Destination Mode
To set a destination, press the greencorner of your touchscreen, then press:
Menu Item
Dest.
Choose any of the following:
My Home
Favorites
Previous Destinations
Point of Interest
Emergency
Street Address
Intersection
City Center
431
Super Duty (TFA) Canada/United States of America, enUSA, First Printing

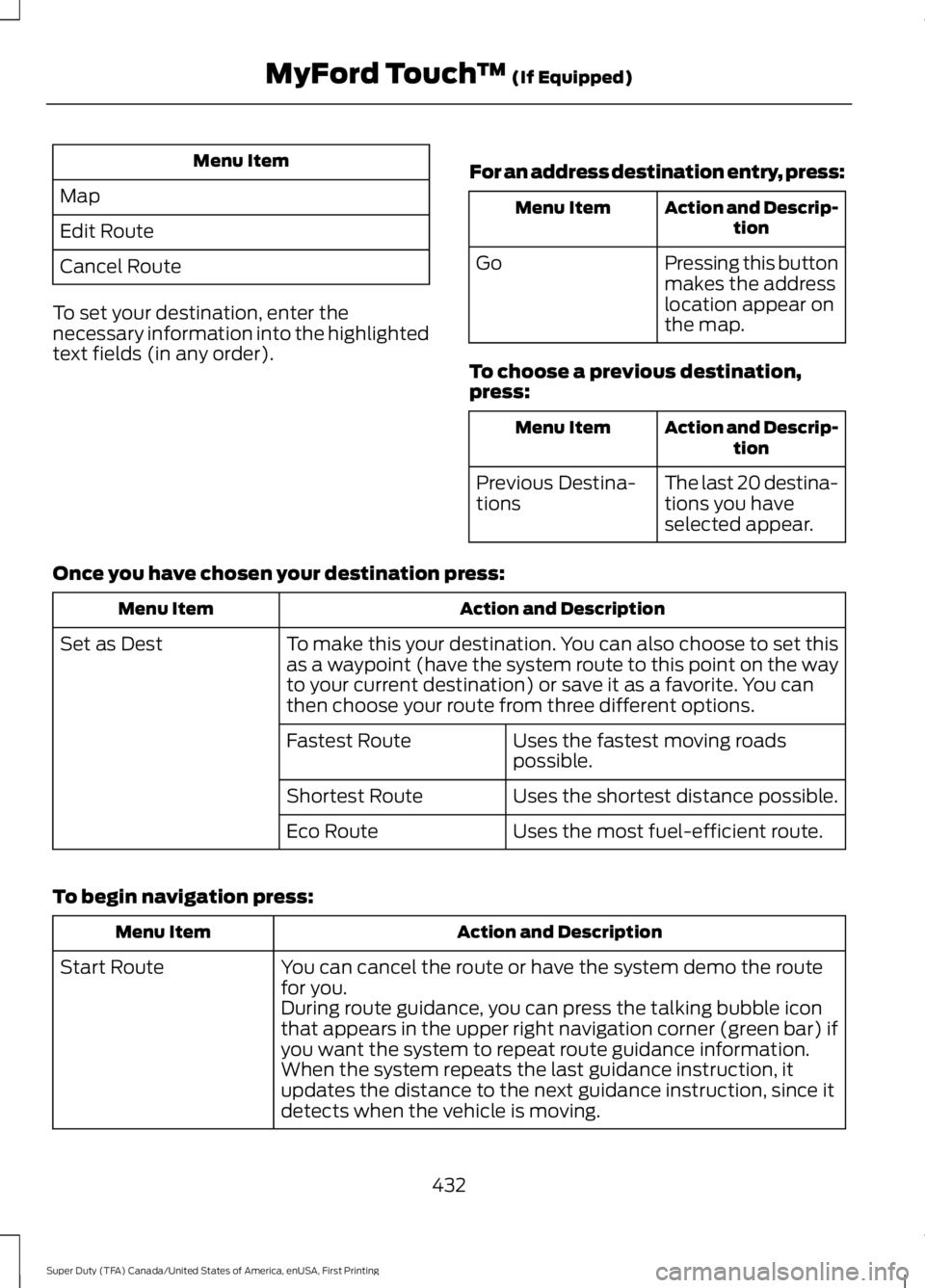

MyFord Touch™ (If Equipped)E142599

Menu Item
Map
Edit Route
Cancel Route
To set your destination, enter thenecessary information into the highlightedtext fields (in any order).
For an address destination entry, press:
Action and Descrip-tionMenu Item
Pressing this buttonmakes the addresslocation appear onthe map.
Go
To choose a previous destination,press:
Action and Descrip-tionMenu Item
The last 20 destina-tions you haveselected appear.
Previous Destina-tions
Once you have chosen your destination press:
Action and DescriptionMenu Item
To make this your destination. You can also choose to set thisas a waypoint (have the system route to this point on the wayto your current destination) or save it as a favorite. You canthen choose your route from three different options.
Set as Dest
Uses the fastest moving roadspossible.Fastest Route
Uses the shortest distance possible.Shortest Route
Uses the most fuel-efficient route.Eco Route
To begin navigation press:
Action and DescriptionMenu Item
You can cancel the route or have the system demo the routefor you.Start Route
During route guidance, you can press the talking bubble iconthat appears in the upper right navigation corner (green bar) ifyou want the system to repeat route guidance information.When the system repeats the last guidance instruction, itupdates the distance to the next guidance instruction, since itdetects when the vehicle is moving.
432
Super Duty (TFA) Canada/United States of America, enUSA, First Printing

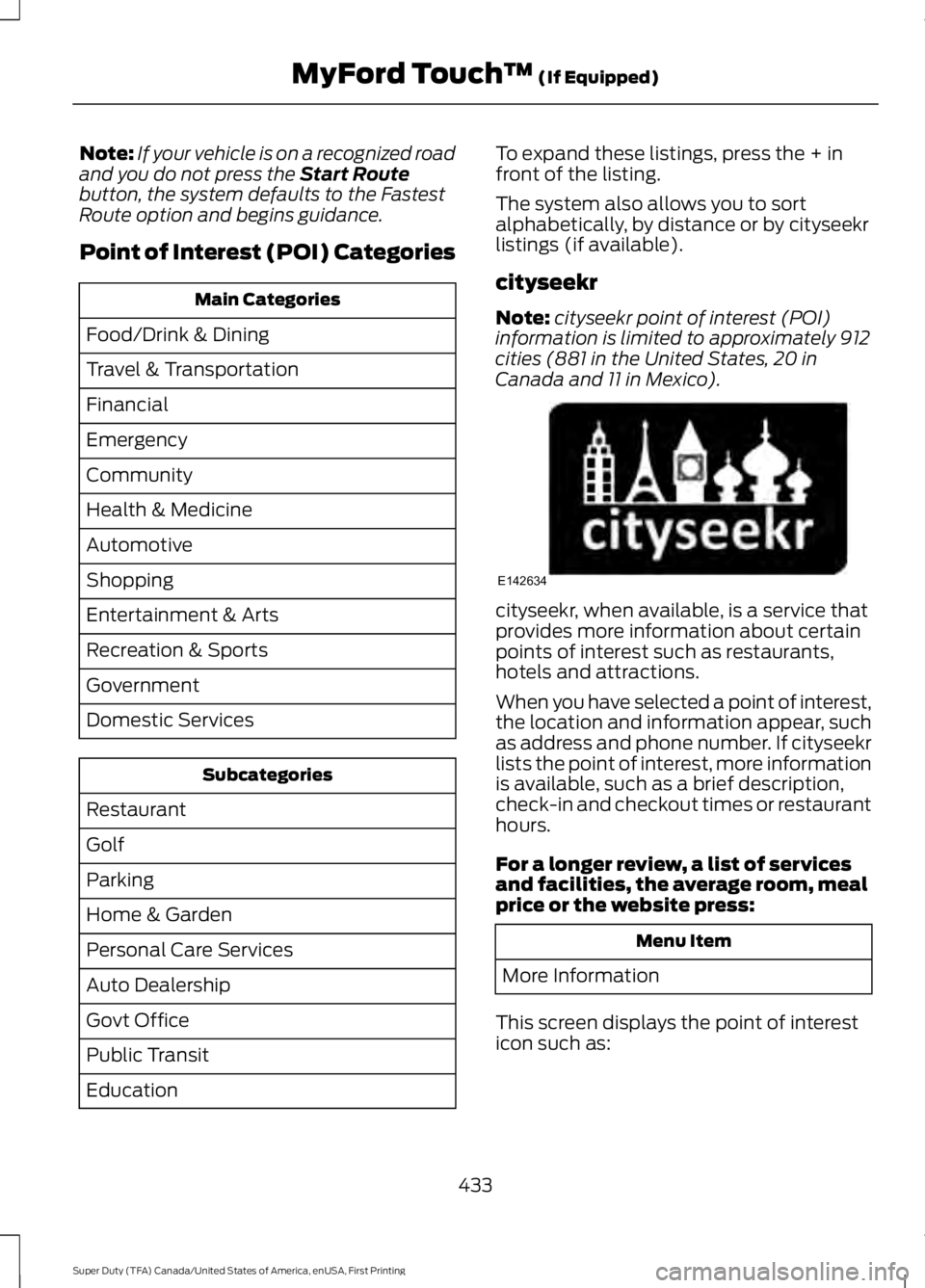

MyFord Touch™ (If Equipped)

Note:If your vehicle is on a recognized roadand you do not press the Start Routebutton, the system defaults to the FastestRoute option and begins guidance.
Point of Interest (POI) Categories
Main Categories
Food/Drink & Dining
Travel & Transportation
Financial
Emergency
Community
Health & Medicine
Automotive
Shopping
Entertainment & Arts
Recreation & Sports
Government
Domestic Services
Subcategories
Restaurant
Golf
Parking
Home & Garden
Personal Care Services
Auto Dealership
Govt Office
Public Transit
Education
To expand these listings, press the + infront of the listing.
The system also allows you to sortalphabetically, by distance or by cityseekrlistings (if available).
cityseekr
Note:cityseekr point of interest (POI)information is limited to approximately 912cities (881 in the United States, 20 inCanada and 11 in Mexico).
cityseekr, when available, is a service thatprovides more information about certainpoints of interest such as restaurants,hotels and attractions.
When you have selected a point of interest,the location and information appear, suchas address and phone number. If cityseekrlists the point of interest, more informationis available, such as a brief description,check-in and checkout times or restauranthours.
For a longer review, a list of servicesand facilities, the average room, mealprice or the website press:
Menu Item
More Information
This screen displays the point of interesticon such as:
433
Super Duty (TFA) Canada/United States of America, enUSA, First Printing

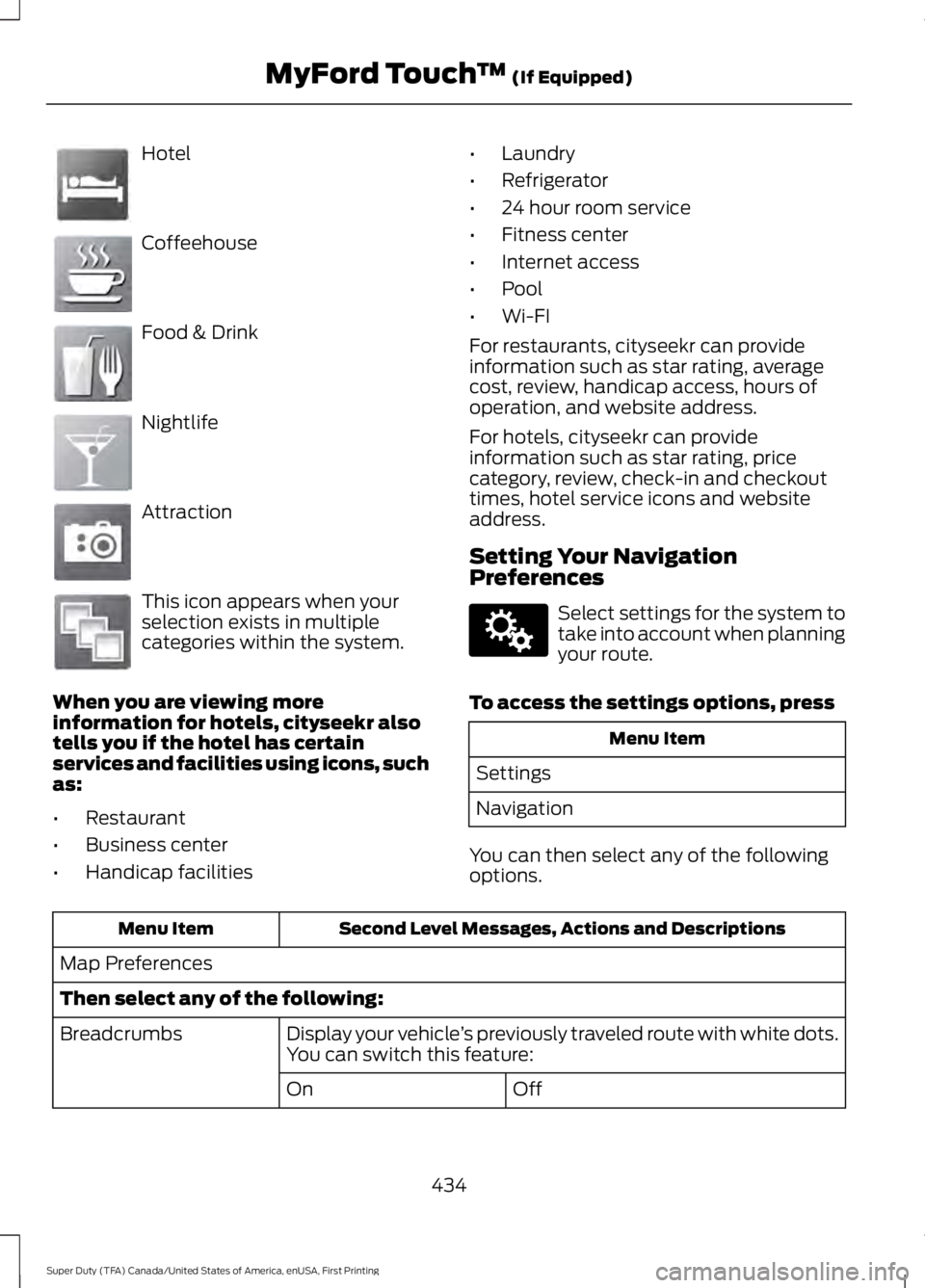

MyFord Touch™ (If Equipped)E142634

Hotel
Coffeehouse
Food & Drink
Nightlife
Attraction
This icon appears when yourselection exists in multiplecategories within the system.
When you are viewing moreinformation for hotels, cityseekr alsotells you if the hotel has certainservices and facilities using icons, suchas:
•Restaurant
•Business center
•Handicap facilities
•Laundry
•Refrigerator
•24 hour room service
•Fitness center
•Internet access
•Pool
•Wi-FI
For restaurants, cityseekr can provideinformation such as star rating, averagecost, review, handicap access, hours ofoperation, and website address.
For hotels, cityseekr can provideinformation such as star rating, pricecategory, review, check-in and checkouttimes, hotel service icons and websiteaddress.
Setting Your NavigationPreferences
Select settings for the system totake into account when planningyour route.
To access the settings options, press
Menu Item
Settings
Navigation
You can then select any of the followingoptions.
Second Level Messages, Actions and DescriptionsMenu Item
Map Preferences
Then select any of the following:
Display your vehicle’s previously traveled route with white dots.You can switch this feature:Breadcrumbs
OffOn
434
Super Duty (TFA) Canada/United States of America, enUSA, First Printing

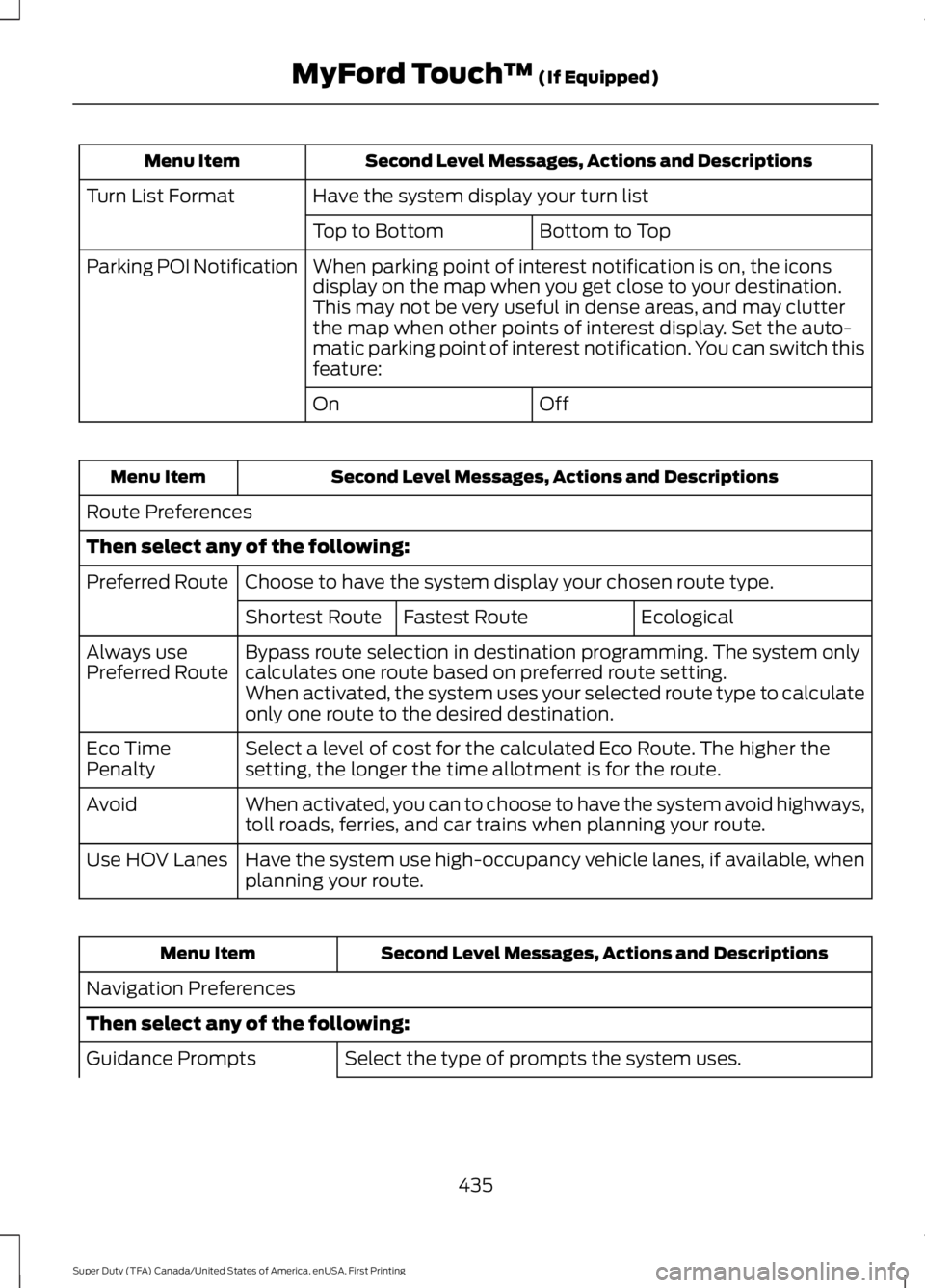

MyFord Touch™ (If Equipped)E143884 E142636 E142637 E142638 E142639 E142640 E142607

Second Level Messages, Actions and DescriptionsMenu Item
Have the system display your turn listTurn List Format
Bottom to TopTop to Bottom
When parking point of interest notification is on, the iconsdisplay on the map when you get close to your destination.This may not be very useful in dense areas, and may clutterthe map when other points of interest display. Set the auto-matic parking point of interest notification. You can switch thisfeature:
Parking POI Notification
OffOn
Second Level Messages, Actions and DescriptionsMenu Item
Route Preferences
Then select any of the following:
Choose to have the system display your chosen route type.Preferred Route
EcologicalFastest RouteShortest Route
Bypass route selection in destination programming. The system onlycalculates one route based on preferred route setting.Always usePreferred RouteWhen activated, the system uses your selected route type to calculateonly one route to the desired destination.
Select a level of cost for the calculated Eco Route. The higher thesetting, the longer the time allotment is for the route.Eco TimePenalty
When activated, you can to choose to have the system avoid highways,toll roads, ferries, and car trains when planning your route.Avoid
Have the system use high-occupancy vehicle lanes, if available, whenplanning your route.Use HOV Lanes
Second Level Messages, Actions and DescriptionsMenu Item
Navigation Preferences
Then select any of the following:
Select the type of prompts the system uses.Guidance Prompts
435
Super Duty (TFA) Canada/United States of America, enUSA, First Printing

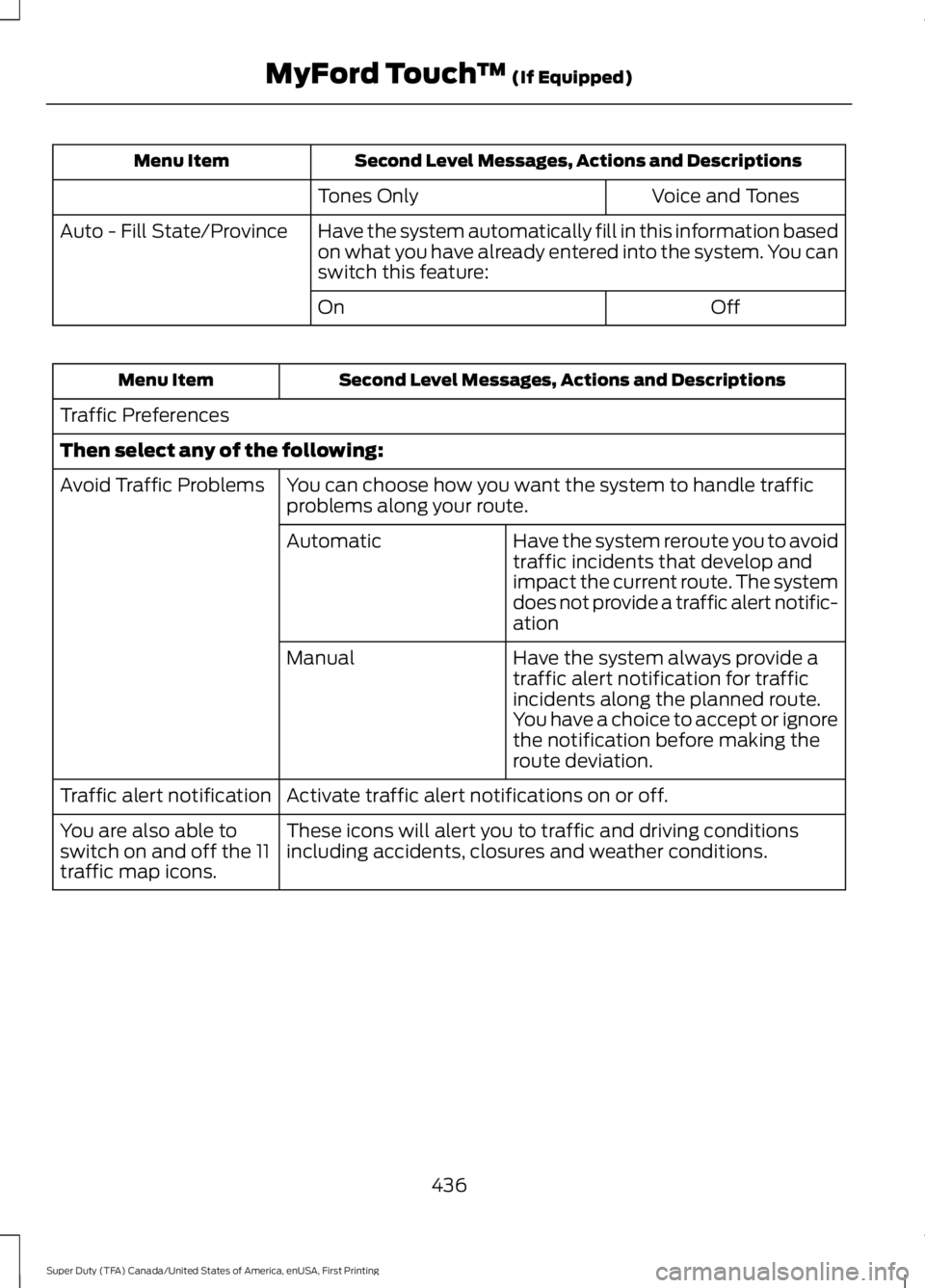

MyFord Touch™ (If Equipped)

Second Level Messages, Actions and DescriptionsMenu Item
Voice and TonesTones Only
Have the system automatically fill in this information basedon what you have already entered into the system. You canswitch this feature:
Auto - Fill State/Province
OffOn
Second Level Messages, Actions and DescriptionsMenu Item
Traffic Preferences
Then select any of the following:
You can choose how you want the system to handle trafficproblems along your route.Avoid Traffic Problems
Have the system reroute you to avoidtraffic incidents that develop andimpact the current route. The systemdoes not provide a traffic alert notific-ation
Automatic
Have the system always provide atraffic alert notification for trafficincidents along the planned route.You have a choice to accept or ignorethe notification before making theroute deviation.
Manual
Activate traffic alert notifications on or off.Traffic alert notification
These icons will alert you to traffic and driving conditionsincluding accidents, closures and weather conditions.You are also able toswitch on and off the 11traffic map icons.
436
Super Duty (TFA) Canada/United States of America, enUSA, First Printing

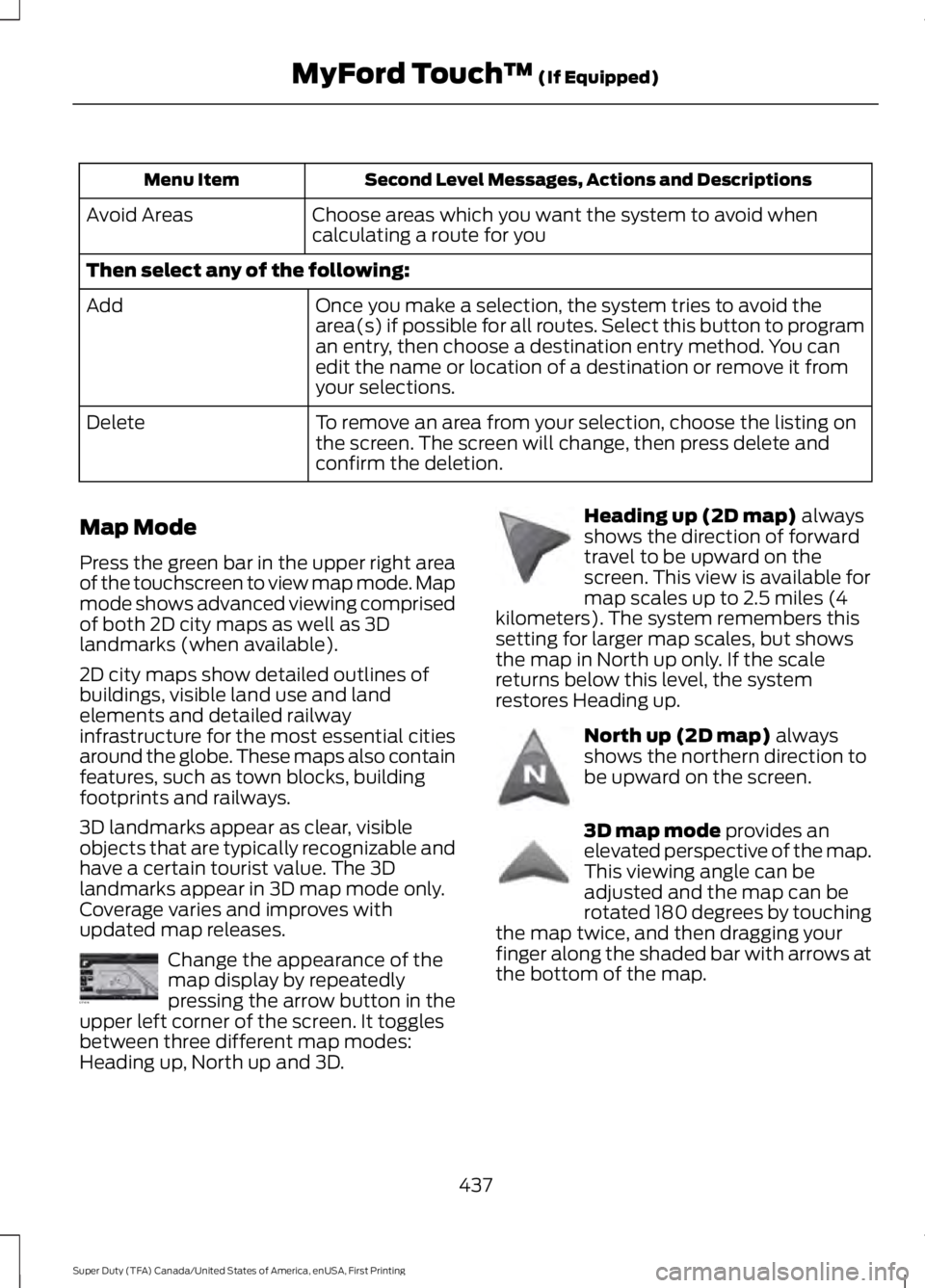

MyFord Touch™ (If Equipped)

Second Level Messages, Actions and DescriptionsMenu Item
Choose areas which you want the system to avoid whencalculating a route for youAvoid Areas
Then select any of the following:
Once you make a selection, the system tries to avoid thearea(s) if possible for all routes. Select this button to programan entry, then choose a destination entry method. You canedit the name or location of a destination or remove it fromyour selections.
Add
To remove an area from your selection, choose the listing onthe screen. The screen will change, then press delete andconfirm the deletion.
Delete
Map Mode
Press the green bar in the upper right areaof the touchscreen to view map mode. Mapmode shows advanced viewing comprisedof both 2D city maps as well as 3Dlandmarks (when available).
2D city maps show detailed outlines ofbuildings, visible land use and landelements and detailed railwayinfrastructure for the most essential citiesaround the globe. These maps also containfeatures, such as town blocks, buildingfootprints and railways.
3D landmarks appear as clear, visibleobjects that are typically recognizable andhave a certain tourist value. The 3Dlandmarks appear in 3D map mode only.Coverage varies and improves withupdated map releases.
Change the appearance of themap display by repeatedlypressing the arrow button in theupper left corner of the screen. It togglesbetween three different map modes:Heading up, North up and 3D.
Heading up (2D map) alwaysshows the direction of forwardtravel to be upward on thescreen. This view is available formap scales up to 2.5 miles (4kilometers). The system remembers thissetting for larger map scales, but showsthe map in North up only. If the scalereturns below this level, the systemrestores Heading up.
North up (2D map) alwaysshows the northern direction tobe upward on the screen.
3D map mode provides anelevated perspective of the map.This viewing angle can beadjusted and the map can berotated 180 degrees by touchingthe map twice, and then dragging yourfinger along the shaded bar with arrows atthe bottom of the map.
437
Super Duty (TFA) Canada/United States of America, enUSA, First Printing
MyFord Touch™ (If Equipped)E174016 E142642 E142643 E142644
