2016 FORD F250 SUPER DUTY Owners Manual

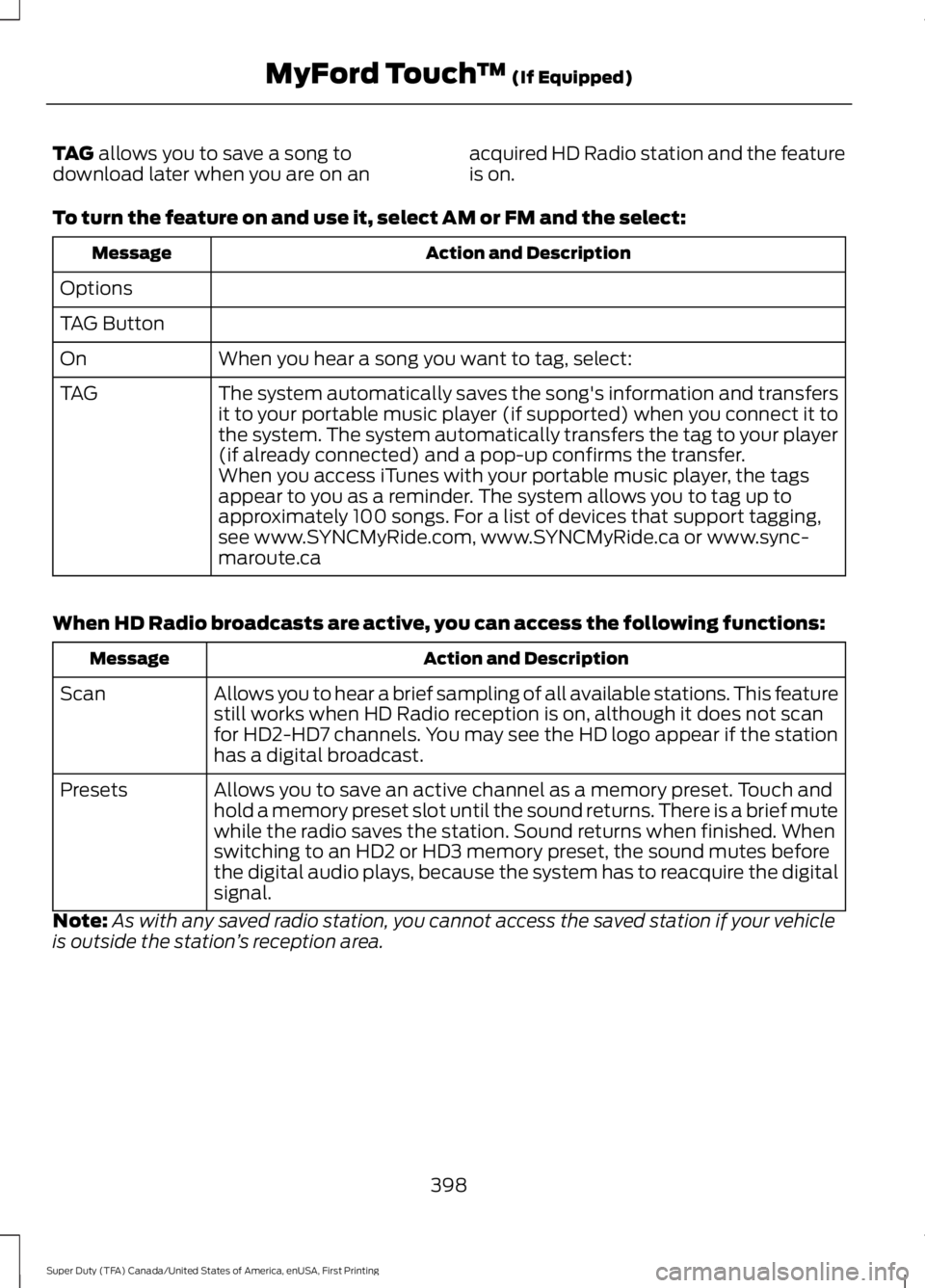

TAG allows you to save a song todownload later when you are on anacquired HD Radio station and the featureis on.
To turn the feature on and use it, select AM or FM and the select:
Action and DescriptionMessage
Options
TAG Button
When you hear a song you want to tag, select:On
The system automatically saves the song's information and transfersit to your portable music player (if supported) when you connect it tothe system. The system automatically transfers the tag to your player(if already connected) and a pop-up confirms the transfer.
TAG
When you access iTunes with your portable music player, the tagsappear to you as a reminder. The system allows you to tag up toapproximately 100 songs. For a list of devices that support tagging,see www.SYNCMyRide.com, www.SYNCMyRide.ca or www.sync-maroute.ca
When HD Radio broadcasts are active, you can access the following functions:
Action and DescriptionMessage
Allows you to hear a brief sampling of all available stations. This featurestill works when HD Radio reception is on, although it does not scanfor HD2-HD7 channels. You may see the HD logo appear if the stationhas a digital broadcast.
Scan
Allows you to save an active channel as a memory preset. Touch andhold a memory preset slot until the sound returns. There is a brief mutewhile the radio saves the station. Sound returns when finished. Whenswitching to an HD2 or HD3 memory preset, the sound mutes beforethe digital audio plays, because the system has to reacquire the digitalsignal.
Presets
Note:As with any saved radio station, you cannot access the saved station if your vehicleis outside the station’s reception area.
398
Super Duty (TFA) Canada/United States of America, enUSA, First Printing
MyFord Touch™ (If Equipped)

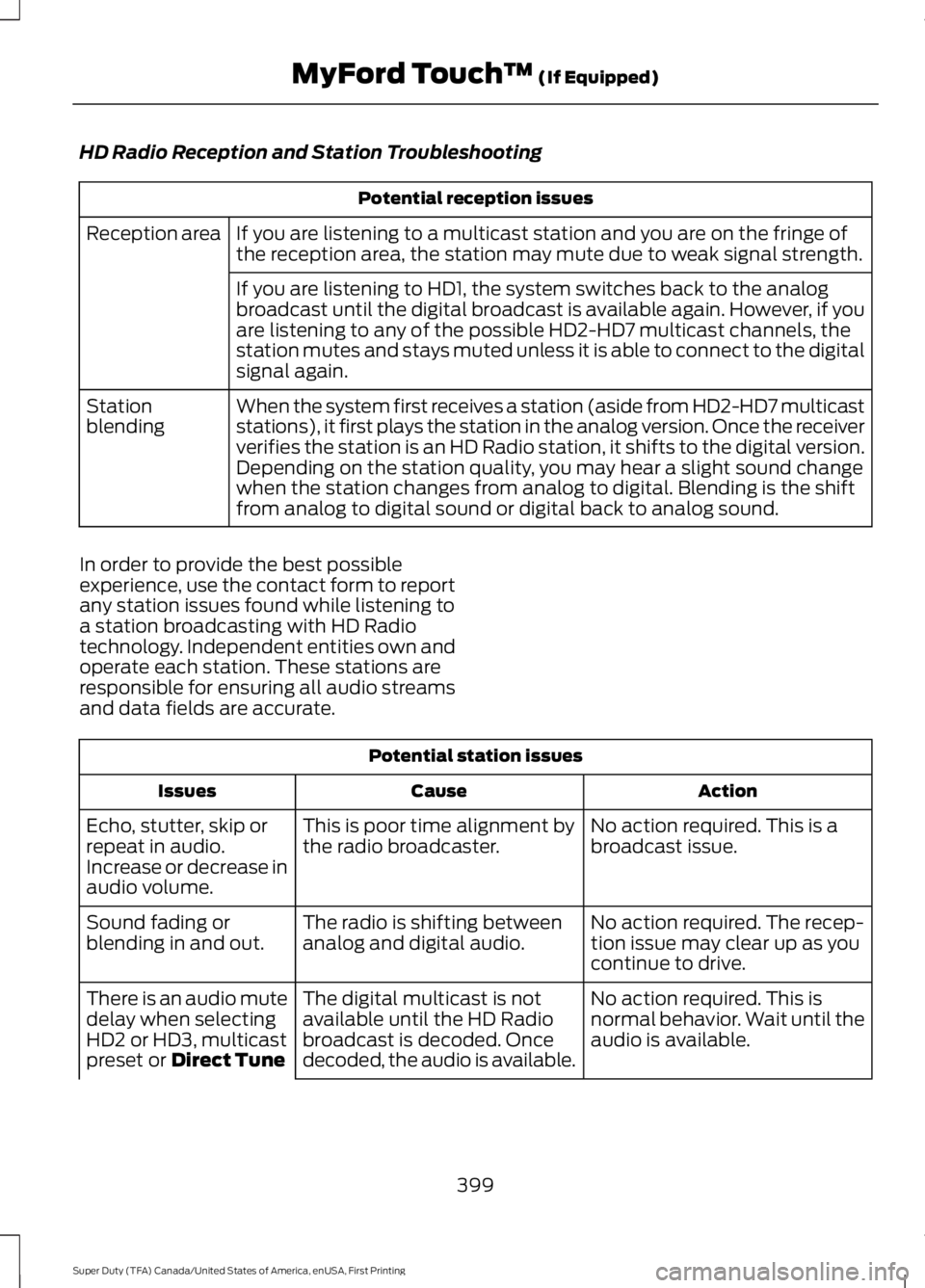

HD Radio Reception and Station Troubleshooting
Potential reception issues
If you are listening to a multicast station and you are on the fringe ofthe reception area, the station may mute due to weak signal strength.Reception area
If you are listening to HD1, the system switches back to the analogbroadcast until the digital broadcast is available again. However, if youare listening to any of the possible HD2-HD7 multicast channels, thestation mutes and stays muted unless it is able to connect to the digitalsignal again.
When the system first receives a station (aside from HD2-HD7 multicaststations), it first plays the station in the analog version. Once the receiververifies the station is an HD Radio station, it shifts to the digital version.Depending on the station quality, you may hear a slight sound changewhen the station changes from analog to digital. Blending is the shiftfrom analog to digital sound or digital back to analog sound.
Stationblending
In order to provide the best possibleexperience, use the contact form to reportany station issues found while listening toa station broadcasting with HD Radiotechnology. Independent entities own andoperate each station. These stations areresponsible for ensuring all audio streamsand data fields are accurate.
Potential station issues
ActionCauseIssues
No action required. This is abroadcast issue.This is poor time alignment bythe radio broadcaster.Echo, stutter, skip orrepeat in audio.Increase or decrease inaudio volume.
No action required. The recep-tion issue may clear up as youcontinue to drive.
The radio is shifting betweenanalog and digital audio.Sound fading orblending in and out.
No action required. This isnormal behavior. Wait until theaudio is available.
The digital multicast is notavailable until the HD Radiobroadcast is decoded. Oncedecoded, the audio is available.
There is an audio mutedelay when selectingHD2 or HD3, multicastpreset or Direct Tune
399
Super Duty (TFA) Canada/United States of America, enUSA, First Printing
MyFord Touch™ (If Equipped)

Potential station issues
ActionCauseIssues
No action required. The stationis not available in your currentlocation.
The previously stored multicastpreset or direct tune is notavailable in your current recep-tion area.
Cannot access HD2 orHD3 multicast channelwhen recalling a presetor from a direct tune.
Fill out the station issue format http://www.ibiquity.com/automotive/report_radio_station_experi-ences
Data service issue by the radiobroadcaster.Text information doesnot match currentlyplaying audio.
Fill out the station issue format http://www.ibiquity.com/automotive/report_radio_station_experi-ences
Data service issue by the radiobroadcaster.There is no textinformation shown forcurrently selectedfrequency.
No action required. This isnormal behavior.This selection disables HD2-HD7 channel search.HD2-HD7 stations notfound when you pressScan
HD Radio Technology manufactured underlicense from iBiquity Digital Corp. U.S. andforeign patents. HD Radio and the HD andHD Radio logos are proprietary trademarksof iBiquity Digital Corp. Ford MotorCompany and iBiquity Digital Corp. are notresponsible for the content sent using HDRadio technology. Content may bechanged, added or deleted at any time atthe station owner's discretion.
Radio Voice Commands
Press the voice button and when prompted say:
Action and DescriptionVoice command
Radio
Then you can say a command similar to the following:
Say a frequency or preset.FM
Off
Help
400
Super Duty (TFA) Canada/United States of America, enUSA, First Printing
MyFord Touch™ (If Equipped)E142599

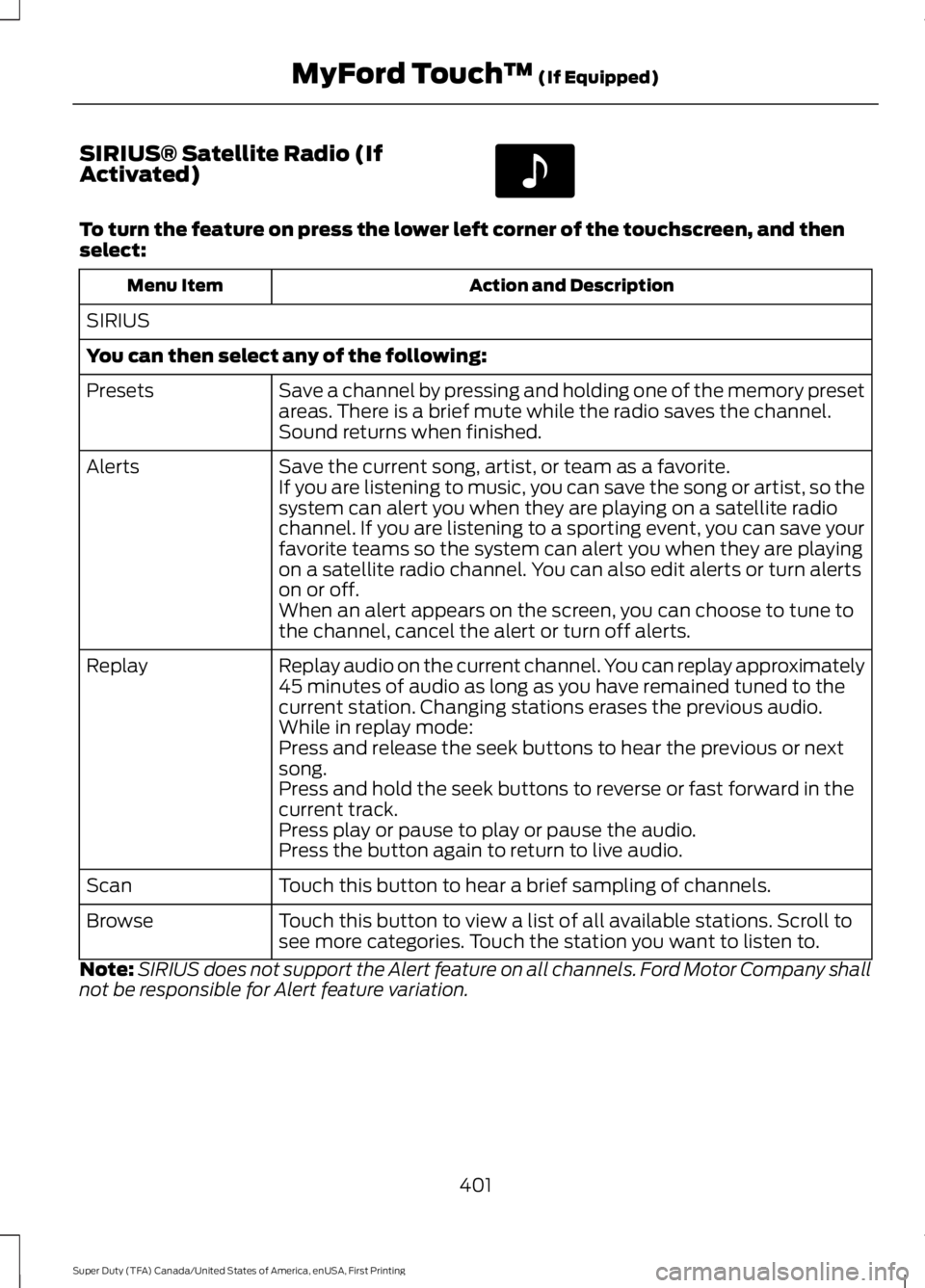

SIRIUS® Satellite Radio (IfActivated)
To turn the feature on press the lower left corner of the touchscreen, and thenselect:
Action and DescriptionMenu Item
SIRIUS
You can then select any of the following:
Save a channel by pressing and holding one of the memory presetareas. There is a brief mute while the radio saves the channel.Sound returns when finished.
Presets
Save the current song, artist, or team as a favorite.AlertsIf you are listening to music, you can save the song or artist, so thesystem can alert you when they are playing on a satellite radiochannel. If you are listening to a sporting event, you can save yourfavorite teams so the system can alert you when they are playingon a satellite radio channel. You can also edit alerts or turn alertson or off.When an alert appears on the screen, you can choose to tune tothe channel, cancel the alert or turn off alerts.
Replay audio on the current channel. You can replay approximately45 minutes of audio as long as you have remained tuned to thecurrent station. Changing stations erases the previous audio.
Replay
While in replay mode:Press and release the seek buttons to hear the previous or nextsong.Press and hold the seek buttons to reverse or fast forward in thecurrent track.Press play or pause to play or pause the audio.Press the button again to return to live audio.
Touch this button to hear a brief sampling of channels.Scan
Touch this button to view a list of all available stations. Scroll tosee more categories. Touch the station you want to listen to.Browse
Note:SIRIUS does not support the Alert feature on all channels. Ford Motor Company shallnot be responsible for Alert feature variation.
401
Super Duty (TFA) Canada/United States of America, enUSA, First Printing
MyFord Touch™ (If Equipped)E142611

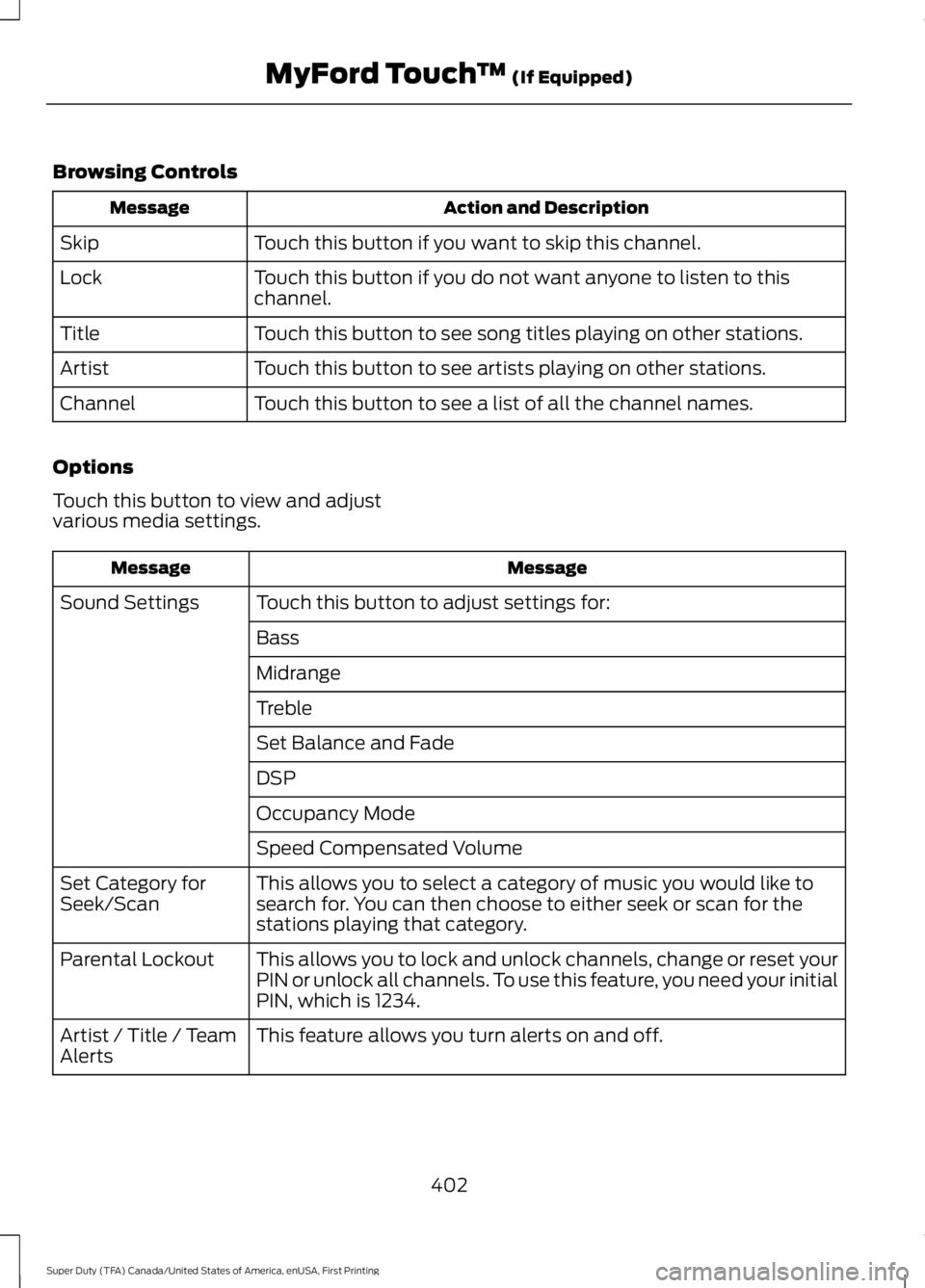

Browsing Controls
Action and DescriptionMessage
Touch this button if you want to skip this channel.Skip
Touch this button if you do not want anyone to listen to thischannel.Lock
Touch this button to see song titles playing on other stations.Title
Touch this button to see artists playing on other stations.Artist
Touch this button to see a list of all the channel names.Channel
Options
Touch this button to view and adjustvarious media settings.
MessageMessage
Touch this button to adjust settings for:Sound Settings
Bass
Midrange
Treble
Set Balance and Fade
DSP
Occupancy Mode
Speed Compensated Volume
This allows you to select a category of music you would like tosearch for. You can then choose to either seek or scan for thestations playing that category.
Set Category forSeek/Scan
This allows you to lock and unlock channels, change or reset yourPIN or unlock all channels. To use this feature, you need your initialPIN, which is 1234.
Parental Lockout
This feature allows you turn alerts on and off.Artist / Title / TeamAlerts
402
Super Duty (TFA) Canada/United States of America, enUSA, First Printing
MyFord Touch™ (If Equipped)

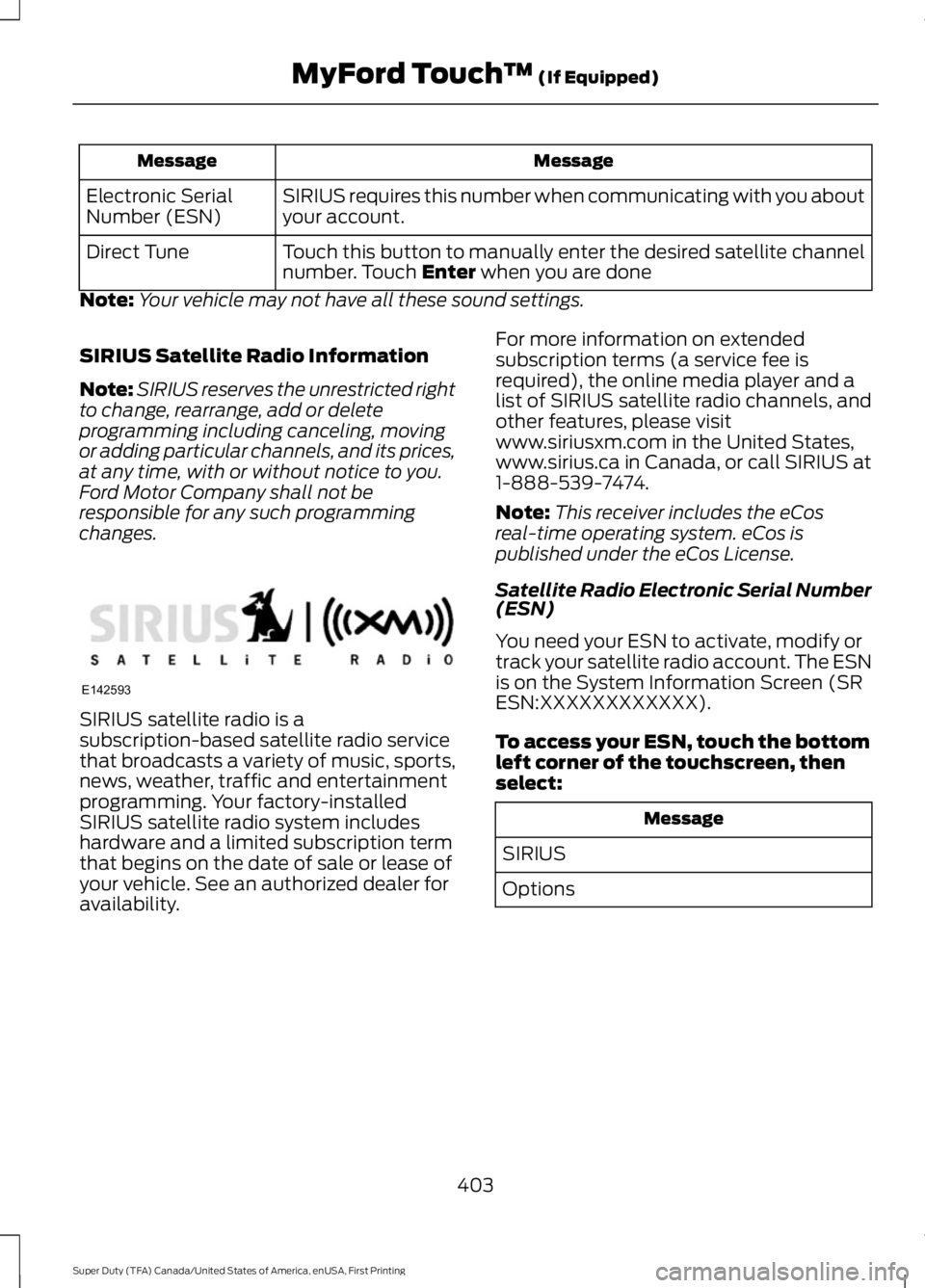

MessageMessage
SIRIUS requires this number when communicating with you aboutyour account.Electronic SerialNumber (ESN)
Touch this button to manually enter the desired satellite channelnumber. Touch Enter when you are doneDirect Tune
Note:Your vehicle may not have all these sound settings.
SIRIUS Satellite Radio Information
Note:SIRIUS reserves the unrestricted rightto change, rearrange, add or deleteprogramming including canceling, movingor adding particular channels, and its prices,at any time, with or without notice to you.Ford Motor Company shall not beresponsible for any such programmingchanges.
SIRIUS satellite radio is asubscription-based satellite radio servicethat broadcasts a variety of music, sports,news, weather, traffic and entertainmentprogramming. Your factory-installedSIRIUS satellite radio system includeshardware and a limited subscription termthat begins on the date of sale or lease ofyour vehicle. See an authorized dealer foravailability.
For more information on extendedsubscription terms (a service fee isrequired), the online media player and alist of SIRIUS satellite radio channels, andother features, please visitwww.siriusxm.com in the United States,www.sirius.ca in Canada, or call SIRIUS at1-888-539-7474.
Note:This receiver includes the eCosreal-time operating system. eCos ispublished under the eCos License.
Satellite Radio Electronic Serial Number(ESN)
You need your ESN to activate, modify ortrack your satellite radio account. The ESNis on the System Information Screen (SRESN:XXXXXXXXXXXX).
To access your ESN, touch the bottomleft corner of the touchscreen, thenselect:
Message
SIRIUS
Options
403
Super Duty (TFA) Canada/United States of America, enUSA, First Printing
MyFord Touch™ (If Equipped)E142593

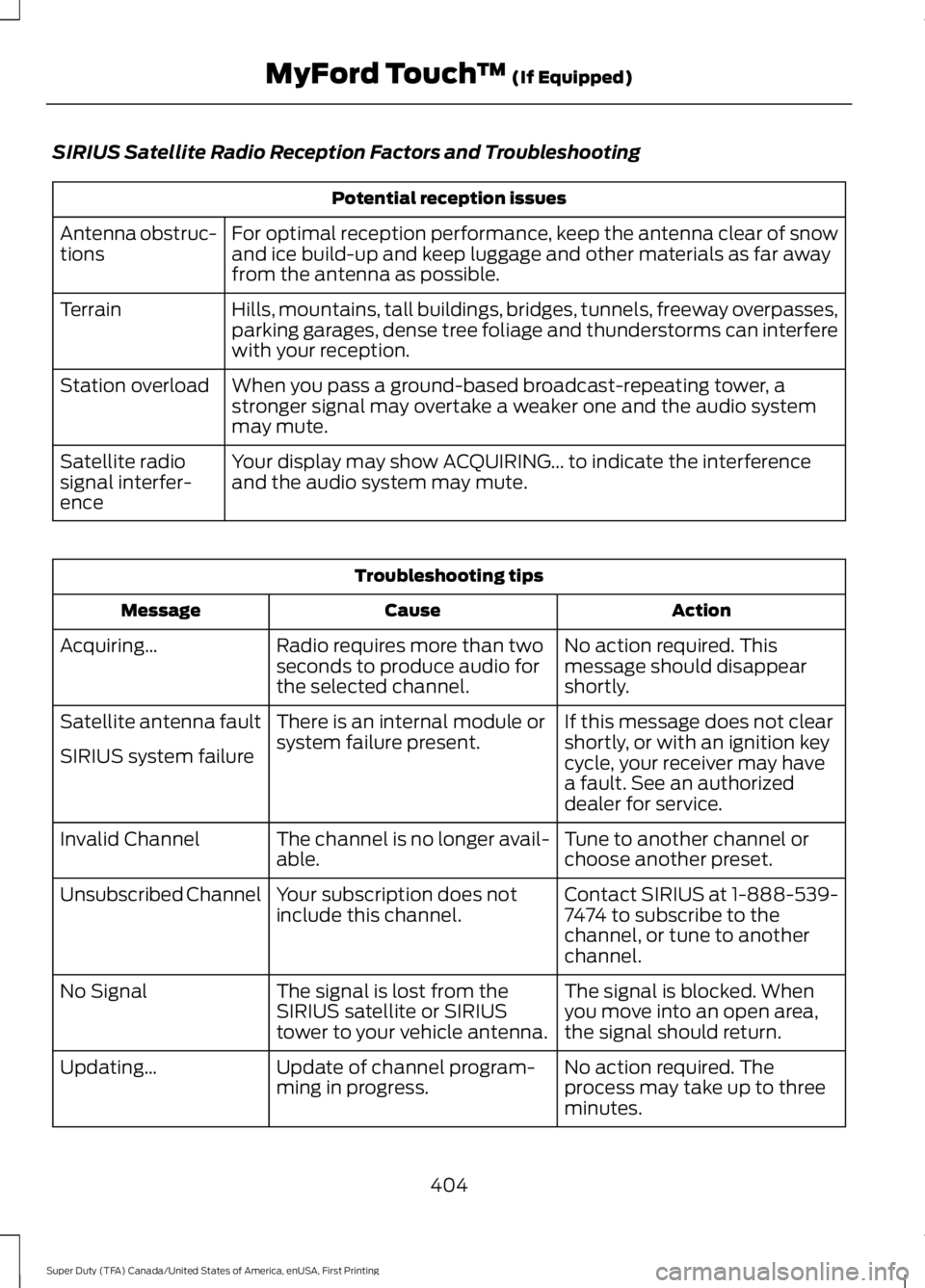

SIRIUS Satellite Radio Reception Factors and Troubleshooting
Potential reception issues
For optimal reception performance, keep the antenna clear of snowand ice build-up and keep luggage and other materials as far awayfrom the antenna as possible.
Antenna obstruc-tions
Hills, mountains, tall buildings, bridges, tunnels, freeway overpasses,parking garages, dense tree foliage and thunderstorms can interferewith your reception.
Terrain
When you pass a ground-based broadcast-repeating tower, astronger signal may overtake a weaker one and the audio systemmay mute.
Station overload
Your display may show ACQUIRING... to indicate the interferenceand the audio system may mute.Satellite radiosignal interfer-ence
Troubleshooting tips
ActionCauseMessage
No action required. Thismessage should disappearshortly.
Radio requires more than twoseconds to produce audio forthe selected channel.
Acquiring…
If this message does not clearshortly, or with an ignition keycycle, your receiver may havea fault. See an authorizeddealer for service.
There is an internal module orsystem failure present.Satellite antenna fault
SIRIUS system failure
Tune to another channel orchoose another preset.The channel is no longer avail-able.Invalid Channel
Contact SIRIUS at 1-888-539-7474 to subscribe to thechannel, or tune to anotherchannel.
Your subscription does notinclude this channel.Unsubscribed Channel
The signal is blocked. Whenyou move into an open area,the signal should return.
The signal is lost from theSIRIUS satellite or SIRIUStower to your vehicle antenna.
No Signal
No action required. Theprocess may take up to threeminutes.
Update of channel program-ming in progress.Updating…
404
Super Duty (TFA) Canada/United States of America, enUSA, First Printing
MyFord Touch™ (If Equipped)

Troubleshooting tips
ActionCauseMessage
Contact SIRIUS at 1-888-539-7474 to resolve subscriptionissues.
Your satellite service is nolonger available.Questions? Call
1-888-539-7474
Use the channel guide to turnoff the Lock or Skip function onthat station.
All the channels in the selectedcategory are either skipped orlocked.
None found
Check Channel Guide
No action required.SIRIUS has updated the chan-nels available for your vehicle.Subscription Updated
SIRIUS Satellite Radio VoiceCommands
If you are listening to SIRIUSsatellite radio, press the voicebutton on the steering wheelcontrols. You will hear a prompt, you canthen say any of the commands in thefollowing table.
If you are not listening to SIRIUSsatellite radio, press the voice buttonand, after the tones press the voicebutton and when prompted say:
Voice command
Sirius
You can then say any of the followingor a similar command:
SAT 1
Voice command
Sports Games
Tune
Help
You can also say the name of any Siriusstation, such as “The Highway” or “DeepTracks”, to listen to that station.
CD
To access, press the lower left corneron the touchscreen, then select:
Menu Item
CD
405
Super Duty (TFA) Canada/United States of America, enUSA, First Printing
MyFord Touch™ (If Equipped)E142599 E142611
