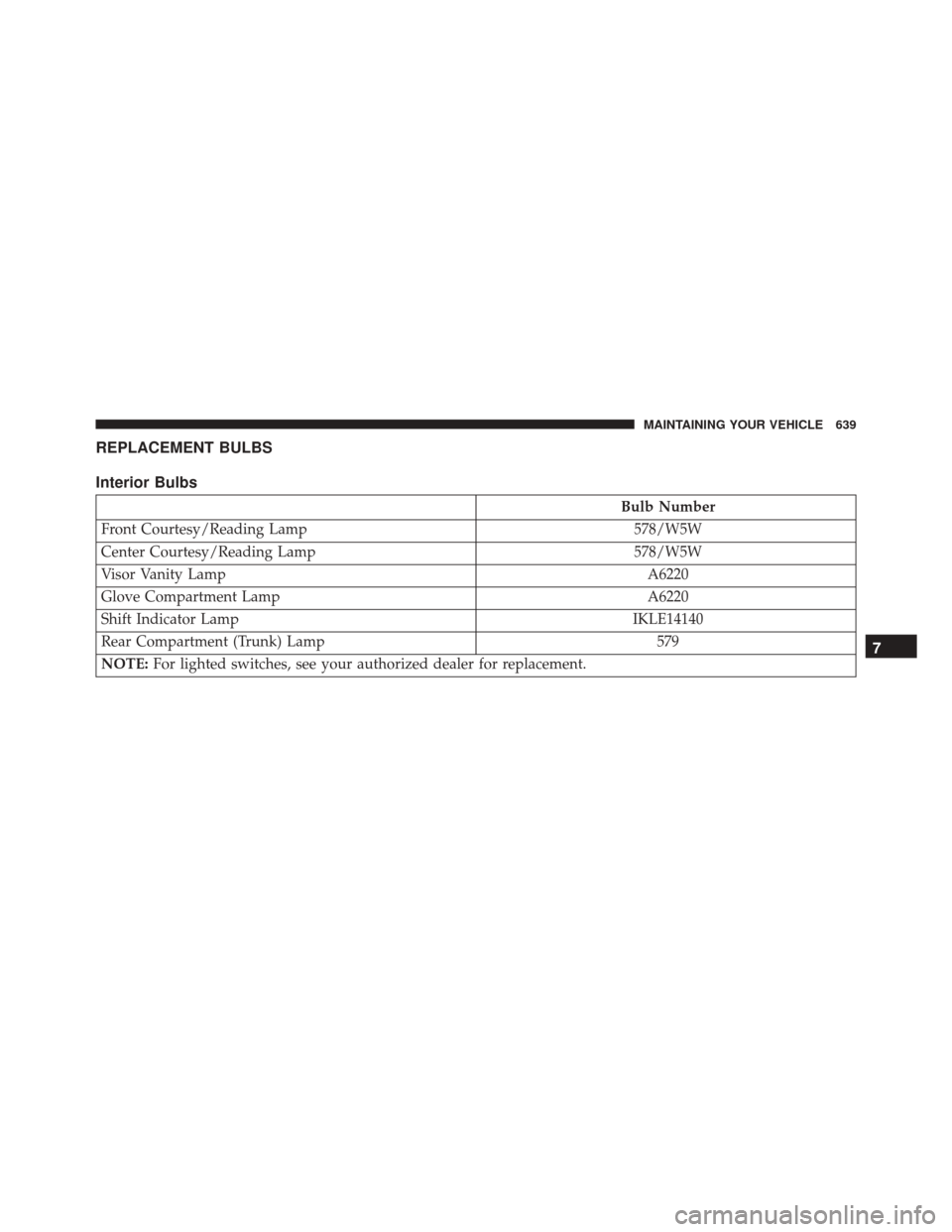

REPLACEMENT BULBS
Interior Bulbs
Bulb Number
Front Courtesy/Reading Lamp 578/W5W
Center Courtesy/Reading Lamp 578/W5W
Visor Vanity Lamp A6220
Glove Compartment Lamp A6220
Shift Indicator Lamp IKLE14140
Rear Compartment (Trunk) Lamp 579
NOTE: For lighted switches, see your authorized dealer for replacement.
7
MAINTAINING YOUR VEHICLE 639

Exterior Bulbs
Bulb Number
High Intensity Discharge Headlamp HID (Serviced at Authorized Dealer)
Bi-Halogen Headlamp 9005HL+
Daytime Running Lamp LED (Serviced at Authorized Dealer)
Front Turn Signal Lamp PWY24W SV
Side Marker Lamp W3W
Front Park Lamp LED (Serviced at Authorized Dealer)
Front Fog Lamp H11
LED Front Fog Lamp LED (Serviced at Authorized Dealer)
Center High Mounted Stop (CHMSL) Lamp LED (Serviced at Authorized Dealer)
Stop/Turn Signal Lamp W21W
Rear Tail/Side Marker Lamp LED (Serviced at Authorized Dealer)
Backup Lamp 921
License Lamp W5W
640 MAINTAINING YOUR VEHICLE

BULB REPLACEMENT
NOTE:Lens fogging can occur under certain atmo-
spheric conditions. This will usually clear as atmospheric
conditions change to allow the condensation to change
back into a vapor. Turning the lamps on will usually
accelerate the clearing process.
Low Beam And High Beam Headlamps
Bi-Xenon High Intensity Discharge (HID)
Headlamps — If Equipped
The headlamps contain a type of high voltage discharge
light source. High voltage can remain in the circuit even
with the headlamp switch off. Because of this, you should
not attempt to service a HID headlamp light source
yourself. If an HID headlamp light source fails, take your
vehicle to an authorized dealer for service. NOTE:
On vehicles equipped with HID headlamps,
when the headlamps are turned on, there is a blue hue to
the lights. This diminishes and becomes more white after
approximately 10 seconds, as the system charges.
WARNING!
A transient high voltage occurs at the bulb sockets of
HID headlamps when the headlamp switch is turned
ON. It may cause serious electrical shock or electro-
cution if not serviced properly. See your authorized
dealer for service.
Bi-Halogen Headlamps
1. Remove the top pushpin on the headlamp access door in the wheel liner to access the headlamp assembly.
7
MAINTAINING YOUR VEHICLE 641

2. Reach behind the headlamp housing to access theheadlamp bulb cap.
3. Firmly grasp the headlamp bulb cap and rotate it counterclockwise to unlock it. 4. Firmly grasp the headlamp bulb socket assembly and
rotate counterclockwise to remove from the housing.
Access DoorHeadlamp Bulb Cap
642 MAINTAINING YOUR VEHICLE

5. Disconnect the bulb from the electrical connector andthen connect the replacement bulb.CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.
Headlamp Bulb SocketHeadlamp Bulb
7
MAINTAINING YOUR VEHICLE 643

6. Install the bulb and connector assembly into theheadlamp housing and rotate clockwise to lock it in
place.
7. Install the headlamp bulb cap in the headlamp hous- ing and rotate clockwise to lock it in place.
8. Lock headlamp access door in wheel liner.
Front Turn Signal Lamp
1. Open the hood.
NOTE: Removal of the air cleaner filter housing may be
necessary prior to replacing bulbs in the lamp assembly
on the passenger side of the vehicle.
2. Remove the beauty cover, by removing all push pins and lifting beauty cover. 3. Remove the brace by removing the four fasteners and
loosening the 5th inboard fastener.
4. Twist the front turn signal lamp socket assembly counterclockwise, and then remove the front turn
signal lamp assembly from the lamp housing.
Beauty Cover
644 MAINTAINING YOUR VEHICLE

5. Pull the bulb out of the socket and insert the replace-ment bulb.
6. Install the front turn signal lamp socket assembly into the housing, and rotate the front turn signal lamp
socket clockwise to lock it in place. 7. Install air cleaner filter housing, if removed.
8. Install brace, brace bolts and tighten as shown.
9. Install beauty cover.
Front Turn Signal Lamp Socket
Brace Bolt Tightening Sequence
7
MAINTAINING YOUR VEHICLE 645

Front Side Marker Lamps
1. Remove the three fasteners from the inner wheel linerand carefully peel back liner for access.
2. Firmly grasp the front side marker lamp socket and rotate 1/4 turn counterclockwise to remove it from the
lamp assembly. 3. Remove bulb from the front side marker lamp socket
and replace with a new bulb.
4. Install front side marker lamp socket in lamp assembly and rotate 1/4 turn clockwise to lock into place.
5. Position the inner wheel liner in place and install the three fasteners.
Inner Wheel Liner Fasteners
Front Side Marker Lamp Bulb Removal
