Front Fog Lamp
1. Remove the three fasteners from the lower closeout,and peel down the lower closeout.
2. Reach behind the fog lamp housing to access the bulb. 3. Rotate the front fog lamp socket counterclockwise,
and remove the bulb and socket assembly from the
front fog lamp housing.
4. Pull the bulb out of the socket and insert the replace- ment bulb.
Lower CloseoutFront Fog Lamp Socket
7
MAINTAINING YOUR VEHICLE 647

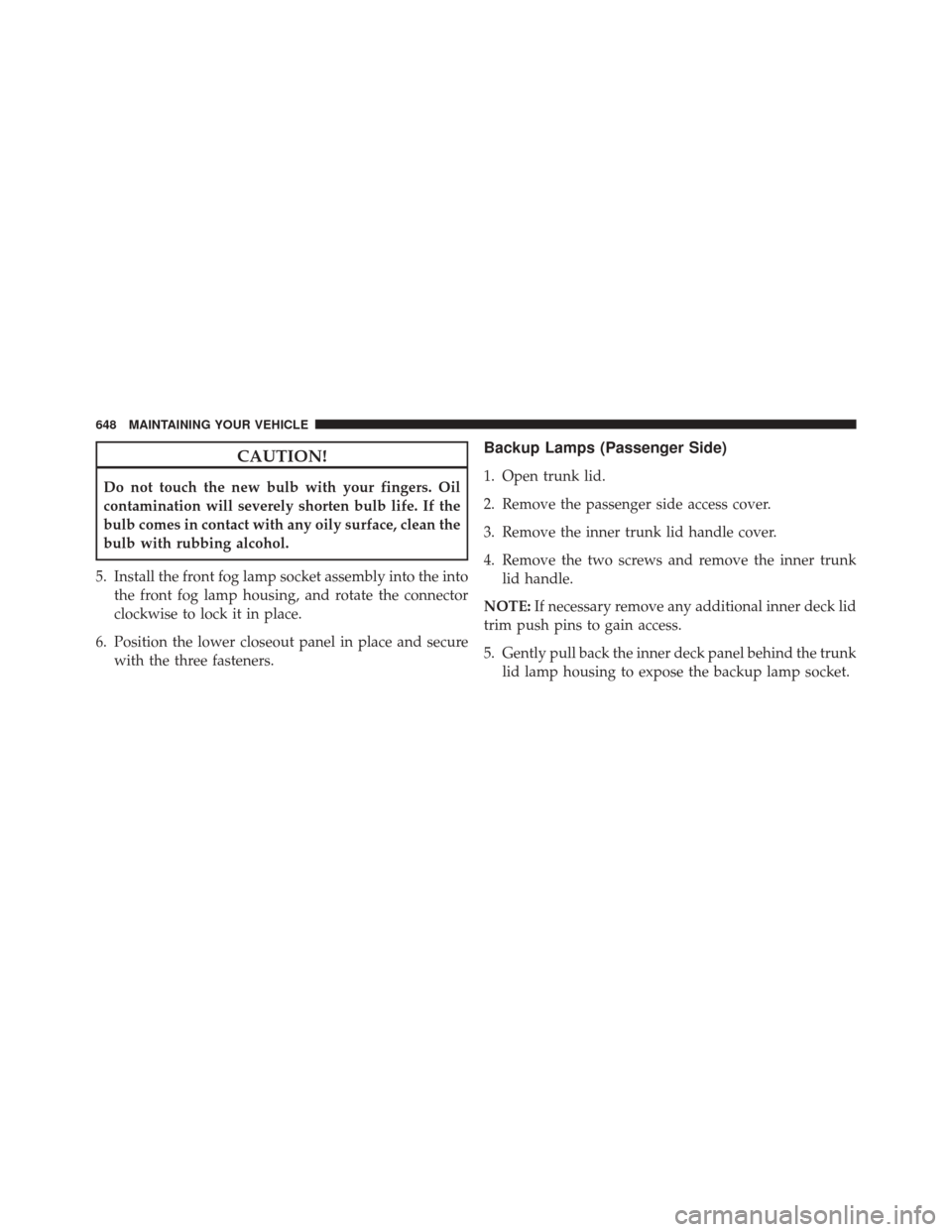

CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.
5. Install the front fog lamp socket assembly into the into the front fog lamp housing, and rotate the connector
clockwise to lock it in place.
6. Position the lower closeout panel in place and secure with the three fasteners.
Backup Lamps (Passenger Side)
1. Open trunk lid.
2. Remove the passenger side access cover.
3. Remove the inner trunk lid handle cover.
4. Remove the two screws and remove the inner trunklid handle.
NOTE: If necessary remove any additional inner deck lid
trim push pins to gain access.
5. Gently pull back the inner deck panel behind the trunk lid lamp housing to expose the backup lamp socket.
648 MAINTAINING YOUR VEHICLE

6. Rotate the backup lamp socket counter clockwise 1/4turn to remove the backup lamp socket from the trunk
lid lamp housing.
Backup Lamp Socket
7. Remove the bulb from the socket and install thereplacement bulb.
8. Install the backup lamp socket into the trunk lid lamp housing.
Inner Deck Panel
7
MAINTAINING YOUR VEHICLE 649

9. Rotate backup lamp socket clockwise 1/4 turn to lockit into place.
10. Reposition the inner deck panel and secure with a push pin if removed.
11. Install access cover.
Backup Lamps (Driver Side)
1. Open trunk lid.
2. Remove the drivers side access cover.
3. Remove inner deck lid support push pin.
NOTE: If necessary remove any additional inner deck lid
trim push pins to gain access.
4. Gently pull back the inner deck panel behind the trunk lid lamp housing to expose the backup lamp socket.
NOTE: passenger side shown the drivers side is similar.
Backup Lamp Socket
5. Rotate the backup lamp socket counter clockwise 1/4
turn to remove the backup lamp socket from the trunk
lid lamp housing.
6. Remove the bulb from the socket and install the replacement bulb.
650 MAINTAINING YOUR VEHICLE

7. Install the backup lamp socket into the trunk lid lamphousing.
8. Rotate backup lamp socket clockwise 1/4 turn to lock it into place.
9. Reposition the inner deck panel and secure with a push pin if removed.
10. Install the access cover.
Stop/Rear Turn Signal Lamp
1. Open the trunk lid.
2. Remove the tail lamp housing beauty cover by grasp- ing the top edge and pulling rearward to expose the
tail lamp housing bolts. 3. Remove the tail lamp housing bolts
Tail Lamp Beauty Cover
7
MAINTAINING YOUR VEHICLE 651

4. Pull the tail lamp housing directly rearward to dis-lodge the two out bored ball studs from the socket
fasteners.
NOTE: It may be necessary to use significant force to
remove the two out bored ball studs from the socket
fasteners to remove the tail lamp housing. 5. Rotate the stop/rear turn signal lamp socket 1/4 turn
counterclockwise and remove it from the tail lamp
housing.
6. Remove the bulb from the socket and install the replacement bulb.
7. Install the bulb socket into the tail lamp housing and rotate the bulb socket ¼ turn clockwise to lock it in
place.
8. Install the tail lamp housing.
9. Install the tail lamp housing beauty cover.
License Plate Lamp
1. Remove the screw of the license plate lamp assembly and pull down on the license plate lamp assembly to
remove.
2. Remove the bulb from the socket and install the replacement bulb.
3. Install the license plate lamp assembly.
Tail Lamp Bolts
652 MAINTAINING YOUR VEHICLE

FLUID CAPACITIES
U.S.Metric
Fuel (Approximate)
2.4L and 3.6L Engines 15.8 Gallons60 Liters
Engine Oil With Filter
2.4 Liter Engine (SAE 0W-20, API Certified) 5.5 Quarts5.2 Liters
3.6 Liter Engine (SAE 5W-20, API Certified) 6 Quarts5.6 Liters
Cooling System*
2.4 Liter Engine (MOPAR Antifreeze/Engine Coolant
10 Year/150,000 Mile Formula) 7.2 Quarts
6.8 Liters
3.6 Liter Engine (MOPAR Antifreeze/Engine Coolant
10 Year/150,000 Mile Formula) 8.7 Quarts
8.2 Liters
* Includes heater and coolant reservoir filled to MAX level.
7
MAINTAINING YOUR VEHICLE 653

FLUIDS, LUBRICANTS, AND GENUINE PARTS
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine Coolant We recommend you use MOPAR Antifreeze/Coolant 10
Year/150,000 Mile Formula OAT (Organic Additive Tech-
nology) or equivalent meeting the requirements of FCA
Material Standard MS.90032.
Engine Oil – 2.4L Engine We recommend you use SAE 0W-20 API Certified Engine
Oil, meeting the requirements of FCA US Material Stan-
dard MS-6395 such as MOPAR, Pennzoil, and Shell Helix.
Refer to your engine oil filler cap for correct SAE grade.
Engine Oil – 3.6L Engine We recommend you use API Certified SAE 5W-20 Engine
Oil, meeting the requirements of FCA US Material Stan-
dard MS-6395 such as MOPAR, Pennzoil, and Shell Helix.
Refer to your engine oil filler cap for correct SAE grade.
