FUEL PUMP SYSTEM
9-59
EAS2GB2383

ELECTRICAL COMPONENTS
9-60 ELECTRICAL COMPONENTS
EAS2GB2384
910
11
1
3
2
456
7
8

ELECTRICAL COMPONENTS
9-61

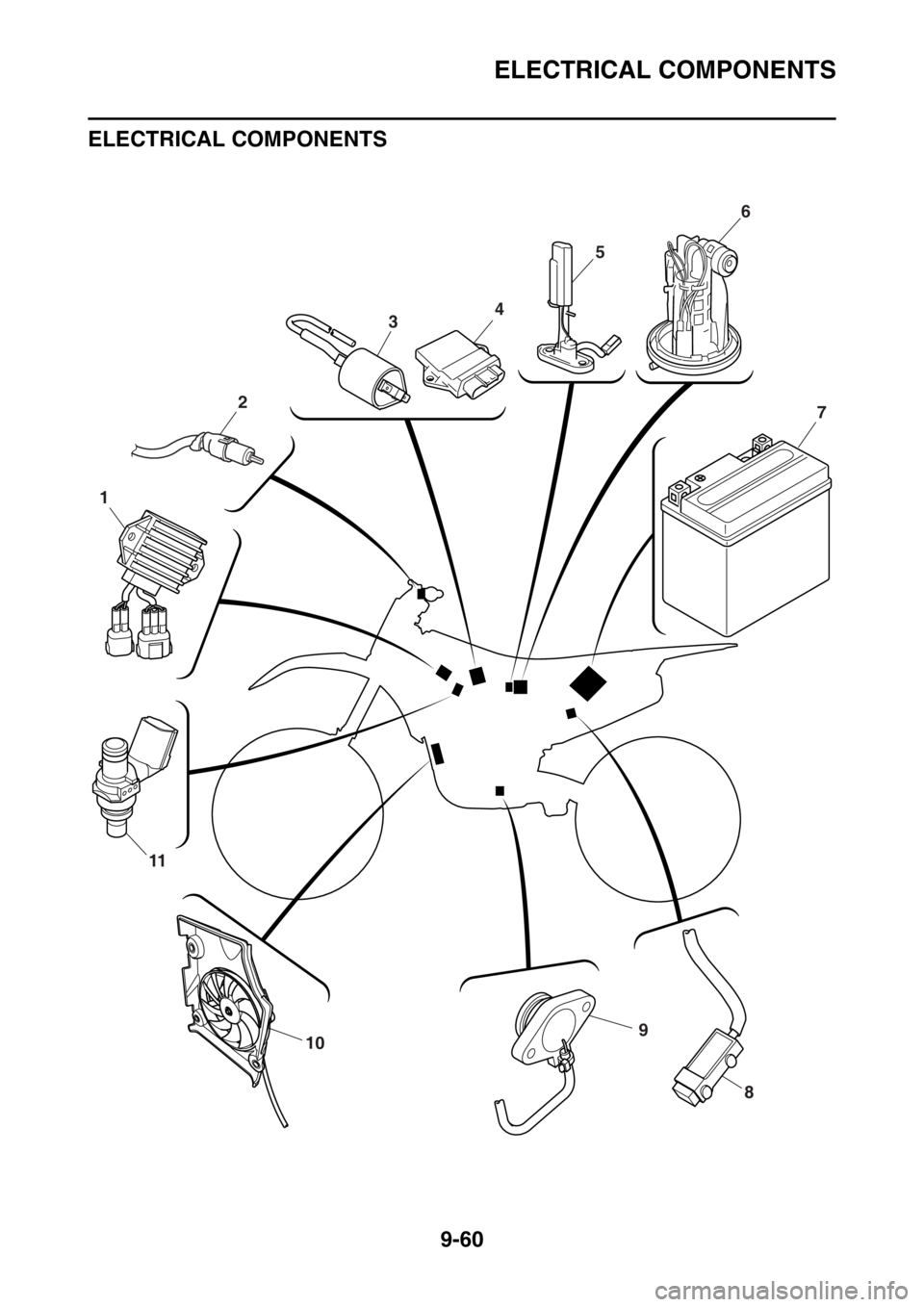

1. Rectifier/regulator
2. Clutch switch
3. Ignition coil
4. ECU (engine control unit)
5. Fuel sender
6. Fuel pump
7. Battery
8. Resistor
9. Neutral switch
10.Radiator fan motor
11.Injector

ELECTRICAL COMPONENTS
9-62
12
1110
2
3
1
6
7
4
5
8
9

ELECTRICAL COMPONENTS
9-63

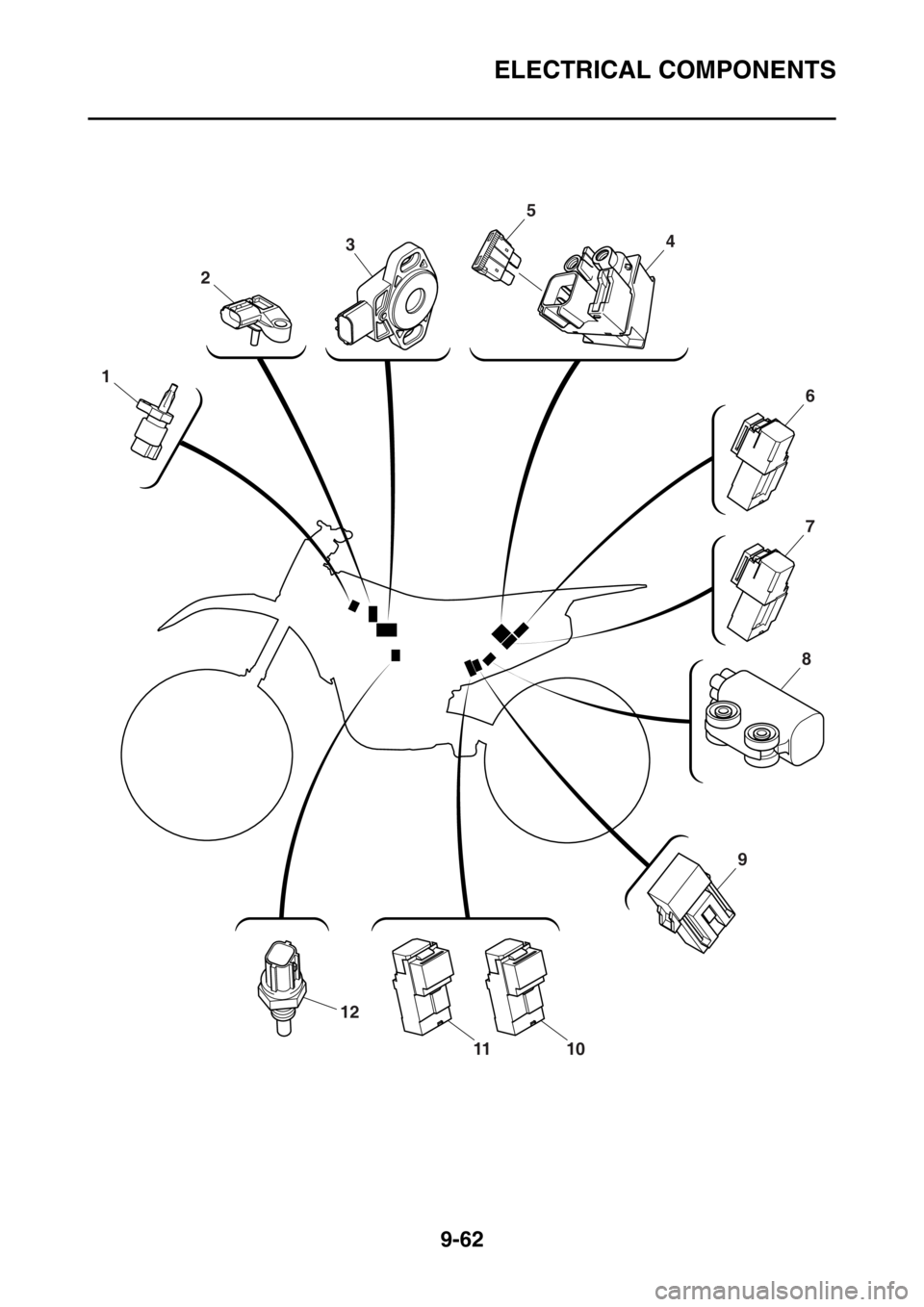

1. Intake air temperature sensor
2. Intake air pressure sensor
3. Throttle position sensor
4. Starter relay
5. Main fuse
6. Headlight relay
7. Starting circuit cut-off relay
8. Lean angle sensor
9. Radiator fan motor fuse
10.Radiator fan motor relay
11.Main relay
12.Coolant temperature sensor

ELECTRICAL COMPONENTS
9-64
EAS2GB2385CHECKING THE SWITCHES
4
1
3
2
E B
S
E B
E BE
E BB

ELECTRICAL COMPONENTS
9-65

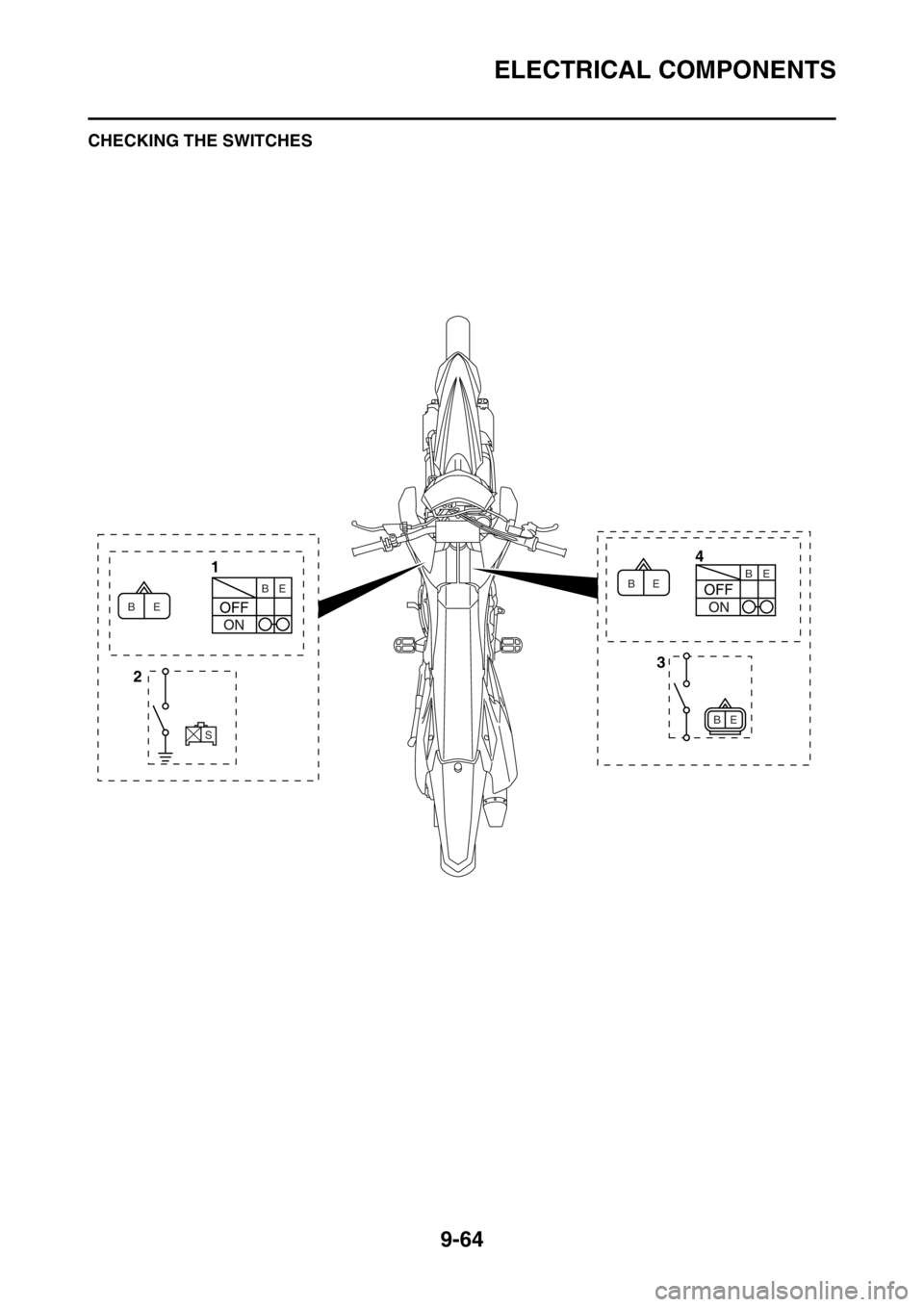

1. Engine stop switch
2. Neutral switch
3. Clutch switch
4. Start switch

ELECTRICAL COMPONENTS
9-66
Check each switch for continuity with the pocket tester. If the continuity reading is incorrect, check
the wiring connections and if necessary, replace the switch.
ECA
NOTICE
Never insert the tester probes into the coupler terminal slots “1”. Always insert the probes
from the opposite end of the coupler, taking care not to loosen or damage the leads.
TIP
• Before checking for continuity, set the pocket tester range to “ 1” to make a “0” adjustment.
• When checking for continuity, switch back and forth between the switch positions a few times.
Terminal connections of the switch are shown in the terminal connection diagram below.
The switch positions “a” are shown in the far left column and the switch lead colors are shown in the
top row in the switch illustration.
TIP
“ ” indicates continuity between switch terminals (i.e., a closed circuit at each switch posi-
tion).
The example illustration below shows that:
There is continuity between red and brown when the switch is “ON”.Pocket tester
90890-03112
Analog pocket tester
YU-03112-C
a
