GENERATOR AND STARTER CLUTCH
6-66
2. Install:
• Washer
• Generator rotor nut “1”
TIP
Tighten the generator rotor nut to 65 Nm (6.5
m·kgf, 47 ft·lbf), loosen and retighten the gener-
ator rotor nut to 65 Nm (6.5 m·kgf, 47 ft·lbf).
3. Install:
• Starter idle gear shaft “1”
• Bearing “2”
• Starter idle gear 2 “3”
TIP
Apply the engine oil on the starter idle gear
shaft, bearing and idle gear inner circumfer-
ence.
4. Install:
• Dowel pin
• Crankcase cover gasket
• Left crankcase cover “1”
• Lead holder “2”
• Crankcase cover bolt
• Neutral switch lead “3”
TIP
• Pass the AC magneto lead “4” under the left
crankcase cover “a” as shown.
• Tighten the bolts in stage, using a crisscross
pattern.
5. Install:
• Washer “1”
• Damper assembly “2”
• Washer “3”
TIP
Apply the engine oil to the shaft and washers.
6. Install:
• Cover (damper assembly) “1”
• Bracket “2”
•Bolt “3”
• Breather hose 2 “4” Generator rotor nut
65 Nm (6.5 m·kgf, 47 ft·lbf)
Crankcase cover bolt
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
T R..
1
1
21
2
3
New
T R..Bolt
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
4
1a
1
2
3
21
2
3
T R..

GENERATOR AND STARTER CLUTCH
6-67
TIP
Install the cover (damper assembly) with its
mark “a” facing upward.
1a3
3
2
4

CRANKCASE
6-68
EAS2GB2312
CRANKCASE
Separating the crankcase

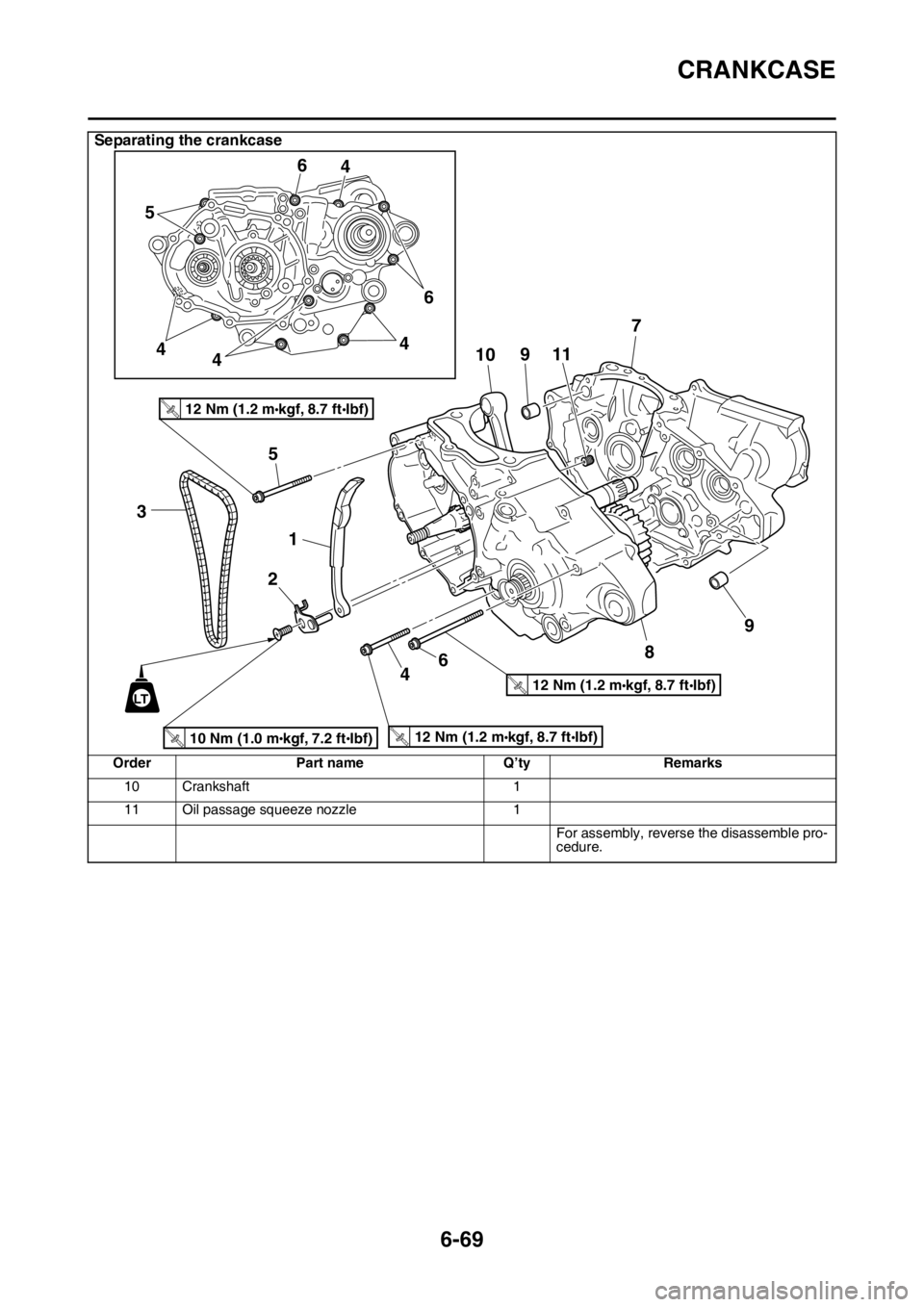

Order Part name Q’ty Remarks
Engine Refer to “ENGINE REMOVAL” on page 6-1.
PistonRefer to “CYLINDER AND PISTON” on page
6-30.
BalancerRefer to “OIL PUMP AND BALANCER
GEAR” on page 6-56.
Kick shaft assembly Refer to “KICKSTATER” on page 6-49.
Segment Refer to “SHIFT SHAFT” on page 6-52.
Generator rotorRefer to “GENERATOR AND STARTER
CLUTCH” on page 6-62.
1 Timing chain guide (exhaust side) 1
2 Timing chain guide stopper plate 1
3 Timing chain 1
4 Bolt [L = 45 mm (1.77 in)] 7
5 Bolt [L = 60 mm (2.36 in)] 2
6 Bolt [L = 75 mm (2.95 in)] 3
7 Right crankcase 1
8 Left crankcase 1
9 Dowel pin 2
10 Nm (1.0 mkgf, 7.2 ftIbf)T.R
.
12 Nm (1.2 mkgf, 8.7 ftIbf)T.R
.
12 Nm (1.2 mkgf, 8.7 ftIbf)T.R
.
12 Nm (1.2 mkgf, 8.7 ftIbf)T.R
.
3
1 5
2
6410 56
4
4
446
9117
8
9
LT

CRANKCASE
6-69
10 Crankshaft 1
11 Oil passage squeeze nozzle 1
For assembly, reverse the disassemble pro-
cedure.
Separating the crankcase
Order Part name Q’ty Remarks
10 Nm (1.0 mkgf, 7.2 ftIbf)T.R
.
12 Nm (1.2 mkgf, 8.7 ftIbf)T.R
.
12 Nm (1.2 mkgf, 8.7 ftIbf)T.R
.
12 Nm (1.2 mkgf, 8.7 ftIbf)T.R.
3
1 5
2
6410 56
4
4
446
9117
8
9
LT

CRANKCASE
6-70
Removing the bearing and oil seal

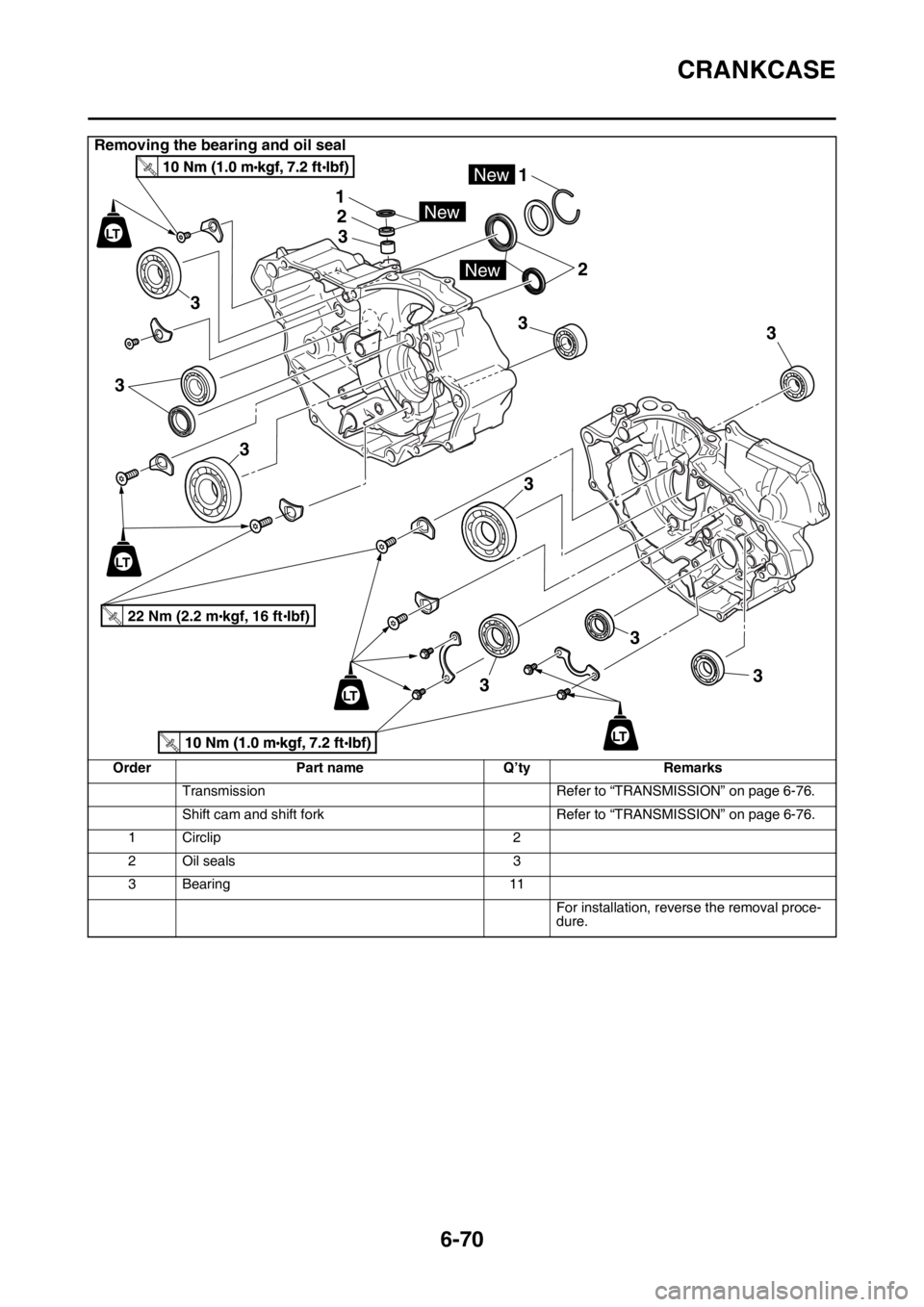

Order Part name Q’ty Remarks
Transmission Refer to “TRANSMISSION” on page 6-76.
Shift cam and shift fork Refer to “TRANSMISSION” on page 6-76.
1 Circlip 2
2Oil seals 3
3 Bearing 11
For installation, reverse the removal proce-
dure.
LT
LT
LT
2
3
33
3
3
3 3
33
New
1
1
2
3
New
New
LT
22 Nm (2.2 mkgf, 16 ftIbf)T.R.

CRANKCASE
6-71
EAS2GB2313DISASSEMBLING THE CRANKCASE
1. Separate:
• Right crankcase
• Left crankcase
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Remove the crankcase bolts.
TIP
Loosen each bolt 1/4 of a turn at a time and af-
ter all the bolts are loosened, remove them.
b. Remove the right crankcase “1”.
TIP
• Place the crankcase with its left side down-
ward and split it by inserting a screwdriver tip
into the splitting slit “a” in the crankcase.
• Lift the right crankcase horizontally while light-
ly patting the crankcase splitting slit and the
engine mounting boss using a soft hammer,
and leave the crankshaft and the transmission
with the left crankcase.
ECA
NOTICE
Use soft hammer to tap on the case half.
Tap only on reinforced portions of case. Do
not tap on gasket mating surface. Work
slowly and carefully. Make sure the case
halves separate evenly. If the cases do not
separate, check for a remaining case bolt or
fitting. Do not force.c. Remove the dowel pins and O-ring.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
EAS2GB2314REMOVING THE CRANKCASE BEARING
1. Remove:
• Bearing “1”
TIP
• Remove the bearing from the crankcase by
pressing its inner race.
• Do not use the removed bearing.
EAS2GB2315CHECKING THE TIMING CHAIN, TIMING
CHAIN GUIDE, OIL STRAINER
1. Check:
• Timing chain
Stiffness  Replace the camshaft sprocket,
timing chain and crankshaft sprocket as a
set.
2. Check:
• Timing chain guide
Damage/wear  Replace
EAS2GB2316CHECKING THE CRANKCASE
1. Wash:
• Crankcase
TIP
• Wash the crankcase in a mild solvent.
• Remove any remaining gasket from the
crankcase mating surface.
2. Check:
• Crankcase
Crack/damage  Replace.
1
a

CRANKCASE
6-72
• Oil delivery passages
Obstruction  Blow out with compressed
air.
EAS2GB2317INSTALLING THE OIL SEAL
1. Install:
• Oil seal “1”
(to left crankcase)
EAS2GB2318ASSEMBLING THE CRANKCASE
1. Install:
• Bearing cover plate screw
TIP
Install the bearing by pressing its outer race
parallel.
2. Apply:
• Sealant
(to the crankcase mating surface)3. Install:
• Dowel pin “1”
• Crankcase “2”
(to the left crankcase)
TIP
• Apply the lithium-soap-based grease on the
O-ring.
• Fit the right crankcase onto the left crankcase.
Tap lightly on the case with soft hammer.
• When installing the crankcase, the connecting
rod should be positioned at top dead center
(TDC).
• Tighten the bolts in a crisscross pattern in two
(2) stages, with 1/4 turn each. Installed depth “a”
4.5–5.0 mm (0.18–0.20 in)
Bearing cover plate screw
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
LOCTITE®
Bearing cover plate screw (crank-
shaft)
22 Nm (2.2 m·kgf, 16 ft·lbf)
LOCTITE®
Yamaha bond No. 1215
90890-85505
(Three bond No.1215®)
New
a 1
T R..
Crankcase bolt
12 Nm (1.2 m·kgf, 8.7 ft·lbf)
3. 45 mm (1.77 in)
4. 60 mm (2.36 in)
5. 75 mm (2.95 in)
a. Hexagon socket head bolt without flange
b. Hexagon socket head bolt with flange
T R..
4
5
3
43
335 5 5
3
ab1
1
2

CRANKSHAFT ASSEMBLY AND BALANCER SHAFT
6-73
EAS2GB2319
CRANKSHAFT ASSEMBLY AND BALANCER SHAFT
Removing the crankshaft assembly and balancer shaft
Order Part name Q’ty Remarks
CrankcaseSeparate.
Refer to “CRANKCASE” on page 6-68.
Transmission Refer to “TRANSMISSION” on page 6-76.
1 Balancer shaft 1
2 Crankshaft assembly 1
For installation, reverse the removal proce-
dure.
M
M
1
2
