CYLINDER AND PISTON
6-34
3. Lubricate:
•Piston
• Piston rings
• Cylinder
4. Offset:
• Piston ring end gap
5. Install:
• Cylinder gasket
• Dowel pin
• Cylinder
TIP
• While compressing the piston rings with one
hand, install the cylinder with the other hand.
• Pass the timing chain and timing chain guide
(exhaust side) through the timing chain cavity.

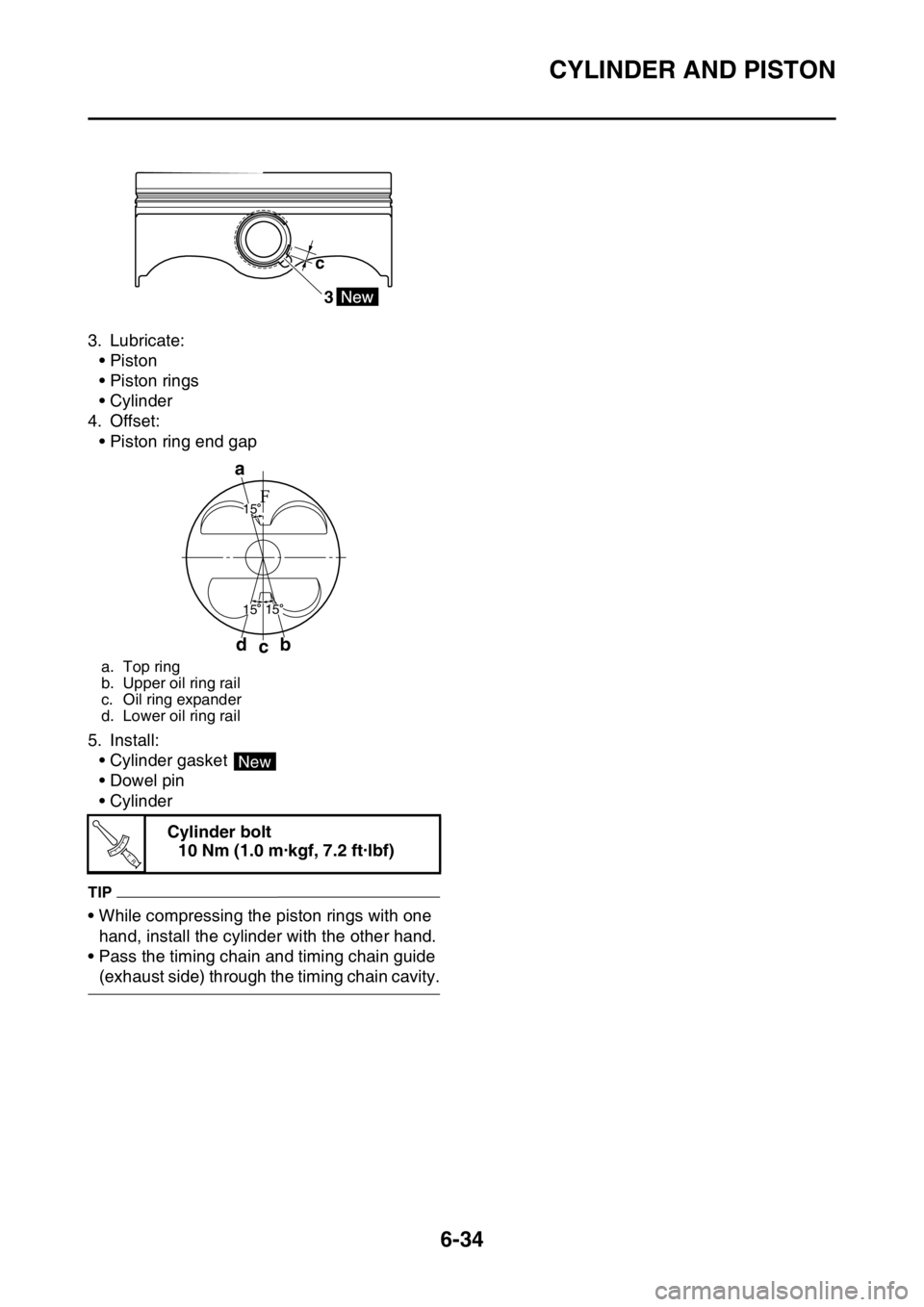

a. Top ring
b. Upper oil ring rail
c. Oil ring expander
d. Lower oil ring rail
Cylinder bolt
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
3 c
a
db
c
15
1515
New
T R..

ELECTRIC STARTER
6-35
EAS2GB2264
ELECTRIC STARTER
Removing the starter motor

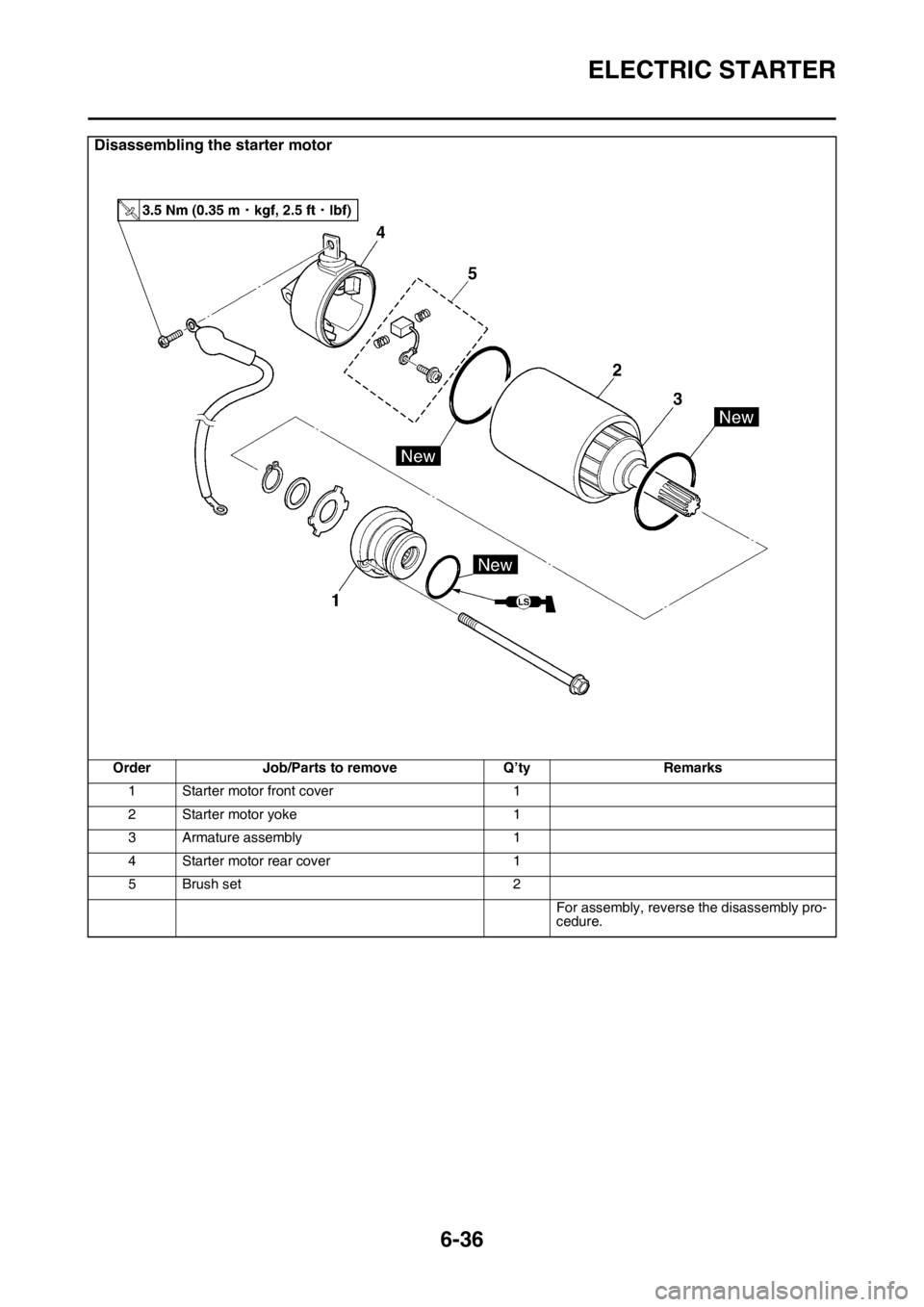

Order Job/Parts to remove Q’ty Remarks
Exhaust pipe Refer to “ENGINE REMOVAL” on page 6-1.
1 Starter motor 1
For assembly, reverse the disassemble pro-
cedure.
1
12 Nm (1.2 m kgf, 8.7 ft Ibf)T.R.

ELECTRIC STARTER
6-36
Disassembling the starter motor
Order Job/Parts to remove Q’ty Remarks
1 Starter motor front cover 1
2 Starter motor yoke 1
3 Armature assembly 1
4 Starter motor rear cover 1
5 Brush set 2
For assembly, reverse the disassembly pro-
cedure.

ELECTRIC STARTER
6-37
EAS2GB2265CHECKING THE STARTER MOTOR

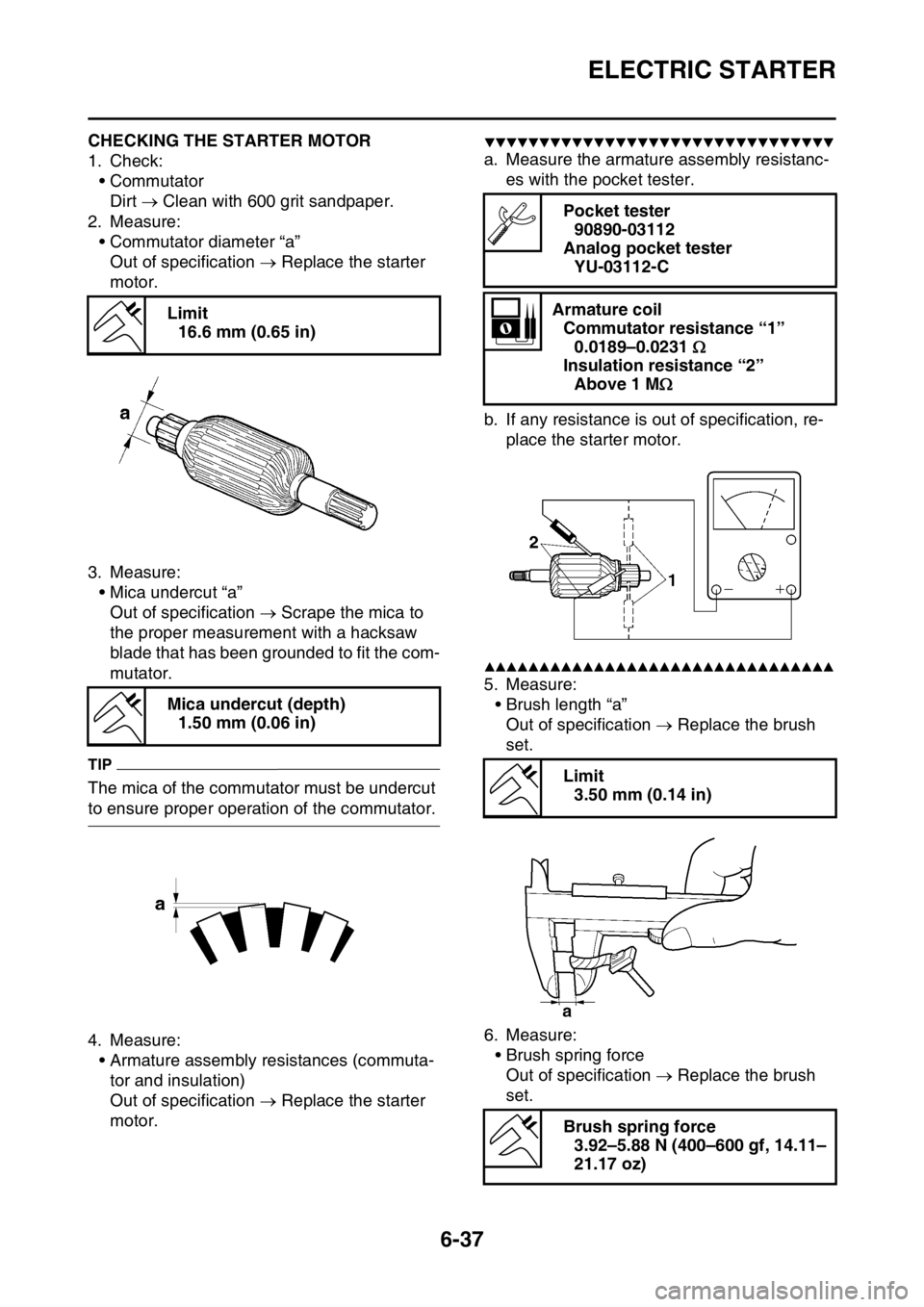

1. Check:
•Commutator
Dirt  Clean with 600 grit sandpaper.
2. Measure:
• Commutator diameter “a”
Out of specification  Replace the starter
motor.
3. Measure:
• Mica undercut “a”
Out of specification  Scrape the mica to
the proper measurement with a hacksaw
blade that has been grounded to fit the com-
mutator.
TIP
The mica of the commutator must be undercut
to ensure proper operation of the commutator.
4. Measure:
• Armature assembly resistances (commuta-
tor and insulation)
Out of specification  Replace the starter
motor.
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Measure the armature assembly resistanc-
es with the pocket tester.
b. If any resistance is out of specification, re-
place the starter motor.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
5. Measure:
• Brush length “a”
Out of specification  Replace the brush
set.
6. Measure:
• Brush spring force
Out of specification  Replace the brush
set. Limit
16.6 mm (0.65 in)
Mica undercut (depth)
1.50 mm (0.06 in)
Pocket tester
90890-03112
Analog pocket tester
YU-03112-C
Armature coil
Commutator resistance “1”
0.0189–0.0231 
Insulation resistance “2”
Above 1 M
Limit
3.50 mm (0.14 in)
Brush spring force
3.92–5.88 N (400–600 gf, 14.11–
21.17 oz)

ELECTRIC STARTER
6-38
7. Check:
• Gear teeth
Damage/wear  Replace the starter motor.
8. Check:
• Oil seal
Damage/wear  Replace the defective part
(s).
EAS2GB2266ASSEMBLING THE STARTER MOTOR

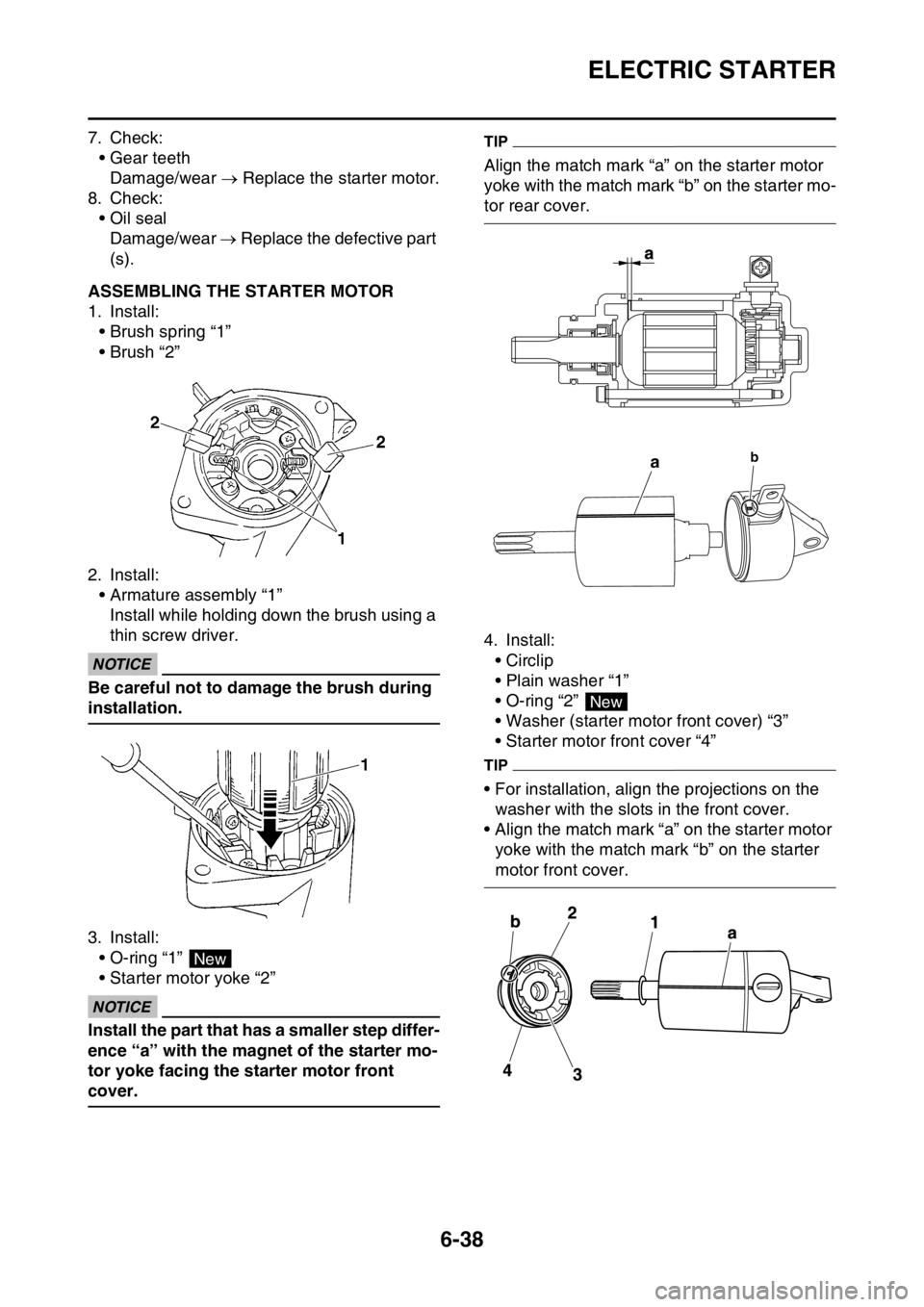

1. Install:
• Brush spring “1”
• Brush “2”
2. Install:
• Armature assembly “1”
Install while holding down the brush using a
thin screw driver.
ECA
NOTICE
Be careful not to damage the brush during
installation.
3. Install:
• O-ring “1”
• Starter motor yoke “2”
ECA
NOTICE
Install the part that has a smaller step differ-
ence “a” with the magnet of the starter mo-
tor yoke facing the starter motor front
cover.
TIP
Align the match mark “a” on the starter motor
yoke with the match mark “b” on the starter mo-
tor rear cover.
4. Install:
• Circlip
•Plain washer “1”
• O-ring “2”
• Washer (starter motor front cover) “3”
• Starter motor front cover “4”
TIP
• For installation, align the projections on the
washer with the slots in the front cover.
• Align the match mark “a” on the starter motor
yoke with the match mark “b” on the starter
motor front cover.
New
ab
New

ELECTRIC STARTER
6-39
5. Install:
•Bolt “1”
• O-ring “2”
TIP

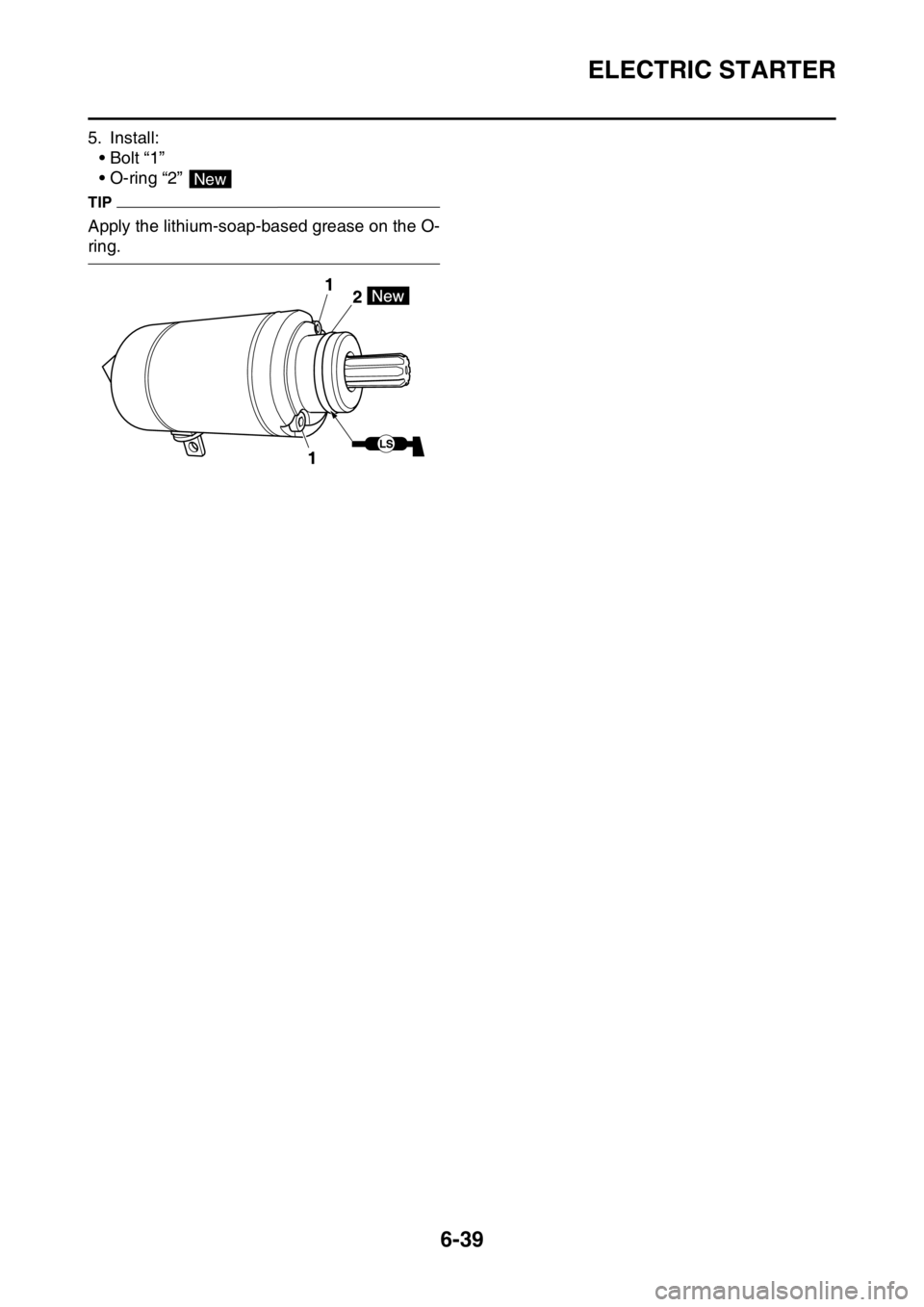

Apply the lithium-soap-based grease on the O-
ring.
New

CLUTCH
6-40
EAS2GB2267
CLUTCH
Removing the clutch

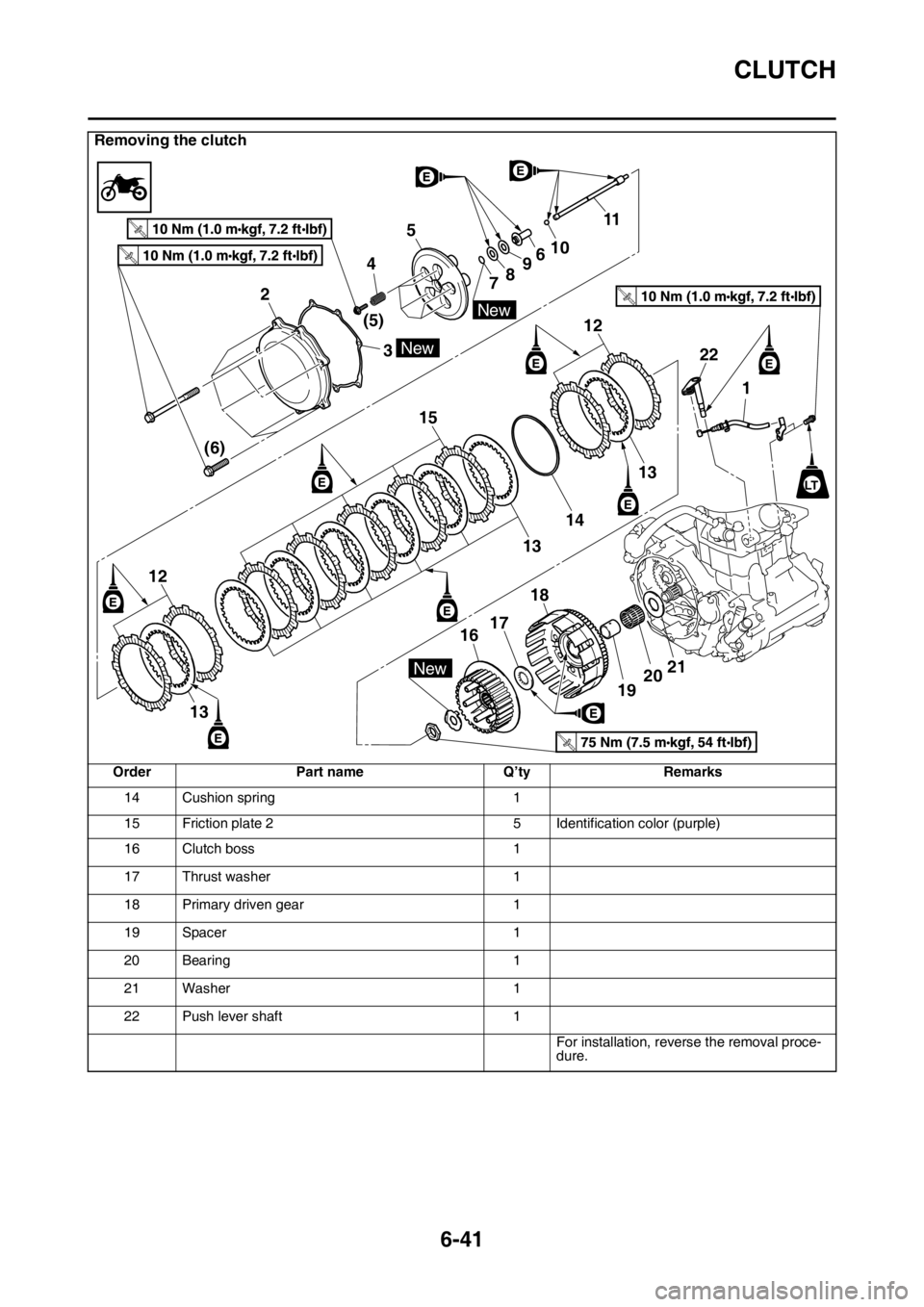

Order Part name Q’ty Remarks
Engine oilDrain.
Refer to “CHANGING THE ENGINE OIL” on
page 3-17.
Brake pedal Refer to “ENGINE REMOVAL” on page 6-1.
1 Clutch cable 1 Disconnect.
2 Clutch cover 1
3Gasket 1
4 Clutch spring 5
5 Pressure plate 1
6 Push rod 1 1
7 Circlip 1
8Washer 1
9 Bearing 1
10 Ball 1
11 Push rod 2 1
12 Friction plate 1 4
13 Clutch plate 8
New
New
New
2
3 45
(5)
(6)78961011
12
22
1
15
12
13
13
18
1920 17
16
14
13
T.R.
T.R.
T.R.
T.R.
LT
21

CLUTCH
6-41
14 Cushion spring 1
15 Friction plate 2 5 Identification color (purple)
16 Clutch boss 1
17 Thrust washer 1
18 Primary driven gear 1
19 Spacer 1
20 Bearing 1
21 Washer 1
22 Push lever shaft 1
For installation, reverse the removal proce-
dure.
Removing the clutch
Order Part name Q’ty Remarks
New
New
New
2
3 45
(5)
(6)78961011
12
22
1
15
12
13
13
18
1920 17
16
14
13
T.R.
T.R.
T.R.
T.R.
LT
21
