LUBRICATION SYSTEM CHART AND DIAGRAMS
2-26

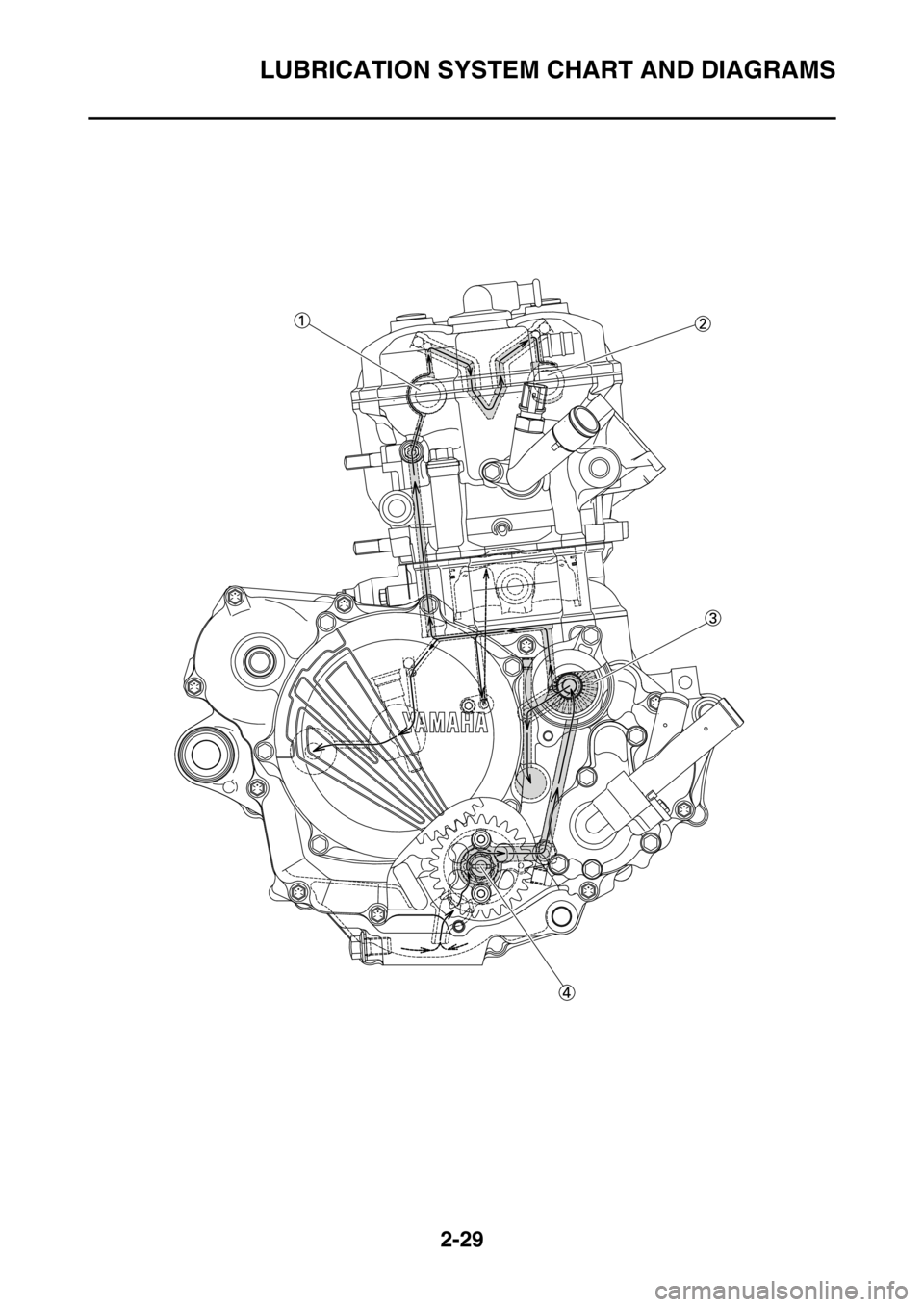

1. Intake camshaft
2. Exhaust camshaft
3. Piston
4. Oil nozzle
5. Oil filter element
6. Oil pump
7. Oil strainer
8. Crankshaft
9. Drive axle
10. Main axle

LUBRICATION SYSTEM CHART AND DIAGRAMS
2-27

LUBRICATION SYSTEM CHART AND DIAGRAMS
2-28
1. Connecting rod
2. Crankshaft
3. Main axle
4. Oil strainer
5. Drive axle

LUBRICATION SYSTEM CHART AND DIAGRAMS
2-29

LUBRICATION SYSTEM CHART AND DIAGRAMS
2-30

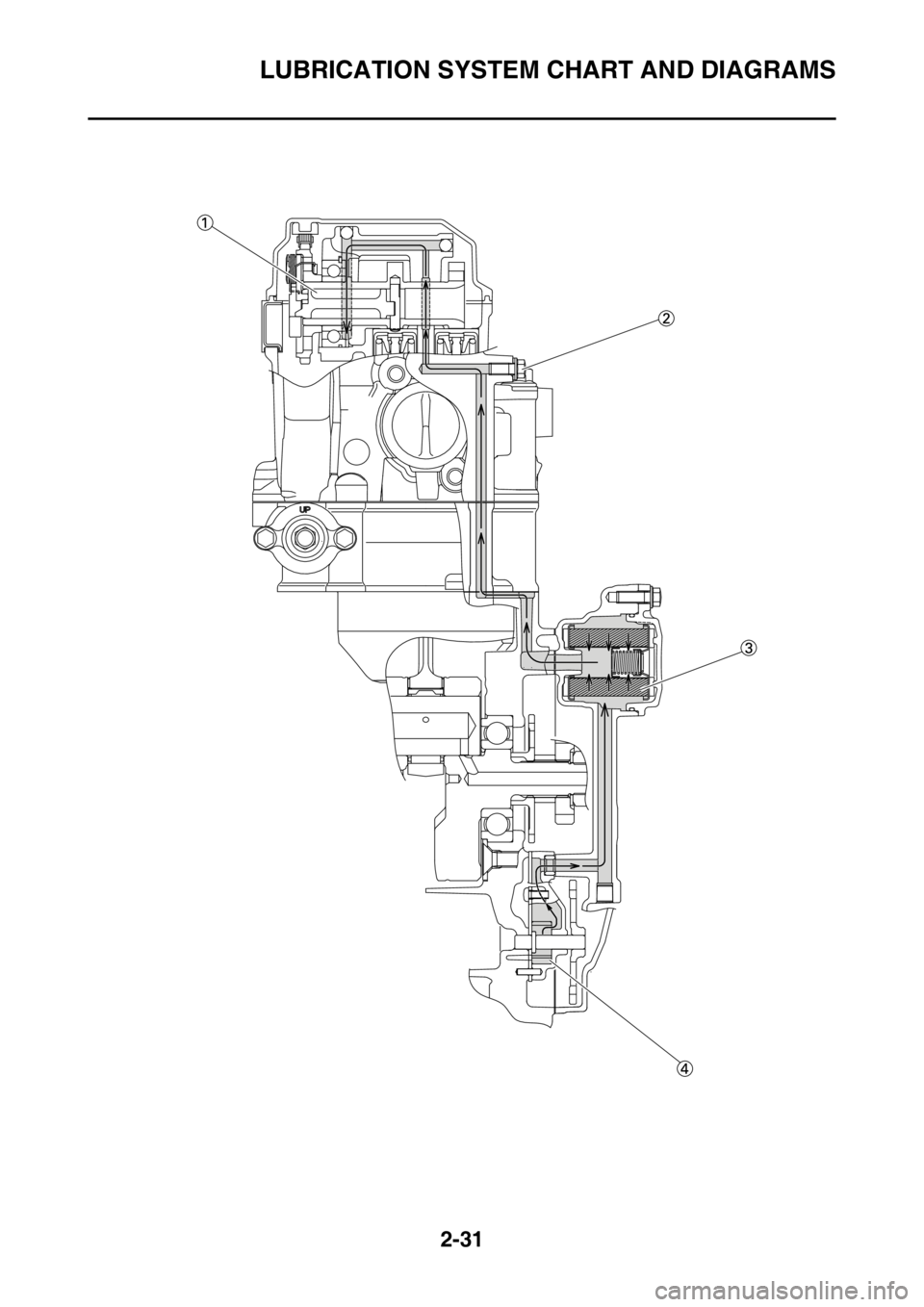

1. Exhaust camshaft
2. Intake camshaft
3. Oil filter element
4. Oil pump

LUBRICATION SYSTEM CHART AND DIAGRAMS
2-31

LUBRICATION SYSTEM CHART AND DIAGRAMS
2-32
1. Camshaft
2. Oil pressure check bolt
3. Oil filter element
4. Oil pump

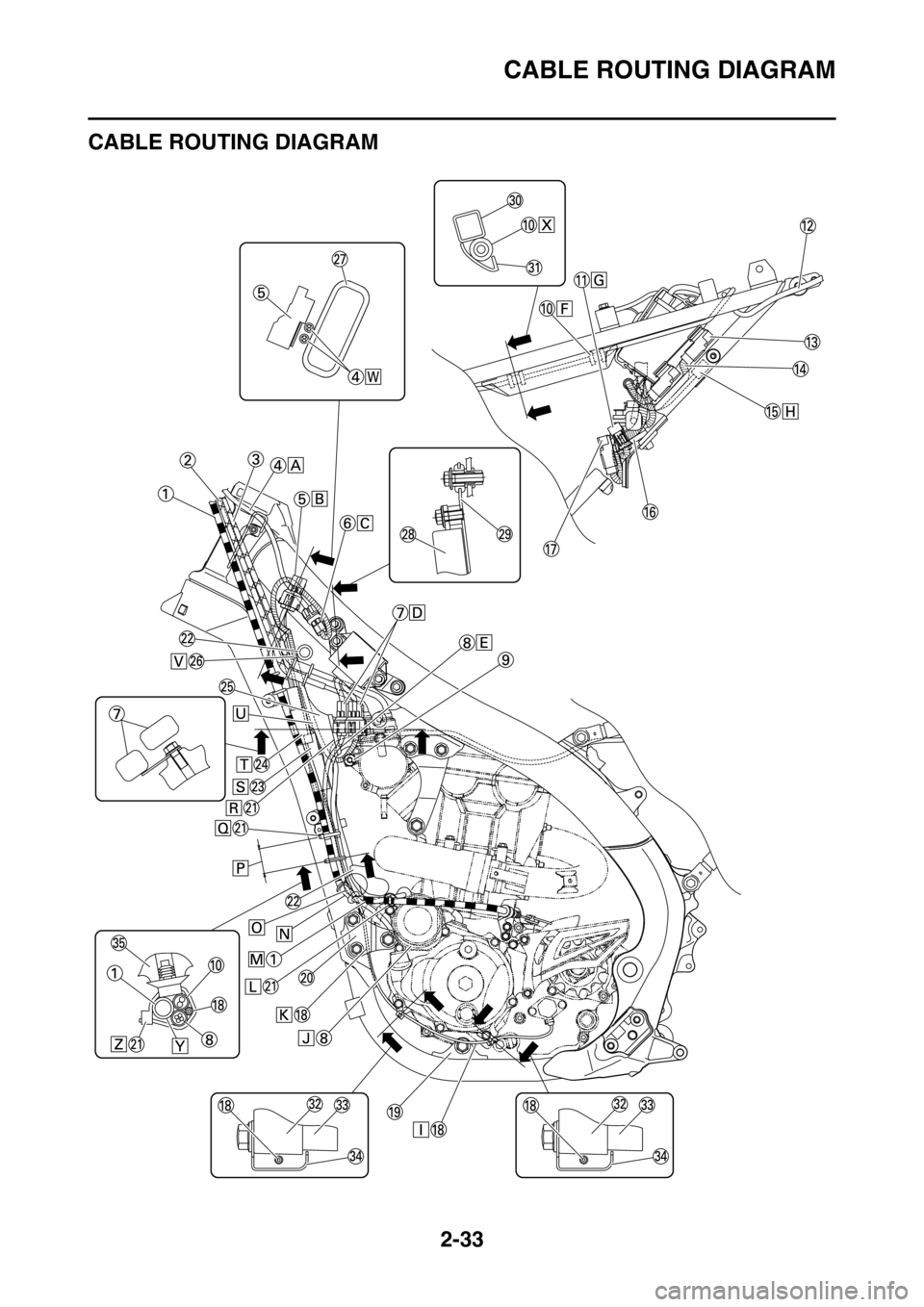

CABLE ROUTING DIAGRAM
2-33
