2015 TOYOTA TACOMA Owners Manual (in English)

5
When trouble arises
513
5-2. Steps to take in an emergency

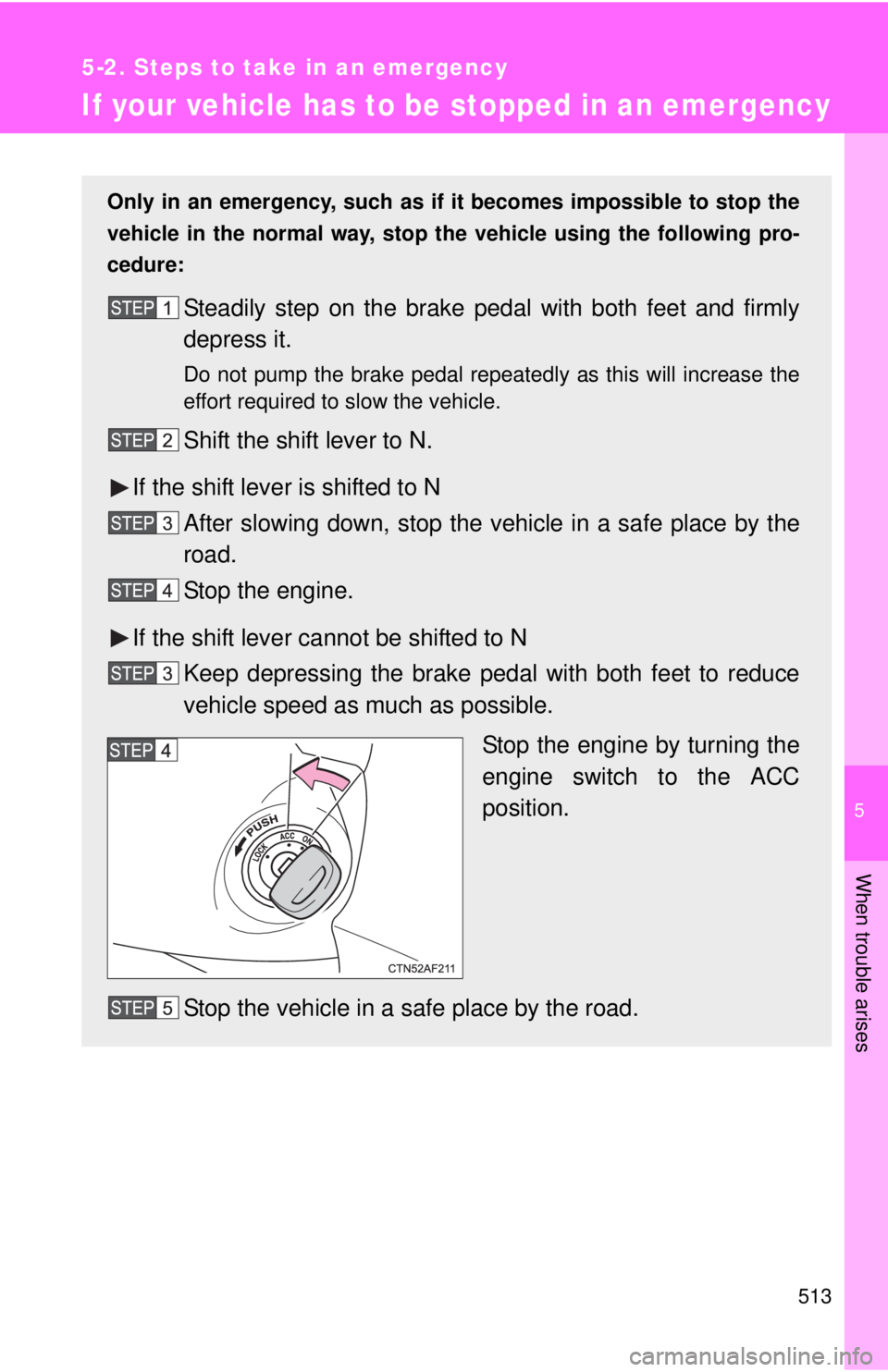

If your vehicle has to be stopped in an emergency
Only in an emergency, such as if it becomes impossible to stop the
vehicle in the normal way, stop the vehicle using the following pro-
cedure:
Steadily step on the brake pedal with both feet and firmly
depress it.
Do not pump the brake pedal repeatedly as this will increase the
effort required to slow the vehicle.
Shift the shift lever to N.
If the shift lever is shifted to N After slowing down, stop the vehi cle in a safe place by the
road.
Stop the engine.
If the shift lever cannot be shifted to N Keep depressing the brake pedal with both feet to reduce
vehicle speed as much as possible.
Stop the engine by turning the
engine switch to the ACC
position.
Stop the vehicle in a safe place by the road.

514 5-2. Steps to take in an emergency
CAUTION
■If the engine has to be turned off while driving
●Power assist for the brakes and steering wheel will be lost, making the
brake pedal harder to depress and the steering wheel heavier to turn.
Decelerate as much as possible before turning off the engine.
● Never attempt to remove the key, as doing so will lock the steering wheel.

5
When trouble arises
515
5-2. Steps to take in an emergency

516 5-2. Steps to take in an emergency

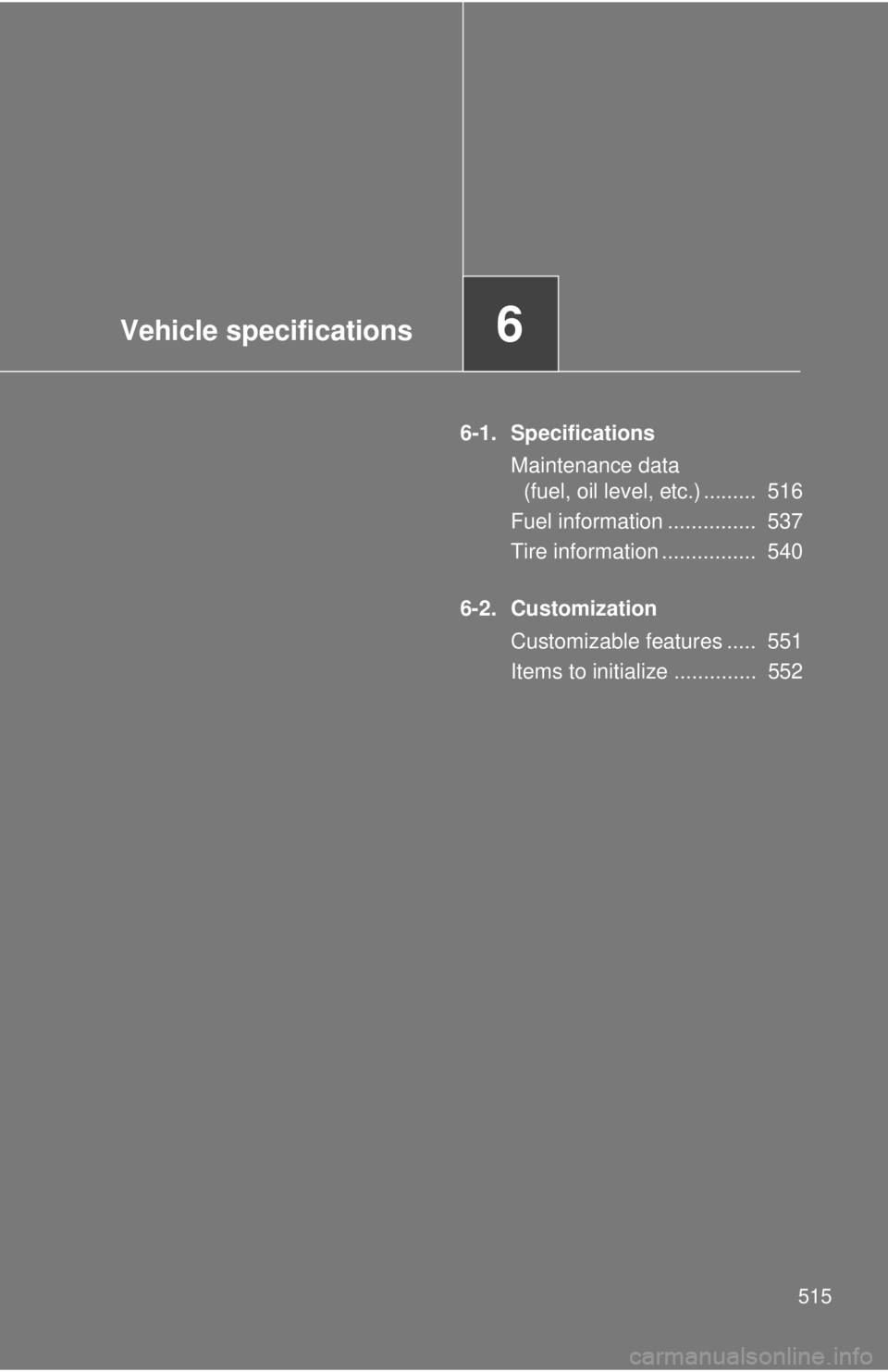

Vehicle specifications6
515
6-1. SpecificationsMaintenance data (fuel, oil level, etc.) ......... 516
Fuel information ............... 537
Tire information ................ 540
6-2. Customization Customizable features ..... 551
Items to initialize .............. 552

516
6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions2WD models except PreRunner
*: Unladen vehicle
Cab type
Access Cab
Double CabExcept
X-RunnerX-Runner
Overall length 208.1 in.
(5285 mm) 208.5 in.
(5295 mm) 208.1 in.
(5285 mm)
Overall width 72.2 in.
(1835 mm) 74.0 in.
(1880 mm) 74.6 in.
(1895 mm)
Overall height*66.1 in.
(1680 mm) 65.6 in.
(1665 mm) 66.1 in.
(1680 mm)
Wheelbase 127.4 in. (3235 mm)
Front tread61.0 in.
(1550 mm) 62.2 in.
(1580 mm) 61.0 in.
(1550 mm)
Rear tread 61.0 in.
(1550 mm) 62.2 in.
(1580 mm) 61.0 in.
(1550 mm)

517
6-1. Specifications
6
Vehicle specifications
4WD models and PreRunner
*1:Unladen vehicle
*2:P265/60R18 tires
Cab typeAccess Cab
Overall length
208.1 in. (5285 mm)
Overall width 74.6 in. (1895 mm)
Overall height*170.3 in. (1785 mm)
Wheelbase127.4 in. (3235 mm)
Front tread 63.0 in. (1600 mm)
63.4 in. (1610 mm)*2
Rear tread 63.2 in. (1605 mm)
63.6 in. (1615 mm)*2
Cab typeDouble Cab
With short deckWith long deck
Overall length 208.1 in. (5285 mm) 221.3 in. (5620 mm)
Overall width 74.6 in. (1895 mm)
Overall
height
*1
2.7 L 4-cylinder
(2TR-FE) engine70.3 in. (1785 mm)
4.0 L V6
(1GR-FE) engine70.1 in. (1780 mm)
Wheelbase
127.4 in. (3235 mm) 140.6 in. (3570 mm)
Front tread 63.0 in. (1600 mm)
63.4 in. (1610 mm)*2
Rear tread 63.4 in. (1610 mm)
63.8 in. (1620 mm)*2

518 6-1. Specifications
Vehicle capacity weight2WD models except PreRunner
*: Installing accessories in addition to those installed at the factory increases vehicle weight, thereby reducing vehicle capacity weight. Contact your
Toyota dealer about the weight of accessory parts.
PreRunner
*: Installing accessories in addition to those installed at the factory increasesvehicle weight, thereby reducing vehicle capacity weight. Contact your
Toyota dealer about the weight of accessory parts.
Cab typeEngineDeck type
Vehicle capacity
weight (Occupant + luggage)
*
Access Cab
2.7 L 4-cylinder
(2TR-FE) engine
Long deck
1050 lb. (475 kg)
4.0 L V6
(1GR-FE) engine850 lb. (385 kg)
Double Cab
2.7 L 4-cylinder
(2TR-FE) engine950 lb. (430 kg)
Cab typeEngineDeck type
Vehicle capacity
weight (Occupant + luggage)
*
Access Cab
2.7 L 4-cylinder
(2TR-FE) engine
Long deck 1300 lb. (585 kg)
4.0 L V6
(1GR-FE) engine
1250 lb. (565 kg)
Double Cab
2.7 L 4-cylinder
(2TR-FE) engine
Short deck 1300 lb. (585 kg)
4.0 L V6
(1GR-FE) engine
1150 lb. (520 kg)
Long deck
