2015 TOYOTA TACOMA Owners Manual (in English)

41
1-2. Opening, closing and locking the doors
1
Before driving
To disconnect the wire harness
connectors ( and ), press
and hold the lock of the tailgate
wire harness connector (White)
and pull apart.
Tailgate wire harness connec-
tor (White)
Frame wire harness connector
(Gray)
Attach the connector cover
(white) to the frame wire harness
connector (Gray).
Connector cover (White)
Frame wire harness connector
(Gray)
Pull out the plastic wire protector
located in the vehicle bed by
pressing the tabs and pulling the
protector.
Be careful not to pull out all of the
tailgate wire harness. Doing so
may result in damage to vehicle
components.
Plastic wire protector
Open the tailgate.

42 1-2. Opening, closing and locking the doors
Pull out the wire harness from
the vehicle bed.
Attach the connector cover
(Gray) to the tailgate wire har-
ness connector (White).Tailgate wire harness connec-
tor (White)
Connector cover (Gray)
■ Removing the tailgate
Open the tailgate to the angle
where you can release the
brackets on the support cables
from the lugs on both sides.
Lift the support cable bracket up
and slide it off.
Support cable bracket
Tilt the tailgate to about 30° from
vertical and pull up the right side
of the tailgate to unhook the right
side.

43
1-2. Opening, closing and locking the doors
1
Before driving
Slide the tailgate a little to the
right to unhook the left side.
To attach the tailgate, follow the
removal procedure in reverse
order.
Rear step bumper
For rear end protection and eas-
ier step-up loading.
To get on the rear step bumper,
use the shaded area in the illus-
tration.
CAUTION
■Before removing the tailgate (vehic les with rear view monitor system)
Disconnect the wire harness between the back-up camera and the vehicle.
Failure to do so may result in serious injury or damage to the vehicle compo-
nents.
■ Caution while driving
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Do not drive with the tailgate open.
● Do not let anyone ride on the rear step bumper.

44 1-2. Opening, closing and locking the doors
NOTICE
■To prevent damage to the tailgate wire harness (vehicles with rear view
monitor system)
Do not pull out all of the tailgate wire harness before open the tailgate.
■ To prevent damage to the camera lens (vehicles with rear view monitor
system)
Store the removed tailgate with the back-up camera lens facing upward.
■ After closing the tailgate
Try pulling it toward you to make sure it is securely locked.
■ To prevent damage to the rear step bumper
Do not allow more than one person to get on the rear step bumper at a time.

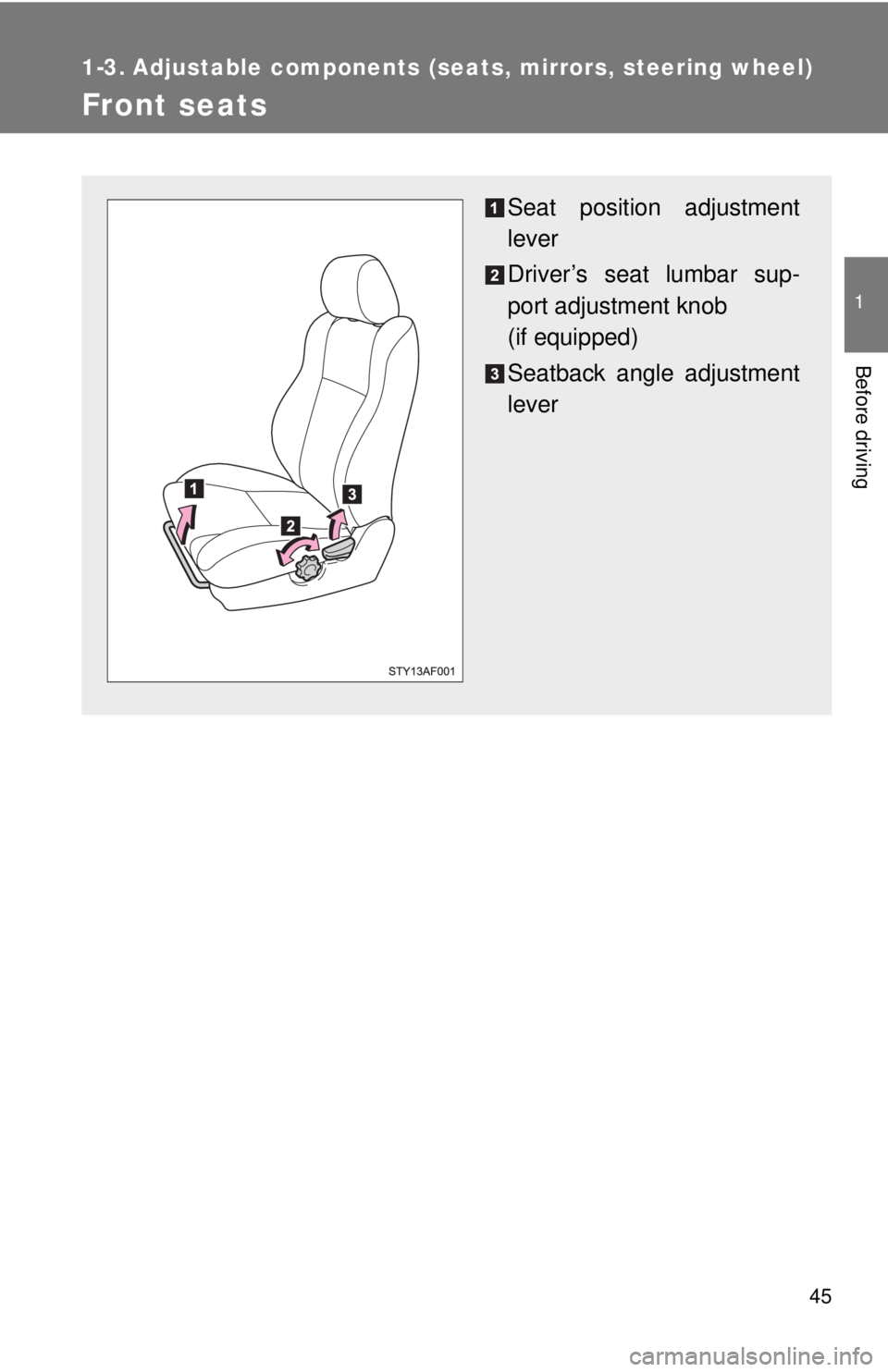

45
1
Before driving
1-3. Adjustable components (seats, mirrors, steering wheel)
Front seats
Seat position adjustment
lever
Driver’s seat lumbar sup-
port adjustment knob
(if equipped)
Seatback angle adjustment
lever

46 1-3. Adjustable components (seats, mirrors, steering wheel)
Moving passenger’s seat for rear seat entry (if equipped)
Lift the seatback angle adjusting
lever or press the pedal behind
the seatback. The seat will slide
forward.
Move the seat to the front-most
position.
■ After passengers are in the vehicle
Lift the seatback and retu rn the seat until it locks.
Folding passenger’s seat
Pull the seatback angle adjusting
lever and raise the seatback to
its upright position.
Pull the seatback folding lever
and fold the seatback down.

47
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
Active head restraints
When the occupant’s back
presses against the seatback
during a rear-end collision, the
head restraint moves slightly for-
ward to help reduce the risk of
whiplash on the seat occupant.
■Active head restraints
Even small forces applied to the seatback may cause the head restraint to
move. Pushing up a locked head restraint forcibly may show the head
restraint inner structure. These do not indicate problems.
■ Waterproof and water-repellent seats (if equipped)
Waterproof and water-repellent seats are installed in your vehicle; however,
the water-repellent effect does not last forever.
Inner
structure
During
rear-end
collision

48 1-3. Adjustable components (seats, mirrors, steering wheel)
CAUTION
■Seat adjustment
●Be careful that the seat does not hit passengers or luggage.
● Do not recline the seat more than necessary when the vehicle is in motion
to reduce the risk of sliding under the lap belt.
If the seat is too reclined, the lap belt may slide past the hips and apply
restraint forces directly to the abdomen or your neck may contact the
shoulder belt, increasing the risk of death or serious injury in the event of
an accident.
● After adjusting the seat, make sure that the seat is locked in position.
■ After returning the seatback to the upright position
Observe the following precautions. Failure to do so may result in death or
serious injury.
● Make sure the seatback is securely locked.
● Check that the seat belts are not twisted or caught in the seatback.
● Arrange the seat belts in the proper positions for ready use.
■ Caution while driving
●Vehicles with seatback table: Do not sit on or place anything on the folded
seatback.
● Access Cab models only: Do not rest your foot on the press pedal behind
the passenger seat.
