2015 TOYOTA TACOMA Owners Manual (in English)

49
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving

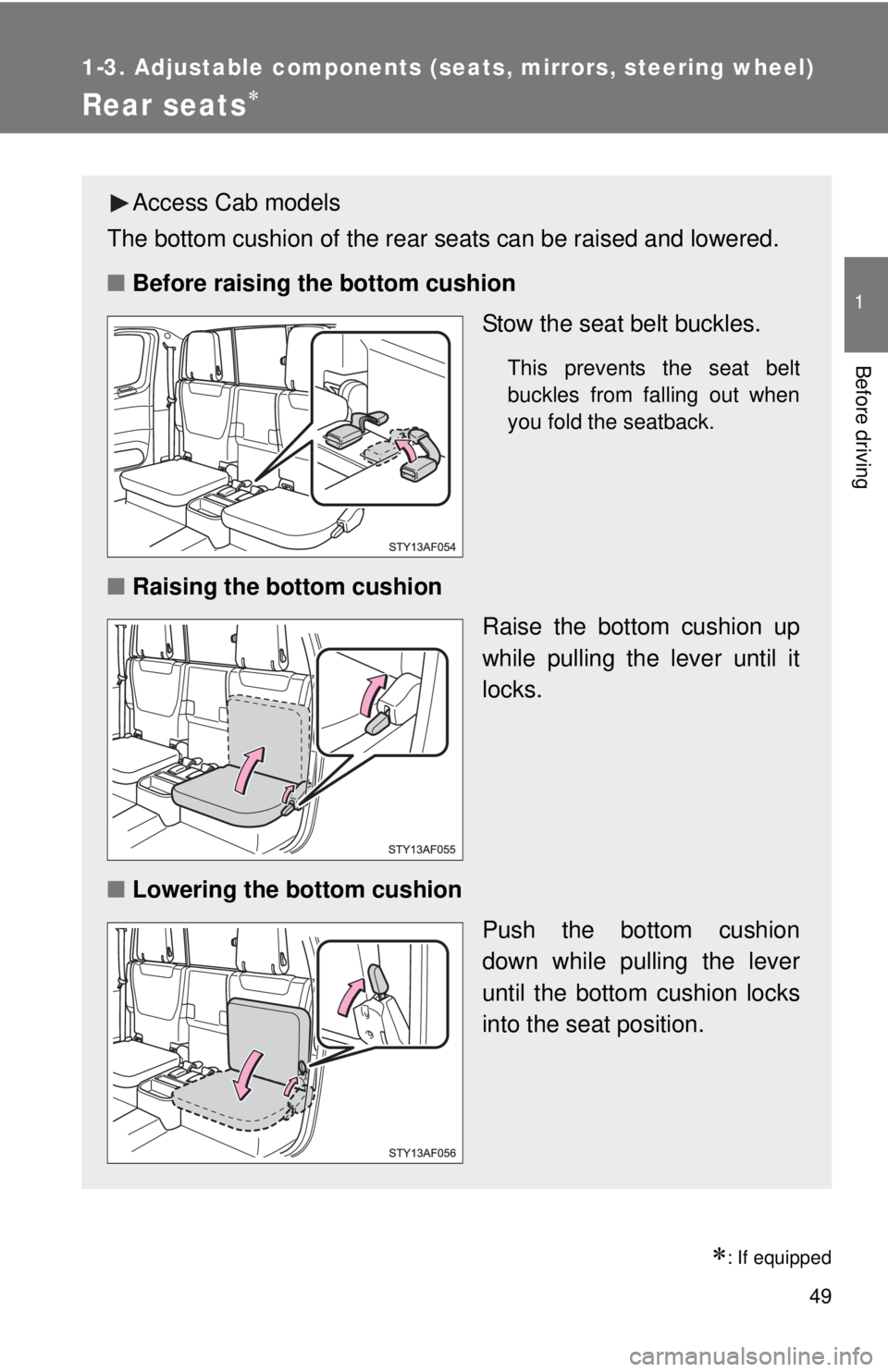

Rear seats
: If equipped
Access Cab models
The bottom cushion of the rear seats can be raised and lowered.
■ Before raising the bottom cushion
Stow the seat belt buckles.
This prevents the seat belt
buckles from falling out when
you fold the seatback.
■Raising the bottom cushion
Raise the bottom cushion up
while pulling the lever until it
locks.
■ Lowering the bottom cushion
Push the bottom cushion
down while pulling the lever
until the bottom cushion locks
into the seat position.

50 1-3. Adjustable components (seats, mirrors, steering wheel)

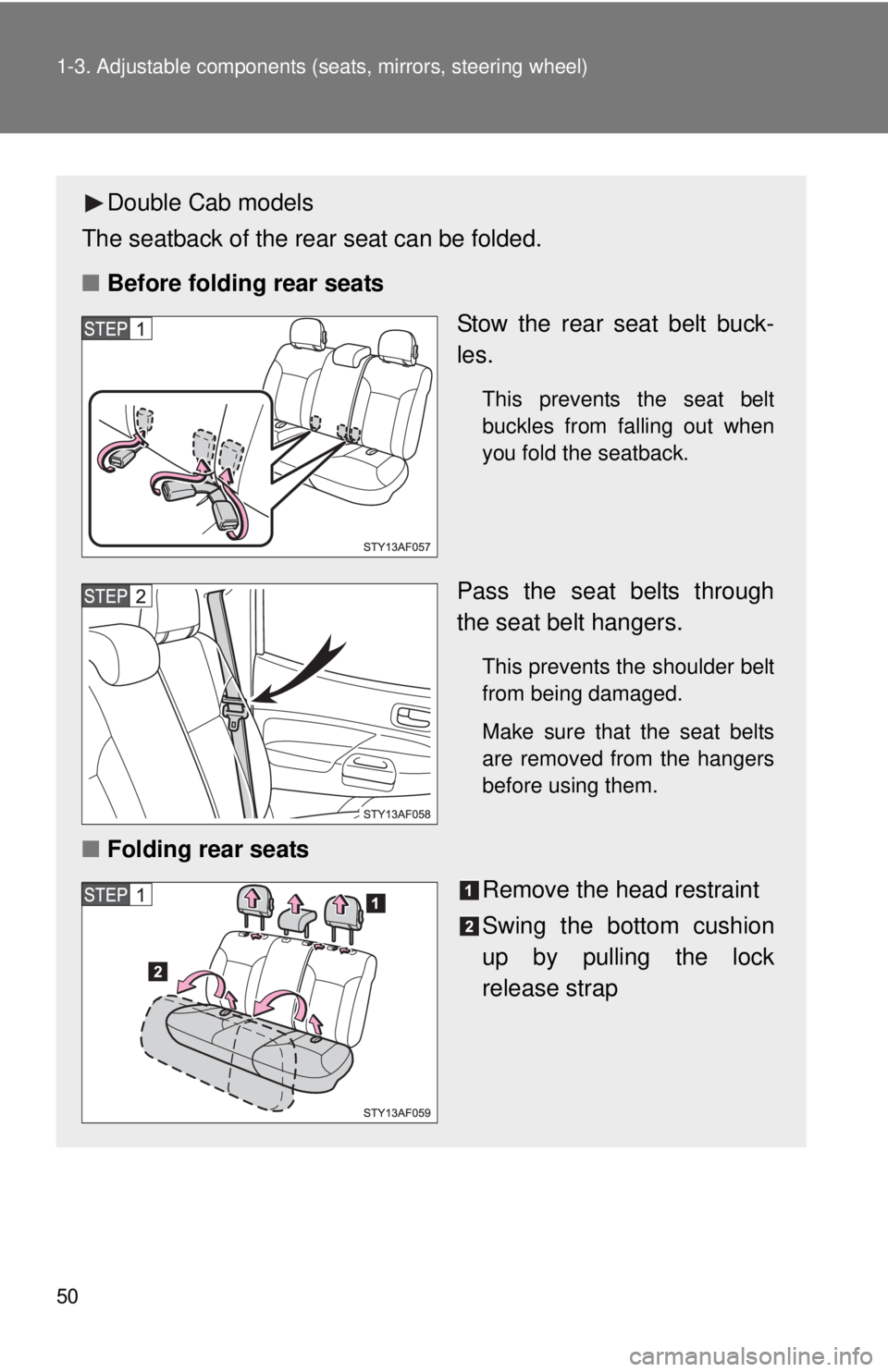

Double Cab models
The seatback of the rear seat can be folded.
■ Before folding rear seats
Stow the rear seat belt buck-
les.
This prevents the seat belt
buckles from falling out when
you fold the seatback.
Pass the seat belts through
the seat belt hangers.
This prevents the shoulder belt
from being damaged.
Make sure that the seat belts
are removed from the hangers
before using them.
■Folding rear seats
Remove the head restraint
Swing the bottom cushion
up by pulling the lock
release strap

51
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
■Waterproof and water-repellent seats (if equipped)
Waterproof and water-repellent seats are installed in your vehicle; however,
the water-repellent effect does not last forever.
Attach the head restraints to
the holders located on the
back sides of the bottom cush-
ions.
Fold down the seatback by
pulling the lock release strap.

52 1-3. Adjustable components (seats, mirrors, steering wheel)
CAUTION
■When the seatback is folded/the bottom cushion is raised
Do not sit on or place anything on the seatback or auxiliary box while driving.
■ When returning the seats to their original position
Observe the following precautions. Failure to do so may result in death or
serious injury.
●Be careful not to get your hands or feet pinched in the seat.
● Make sure the seatbacks and bottom cushions are securely locked. Fail-
ure to do so will prevent the seat belt from operating properly.
● Check that the seat belts are not twisted or caught under the seat.
● Arrange the seat belts in the proper positions for ready use.
NOTICE
■Before folding the seats
The seat belts buckles must be stowed.

53
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving

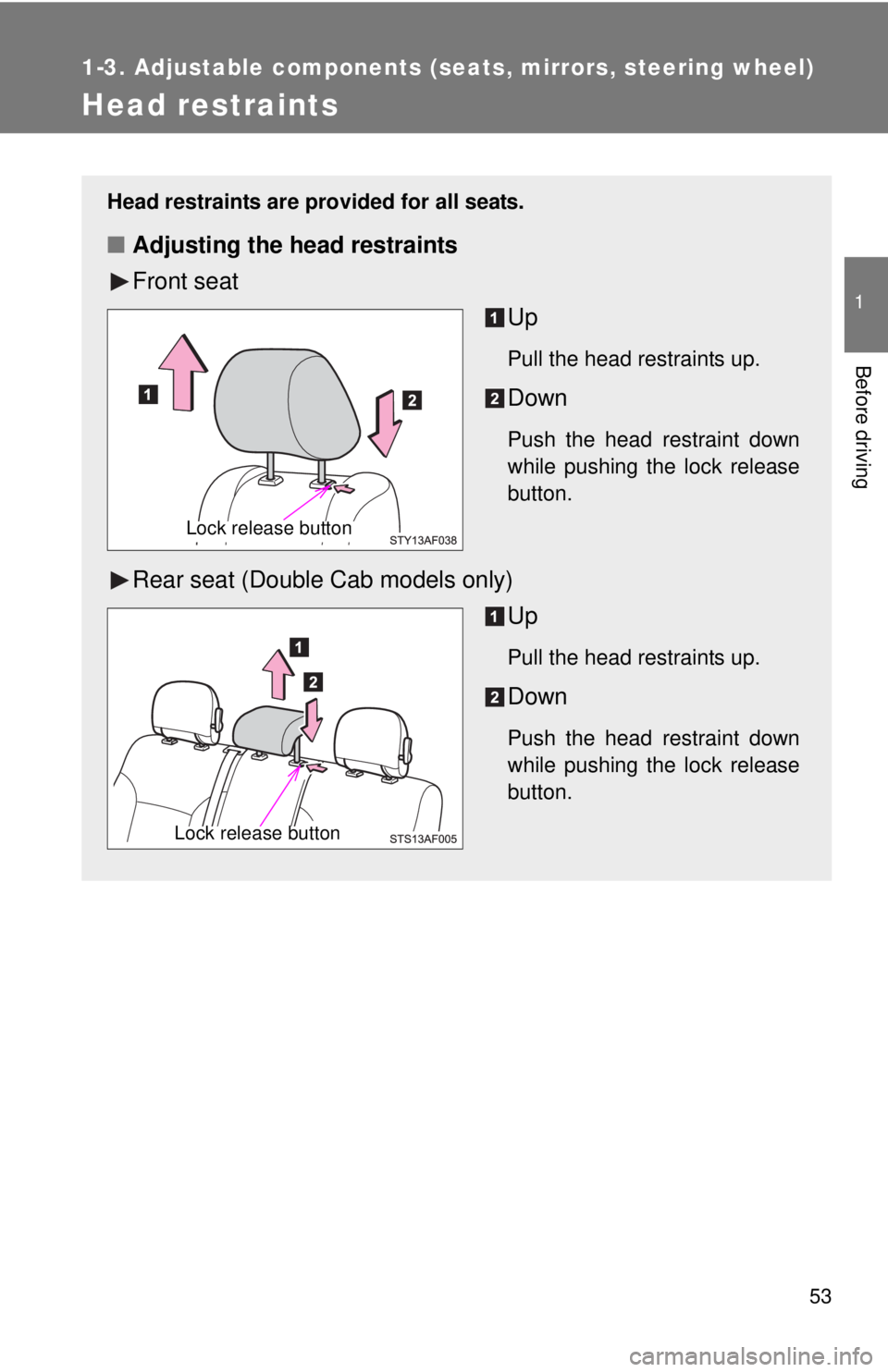

Head restraints
Head restraints are provided for all seats.
■Adjusting the head restraints
Front seat
Up
Pull the head restraints up.
Down
Push the head restraint down
while pushing the lock release
button.
Rear seat (Double Cab models only)Up
Pull the head restraints up.
Down
Push the head restraint down
while pushing the lock release
button.
Lock release button
Lock release button

54 1-3. Adjustable components (seats, mirrors, steering wheel)

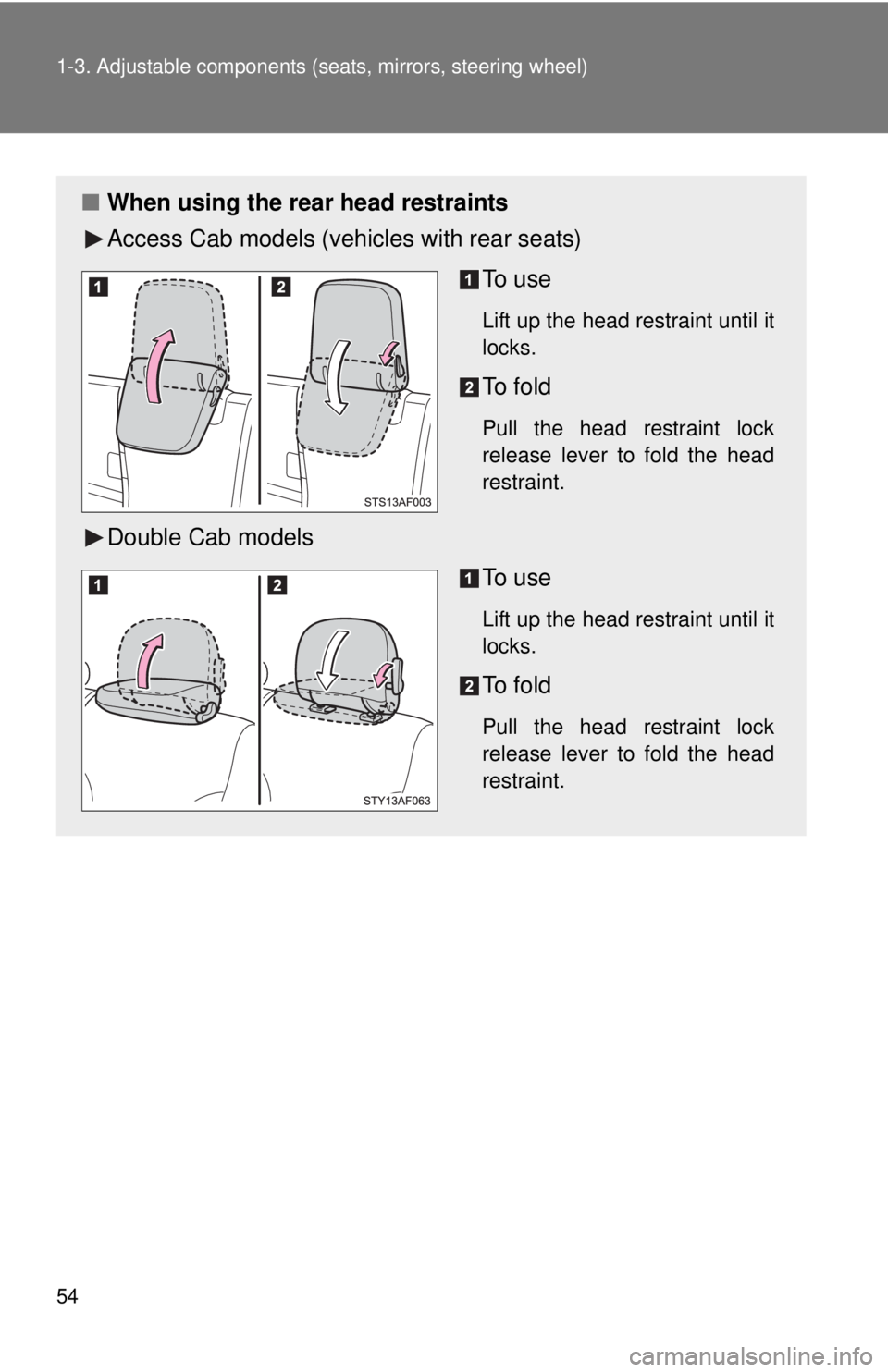

■When using the rear head restraints
Access Cab models (vehicles with rear seats)
To u s e
Lift up the head restraint until it
locks.
To f o l d
Pull the head restraint lock
release lever to fold the head
restraint.
Double Cab modelsTo u s e
Lift up the head restraint until it
locks.
To f o l d
Pull the head restraint lock
release lever to fold the head
restraint.

55
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
■Removing the front head restraints
■ Removing the rear head restrain ts (Double Cab models only)
■ Installing the front head restraints
■ Installing the rear h ead restraints (Double Cab models only)
Pull the head restraint up while pushing
the lock release button.
Pull the head restraint up while pushing
the lock release button.
Align the head restraint with the installa-
tion holes and push it down to the lock
position.
Press and hold the lock release button
when lowering the head restraint.
Align the head restraint with the installa-
tion holes and push it down to the lock
position.
Press and hold the lock release button
when lowering the head restraint.

56 1-3. Adjustable components (seats, mirrors, steering wheel)
■When installed the rear outboard h ead restraints to opposite direction
(Double Cab models only)
While pressing in the screwdriver, pull up the head restraint.
■ Adjusting the height of the head restraints
■ Adjusting the rear center seat head restraints (Double Cab models)
Always raise the head restraint one level from the stowed position when
using.
CAUTION
■ Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to
do so may result in death or serious injury.
●Use the head restraints designed for each respective seat.
● Adjust the head restraints to the correct position at all times.
● After adjusting the head restraints, push down on them and make sure
they are locked in position.
● Do not drive with the head restraints removed.
Push a flathead screwdriver into the slot.
The slot is located on the left side of the
right head restraint anchor.
Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.
