3055-1. Using the air conditioning system and defogger
5
Interior features
■Ventilation and air conditioning odors
●To let fresh air in, set the air conditioning system to the outside air mode.
● During use, various odors from inside and outside the vehicle may enter into
and accumulate in the air conditioning system. This may then cause odor to
be emitted from the vents.
● To reduce potential odors from occurring:
It is recommended that the air conditioning system be set to outside air
mode prior to turning the vehicle off.
■ Air conditioning filter
P. 568
CAUTION
■To prevent the windshield from fogging up
Do not set the air outlet selection dial to during cool air operation in
extremely humid weather. The difference between the temperature of the
outside air and that of the windshield can cause the outer surface of the
windshield to fog up, blocking your vision.
NOTICE
■To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the
engine is off.

306
RAV4_OM_OM42A78U_(U)
5-1. Using the air conditioning system and defogger
Automatic air conditioning system
: If equipped
Air outlets and fan speed are automatically adjusted according
to the temperature setting.
Driver’s side temperature con-
trol dial
Automatic mode button
Micro dust and pollen filter
mode button
Driver’s side temperature set-
ting display
Fan speed display
Air outlet display
Passenger’s side temperature
setting display
Windshield defogger button Simultaneous mode button
Passenger’s side temperature
control dial
Cooling and dehumidification
function on/off button
Air outlet selector button
Fan speed control button
Outside air or recirculated air
mode button
Off button1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

RAV4_OM_OM42A78U_(U)
3075-1. Using the air conditioning system and defogger
5
Interior features
Press .
The dehumidification function begins to operate. Air outlets and fan speed
are automatically adjusted according to the temperature setting and
humidity.
Turn clockwise to increases the temperature and turn
counterclockwise to decreases the temperature.
The air conditioning system switc hes between individual and simultaneous
modes each time is pressed.
Simultaneous mode (the indicator on is on):
The driver’s side temperature control dial can be used to adjust the tem-
perature for the driver’s and passenger’s side. At this time, operate the
passenger’s side temperature control dial to enter individual mode.
Individual mode (the indicator on is off):
The temperature for the driver’s and passenger’s side can be adjusted
separately.
■
Automatic mode indicator
If the fan speed setting or air fl ow modes are operated, the auto-
matic mode indicator goes off. However, automatic mode for func-
tions other than that operated are maintained.
Using the automatic air conditioning system
1
2

308
RAV4_OM_OM42A78U_(U)
5-1. Using the air conditioning system and defogger
To adjust the fan speed, press “ ” on to increase the fan
speed and “ ” to decrease the fan speed.
Press to turn the fan off.
To adjust the temperature se tting, turn clockwise to
increases the temperature and turn counterclockwise to
decreases the temperature.
The air conditioning system switc hes between individual and simultaneous
modes each time is pressed.
Simultaneous mode (the indicator on is on):
The driver’s side temperature control dial can be used to adjust the tem-
perature for the driver’s and passenger’s side. At this time, operate the
passenger’s side temperature control dial to enter individual mode.
Individual mode (the indicator on is off):
The temperature for the driver’s and passenger’s side can be adjusted
separately.
To change the air outlets, press “ ” or “ ” on .
The air outlets used are switched each time either side the button is
pressed.
Adjusting the settings manually
1
2
3

RAV4_OM_OM42A78U_(U)
3095-1. Using the air conditioning system and defogger
5
Interior features
Press .
The dehumidification function
operates and fan speed increases.
Set the outside/recirculated air
mode button to outside air mode if
the recirculated air mode is used.
(It may switch automatically.)
To defog the windshield and the
side windows early, turn the air
flow and temperature up.
To return to the previous mode,
press
again when the wind-
shield is defogged.
Upper body

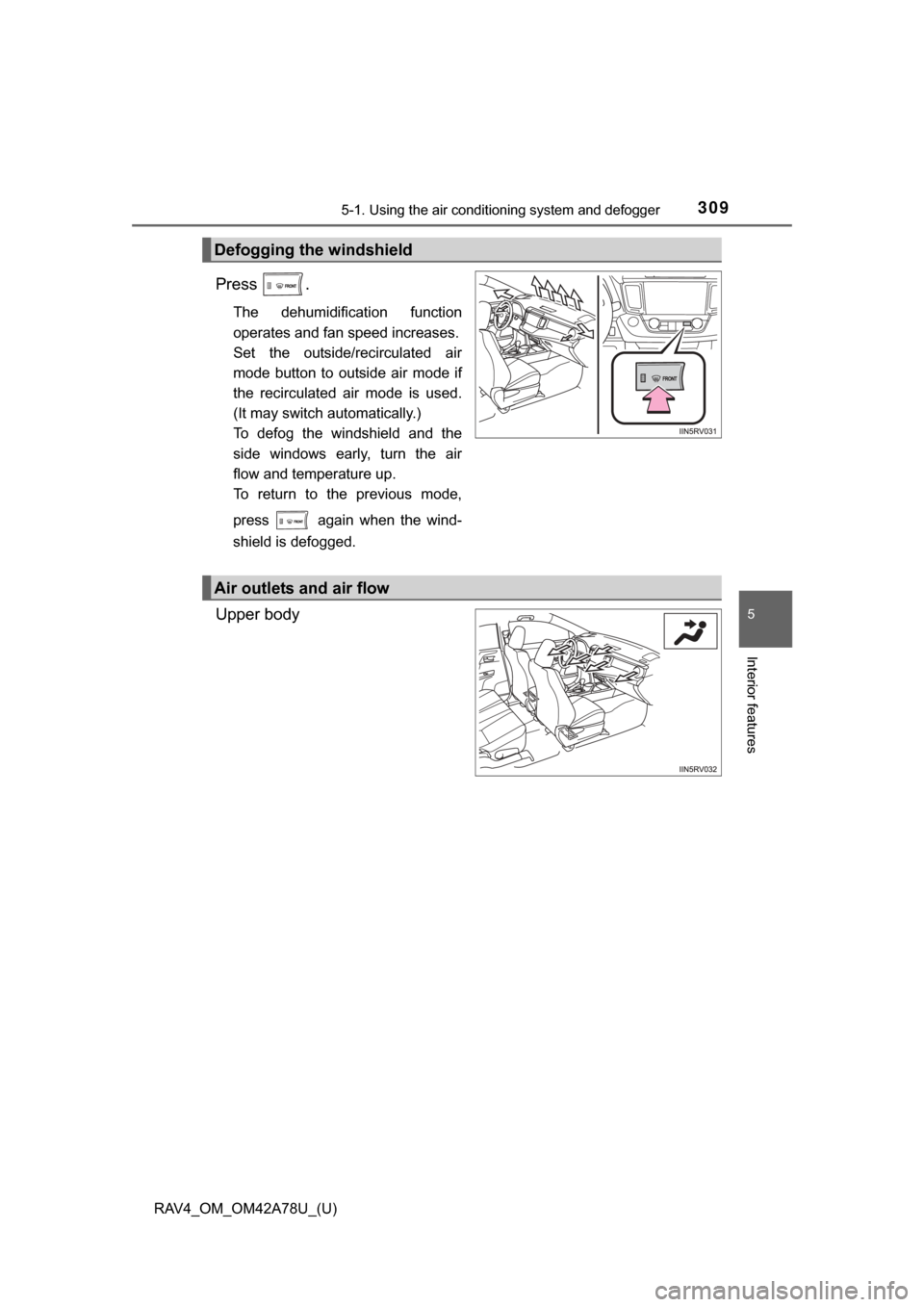

Defogging the windshield
Air outlets and air flow

310
RAV4_OM_OM42A78U_(U)
5-1. Using the air conditioning system and defogger

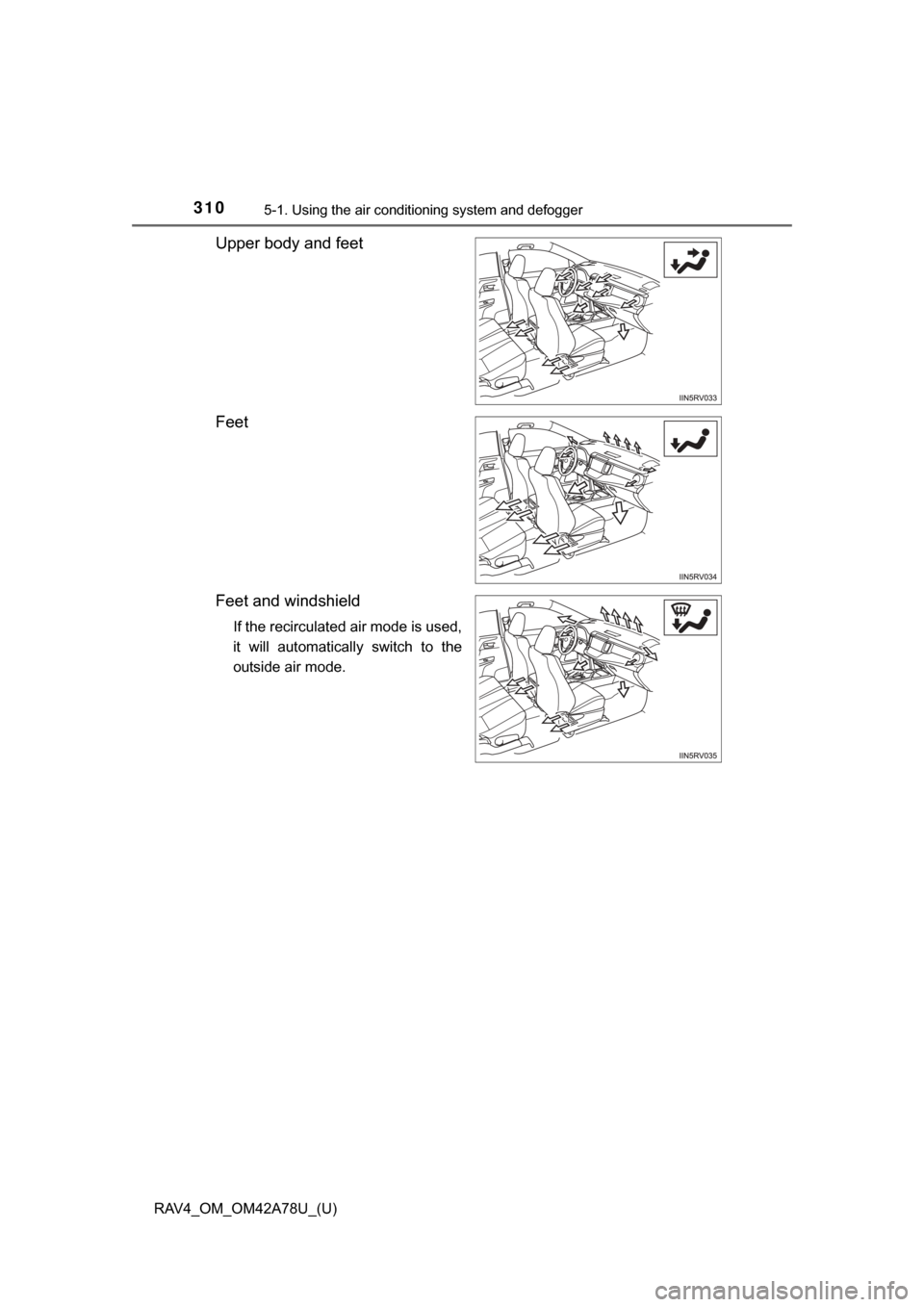

Upper body and feet
Feet
Feet and windshield
If the recirculated air mode is used,
it will automatically switch to the
outside air mode.

RAV4_OM_OM42A78U_(U)
3115-1. Using the air conditioning system and defogger
5
Interior features
Press .
The mode switches between outside air mode (the indicator is off) and
recirculated air mode (the indicator is on) each time is pressed.
Operates micro dust and pollen fil-
ter mode on/off.
Outside air mode switches to recir-
culated air mode. Pollen is
removed from the air and the air
flows to the upper part of the body.
Usually the system will turn off
automatically after approximately 3
minutes.
Switching between outside air and recirculated air modes

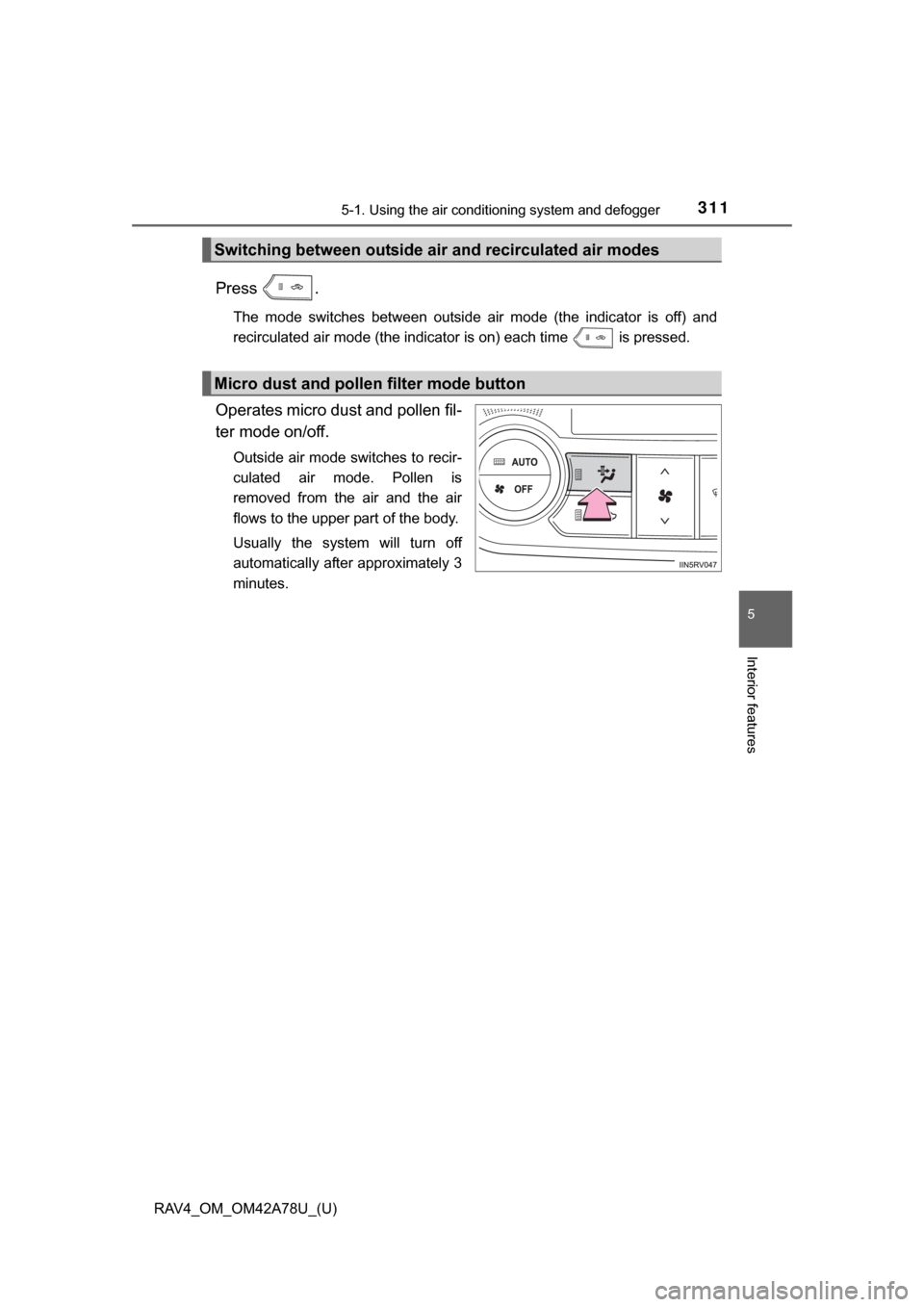

Micro dust and pollen filter mode button

312
RAV4_OM_OM42A78U_(U)
5-1. Using the air conditioning system and defogger
■Front center outlets
Direct air flow to the left or
right, up or down.
Turn the knobs to open or
close the vents.
Turn the knob to open or
close the vent for rear seat
occupants.
■Front side outlets
Direct air flow to the left or right,
up or down.
Open the vent.
Close the vent.
Adjusting the position of and op ening and closing the air outlets
1
2
3
1
2
