2015 TOYOTA RAV4 Owners Manual

609
RAV4_OM_OM42A78U_(U)
7
When trouble arises
7-2. Steps to take in an emergency
If you think something is wrong
●Fluid leaks under the vehicle
(Water dripping from the air co nditioning after use is normal.)
● Flat-looking tires or uneven tire wear
● High engine coolant temperature warning light comes on
● Changes in exhaust sound
● Excessive tire squeal when cornering
● Strange noises related to the suspension system
● Pinging or other noises related to the engine
● Engine missing, stumbling or running roughly
● Appreciable loss of power
● Vehicle pulls heavily to one side when braking
● Vehicle pulls heavily to one side when driving on a level road
● Loss of brake effectiveness, spon gy feeling, pedal almost touches
the floor
If you notice any of the follow ing symptoms, your vehicle proba-
bly needs adjustment or repair. Contact your Toyota dealer as
soon as possible.
Visible symptoms
Audible symptoms
Operational symptoms

610
RAV4_OM_OM42A78U_(U)
7-2. Steps to take in an emergency
Fuel pump shut off system
Follow the procedure below to restart the engine after the system is
activated.
Vehicles without a smart key system
Turn the engine switch to the “ACC” or “LOCK” position.
Restart the engine.
Vehicles with a smart key system
Turn the engine switch to ACCESSORY mode or off.
Restart the engine.
To minimize the risk of fuel leakage when the engine stalls or
when an airbag inflates upon collision, the fuel pump shut off
system stops the supply of fuel to the engine.
NOTICE
■Before starting the engine
Inspect the ground under the vehicle.
If you find that fuel has leaked onto the ground, the fuel system has been
damaged and is in need of repair. Do not restart the engine.
1
2
1
2

611
RAV4_OM_OM42A78U_(U)
7
When trouble arises
7-2. Steps to take in an emergency
If a warning light turns on or a warning
buzzer sounds
The following warning indicates a possible problem in the brake sys-
tem. Immediately stop the vehicle in a safe place and contact your
Toyota dealer.
*: Parking brake engaged warning buzzer:
A buzzer will sound if the vehicle is driven at a speed of approximately 3
mph (5 km/h) or more.
Calmly perform the following acti ons if any of the warning lights
comes on or flashes. If a light comes on or flashes, but then
goes off, this does not necessarily indicate a malfunction in the
system. However, if this continues to occur, have the vehicle
inspected by your Toyota dealer.
Stop the vehicle immediately. Continuing to drive the vehicle
may be dangerous.
Warning lightWarning light/Details
(U.S.A.)
(Canada)
Brake system warning light (warning buzzer)*
• Low brake fluid
• Malfunction in the brake system This light also comes on when the parking brake is not
released. If the light turns off after the parking brake is
fully released the system is operating normally.

6127-2. Steps to take in an emergency
RAV4_OM_OM42A78U_(U)
The following warning indicates the possibility of damage to the vehi-
cle that may lead to an accident. Im mediately stop the vehicle in a
safe place and contact your Toyota dealer.
Failure to investigate the cause of the following warnings may lead to
the system operating abnormally and possibly cause an accident.
Have the vehicle ins pected by your Toyota dealer immediately.
Stop the vehicle immediately.
Warning lightWarning light/Details
Charging system warning light
Indicates a malfunction in the vehicle’s charging system
Low engine oil pressure warning lightIndicates that the engine oil pressure is too low.
Have the vehicle inspected by your Toyota dealer immediately.
Warning lightWarning light/Details
(U.S.A.)
(Canada)
Malfunction indicator lamp Indicates a malfunction in:
• The electronic engine control system;
• The electronic throttle control system; or
• The electronic automatic transmission control system
SRS warning lightIndicates a malfunction in:
• The SRS airbag system;
• The front passenger occupant classification system; or
• The seat belt pretensioner system
(U.S.A.)
(Canada)
ABS warning light Indicates a malfunction in:
• The ABS; or
• The brake assist system

6137-2. Steps to take in an emergency
RAV4_OM_OM42A78U_(U)
7
When trouble arises
Electric power steering system warning light (warning
buzzer)Indicates a malfunction in the EPS (Electric Power Steer-
ing) system
(Yellow)
LDA warning lights (if equipped)Indicates a malfunction in the lane departure alert
Stop the vehicle in a safe place. Turn the engine switch off
and then turn it to the “ON” position (vehicles without a
smart key system) or IGNITION ON mode (vehicles with a
smart key system) again to reset the LDA system. If the
LDA system becomes normal, the system can be acti-
vated.
Slip indicatorIndicates a malfunction in:
• The VSC system;
• The TRAC system; or
• The AUTO LSD function
The light will flash when the VSC or the TRAC system is
operating.
Automatic transmission flui d temperature warning light
(if equipped) Indicates that the automatic transmission fluid tempera-
ture is too high if the light comes on
BSM warning light (if equipped)Indicates a malfunction in the Blind Spot Monitor
(Yellow)
Cruise control warning lightIndicates a malfunction in the cruise control
(Yellow)
Automatic High Beam warning light (if equipped)Indicates a malfunction in the Automatic High Beam
Warning lightWarning light/Details

6147-2. Steps to take in an emergency
RAV4_OM_OM42A78U_(U)
*: The corner and center indicators flash after the indicator for the malfunc-tioning sensor flashes and the vehicle indicator turns off while the buzzer
sounds for approximately 7 seconds.
(Flashes in
yellow for 15 seconds.)Smart key system indicator light (if equipped) Indicates a malfunction in the smart key system
(Flashes)
Intuitive parking assist indicator (warning buzzer)* (if
equipped)Indicates a malfunction in the intuitive parking assist
Warning lightWarning light/Details

6157-2. Steps to take in an emergency
RAV4_OM_OM42A78U_(U)
7
When trouble arises
After taking the specified steps to correct the suspected problem,
check that the warning light goes off.
Follow the correction procedures.
Warning lightWarning light/DetailsCorrection procedure
Open door warning light
(warning buzzer)
*1
Indicates that a door is not
fully closed
Check that all the doors are
closed.
Seat belt reminder light
(warning buzzer)
*2
Warns the driver and/or
front passenger to fasten
their seat belts
Fasten the seat belt.If the front passenger’s
seat is occupied, the front
passenger’s seat belt also
needs to be fastened to
make the warning light
(warning buzzer) off.
Low fuel level warning
lightIndicates remaining fuel is
approximately 2.4 gal. (9.0
L, 2.0 Imp. gal.) or less
Refuel the vehicle.
High engine coolant tem-
perature warning lightIndicates that the engine is
almost overheating.
 P. 653
Low washer fluid warning
light
Indicates low level of
washer fluid.
Fill the tank.

6167-2. Steps to take in an emergency
RAV4_OM_OM42A78U_(U)
(U.S.A.)

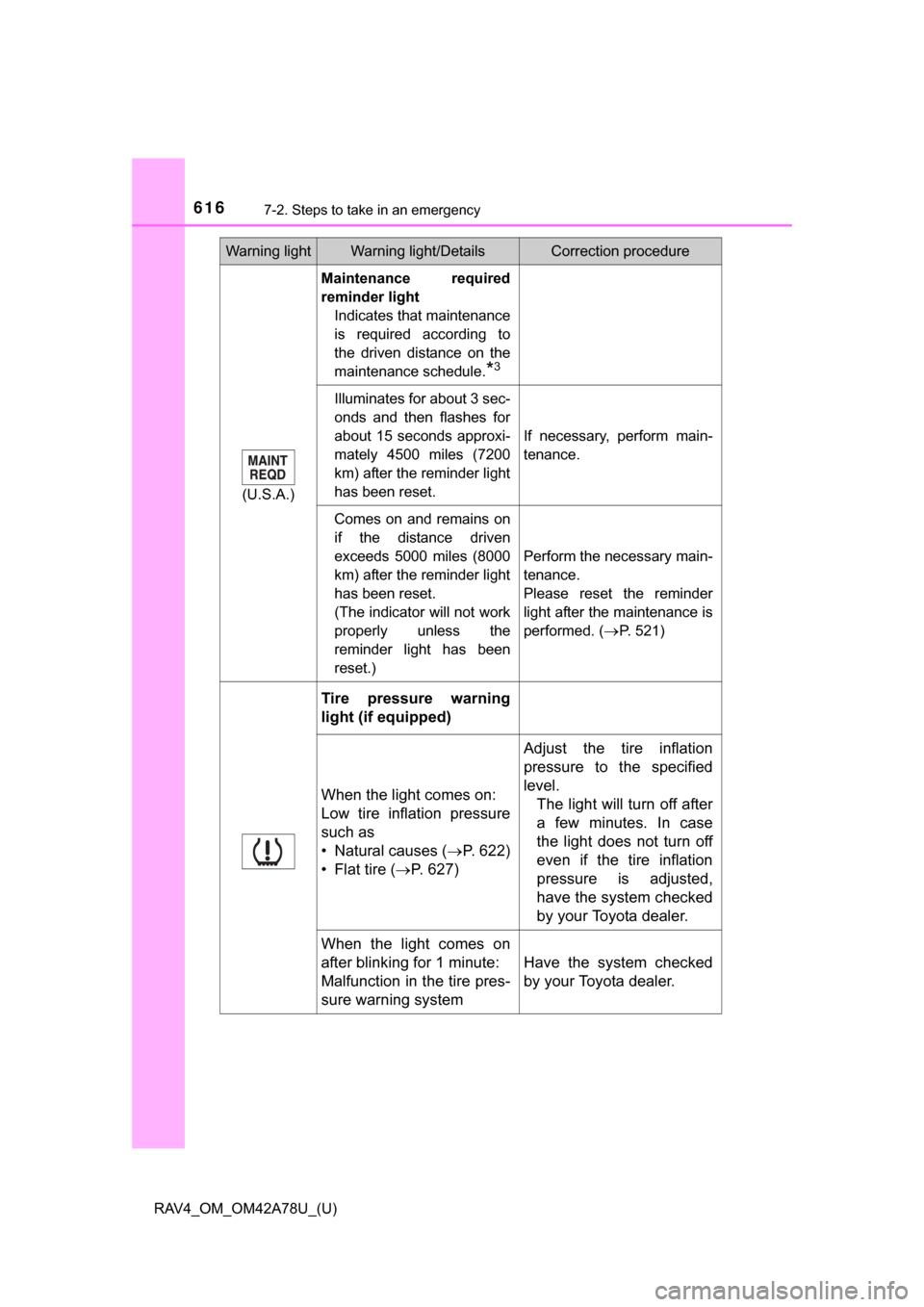

Maintenance required
reminder lightIndicates that maintenance
is required according to
the driven distance on the
maintenance schedule.
*3
Illuminates for about 3 sec-
onds and then flashes for
about 15 seconds approxi-
mately 4500 miles (7200
km) after the reminder light
has been reset.
If necessary, perform main-
tenance.
Comes on and remains on
if the distance driven
exceeds 5000 miles (8000
km) after the reminder light
has been reset.
(The indicator will not work
properly unless the
reminder light has been
reset.)
Perform the necessary main-
tenance.
Please reset the reminder
light after the maintenance is
performed. (
P. 521)
Tire pressure warning
light (if equipped)
When the light comes on:
Low tire inflation pressure
such as
• Natural causes ( P. 622)
• Flat tire ( P. 627)
Adjust the tire inflation
pressure to the specified
level.
The light will turn off after
a few minutes. In case
the light does not turn off
even if the tire inflation
pressure is adjusted,
have the system checked
by your Toyota dealer.
When the light comes on
after blinking for 1 minute:
Malfunction in the tire pres-
sure warning system
Have the system checked
by your Toyota dealer.
Warning lightWarning light/DetailsCorrection procedure
