2015 TOYOTA RAV4 Owners Manual

RAV4_OM_OM42A78U_(U)
5776-3. Do-it-yourself maintenance
6
Maintenance and care
11RDI FAN30Electric cooling fans
12ABS NO.150Vehicle stability control
13HTR50Air conditioning system
14H-LP-MAIN50H-LP RH-LO, H-LP LH-LO, H-LP RH-HI,
H-LP LH-HI, daytime running lights
15AMP30Audio system
16ST30Starting system
17EFI-MAIN NO.120
Multiport fuel injection system/sequential
multiport fuel injection system, EFI NO.1,
EFI NO.2
18IG215
METER, IGN, A/B, multiport fuel injection
system/sequential multiport fuel injection
system
19TURN & HAZ10Gauges and meters
20AM27.5IG2, starting system
21ECU-B NO.210
Air conditioning system ECU, gauges
and meters, front passenger occupant
classification system ECU, smart key
system
22STRG LOCK10Steering lock ECU
23D/C CUT30DOME, ECU-B NO.1, RADIO
24HORN10Horn
25ETCS10Multiport fuel injection system/sequential
multiport fuel injection system
26EFI-MAIN NO.220Air flow sensor, fuel pump, rear O2 sen-
sor
27ALT-S/ICS7.5Electric current sensor
28EPS80Electric power steering
29ALT120
ABS NO.1, ABS NO.2, PTC HTR NO.1,
PTC HTR NO.2, DEICER, HTR, RDI
FAN, CDS FAN, FOG FR, DEF
30MIR HTR10
Outside rear view mirror defoggers, mul-
tiport fuel injection system/sequential
multiport fuel injection system
FuseAmpereCircuit

578
RAV4_OM_OM42A78U_(U)
6-3. Do-it-yourself maintenance
31WIPER-S5Windshield wiper switch, electric current
sensor
32H-LP LH-LO10Left-hand headlight (low beam)
33H-LP RH-LO10Right-hand headlight (low beam)
34EFI NO.110Air flow meter, purge control VSV, ACIS
VSV
35EFI NO.210
Multiport fuel injection system/sequential
multiport fuel injection system, key off
pump module
36H-LP LH-HI10Left-hand headlight (high beam), head-
light high beam indicator
37H-LP RH-HI10Right-hand headlight (high beam)
38SPARE10Spare fuse
39SPARE20Spare fuse
40SPARE30Spare fuse
FuseAmpereCircuit

RAV4_OM_OM42A78U_(U)
5796-3. Do-it-yourself maintenance
6
Maintenance and care

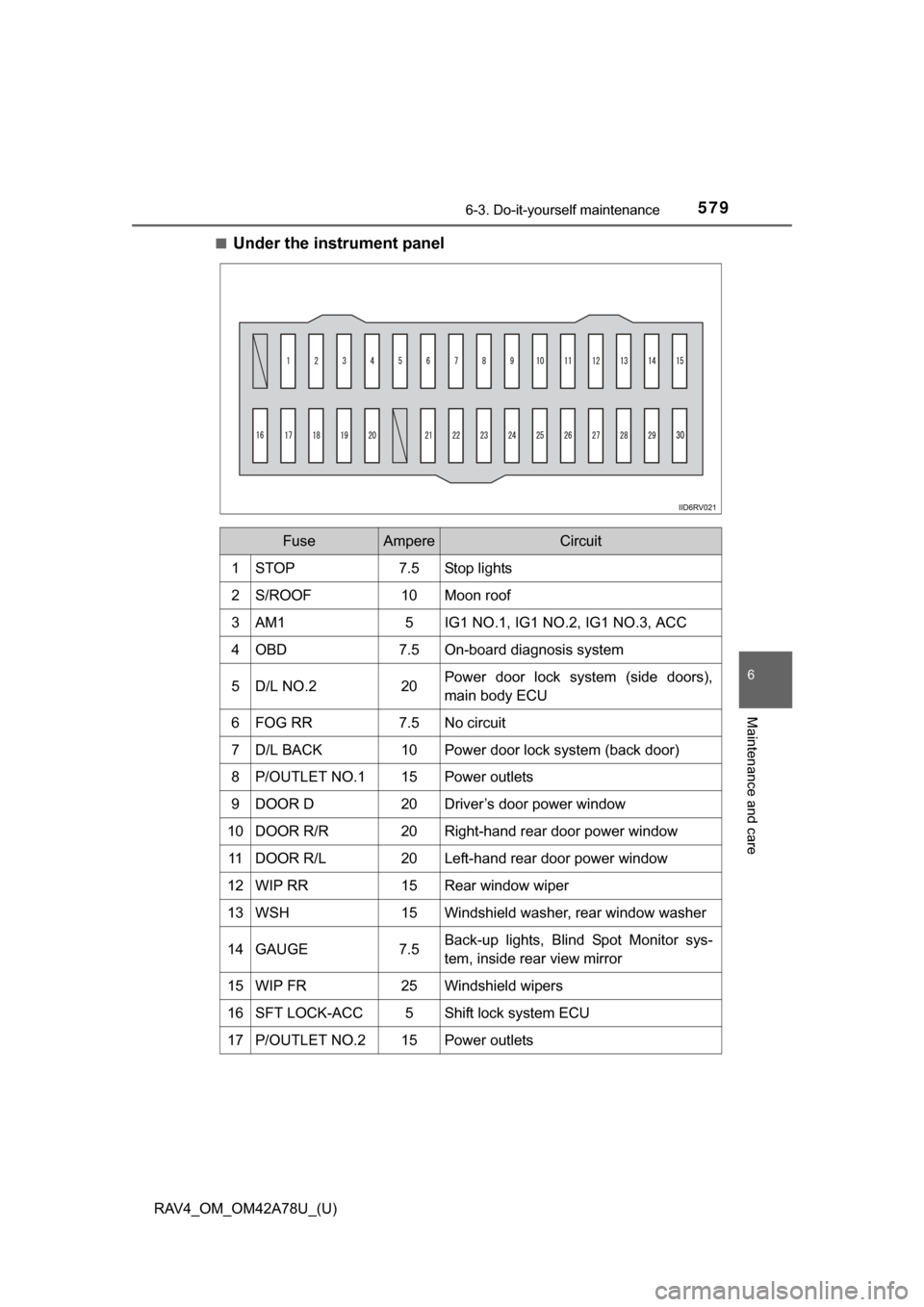

■Under the instrument panel
FuseAmpereCircuit
1STOP7.5Stop lights
2S/ROOF10Moon roof
3AM15IG1 NO.1, IG1 NO.2, IG1 NO.3, ACC
4OBD7.5On-board diagnosis system
5D/L NO.220Power door lock system (side doors),
main body ECU
6FOG RR7.5No circuit
7D/L BACK10Power door lock system (back door)
8P/OUTLET NO.115Power outlets
9DOOR D20Driver’s door power window
10DOOR R/R20Right-hand rear door power window
11DOOR R/L20Left-hand rear door power window
12WIP RR15Rear window wiper
13WSH15Windshield washer, rear window washer
14GAUGE7.5Back-up lights, Blind Spot Monitor sys-
tem, inside rear view mirror
15WIP FR25Windshield wipers
16SFT LOCK-ACC5Shift lock system ECU
17P/OUTLET NO.215Power outlets

580
RAV4_OM_OM42A78U_(U)
6-3. Do-it-yourself maintenance
18ACC7.5
Power outlets, audio system, outside rear
view mirrors, main body ECU, clock,
electric current sensor
19PA N E L7.5
VSC OFF switch, instrument cluster (indi-
cators and warning lights), BSM main
switch, all-wheel drive lock switch, wind-
shield wiper de-icer switch, multiport fuel
injection system/sequential multiport fuel
injection system, intuitive parking assist
ECU, seat heater switches, power out-
lets, power back door switches, air condi-
tioning system switches, rear window
defogger switch, audio system, cup
holder light, steering switches, driver
module switch
20TA I L10Parking lights, tail lights, license plate
lights, side marker lights, fog lights
21EPS-IG5Electric power steering
22ECU-IG NO.110
Dynamic Torque Control AWD system
ECU, steering sensor, instrument cluster
(indicators and warning lights), shift con-
trol switch
23ECU-IG NO.25
Main body ECU, wireless remote control,
shift lock system ECU, smart key system,
moon roof ECU, audio system, power
back door ECU, tire pressure warning
system, LDA system, Blind Spot Monitor
system
24HTR-IG7.5
Air conditioning system ECU, air condi-
tioning system switches, rear window
defogger switch
25S-HTR LH10Left-hand seat heater
26S-HTR RH10Right-hand seat heater
27IGN7.5
Fuel pump, multiport fuel injection sys-
tem/sequential multiport fuel injection
system, stop lights, steering lock system
ECU
FuseAmpereCircuit

RAV4_OM_OM42A78U_(U)
5816-3. Do-it-yourself maintenance
6
Maintenance and care
28A/B7.5SRS airbag system ECU, front passen-
ger occupant classification system ECU
29METER5Gauges and meters
30ECU-IG NO.37.5
Alternator, anti-lock brake system/vehicle
stability control ECU, stop lights, FAN
NO.1, FAN NO.2, FAN NO.3, HTR, PTC,
DEF, DEICER, windshield wiper de-icer
switch
FuseAmpereCircuit

582
RAV4_OM_OM42A78U_(U)
6-3. Do-it-yourself maintenance

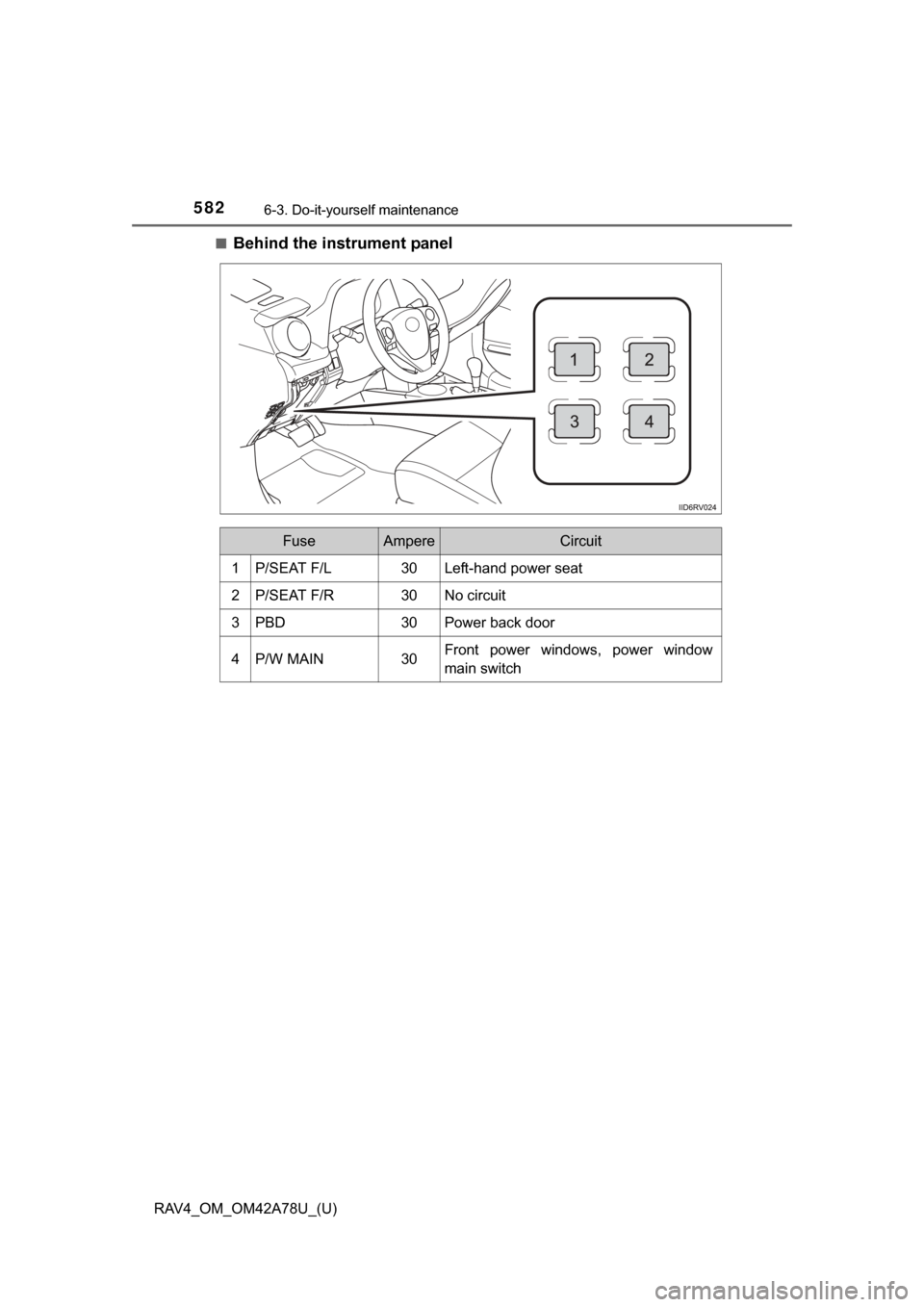

■Behind the instrument panel
FuseAmpereCircuit
1P/SEAT F/L30Left-hand power seat
2P/SEAT F/R30No circuit
3PBD30Power back door
4P/W MAIN30Front power windows, power window
main switch

RAV4_OM_OM42A78U_(U)
5836-3. Do-it-yourself maintenance
6
Maintenance and care
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. ( P. 584)
● If the replaced fuse blows again, have the vehicle inspected by your Toyota
dealer.
■ If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.
● Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your
Toyota dealer as soon as possible.

584
RAV4_OM_OM42A78U_(U)
6-3. Do-it-yourself maintenance
Light bulbs
Check the wattage of the light bulb to be replaced. (P. 670)
■Front
You may replace the following bulbs by yourself. The difficulty
level of replacement varies de pending on the bulb. If necessary
bulb replacement seems difficul t to perform, contact your
Toyota dealer.
For more information about repl acing other light bulbs, contact
your Toyota dealer.
Preparing for light bulb replacement
Bulb locations
Headlight low beam
Daytime running light/head-
light high beam
Front turn signal light/parking
light Front side marker light
Fog light (if equipped)1
2
3
4
5
