2015 TOYOTA AVENSIS display

3365-5. Using an external device
AVENSIS_OM_OM20C20E_(EE)■

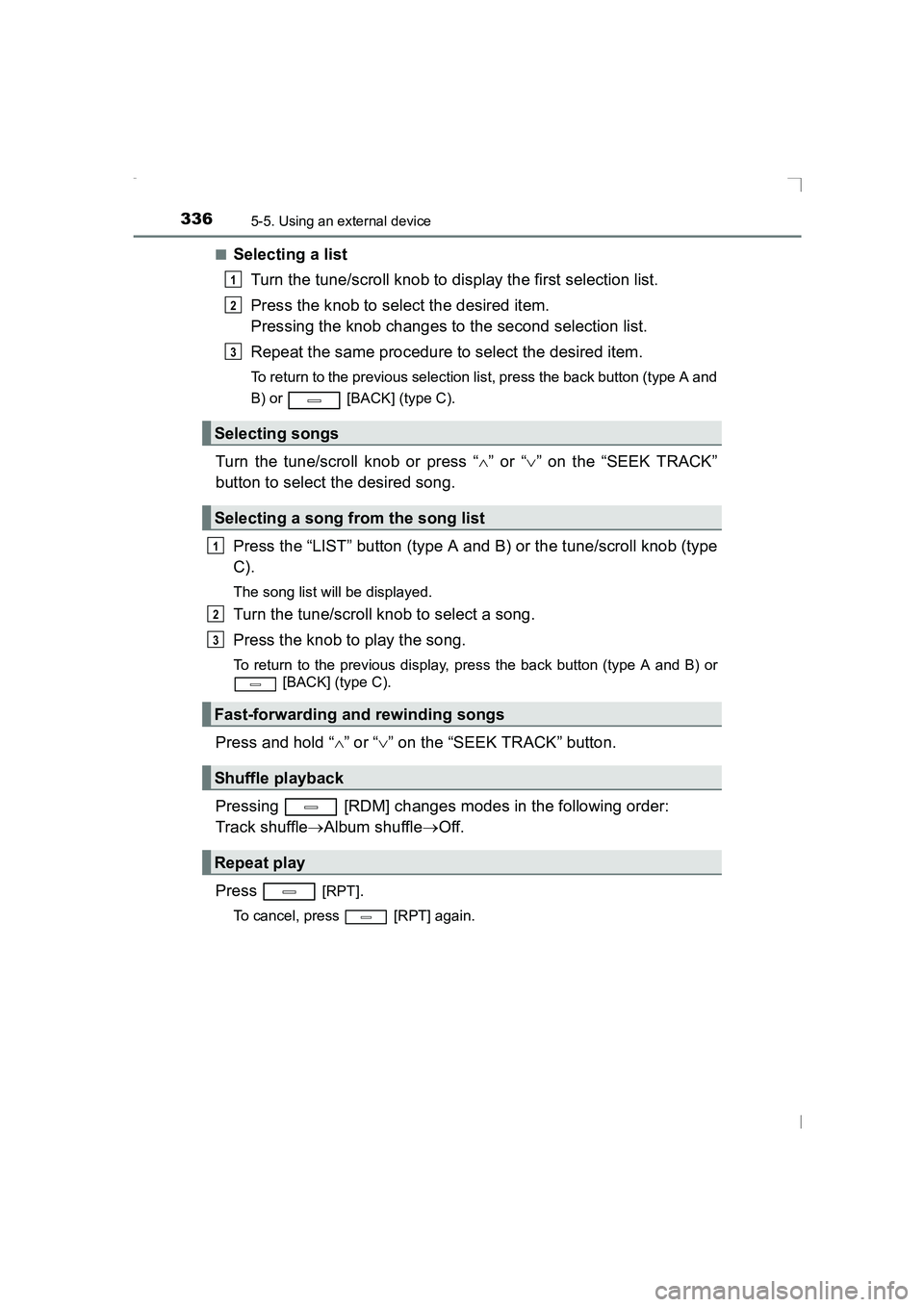

Selecting a list
Turn the tune/scroll knob to display the first selection list.
Press the knob to select the desired item.
Pressing the knob changes to the second selection list.
Repeat the same procedure to select the desired item.
To return to the previous selection list, press the back button (type A and
B) or [BACK] (type C).
Turn the tune/scroll knob or press “ ∧” or “ ∨” on the “SEEK TRACK”
button to select the desired song.
Press the “LIST” button (type A and B) or the tune/scroll knob (type
C).
The song list will be displayed.
Turn the tune/scroll knob to select a song.
Press the knob to play the song.
To return to the previous display, press the back button (type A and B) or [BACK] (type C).
Press and hold “ ∧” or “ ∨” on the “SEEK TRACK” button.
Pressing [RDM] changes modes in the following order:
Track shuffle →Album shuffle →Off.
Press
[RPT].
To cancel, press [RPT] again.
Selecting songs
Selecting a song from the song list
Fast-forwarding and rewinding songs
Shuffle playback
Repeat play
1
2
3
1
2
3
AVENSIS_OM_OM20C20E_(EE).book Page 336 Thursday, January 29, 2015 1:47 PM

3375-5. Using an external device
5
Audio system
AVENSIS_OM_OM20C20E_(EE)

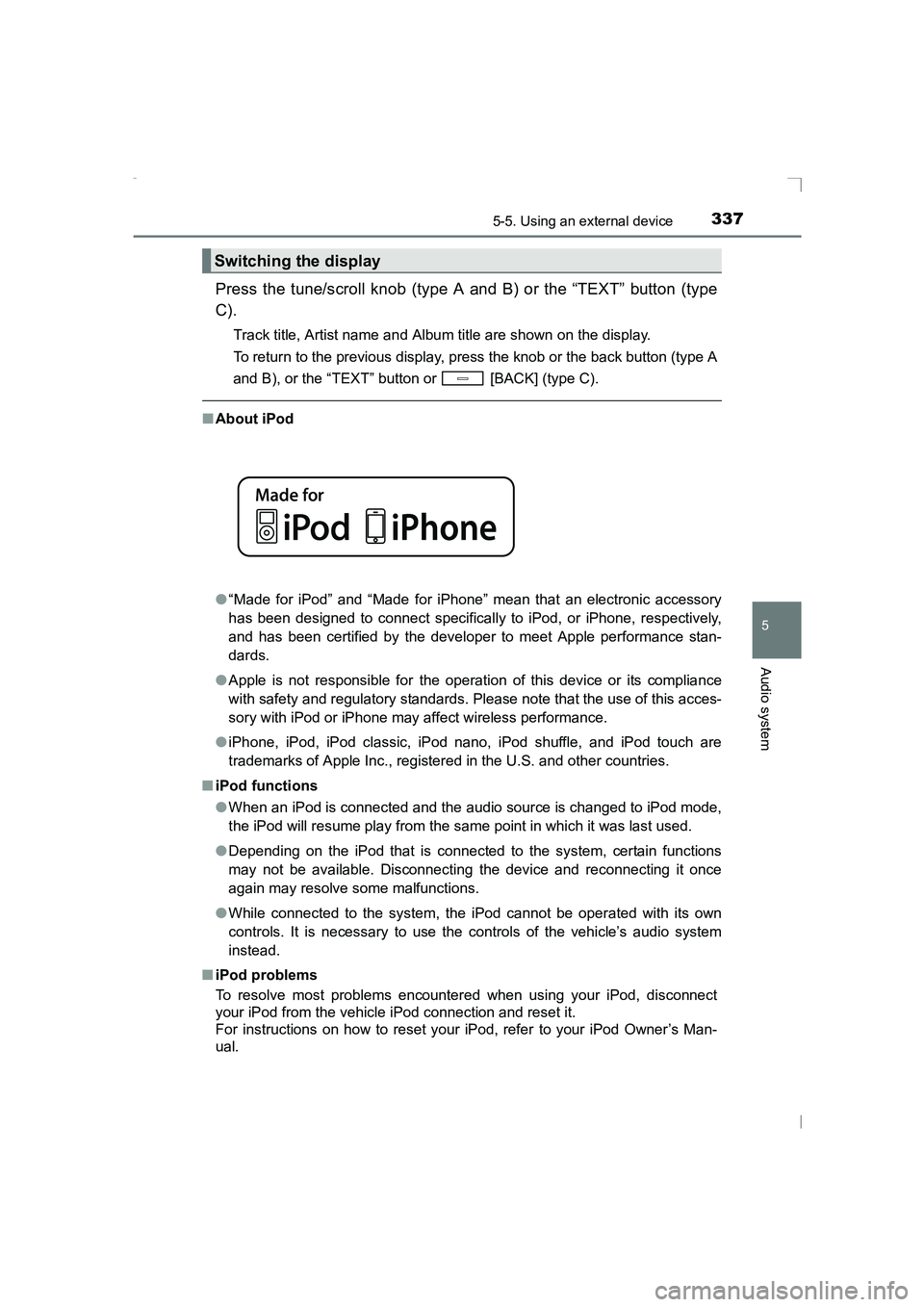

Press the tune/scroll knob (type A and B) or the “TEXT” button (type
C).
Track title, Artist name and Album title are shown on the display.
To return to the previous display, press the knob or the back button (type A
and B), or the “TEXT” button or [BACK] (type C).
■ About iPod
●“Made for iPod” and “Made for iPhone” mean that an electronic accessory
has been designed to connect specifically to iPod, or iPhone, respectively,
and has been certified by the developer to meet Apple performance stan-
dards.
● Apple is not responsible for the operation of this device or its compliance
with safety and regulatory standards. Please note that the use of this acces-
sory with iPod or iPhone may affect wireless performance.
● iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch are
trademarks of Apple Inc., registered in the U.S. and other countries.
■ iPod functions
●When an iPod is connected and the audio source is changed to iPod mode,
the iPod will resume play from the same point in which it was last used.
● Depending on the iPod that is connected to the system, certain functions
may not be available. Disconnecting the device and reconnecting it once
again may resolve some malfunctions.
● While connected to the system, the iPod cannot be operated with its own
controls. It is necessary to use the controls of the vehicle’s audio system
instead.
■ iPod problems
To resolve most problems encountered when using your iPod, disconnect
your iPod from the vehicle iPod connection and reset it.
For instructions on how to reset your iPod, refer to your iPod Owner’s Man-
ual.
Switching the display
AVENSIS_OM_OM20C20E_(EE).book Page 337 Thursday, January 29, 2015 1:47 PM

3385-5. Using an external device
AVENSIS_OM_OM20C20E_(EE)■

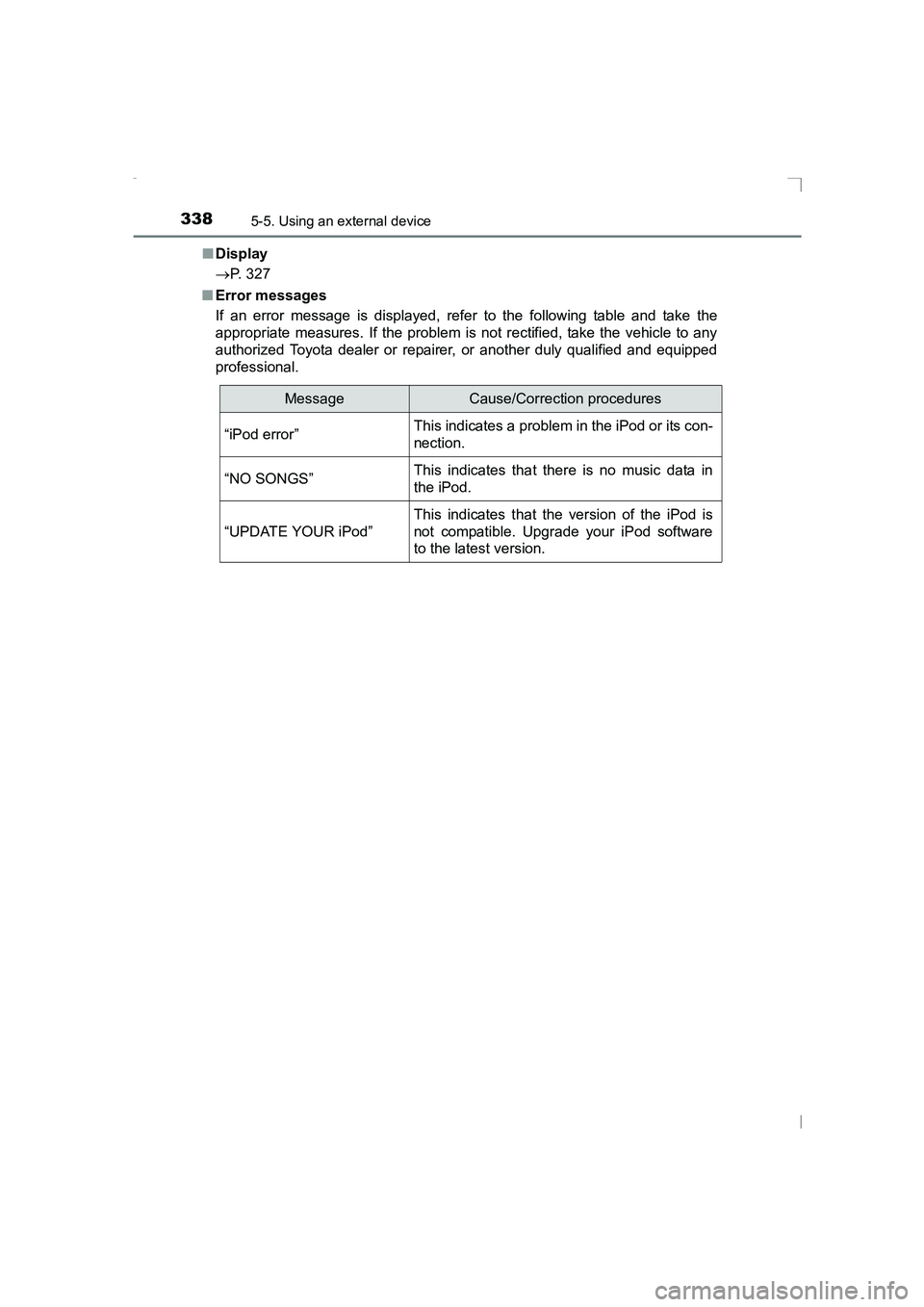

Display
→ P. 327
■ Error messages
If an error message is displayed, refer to the following table and take the
appropriate measures. If the problem is not rectified, take the vehicle to any
authorized Toyota dealer or repair er, or another duly qualified and equipped
professional.
MessageCause/Correction procedures
“iPod error”This indicates a problem in the iPod or its con-
nection.
“NO SONGS”This indicates that there is no music data in
the iPod.
“UPDATE YOUR iPod”
This indicates that the version of the iPod is
not compatible. Upgrade your iPod software
to the latest version.
AVENSIS_OM_OM20C20E_(EE).book Page 338 Thursday, January 29, 2015 1:47 PM

341
5
5-5. Using an external device
Audio system
AVENSIS_OM_OM20C20E_(EE)

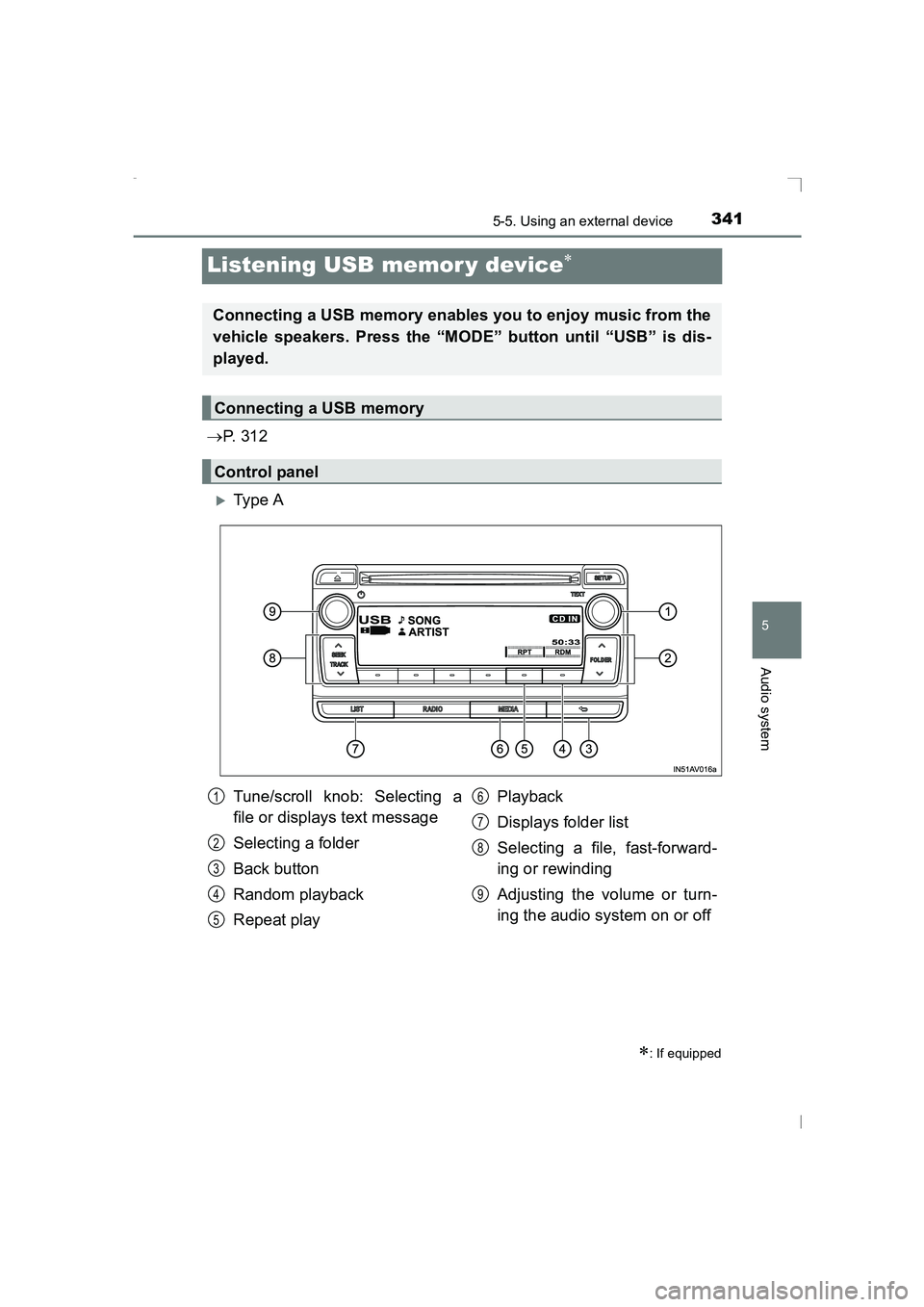

Listening USB memor y device∗
→P. 3 1 2
XTy pe A
∗: If equipped
Connecting a USB memory enables you to enjoy music from the
vehicle speakers. Press the “MODE” button until “USB” is dis-
played.
Connecting a USB memory
Control panel
Tune/scroll knob: Selecting a
file or displays text message
Selecting a folder
Back button
Random playback
Repeat play Playback
Displays folder list
Selecting a file, fast-forward-
ing or rewinding
Adjusting the volume or turn-
ing the audio system on or off1
2
3
4
5
6
7
8
9
AVENSIS_OM_OM20C20E_(EE).book Page 341 Thursday, January 29,
2015 1:47 PM

3425-5. Using an external device
AVENSIS_OM_OM20C20E_(EE)

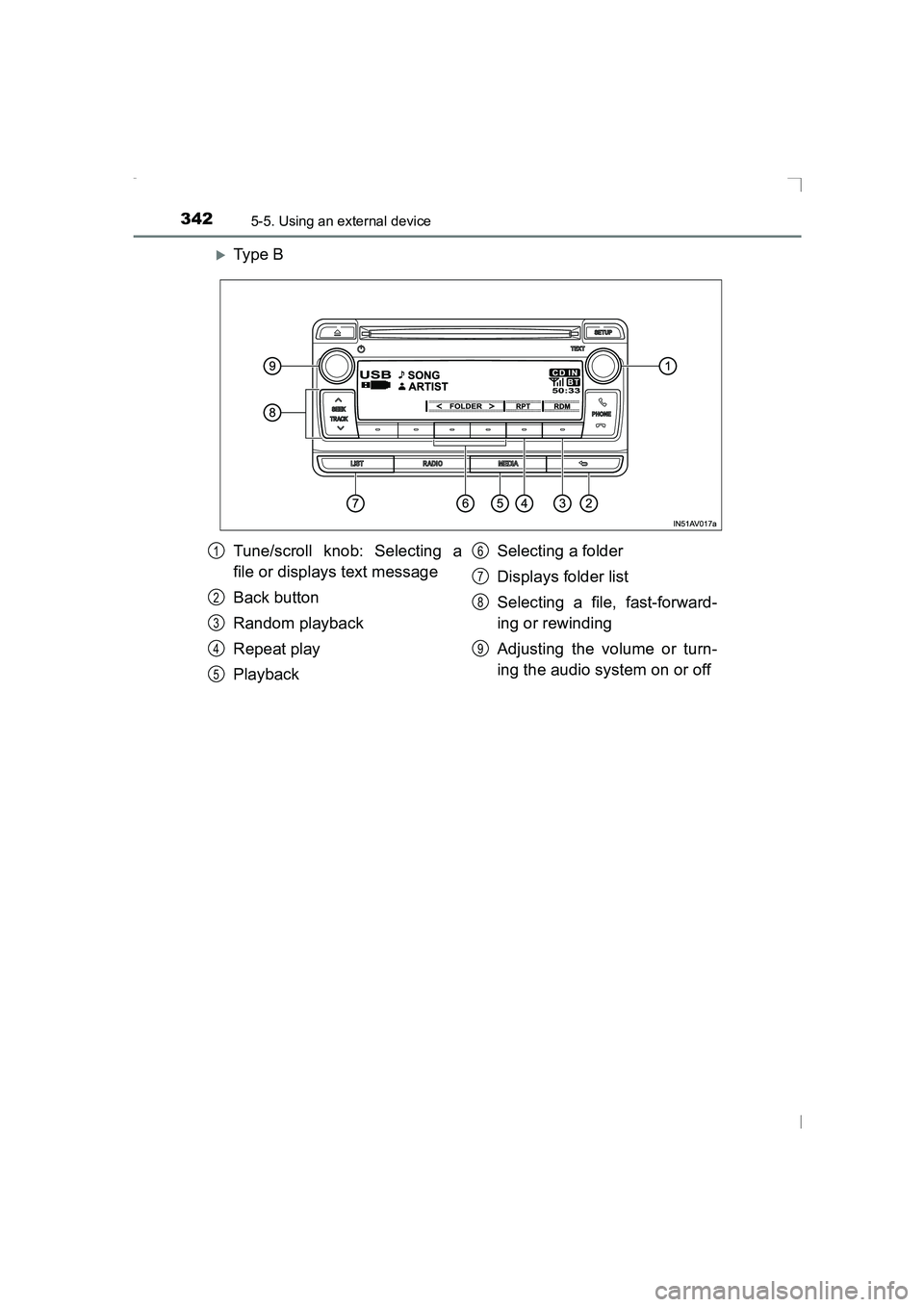

XTy pe B
Tune/scroll knob: Selecting a
file or displays text message
Back button
Random playback
Repeat play
PlaybackSelecting a folder
Displays folder list
Selecting a file, fast-forward-
ing or rewinding
Adjusting the volume or turn-
ing the audio system on or off1
2
3
4
5
6
7
8
9
AVENSIS_OM_OM20C20E_(EE).book Page 342 Thursday, January 29,
2015 1:47 PM

3435-5. Using an external device
5
Audio system
AVENSIS_OM_OM20C20E_(EE)

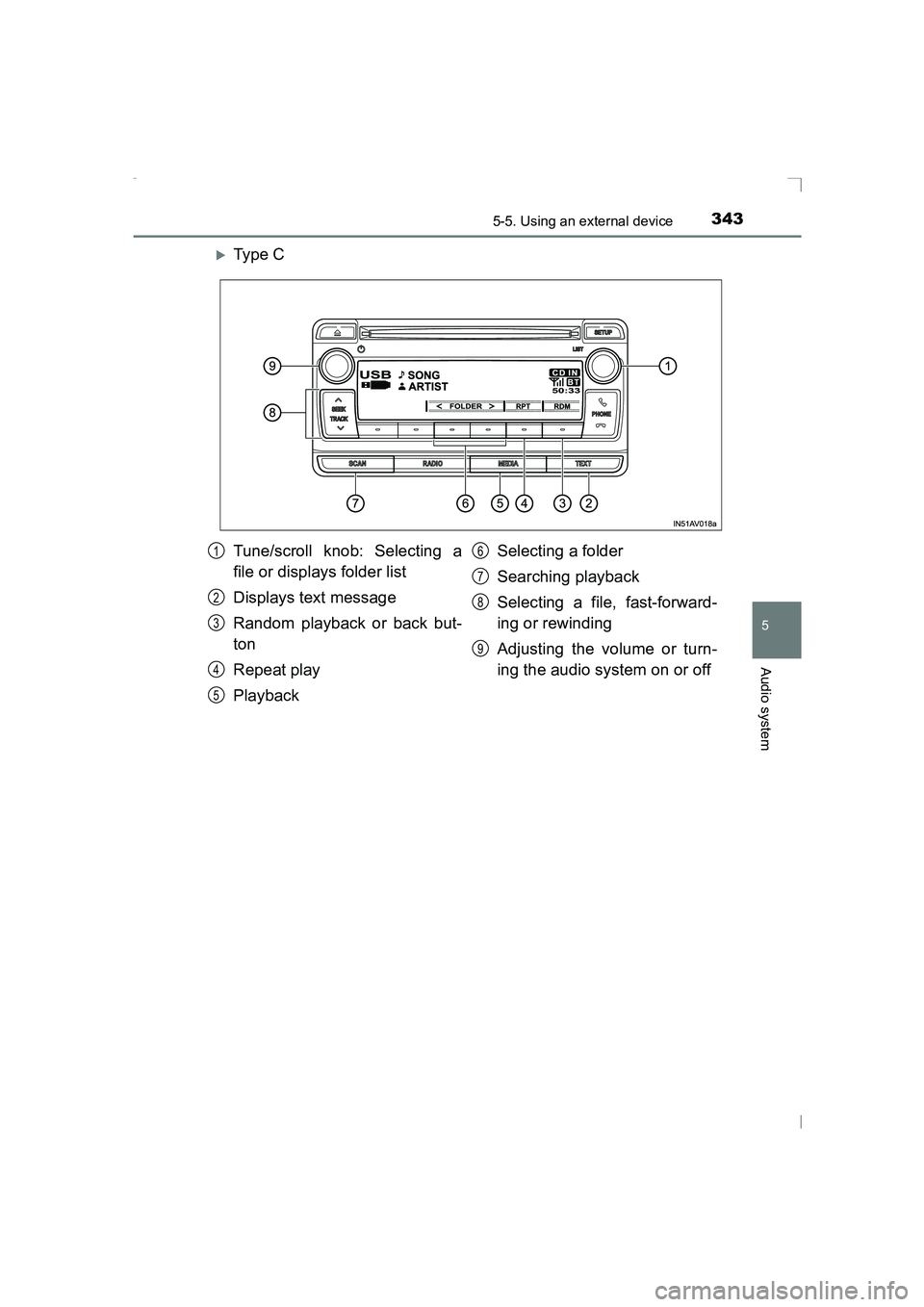

XTy pe C
Tune/scroll knob: Selecting a
file or displays folder list
Displays text message
Random playback or back but-
ton
Repeat play
PlaybackSelecting a folder
Searching playback
Selecting a file, fast-forward-
ing or rewinding
Adjusting the volume or turn-
ing the audio system on or off1
2
3
4
5
6
7
8
9
AVENSIS_OM_OM20C20E_(EE).book Page 343 Thursday, January 29,
2015 1:47 PM

3445-5. Using an external device
AVENSIS_OM_OM20C20E_(EE)■

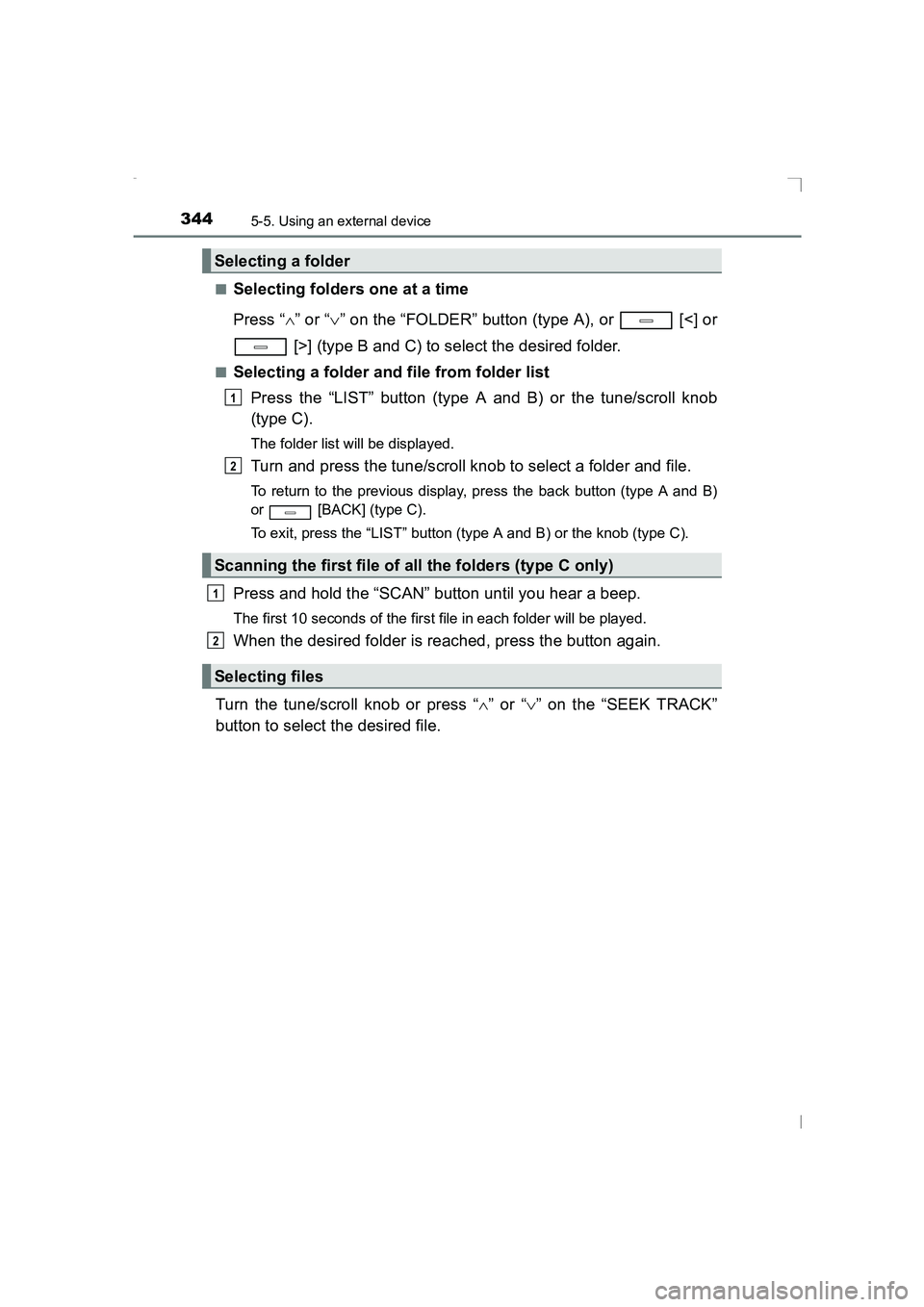

Selecting folders one at a time
Press “
∧” or “ ∨” on the “FOLDER” button (type A), or [<] or
[>] (type B and C) to select the desired folder.
■Selecting a folder and file from folder list Press the “LIST” button (type A and B) or the tune/scroll knob
(type C).
The folder list will be displayed.
Turn and press the tune/scroll knob to select a folder and file.
To return to the previous display, press the back button (type A and B)
or [BACK] (type C).
To exit, press the “LIST” button (type A and B) or the knob (type C).
Press and hold the “SCAN” button until you hear a beep.
The first 10 seconds of the first file in each folder will be played.
When the desired folder is reached, press the button again.
Turn the tune/scroll knob or press “ ∧” or “ ∨” on the “SEEK TRACK”
button to select the desired file.
Selecting a folder
Scanning the first file of all the folders (type C only)
Selecting files
1
2
1
2
AVENSIS_OM_OM20C20E_(EE).book Page 344 Thursday, January 29, 2015 1:47 PM

3455-5. Using an external device
5
Audio system
AVENSIS_OM_OM20C20E_(EE)

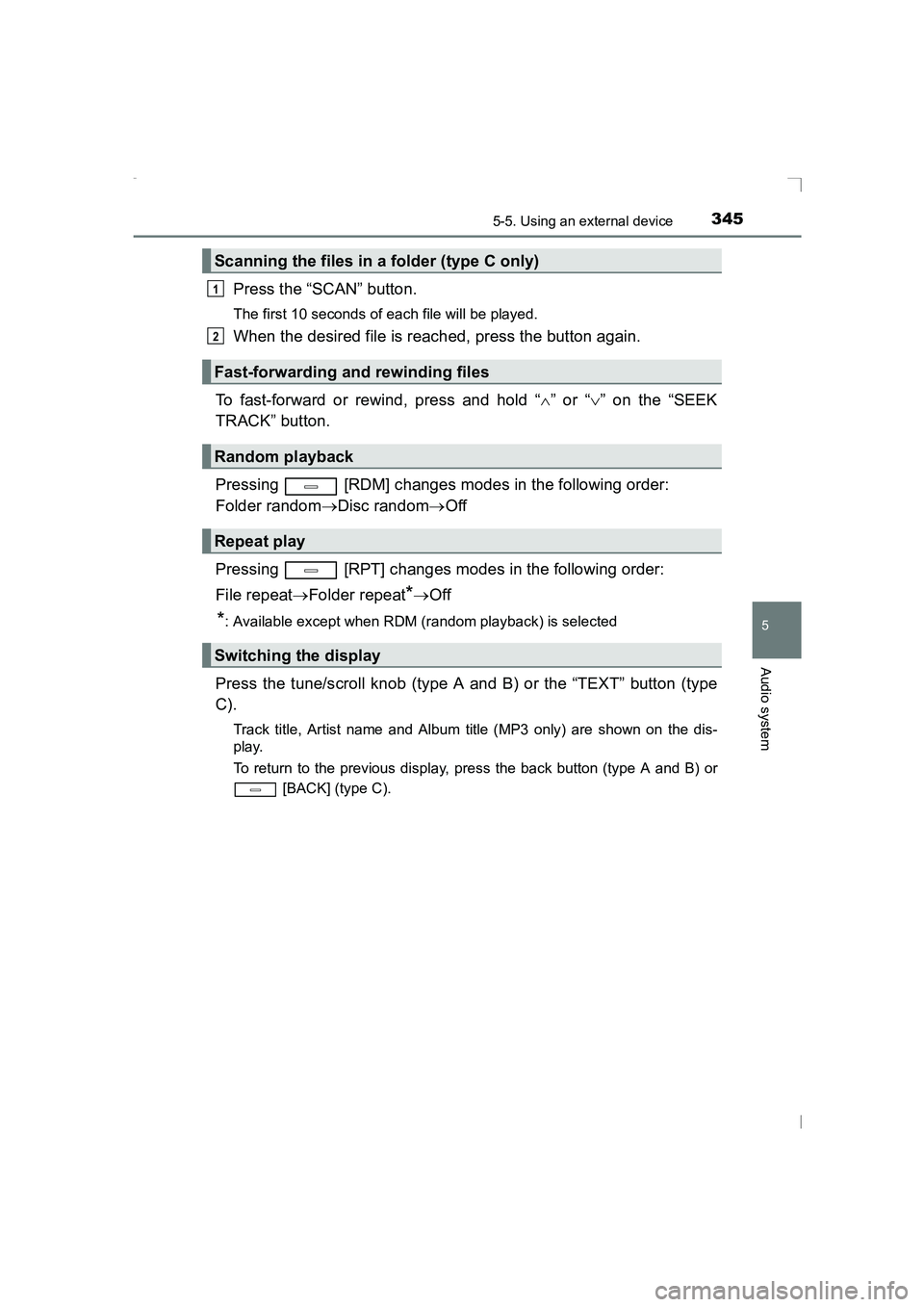

Press the “SCAN” button.
The first 10 seconds of each file will be played.
When the desired file is reached, press the button again.
To fast-forward or rewind, press and hold “ ∧” or “ ∨” on the “SEEK
TRACK” button.
Pressing [RDM] changes modes in the following order:
Folder random →Disc random →Off
Pressing [RPT] changes modes in the following order:
File repeat →Folder repeat
*→Off
*: Available except when RDM (random playback) is selected
Press the tune/scroll knob (type A and B) or the “TEXT” button (type
C).
Track title, Artist name and Album title (MP3 only) are shown on the dis-
play.
To return to the previous display, press the back button (type A and B) or
[BACK] (type C).
Scanning the files in a folder (type C only)
Fast-forwarding and rewinding files
Random playback
Repeat play
Switching the display
1
2
