2015 TOYOTA AVENSIS fog light bulb

13Pictorial index
AVENSIS_OM_OM20C20E_(EE)Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 242
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 303
To prevent freezing (windshield wiper de-icer)
*1. . . . . . . P. 384, 391
Precautions against car wash . . . . . . . . . . . . . . . . . . . . . . . . . P. 427
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 247
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 247
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 601
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 458
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 613
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 303
Checking/rotation/tire pressure warning system
*1 . . . . . . . . . P. 458
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 544, 560
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 440
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 440
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 602
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 590
Headlights/front position lights/daytime running
lights
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 232
Front fog lights
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 240
Cornering/fog light
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 236
Turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 228
Tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 232
Stop lights
Back-up lights
*2
Shifting the shift lever to R. . . . . . . . . . . . . . . . . . . . . . . . P. 219, 225
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 232
Rear fog light
*1, 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 240
4
5
6
7
Light bulbs of the exterior lights for driving
(Replacing method: P. 490, Watts: P. 615)
*1: If equipped
*2: They may be located on the opposite side depending on the target region.
8
9
10
11
12
13
14
15
AVENSIS_OM_OM20C20E_(EE).book Page 13 Thursday, January 29, 2 015 1:47 PM

15Pictorial index
AVENSIS_OM_OM20C20E_(EE)Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 242
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 303
To prevent freezing (windshield wiper de-icer)
*1. . . . . . . P. 384, 391
Precautions against car wash . . . . . . . . . . . . . . . . . . . . . . . . . P. 427
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 247
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 247
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 601
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 458
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 613
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 303
Checking/rotation/tire pressure warning system
*1 . . . . . . . . . P. 458
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 544, 560
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 440
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 440
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 602
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 590
Headlights/front position lights/daytime running
lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 232
Front fog lights
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 240
Cornering/fog light
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 236
Turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 228
Tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 232
Stop lights
Back-up lights
*2
Shifting the shift lever to R. . . . . . . . . . . . . . . . . . . . . . . . P. 219, 225
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 232
Rear fog light
*1, 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 240
4
5
6
7
Light bulbs of the exterior lights for driving
(Replacing method: P. 490, Watts: P. 615)
*1: If equipped
*2: They may be located on the opposite side depending on the target region.
8
9
10
11
12
13
14
15
AVENSIS_OM_OM20C20E_(EE).book Page 15 Thursday, January 29, 2 015 1:47 PM

4907-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C20E_(EE)
Light bulbs
Check the wattage of the light bulb to be replaced. (→P. 615)
→ P. 4 4 5
■Front
You may replace the following bulbs by yourself. The difficulty
level of replacement varies depending on the bulb. As there is a
danger that components may be damaged, we recommend that
replacement is carried out by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
Preparing for light bulb replacement
Removing the engine compartment cover
Bulb locations
Headlights (halogen headlights)
Front fog light (if equipped)
Cornering/fog light (if equipped) Front turn signal light
Side turn signal light1
2
3
4
AVENSIS_OM_OM20C20E_(EE).book Page 490 Thursday, January 29,
2015 1:47 PM

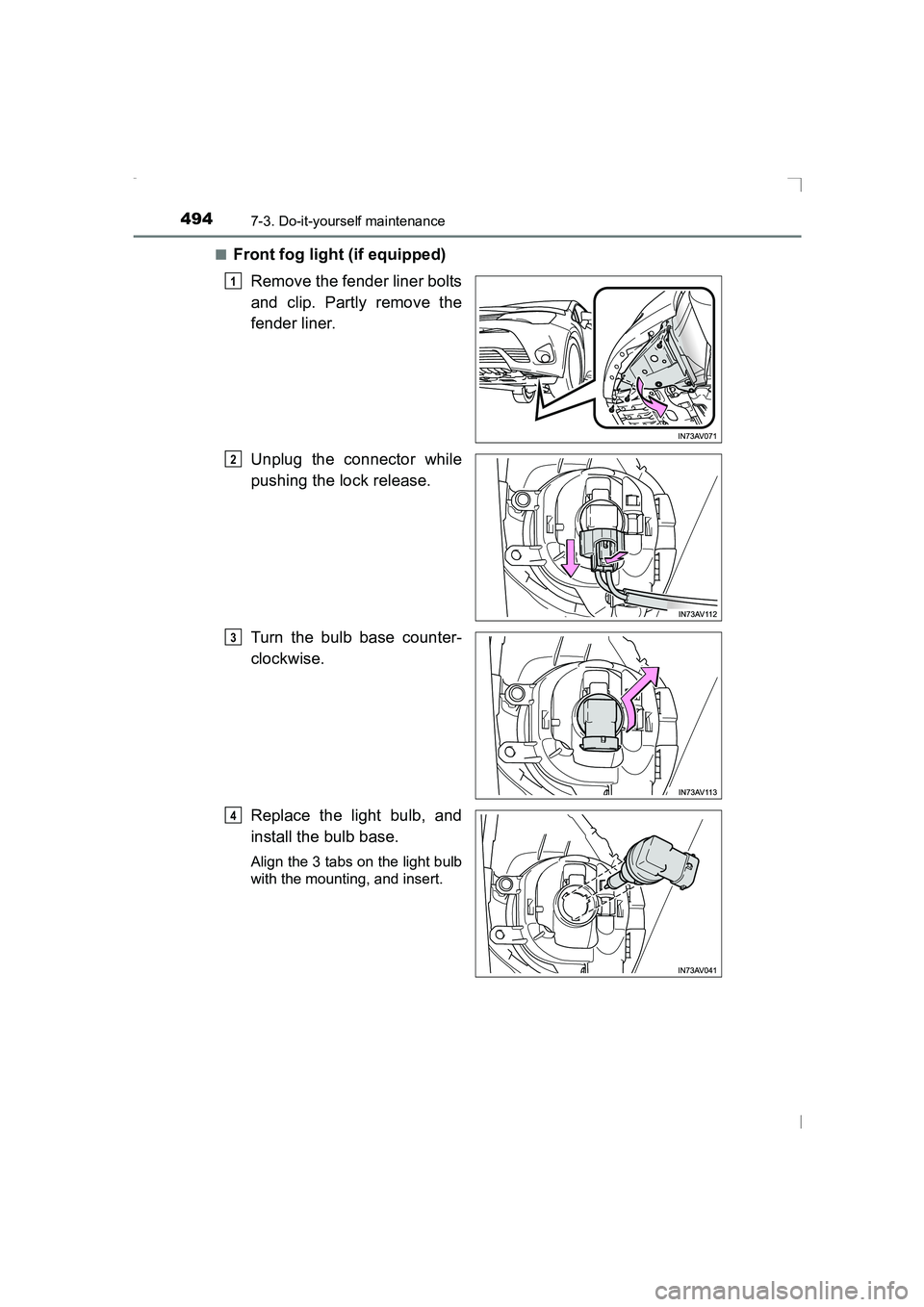

4947-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C20E_(EE)■
Front fog light (if equipped)
Remove the fender liner bolts
and clip. Partly remove the
fender liner.
Unplug the connector while
pushing the lock release.
Turn the bulb base counter-
clockwise.
Replace the light bulb, and
install the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
1
2
3
4
AVENSIS_OM_OM20C20E_(EE).book Page 494 Thursday, January 29, 2015 1:47 PM

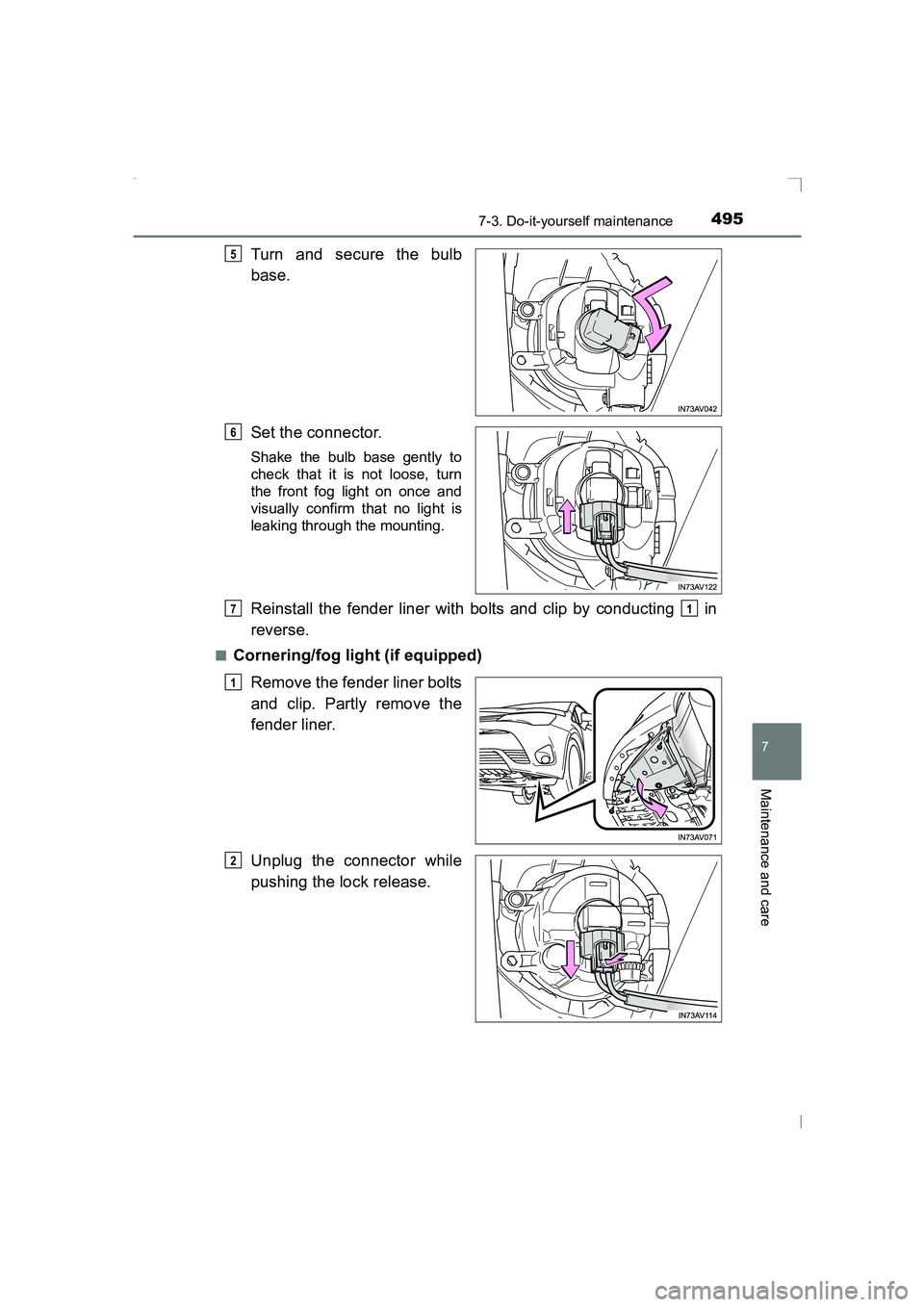

4957-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C20E_(EE)
7
Maintenance and care
Turn and secure the bulb
base.
Set the connector.
Shake the bulb base gently to
check that it is not loose, turn
the front fog light on once and
visually confirm that no light is
leaking through the mounting.
Reinstall the fender liner with bolts and clip by conducting in
reverse.
■Cornering/fog light (if equipped)Remove the fender liner bolts
and clip. Partly remove the
fender liner.
Unplug the connector while
pushing the lock release.
5
6
71
1
2
AVENSIS_OM_OM20C20E_(EE).book Page 495 Thursday, January 29, 2015 1:47 PM

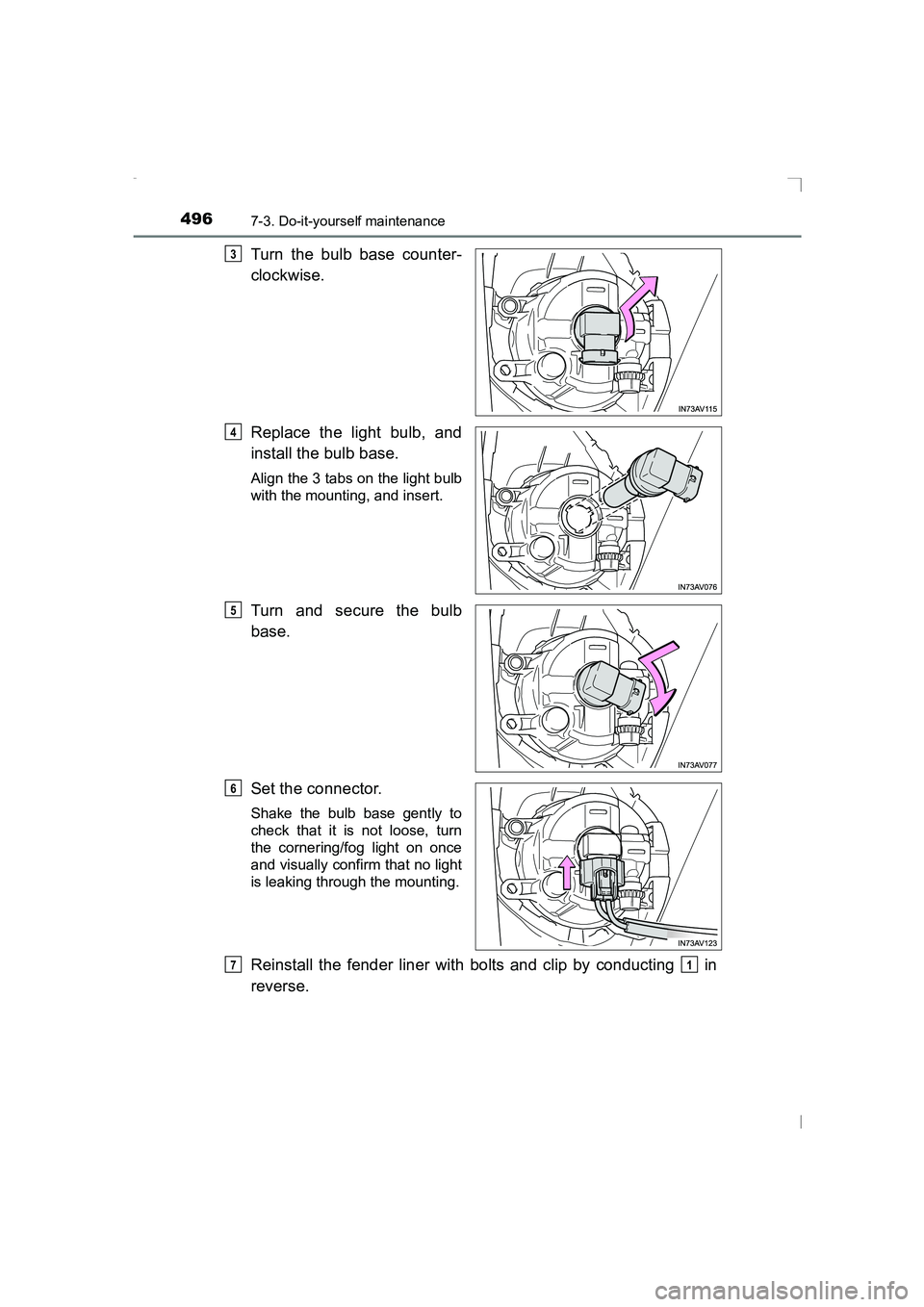

4967-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C20E_(EE)
Turn the bulb base counter-
clockwise.
Replace the light bulb, and
install the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb
base.
Set the connector.
Shake the bulb base gently to
check that it is not loose, turn
the cornering/fog light on once
and visually confirm that no light
is leaking through the mounting.
Reinstall the fender liner with bolts and clip by conducting in
reverse.
3
4
5
6
71
AVENSIS_OM_OM20C20E_(EE).book Page 496 Thursday, January 29, 2015 1:47 PM

5047-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C20E_(EE)
Align the 6 tabs and install
the cover.
After hearing a click sound, con-
firm that the cover is secure.
■
Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
● Headlights (LED type)
● Front position/daytime running lights
● Rear fog light
● Stop lights
● Tail lights
● High mounted stoplight
■Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not
indicate a malfunction. Contact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional , for more information in the
following situations:
● Large drops of water are built up on the inside of the lens.
● Water has built up inside the headlight.
■ LED lights
The headlights (LED type), front position/ daytime running, rear fog light, stop,
tail lights and high mounted stoplight consist of a number of LEDs. If any of
the LEDs burn out, take your vehicle to any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional to have the light
replaced.
7
AVENSIS_OM_OM20C20E_(EE).book Page 504 Thursday, January 29, 2015 1:47 PM

6159-1. Specifications
AVENSIS_OM_OM20C20E_(EE)
9
Vehicle specifications
XCompact spare tire
Tire size T145/70D17 106M
Tire inflation pressure
(Recommended cold tire
inflation pressure)420 kPa (4.2 kgf/cm2 or bar, 60 psi)
Wheel size 17
× 4T
Wheel nut torque 103 N•m (10.5 kgf•m, 76 ft•lbf)
Light bulbs
Light bulbsWTyp e
Exterior Headlights (halogen bulbs) 55 A
Front turn signal lights 21 B
Front fog lights 19 C
Cornering/fog lights 55 D
Side turn signal lights 5 B
Rear turn signal lights 21 E
Back-up lights 16 F
License plate lights 5 F
Interior
Personal/interior lights 8 F
Vanity lights 8 F
Door courtesy lights 5 G
Trunk/luggage compartment light 5 G
A: HIR2 halogen bulbs
B: Wedge base bulbs (amber)
C: H16 halogen bulbs
D: H11 halogen bulbs E: Single end bulbs (clear)
F: Wedge base bulbs (clear)
G: Double end bulbs
AVENSIS_OM_OM20C20E_(EE).book Page 615 Thursday, January 29, 2015 1:47 PM
