5678-2. Steps to take in an emergency
AVENSIS_OM_OM20C20E_(EE)
8
When trouble arises
To inject the sealant and inflate
the tire, turn the compressor
switch on.
Inflate the tire until the specified
air pressure is reached.The sealant will be injected
and the pressure will surge
and then gradually decrease.
The air pressure gauge will
display the actual tire infla-
tion pressure about 1 minute
(5 minutes at low tempera-
ture) after the switch is
turned on.
Inflate the tire until the speci-
fied air pressure is reached.• If the tire inflation pressure
is still lower than the speci-
fied point after inflation for
35 minutes with the switch
on, the tire is too damaged
to be repaired. Turn the
compressor switch off and
contact any authorized
Toyota dealer or repairer,
or another duly qualified
and equipped profes-
sional.
• If the tire inflation pressure exceeds the specified air pressure,
let out some air to adjust the tire inflation pressure. ( →P. 571)14
15
1
2
3
AVENSIS_OM_OM20C20E_(EE).book Page 567 Thursday, January 29, 2015 1:47 PM

6049-1. Specifications
AVENSIS_OM_OM20C20E_(EE)

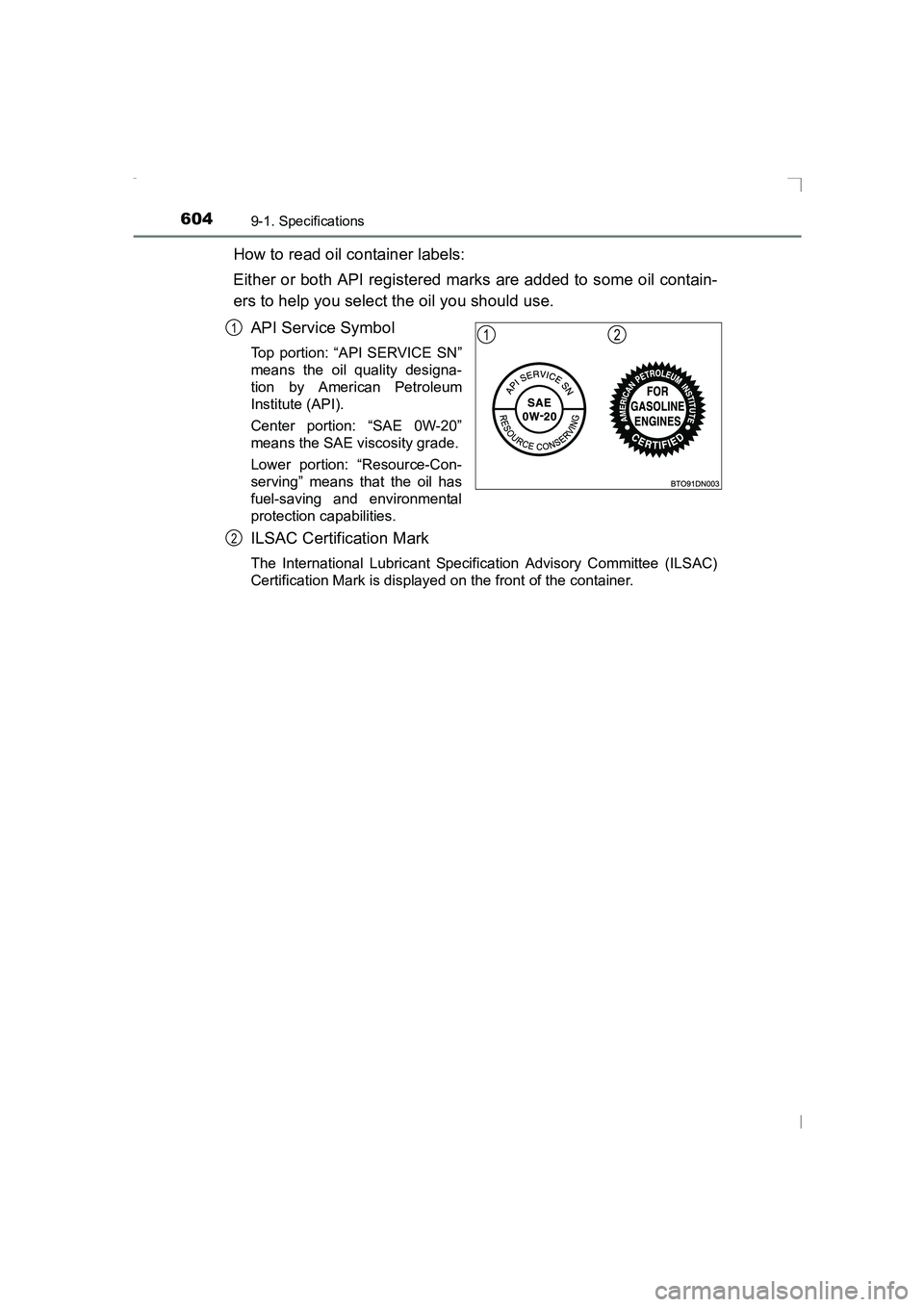

How to read oil container labels:
Either or both API registered marks are added to some oil contain-
ers to help you select the oil you should use.API Service Symbol
Top portion: “API SERVICE SN”
means the oil quality designa-
tion by American Petroleum
Institute (API).
Center portion: “SAE 0W-20”
means the SAE viscosity grade.
Lower portion: “Resource-Con-
serving” means that the oil has
fuel-saving and environmental
protection capabilities.
ILSAC Certification Mark
The International Lubricant Specification Advisory Committee (ILSAC)
Certification Mark is displayed on the front of the container.
121
2
AVENSIS_OM_OM20C20E_(EE).book Page 604 Thursday, January 29, 2015 1:47 PM

6069-1. Specifications
AVENSIS_OM_OM20C20E_(EE)
How to read oil container labels:
Either or both API registered marks are added to some oil contain-
ers to help you select the oil you should use.API Service Symbol
Top portion: “API SERVICE SN”
means the oil quality designa-
tion by American Petroleum
Institute (API).
Center portion: “SAE 0W-20”
means the SAE viscosity grade.
Lower portion: “Resource-Con-
serving” means that the oil has
fuel-saving and environmental
protection capabilities.
ILSAC Certification Mark
The International Lubricant Specification Advisory Committee (ILSAC)
Certification Mark is displayed on the front of the container.
XDiesel engine
*: The engine oil capacity is a reference quantity to be used when changingthe engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
121
2
Oil capacity
(Drain and refill  reference
*)
With filter 5.2 L (5.5 qt., 4.6 Imp.qt.)
AVENSIS_OM_OM20C20E_(EE).book Page 606 Thursday, January 29, 2015 1:47 PM

619
9
9-2. Customization
Vehicle specifications
AVENSIS_OM_OM20C20E_(EE)

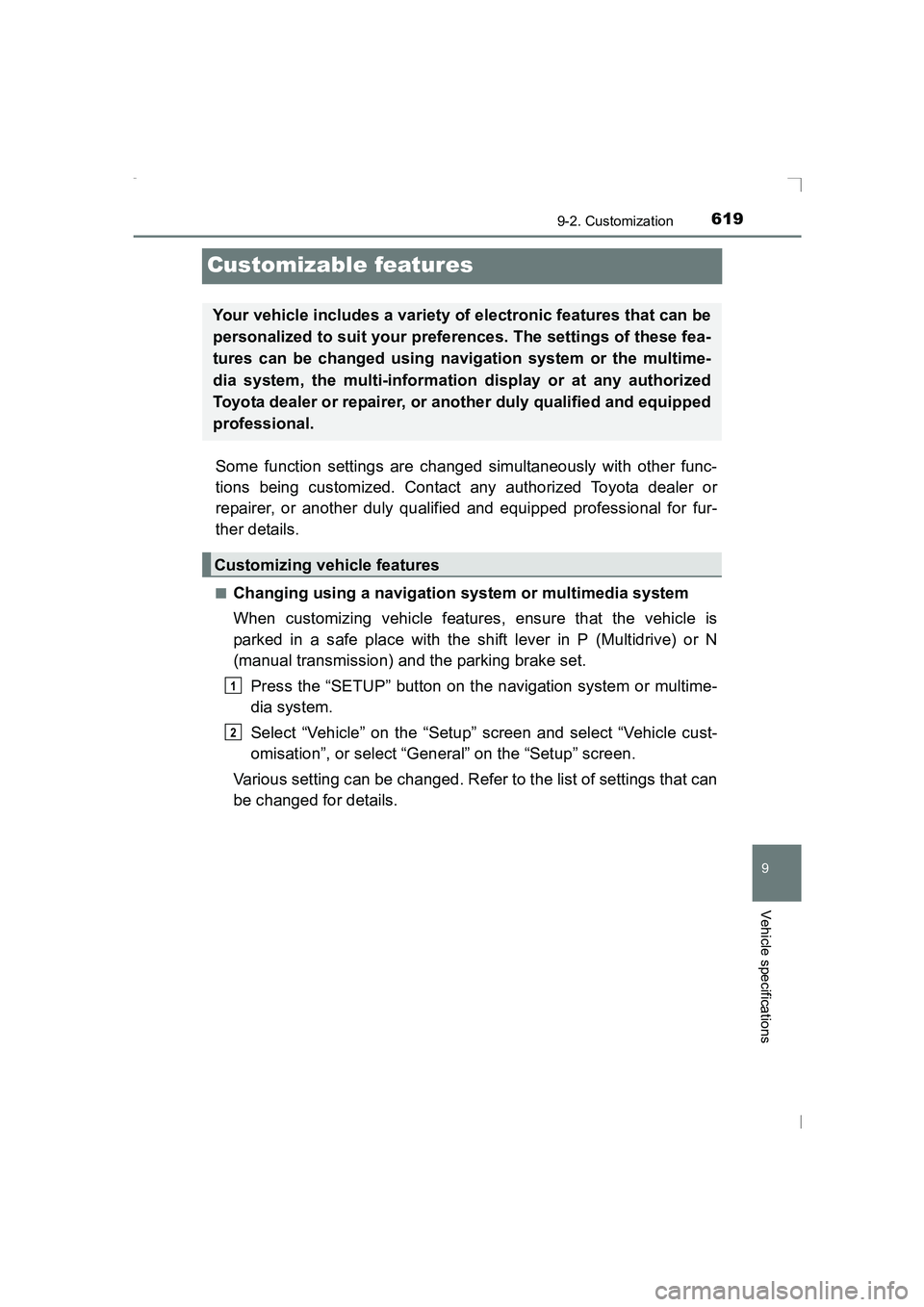

Customizable features
Some function settings are changed simultaneously with other func-
tions being customized. Contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional for fur-
ther details.
■Changing using a navigation system or multimedia system
When customizing vehicle features, ensure that the vehicle is
parked in a safe place with the shift lever in P (Multidrive) or N
(manual transmission) and the parking brake set.Press the “SETUP” button on the navigation system or multime-
dia system.
Select “Vehicle” on the “Setup” screen and select “Vehicle cust-
omisation”, or select “General” on the “Setup” screen.
Various setting can be changed. Refer to the list of settings that can
be changed for details.
Your vehicle includes a variety of electronic features that can be
personalized to suit your preferences. The settings of these fea-
tures can be changed using navigation system or the multime-
dia system, the multi-information display or at any authorized
Toyota dealer or repairer, or another duly qualified and equipped
professional.
Customizing vehicle features
1
2
AVENSIS_OM_OM20C20E_(EE).book Page 619 Thursday, January 29, 2015 1:47 PM

6209-2. Customization
AVENSIS_OM_OM20C20E_(EE)■

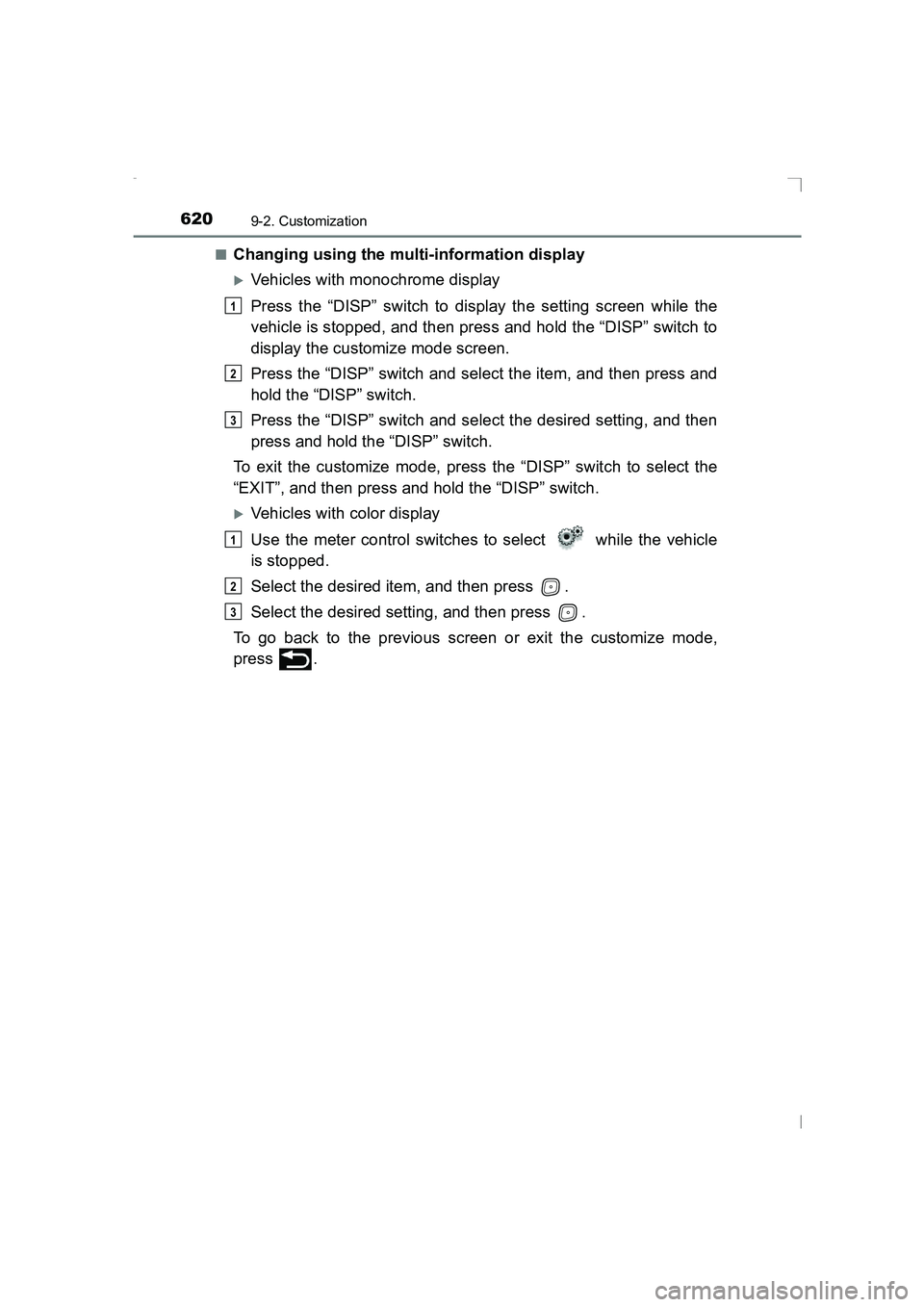

Changing using the multi-information display
XVehicles with monochrome display
Press the “DISP” switch to display the setting screen while the
vehicle is stopped, and then press and hold the “DISP” switch to
display the customize mode screen.
Press the “DISP” switch and select the item, and then press and
hold the “DISP” switch.
Press the “DISP” switch and select the desired setting, and then
press and hold the “DISP” switch.
To exit the customize mode, press the “DISP” switch to select the
“EXIT”, and then press and hold the “DISP” switch.
XVehicles with color display
Use the meter control switches to select while the vehicle
is stopped.
Select the desired item, and then press .
Select the desired setting, and then press .
To go back to the previous screen or exit the customize mode,
press .
1
2
3
1
2
3
AVENSIS_OM_OM20C20E_(EE).book Page 620 Thursday, January 29, 2015 1:47 PM

6219-2. Customization
AVENSIS_OM_OM20C20E_(EE)
9
Vehicle specifications
Vehicles with a navigation system or multimedia system: Settings
that can be changed using the navigation system or multimedia
system
Settings that can be changed using the multi-information display
Settings that can be changed by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional
Definition of symbols: O = Available, - = Not available
■Gauges, meters and multi-information display ( →P. 108, 111)
XVehicles with monochrome display
Customizable features
1
2
3
Function*1Default settingCustomized
setting
Eco Driving Indicator Light On Off – O –
Language
*2English French
–O–
Spanish
German
Italian
Russian
Portuguese Turkish
Units
*2km (L/100 km) miles (MPG)*3
–O–
km (km/L)
° C (Celsius) °F (Fahrenheit) – O –
123
AVENSIS_OM_OM20C20E_(EE).book Page 621 Thursday, January 29, 2015 1:47 PM

6229-2. Customization
AVENSIS_OM_OM20C20E_(EE)
XVehicles with color display
Function*1Default settingCustomized setting
LDA (Lane Departure
Alert) sensitivity
*3High Standard – O –
RSA (Road Sign Assist)
*3On Off – O –
AFS (Adaptive Front-light-
ing System)
*3On Off – O –
RSA (Road Sign Assist)
*3
set up (Excess speed con-
dition method) Only visualNo notification
-O-
Visual and
audible
*4
RSA (Road Sign Assist)*3
set up (Excess speed noti-
fication level) 2 km/h (1 mph)
5 km/h (3 mph)
-O-10 km/h (5 mph)
RSA (Road Sign Assist)*3
set up (Other notifications
method
*5) Only visualNo notification
-O-
Visual and
audible
Stop & Start system
setup
*3Normal Extend – O –
123
AVENSIS_OM_OM20C20E_(EE).book Page 622 Thursday, January 29, 2015 1:47 PM

6249-2. Customization
AVENSIS_OM_OM20C20E_(EE)
*1: For details about each function: →P. 108, 114
*2: The default setting varies according to country.
*3: If equipped
*4: If a speed limit with supplemental mark is exceeded, the warning buzzer
does not operate.
*5: No-overtaking notification only
*6: Customized items are the following items except for default setting items:average fuel economy, tank average fuel economy, trip average fuel econ-
omy, current fuel economy, distance to empty, trip distance, trip elapsed
time, elapsed time, trip average speed, average speed, Stop & Start sys-
tem operation time (if equipped), Stop & Start system total operation time
(if equipped), blank.
Drive information 2
Distance to
empty
*6–O–
Average speed – O –
Drive information 3 Stop & Start
system
operation time
*6
–O–
Stop & Start
system total
operation time –O–
Pop-up display On Off – O –
Function*1Default settingCustomized setting123
