2015 TOYOTA AVALON HYBRID Owners Manual

1854-2. Driving procedures
4
Driving
AVALON_HV_U (OM41457U)

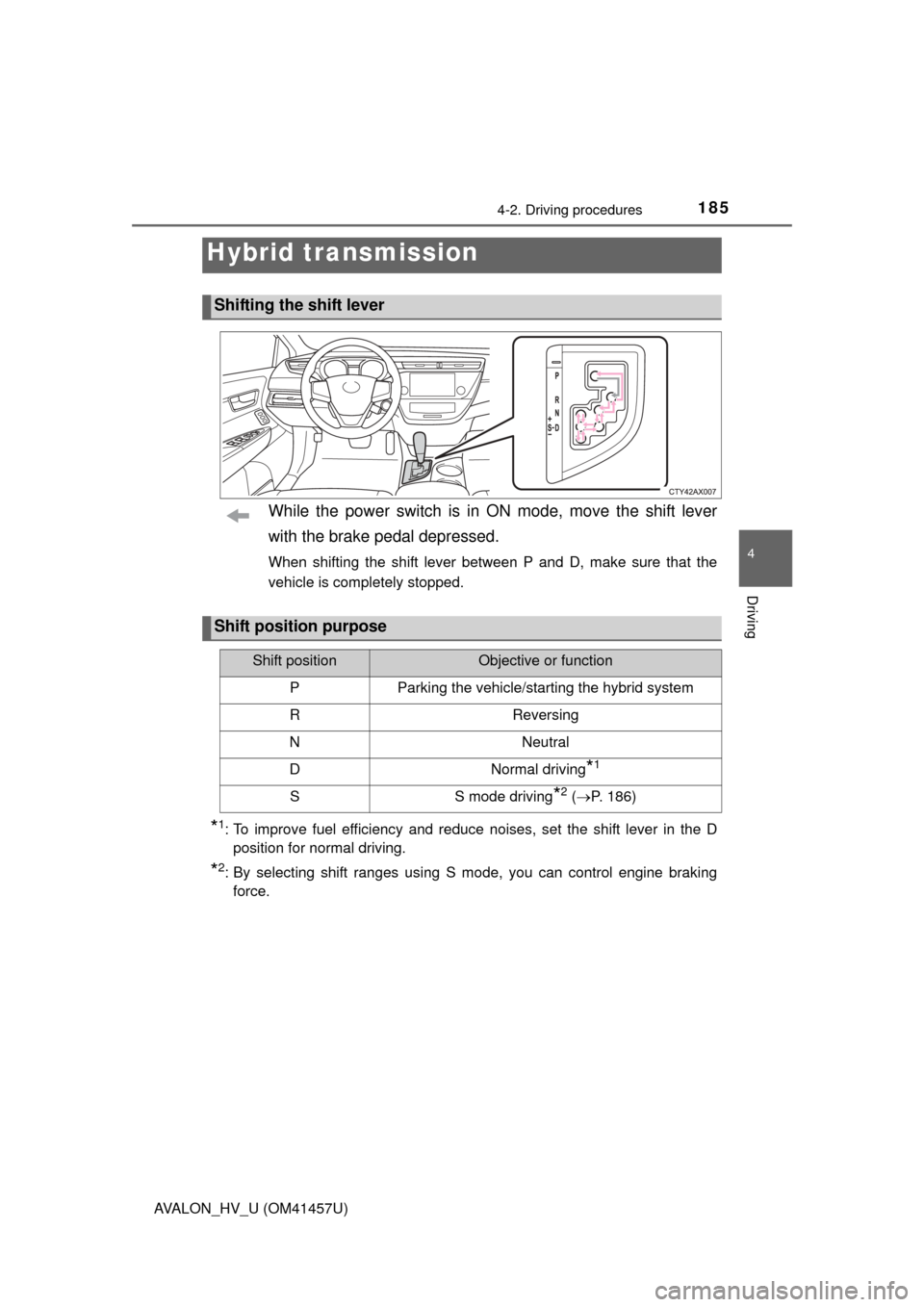

While the power switch is in ON mode, move the shift lever
with the brake pedal depressed.
When shifting the shift lever between P and D, make sure that the
vehicle is completely stopped.
*1: To improve fuel efficiency and reduce noises, set the shift lever in the Dposition for normal driving.
*2: By selecting shift ranges using S mode, you can control engine brakingforce.
Hybrid transmission
Shifting the shift lever
Shift position purpose
Shift positionObjective or function
PParking the vehicle/starting the hybrid system
RReversing
NNeutral
DNormal driving*1
SS mode driving*2 ( P. 186)

1864-2. Driving procedures
AVALON_HV_U (OM41457U)
To enter S mode, shift the shift lever to S. Shift ranges can then be
selected by operating the shift lever, allowing you to drive in the shift
range of your choosing.Upshifting
Downshifting
The selected shift range, from S1
to S6, will be displayed in the
meter.
The initial shift range in S mode is
automatically set to S4 or S5
according to vehicle speed.
■
Shift ranges and their functions
● You can choose from 6 levels of engine braking force.
● A lower shift range will provide gr eater engine braking force than
a higher shift range. The eng ine speed will also increase.
● If you accelerate while in ranges S1 to S4, the shift range may
automatically range up in accordance with the vehicle’s speed.
■S mode
●When the shift range is S4 or lower, holding the shift lever toward “+” sets
the shift range to S6.
● To prevent the engine from over-revving, upshifting may automatically
occur.
■ Tachometer
■ Downshifting restrictions warning buzzer
To help ensure safety and driving performance, downshifting operation may
sometimes be restricted. In some circumstances, downshifting may not be
possible even when the shift lever is operated. (A buzzer will sound twice.)
Selecting shift ranges in the S position
1
2
When the S mode driving is selected, the
tachometer will be displayed on the multi-
information display. The tachometer dis-
plays the engine speed in revolutions per
minute.

1874-2. Driving procedures
4
Driving
AVALON_HV_U (OM41457U)■
When driving with cruise control or radar cruise control activated
Even if switching the driving mode to power mode with the intent of enabling
engine braking, engine braking will not activate because cruise control or
radar cruise control will not be canceled. ( P. 211, 215)
■ If the S indicator does not come on or the D indicator is displayed even
after shifting the shift lever to S
This may indicate a malfunction in the automatic transmission system. Have
the vehicle inspected by your Toyota dealer immediately.
(In this situation, the transmission will operate in the same manner as when
the shift lever is in D.)
■ If the shift lever cannot be shifted from P
P. 429
■ AI-SHIFT
AI-SHIFT automatically selects the suitable gear according to driver perfor-
mance and driving conditions.
AI-SHIFT automatically operates when the shift lever is in the D position.
(Shifting the shift lever to the S position cancels the function.)
CAUTION
■When driving on slippery road surfaces
Do not accelerate or shift gears suddenly.
Sudden changes in engine braking may cause the vehicle to spin or skid,
resulting in an accident.
NOTICE
■Hybrid battery (tract ion battery) charge
If the shift lever is in N, the hybrid battery (traction battery) will not be
charged even when the engine is running. Therefore, if the vehicle is left
with the shift lever in N for a long period of time, the hybrid battery (traction
battery) will discharge, and this may result in the vehicle not being able to
start.

1884-2. Driving procedures
AVALON_HV_U (OM41457U)
The lever will return to its original position after operation.
Right turn
Lane change to the right (move
the lever partway and release
it)
The right hand signals will flash 3
times.
Lane change to the left (move
the lever partway and release
it)
The left hand signals will flash 3
times.
Left turn
■ Turn signals can be operated when
The power switch is in ON mode.
■ If the indicator flashes faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.
■ If the turn signals stop flashing before a lane change has been per-
formed
Operate the lever again.
■ To discontinue flashing of the turn signals during a lane change
Operate the lever in the opposite direction.
■ When the lever is pushed and held partway
The turn signals will keep flashing until the lever is released.
■ Customization
The number of times the turn signals flash during a lane change can be
changed. (Customizable feature P. 469)
Tur n signal lever
Operating instructions
1
2
3
4

1894-2. Driving procedures
4
Driving
AVALON_HV_U (OM41457U)
To set the parking brake, fully
depress the parking brake pedal
with your left foot while depress-
ing the brake pedal with your right
foot.
(Depressing the pedal again
releases the parking brake.)
■Usage in winter time
P. 257
Parking brake
NOTICE
■Before driving
Fully release the parking brake.
Driving the vehicle with the parking brake set will lead to brake components
overheating, which may affect braking performance and increase brake
wear.

1904-2. Driving procedures
AVALON_HV_U (OM41457U)
To sound the horn, press on or
close to the mark.
■After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
The horn may not sound if the steering wheel is not securely locked.
(P. 146)
Hor n

191
4
Driving
AVALON_HV_U (OM41457U)
4-3. Operating the lights and wipers
Turning the end of the lever turns on the lights as follows:
Headlight switch
The headlights can be operated manually or automatically.
Operating instructions
The headlights, parking
lights, daytime running
lights and so on turn on
and off automatically
(when the power switch
is in ON mode).
The side marker, park-
ing, tail, license plate,
daytime running lights
and instrument panel
lights turn on.
The headlights and all
the lights listed above
(except daytime run-
ning lights) turn on.
The daytime running
lights turn off.1
2
3
4

1924-3. Operating the lights and wipers
AVALON_HV_U (OM41457U)
With the headlights on, push
the lever away from you to turn
on the high beams.
Pull the lever toward you to the
center position to turn the high
beams off.
Pull the lever toward you and
release it to flash the high
beams once.
You can flash the high beams with
the headlights on or off.
Turning on the high beam headlights
1
2
