3856-3. Do-it-yourself maintenance
6
Maintenance and care
AVALON_HV_U (OM41457U)■
Headlight high beam and daytim
e running light (vehicles with
halogen bulbs for low beams)/Headlight high beam (vehicles
with discharge bulbs for low beams)

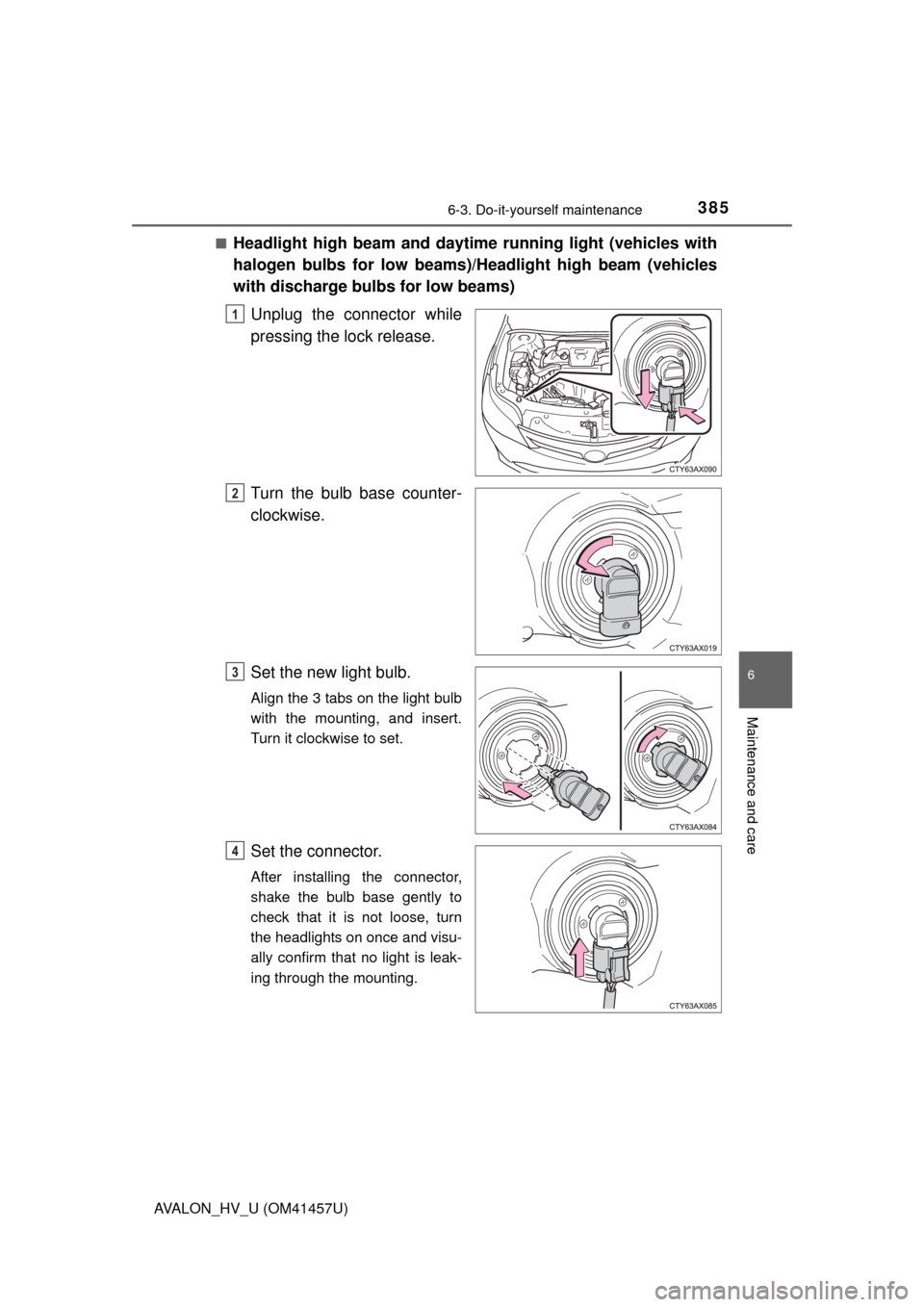

Unplug the connector while
pressing the lock release.

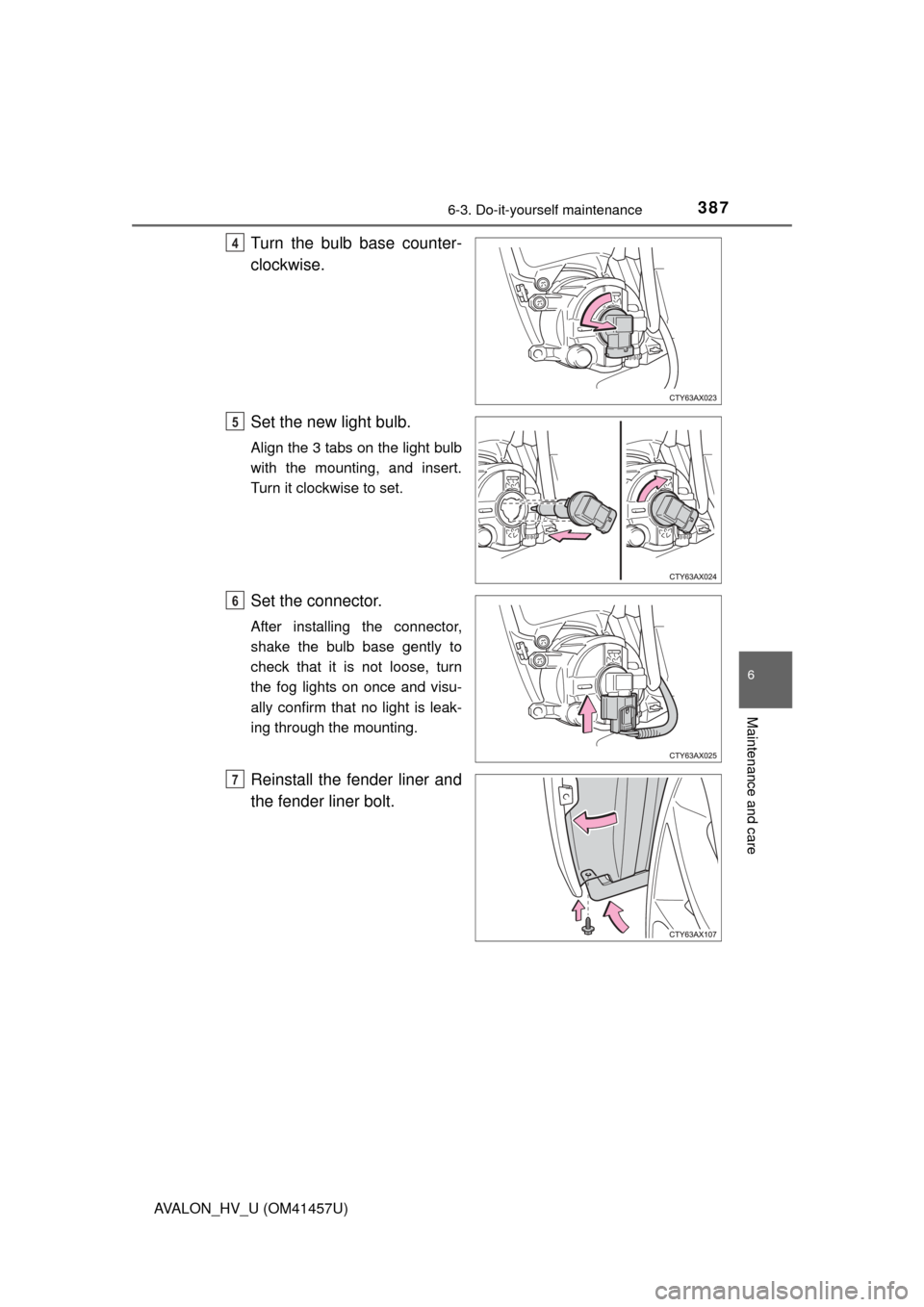

Turn the bulb base counter-
clockwise.
Set the new light bulb.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn it clockwise to set.
Set the connector.
After installing the connector,
shake the bulb base gently to
check that it is not loose, turn
the headlights on once and visu-
ally confirm that no light is leak-
ing through the mounting.
1
2
3
4

3866-3. Do-it-yourself maintenance
AVALON_HV_U (OM41457U)■
Fog light (if equipped)
To allow enough working
space, turn the steering
wheel to the opposite side of
the bulb to be replaced.

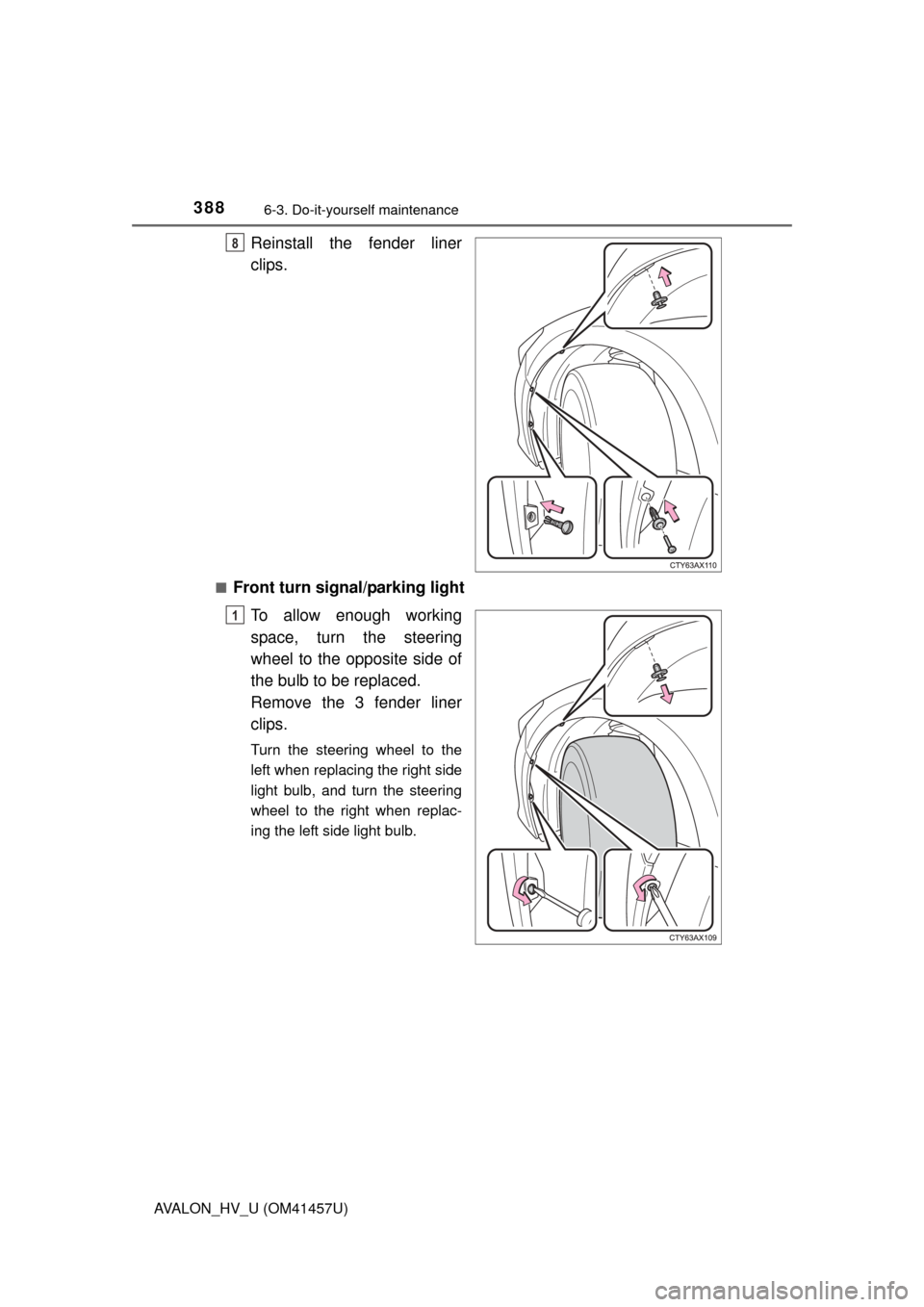

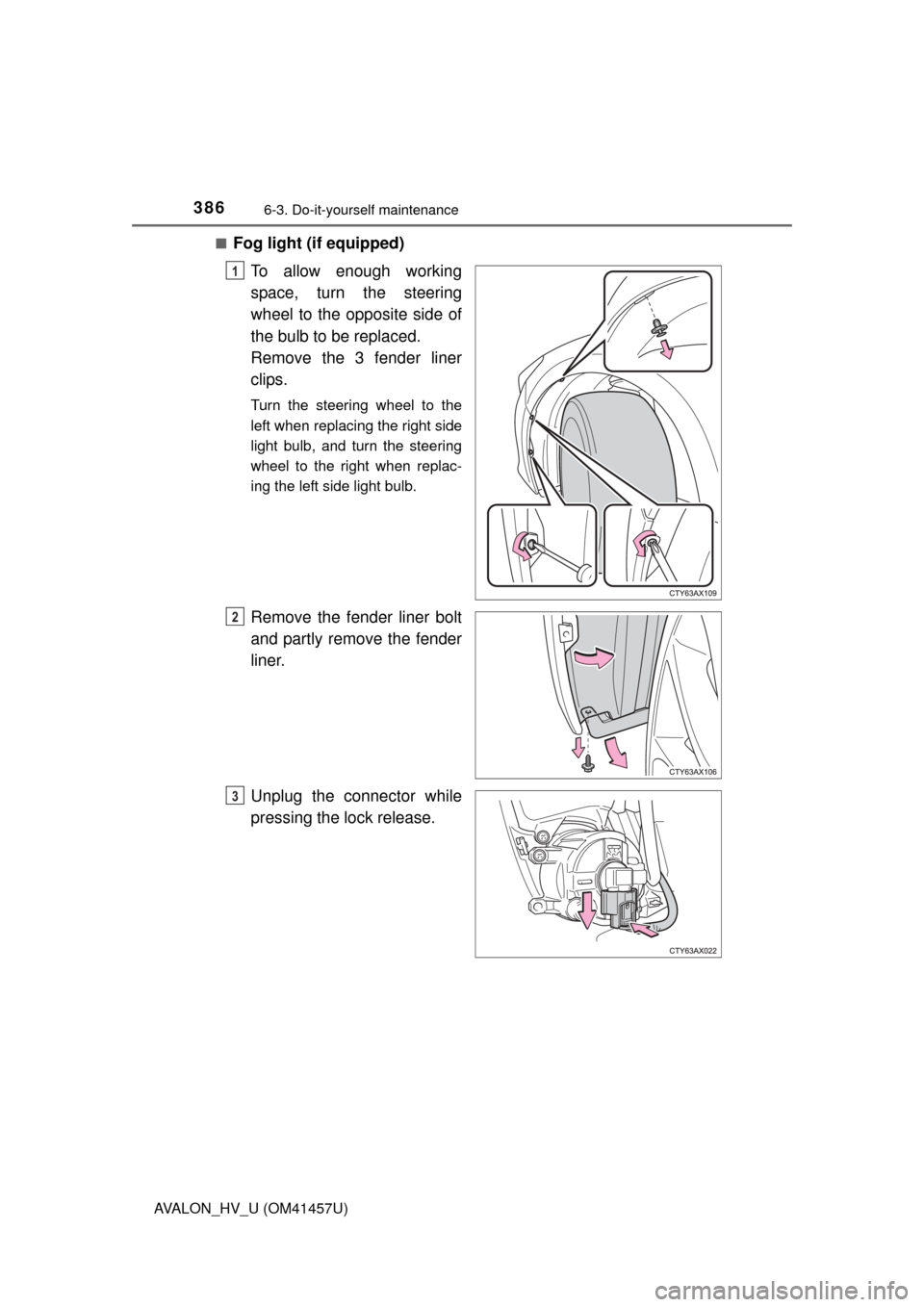

Remove the 3 fender liner
clips.
Turn the steering wheel to the
left when replacing the right side
light bulb, and turn the steering
wheel to the right when replac-
ing the left side light bulb.

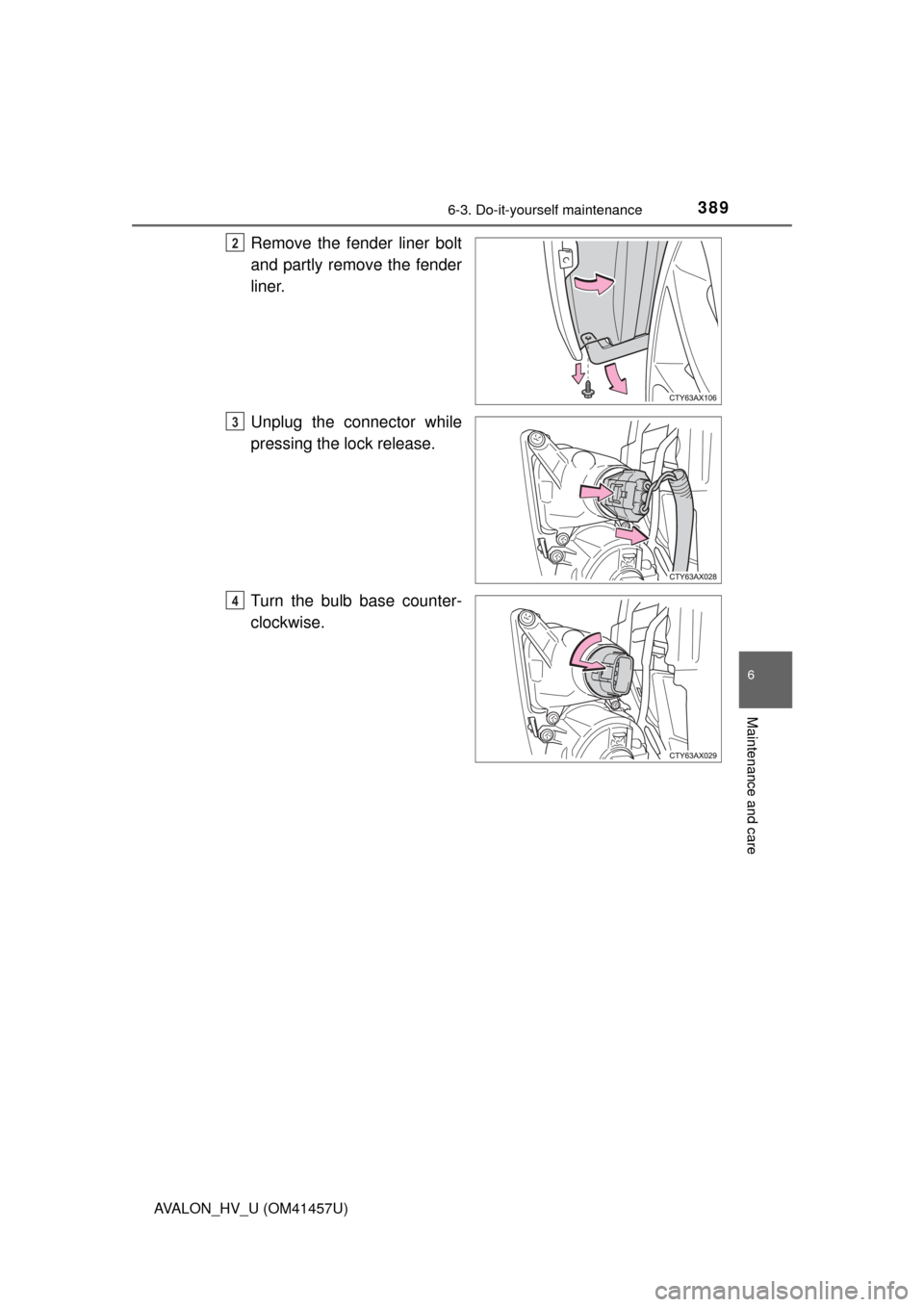

Remove the fender liner bolt
and partly remove the fender
liner.
Unplug the connector while
pressing the lock release.
1
2
3

3876-3. Do-it-yourself maintenance
6
Maintenance and care
AVALON_HV_U (OM41457U)
Turn the bulb base counter-
clockwise.
Set the new light bulb.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn it clockwise to set.
Set the connector.
After installing the connector,
shake the bulb base gently to
check that it is not loose, turn
the fog lights on once and visu-
ally confirm that no light is leak-
ing through the mounting.
Reinstall the fender liner and
the fender liner bolt.
4
5
6
7

3886-3. Do-it-yourself maintenance
AVALON_HV_U (OM41457U)
Reinstall the fender liner
clips.
■Front turn signal/parking lightTo allow enough working
space, turn the steering
wheel to the opposite side of
the bulb to be replaced.
Remove the 3 fender liner
clips.
Turn the steering wheel to the
left when replacing the right side
light bulb, and turn the steering
wheel to the right when replac-
ing the left side light bulb.
8
1

3896-3. Do-it-yourself maintenance
6
Maintenance and care
AVALON_HV_U (OM41457U)
Remove the fender liner bolt
and partly remove the fender
liner.
Unplug the connector while
pressing the lock release.
Turn the bulb base counter-
clockwise.2
3
4

3906-3. Do-it-yourself maintenance
AVALON_HV_U (OM41457U)
Remove the light bulb.
When installing, reverse the steps listed.

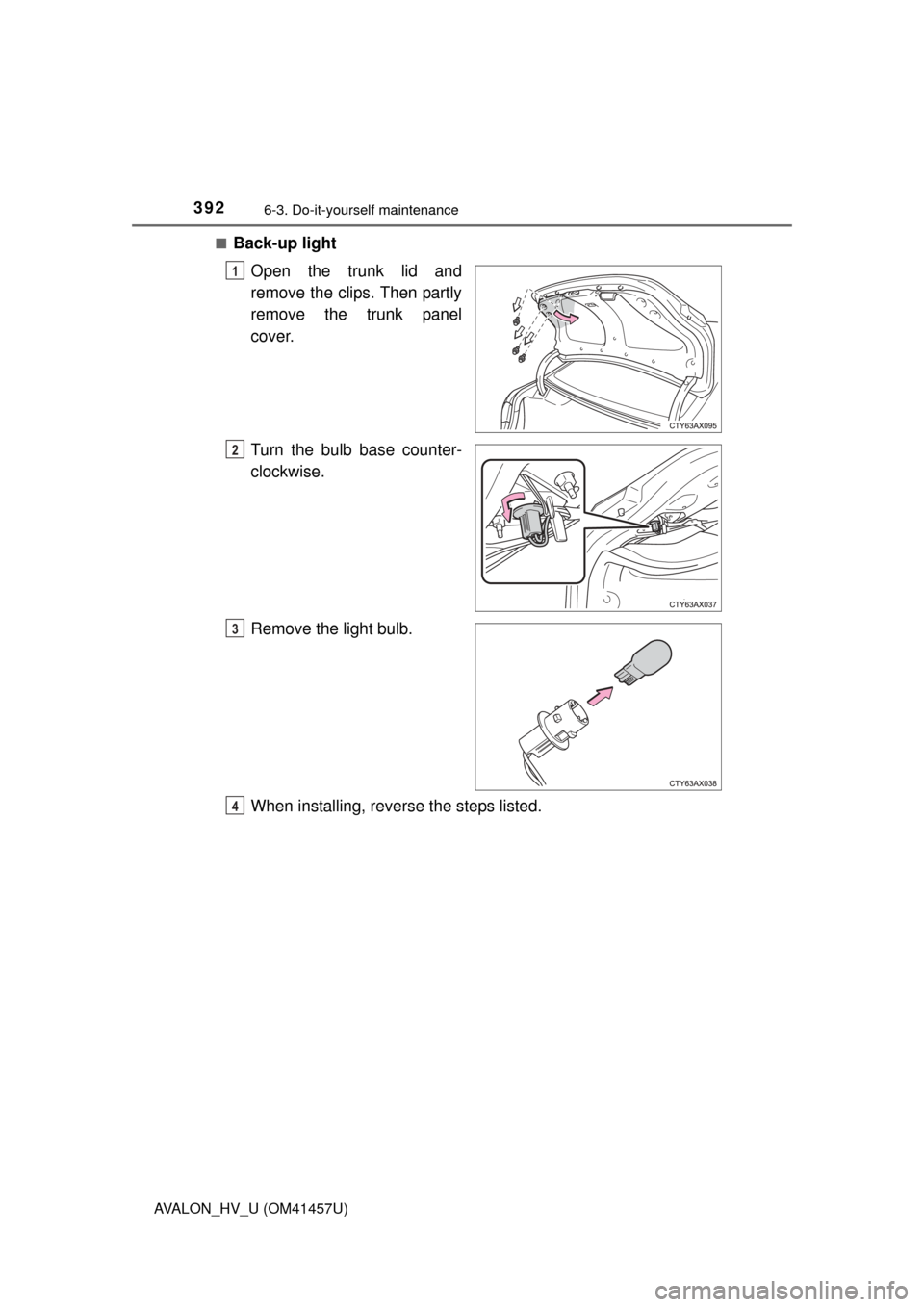

■Rear turn signal lightOpen the trunk lid and
remove the luggage trim
cover clip.
Pull the hook while depress-
ing the button.
5
6
1
2

3916-3. Do-it-yourself maintenance
6
Maintenance and care
AVALON_HV_U (OM41457U)

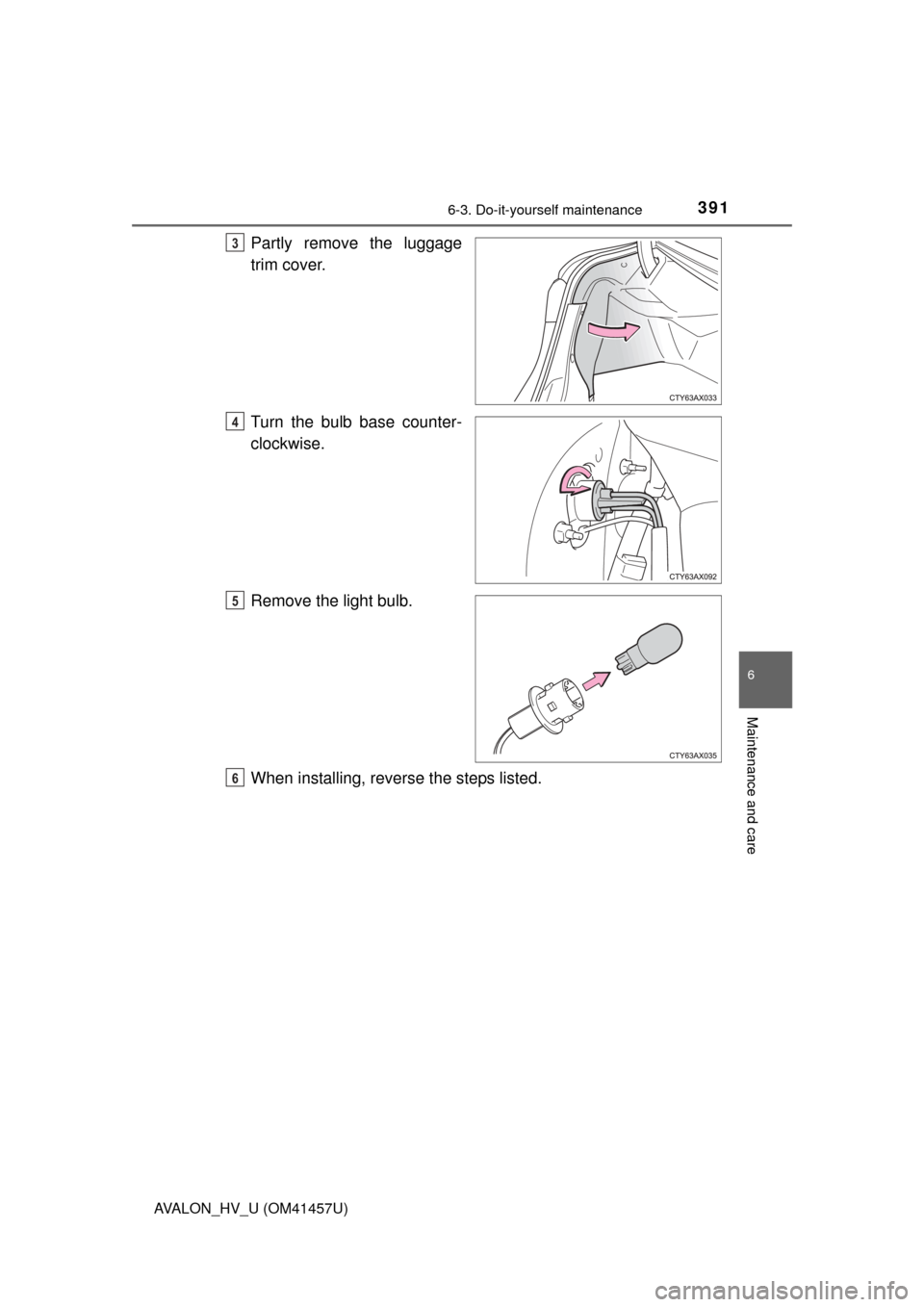

Partly remove the luggage
trim cover.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.3
4
5
6

3926-3. Do-it-yourself maintenance
AVALON_HV_U (OM41457U)■
Back-up light

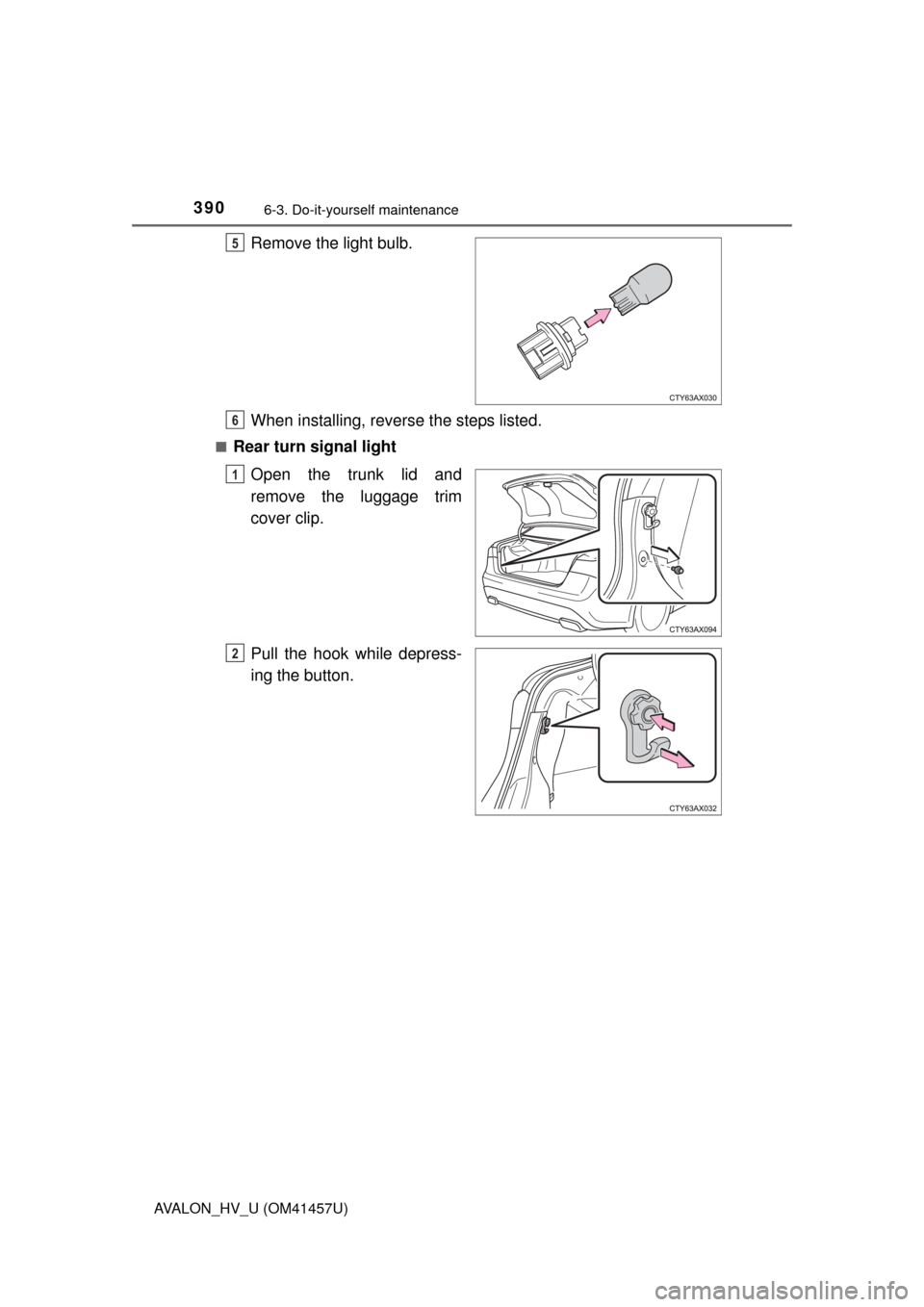

Open the trunk lid and
remove the clips. Then partly
remove the trunk panel
cover.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
3
4
