972. Instrument cluster
2
Instrument cluster
AVALON_HV_U (OM41457U)■
Switching the display
Items displayed can be
switched by pressing the
“DISP” button.
■Distance to empty
Displays the estimated maxi-
mum distance that can be
driven with the quantity of fuel
remaining.
• This distance is computed
based on your average fuel con-
sumption. As a result, the actual
distance that can be driven may
differ from that displayed.
• When only a small amount of fuel is added to the tank, the dis-
play may not be updated.
When refueling, turn the power
switch off. If the vehicle is refu-
eled without turning the power
switch off, the display may not
be updated.
■
Average fuel economy
Displays the average fuel con-
sumption since the function
was reset.
• The function can be reset by pressing and holding the “DISP”
button when the average fuel
consumption is displayed.
• Use the displayed average fuel consumption as a reference.
Trip information

982. Instrument cluster
AVALON_HV_U (OM41457U)■
Current fuel economy
Displays the current rate of fuel
consumption.
■Digital speedometer
Displays the current vehicle
speed.
This screen can be disabled in
the “Settings” screen. (
P. 99)
■
Turn-by-turn navigation (vehicl es with a navigation system)
Displays information from the
navigation system about the
next turn on the guidance route.

992. Instrument cluster
2
Instrument cluster
AVALON_HV_U (OM41457U)■
Customizable items
■Changing the settings
While the vehicle is stopped,
press the “DISP” button until
the “Settings” screen appears.
Press and hold the “DISP” but-
ton while the “Settings” screen
is displayed.
Press the “DISP” button to
select the desired setting item.

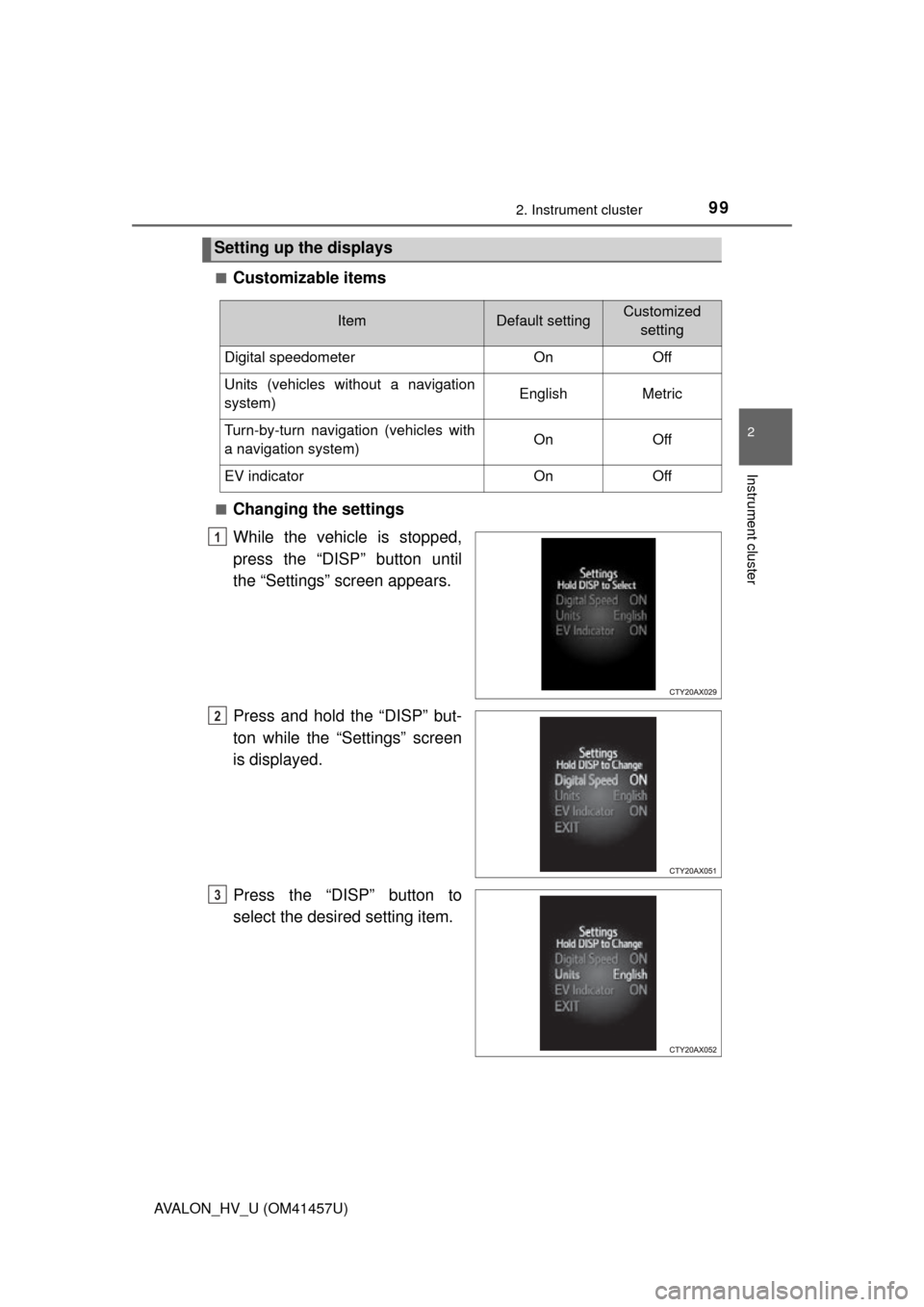

Setting up the displays
ItemDefault settingCustomized
setting
Digital speedometer On Off
Units (vehicles without a navigation
system) English Metric
Turn-by-turn navigation (vehicles with
a navigation system) On Off
EV indicator On Off
1
2
3

1002. Instrument cluster
AVALON_HV_U (OM41457U)

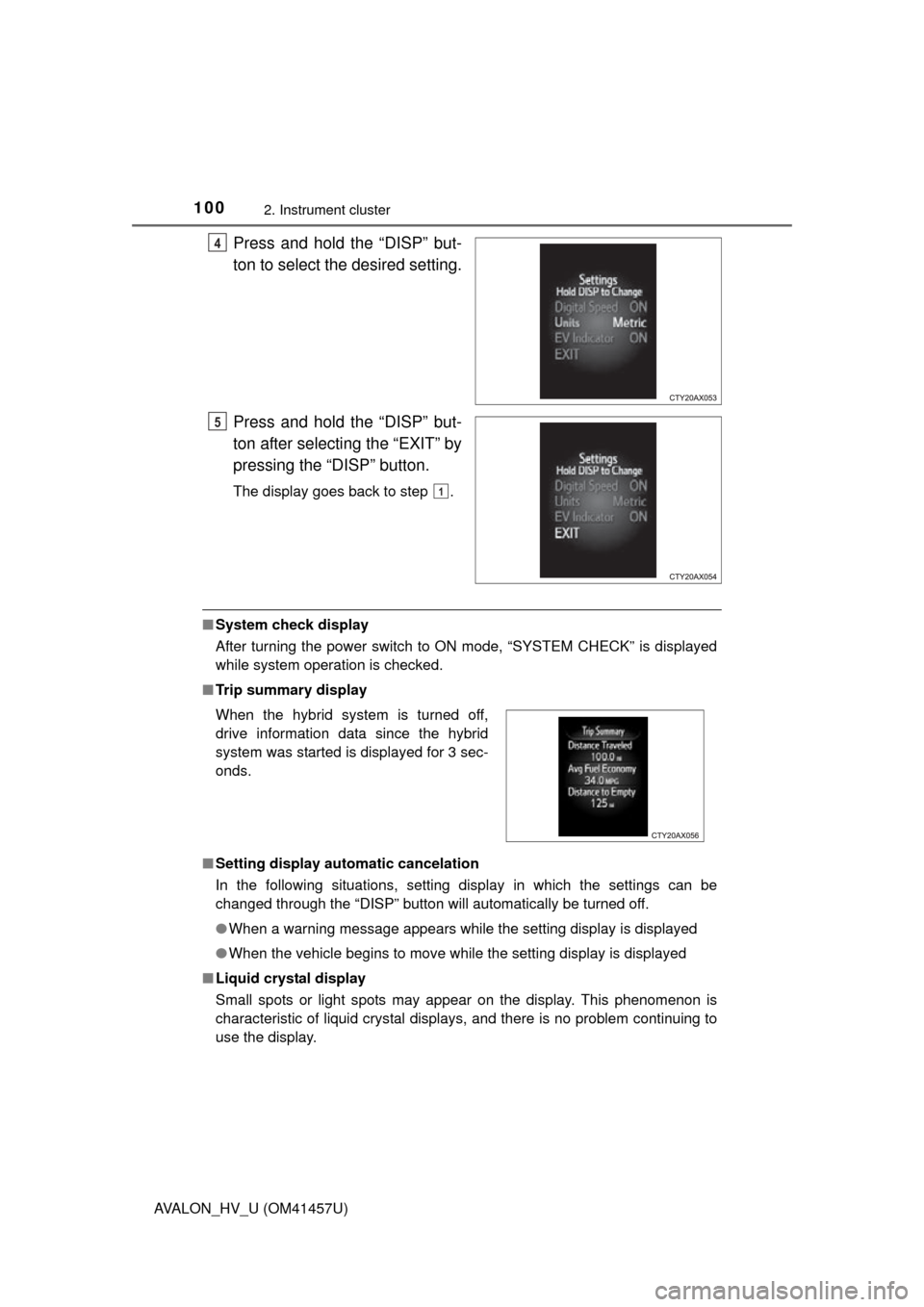

Press and hold the “DISP” but-
ton to select the desired setting.
Press and hold the “DISP” but-
ton after selecting the “EXIT” by
pressing the “DISP” button.
The display goes back to step .
■System check display
After turning the power switch to ON mode, “SYSTEM CHECK” is displayed
while system operation is checked.
■ Trip summary display
■ Setting display automatic cancelation
In the following situations, setting display in which the settings can b\
e
changed through the “DISP” button will automatically be turned off.
●When a warning message appears while the setting display is displayed
● When the vehicle begins to move while the setting display is displayed
■ Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.
4
5
1
When the hybrid system is turned off,
drive information data since the hybrid
system was started is displayed for 3 sec-
onds.

1012. Instrument cluster
2
Instrument cluster
AVALON_HV_U (OM41457U)
CAUTION
■The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This lag could cause the driver to down-
shift again, causing rapid and excessive engine braking and possibly an
accident resulting in death or injury.
■ Cautions during setting up the display
As the hybrid system needs to be operating during setting up the display,
ensure that the vehicle is parked in a place with adequate ventilation. In a
closed area such as a garage, exhaust gases including harmful carbon
monoxide (CO) may collect and enter the vehicle. This may lead to death or
a serious health hazard.
NOTICE
■During setting up the display
To prevent 12-volt battery discharge, ensure that the hybrid system is oper-
ating while setting up the display features.

1022. Instrument cluster
AVALON_HV_U (OM41457U)
Audio system
Multi-information display
■Audio systemPress “APPS”.
Select “Eco”.
If the “Trip Information” or “Past Record” screen is displayed, touch
“Energy”.

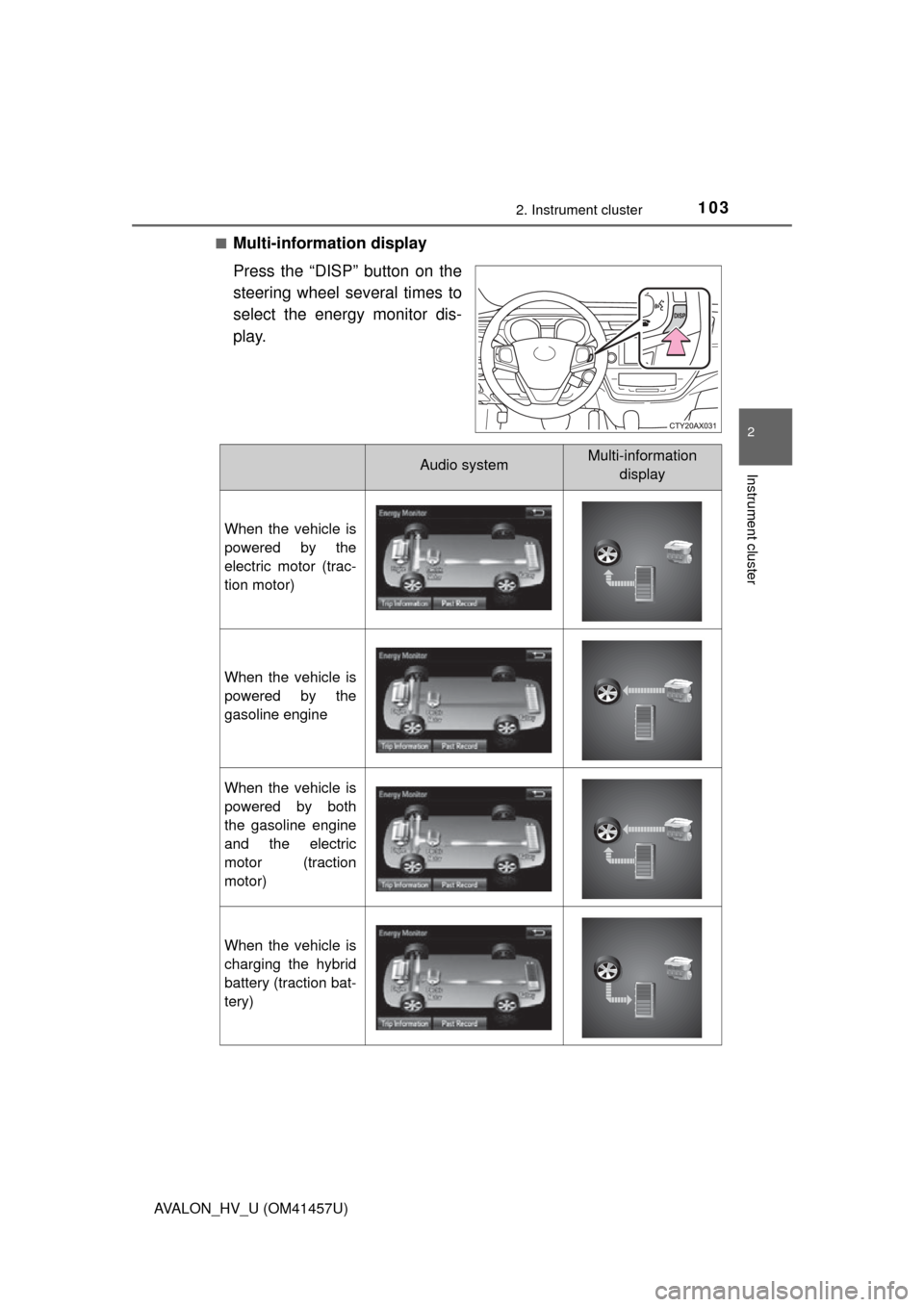

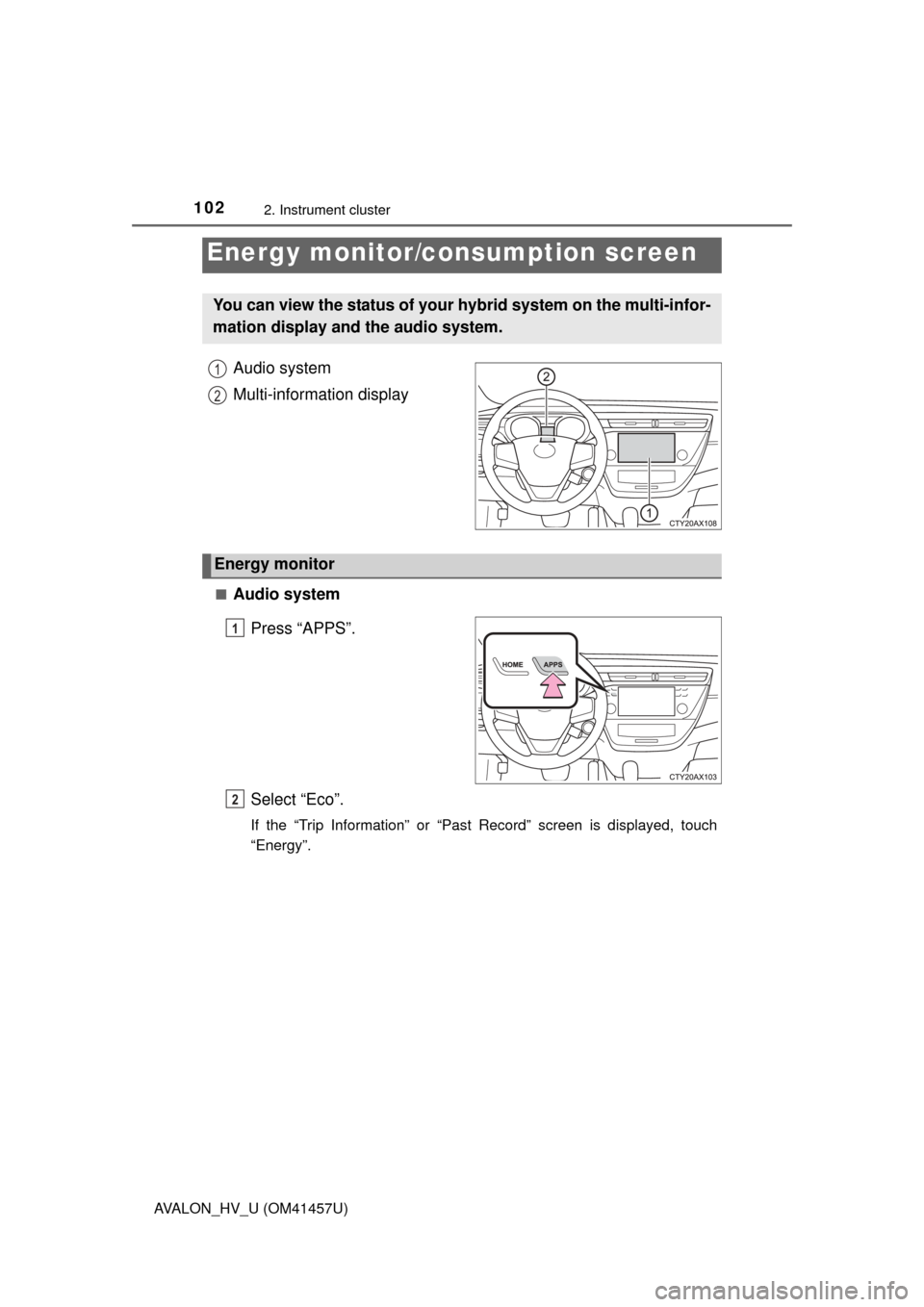

Energy monitor/consumption screen
You can view the status of your hybrid system on the multi-infor-
mation display and the audio system.
1
2
Energy monitor
1
2

1032. Instrument cluster
2
Instrument cluster
AVALON_HV_U (OM41457U)■
Multi-information display
Press the “DISP” button on the
steering wheel several times to
select the energy monitor dis-
play.
Audio systemMulti-information
display
When the vehicle is
powered by the
electric motor (trac-
tion motor)
When the vehicle is
powered by the
gasoline engine
When the vehicle is
powered by both
the gasoline engine
and the electric
motor (traction
motor)
When the vehicle is
charging the hybrid
battery (traction bat-
tery)

1042. Instrument cluster
AVALON_HV_U (OM41457U)

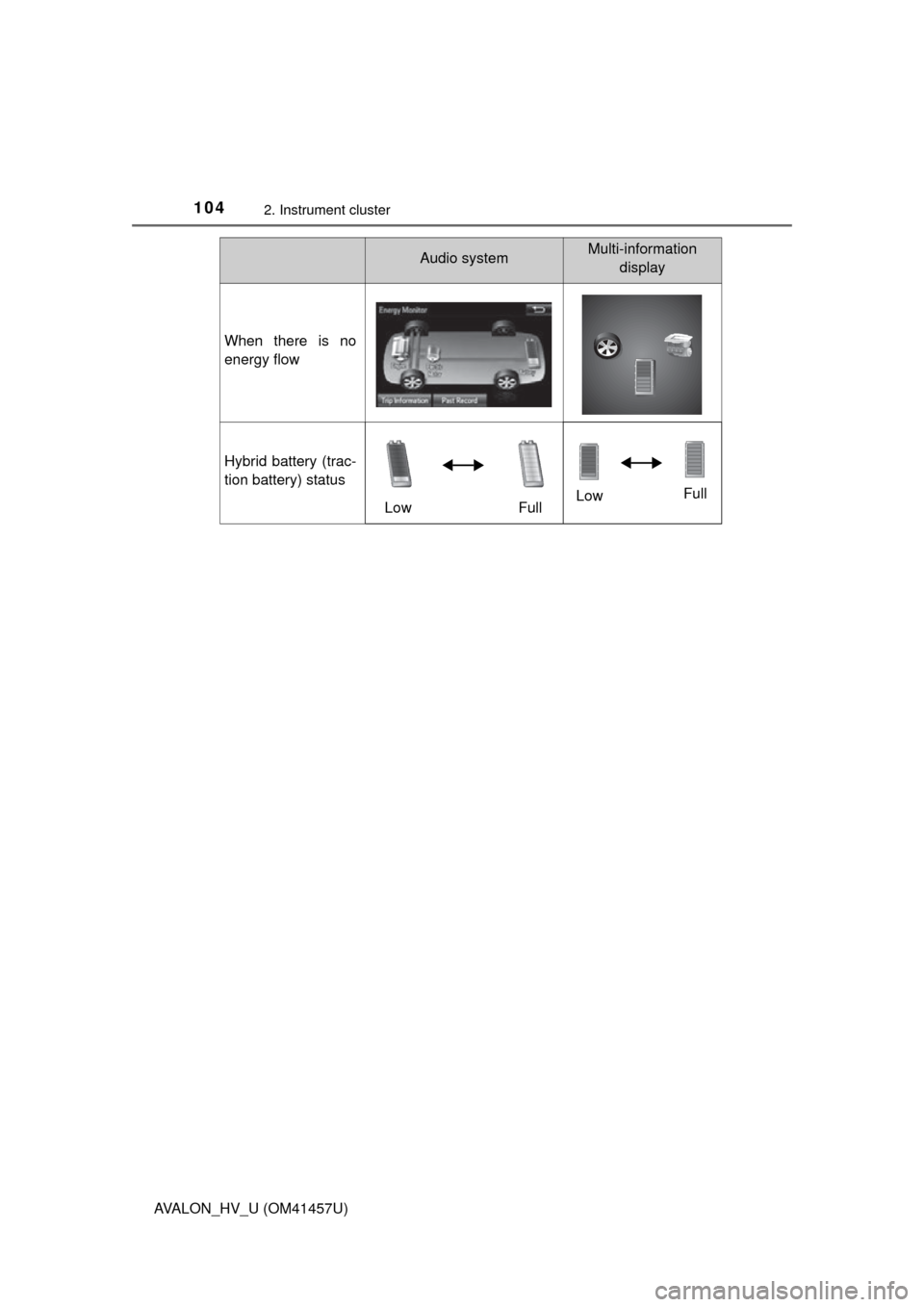

When there is no
energy flow
Hybrid battery (trac-
tion battery) statusLow Full Low
Full
Audio systemMulti-information
display
