2015 PEUGEOT 4C Owners Manual

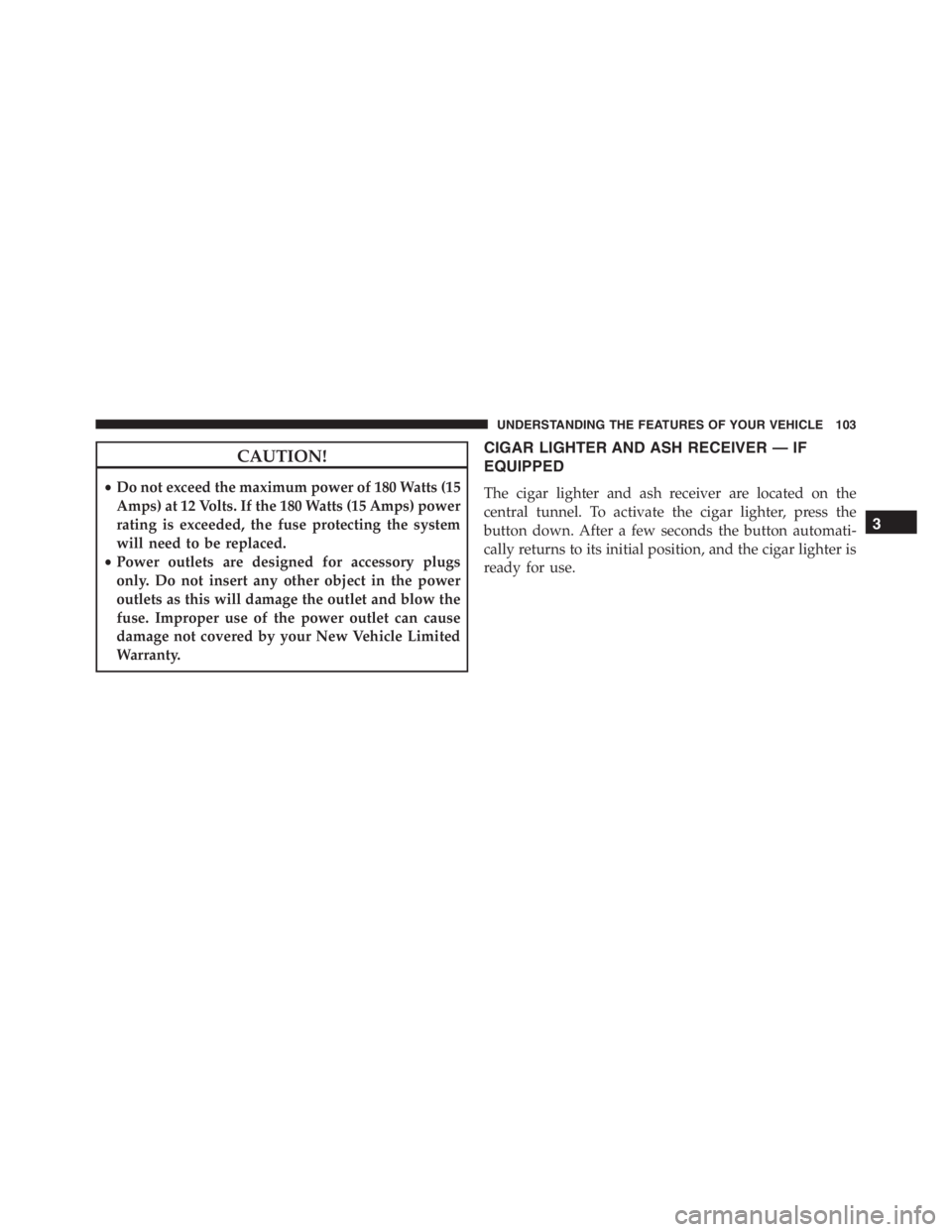

CAUTION!
•Do not exceed the maximum power of 180 Watts (15
Amps) at 12 Volts. If the 180 Watts (15 Amps) power
rating is exceeded, the fuse protecting the system
will need to be replaced.
•Power outlets are designed for accessory plugs
only. Do not insert any other object in the power
outlets as this will damage the outlet and blow the
fuse. Improper use of the power outlet can cause
damage not covered by your New Vehicle Limited
Warranty.
CIGAR LIGHTER AND ASH RECEIVER — IF
EQUIPPED
The cigar lighter and ash receiver are located on the
central tunnel. To activate the cigar lighter, press the
button down. After a few seconds the button automati-
cally returns to its initial position, and the cigar lighter is
ready for use.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 103

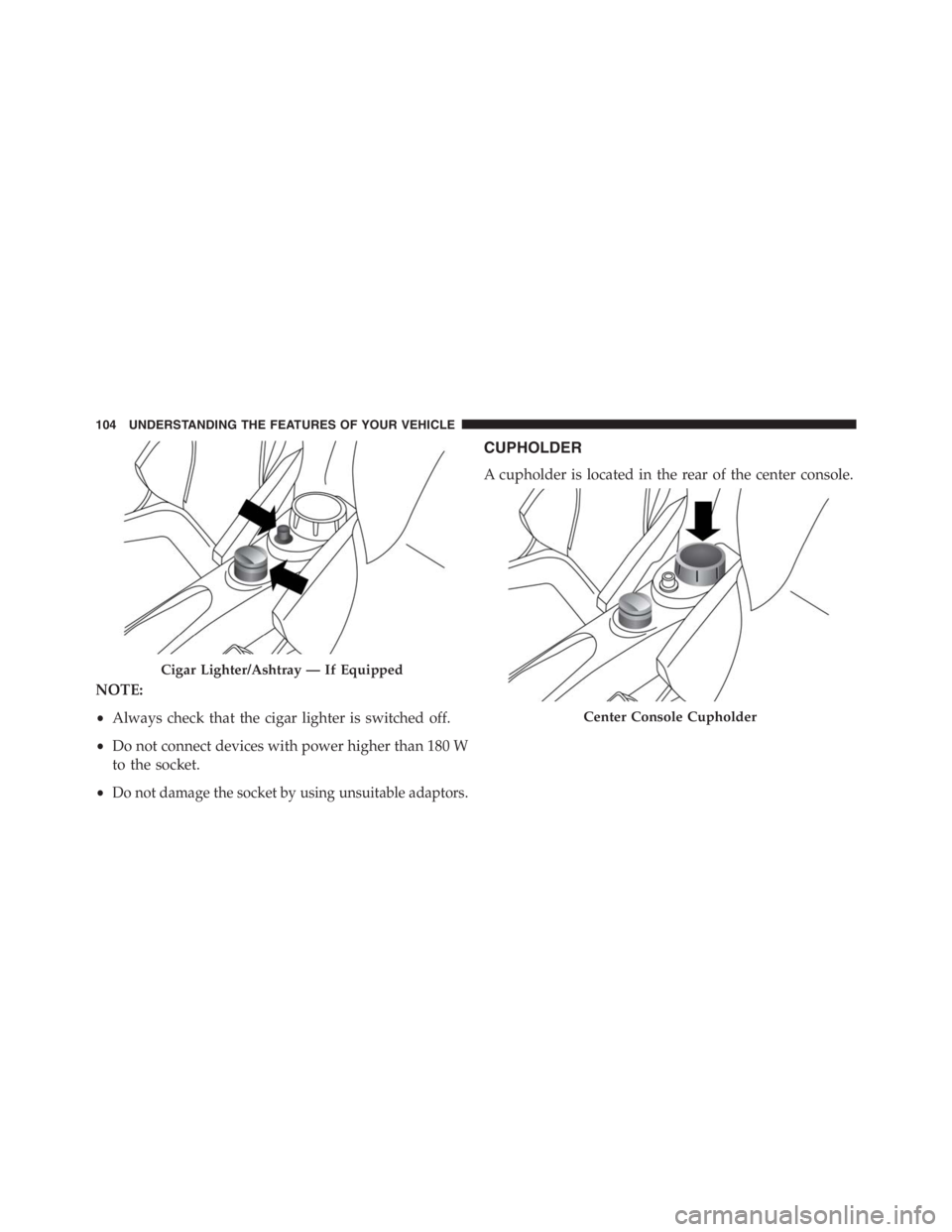

NOTE:
•Always check that the cigar lighter is switched off.
•Do not connect devices with power higher than 180 W
to the socket.
•
Do not damage the socket by using unsuitable adaptors.
CUPHOLDER
A cupholder is located in the rear of the center console.
Cigar Lighter/Ashtray — If Equipped
Center Console Cupholder
104 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

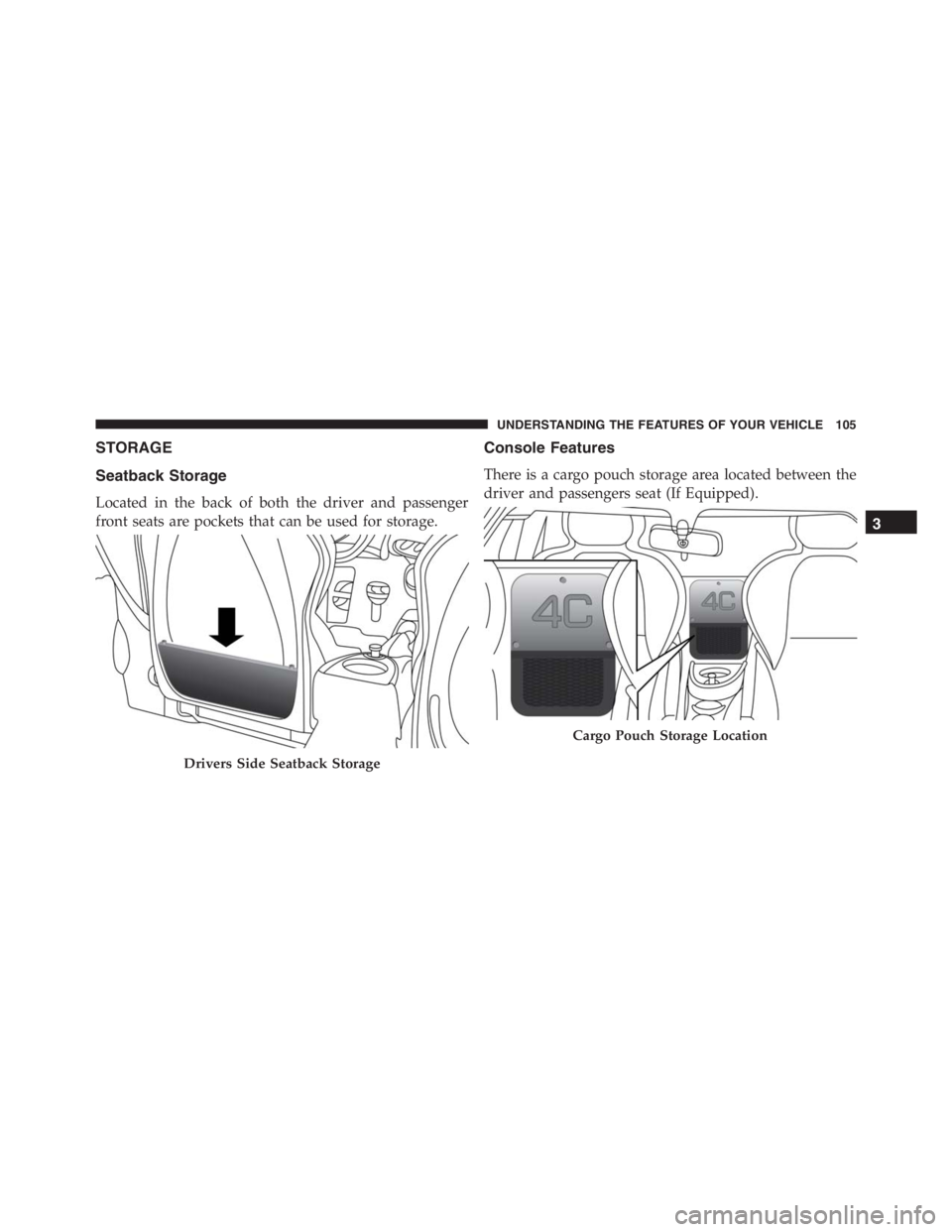

STORAGE
Seatback Storage
Located in the back of both the driver and passenger
front seats are pockets that can be used for storage.
Console Features
There is a cargo pouch storage area located between the
driver and passengers seat (If Equipped).
Drivers Side Seatback Storage
Cargo Pouch Storage Location
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 105

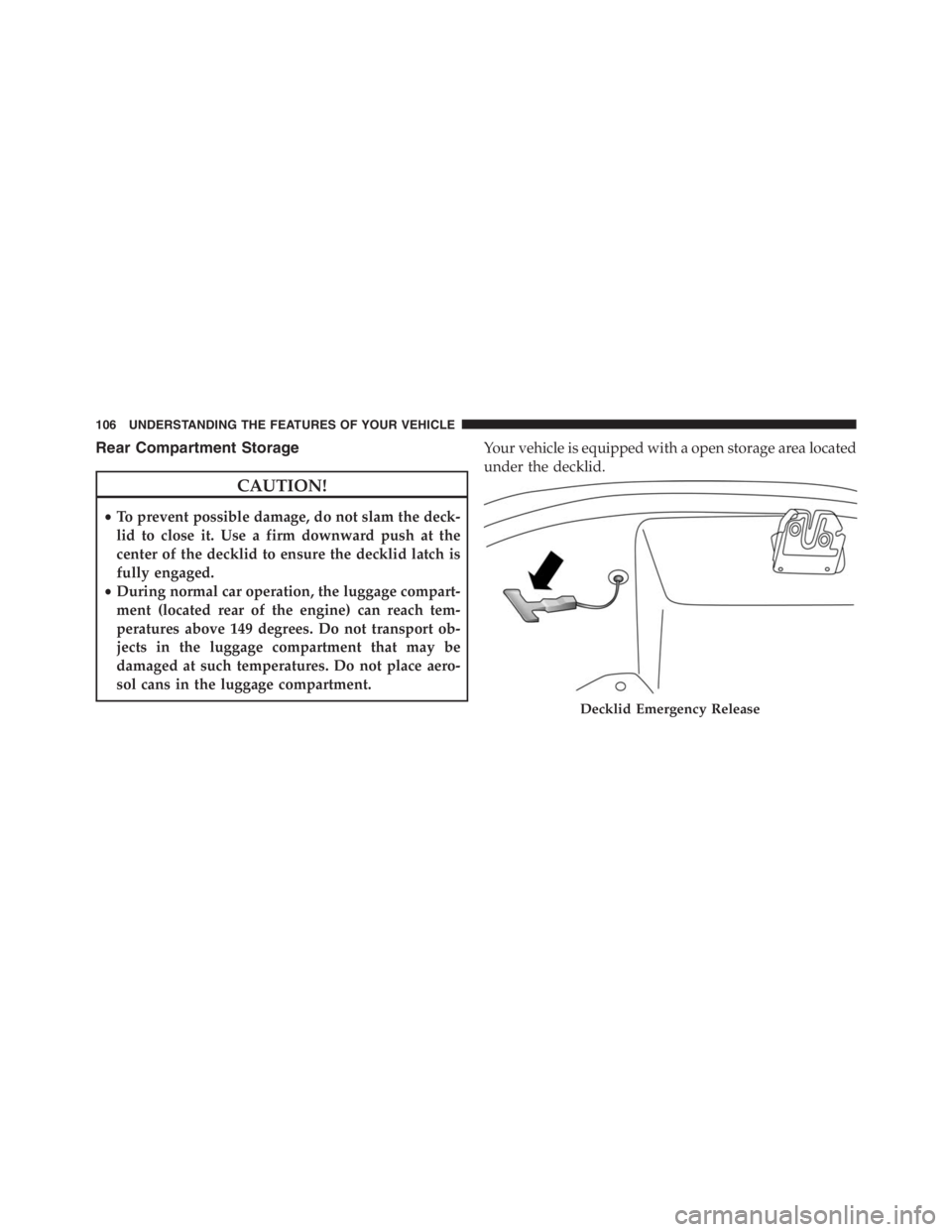

Rear Compartment Storage
CAUTION!
•To prevent possible damage, do not slam the deck-
lid to close it. Use a firm downward push at the
center of the decklid to ensure the decklid latch is
fully engaged.
•During normal car operation, the luggage compart-
ment (located rear of the engine) can reach tem-
peratures above 149 degrees. Do not transport ob-
jects in the luggage compartment that may be
damaged at such temperatures. Do not place aero-
sol cans in the luggage compartment.Your vehicle is equipped with a open storage area located
under the decklid.
Decklid Emergency Release
106 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

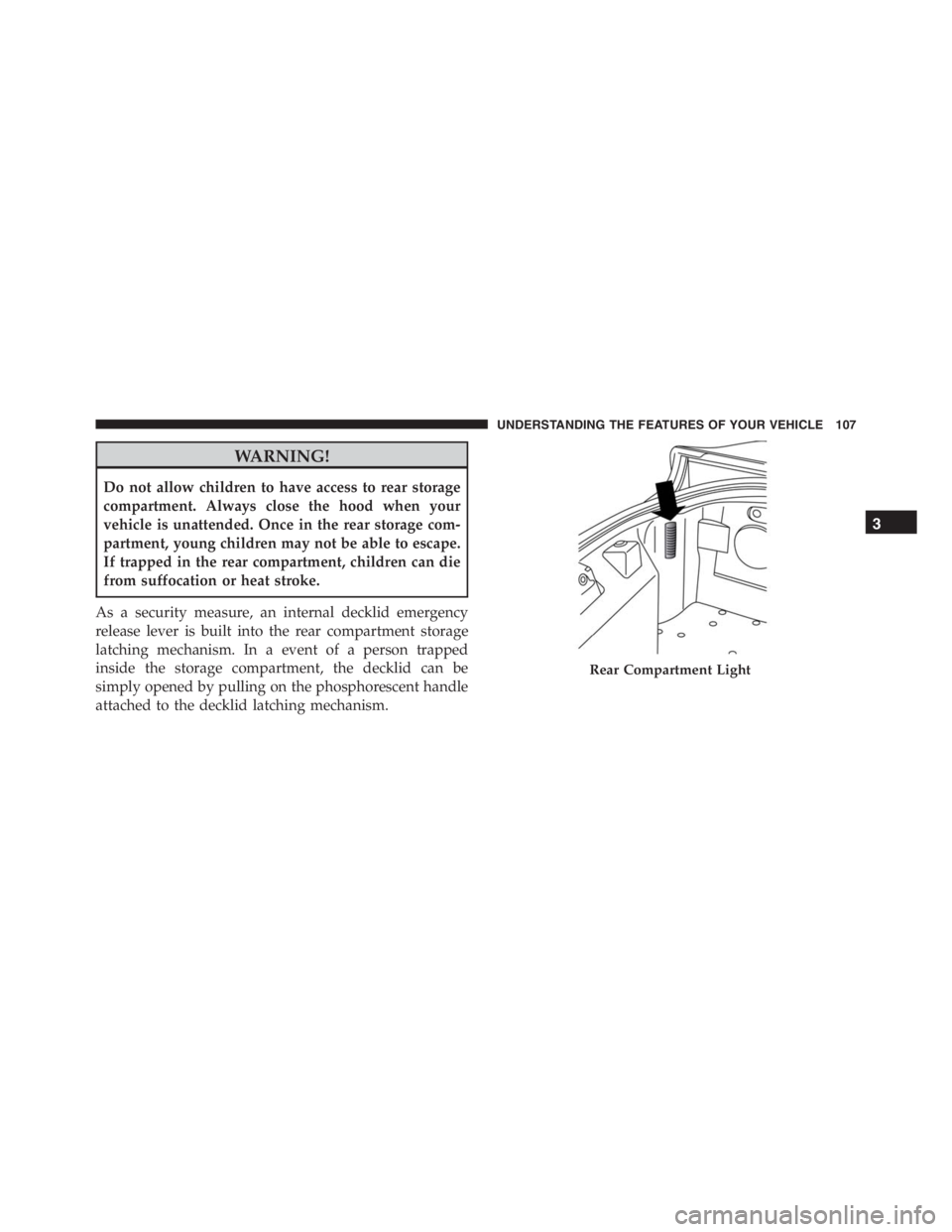

WARNING!
Do not allow children to have access to rear storage
compartment. Always close the hood when your
vehicle is unattended. Once in the rear storage com-
partment, young children may not be able to escape.
If trapped in the rear compartment, children can die
from suffocation or heat stroke.
As a security measure, an internal decklid emergency
release lever is built into the rear compartment storage
latching mechanism. In a event of a person trapped
inside the storage compartment, the decklid can be
simply opened by pulling on the phosphorescent handle
attached to the decklid latching mechanism.
Rear Compartment Light
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 107

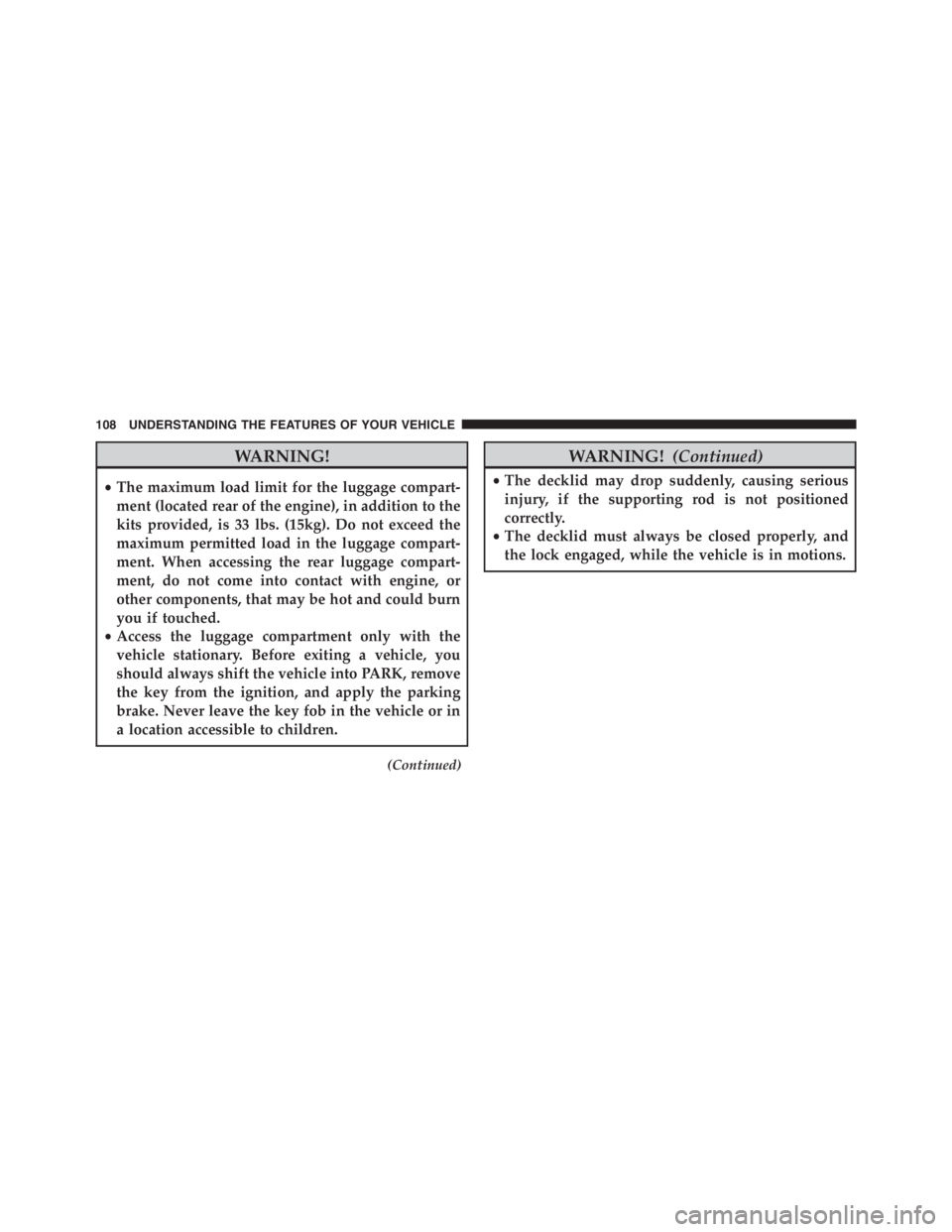

WARNING!
•The maximum load limit for the luggage compart-
ment (located rear of the engine), in addition to the
kits provided, is 33 lbs. (15kg). Do not exceed the
maximum permitted load in the luggage compart-
ment. When accessing the rear luggage compart-
ment, do not come into contact with engine, or
other components, that may be hot and could burn
you if touched.
•Access the luggage compartment only with the
vehicle stationary. Before exiting a vehicle, you
should always shift the vehicle into PARK, remove
the key from the ignition, and apply the parking
brake. Never leave the key fob in the vehicle or in
a location accessible to children.
(Continued)
WARNING!(Continued)
•The decklid may drop suddenly, causing serious
injury, if the supporting rod is not positioned
correctly.
•The decklid must always be closed properly, and
the lock engaged, while the vehicle is in motions.
108 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
INSTRUMENT PANEL FEATURES..........110
INSTRUMENT CLUSTER.................111
INSTRUMENT CLUSTER DESCRIPTIONS.....112
ELECTRONIC VEHICLE INFORMATION CENTER
(EVIC)..............................125
▫Electronic Vehicle Information Center (EVIC)
Setup Menu.........................127
▫Change Engine Oil Indicator System........137▫Trip Computer.......................137
▫Values Displayed.....................140
RADIO SYSTEM........................141
RADIO OPERATION AND MOBILE PHONES . .142
▫General Information...................142
HEATING AND VENTILATION............143
▫Manual Climate Controls With A/C........1434

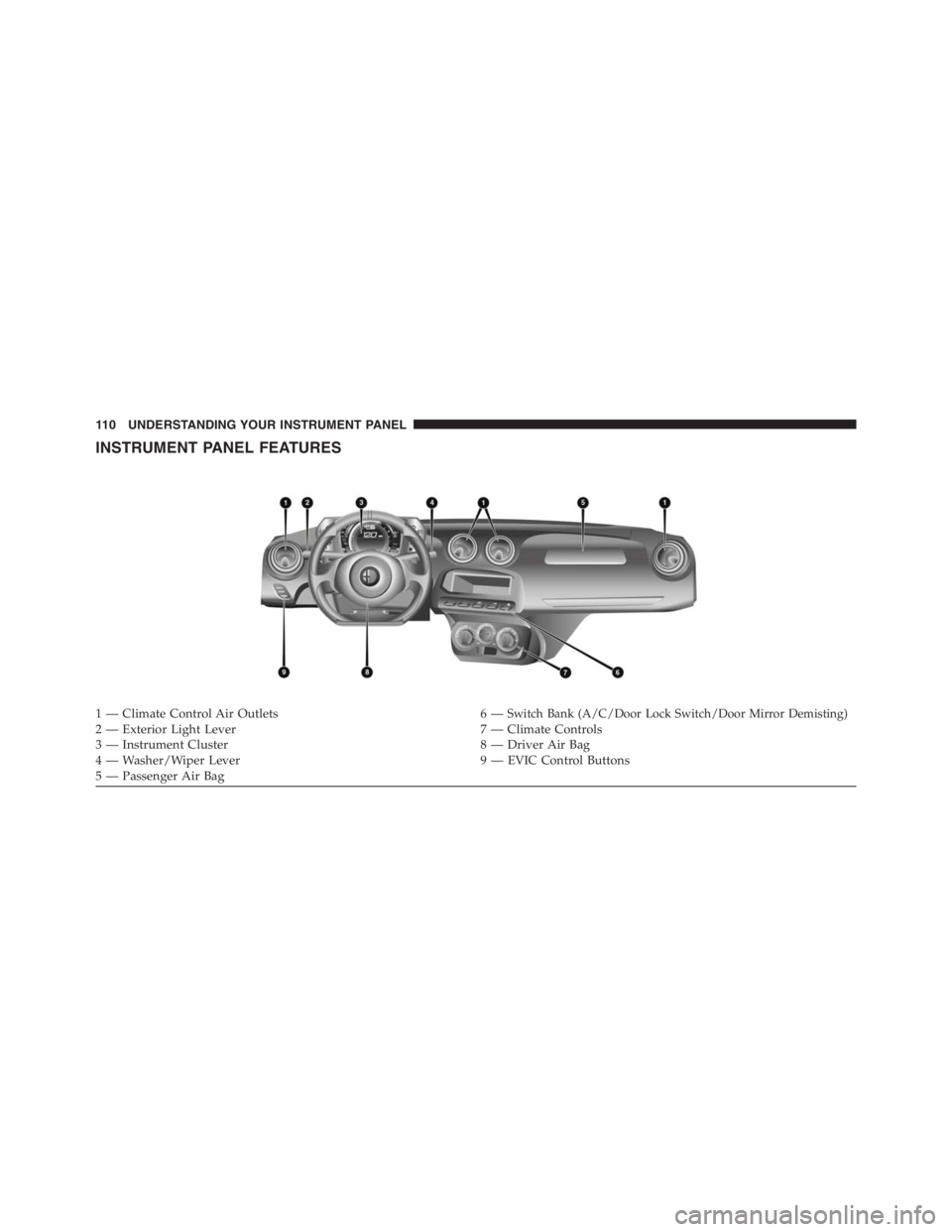

INSTRUMENT PANEL FEATURES
1 — Climate Control Air Outlets 6 —Switch Bank (A/C/Door Lock Switch/Door Mirror Demisting)2 — Exterior Light Lever 7 — Climate Controls
3 — Instrument Cluster 8 — Driver Air Bag
4 — Washer/Wiper Lever 9 — EVIC Control Buttons
5 — Passenger Air Bag 110 UNDERSTANDING YOUR INSTRUMENT PANEL
