that will maintain the rocking motion, without spinning
the wheels or racing the engine.
CAUTION!
Racing the engine or spinning the wheels may lead to
transmission overheating and failure. Allow the en-
gine to idle with the transmission in NEUTRAL for at
least one minute after every five rocking-motion
cycles. This will minimize overheating and reduce
the risk of transmission failure during prolonged
efforts to free a stuck vehicle.NOTE:To turn the ESC off, move the selector from the
Normal position to the Dynamic position and hold it for
a few moments. The Race configuration will be set when
the graph of the longitudinal and transversal G accelera-
tions is shown in the instrument panel. At this time the
ESC has been turned off. Once the vehicle has been freed,
The selector may be moved back to the desired mode.
CAUTION!
•When “rocking” a stuck vehicle by shifting be-
tween DRIVE and REVERSE, do not spin the
wheels faster than 15 mph (24 km/h), or drivetrain
damage may result.
•Revving the engine or spinning the wheels too fast
may lead to transmission overheating and failure.
It can also damage the tires. Do not spin the wheels
above 30 mph (48 km/h) while in gear (no trans-
mission shifting occurring).6
WHAT TO DO IN EMERGENCIES 239

WARNING!
Fast spinning tires can be dangerous. Forces gener-
ated by excessive wheel speeds may cause damage, or
even failure, of the axle and tires. A tire could
explode and injure someone. Do not spin your vehi-
cle’s wheels faster than 30 mph (48 km/h) or for
longer than 30 seconds continuously without stop-
ping when you are stuck and do not let anyone near
a spinning wheel, no matter what the speed.
ENHANCED ACCIDENT RESPONSE SYSTEM
In the event of an impact, if the communication network
remains intact, and the power remains intact, depending
on the nature of the event the ORC will determine
whether to have the Enhanced Accident Response Sys-
tem perform the following functions:
•Cut off fuel to the engine.•Flash hazard lights as long as the battery has power or
until the ignition key is turned off.
•Turn on the interior lights, which remain on as long as
the battery has power or until the ignition key is
removed.
•Unlock the doors automatically.
After the event occurs, when the system is active, in
addition to the message Fuel Cutoff See Handbook, a
specific soft telltale is displayed.
Carefully check the vehicle for fuel leaks in the engine
compartment and on the ground near the engine com-
partment and fuel tank before resetting the system and
starting the engine.
System Reset Procedure
Depending on the nature of the event the left and right
turn signal lights, located in the instrument panel cluster,
240 WHAT TO DO IN EMERGENCIES

may both be blinking and will continue to blink until the
ignition switch is turned to the OFF position.
In order to move your vehicle to the side of the road you
must follow the system reset procedure.
Customer Action Customer Will See
1. Turn ignition OFF.
(Turn Signal Switch Must
be placed in Neutral
State).—
2. Turn ignition ON. Left Turn Light is OFF.
Right Turn Light
BLINKS.
3. Turn Right Turn Signal
Switch ON.Right Turn Light is ON
SOLID. Left Turn Light
BLINKS.
4. Turn Left Turn Signal
Switch ON.Left Turn Light is ON
SOLID. Right Turn Light
BLINKS.
5. Turn Right Turn Signal
Switch ON.Right Turn Light is ON
SOLID. Left Turn Light
BLINKS.
6. Turn Left Turn Signal
Switch ON.Left Turn Light is ON
SOLID. Right Turn Light
is ON SOLID.
7. Turn Left Turn Signal
Switch OFF. (Turn Signal
Switch Must be placed in
Neutral State).Left Turn Light is OFF.
Right Turn Light is OFF.
8. Turn ignition OFF. System is now reset and
the engine may be
started.
9. Turn ignition ON. —
6
WHAT TO DO IN EMERGENCIES 241

Turn Hazard Flashers OFF (Manually).
If a reset procedure step is not completed within 60
seconds, then the turn signal lights will turn off and the
reset procedure must be performed again in order to be
successful.

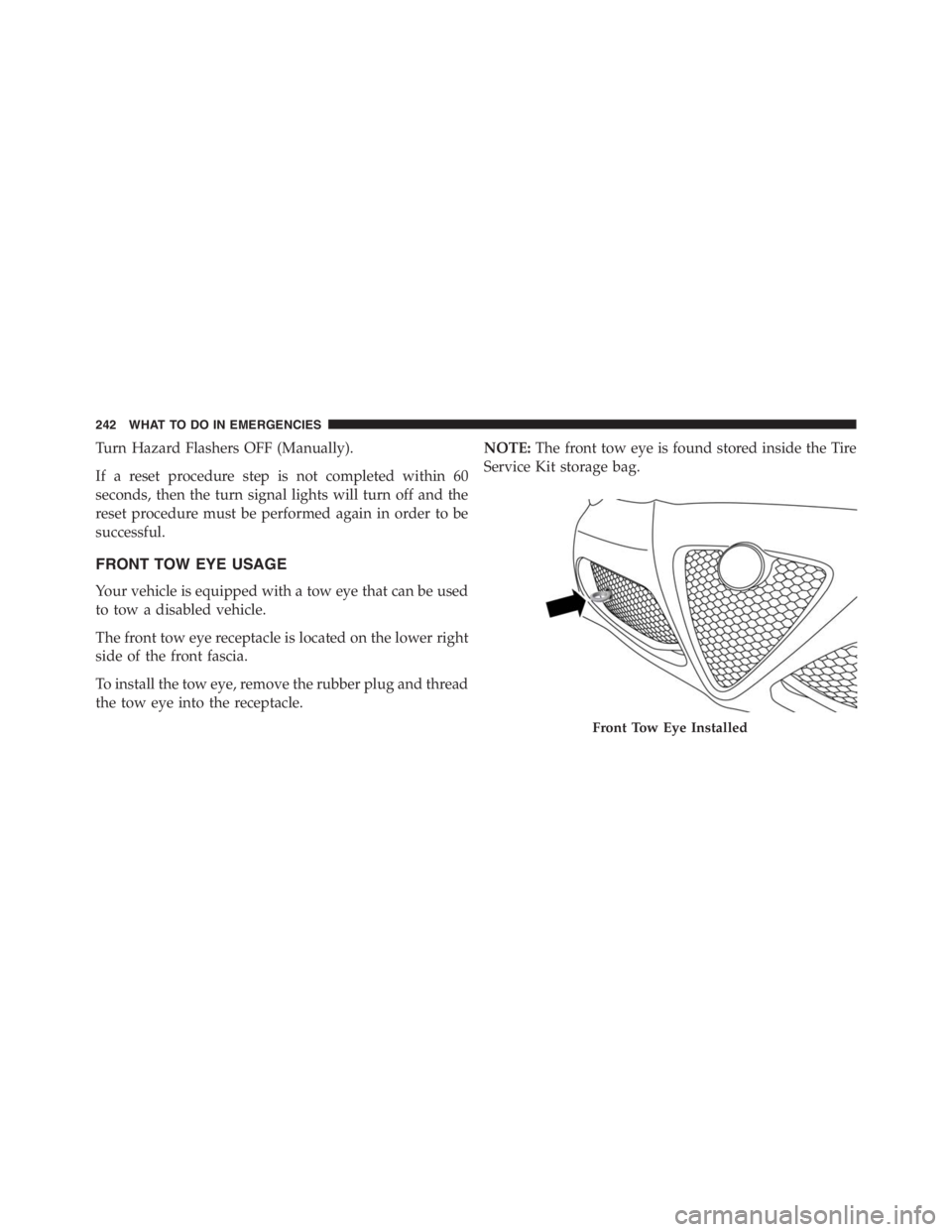

FRONT TOW EYE USAGE
Your vehicle is equipped with a tow eye that can be used
to tow a disabled vehicle.
The front tow eye receptacle is located on the lower right
side of the front fascia.
To install the tow eye, remove the rubber plug and thread
the tow eye into the receptacle.NOTE:The front tow eye is found stored inside the Tire
Service Kit storage bag.
Front Tow Eye Installed
242 WHAT TO DO IN EMERGENCIES

When using a tow eye be sure to follow the “Tow Eye
Usage Precautions” in this section.Tow Eye Usage Precautions
NOTE:
•Ensure that the tow eye is properly seated and secure
in the mounting receptacle.
•The tow eye is recommended for use with an approved
tow bar and or rope.
•Do not use the tow eye to pull the vehicle onto a
flatbed truck.
•Do not use the tow eye to free a stuck vehicle. Refer to
“Freeing A Stuck Vehicle” in this section for further
information.
Tow Eye
6
WHAT TO DO IN EMERGENCIES 243

WARNING!
Stand clear of vehicles when pulling with tow eyes.
•Do not use a chain with a tow eye. Chains may
break, causing serious injury or death.
•Do not use a tow strap with a tow eye. Tow straps
may break or become disengaged, causing serious
injury or death.
•Failure to follow proper tow eye usage may cause
components to break resulting in serious injury or
death.

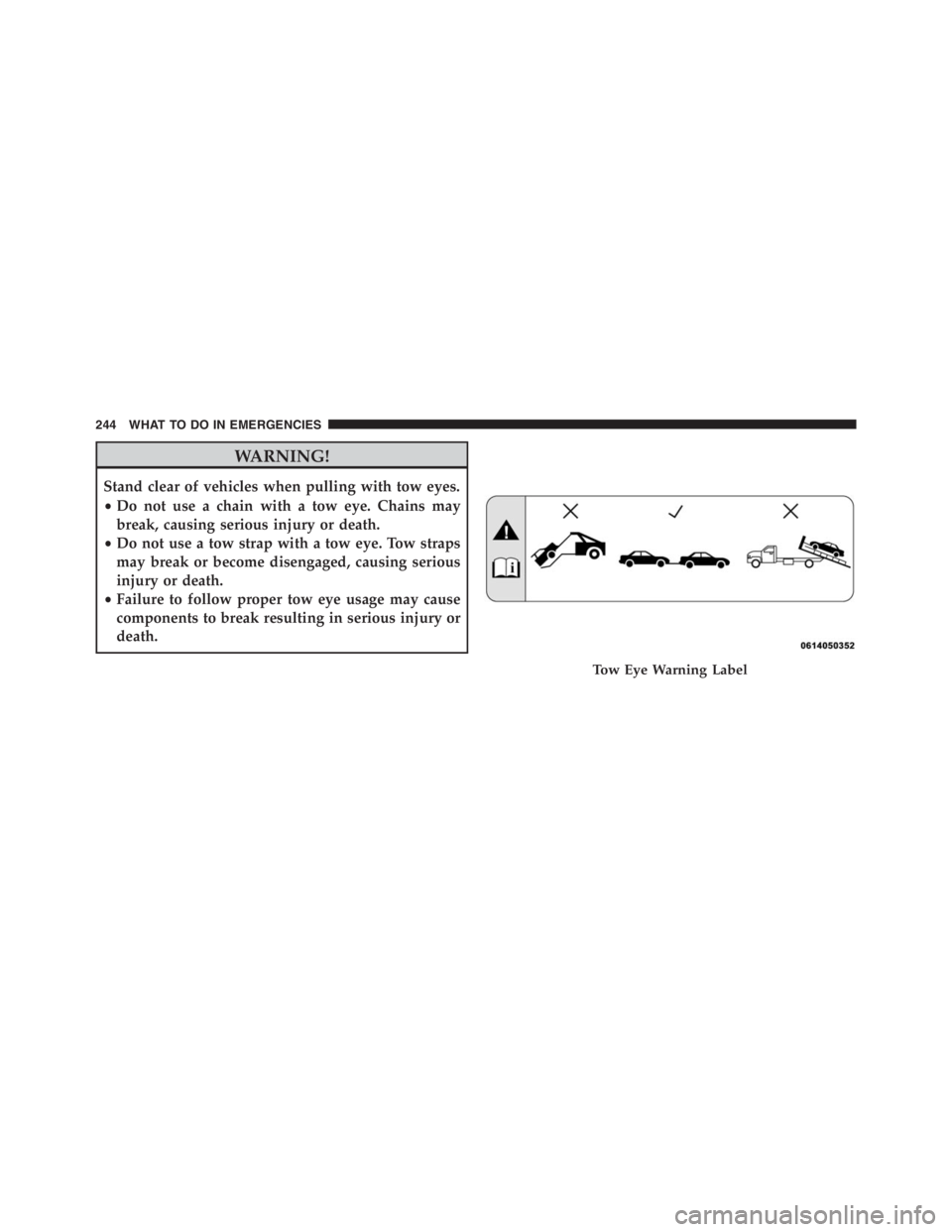

Tow Eye Warning Label
244 WHAT TO DO IN EMERGENCIES

CAUTION!
•The tow eye must be used exclusively for roadside
assistance operations. Only use the tow eye with an
appropriate device in accordance with the highway
code (a rigid bar or rope) to flat tow the vehicle for
a short distance to the nearest service location.
•Tow eyes MUST NOT be used to tow vehicles off
the road or where there are obstacles.
•In compliance with the above conditions, towing
with a tow eye must take place with two vehicles
(one towing, the other towed) aligned as much as
possible along the same center line. Damage to
your vehicle may occur if these guidelines are not
followed.

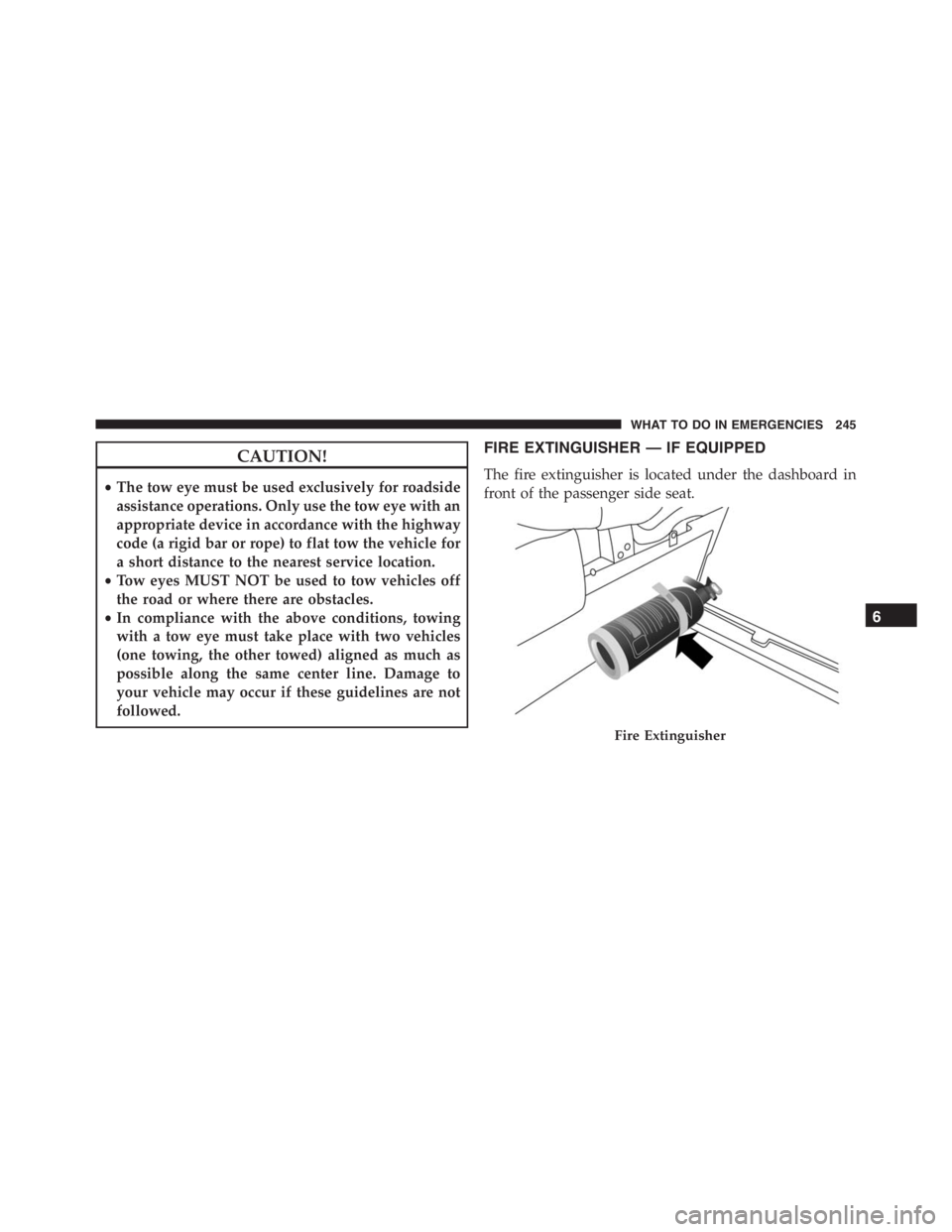

FIRE EXTINGUISHER — IF EQUIPPED
The fire extinguisher is located under the dashboard in
front of the passenger side seat.
Fire Extinguisher
6
