2015 PEUGEOT 4C Owners Manual

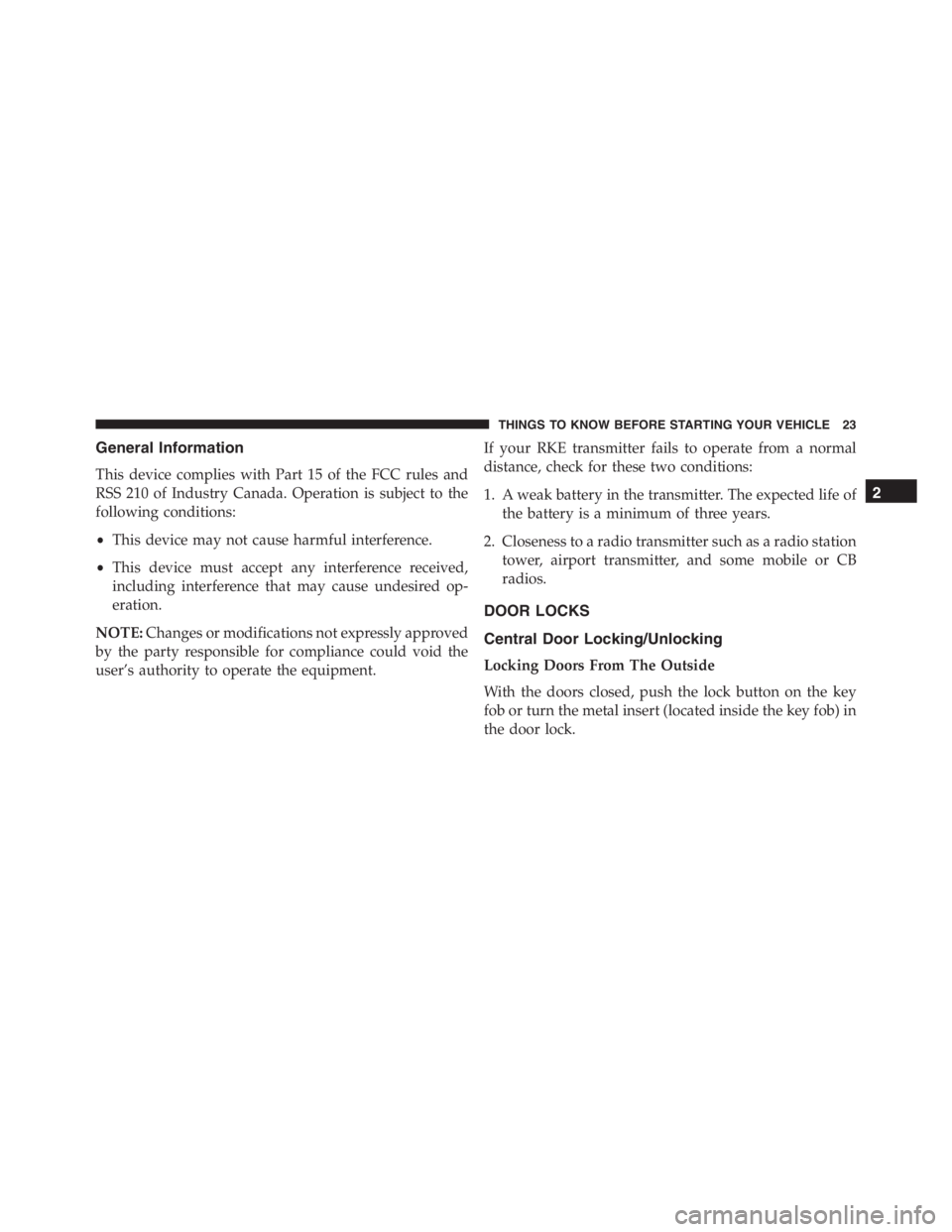

General Information
This device complies with Part 15 of the FCC rules and
RSS 210 of Industry Canada. Operation is subject to the
following conditions:
•This device may not cause harmful interference.
•This device must accept any interference received,
including interference that may cause undesired op-
eration.
NOTE:Changes or modifications not expressly approved
by the party responsible for compliance could void the
user’s authority to operate the equipment.If your RKE transmitter fails to operate from a normal
distance, check for these two conditions:
1. A weak battery in the transmitter. The expected life of
the battery is a minimum of three years.
2. Closeness to a radio transmitter such as a radio station
tower, airport transmitter, and some mobile or CB
radios.
DOOR LOCKS
Central Door Locking/Unlocking
Locking Doors From The Outside
With the doors closed, push the lock button on the key
fob or turn the metal insert (located inside the key fob) in
the door lock.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 23

The Door Lock LED Indicator buttonwill illuminate
to indicate that the doors have locked.
NOTE:Door locking is carried out with all doors shut.
Unlocking Doors From The Outside
Push the unlock button on the key or turn the metal
insert (located inside the key) in the driver side door lock.
WARNING!
•For personal security and safety in the event of a
collision, lock the vehicle doors before you drive as
well as when you park and leave the vehicle.
•Never leave children alone in a vehicle, or with
access to an unlocked vehicle. Allowing children to
be in a vehicle unattended is dangerous for a
number of reasons. A child or others could be
seriously or fatally injured. Children should be
warned not to touch the parking brake, brake pedal
or the transmission gear selector.
•Do not leave the Key Fob in or near the vehicle, or
in a location accessible to children. A child could
operate power windows, other controls, or move
the vehicle.
Door Lock LED Indicator
24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Locking/Unlocking Doors From The Inside
Push the Lock LED Indicator button. The button has
an LED that indicates whether the doors are locked or
unlocked.
Pushing the Lock LED Indicator buttonagain cen-
trally unlocks all doors and switches off the LED.
Pushing the Lock LED Indicator buttonagain cen-
trally locks all the doors. The doors will be locked only
if all the doors are properly shut.
Once the doors have been locked using the remote
control or the key, it will no longer be possible to unlock
them by pushing the Lock LED Indicator button
.
NOTE:In the absence of electrical power supply (blown
fuse, battery disconnected, etc.) it is still possible to lock
the doors manually.
Emergency Door Locking Device
Passenger Side Door
The passenger side door has a device to lock it when
there is no current.
To lock it, place the metal insert of the ignition key in
housing #1 and turn it clockwise.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 25

To restore the starting condition of the door locks (only if
battery charge restored), proceed as follows:
•Push the Unlock button on the remote control;
•Push the door locking/unlocking LED indicator but-
ton
on the dashboard; or
•Introduce the metal insert of the ignition key in the
front door pawl; or
•Pull the internal door handle.
Door Opening/Closing Mechanism Reset
If the battery is disconnected or the protection fuse
blows, the door opening/closing mechanism must be
reset as follows:
1. Close all the doors.
2. Push the unlock button on the key or the door
locking/unlocking LED indicator button
on the
dashboard.
3. Push the lock button on the key or the door locking/
unlocking LED indicator button
on the dash-
board.
Emergency Door Lock Function
26 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WINDOWS
Power Windows
NOTE:
•These operate when the ignition key is turned to
MAR-ON and for about three minutes after the igni-
tion key is turned to STOP or removed unless one of
the doors is opened.
•The buttons are located on the center console.
Push the corresponding buttons to open/close the de-
sired window.
Power Window Switch
1 — Driver Power Window Switch
2 — Passenger Power Window Switch
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 27

When one of the two buttons is pushed briefly, the
window moves in stages; if the button is held down to
open,continuous automaticoperation is activated.
If the button is pushed again the window will stop in its
current position. If the button is pushed for several
seconds, the window lowers automatically (only with
ignition key in MAR-ON position).
Continuous Automatic Operation
This is activated by pushing one of the two buttons for
longer than half a second. The window will stop when it
is fully opened, or when the button is pushed again.
It can be used on both the driver side and passenger side,
only for lowering the window.
Electric Window System Reset
After a break in power supply for the control units
(battery replaced or disconnected or protective fuses forthe electric window control units replaced), the auto-
matic operation of the windows must be restored.
The restoration procedure must be performed as de-
scribed below with the doors closed:
1. Completely open the driver’s door window keeping
the operating button pushed for at least three seconds
after the (lower) end of travel position is reached.
2. Completely raise the driver side window and hold the
button down for at least three seconds once the
(upper) end of travel position has been reached.
3. Proceed in the same way as described in points 1 and
2 for the passenger side door.
4. Make sure that the reset is correct by checking that the
windows work automatically.
28 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

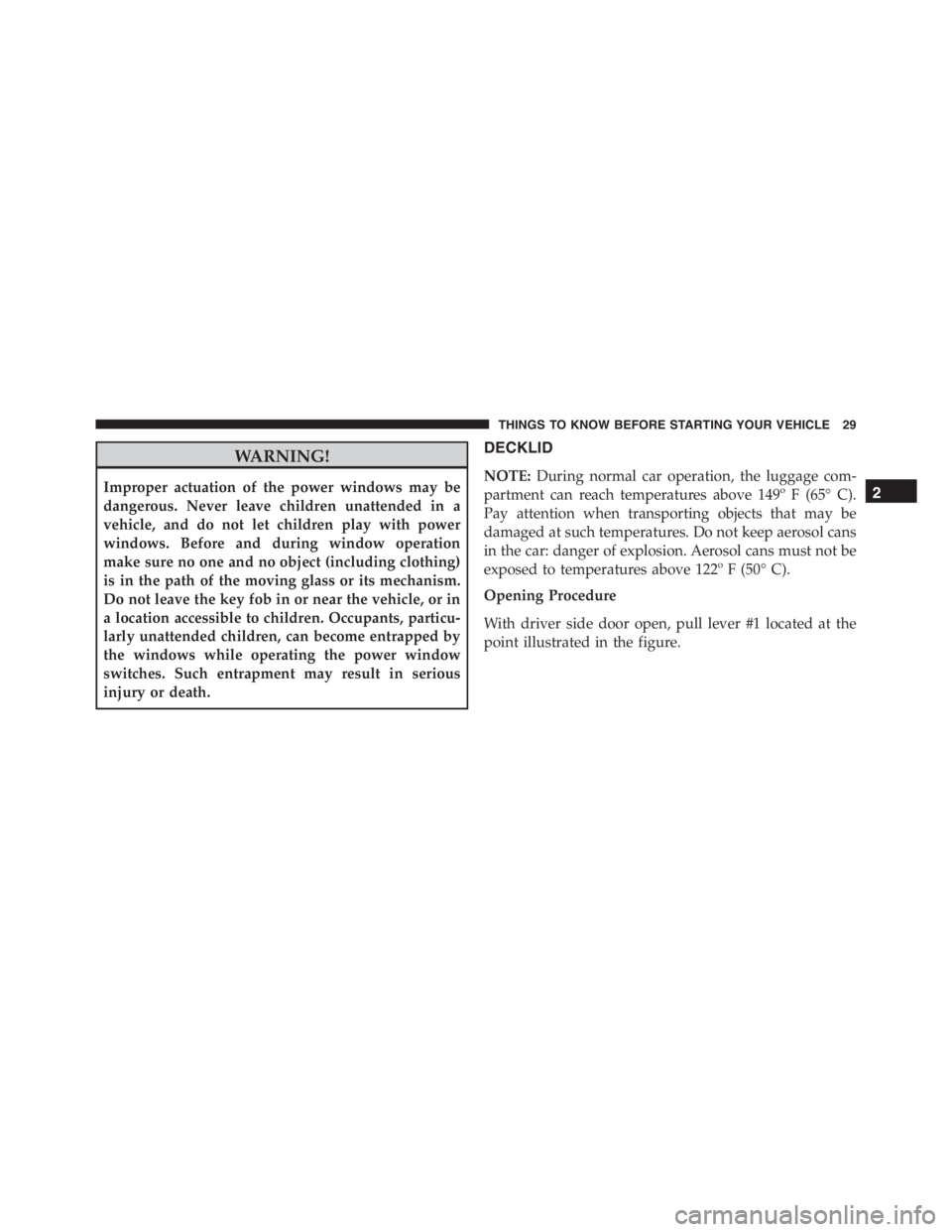

WARNING!
Improper actuation of the power windows may be
dangerous. Never leave children unattended in a
vehicle, and do not let children play with power
windows. Before and during window operation
make sure no one and no object (including clothing)
is in the path of the moving glass or its mechanism.
Do not leave the key fob in or near the vehicle, or in
a location accessible to children. Occupants, particu-
larly unattended children, can become entrapped by
the windows while operating the power window
switches. Such entrapment may result in serious
injury or death.
DECKLID
NOTE:During normal car operation, the luggage com-
partment can reach temperatures above 149º F (65° C).
Pay attention when transporting objects that may be
damaged at such temperatures. Do not keep aerosol cans
in the car: danger of explosion. Aerosol cans must not be
exposed to temperatures above 122º F (50° C).
Opening Procedure
With driver side door open, pull lever #1 located at the
point illustrated in the figure.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 29

Raise the decklid and release supporting rod from its
locking device.Insert the end of the rod in housing, making sure that the
rod engages in the smallest hole of the retaining clip.
Care must be taken to keep the decklid raised until the
rod is fixed in the correct position.
NOTE:Maintain a tight grip on the decklid when raising,
in order to prevent any external occurrence (e.g. a gust of
wind) from suddenly opening the decklid to end of
travel. Additionally, in order to prevent any damage to
the car or broken windows, do not force the decklid
beyond the opening position necessary to secure the
supporting rod in the hole of the retaining clip.
Closing Procedure
1. Hold the decklid up with one hand and use the other
to remove rod from housing and reinsert it in its
locking device.
2. Lower the decklid approximately 7.8 inches (20 cm)
from the engine compartment and let it drop. Make
Decklid Release Lever Location
1 — Decklid Release Lever 30 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
