2015 PEUGEOT 2008 Owners Manual

71
2008_en_Chap04_amenagements_ed01-2015

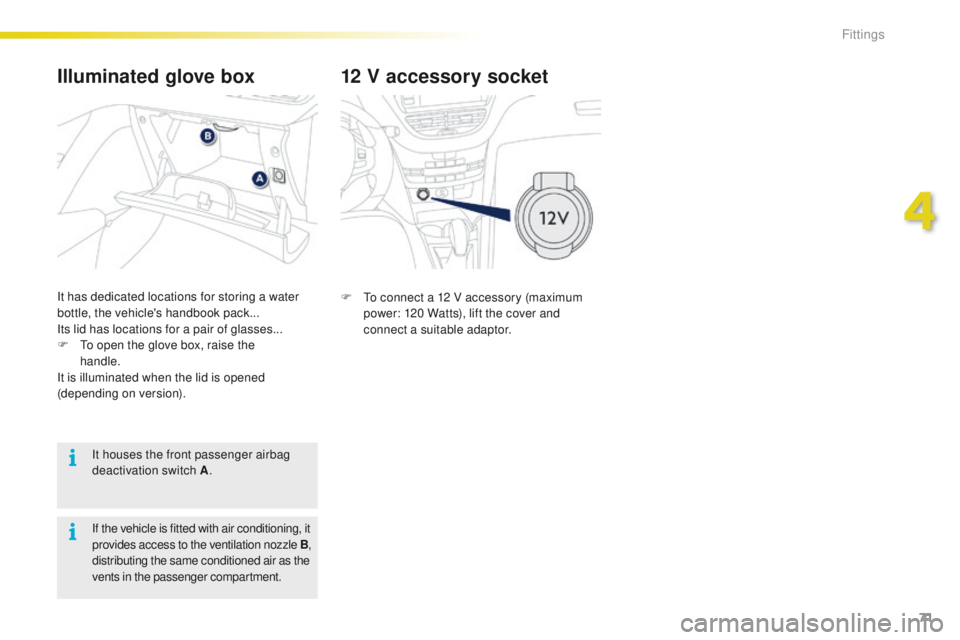

12 V accessory socket
F To connect a 12 V accessory (maximum power: 120 Watts), lift the cover and
connect a suitable adaptor.
Illuminated glove box
It has dedicated locations for storing a water
bottle, the vehicle's handbook pack...
Its lid has locations for a pair of glasses...
F

T
o open the glove box, raise the
handle.
It is illuminated when the lid is opened
(depending on version).
It houses the front passenger airbag
deactivation switch A .
If the vehicle is fitted with air conditioning, it
provides access to the ventilation nozzle
B,
distributing the same conditioned air as the
vents in the passenger compartment.
4
Fittings

72
2008_en_Chap04_amenagements_ed01-2015

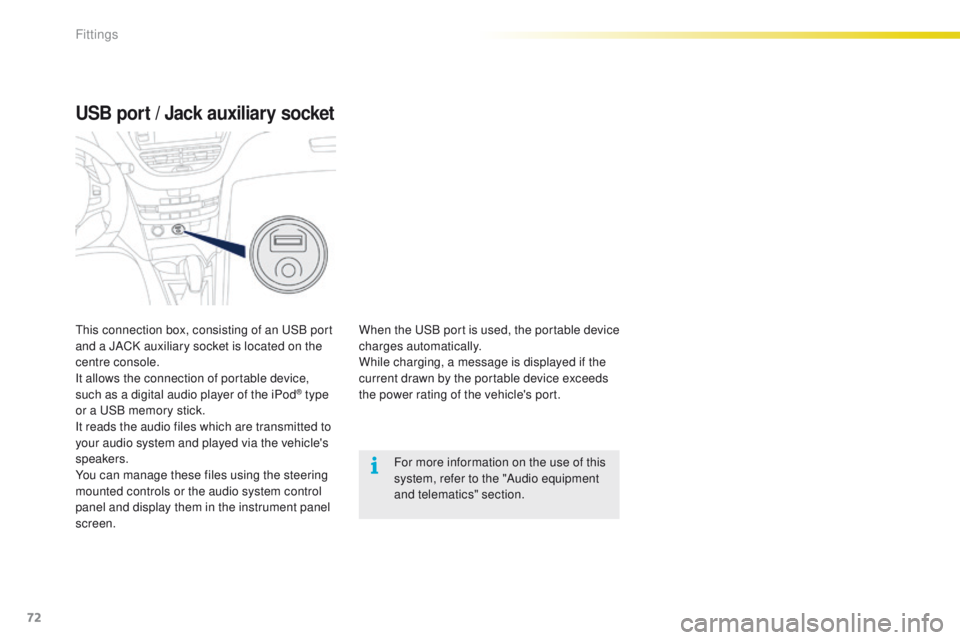

USB port / Jack auxiliary socket
When the USB port is used, the portable device
charges automatically.
While charging, a message is displayed if the
current drawn by the portable device exceeds
the power rating of the vehicle's port.For more information on the use of this
system, refer to the "Audio equipment
and telematics" section.
This connection box, consisting of an USB port
and a JACK auxiliary socket is located on the
centre console.
It allows the connection of portable device,
such as a digital audio player of the iPod
® type
or a USB memory stick.
It reads the audio files which are transmitted to
your audio system and played via the vehicle's
speakers.
You can manage these files using the steering
mounted controls or the audio system control
panel and display them in the instrument panel
screen.
Fittings

73
2008_en_Chap04_amenagements_ed01-2015

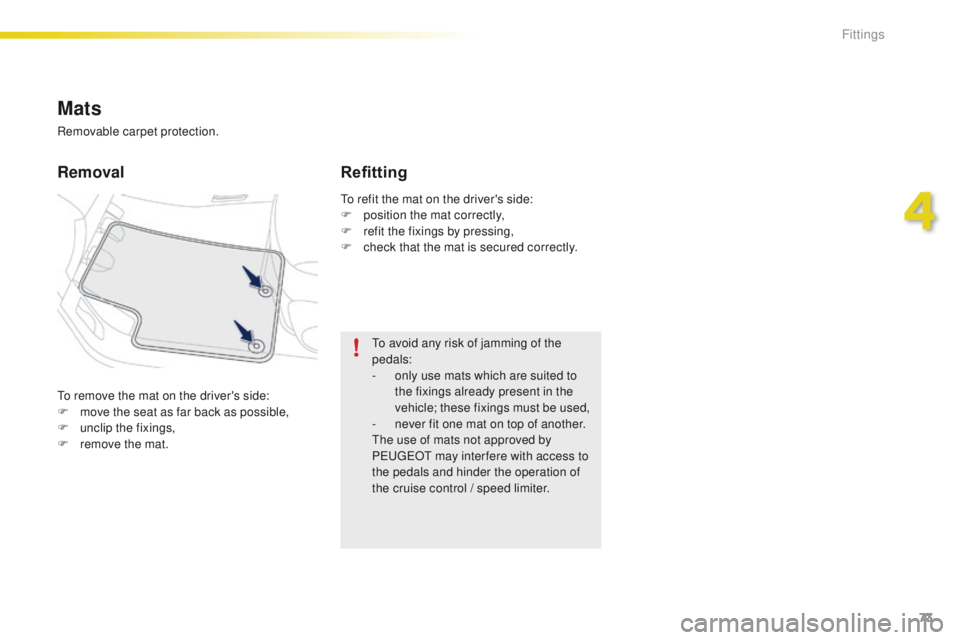

To remove the mat on the driver's side:
F m ove the seat as far back as possible,
F

un
clip the fixings,
F

r
emove the mat.
Removal Refitting
To avoid any risk of jamming of the
pedals:
-

o
nly use mats which are suited to
the fixings already present in the
vehicle; these fixings must be used,
-

n
ever fit one mat on top of another.
The use of mats not approved by
PEUGEOT may inter fere with access to
the pedals and hinder the operation of
the cruise control / speed limiter.
To refit the mat on the driver's side:
F

p

osition the mat correctly,
F

r

efit the fixings by pressing,
F

c

heck that the mat is secured correctly.
Mats
Removable carpet protection.
4
Fittings

74
2008_en_Chap04_amenagements_ed01-2015

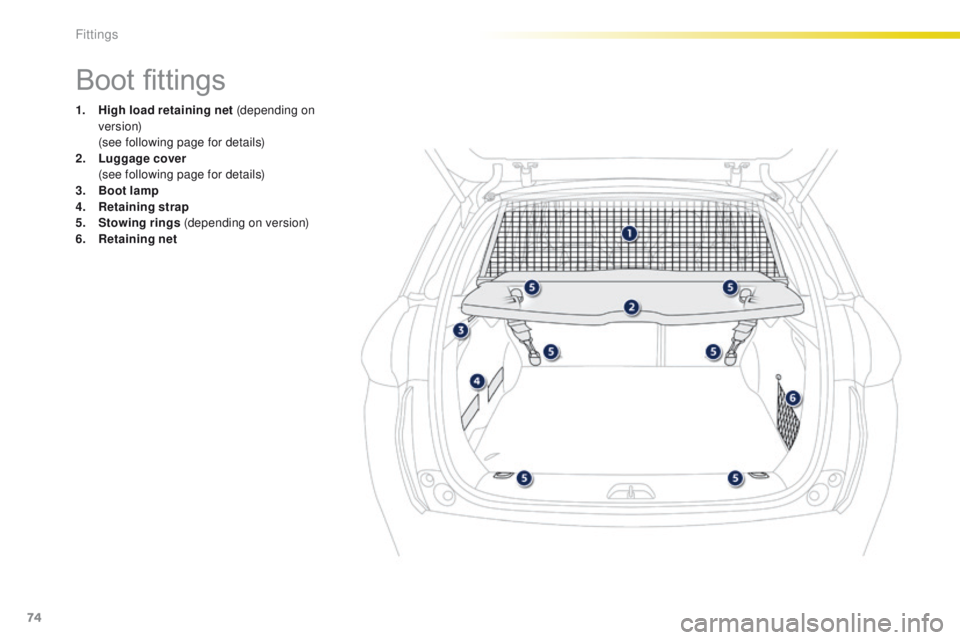

Boot fittings
1. High load retaining net (depending on ve r s i o n)
(

see following page for details)
2.
L

uggage cover
(

see following page for details)
3.
B

oot lamp
4.
R

etaining strap
5.
S

towing rings (depending on version)
6.
R

etaining net
Fittings

75
2008_en_Chap04_amenagements_ed01-2015

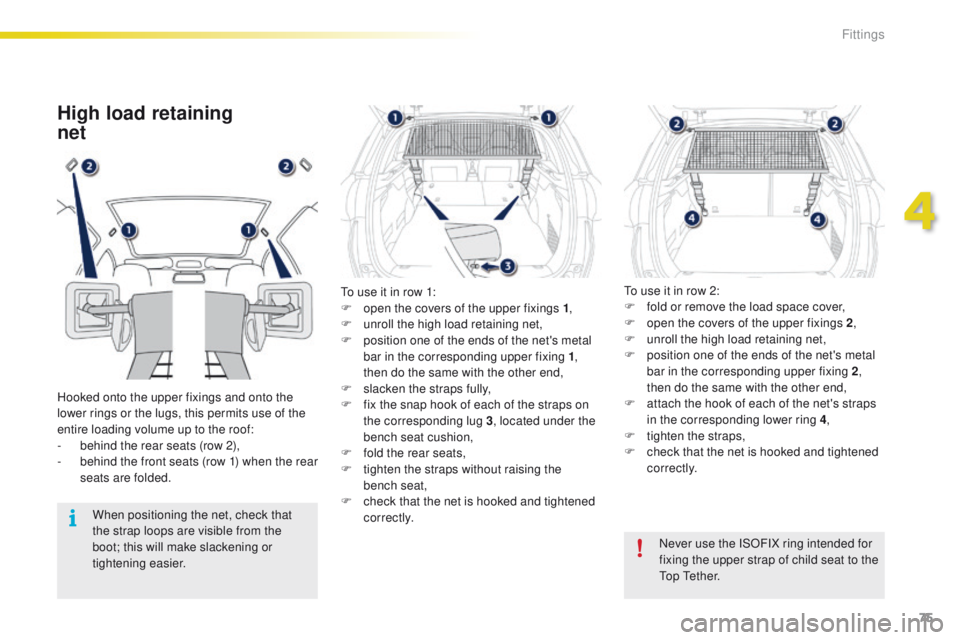

High load retaining
net
Hooked onto the upper fixings and onto the
lower rings or the lugs, this permits use of the
entire loading volume up to the roof:
-

b
ehind the rear seats (row 2),
-

b
ehind the front seats (row 1) when the rear
seats are folded.
When positioning the net, check that
the strap loops are visible from the
boot; this will make slackening or
tightening easier. Never use the ISOFIX ring intended for
fixing the upper strap of child seat to the
Top Tether.
To use it in row 1:
F

o
pen the covers of the upper fixings 1
,
F
u
nroll the high load retaining net,
F
p
osition one of the ends of the net's metal
bar in the corresponding upper fixing 1 ,
then do the same with the other end,
F s lacken the straps fully,
F f ix the snap hook of each of the straps on
the corresponding lug 3 , located under the
bench seat cushion,
F

f
old the rear seats,
F

t
ighten the straps without raising the
bench


seat,
F

c
heck that the net is hooked and tightened
c o r r e c t l y. To use it in row 2:
F

f
old or remove the load space cover,
F
o
pen the covers of the upper fixings 2
,
F
u
nroll the high load retaining net,
F
p
osition one of the ends of the net's metal
bar in the corresponding upper fixing 2 ,
then do the same with the other end,
F a ttach the hook of each of the net's straps
in the corresponding lower ring 4 ,
F

t
ighten the straps,
F

c
heck that the net is hooked and tightened
c o r r e c t l y.
4
Fittings

76
2008_en_Chap04_amenagements_ed01-2015

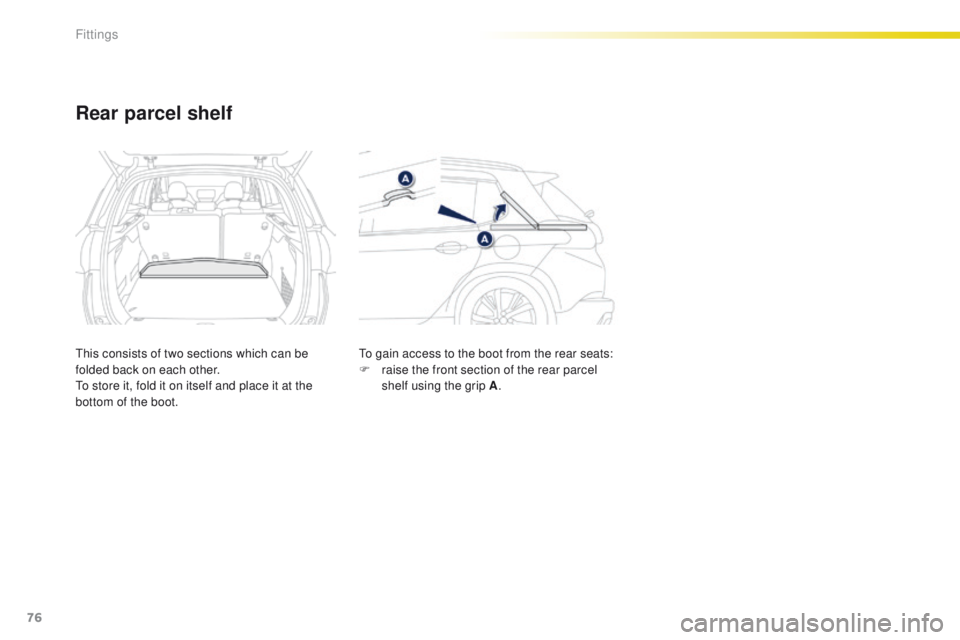

Rear parcel shelf
This consists of two sections which can be
folded back on each other.
To store it, fold it on itself and place it at the
bottom of the boot.To gain access to the boot from the rear seats:
F
r aise the front section of the rear parcel
shelf using the grip A .
Fittings

77
2008_en_Chap04_amenagements_ed01-2015

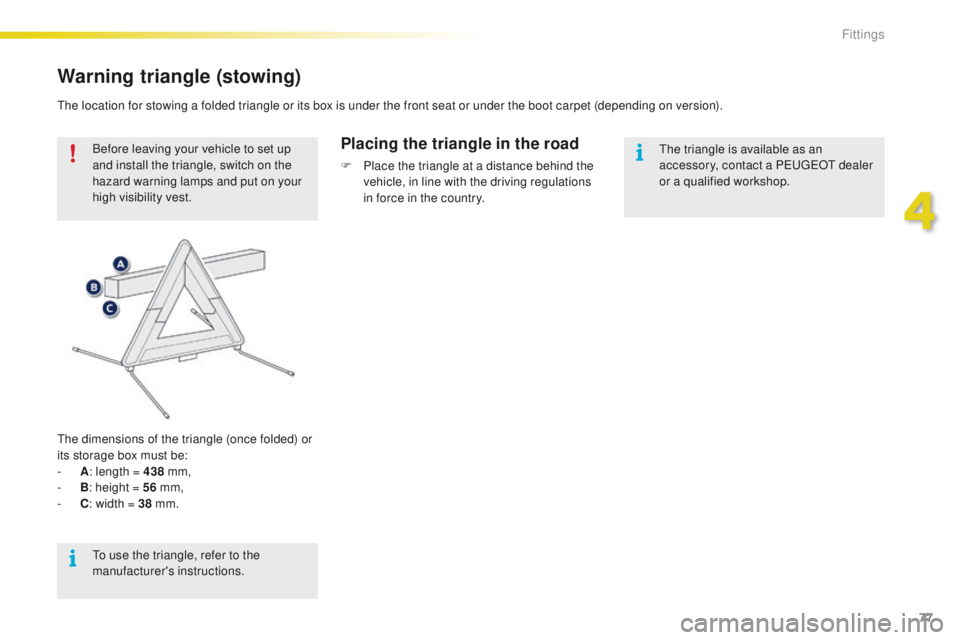

Warning triangle (stowing)
Before leaving your vehicle to set up
and install the triangle, switch on the
hazard warning lamps and put on your
high visibility vest.
The dimensions of the triangle (once folded) or
its storage box must be:
-

A : l

ength = 438 mm,
-

B : h

eight = 56 mm,
-

C : w

idth = 38 mm.Placing the triangle in the road
F Place the triangle at a distance behind the
vehicle, in line with the driving regulations
in force in the country.
The location for stowing a folded triangle or its box is under the front seat or under the boot carpet (depending on version).
The triangle is available as an
accessory, contact a PEUGEOT dealer
or a qualified workshop.
To use the triangle, refer to the
manufacturer's instructions.
4
Fittings

78
2008_en_Chap05_conduite_ed01-2015
Driving recommendations
Observe the driving regulations and remain
vigilant whatever the traffic conditions.
Pay close attention to the traffic and keep your
hands on the wheel so that you are ready to
react at any time to any eventuality.
On a long journey, a break every two hours is
strongly recommended.
In difficult weather, drive smoothly, anticipate
the need to brake and increase the distance
from other vehicles.If you are obliged to drive through water:Important!
Driving on flooded
roads
- check that the depth of water does not exceed 15 cm, taking account of waves
that might be generated by other users,
-

d
eactivate the Stop & Start system,
-

d
rive as slowly as possible without
stalling. In all cases, do not exceed 6 mph
(10


km/h),
-

d
o not stop and do not switch off the
engine.
We strongly advise against driving on flooded
roads, as this could cause serious damage
to the engine or gearbox, as well as to the
electrical systems of your vehicle.
On leaving the flooded road, as soon as
circumstances allow, make several light brake
applications to dry the brake discs and pads.
If in doubt on the state of your vehicle, contact
a PEUGEOT dealer or a qualified workshop. Never drive with the parking brake
applied - Risk of overheating and
damage to the braking system!
Do not park or run the engine when
stationary in areas where inflammable
substances and materials (dry grass,
dead leaves...) might come into contact
with the hot exhaust system - Risk of
fire!
Never leave a vehicle unsupervised
with the engine running. If you have
to leave your vehicle with the engine
running, apply the parking brake
and put the gearbox into neutral or
position


N or P, depending on the type
of gearbox.
Driving
