2015 PEUGEOT 2008 Owners Manual

183
2008_en_Chap09_info-pratiques_ed01-2015

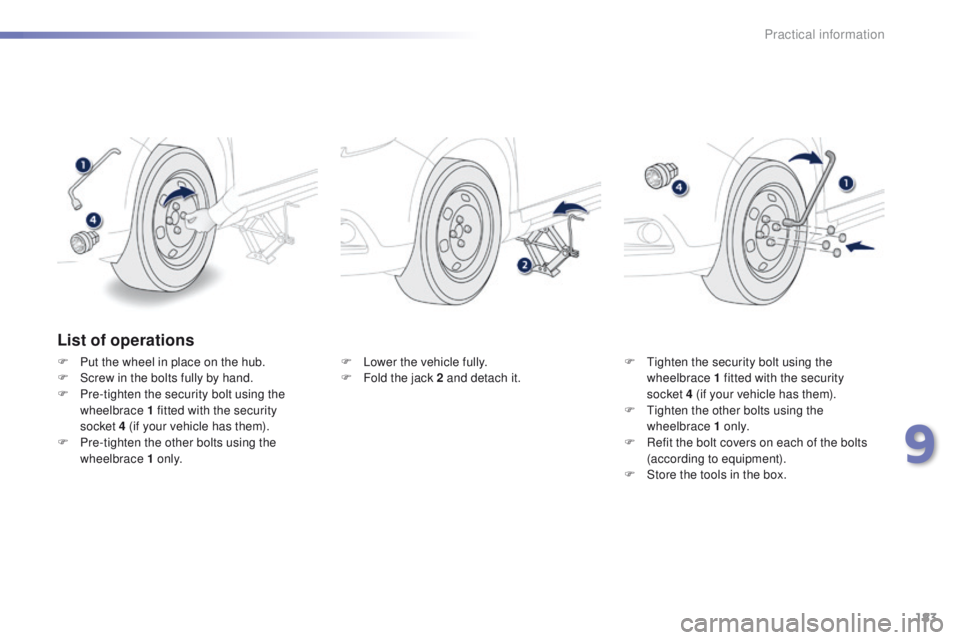

List of operations
F Put the wheel in place on the hub.
F S crew in the bolts fully by hand.
F

P
re-tighten the security bolt using the
wheelbrace 1 fitted with the security
socket


4 (if your vehicle has them).
F

P
re-tighten the other bolts using the
wheelbrace 1 o n l y. F
L ower the vehicle fully.
F F old the jack 2 and detach it.F
T ighten the security bolt using the
wheelbrace 1 fitted with the security
socket


4 (if your vehicle has them).
F

T
ighten the other bolts using the
wheelbrace 1 o n l y.
F

R
efit the bolt covers on each of the bolts
(according to equipment).
F

S
tore the tools in the box.
9
Practical information

184
2008_en_Chap09_info-pratiques_ed01-2015

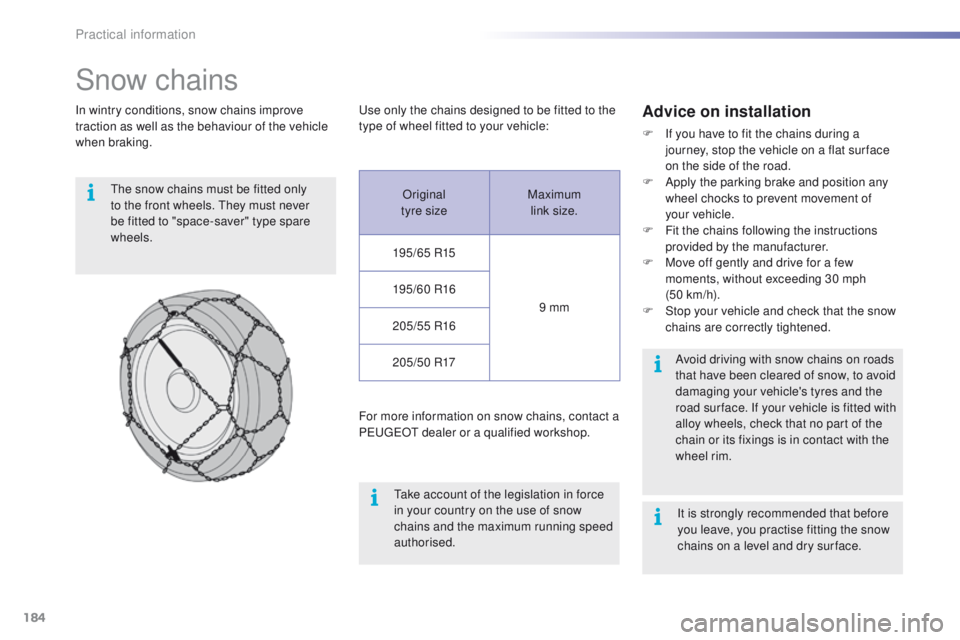

Snow chains
In wintry conditions, snow chains improve
traction as well as the behaviour of the vehicle
when braking.The snow chains must be fitted only
to the front wheels. They must never
be fitted to "space-saver" type spare
wheels.
Take account of the legislation in force
in your country on the use of snow
chains and the maximum running speed
authorised.
Use only the chains designed to be fitted to the
type of wheel fitted to your vehicle:
For more information on snow chains, contact a
PEUGEOT dealer or a qualified workshop.Advice on installation
F If you have to fit the chains during a
journey, stop the vehicle on a flat sur face
on the side of the road.
F

A
pply the parking brake and position any
wheel chocks to prevent movement of
your


vehicle.
F

F
it the chains following the instructions
provided by the manufacturer.
F

M
ove off gently and drive for a few
moments, without exceeding 30 mph
(50 km/h).
F

S
top your vehicle and check that the snow
chains are correctly tightened.
Avoid driving with snow chains on roads
that have been cleared of snow, to avoid
damaging your vehicle's tyres and the
road sur face. If your vehicle is fitted with
alloy wheels, check that no part of the
chain or its fixings is in contact with the
wheel rim.
Original
tyre size Maximum
link size.
195/65 R15
9 mm
195/60 R16
205/55 R16 205/50 R17
It is strongly recommended that before
you leave, you practise fitting the snow
chains on a level and dry sur face.
Practical information

185
2008_en_Chap09_info-pratiques_ed01-2015
Changing a bulb
Front lamps
In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal sur face of the
glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes.
The headlamps are fitted with
polycarbonate glass with a protective
coating:
F

d

o not clean them using a dr y
or abrasive cloth, nor with a
detergent or solvent product,
F

u

se a sponge and soapy water or a
pH neutral product,
F

w

hen using a high pressure washer
on persistent marks, do not keep
the lance directed towards the
lamps or their edges for too long,
so as not to damage their protective
coating and seals. 1. D
aytime running lamps / sidelamps
(light emitting diodes - LEDs).
2.
D

ipped beam headlamps (H7-55W).
3.
D

irection indicators (PWY-24W).
4.
M

ain beam headlamps (H7-55W).
5.
F

ront foglamps (with "cornering
lighting" function according to version)
(PSX-24W).
Changing a bulb should only be done
after the headlamp has been switched
off for several minutes (risk of serious
burns).
F

D

o not touch the bulb directly with
your fingers, use a lint-free cloth.
It is imperative to use only anti-
ultraviolet (UV) type bulbs to avoid
damaging the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specification.
9
Practical information

186
2008_en_Chap09_info-pratiques_ed01-2015

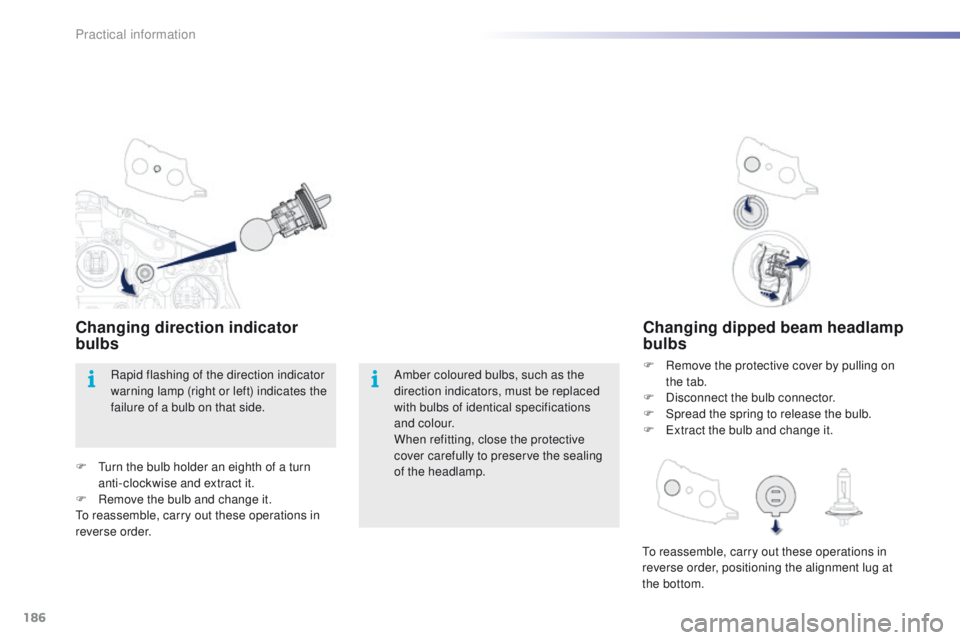

Changing dipped beam headlamp
bulbs
F Remove the protective cover by pulling on the tab.
F

D
isconnect the bulb connector.
F

S
pread the spring to release the bulb.
F

E
xtract the bulb and change it.
Amber coloured bulbs, such as the
direction indicators, must be replaced
with bulbs of identical specifications
and colour.
When refitting, close the protective
cover carefully to preserve the sealing
of the headlamp.
Rapid flashing of the direction indicator
warning lamp (right or left) indicates the
failure of a bulb on that side.
Changing direction indicator
bulbs
To reassemble, carry out these operations in
reverse order, positioning the alignment lug at
the bottom.
F

T

urn the bulb holder an eighth of a turn
anti-clockwise and extract it.
F

R

emove the bulb and change it.
To reassemble, carry out these operations in
reverse order.
Practical information

187
2008_en_Chap09_info-pratiques_ed01-2015

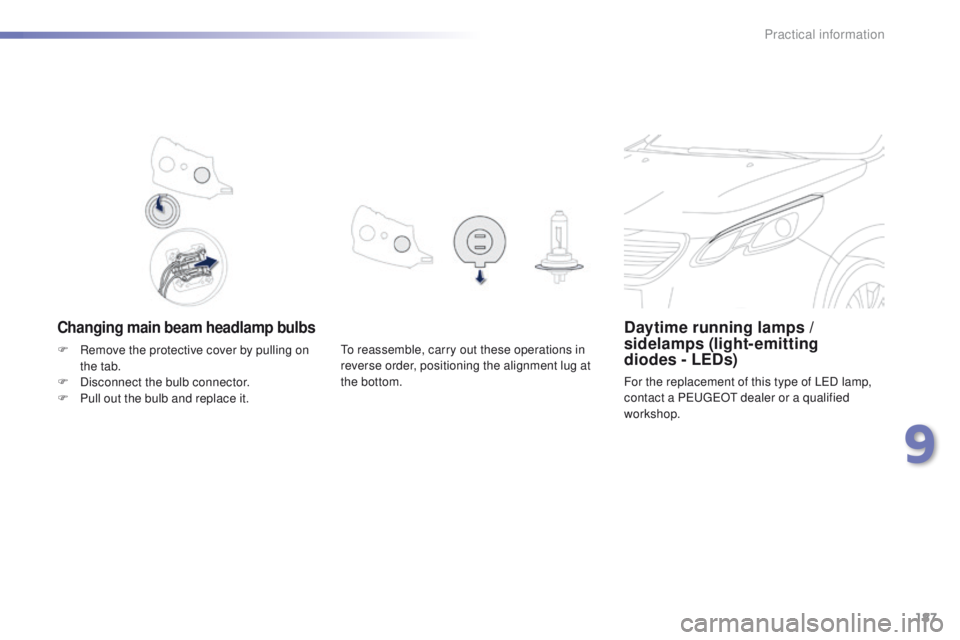

Changing main beam headlamp bulbsDaytime running lamps /
sidelamps (light-emitting
diodes - LEDs)
For the replacement of this type of LED lamp,
contact a PEUGEOT dealer or a qualified
workshop.
To reassemble, carry out these operations in
reverse order, positioning the alignment lug at
the bottom.
F

R

emove the protective cover by pulling on
the tab.
F
D
isconnect the bulb connector.
F

P

ull out the bulb and replace it.
9
Practical information

188
2008_en_Chap09_info-pratiques_ed01-2015
Changing front foglamp /
directional lamps
F Access to the front foglamp is through the orifice below the bumper.
F

D
isconnect the bulb holder connector by
pressing on the top of the tongue.
F

E
xtract the bulb holder by pressing on the
two clips clips (top and bottom).
F

R
eplace the module.
To reassemble, carry out these operations in
reverse order.
Changing integrated direction
indicator side repeater bulbs
F Press the central tongue and remove the side repeater.
F

P
ull the bulb holder out and replace the
failed bulb.
To reassemble, carry out these operations in
reverse order.
You should contact a PEUGEOT dealer or a
qualified workshop for the replacement of these
bulbs.
F
I
nsert a flat screwdriver between the mirror
glass and its base.
F

U

se the screwdriver as a lever to extract
the mirror glass.
F

U

nclip the mirror shell by pressing on the
two retaining clips.
To obtain this module, contact a
PEUGEOT dealer or a qualified workshop.
You can also contact a PEUGEOT
dealer or a qualified workshop for this
replacement.
Practical information

189
2008_en_Chap09_info-pratiques_ed01-2015
1. Brake lamps (P21W).
2. Sidelamps (light emitting
diodes - LEDs).
3.
D

irection indicators (PY21W amber).
Rear lamps
Light emitting diodes-LEDs
For replacement, contact a PEUGEOT
dealer or qualified workshop.
4.
F

oglamp (P21W).
5. R
eversing lamp (P21W).
9
Practical information

190
2008_en_Chap09_info-pratiques_ed01-2015

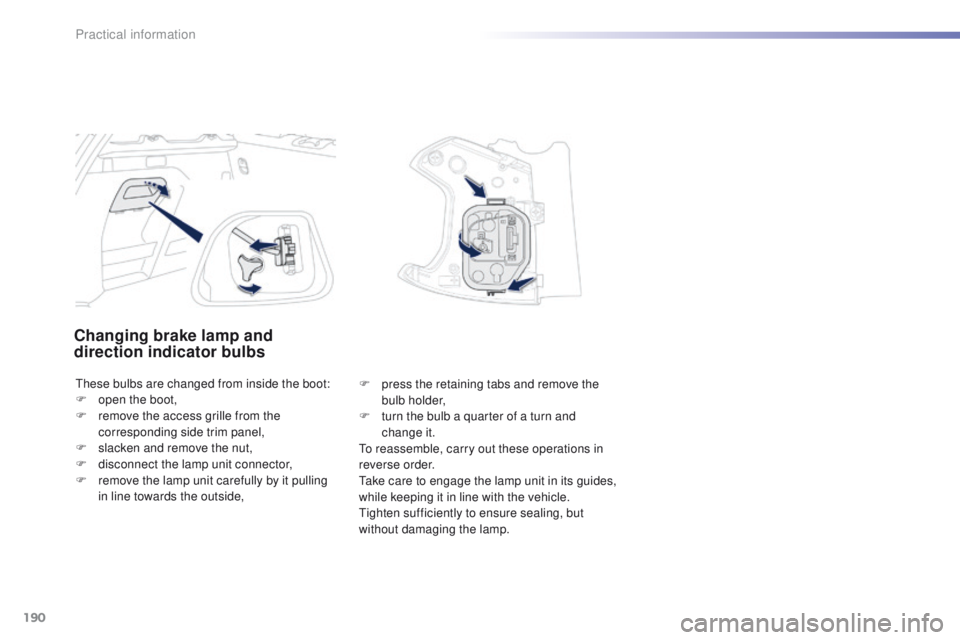

Changing brake lamp and
direction indicator bulbs
These bulbs are changed from inside the boot:
F o pen the boot,
F

r
emove the access grille from the
corresponding side trim panel,
F

s
lacken and remove the nut,
F

d
isconnect the lamp unit connector,
F

r
emove the lamp unit carefully by it pulling
in line towards the outside, F
p ress the retaining tabs and remove the
bulb holder,
F

t
urn the bulb a quarter of a turn and
change


it.
To reassemble, carry out these operations in
reverse order.
Take care to engage the lamp unit in its guides,
while keeping it in line with the vehicle.
Tighten sufficiently to ensure sealing, but
without damaging the lamp.
