2015 NISSAN 370Z COUPE Owners Manual


> (GLW    0RGHO =' @

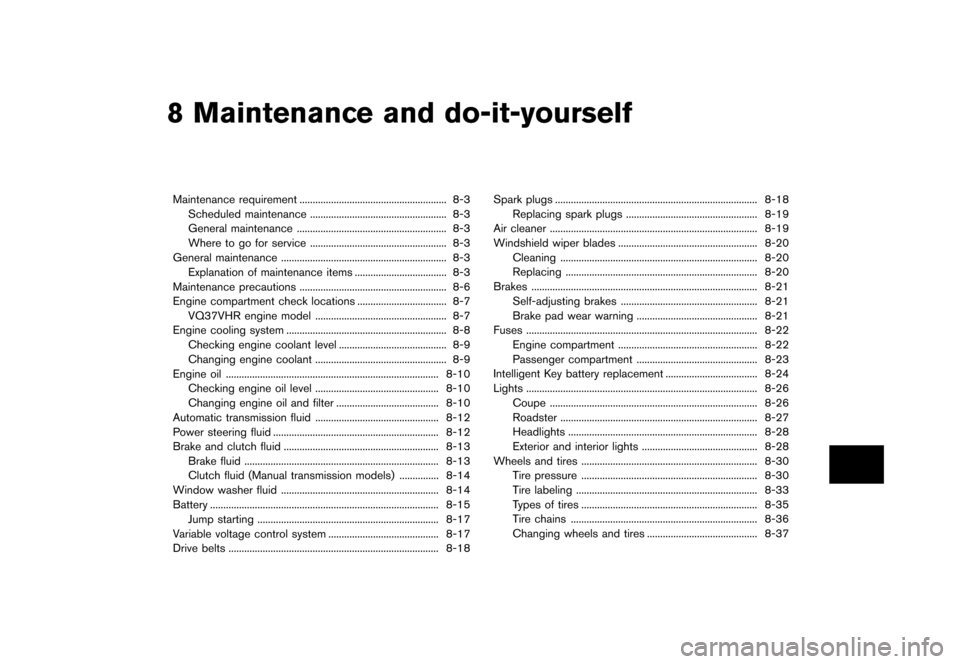

8 Maintenance and do-it-yourself
Maintenance requirement...
........................................................ 8-3
Scheduled maintenance ...
.................................................... 8-3
General maintenance ...
......................................................... 8-3
Where to go for service ...
.................................................... 8-3
General maintenance ...
............................................................... 8-3
Explanation of maintenance items ...
................................... 8-3

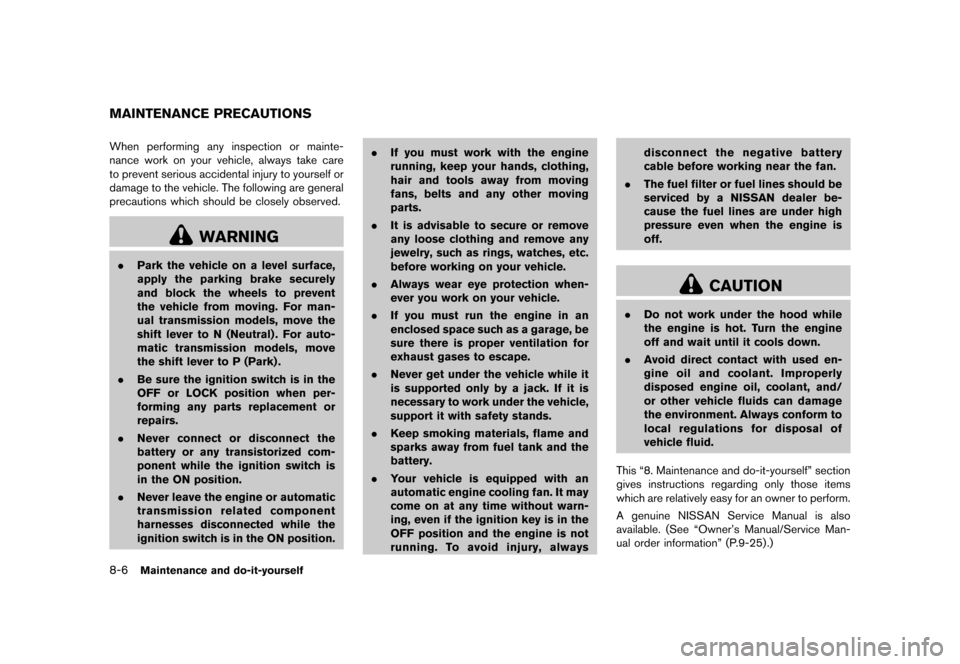

Maintenance precautions ...
........................................................ 8-6

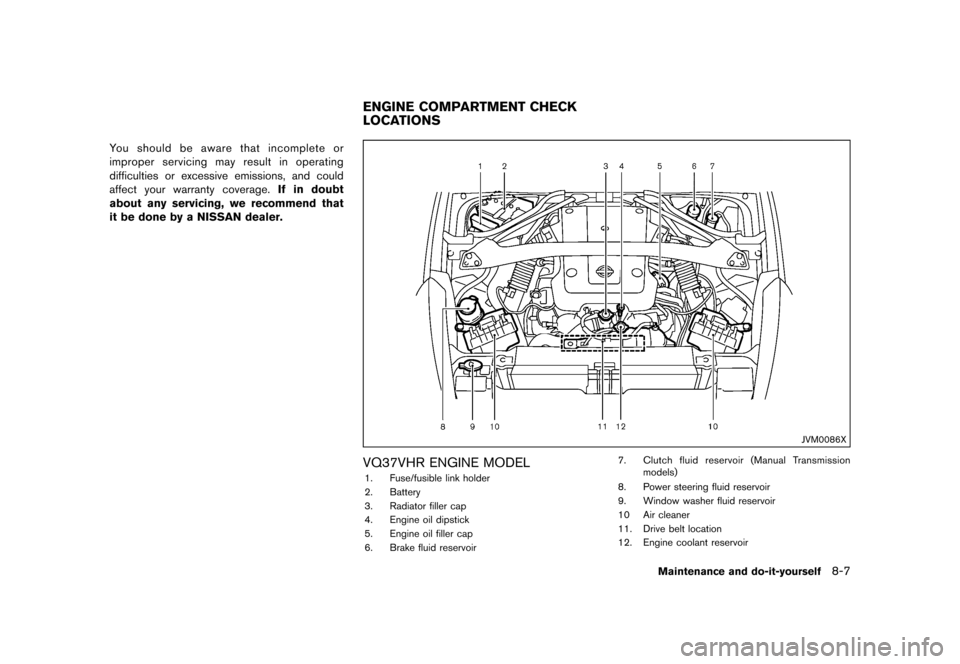

Engine compartment check locations ...
.................................. 8-7
VQ37VHR engine model ...
.................................................. 8-7

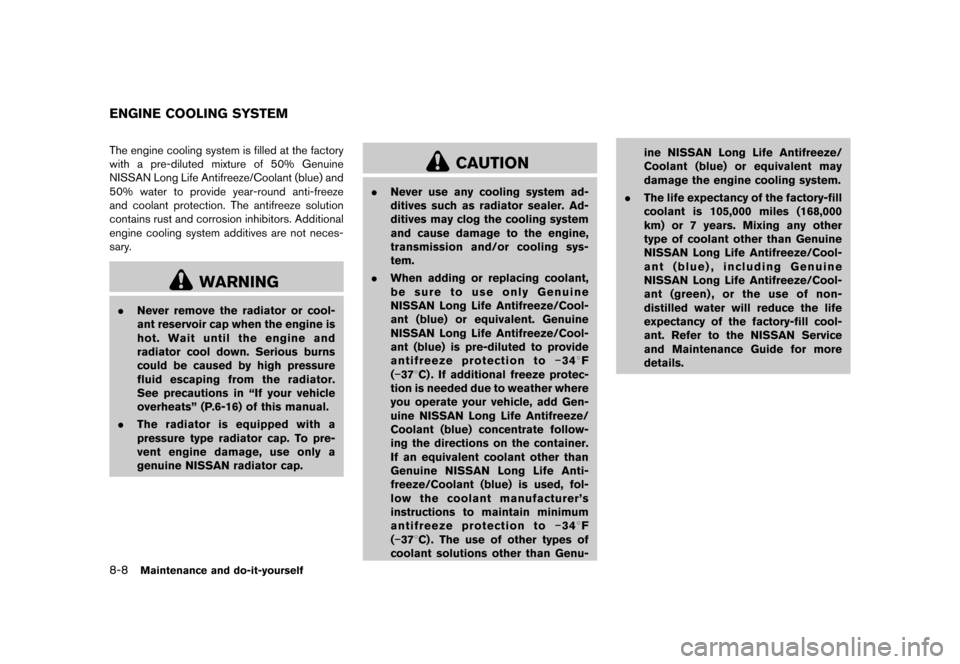

Engine cooling system ...
............................................................. 8-8
Checking engine coolant level ...
......................................... 8-9
Changing engine coolant ...
.................................................. 8-9
Engine oil ...
........................................................................\
......... 8-10
Checking engine oil level ...
............................................... 8-10
Changing engine oil and filter ...
....................................... 8-10
Automatic transmission fluid ...
............................................... 8-12
Power steering fluid ...
............................................................... 8-12
Brake and clutch fluid ...
........................................................... 8-13
Brake fluid ...
........................................................................\
.. 8-13
Clutch fluid (Manual transmission models) ...
............... 8-14
Window washer fluid ...
............................................................ 8-14
Battery ...
........................................................................\
............... 8-15
Jump starting ...
..................................................................... 8-17
Variable voltage control system ...
.......................................... 8-17
Drive belts ...
........................................................................\
........ 8-18 Spark plugs
...
........................................................................\
..... 8-18
Replacing spark plugs ...
.................................................. 8-19
Air cleaner ...
........................................................................\
....... 8-19
Windshield wiper blades ...
..................................................... 8-20
Cleaning ...
........................................................................\
... 8-20
Replacing ...
........................................................................\
. 8-20
Brakes ...
........................................................................\
.............. 8-21
Self-adjusting brakes ...
.................................................... 8-21
Brake pad wear warning ...
.............................................. 8-21
Fuses ...
........................................................................\
................ 8-22
Engine compartment ...
..................................................... 8-22
Passenger compartment ...
.............................................. 8-23
Intelligent Key battery replacement ...
................................... 8-24
Lights ...
........................................................................\
................ 8-26
Coupe ...
........................................................................\
....... 8-26
Roadster ...
........................................................................\
... 8-27
Headlights ...
........................................................................\
8-28
Exterior and interior lights ...
............................................ 8-28
Wheels and tires ...
................................................................... 8-30
Tire pressure ...
................................................................... 8-30
Tire labeling ...
..................................................................... 8-33
Types of tires ...
................................................................... 8-35
Tire chains ...
....................................................................... 8-36
Changing wheels and tires ...
.......................................... 8-37
&RQGLWLRQ


> (GLW    0RGHO =' @

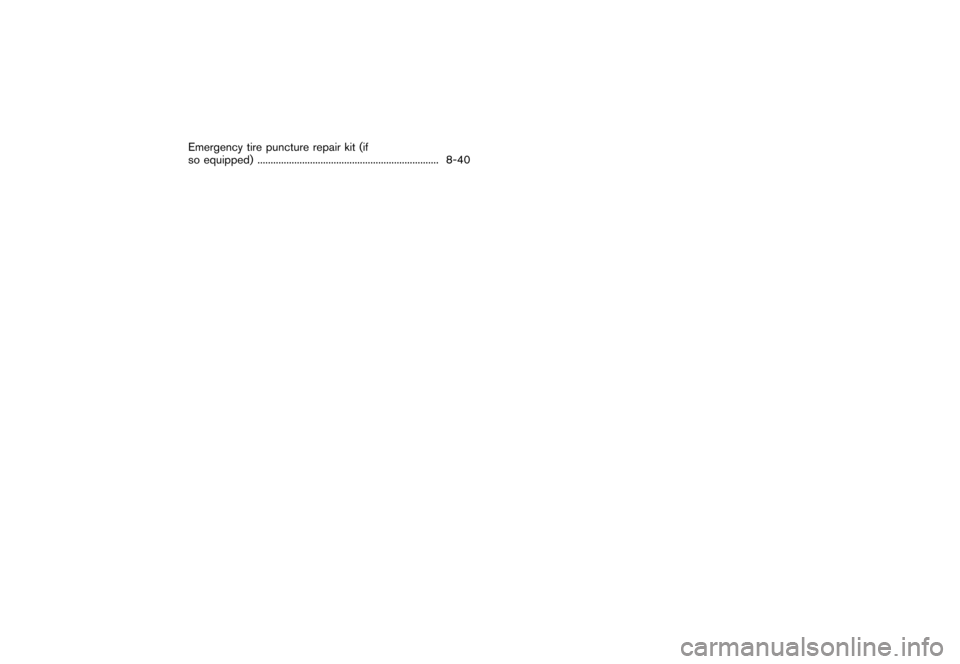

Emergency tire puncture repair kit (if
so equipped)...
..................................................................... 8-40
&RQGLWLRQ


> (GLW    0RGHO =' @

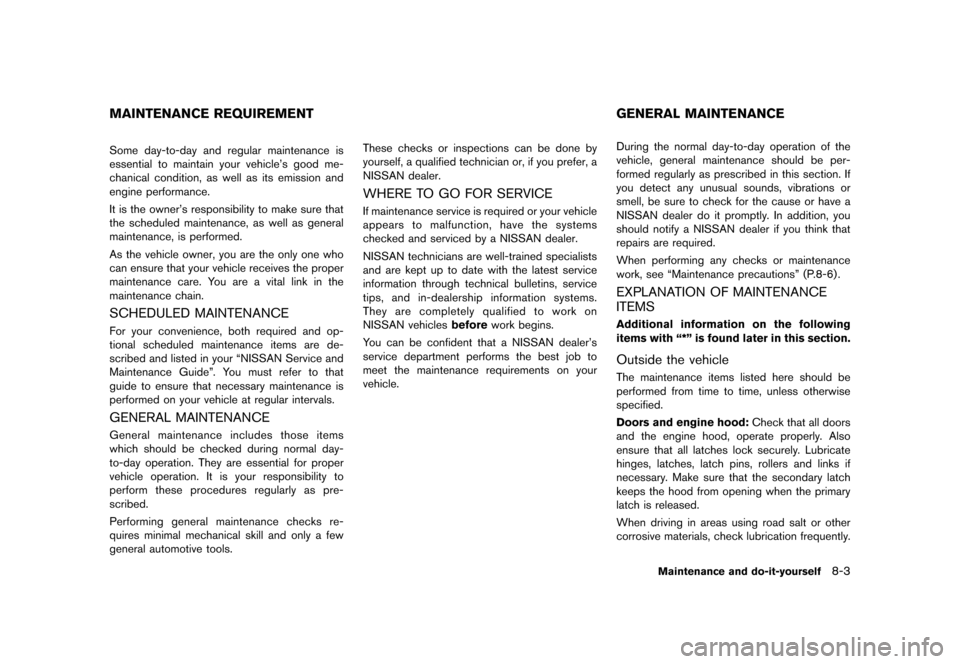

GUID-C6A6C654-CD6B-4A03-8D41-8C09BD98539ASome day-to-day and regular maintenance is
essential to maintain your vehicle's good me-
chanical condition, as well as its emission and
engine performance.
It is the owner's responsibility to make sure that
the scheduled maintenance, as well as general
maintenance, is performed.
As the vehicle owner, you are the only one who
can ensure that your vehicle receives the proper
maintenance care. You are a vital link in the
maintenance chain.
SCHEDULED MAINTENANCEGUID-3146CDDB-2D70-4AF2-89B9-76388E547DE2For your convenience, both required and op-
tional scheduled maintenance items are de-
scribed and listed in your ªNISSAN Service and
Maintenance Guideº. You must refer to that
guide to ensure that necessary maintenance is
performed on your vehicle at regular intervals.
GENERAL MAINTENANCEGUID-F51DD742-720D-4A79-9C18-4319AA51D5BDGeneral maintenance includes those items
which should be checked during normal day-
to-day operation. They are essential for proper
vehicle operation. It is your responsibility to
perform these procedures regularly as pre-
scribed.
Performing general maintenance checks re-
quires minimal mechanical skill and only a few
general automotive tools.These checks or inspections can be done by
yourself, a qualified technician or, if you prefer, a
NISSAN dealer.
WHERE TO GO FOR SERVICEGUID-48C2225E-1FD2-4687-A9CA-4A98735B9A6DIf maintenance service is required or your vehicle
appears to malfunction, have the systems
checked and serviced by a NISSAN dealer.
NISSAN technicians are well-trained specialists
and are kept up to date with the latest service
information through technical bulletins, service
tips, and in-dealership information systems.
They are completely qualified to work on
NISSAN vehicles
beforework begins.
You can be confident that a NISSAN dealer's
service department performs the best job to
meet the maintenance requirements on your
vehicle.
GUID-1E23874A-C671-46FF-9CEB-58100062AF80During the normal day-to-day operation of the
vehicle, general maintenance should be per-
formed regularly as prescribed in this section. If
you detect any unusual sounds, vibrations or
smell, be sure to check for the cause or have a
NISSAN dealer do it promptly. In addition, you
should notify a NISSAN dealer if you think that
repairs are required.
When performing any checks or maintenance
work, see ªMaintenance precautionsº (P.8-6) .
EXPLANATION OF MAINTENANCE
ITEMS
GUID-4EAFBB47-E88C-47A9-B0F8-679EAC1FC7DCAdditional information on the following
items with ª*º is found later in this section.
Outside the vehicleGUID-F0FDB03E-E3CD-483A-8453-B2D59010F033The maintenance items listed here should be
performed from time to time, unless otherwise
specified.
Doors and engine hood: Check that all doors
and the engine hood, operate properly. Also
ensure that all latches lock securely. Lubricate
hinges, latches, latch pins, rollers and links if
necessary. Make sure that the secondary latch
keeps the hood from opening when the primary
latch is released.
When driving in areas using road salt or other
corrosive materials, check lubrication frequently.
Maintenance and do-it-yourself8-3
MAINTENANCE REQUIREMENT GENERAL MAINTENANCE
&RQGLWLRQ


> (GLW    0RGHO =' @
8-4Maintenance and do-it-yourself

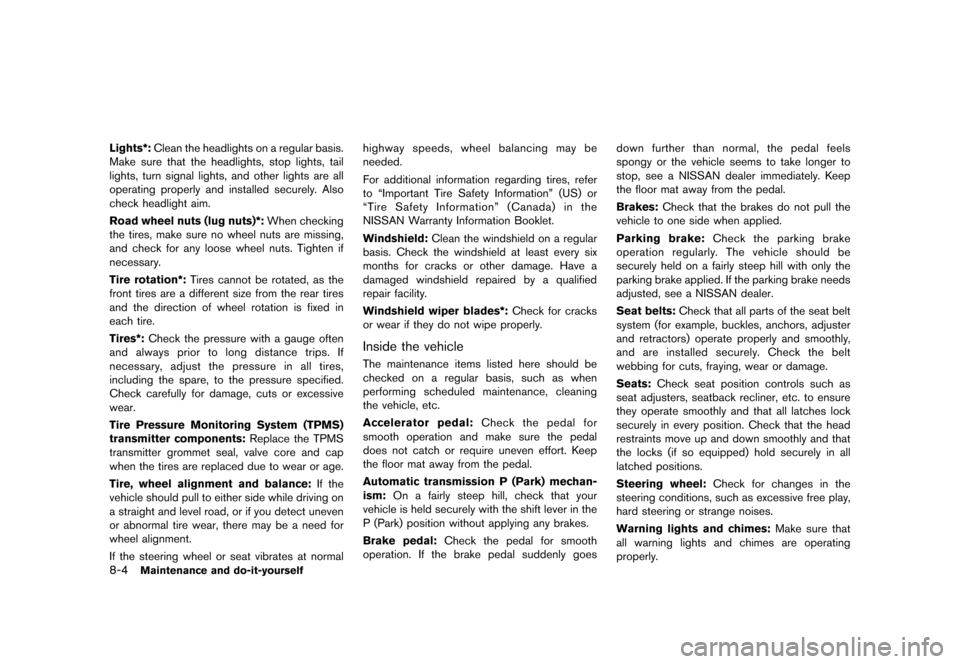

Lights*:Clean the headlights on a regular basis.
Make sure that the headlights, stop lights, tail
lights, turn signal lights, and other lights are all
operating properly and installed securely. Also
check headlight aim.
Road wheel nuts (lug nuts)*: When checking
the tires, make sure no wheel nuts are missing,
and check for any loose wheel nuts. Tighten if
necessary.
Tire rotation*: Tires cannot be rotated, as the
front tires are a different size from the rear tires
and the direction of wheel rotation is fixed in
each tire.
Tires*: Check the pressure with a gauge often
and always prior to long distance trips. If
necessary, adjust the pressure in all tires,
including the spare, to the pressure specified.
Check carefully for damage, cuts or excessive
wear.
Tire Pressure Monitoring System (TPMS)
transmitter components: Replace the TPMS
transmitter grommet seal, valve core and cap
when the tires are replaced due to wear or age.
Tire, wheel alignment and balance: If the
vehicle should pull to either side while driving on
a straight and level road, or if you detect uneven
or abnormal tire wear, there may be a need for
wheel alignment.
If the steering wheel or seat vibrates at normal highway speeds, wheel balancing may be
needed.
For additional information regarding tires, refer
to ªImportant Tire Safety Informationº (US) or
ªTire Safety Informationº (Canada) in the
NISSAN Warranty Information Booklet.
Windshield:
Clean the windshield on a regular
basis. Check the windshield at least every six
months for cracks or other damage. Have a
damaged windshield repaired by a qualified
repair facility.
Windshield wiper blades*: Check for cracks
or wear if they do not wipe properly.
Inside the vehicleGUID-E15964BB-B42E-4249-B9EF-31ED8BEF32A4The maintenance items listed here should be
checked on a regular basis, such as when
performing scheduled maintenance, cleaning
the vehicle, etc.
Accelerator pedal: Check the pedal for
smooth operation and make sure the pedal
does not catch or require uneven effort. Keep
the floor mat away from the pedal.
Automatic transmission P (Park) mechan-
ism: On a fairly steep hill, check that your
vehicle is held securely with the shift lever in the
P (Park) position without applying any brakes.
Brake pedal: Check the pedal for smooth
operation. If the brake pedal suddenly goes down further than normal, the pedal feels
spongy or the vehicle seems to take longer to
stop, see a NISSAN dealer immediately. Keep
the floor mat away from the pedal.
Brakes:
Check that the brakes do not pull the
vehicle to one side when applied.
Parking brake: Check the parking brake
operation regularly. The vehicle should be
securely held on a fairly steep hill with only the
parking brake applied. If the parking brake needs
adjusted, see a NISSAN dealer.
Seat belts: Check that all parts of the seat belt
system (for example, buckles, anchors, adjuster
and retractors) operate properly and smoothly,
and are installed securely. Check the belt
webbing for cuts, fraying, wear or damage.
Seats: Check seat position controls such as
seat adjusters, seatback recliner, etc. to ensure
they operate smoothly and that all latches lock
securely in every position. Check that the head
restraints move up and down smoothly and that
the locks (if so equipped) hold securely in all
latched positions.
Steering wheel: Check for changes in the
steering conditions, such as excessive free play,
hard steering or strange noises.
Warning lights and chimes: Make sure that
all warning lights and chimes are operating
properly.
&RQGLWLRQ


> (GLW    0RGHO =' @

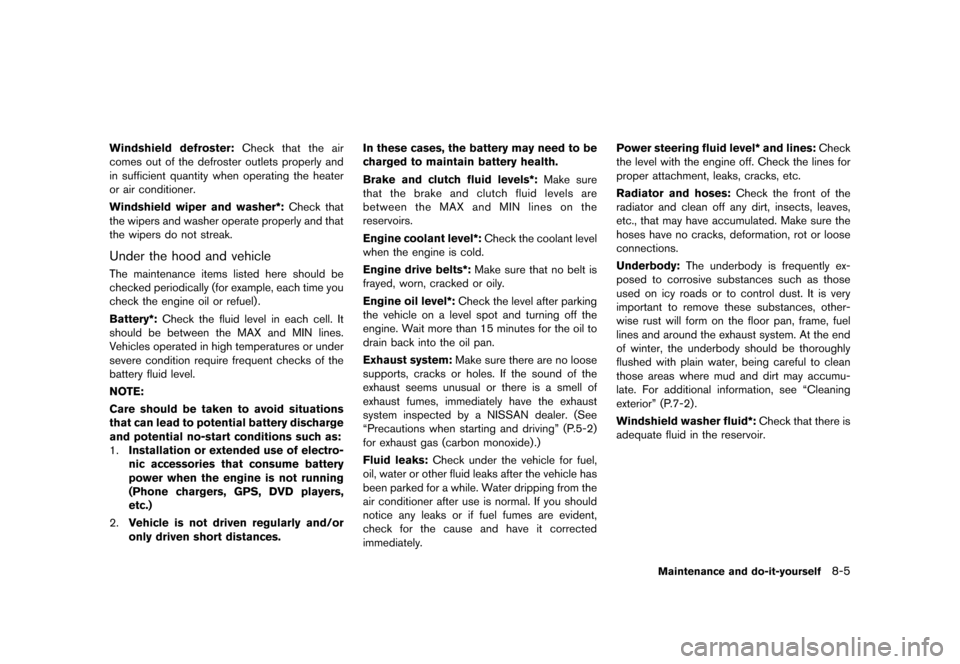

Windshield defroster:Check that the air
comes out of the defroster outlets properly and
in sufficient quantity when operating the heater
or air conditioner.
Windshield wiper and washer*: Check that
the wipers and washer operate properly and that
the wipers do not streak.
Under the hood and vehicleGUID-D0B58847-013F-491F-B263-6B869D9C88DDThe maintenance items listed here should be
checked periodically (for example, each time you
check the engine oil or refuel) .
Battery*: Check the fluid level in each cell. It
should be between the MAX and MIN lines.
Vehicles operated in high temperatures or under
severe condition require frequent checks of the
battery fluid level.
NOTE:
Care should be taken to avoid situations
that can lead to potential battery discharge
and potential no-start conditions such as:
1. Installation or extended use of electro-
nic accessories that consume battery
power when the engine is not running
(Phone chargers, GPS, DVD players,
etc.)
2. Vehicle is not driven regularly and/or
only driven short distances. In these cases, the battery may need to be
charged to maintain battery health.
Brake and clutch fluid levels*:
Make sure
that the brake and clutch fluid levels are
between the MAX and MIN lines on the
reservoirs.
Engine coolant level*: Check the coolant level
when the engine is cold.
Engine drive belts*: Make sure that no belt is
frayed, worn, cracked or oily.
Engine oil level*: Check the level after parking
the vehicle on a level spot and turning off the
engine. Wait more than 15 minutes for the oil to
drain back into the oil pan.
Exhaust system: Make sure there are no loose
supports, cracks or holes. If the sound of the
exhaust seems unusual or there is a smell of
exhaust fumes, immediately have the exhaust
system inspected by a NISSAN dealer. (See
ªPrecautions when starting and drivingº (P.5-2)
for exhaust gas (carbon monoxide) .)
Fluid leaks: Check under the vehicle for fuel,
oil, water or other fluid leaks after the vehicle has
been parked for a while. Water dripping from the
air conditioner after use is normal. If you should
notice any leaks or if fuel fumes are evident,
check for the cause and have it corrected
immediately. Power steering fluid level* and lines:
Check
the level with the engine off. Check the lines for
proper attachment, leaks, cracks, etc.
Radiator and hoses: Check the front of the
radiator and clean off any dirt, insects, leaves,
etc., that may have accumulated. Make sure the
hoses have no cracks, deformation, rot or loose
connections.
Underbody: The underbody is frequently ex-
posed to corrosive substances such as those
used on icy roads or to control dust. It is very
important to remove these substances, other-
wise rust will form on the floor pan, frame, fuel
lines and around the exhaust system. At the end
of winter, the underbody should be thoroughly
flushed with plain water, being careful to clean
those areas where mud and dirt may accumu-
late. For additional information, see ªCleaning
exteriorº (P.7-2).
Windshield washer fluid*: Check that there is
adequate fluid in the reservoir.
Maintenance and do-it-yourself8-5
&RQGLWLRQ


> (GLW    0RGHO =' @
8-6Maintenance and do-it-yourself
GUID-AC78F4C5-074B-4FD0-8070-61F7D0EF17ACWhen performing any inspection or mainte-
nance work on your vehicle, always take care
to prevent serious accidental injury to yourself or
damage to the vehicle. The following are general
precautions which should be closely observed.
WARNING
.Park the vehicle on a level surface,
apply the parking brake securely
and block the wheels to prevent
the vehicle from moving. For man-
ual transmission models, move the
shift lever to N (Neutral) . For auto-
matic transmission models, move
the shift lever to P (Park) .
. Be sure the ignition switch is in the
OFF or LOCK position when per-
forming any parts replacement or
repairs.
. Never connect or disconnect the
battery or any transistorized com-
ponent while the ignition switch is
in the ON position.
. Never leave the engine or automatic
transmission related component
harnesses disconnected while the
ignition switch is in the ON position. .
If you must work with the engine
running, keep your hands, clothing,
hair and tools away from moving
fans, belts and any other moving
parts.
. It is advisable to secure or remove
any loose clothing and remove any
jewelry, such as rings, watches, etc.
before working on your vehicle.
. Always wear eye protection when-
ever you work on your vehicle.
. If you must run the engine in an
enclosed space such as a garage, be
sure there is proper ventilation for
exhaust gases to escape.
. Never get under the vehicle while it
is supported only by a jack. If it is
necessary to work under the vehicle,
support it with safety stands.
. Keep smoking materials, flame and
sparks away from fuel tank and the
battery.
. Your vehicle is equipped with an
automatic engine cooling fan. It may
come on at any time without warn-
ing, even if the ignition key is in the
OFF position and the engine is not
running. To avoid injury, always disconnect the negative battery
cable before working near the fan.
. The fuel filter or fuel lines should be
serviced by a NISSAN dealer be-
cause the fuel lines are under high
pressure even when the engine is
off.
CAUTION
.Do not work under the hood while
the engine is hot. Turn the engine
off and wait until it cools down.
. Avoid direct contact with used en-
gine oil and coolant. Improperly
disposed engine oil, coolant, and/
or other vehicle fluids can damage
the environment. Always conform to
local regulations for disposal of
vehicle fluid.
This ª8. Maintenance and do-it-yourselfº section
gives instructions regarding only those items
which are relatively easy for an owner to perform.
A genuine NISSAN Service Manual is also
available. (See ªOwner's Manual/Service Man-
ual order informationº (P.9-25).)
MAINTENANCE PRECAUTIONS
&RQGLWLRQ


> (GLW    0RGHO =' @
You should be aware that incomplete or
improper servicing may result in operating
difficulties or excessive emissions, and could
affect your warranty coverage.If in doubt
about any servicing, we recommend that
it be done by a NISSAN dealer.
GUID-7EA2D50B-7A0C-4012-9C54-7BD3CF10A3D8
JVM0086X
VQ37VHR ENGINE MODELGUID-E1841C16-4100-4792-B654-1F167FCA4F2B1. Fuse/fusible link holder
2. Battery
3. Radiator filler cap
4. Engine oil dipstick
5. Engine oil filler cap
6. Brake fluid reservoir 7.
Clutch fluid reservoir (Manual Transmission
models)
8. Power steering fluid reservoir
9. Window washer fluid reservoir
10 Air cleaner
11. Drive belt location
12. Engine coolant reservoir
Maintenance and do-it-yourself8-7
ENGINE COMPARTMENT CHECK
LOCATIONS
&RQGLWLRQ


> (GLW    0RGHO =' @
8-8Maintenance and do-it-yourself
GUID-7C2A5D55-3270-45C4-9FE4-8875ED1488BFThe engine cooling system is filled at the factory
with a pre-diluted mixture of 50% Genuine
NISSAN Long Life Antifreeze/Coolant (blue) and
50% water to provide year-round anti-freeze
and coolant protection. The antifreeze solution
contains rust and corrosion inhibitors. Additional
engine cooling system additives are not neces-
sary.
WARNING
.Never remove the radiator or cool-
ant reservoir cap when the engine is
hot. Wait until the engine and
radiator cool down. Serious burns
could be caused by high pressure
fluid escaping from the radiator.
See precautions in ªIf your vehicle
overheatsº (P.6-16) of this manual.
. The radiator is equipped with a
pressure type radiator cap. To pre-
vent engine damage, use only a
genuine NISSAN radiator cap.
CAUTION
.Never use any cooling system ad-
ditives such as radiator sealer. Ad-
ditives may clog the cooling system
and cause damage to the engine,
transmission and/or cooling sys-
tem.
. When adding or replacing coolant,
be sure to use only Genuine
NISSAN Long Life Antifreeze/Cool-
ant (blue) or equivalent. Genuine
NISSAN Long Life Antifreeze/Cool-
ant (blue) is pre-diluted to provide
antifreeze protection to
