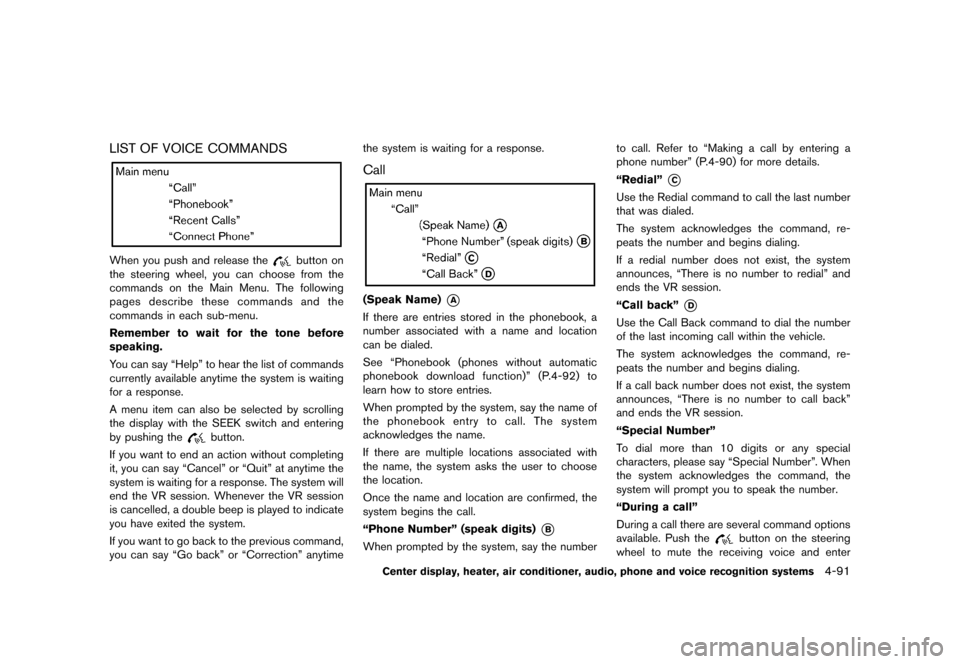

LIST OF VOICE COMMANDSGUID-6F181B9B-91C3-43FD-95A1-43C3007EE282
NOS2625
When you push and release thebutton on
the steering wheel, you can choose from the
commands on the Main Menu. The following
pages describe these commands and the
commands in each sub-menu.
Remember to wait for the tone before
speaking.
You can say ªHelpº to hear the list of commands
currently available anytime the system is waiting
for a response.
A menu item can also be selected by scrolling
the display with the SEEK switch and entering
by pushing the
button.
If you want to end an action without completing
it, you can say ªCancelº or ªQuitº at anytime the
system is waiting for a response. The system will
end the VR session. Whenever the VR session
is cancelled, a double beep is played to indicate
you have exited the system.
If you want to go back to the previous command,
you can say ªGo backº or ªCorrectionº anytime the system is waiting for a response.
CallGUID-4C7C932D-F237-4A0B-B3AB-FCD3F7944ABA
JI0189
(Speak Name)*A
If there are entries stored in the phonebook, a
number associated with a name and location
can be dialed.
See ªPhonebook (phones without automatic
phonebook download function)º (P.4-92) to
learn how to store entries.
When prompted by the system, say the name of
the phonebook entry to call. The system
acknowledges the name.
If there are multiple locations associated with
the name, the system asks the user to choose
the location.
Once the name and location are confirmed, the
system begins the call.
ªPhone Numberº (speak digits)
*B
When prompted by the system, say the number
to call. Refer to ªMaking a call by entering a
phone numberº (P.4-90) for more details.
ªRedialº
*C
Use the Redial command to call the last number
that was dialed.
The system acknowledges the command, re-
peats the number and begins dialing.
If a redial number does not exist, the system
announces, ªThere is no number to redialº and
ends the VR session.
ªCall backº
*D
Use the Call Back command to dial the number
of the last incoming call within the vehicle.
The system acknowledges the command, re-
peats the number and begins dialing.
If a call back number does not exist, the system
announces, ªThere is no number to call backº
and ends the VR session.
ªSpecial Numberº
To dial more than 10 digits or any special
characters, please say ªSpecial Numberº. When
the system acknowledges the command, the
system will prompt you to speak the number.
ªDuring a callº
During a call there are several command options
available. Push the
button on the steering
wheel to mute the receiving voice and enter
Center display, heater, air conditioner, audio, phone and voice recognition systems4-91
&RQGLWLRQ


> (GLW    0RGHO =' @
4-92Center display, heater, air conditioner, audio, phone and voice recognition systems

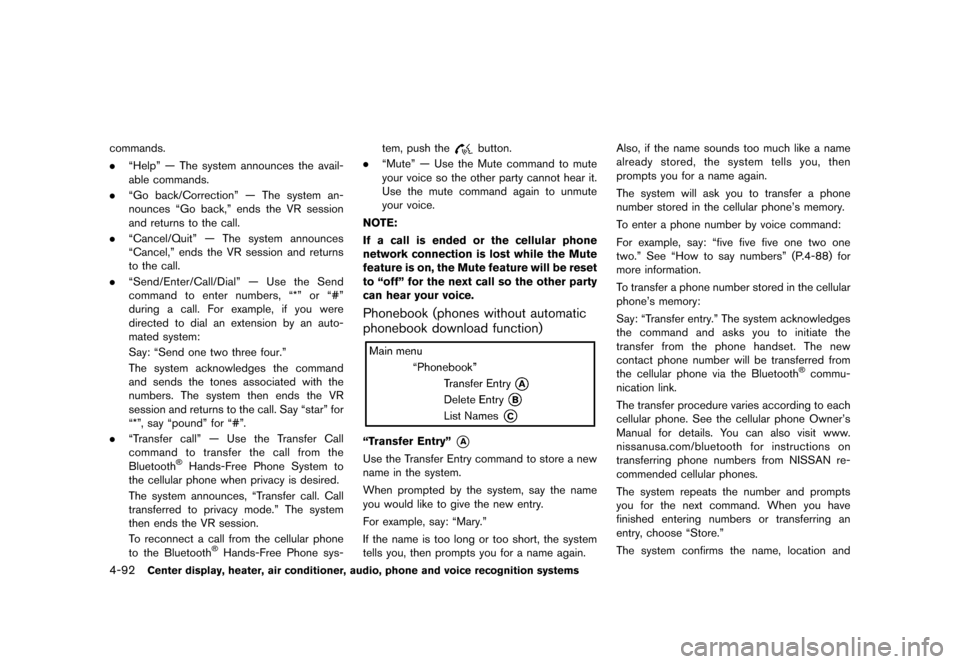

commands.
.ªHelpº Ð The system announces the avail-
able commands.
. ªGo back/Correctionº Ð The system an-
nounces ªGo back,º ends the VR session
and returns to the call.
. ªCancel/Quitº Ð The system announces
ªCancel,º ends the VR session and returns
to the call.
. ªSend/Enter/Call/Dialº Ð Use the Send
command to enter numbers, ª*º or ª#º
during a call. For example, if you were
directed to dial an extension by an auto-
mated system:
Say: ªSend one two three four.º
The system acknowledges the command
and sends the tones associated with the
numbers. The system then ends the VR
session and returns to the call. Say ªstarº for
ª*º, say ªpoundº for ª#º.
. ªTransfer callº Ð Use the Transfer Call
command to transfer the call from the
Bluetooth


> (GLW    0RGHO =' @

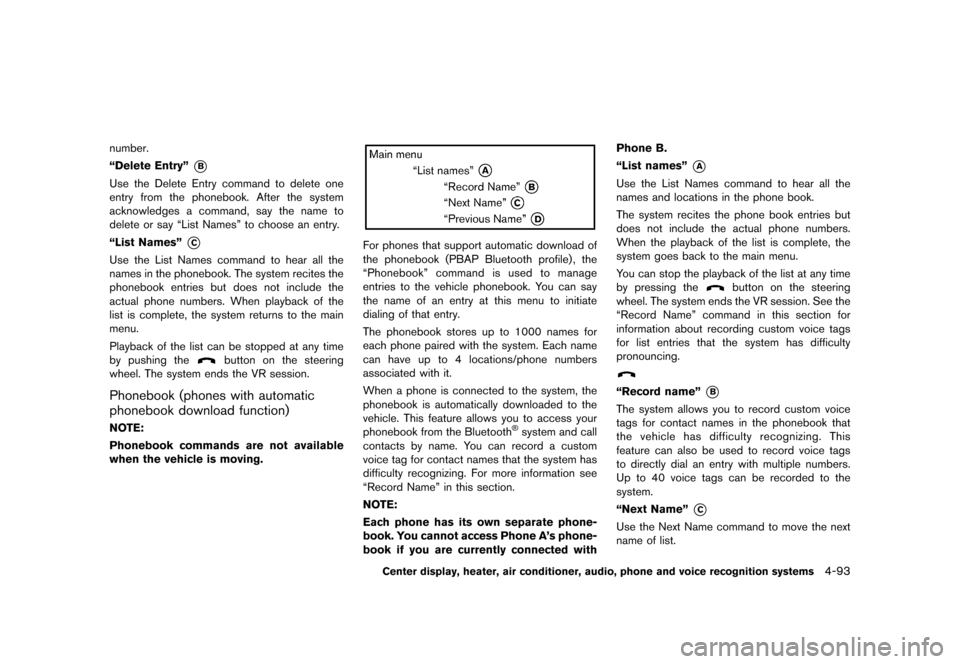

number.
ªDelete Entryº
*B
Use the Delete Entry command to delete one
entry from the phonebook. After the system
acknowledges a command, say the name to
delete or say ªList Namesº to choose an entry.
ªList Namesº
*C
Use the List Names command to hear all the
names in the phonebook. The system recites the
phonebook entries but does not include the
actual phone numbers. When playback of the
list is complete, the system returns to the main
menu.
Playback of the list can be stopped at any time
by pushing the
button on the steering
wheel. The system ends the VR session.
Phonebook (phones with automatic
phonebook download function)
GUID-FA7EC8AF-D427-467B-ABA5-091555EBC080NOTE:
Phonebook commands are not available
when the vehicle is moving.
JI0200
For phones that support automatic download of
the phonebook (PBAP Bluetooth profile) , the
ªPhonebookº command is used to manage
entries to the vehicle phonebook. You can say
the name of an entry at this menu to initiate
dialing of that entry.
The phonebook stores up to 1000 names for
each phone paired with the system. Each name
can have up to 4 locations/phone numbers
associated with it.
When a phone is connected to the system, the
phonebook is automatically downloaded to the
vehicle. This feature allows you to access your
phonebook from the Bluetooth


> (GLW    0RGHO =' @
4-94Center display, heater, air conditioner, audio, phone and voice recognition systems

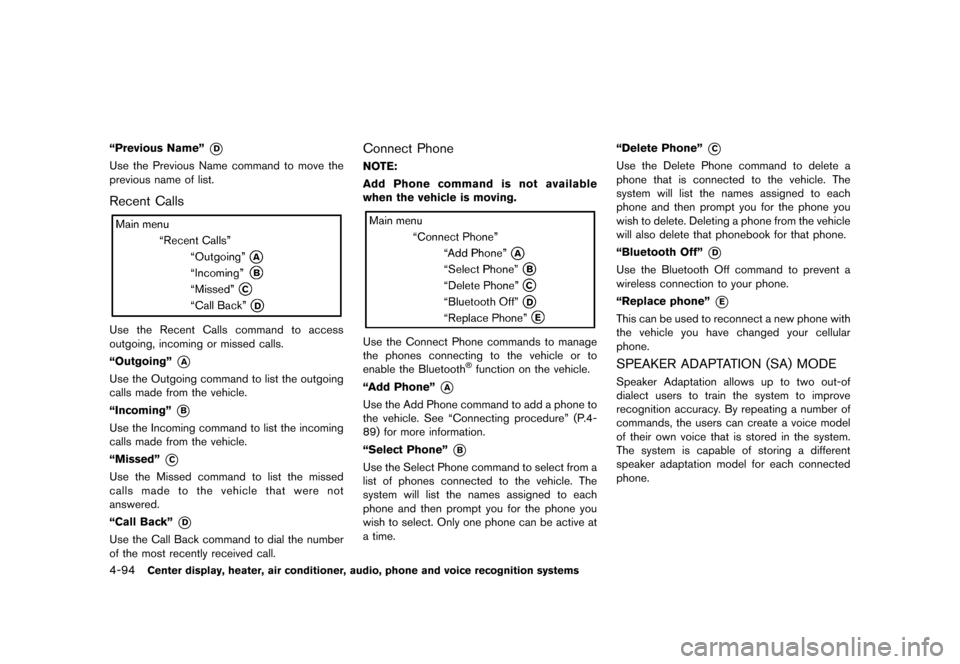

ªPrevious Nameº*D
Use the Previous Name command to move the
previous name of list.
Recent CallsGUID-B3482FA4-8849-443C-921D-D9B3703C50C5
JI0201
Use the Recent Calls command to access
outgoing, incoming or missed calls.
ªOutgoingº
*A
Use the Outgoing command to list the outgoing
calls made from the vehicle.
ªIncomingº
*B
Use the Incoming command to list the incoming
calls made from the vehicle.
ªMissedº
*C
Use the Missed command to list the missed
calls made to the vehicle that were not
answered.
ªCall Backº
*D
Use the Call Back command to dial the number
of the most recently received call.
Connect PhoneGUID-BE1ACF6C-ED1B-4F6E-9BDC-CFEEE300F90FNOTE:
Add Phone command is not available
when the vehicle is moving.
JI0202
Use the Connect Phone commands to manage
the phones connecting to the vehicle or to
enable the Bluetooth


> (GLW    0RGHO =' @

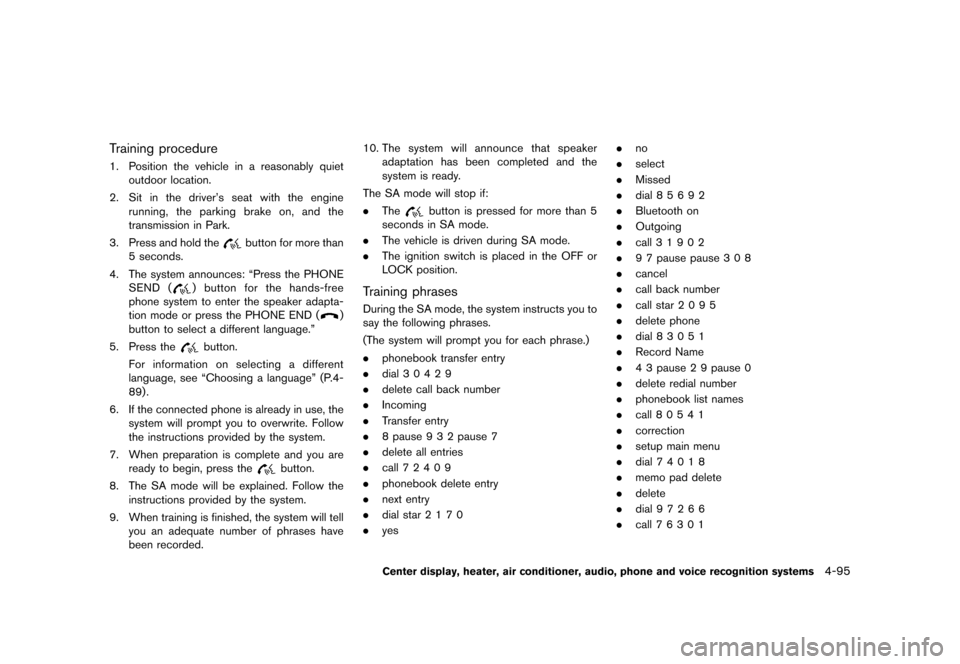

Training procedureGUID-CC68F582-AF8B-439B-9AAB-18C342AFE7531. Position the vehicle in a reasonably quietoutdoor location.
2. Sit in the driver's seat with the engine
running, the parking brake on, and the
transmission in Park.
3. Press and hold the
button for more than
5 seconds.
4. The system announces: ªPress the PHONE SEND (
) button for the hands-free
phone system to enter the speaker adapta-
tion mode or press the PHONE END (
)
button to select a different language.º
5. Press the
button.
For information on selecting a different
language, see ªChoosing a languageº (P.4-
89) .
6. If the connected phone is already in use, the system will prompt you to overwrite. Follow
the instructions provided by the system.
7. When preparation is complete and you are ready to begin, press the
button.
8. The SA mode will be explained. Follow the instructions provided by the system.
9. When training is finished, the system will tell you an adequate number of phrases have
been recorded. 10.
The system will announce that speaker
adaptation has been completed and the
system is ready.
The SA mode will stop if:
. The
button is pressed for more than 5
seconds in SA mode.
. The vehicle is driven during SA mode.
. The ignition switch is placed in the OFF or
LOCK position.
Training phrasesGUID-3011B099-B249-46F1-BC2D-2E2900FDB37EDuring the SA mode, the system instructs you to
say the following phrases.
(The system will prompt you for each phrase.)
.phonebook transfer entry
. dial 3 0 4 2 9
. delete call back number
. Incoming
. Transfer entry
. 8 pause 9 3 2 pause 7
. delete all entries
. call 7 2 4 0 9
. phonebook delete entry
. next entry
. dial star 2 1 7 0
. yes .
no
. select
. Missed
. dial 8 5 6 9 2
. Bluetooth on
. Outgoing
. call 3 1 9 0 2
. 9 7 pause pause 3 0 8
. cancel
. call back number
. call star 2 0 9 5
. delete phone
. dial 8 3 0 5 1
. Record Name
. 4 3 pause 2 9 pause 0
. delete redial number
. phonebook list names
. call 8 0 5 4 1
. correction
. setup main menu
. dial 7 4 0 1 8
. memo pad delete
. delete
. dial 9 7 2 6 6
. call 7 6 3 0 1
Center display, heater, air conditioner, audio, phone and voice recognition systems4-95
&RQGLWLRQ


> (GLW    0RGHO =' @
4-96Center display, heater, air conditioner, audio, phone and voice recognition systems

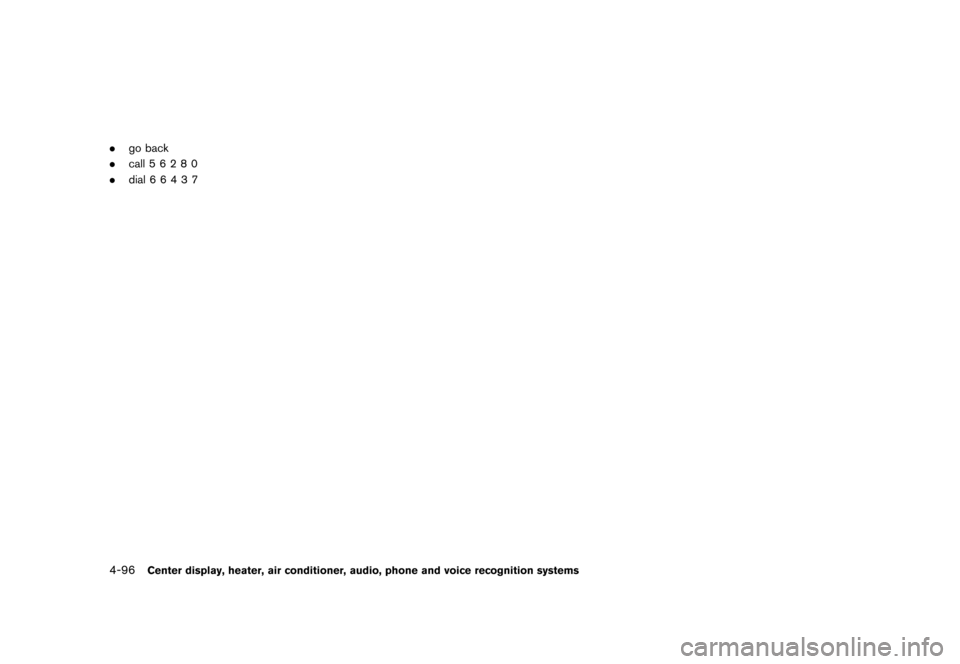

.go back
. call 5 6 2 8 0
. dial 6 6 4 3 7
&RQGLWLRQ


> (GLW    0RGHO =' @

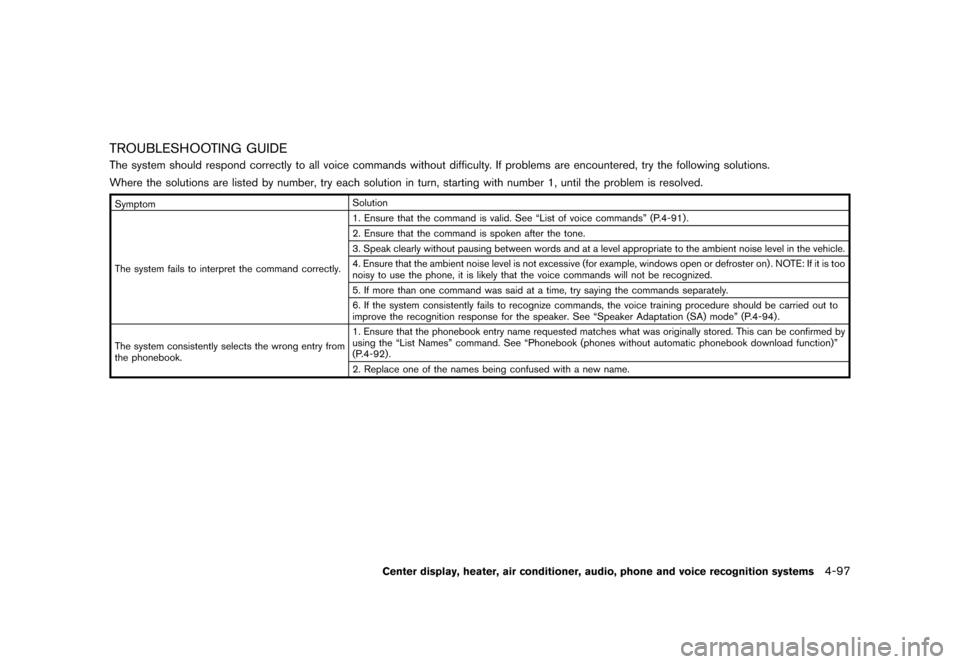

TROUBLESHOOTING GUIDEGUID-52990EB8-B4AB-4566-9493-212624E597BDThe system should respond correctly to all voice commands without difficulty. If problems are encountered, try the following solutions.
Where the solutions are listed by number, try each solution in turn, starting with number 1, until the problem is resolved.
SymptomSolution
The system fails to interpret the command correctly. 1. Ensure that the command is valid. See ªList of voice commandsº (P.4-91) .
2. Ensure that the command is spoken after the tone.
3. Speak clearly without pausing between words and at a level appropriate to the ambient noise level in the vehicle.
4. Ensure that the ambient noise level is not excessive (for example, windows open or defroster on) . NOTE: If it is too
noisy to use the phone, it is likely that the voice commands will not be recognized.
5. If more than one command was said at a time, try saying the commands separately.
6. If the system consistently fails to recognize commands, the voice training procedure should be carried out to
improve the recognition response for the speaker. See ªSpeaker Adaptation (SA) modeº (P.4-94) .
The system consistently selects the wrong entry from
the phonebook. 1. Ensure that the phonebook entry name requested matches what was originally stored. This can be confirmed by
using the ªList Namesº command. See ªPhonebook (phones without automatic phonebook download function)º
(P.4-92) .
2. Replace one of the names being confused with a new name.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-97
&RQGLWLRQ


> (GLW    0RGHO =' @
4-98Center display, heater, air conditioner, audio, phone and voice recognition systems

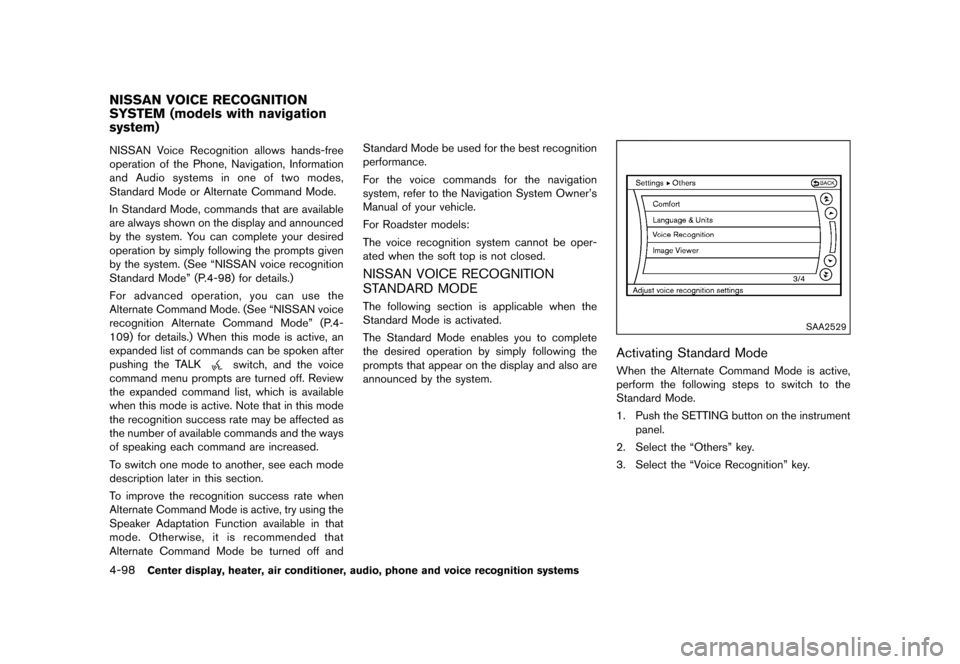

GUID-37229D59-D0EC-471D-9492-655C1A1A9AD9NISSAN Voice Recognition allows hands-free
operation of the Phone, Navigation, Information
and Audio systems in one of two modes,
Standard Mode or Alternate Command Mode.
In Standard Mode, commands that are available
are always shown on the display and announced
by the system. You can complete your desired
operation by simply following the prompts given
by the system. (See ªNISSAN voice recognition
Standard Modeº (P.4-98) for details.)
For advanced operation, you can use the
Alternate Command Mode. (See ªNISSAN voice
recognition Alternate Command Modeº (P.4-
109) for details.) When this mode is active, an
expanded list of commands can be spoken after
pushing the TALK
switch, and the voice
command menu prompts are turned off. Review
the expanded command list, which is available
when this mode is active. Note that in this mode
the recognition success rate may be affected as
the number of available commands and the ways
of speaking each command are increased.
To switch one mode to another, see each mode
description later in this section.
To improve the recognition success rate when
Alternate Command Mode is active, try using the
Speaker Adaptation Function available in that
mode. Otherwise, it is recommended that
Alternate Command Mode be turned off and Standard Mode be used for the best recognition
performance.
For the voice commands for the navigation
system, refer to the Navigation System Owner's
Manual of your vehicle.
For Roadster models:
The voice recognition system cannot be oper-
ated when the soft top is not closed.
NISSAN VOICE RECOGNITION
STANDARD MODE
GUID-E703B560-B3E5-422B-8DF4-CDC32B0D3197The following section is applicable when the
Standard Mode is activated.
The Standard Mode enables you to complete
the desired operation by simply following the
prompts that appear on the display and also are
announced by the system.
SAA2529
Activating Standard ModeGUID-897A0853-4DE8-4508-920F-193574F10F8FWhen the Alternate Command Mode is active,
perform the following steps to switch to the
Standard Mode.
1. Push the SETTING button on the instrument
panel.
2. Select the ªOthersº key.
3. Select the ªVoice Recognitionº key.
NISSAN VOICE RECOGNITION
SYSTEM (models with navigation
system)
&RQGLWLRQ
