2015 NISSAN 370Z COUPE Owners Manual


> (GLW    0RGHO =' @

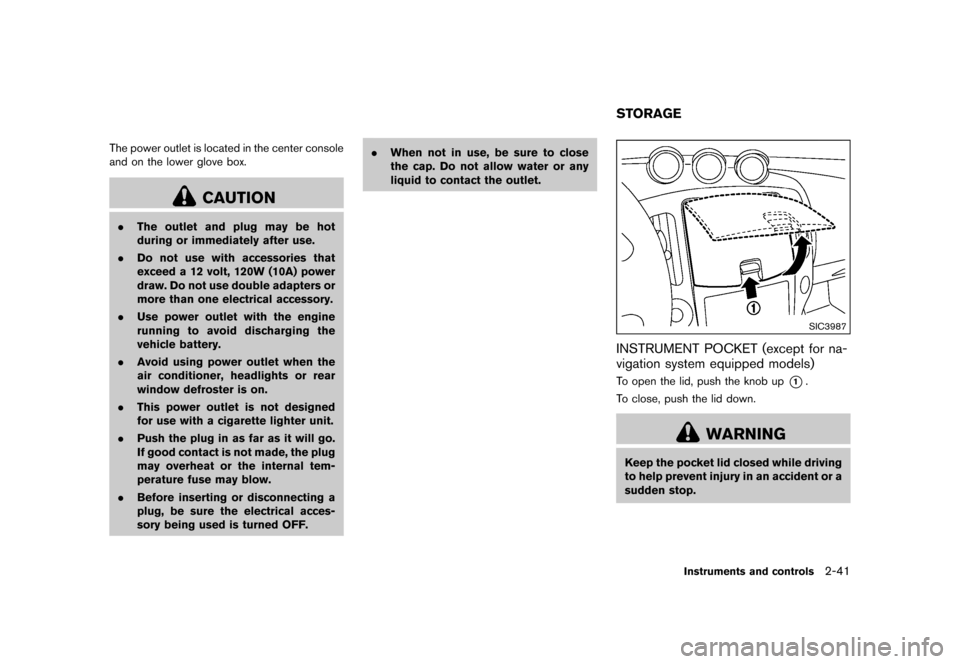

The power outlet is located in the center console
and on the lower glove box.
CAUTION
.The outlet and plug may be hot
during or immediately after use.
. Do not use with accessories that
exceed a 12 volt, 120W (10A) power
draw. Do not use double adapters or
more than one electrical accessory.
. Use power outlet with the engine
running to avoid discharging the
vehicle battery.
. Avoid using power outlet when the
air conditioner, headlights or rear
window defroster is on.
. This power outlet is not designed
for use with a cigarette lighter unit.
. Push the plug in as far as it will go.
If good contact is not made, the plug
may overheat or the internal tem-
perature fuse may blow.
. Before inserting or disconnecting a
plug, be sure the electrical acces-
sory being used is turned OFF. .
When not in use, be sure to close
the cap. Do not allow water or any
liquid to contact the outlet.
GUID-16A30D13-F4E3-41C3-8AEE-E4BBFB34B56F
SIC3987
INSTRUMENT POCKET (except for na-
vigation system equipped models)
GUID-B7889FC9-125B-4268-B6D6-F4A5F652EDF6To open the lid, push the knob up*1.
To close, push the lid down.
WARNING
Keep the pocket lid closed while driving
to help prevent injury in an accident or a
sudden stop.
Instruments and controls2-41
STORAGE
&RQGLWLRQ


> (GLW    0RGHO =' @

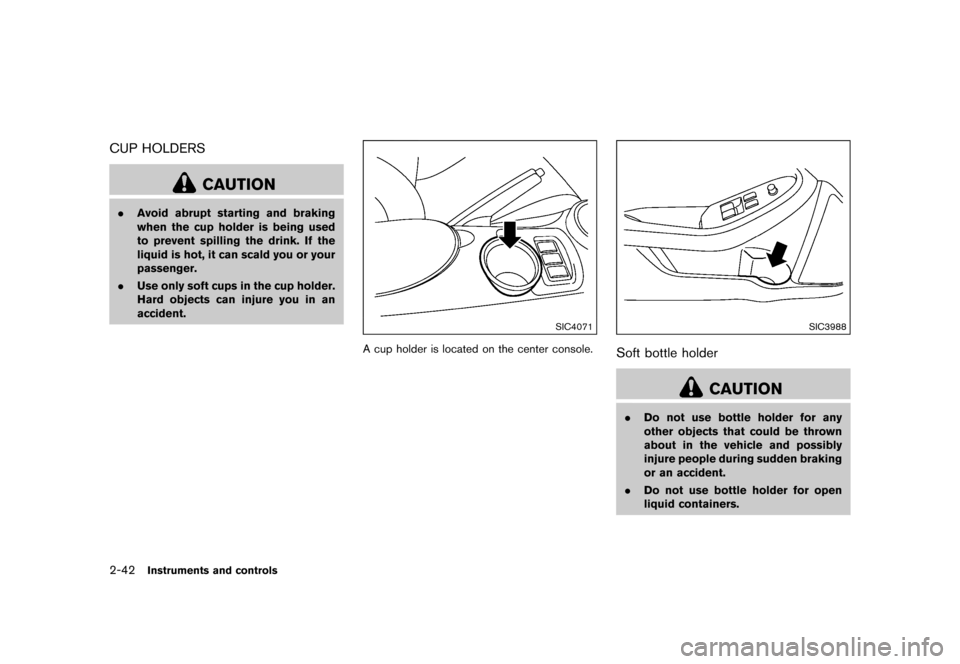

2-42Instruments and controls
CUP HOLDERSGUID-F960AE54-2D5D-4B15-B546-D941EF56209D
CAUTION
.Avoid abrupt starting and braking
when the cup holder is being used
to prevent spilling the drink. If the
liquid is hot, it can scald you or your
passenger.
. Use only soft cups in the cup holder.
Hard objects can injure you in an
accident.
SIC4071
A cup holder is located on the center console.
SIC3988
Soft bottle holderGUID-F4814257-41A0-4BAC-96BA-7D68DD1370A9
CAUTION
.Do not use bottle holder for any
other objects that could be thrown
about in the vehicle and possibly
injure people during sudden braking
or an accident.
. Do not use bottle holder for open
liquid containers.
&RQGLWLRQ


> (GLW    0RGHO =' @

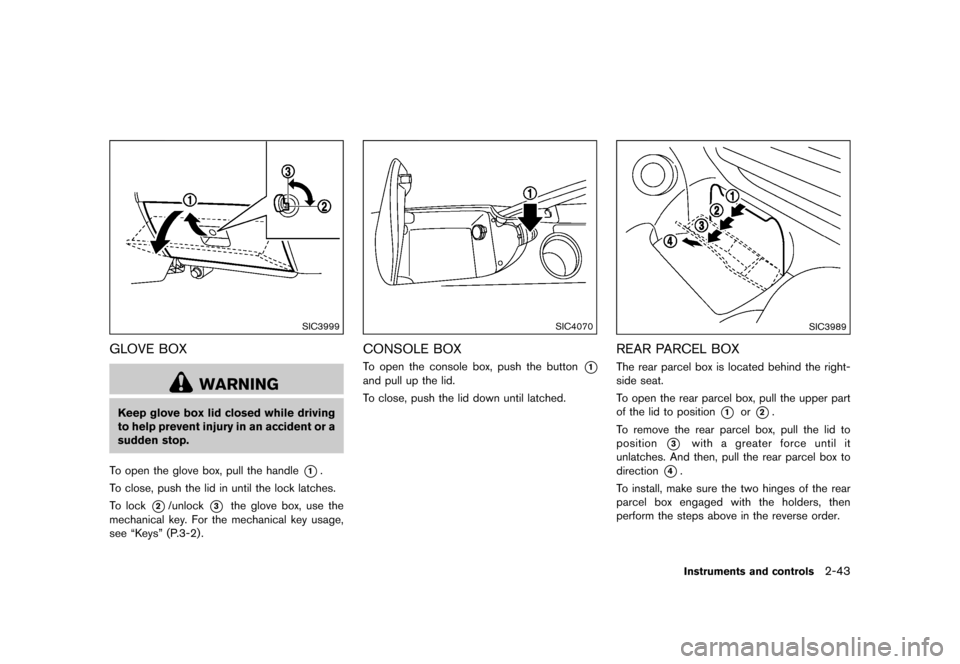

SIC3999
GLOVE BOXGUID-903FAAE2-7938-465D-960E-2B78D3575CDD
WARNING
Keep glove box lid closed while driving
to help prevent injury in an accident or a
sudden stop.
To open the glove box, pull the handle
*1.
To close, push the lid in until the lock latches.
To lock
*2/unlock*3the glove box, use the
mechanical key. For the mechanical key usage,
see ªKeysº (P.3-2) .
SIC4070
CONSOLE BOXGUID-C291F686-F38F-4722-9E4B-C2349892D885To open the console box, push the button*1
and pull up the lid.
To close, push the lid down until latched.
SIC3989
REAR PARCEL BOXGUID-FD7D3071-2A0F-4FAD-8F8C-D01EB215AA6DThe rear parcel box is located behind the right-
side seat.
To open the rear parcel box, pull the upper part
of the lid to position
*1or*2.
To remove the rear parcel box, pull the lid to
position
*3with a greater force until it
unlatches. And then, pull the rear parcel box to
direction
*4.
To install, make sure the two hinges of the rear
parcel box engaged with the holders, then
perform the steps above in the reverse order.
Instruments and controls2-43
&RQGLWLRQ


> (GLW    0RGHO =' @

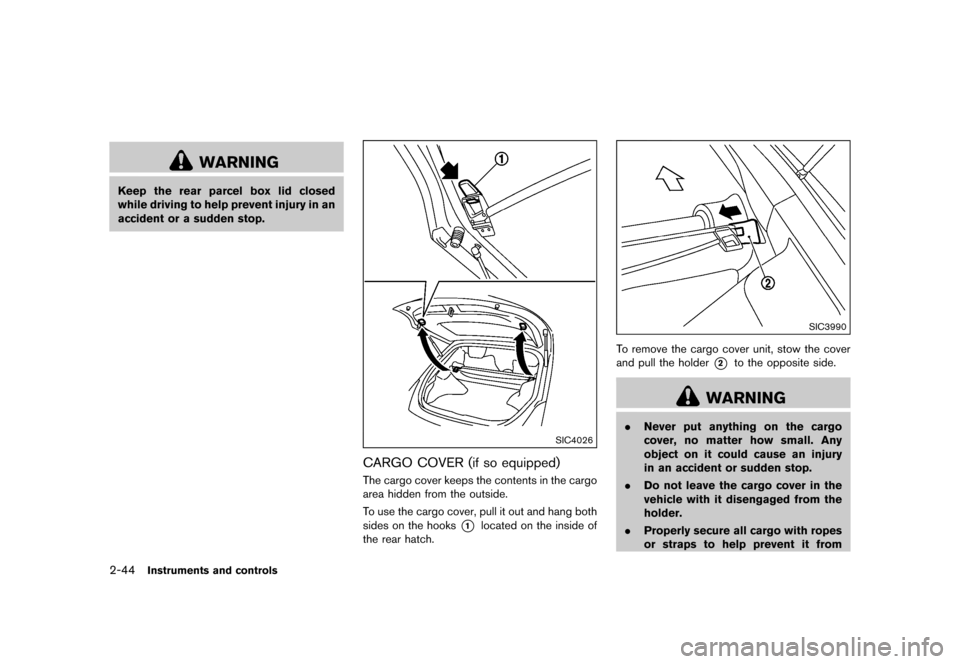

2-44Instruments and controls
WARNING
Keep the rear parcel box lid closed
while driving to help prevent injury in an
accident or a sudden stop.
SIC4026
CARGO COVER (if so equipped)GUID-25AA2FEA-B3CF-454B-95C7-1EEABDA8BA99The cargo cover keeps the contents in the cargo
area hidden from the outside.
To use the cargo cover, pull it out and hang both
sides on the hooks
*1located on the inside of
the rear hatch.
SIC3990
To remove the cargo cover unit, stow the cover
and pull the holder
*2to the opposite side.
WARNING
. Never put anything on the cargo
cover, no matter how small. Any
object on it could cause an injury
in an accident or sudden stop.
. Do not leave the cargo cover in the
vehicle with it disengaged from the
holder.
. Properly secure all cargo with ropes
or straps to help prevent it from
&RQGLWLRQ


> (GLW    0RGHO =' @

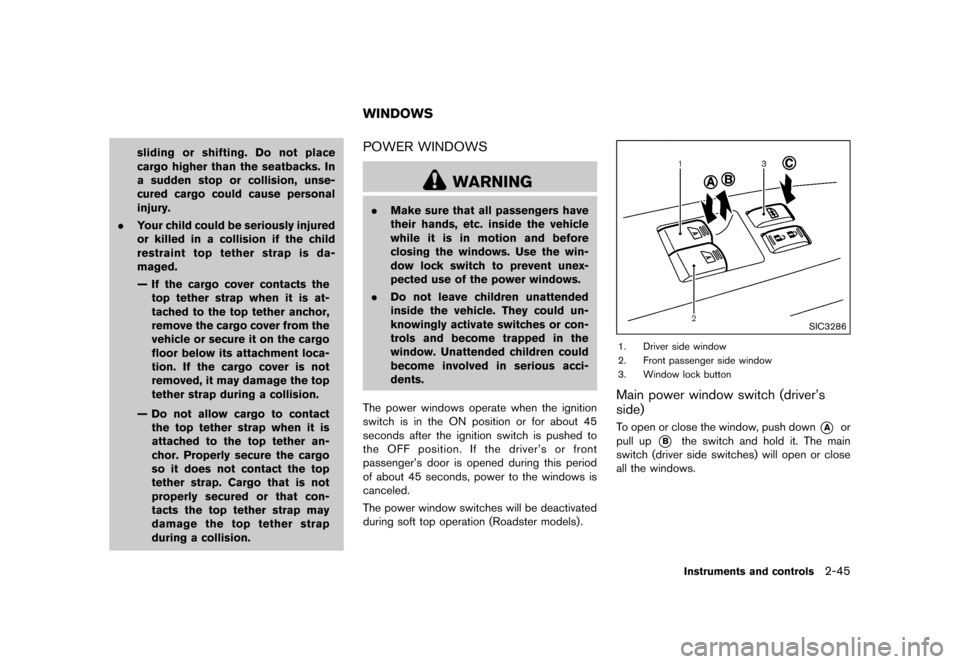

sliding or shifting. Do not place
cargo higher than the seatbacks. In
a sudden stop or collision, unse-
cured cargo could cause personal
injury.
. Your child could be seriously injured
or killed in a collision if the child
restraint top tether strap is da-
maged.
Ð If the cargo cover contacts the
top tether strap when it is at-
tached to the top tether anchor,
remove the cargo cover from the
vehicle or secure it on the cargo
floor below its attachment loca-
tion. If the cargo cover is not
removed, it may damage the top
tether strap during a collision.
Ð Do not allow cargo to contact the top tether strap when it is
attached to the top tether an-
chor. Properly secure the cargo
so it does not contact the top
tether strap. Cargo that is not
properly secured or that con-
tacts the top tether strap may
damage the top tether strap
during a collision.
GUID-DF047BB2-D5D0-4CAD-9288-0C403283F692POWER WINDOWSGUID-32900338-E4C6-4119-951D-5B7234BA9782
WARNING
. Make sure that all passengers have
their hands, etc. inside the vehicle
while it is in motion and before
closing the windows. Use the win-
dow lock switch to prevent unex-
pected use of the power windows.
. Do not leave children unattended
inside the vehicle. They could un-
knowingly activate switches or con-
trols and become trapped in the
window. Unattended children could
become involved in serious acci-
dents.
The power windows operate when the ignition
switch is in the ON position or for about 45
seconds after the ignition switch is pushed to
the OFF position. If the driver's or front
passenger's door is opened during this period
of about 45 seconds, power to the windows is
canceled.
The power window switches will be deactivated
during soft top operation (Roadster models) .
SIC3286
1. Driver side window
2. Front passenger side window
3. Window lock button
Main power window switch (driver's
side)
GUID-0CBE7503-24CC-427E-8371-023E111176FDTo open or close the window, push down*Aor
pull up
*Bthe switch and hold it. The main
switch (driver side switches) will open or close
all the windows.
Instruments and controls2-45
WINDOWS
&RQGLWLRQ


> (GLW    0RGHO =' @

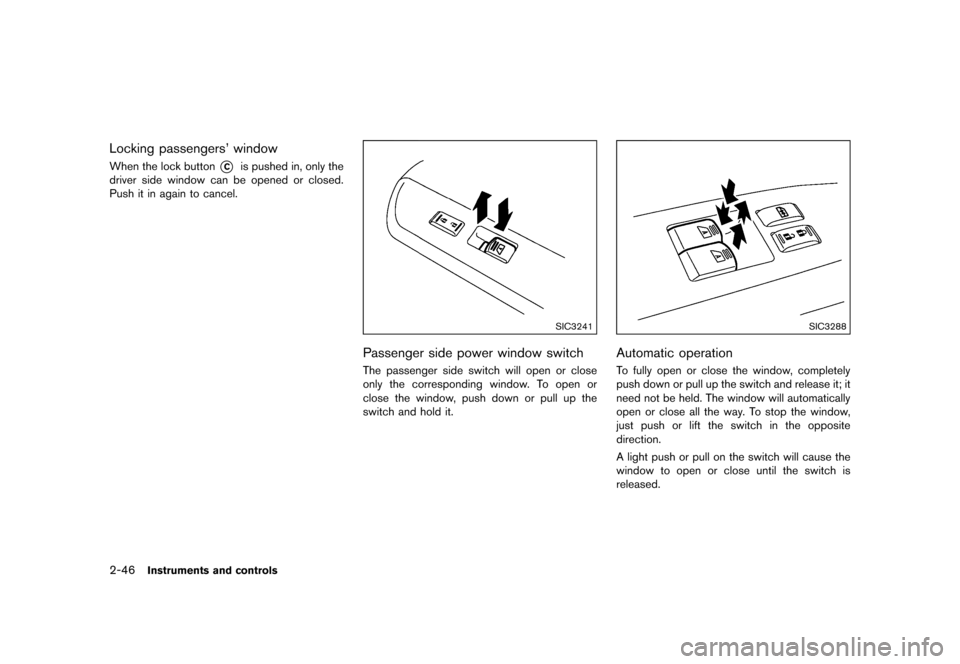

2-46Instruments and controls
Locking passengers' windowGUID-6A803AF8-EBDB-456B-A8E0-5DE2E2428383When the lock button*Cis pushed in, only the
driver side window can be opened or closed.
Push it in again to cancel.
SIC3241
Passenger side power window switchGUID-D2873997-FF76-4182-BBEB-561704D3152CThe passenger side switch will open or close
only the corresponding window. To open or
close the window, push down or pull up the
switch and hold it.
SIC3288
Automatic operationGUID-B744ECF4-D5F8-4FAC-9828-1E32D5E42FB6To fully open or close the window, completely
push down or pull up the switch and release it; it
need not be held. The window will automatically
open or close all the way. To stop the window,
just push or lift the switch in the opposite
direction.
A light push or pull on the switch will cause the
window to open or close until the switch is
released.
&RQGLWLRQ


> (GLW    0RGHO =' @

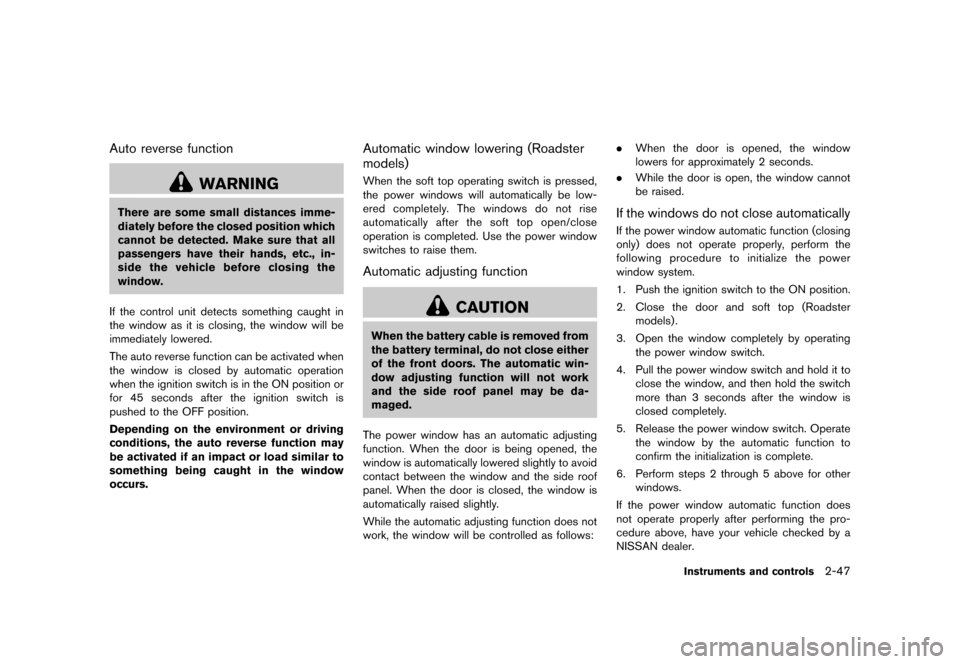

Auto reverse functionGUID-CD50126A-281E-4A58-A6B8-DCB361A120C3
WARNING
There are some small distances imme-
diately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., in-
side the vehicle before closing the
window.
If the control unit detects something caught in
the window as it is closing, the window will be
immediately lowered.
The auto reverse function can be activated when
the window is closed by automatic operation
when the ignition switch is in the ON position or
for 45 seconds after the ignition switch is
pushed to the OFF position.
Depending on the environment or driving
conditions, the auto reverse function may
be activated if an impact or load similar to
something being caught in the window
occurs.
Automatic window lowering (Roadster
models)
GUID-CE4AA486-124C-40EE-80C5-DBE4F8C22C28When the soft top operating switch is pressed,
the power windows will automatically be low-
ered completely. The windows do not rise
automatically after the soft top open/close
operation is completed. Use the power window
switches to raise them.
Automatic adjusting functionGUID-6854CEC8-70B2-4EA8-8E56-6D5CF57B1C28
CAUTION
When the battery cable is removed from
the battery terminal, do not close either
of the front doors. The automatic win-
dow adjusting function will not work
and the side roof panel may be da-
maged.
The power window has an automatic adjusting
function. When the door is being opened, the
window is automatically lowered slightly to avoid
contact between the window and the side roof
panel. When the door is closed, the window is
automatically raised slightly.
While the automatic adjusting function does not
work, the window will be controlled as follows: .
When the door is opened, the window
lowers for approximately 2 seconds.
. While the door is open, the window cannot
be raised.
If the windows do not close automaticallyGUID-563CD3C3-E4B1-4FD9-AFDD-C6378120F9EBIf the power window automatic function (closing
only) does not operate properly, perform the
following procedure to initialize the power
window system.
1. Push the ignition switch to the ON position.
2.Close the door and soft top (Roadster
models) .
3. Open the window completely by operating the power window switch.
4. Pull the power window switch and hold it to close the window, and then hold the switch
more than 3 seconds after the window is
closed completely.
5. Release the power window switch. Operate the window by the automatic function to
confirm the initialization is complete.
6. Perform steps 2 through 5 above for other windows.
If the power window automatic function does
not operate properly after performing the pro-
cedure above, have your vehicle checked by a
NISSAN dealer.
Instruments and controls2-47
&RQGLWLRQ


> (GLW    0RGHO =' @

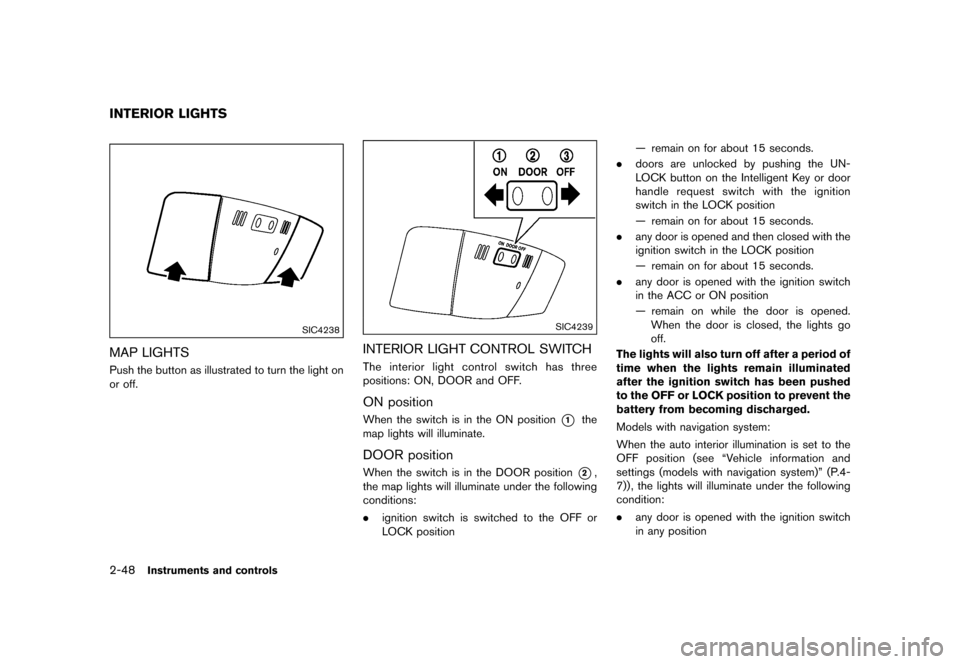

2-48Instruments and controls
GUID-EB8A90DE-235F-48E6-A41D-DCA68C944D61
SIC4238
MAP LIGHTSGUID-63E0140B-AB30-4F26-B607-6D71FF432844Push the button as illustrated to turn the light on
or off.
SIC4239
INTERIOR LIGHT CONTROL SWITCHGUID-B369A0F1-3593-452D-A9AB-AB457EB2CCB7The interior light control switch has three
positions: ON, DOOR and OFF.
ON positionGUID-CF6B68D4-BB47-4735-AA45-9104BC2F2DA7When the switch is in the ON position*1the
map lights will illuminate.
DOOR positionGUID-B190F75C-E5A5-446F-BA74-B3DDEFFB9DBAWhen the switch is in the DOOR position*2,
the map lights will illuminate under the following
conditions:
. ignition switch is switched to the OFF or
LOCK position Ð remain on for about 15 seconds.
. doors are unlocked by pushing the UN-
LOCK button on the Intelligent Key or door
handle request switch with the ignition
switch in the LOCK position
Ð remain on for about 15 seconds.
. any door is opened and then closed with the
ignition switch in the LOCK position
Ð remain on for about 15 seconds.
. any door is opened with the ignition switch
in the ACC or ON position
Ð remain on while the door is opened.
When the door is closed, the lights go
off.
The lights will also turn off after a period of
time when the lights remain illuminated
after the ignition switch has been pushed
to the OFF or LOCK position to prevent the
battery from becoming discharged.
Models with navigation system:
When the auto interior illumination is set to the
OFF position (see ªVehicle information and
settings (models with navigation system)º (P.4-
7)) , the lights will illuminate under the following
condition:
. any door is opened with the ignition switch
in any position
INTERIOR LIGHTS
&RQGLWLRQ
