2015 NISSAN 370Z COUPE Owners Manual


> (GLW    0RGHO =' @
SSS0928

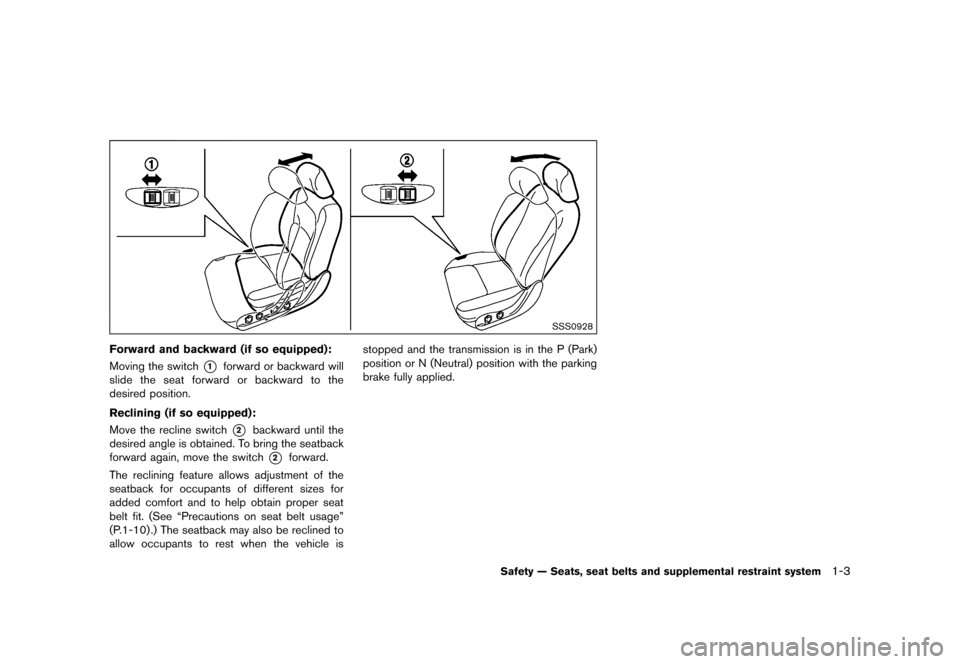

Forward and backward (if so equipped):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Moving the switch*1forward or backward will
slide the seat forward or backward to the
desired position.
Reclining (if so equipped):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Move the recline switch*2backward until the
desired angle is obtained. To bring the seatback
forward again, move the switch
*2forward.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. (See ªPrecautions on seat belt usageº
(P.1-10) .) The seatback may also be reclined to
allow occupants to rest when the vehicle is stopped and the transmission is in the P (Park)
position or N (Neutral) position with the parking
brake fully applied.
Safety Ð Seats, seat belts and supplemental restraint system1-3
&RQGLWLRQ


> (GLW    0RGHO =' @
1-4Safety Ð Seats, seat belts and supplemental restraint system
SSS0394
Type A
JVR0389X
Type B

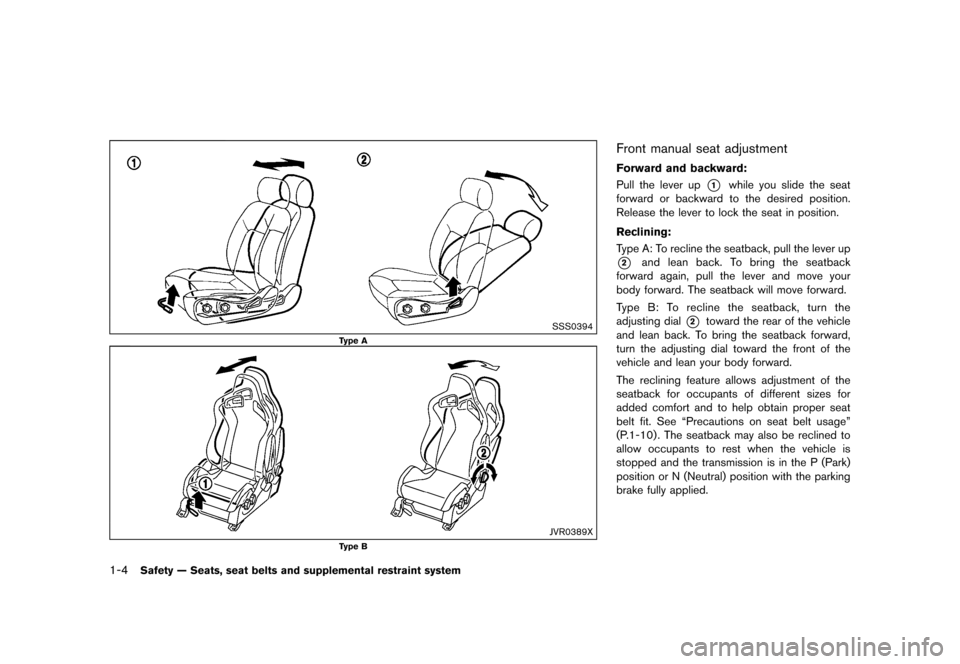

Front manual seat adjustmentGUID-017634F1-4144-4E7F-A116-2A3E82265041
Forward and backward:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pull the lever up*1while you slide the seat
forward or backward to the desired position.
Release the lever to lock the seat in position.
Reclining:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Type A: To recline the seatback, pull the lever up
*2and lean back. To bring the seatback
forward again, pull the lever and move your
body forward. The seatback will move forward.
Type B: To recline the seatback, turn the
adjusting dial
*2toward the rear of the vehicle
and lean back. To bring the seatback forward,
turn the adjusting dial toward the front of the
vehicle and lean your body forward.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. See ªPrecautions on seat belt usageº
(P.1-10) . The seatback may also be reclined to
allow occupants to rest when the vehicle is
stopped and the transmission is in the P (Park)
position or N (Neutral) position with the parking
brake fully applied.
&RQGLWLRQ


> (GLW    0RGHO =' @
JVR0391X
Type B

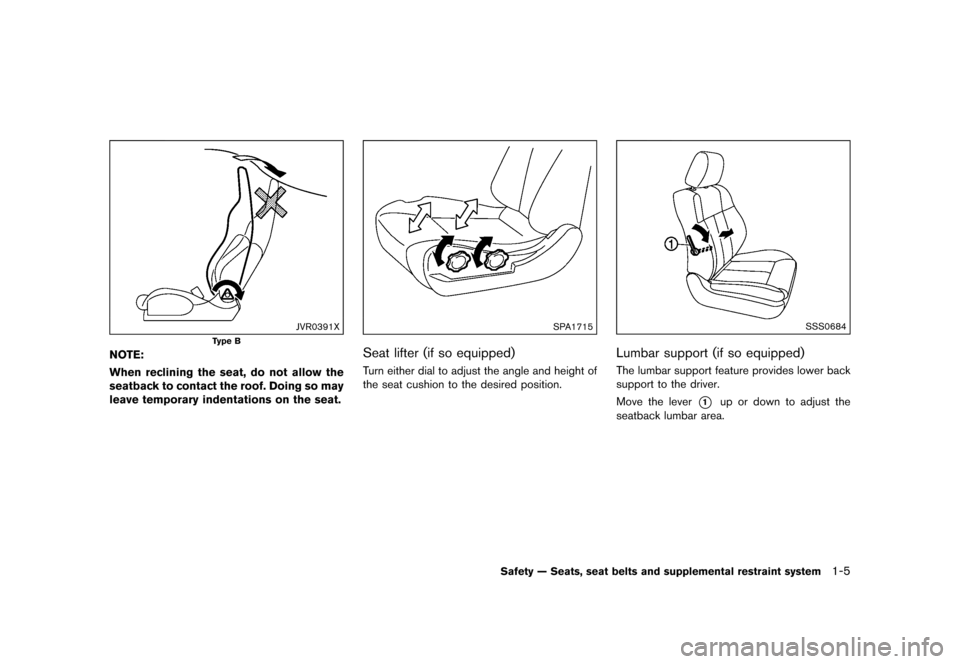

NOTE:
When reclining the seat, do not allow the
seatback to contact the roof. Doing so may
leave temporary indentations on the seat.
SPA1715
Seat lifter (if so equipped)GUID-1E5F24FB-9AF8-46E6-B5D6-1FC65C4F02ACTurn either dial to adjust the angle and height of
the seat cushion to the desired position.
SSS0684
Lumbar support (if so equipped)GUID-0A5814DF-B450-4B33-A364-33910EC58FD3The lumbar support feature provides lower back
support to the driver.
Move the lever
*1up or down to adjust the
seatback lumbar area.
Safety Ð Seats, seat belts and supplemental restraint system1-5
&RQGLWLRQ


> (GLW    0RGHO =' @
1-6Safety Ð Seats, seat belts and supplemental restraint system
GUID-2AE05AEA-9085-44D8-83F0-78B6E81AA242

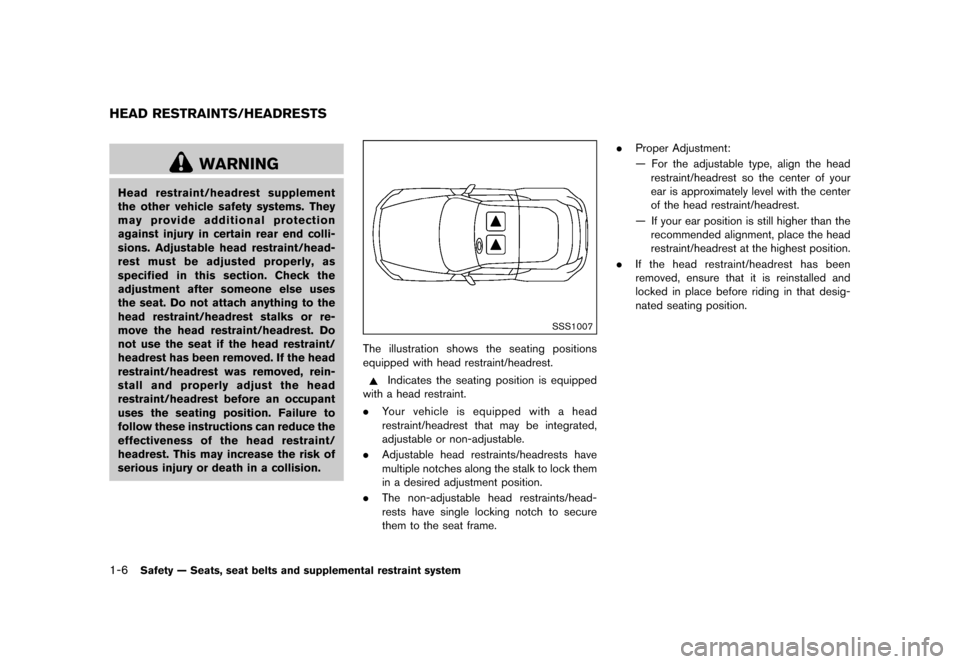

WARNING
Head restraint/headrest supplement
the other vehicle safety systems. They
may provide additional protection
against injury in certain rear end colli-
sions. Adjustable head restraint/head-
rest must be adjusted properly, as
specified in this section. Check the
adjustment after someone else uses
the seat. Do not attach anything to the
head restraint/headrest stalks or re-
move the head restraint/headrest. Do
not use the seat if the head restraint/
headrest has been removed. If the head
restraint/headrest was removed, rein-
stall and properly adjust the head
restraint/headrest before an occupant
uses the seating position. Failure to
follow these instructions can reduce the
effectiveness of the head restraint/
headrest. This may increase the risk of
serious injury or death in a collision.
SSS1007
The illustration shows the seating positions
equipped with head restraint/headrest.
Indicates the seating position is equipped
with a head restraint.
. Your vehicle is equipped with a head
restraint/headrest that may be integrated,
adjustable or non-adjustable.
. Adjustable head restraints/headrests have
multiple notches along the stalk to lock them
in a desired adjustment position.
. The non-adjustable head restraints/head-
rests have single locking notch to secure
them to the seat frame. .
Proper Adjustment:
Ð For the adjustable type, align the head
restraint/headrest so the center of your
ear is approximately level with the center
of the head restraint/headrest.
Ð If your ear position is still higher than the recommended alignment, place the head
restraint/headrest at the highest position.
. If the head restraint/headrest has been
removed, ensure that it is reinstalled and
locked in place before riding in that desig-
nated seating position.
HEAD RESTRAINTS/HEADRESTS
&RQGLWLRQ


> (GLW    0RGHO =' @
SSS0992

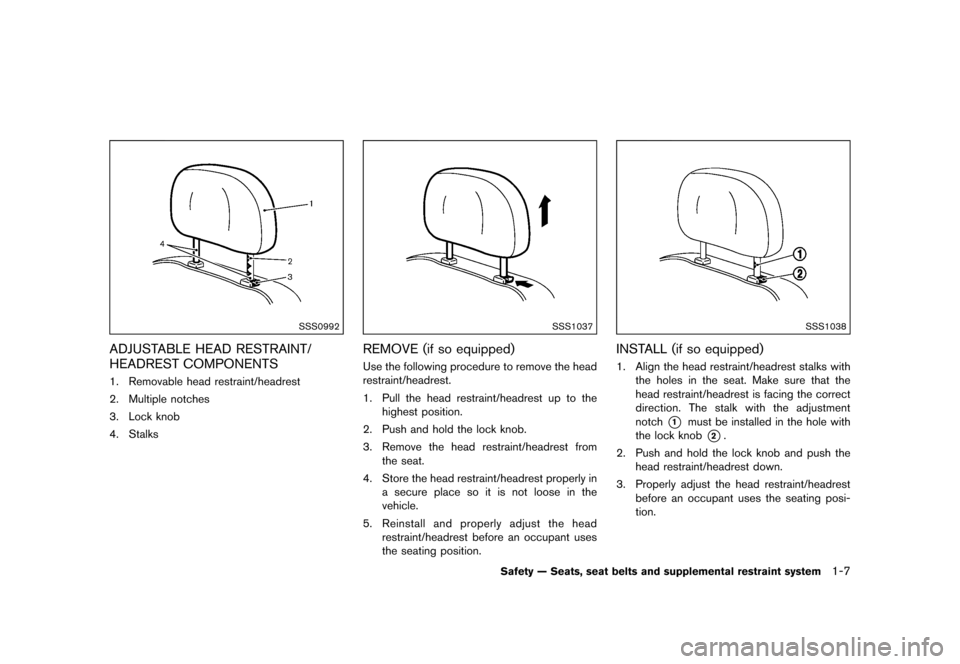

ADJUSTABLE HEAD RESTRAINT/
HEADREST COMPONENTS
GUID-31273986-74E7-410D-AA91-DE7542C6BB081. Removable head restraint/headrest
2. Multiple notches
3. Lock knob
4. Stalks
SSS1037
REMOVE (if so equipped)GUID-7F02C4EE-7C04-4E9A-81CF-B40E29A7EE1DUse the following procedure to remove the head
restraint/headrest.
1. Pull the head restraint/headrest up to thehighest position.
2. Push and hold the lock knob.
3. Remove the head restraint/headrest from the seat.
4. Store the head restraint/headrest properly in a secure place so it is not loose in the
vehicle.
5. Reinstall and properly adjust the head
restraint/headrest before an occupant uses
the seating position.
SSS1038
INSTALL (if so equipped)GUID-9370B543-9041-4A9E-80CB-3B76EDB2D6B01. Align the head restraint/headrest stalks with
the holes in the seat. Make sure that the
head restraint/headrest is facing the correct
direction. The stalk with the adjustment
notch
*1must be installed in the hole with
the lock knob
*2.
2. Push and hold the lock knob and push the head restraint/headrest down.
3. Properly adjust the head restraint/headrest before an occupant uses the seating posi-
tion.
Safety Ð Seats, seat belts and supplemental restraint system1-7
&RQGLWLRQ


> (GLW    0RGHO =' @
1-8Safety Ð Seats, seat belts and supplemental restraint system
SSS0997

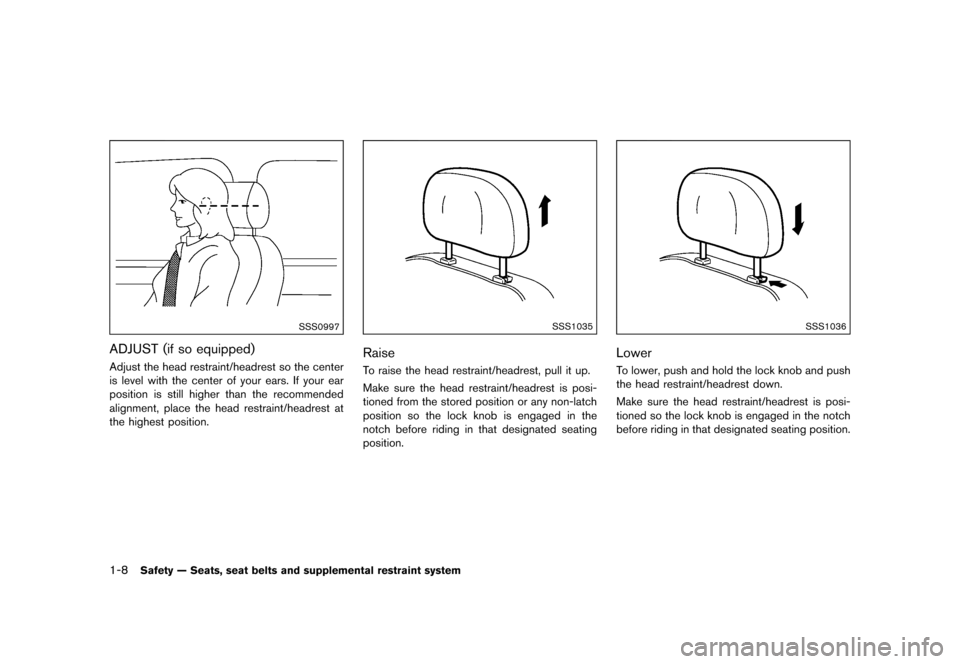

ADJUST (if so equipped)GUID-B78527A7-373D-40FE-8DAB-92105488A7B5Adjust the head restraint/headrest so the center
is level with the center of your ears. If your ear
position is still higher than the recommended
alignment, place the head restraint/headrest at
the highest position.
SSS1035
RaiseGUID-F35581D8-294A-4B88-B31E-999F5415B256To raise the head restraint/headrest, pull it up.
Make sure the head restraint/headrest is posi-
tioned from the stored position or any non-latch
position so the lock knob is engaged in the
notch before riding in that designated seating
position.
SSS1036
LowerGUID-132EBB91-0FC4-4E7D-B515-B7FA5B529650To lower, push and hold the lock knob and push
the head restraint/headrest down.
Make sure the head restraint/headrest is posi-
tioned so the lock knob is engaged in the notch
before riding in that designated seating position.
&RQGLWLRQ


> (GLW    0RGHO =' @
SSS0508

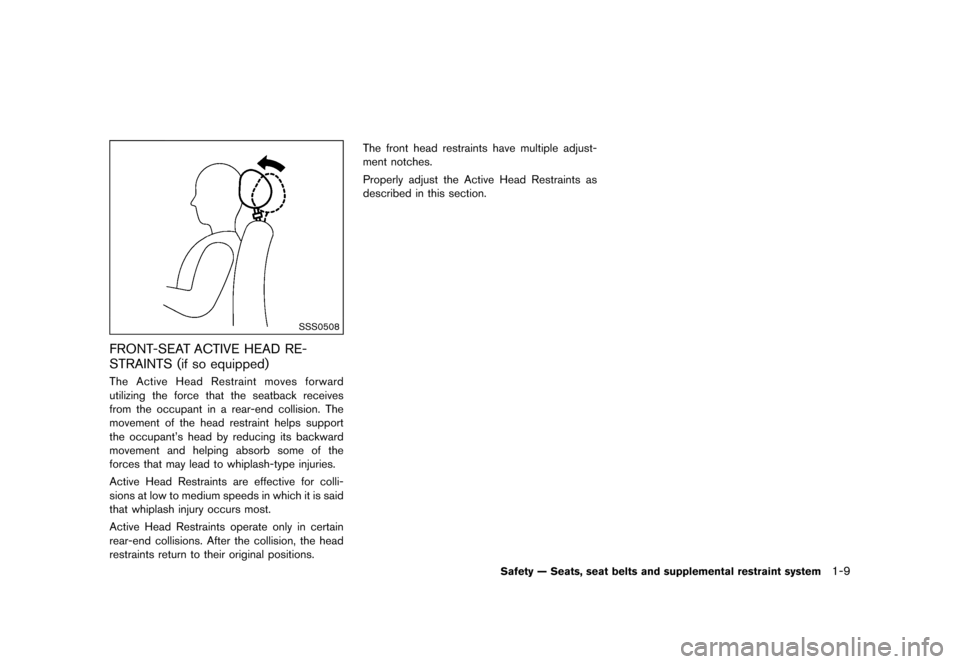

FRONT-SEAT ACTIVE HEAD RE-
STRAINTS (if so equipped)
GUID-04CC5D98-D772-4790-ABF2-7D289F4C5E15The Active Head Restraint moves forward
utilizing the force that the seatback receives
from the occupant in a rear-end collision. The
movement of the head restraint helps support
the occupant's head by reducing its backward
movement and helping absorb some of the
forces that may lead to whiplash-type injuries.
Active Head Restraints are effective for colli-
sions at low to medium speeds in which it is said
that whiplash injury occurs most.
Active Head Restraints operate only in certain
rear-end collisions. After the collision, the head
restraints return to their original positions.The front head restraints have multiple adjust-
ment notches.
Properly adjust the Active Head Restraints as
described in this section.
Safety Ð Seats, seat belts and supplemental restraint system1-9
&RQGLWLRQ


> (GLW    0RGHO =' @
1-10Safety Ð Seats, seat belts and supplemental restraint system

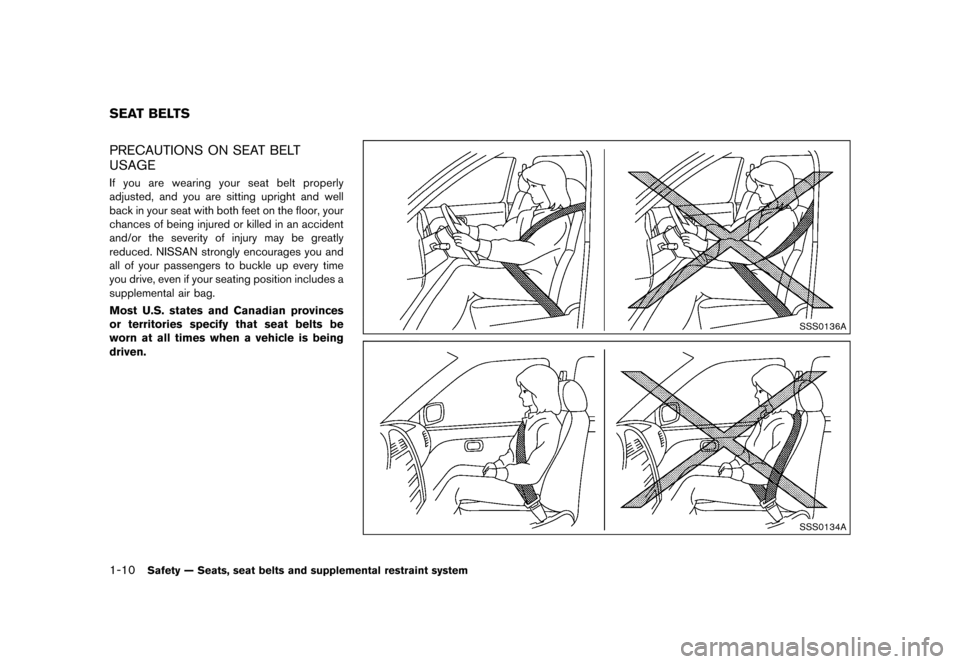

GUID-D67B1030-A476-49CC-86E7-549741A993B6PRECAUTIONS ON SEAT BELT
USAGE
GUID-C987D89B-B838-4428-BA84-4FDC1D0D8DC8If you are wearing your seat belt properly
adjusted, and you are sitting upright and well
back in your seat with both feet on the floor, your
chances of being injured or killed in an accident
and/or the severity of injury may be greatly
reduced. NISSAN strongly encourages you and
all of your passengers to buckle up every time
you drive, even if your seating position includes a
supplemental air bag.
Most U.S. states and Canadian provinces
or territories specify that seat belts be
worn at all times when a vehicle is being
driven.
SSS0136A
SSS0134A
SEAT BELTS
