2015 NISSAN 370Z COUPE Owners Manual


> (GLW    0RGHO =' @

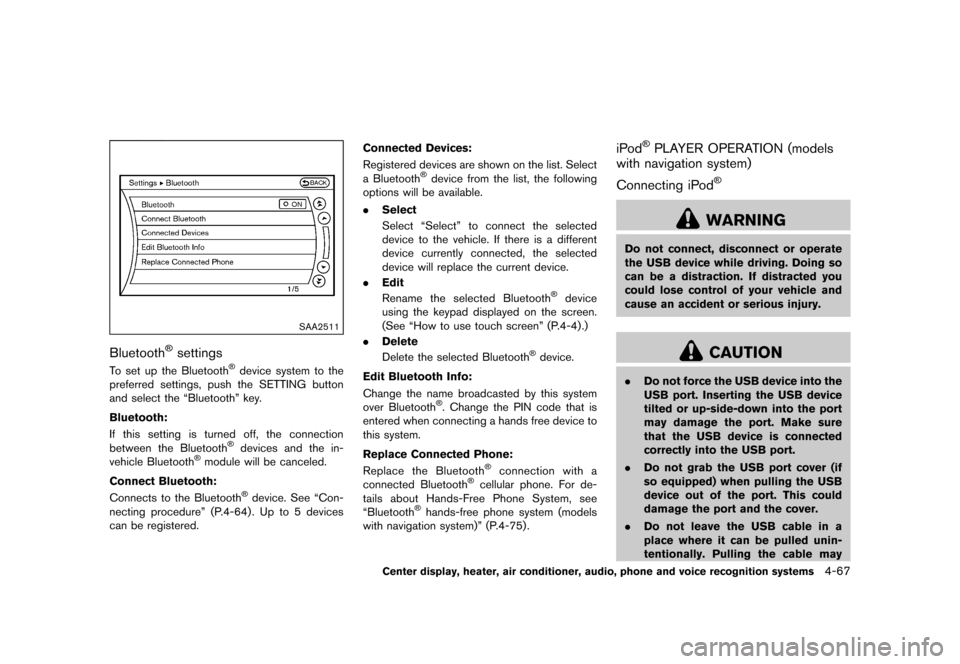

SAA2511
Bluetooth


> (GLW    0RGHO =' @
4-68Center display, heater, air conditioner, audio, phone and voice recognition systems
damage the port.
Refer to your device manufacturer's owner
information regarding the proper use and care
of the device.
SAA2512

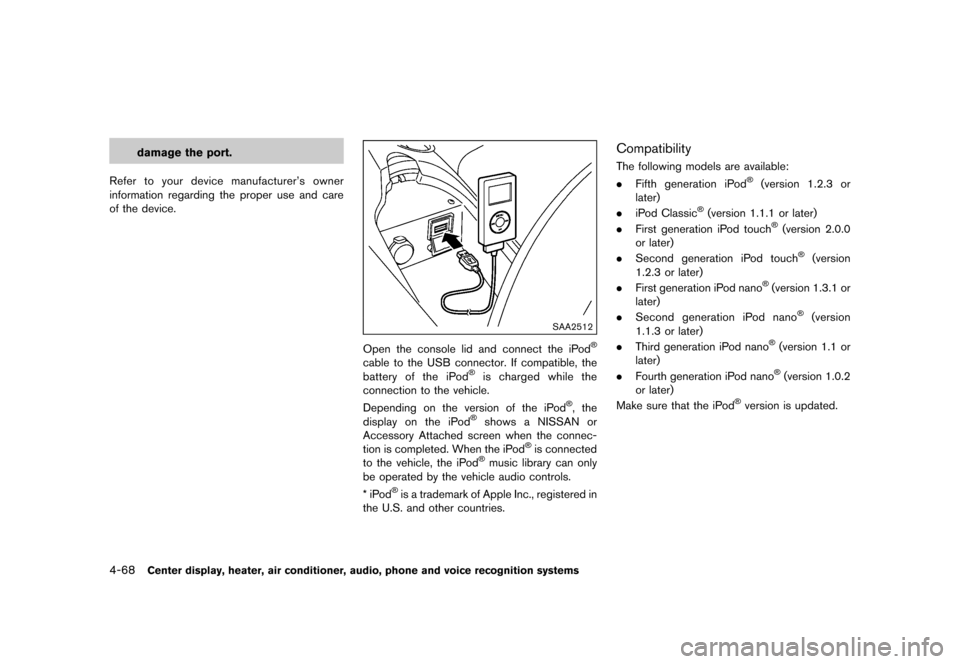

Open the console lid and connect the iPod


> (GLW    0RGHO =' @

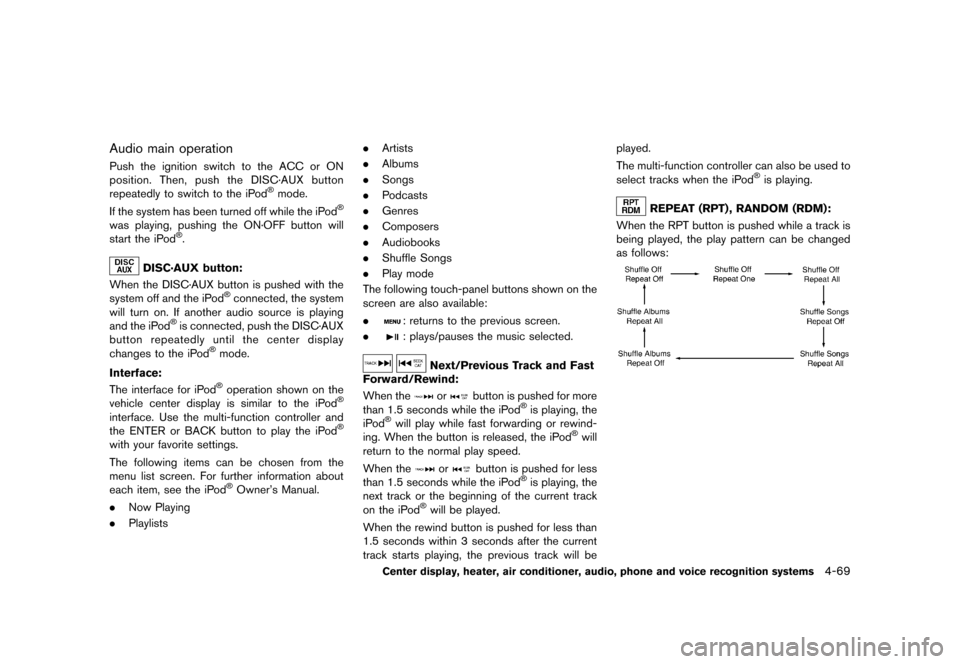

Audio main operationGUID-10937574-964E-4484-BAA2-4C0C4DE28316Push the ignition switch to the ACC or ON
position. Then, push the DISC´AUX button
repeatedly to switch to the iPod


> (GLW    0RGHO =' @
4-70Center display, heater, air conditioner, audio, phone and voice recognition systems

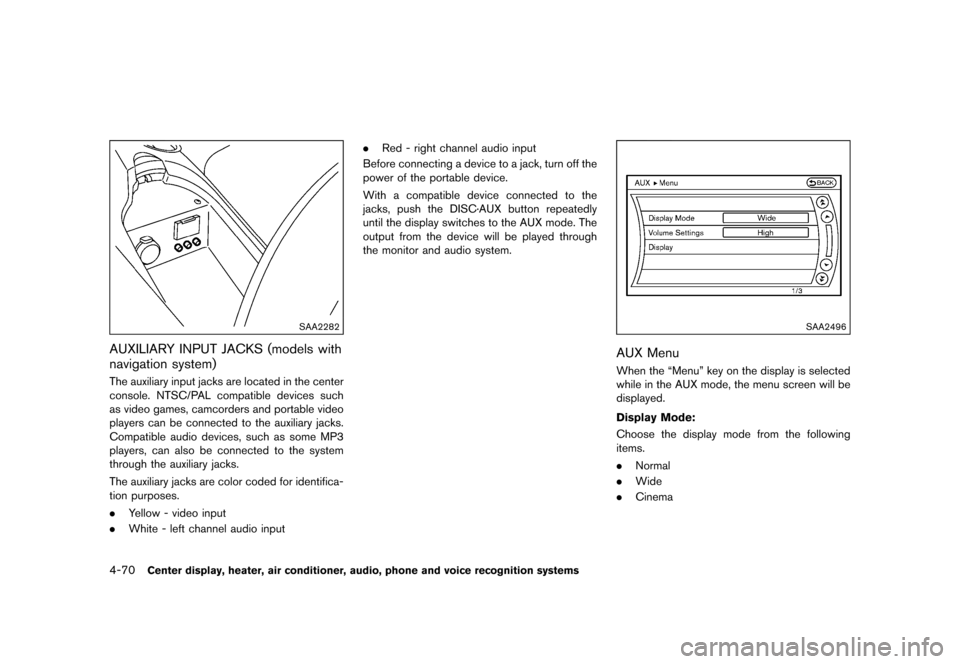

SAA2282
AUXILIARY INPUT JACKS (models with
navigation system)
GUID-CFF3E29F-6FF9-4504-9752-569E0E5A18F0The auxiliary input jacks are located in the center
console. NTSC/PAL compatible devices such
as video games, camcorders and portable video
players can be connected to the auxiliary jacks.
Compatible audio devices, such as some MP3
players, can also be connected to the system
through the auxiliary jacks.
The auxiliary jacks are color coded for identifica-
tion purposes.
.Yellow - video input
. White - left channel audio input .
Red - right channel audio input
Before connecting a device to a jack, turn off the
power of the portable device.
With a compatible device connected to the
jacks, push the DISC´AUX button repeatedly
until the display switches to the AUX mode. The
output from the device will be played through
the monitor and audio system.
SAA2496
AUX MenuGUID-4E84320F-E496-40BA-9551-CB09B00E528BWhen the ªMenuº key on the display is selected
while in the AUX mode, the menu screen will be
displayed.
Display Mode:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Choose the display mode from the following
items.
. Normal
. Wide
. Cinema
&RQGLWLRQ


> (GLW    0RGHO =' @

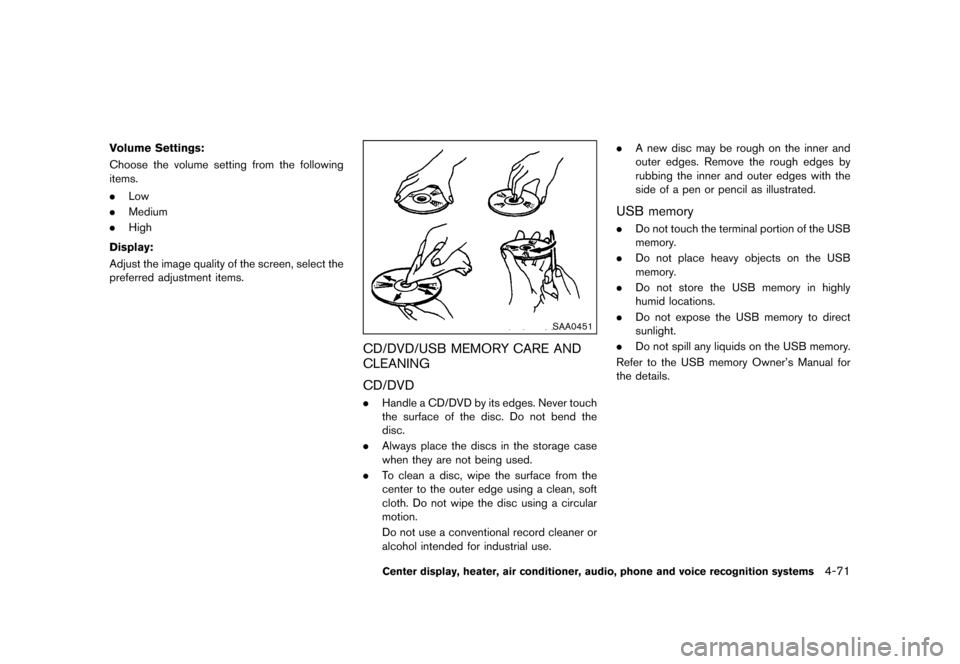

Volume Settings:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Choose the volume setting from the following
items.
.Low
. Medium
. High
Display:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Adjust the image quality of the screen, select the
preferred adjustment items.
SAA0451
CD/DVD/USB MEMORY CARE AND
CLEANING
GUID-301A506A-CF09-4772-9BDC-3DAF9AD425ED
CD/DVDGUID-2F28CE77-1B83-437E-81AA-C0A9092A1FF9. Handle a CD/DVD by its edges. Never touch
the surface of the disc. Do not bend the
disc.
. Always place the discs in the storage case
when they are not being used.
. To clean a disc, wipe the surface from the
center to the outer edge using a clean, soft
cloth. Do not wipe the disc using a circular
motion.
Do not use a conventional record cleaner or
alcohol intended for industrial use. .
A new disc may be rough on the inner and
outer edges. Remove the rough edges by
rubbing the inner and outer edges with the
side of a pen or pencil as illustrated.
USB memoryGUID-04BA806F-04A8-4791-A04B-9F98FE9D76BF.Do not touch the terminal portion of the USB
memory.
. Do not place heavy objects on the USB
memory.
. Do not store the USB memory in highly
humid locations.
. Do not expose the USB memory to direct
sunlight.
. Do not spill any liquids on the USB memory.
Refer to the USB memory Owner's Manual for
the details.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-71
&RQGLWLRQ


> (GLW    0RGHO =' @
4-72Center display, heater, air conditioner, audio, phone and voice recognition systems

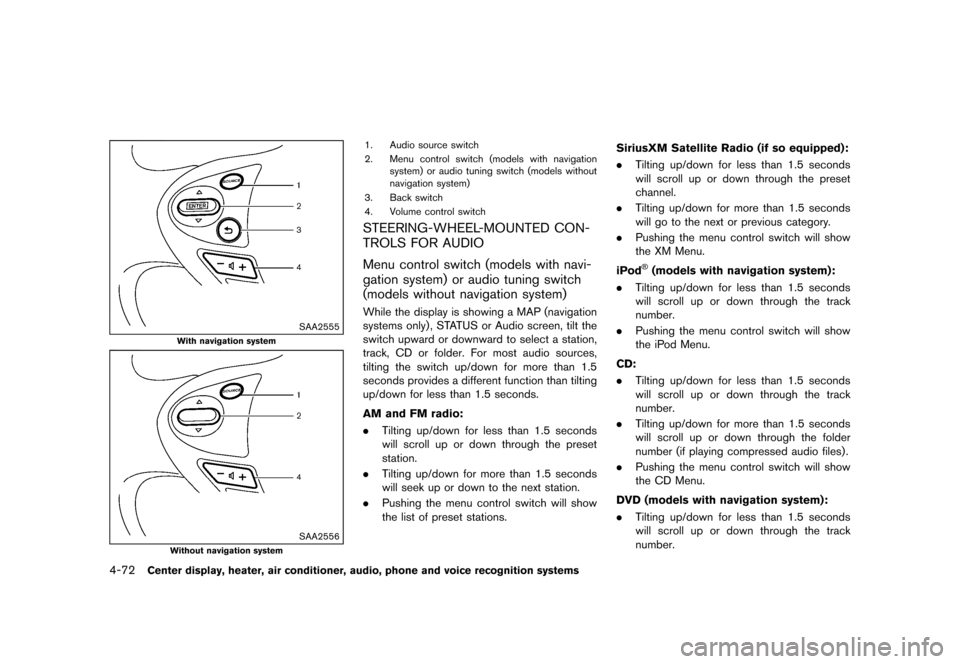

SAA2555
With navigation system
SAA2556
Without navigation system
1. Audio source switch
2. Menu control switch (models with navigationsystem) or audio tuning switch (models without
navigation system)
3. Back switch
4. Volume control switch
STEERING-WHEEL-MOUNTED CON-
TROLS FOR AUDIO
GUID-054A78E5-E14A-4987-81FA-331B044D7C40
Menu control switch (models with navi-
gation system) or audio tuning switch
(models without navigation system)
GUID-E28AA5F2-C253-4F89-B307-538A7968C617While the display is showing a MAP (navigation
systems only) , STATUS or Audio screen, tilt the
switch upward or downward to select a station,
track, CD or folder. For most audio sources,
tilting the switch up/down for more than 1.5
seconds provides a different function than tilting
up/down for less than 1.5 seconds.
AM and FM radio:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407. Tilting up/down for less than 1.5 seconds
will scroll up or down through the preset
station.
. Tilting up/down for more than 1.5 seconds
will seek up or down to the next station.
. Pushing the menu control switch will show
the list of preset stations. SiriusXM Satellite Radio (if so equipped):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407.
Tilting up/down for less than 1.5 seconds
will scroll up or down through the preset
channel.
. Tilting up/down for more than 1.5 seconds
will go to the next or previous category.
. Pushing the menu control switch will show
the XM Menu.
iPod


> (GLW    0RGHO =' @

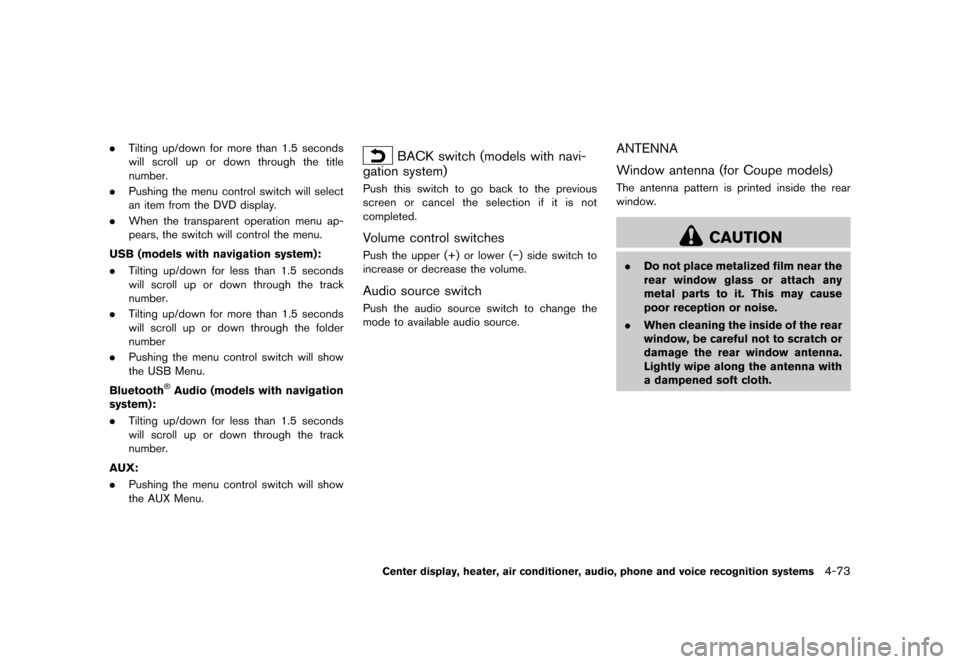

.Tilting up/down for more than 1.5 seconds
will scroll up or down through the title
number.
. Pushing the menu control switch will select
an item from the DVD display.
. When the transparent operation menu ap-
pears, the switch will control the menu.
USB (models with navigation system):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407. Tilting up/down for less than 1.5 seconds
will scroll up or down through the track
number.
. Tilting up/down for more than 1.5 seconds
will scroll up or down through the folder
number
. Pushing the menu control switch will show
the USB Menu.
Bluetooth


> (GLW    0RGHO =' @
4-74Center display, heater, air conditioner, audio, phone and voice recognition systems
SAA2374

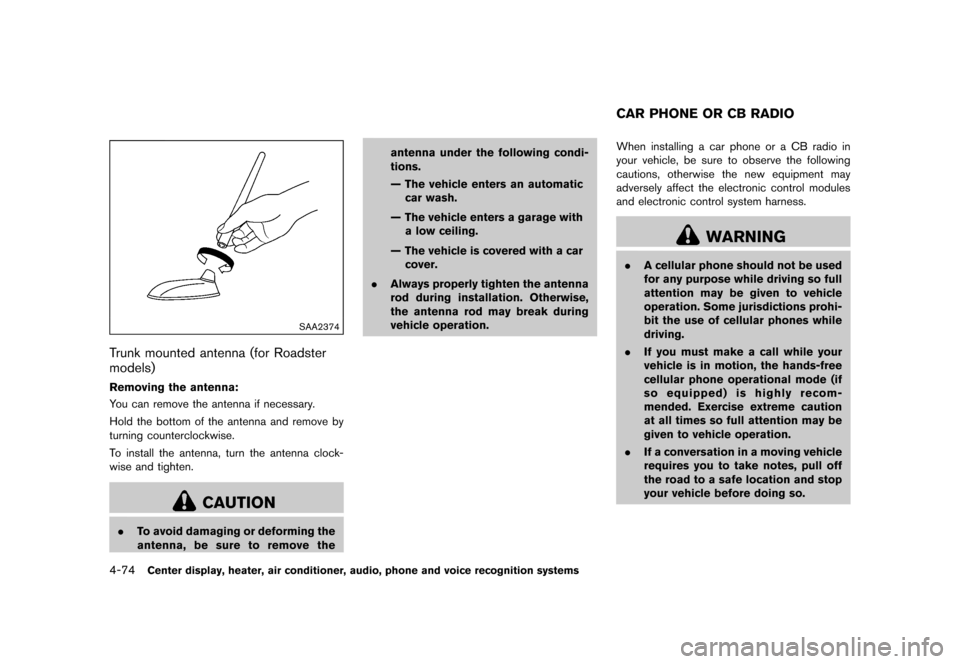

Trunk mounted antenna (for Roadster
models)
GUID-AFADBDC3-763E-4A9A-A02F-C590307D9175
Removing the antenna:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407You can remove the antenna if necessary.
Hold the bottom of the antenna and remove by
turning counterclockwise.
To install the antenna, turn the antenna clock-
wise and tighten.
CAUTION
.To avoid damaging or deforming the
antenna, be sure to remove the antenna under the following condi-
tions.
Ð The vehicle enters an automatic
car wash.
Ð The vehicle enters a garage with a low ceiling.
Ð The vehicle is covered with a car cover.
. Always properly tighten the antenna
rod during installation. Otherwise,
the antenna rod may break during
vehicle operation.
GUID-9D975CE2-D725-41E1-B5A4-B94CB459F82AWhen installing a car phone or a CB radio in
your vehicle, be sure to observe the following
cautions, otherwise the new equipment may
adversely affect the electronic control modules
and electronic control system harness.
WARNING
.A cellular phone should not be used
for any purpose while driving so full
attention may be given to vehicle
operation. Some jurisdictions prohi-
bit the use of cellular phones while
driving.
. If you must make a call while your
vehicle is in motion, the hands-free
cellular phone operational mode (if
so equipped) is highly recom-
mended. Exercise extreme caution
at all times so full attention may be
given to vehicle operation.
. If a conversation in a moving vehicle
requires you to take notes, pull off
the road to a safe location and stop
your vehicle before doing so.
CAR PHONE OR CB RADIO
&RQGLWLRQ
