2015 NISSAN 370Z COUPE Owners Manual


> (GLW    0RGHO =' @
SAA2499

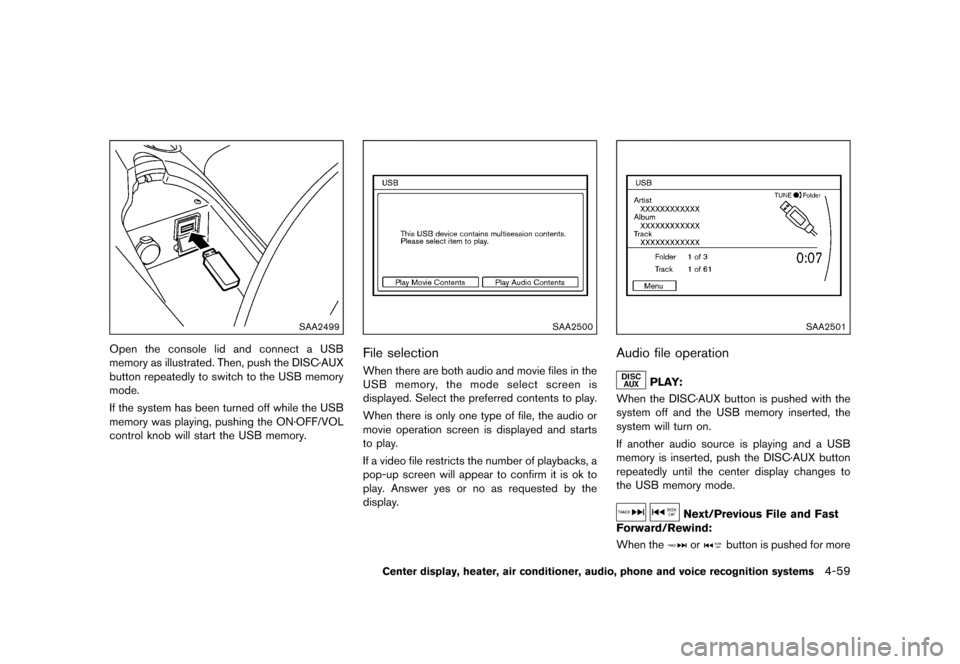

Open the console lid and connect a USB
memory as illustrated. Then, push the DISC´AUX
button repeatedly to switch to the USB memory
mode.
If the system has been turned off while the USB
memory was playing, pushing the ON´OFF/VOL
control knob will start the USB memory.
SAA2500
File selectionGUID-350442BB-9BC5-4AB9-9B86-E3C0A5D7E470When there are both audio and movie files in the
USB memory, the mode select screen is
displayed. Select the preferred contents to play.
When there is only one type of file, the audio or
movie operation screen is displayed and starts
to play.
If a video file restricts the number of playbacks, a
pop-up screen will appear to confirm it is ok to
play. Answer yes or no as requested by the
display.
SAA2501
Audio file operationGUID-DAB02EAB-0553-440C-984A-D62776C8635C
PLAY:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the DISC´AUX button is pushed with the
system off and the USB memory inserted, the
system will turn on.
If another audio source is playing and a USB
memory is inserted, push the DISC´AUX button
repeatedly until the center display changes to
the USB memory mode.
Next/Previous File and Fast
Forward/Rewind:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When theorbutton is pushed for more
Center display, heater, air conditioner, audio, phone and voice recognition systems4-59
&RQGLWLRQ


> (GLW    0RGHO =' @
4-60Center display, heater, air conditioner, audio, phone and voice recognition systems

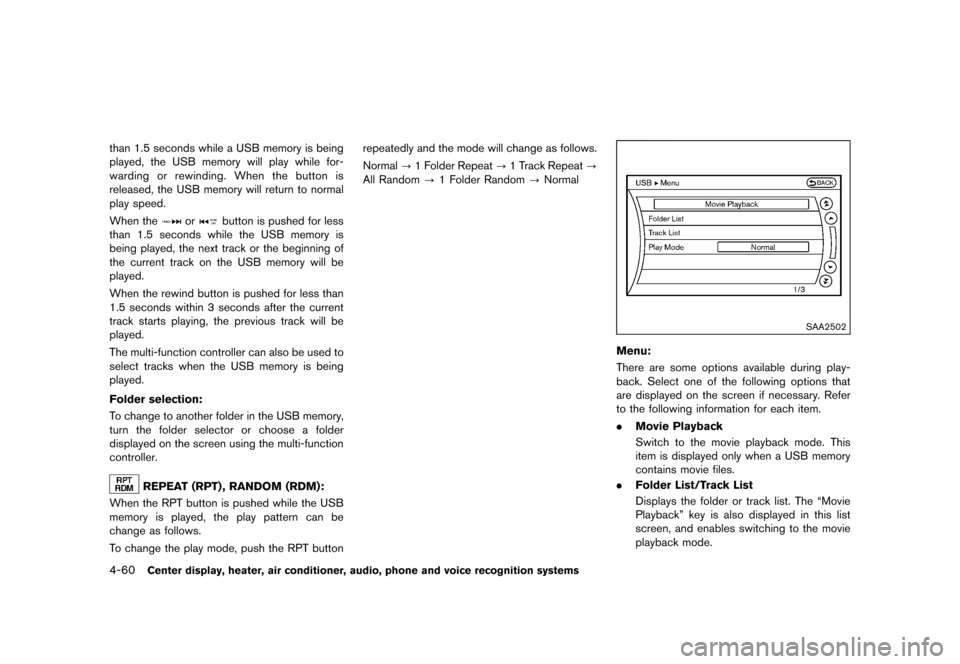

than 1.5 seconds while a USB memory is being
played, the USB memory will play while for-
warding or rewinding. When the button is
released, the USB memory will return to normal
play speed.
When the
orbutton is pushed for less
than 1.5 seconds while the USB memory is
being played, the next track or the beginning of
the current track on the USB memory will be
played.
When the rewind button is pushed for less than
1.5 seconds within 3 seconds after the current
track starts playing, the previous track will be
played.
The multi-function controller can also be used to
select tracks when the USB memory is being
played.
Folder selection:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To change to another folder in the USB memory,
turn the folder selector or choose a folder
displayed on the screen using the multi-function
controller.
REPEAT (RPT) , RANDOM (RDM):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the RPT button is pushed while the USB
memory is played, the play pattern can be
change as follows.
To change the play mode, push the RPT button repeatedly and the mode will change as follows.
Normal
?1 Folder Repeat ?1 Track Repeat ?
All Random ?1 Folder Random ?Normal
SAA2502
Menu:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407There are some options available during play-
back. Select one of the following options that
are displayed on the screen if necessary. Refer
to the following information for each item.
. Movie Playback
Switch to the movie playback mode. This
item is displayed only when a USB memory
contains movie files.
. Folder List/Track List
Displays the folder or track list. The ªMovie
Playbackº key is also displayed in this list
screen, and enables switching to the movie
playback mode.
&RQGLWLRQ


> (GLW    0RGHO =' @

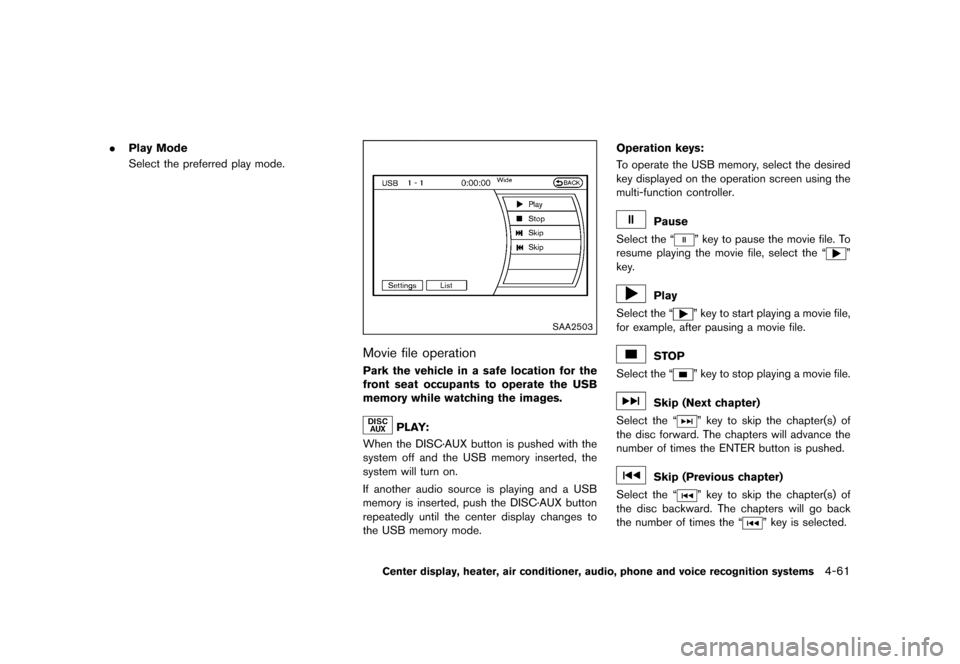

.Play Mode
Select the preferred play mode.
SAA2503
Movie file operationGUID-06EC3D95-41AA-4A8D-9633-1ACA7335676APark the vehicle in a safe location for the
front seat occupants to operate the USB
memory while watching the images.
PLAY:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the DISC´AUX button is pushed with the
system off and the USB memory inserted, the
system will turn on.
If another audio source is playing and a USB
memory is inserted, push the DISC´AUX button
repeatedly until the center display changes to
the USB memory mode. Operation keys:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To operate the USB memory, select the desired
key displayed on the operation screen using the
multi-function controller.
Pause
Select the ª
º key to pause the movie file. To
resume playing the movie file, select the ª
º
key.
Play
Select the ª
º key to start playing a movie file,
for example, after pausing a movie file.
STOP
Select the ª
º key to stop playing a movie file.
Skip (Next chapter)
Select the ª
º key to skip the chapter(s) of
the disc forward. The chapters will advance the
number of times the ENTER button is pushed.
Skip (Previous chapter)
Select the ª
º key to skip the chapter(s) of
the disc backward. The chapters will go back
the number of times the ª
º key is selected.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-61
&RQGLWLRQ


> (GLW    0RGHO =' @
4-62Center display, heater, air conditioner, audio, phone and voice recognition systems

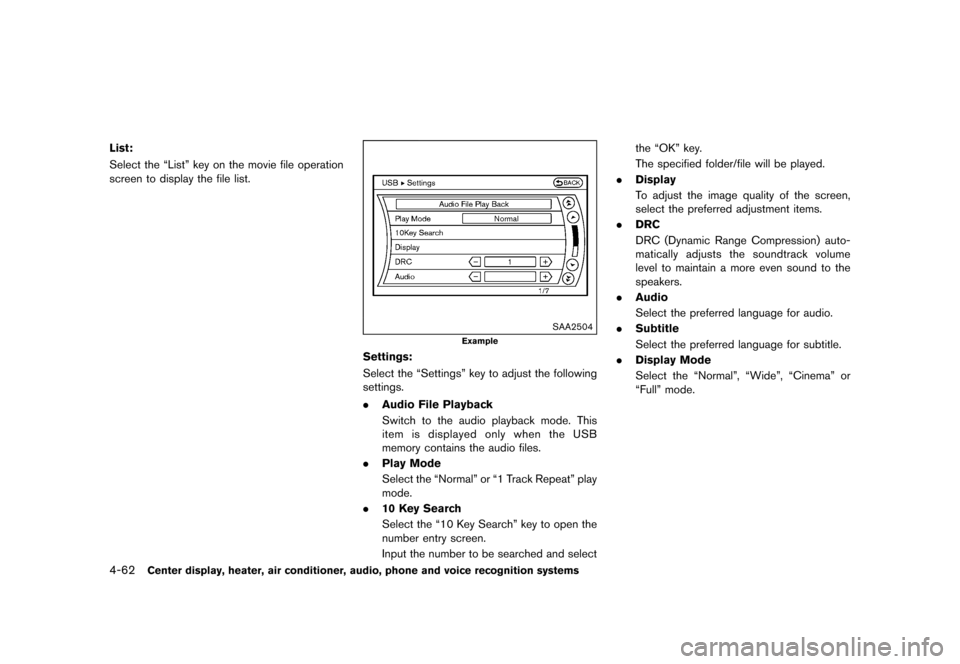

List:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the ªListº key on the movie file operation
screen to display the file list.
SAA2504
Example
Settings:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the ªSettingsº key to adjust the following
settings.
.Audio File Playback
Switch to the audio playback mode. This
item is displayed only when the USB
memory contains the audio files.
. Play Mode
Select the ªNormalº or ª1 Track Repeatº play
mode.
. 10 Key Search
Select the ª10 Key Searchº key to open the
number entry screen.
Input the number to be searched and select the ªOKº key.
The specified folder/file will be played.
. Display
To adjust the image quality of the screen,
select the preferred adjustment items.
. DRC
DRC (Dynamic Range Compression) auto-
matically adjusts the soundtrack volume
level to maintain a more even sound to the
speakers.
. Audio
Select the preferred language for audio.
. Subtitle
Select the preferred language for subtitle.
. Display Mode
Select the ªNormalº, ªWideº, ªCinemaº or
ªFullº mode.
&RQGLWLRQ


> (GLW    0RGHO =' @
Bluetooth


> (GLW    0RGHO =' @
4-64Center display, heater, air conditioner, audio, phone and voice recognition systems
SAA2505

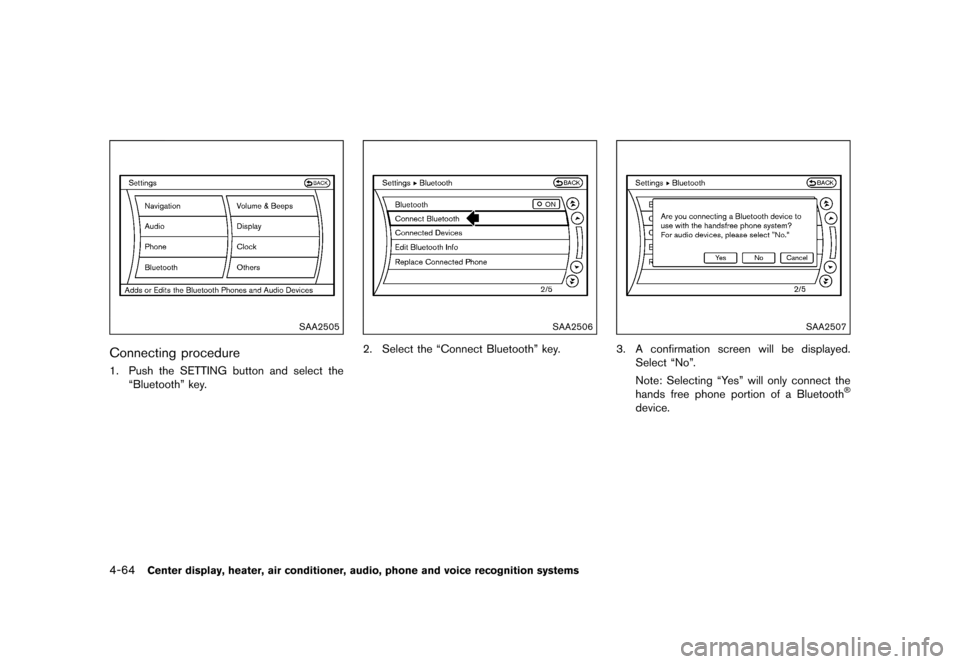

Connecting procedureGUID-577032B6-FDC3-44CC-B5E3-EE30D2F473DE1. Push the SETTING button and select theªBluetoothº key.
SAA2506
2. Select the ªConnect Bluetoothº key.
SAA2507
3. A confirmation screen will be displayed.
Select ªNoº.
Note: Selecting ªYesº will only connect the
hands free phone portion of a Bluetooth


> (GLW    0RGHO =' @
SAA3005

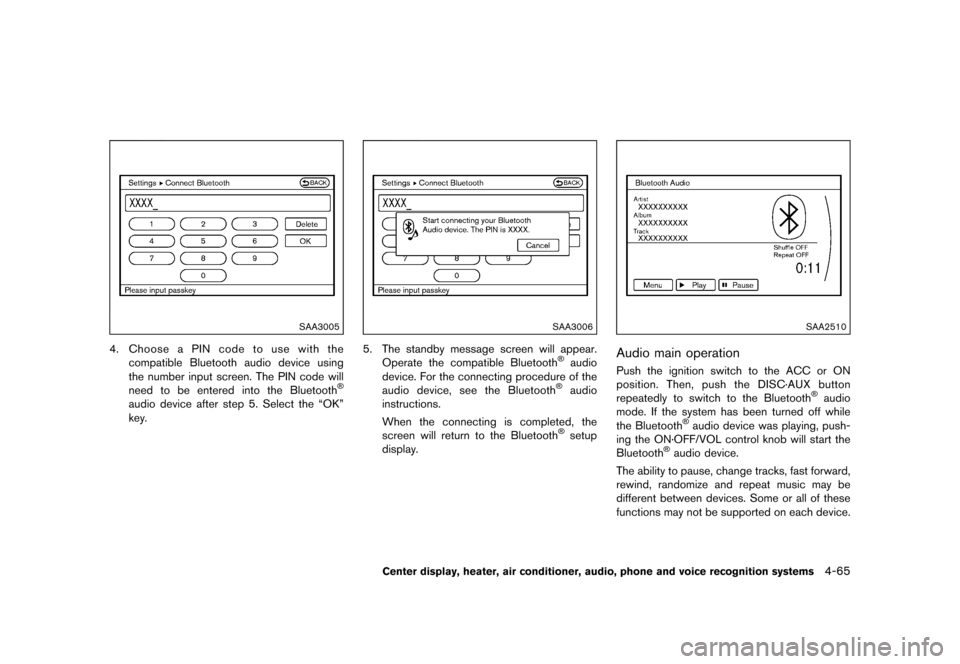

4.Choose a PIN code to use with the
compatible Bluetooth audio device using
the number input screen. The PIN code will
need to be entered into the Bluetooth


> (GLW    0RGHO =' @
4-66Center display, heater, air conditioner, audio, phone and voice recognition systems

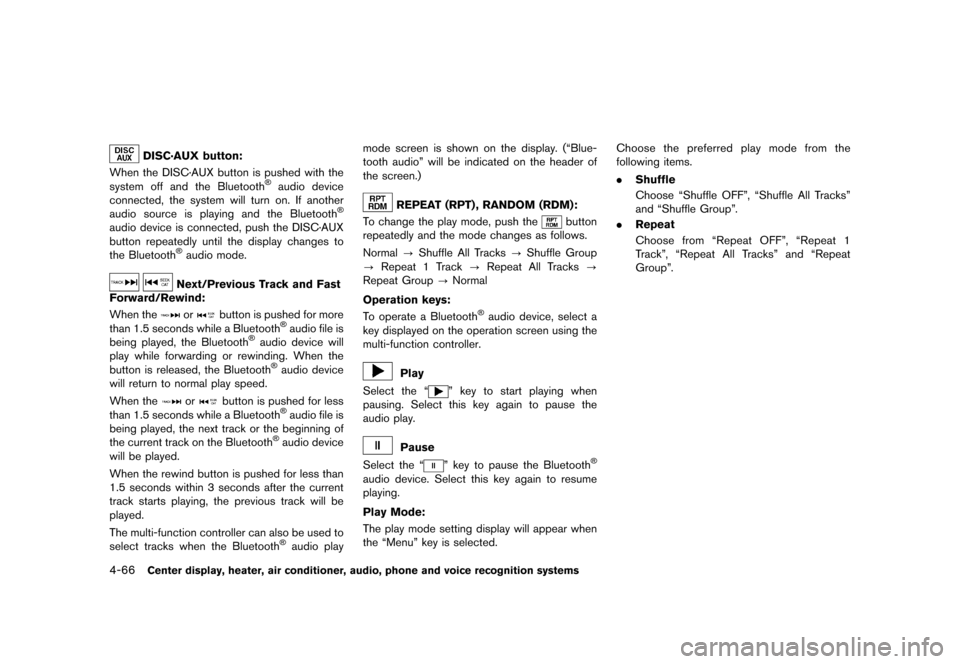

DISC´AUX button:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the DISC´AUX button is pushed with the
system off and the Bluetooth
