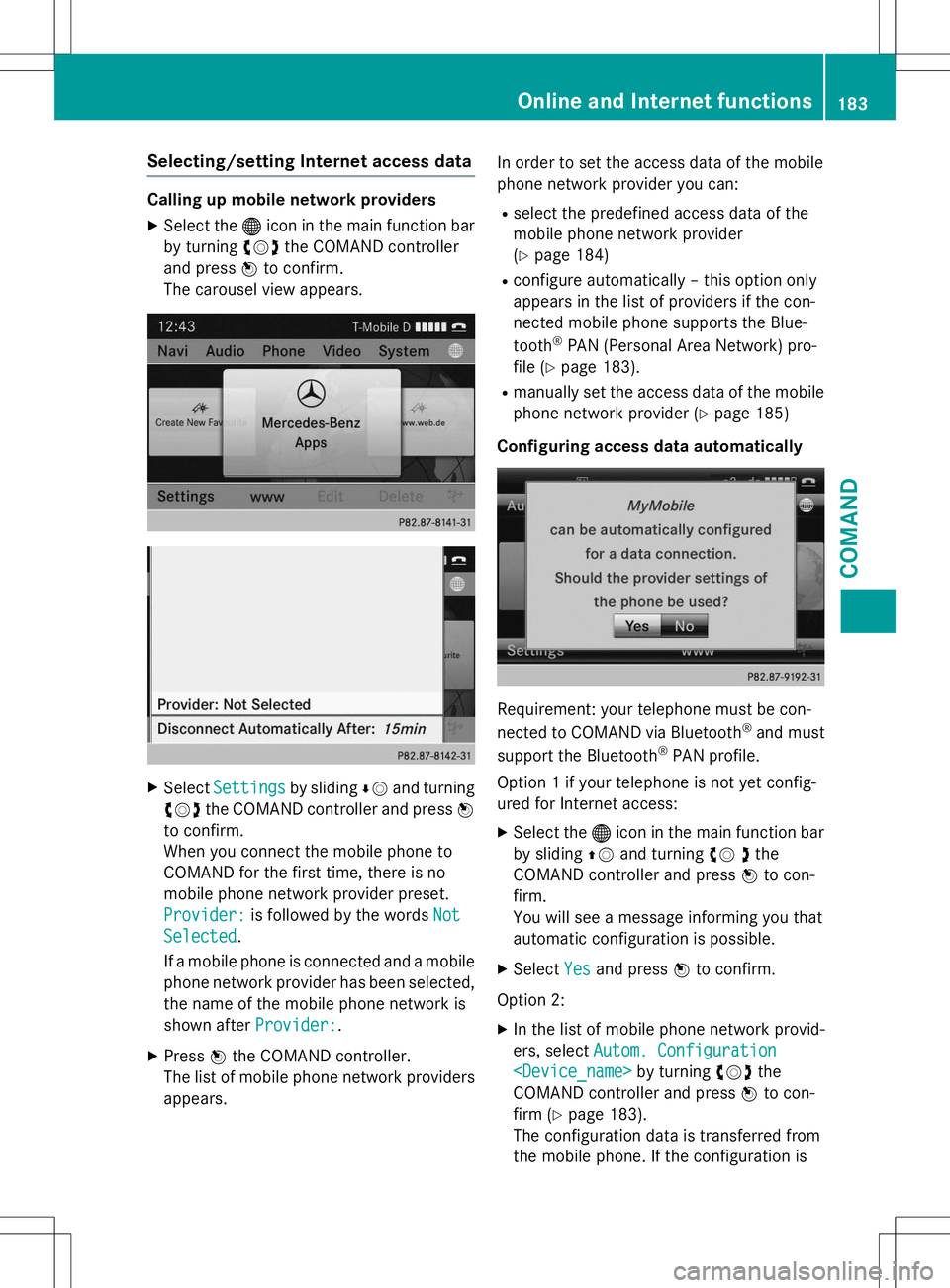

Selecting/setting Internet access data
Calling up mobile network providersX Select the ®icon in the main function bar
by turning cVdthe COMAND controller
and press Wto confirm.
The carousel view appears.
X SelectSettingsby sliding ÆV and turning
cVd the COMAND controller and press W
to confirm.
When you connect the mobile phone to
COMAND for the first time, there is no
mobile phone network provider preset.
Provider:is followed by the wordsNot
Selected.
If a mobile phone is connected and a mobile
phone network provider has been selected, the name of the mobile phone network is
shown after
Provider:.
X Press Wthe COMAND controller.
The list of mobile phone network providers appears. In order to set the access data of the mobile
phone network provider you can:
R select the predefined access data of the
mobile phone network provider(Y page 184)
R configure automatically – this option only
appears in the list of providers if the con-
nected mobile phone supports the Blue- tooth ®
PAN (Personal Area Network) pro-
file ( Ypage 183).
R manually set the access data of the mobile
phone network provider ( Ypage 185)
Configuring access data automatically
Requirement: your telephone must be con-
nected to COMAND via Bluetooth ®
and must
support the Bluetooth ®
PAN profile.
Option 1 if your telephone is not yet config-
ured for Internet access: X Select the ®icon in the main function bar
by sliding ZVand turning cV dthe
COMAND controller and press Wto con-
firm.
You will see a message informing you that
automatic configuration is possible.
X Select
Yesand press Wto confirm.
Option 2: X In the list of mobile phone network provid-
ers, select
Autom. Configuration
by turning cVdthe
COMAND controller and press Wto con-
firm ( Ypage 183).
The configuration data is transferred from
the mobile phone. If the configuration is
Online and Internet functions183
COMAND
Z

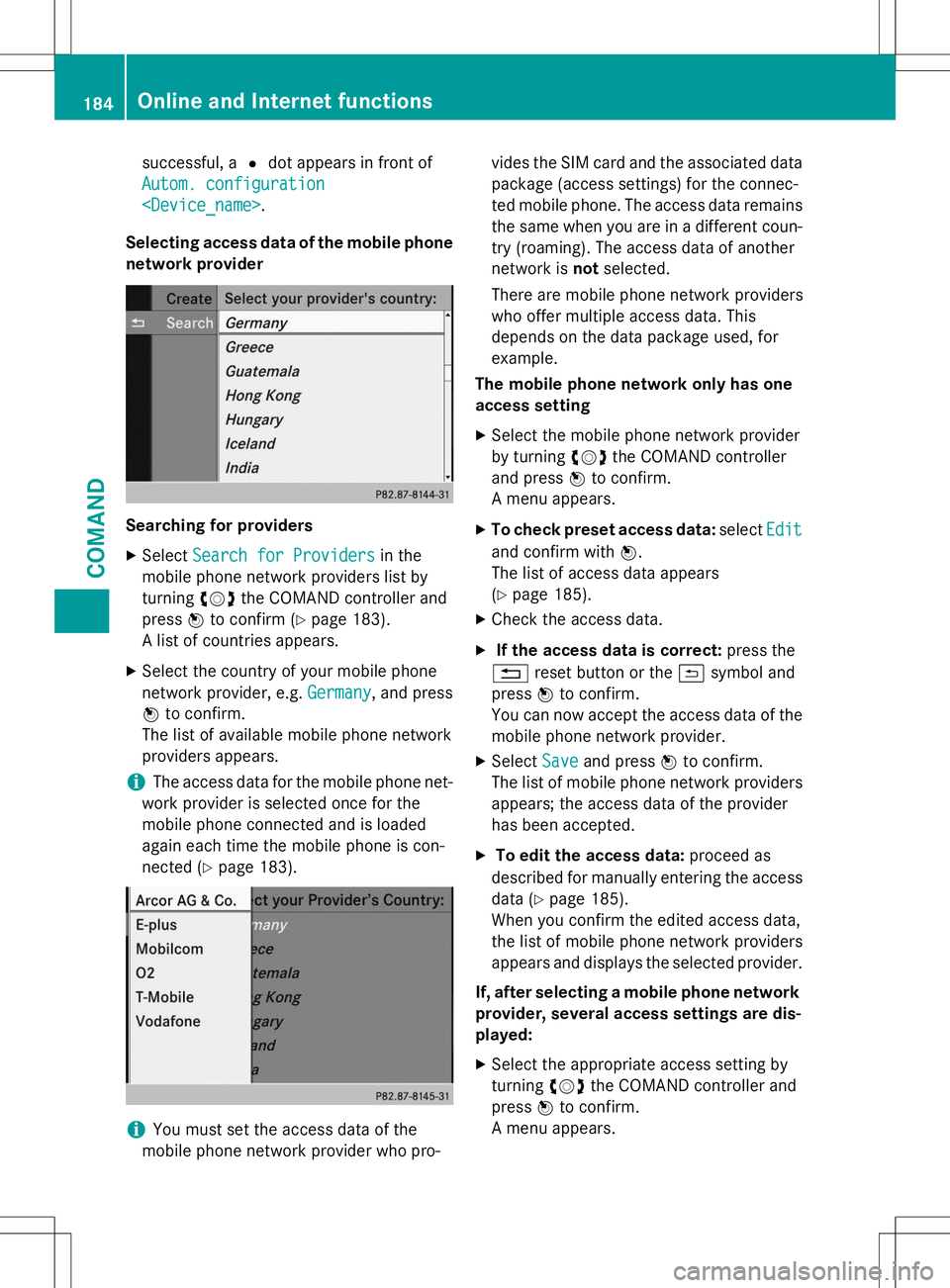

successful, a#dot appears in front of
Autom. configuration
.
Selecting access data of the mobile phone
network provider
Searching for providers X Select
Search for Providersin the
mobile phone network providers list by turning cVdthe COMAND controller and
press Wto confirm ( Ypage 183).
A list of countries appears.
X Select the country of your mobile phone
network provider, e.g.
Germany, and press
W to confirm.
The list of available mobile phone network
providers appears.
iThe access data for the mobile phone net-
work provider is selected once for the
mobile phone connected and is loaded
again each time the mobile phone is con-
nected ( Ypage 183).
iYou must set the access data of the
mobile phone network provider who pro- vides the SIM card and the associated data
package (access settings) for the connec-
ted mobile phone. The access data remains
the same when you are in a different coun-
try (roaming). The access data of another
network is notselected.
There are mobile phone network providers
who offer multiple access data. This
depends on the data package used, forexample.
The mobile phone network only has one
access setting
X Select the mobile phone network provider
by turning cVdthe COMAND controller
and press Wto confirm.
A menu appears.
X To check preset access data: select
Edit
and confirm withW.
The list of access data appears ( Y page 185).
X Check the access data.
X If the access data is correct: press the
% reset button or the &symbol and
press Wto confirm.
You can now accept the access data of the
mobile phone network provider.
X Select
Saveand press Wto confirm.
The list of mobile phone network providers
appears; the access data of the provider
has been accepted.
X To edit the access data: proceed as
described for manually entering the access
data ( Ypage 185).
When you confirm the edited access data,
the list of mobile phone network providers
appears and displays the selected provider.
If, after selecting a mobile phone network provider, several access settings are dis-played:
X Select the appropriate access setting byturning cVdthe COMAND controller and
press Wto confirm.
A menu appears.
184Online and Internet functions
COMAND

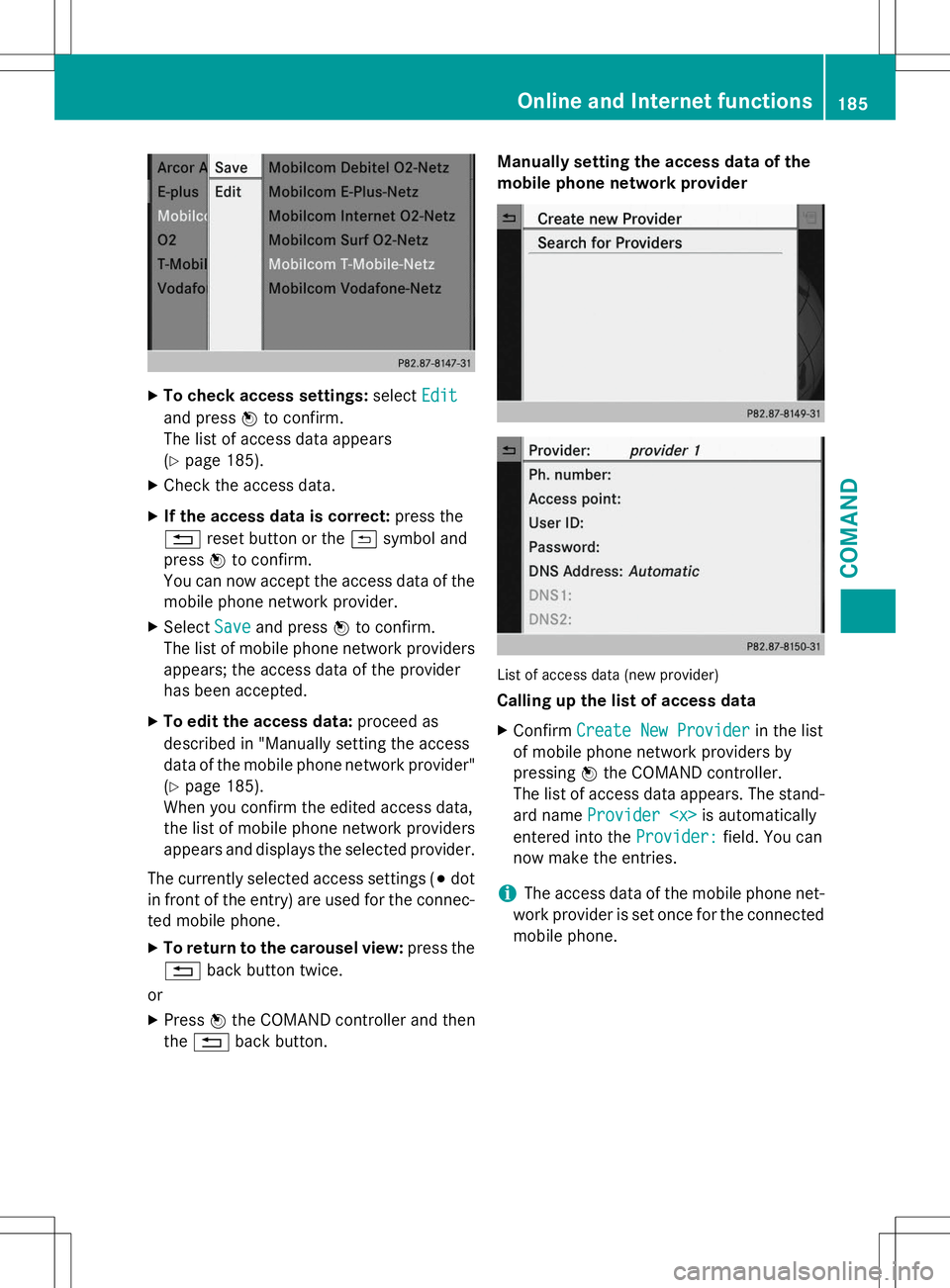

XTo check access settings: selectEdit
and pressWto confirm.
The list of access data appears ( Y page 185).
X Check the access data.
X If the access data is correct: press the
% reset button or the &symbol and
press Wto confirm.
You can now accept the access data of the
mobile phone network provider.
X Select
Saveand press Wto confirm.
The list of mobile phone network providers
appears; the access data of the provider
has been accepted.
X To edit the access data: proceed as
described in "Manually setting the access
data of the mobile phone network provider" ( Y page 185).
When you confirm the edited access data,
the list of mobile phone network providers
appears and displays the selected provider.
The currently selected access settings ( #dot
in front of the entry) are used for the connec- ted mobile phone.
X To return to the carousel view: press the
% back button twice.
or
X Press Wthe COMAND controller and then
the % back button. Manually setting the access data of the
mobile phone network provider
List of access data (new provider)
Calling up the list of access data X
Confirm
Create New Providerin the list
of mobile phone network providers by
pressing Wthe COMAND controller.
The list of access data appears. The stand-
ard name
Provider is automatically
entered into the
Provider:field. You can
now make the entries.
iThe access data of the mobile phone net-
work provider is set once for the connected
mobile phone.
Online and Internet functions185
COMAND
Z

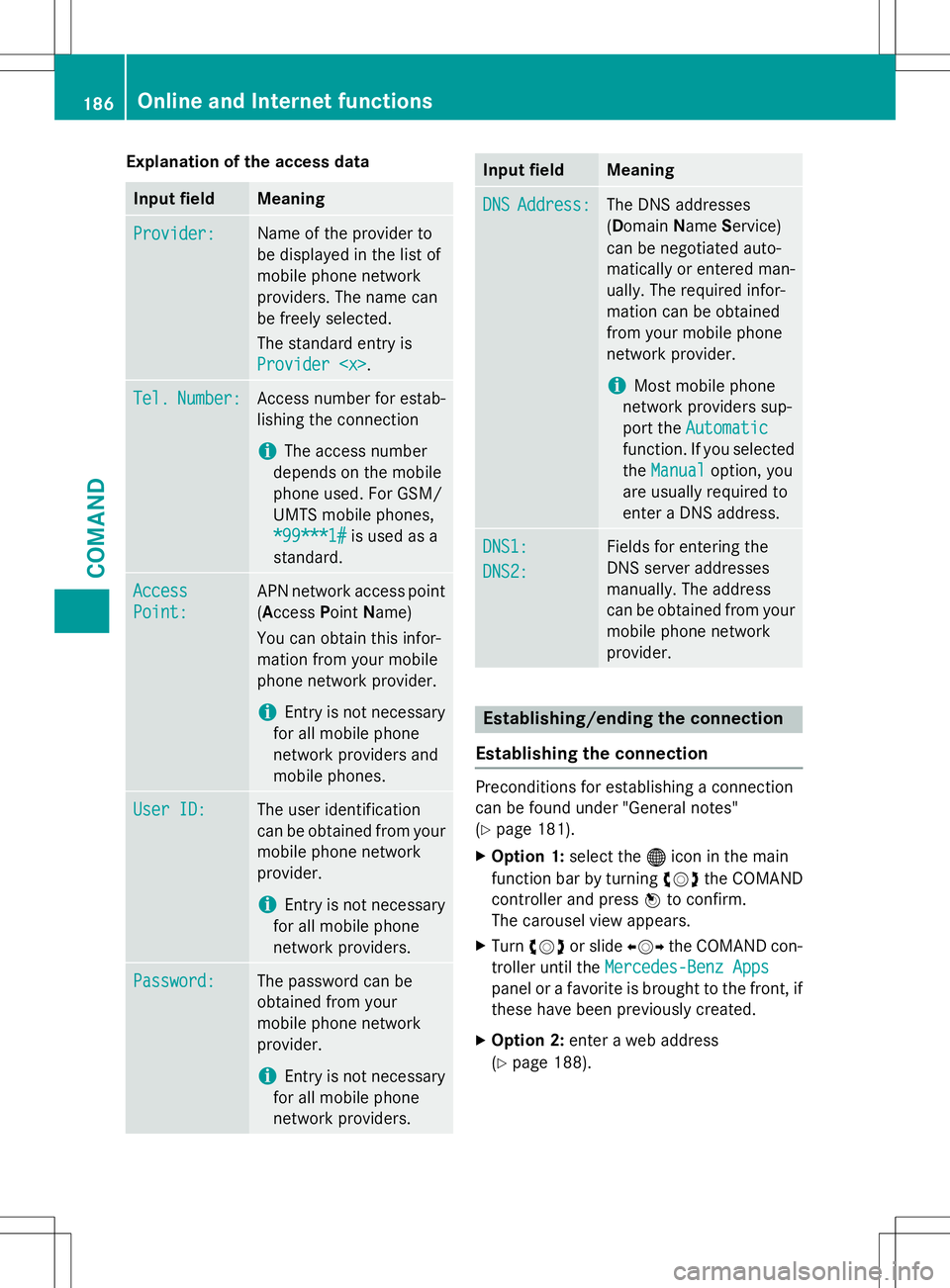

Explanation of the access data
Input fieldMeaning
Provider:Name of the provider to
be displayed in the list of
mobile phone network
providers. The name can
be freely selected.
The standard entry is
Provider .
Tel.Number:Access number for estab-
lishing the connection
iThe access number
depends on the mobile
phone used. For GSM/
UMTS mobile phones,
*99***1#is used as a
standard.
Access
Point:
APN network access point ( A ccess Point Name)
You can obtain this infor-
mation from your mobile
phone network provider.
iEntry is not necessary
for all mobile phone
network providers and
mobile phones.
User ID:The user identification
can be obtained from your
mobile phone network
provider.
iEntry is not necessary
for all mobile phone
network providers.
Password:The password can be
obtained from your
mobile phone network
provider.
iEntry is not necessary
for all mobile phone
network providers.
Input fieldMeaning
DNSAddress:The DNS addresses ( D omain Name Service)
can be negotiated auto-
matically or entered man-
ually. The required infor-
mation can be obtained
from your mobile phone
network provider.
iMost mobile phone
network providers sup-
port the
Automatic
function. If you selected
the
Manualoption, you
are usually required to
enter a DNS address.
DNS1:
DNS2:
Fields for entering the
DNS server addresses
manually. The address
can be obtained from your
mobile phone network
provider.
Establishing/ending the connection
Establishing the connection
Preconditions for establishing a connection
can be found under "General notes"( Y page 181).
X Option 1: select the®icon in the main
function bar by turning cVdthe COMAND
controller and press Wto confirm.
The carousel view appears.
X Turn cVd or slide XVYthe COMAND con-
troller until the
Mercedes-Benz Apps
panel or a favorite is brought to the front, if
these have been previously created.
X Option 2: enter a web address
( Y page 188).
186Online and Internet functions
COMAND

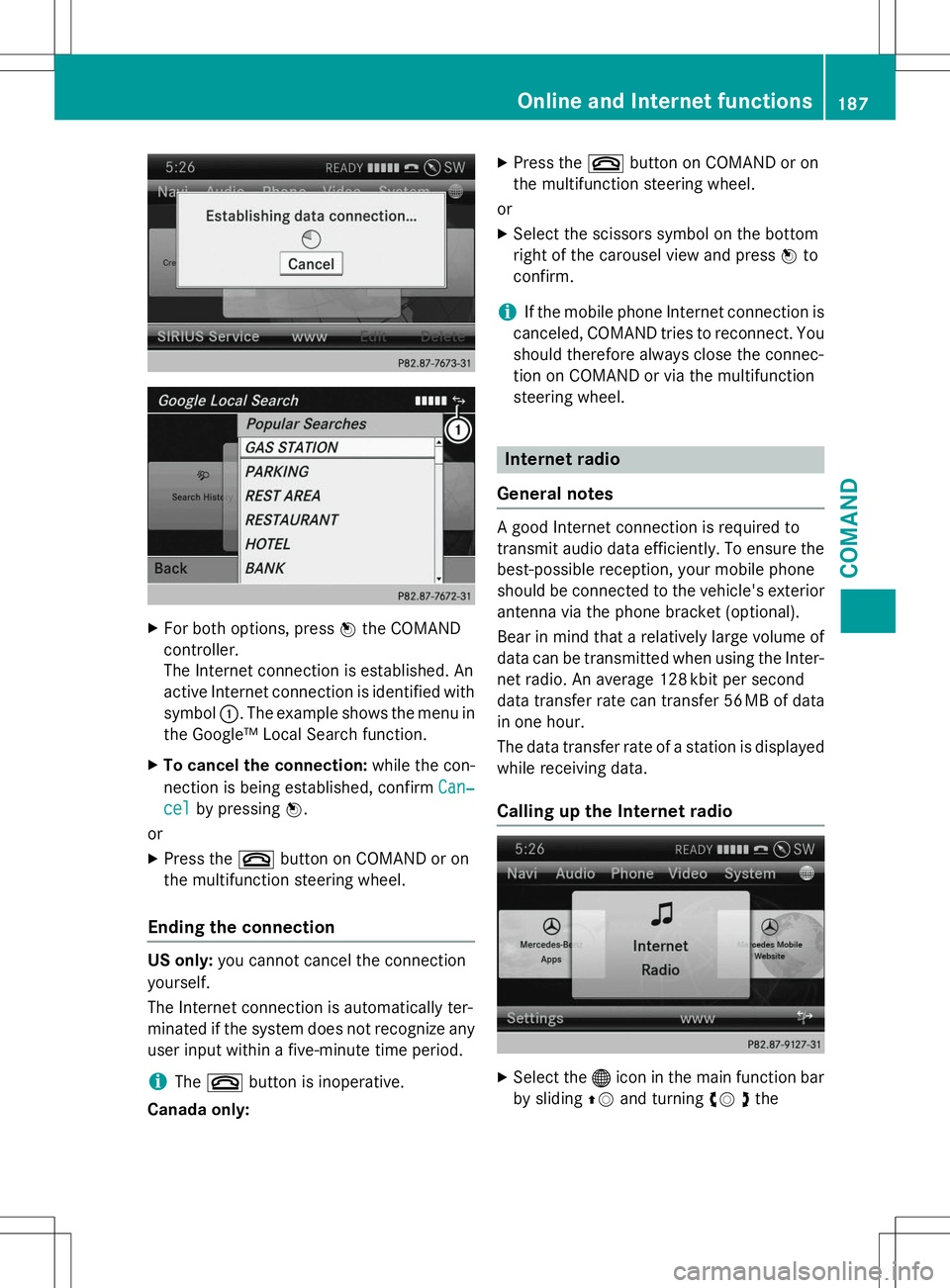

XFor both options, press Wthe COMAND
controller.
The Internet connection is established. An
active Internet connection is identified with symbol :. The example shows the menu in
the Google™ Local Search function.
X To cancel the connection: while the con-
nection is being established, confirm
CanZ
celby pressing W.
or
X Press the ~button on COMAND or on
the multifunction steering wheel.
Ending the connection
US only: you cannot cancel the connection
yourself.
The Internet connection is automatically ter-
minated if the system does not recognize any
user input within a five-minute time period.
iThe ~ button is inoperative.
Canada only: X
Press the ~button on COMAND or on
the multifunction steering wheel.
or X Select the scissors symbol on the bottom
right of the carousel view and press Wto
confirm.
iIf the mobile phone Internet connection is
canceled, COMAND tries to reconnect. You
should therefore always close the connec-
tion on COMAND or via the multifunction
steering wheel.
Internet radio
General notes
A good Internet connection is required to
transmit audio data efficiently. To ensure the
best-possible reception, your mobile phone
should be connected to the vehicle's exterior
antenna via the phone bracket (optional).
Bear in mind that a relatively large volume of data can be transmitted when using the Inter-
net radio. An average 128 kbit per second
data transfer rate can transfer 56 MB of data
in one hour.
The data transfer rate of a station is displayed while receiving data.
Calling up the Internet radio
X Select the ®icon in the main function bar
by sliding ZVand turning cV dthe
Online and Internet functions187
COMAND
Z

COMAND controller and pressWto con-
firm.
The carousel view appears.
X Bring the
Internet Radiopanel to the
front by turning cVdthe COMAND con-
troller and press Wto confirm.
The Internet radio menu appears.
Searching for stations
X SelectSearchin the Internet radio menu.
A list with search criteria appears.
X Select criterion and press Wto confirm.
iFor example as a search criterion, you can
set an Internet radio station that is located
close to your navigation destination.
Connecting to a station
X Search for a station ( Ypage 188).
X Select ;(play) in the Internet radio
menu and press Wto confirm.
The call is placed.
If the data stream is interrupted, an automatic attempt is made to re-establish the connec-
tion.
Manually re-establishing a connection
X Select ;(play) again in the Internet
radio menu and press Wto confirm.
Ending data transfer: X Select É(stop) in the Internet radio
menu and press Wto confirm.
or
X Change to another audio source, for exam-
ple
Disc.
If you change to a main function that is not an
audio source, e.g. navigation, the data con-
nection remains on. You can continue listen-
ing to the set station.
Internet
Display restriction
Internet pages cannot be shown while the
vehicle is in motion.
Calling up a website
Calling up the carousel view
X Select the ®symbol in the main function
bar by turning cVdthe COMAND con-
troller and press Wto confirm.
The carousel view appears.
You can now enter a web address.
Entering a web address
You can enter the web address using either
the character bar or the number keypad.
X Select
wwwby sliding VÆand turning cVd
the COMAND controller and press Wto
confirm.
An input menu appears.
188Online and Internet functions
COMAND

XTo enter using the character bar: enter
the web address in the input line.
As soon as the first letter has been entered in the input line, a list appears below it. The
list shows web addresses which begin with the letters you have entered and web
addresses which have already been called
up.
The list is empty the first time you call it up.
X After entering the web address, select the ¬ symbol by sliding VÆand turning
cVd the COMAND controller and press W
to confirm.
The website is called up.
Navigating the website
Overview
StepResult
X Turn cVd the
controller.Navigates from one
item that can be
selected (e.g. link,
text field or selec-
tion list) to the next
and highlights the
respective element
on the website.
Sliding the control-
ler:
X Left or right XVY
X Up or down ZVÆ
X Diagonally aVbMoves the pointer
on the page.
X
Press Wthe con-
troller.Calls up the menu or
opens the selected
item.
X Press %.Calls up the previ-
ous page.
X
Press j.Closes the Internet
browser. If several
windows are open,
the current window
is closed.
Online and Internet functions189
COMAND
Z

190
