2015 MERCEDES-BENZ G-CLASS SUV Owners Manual

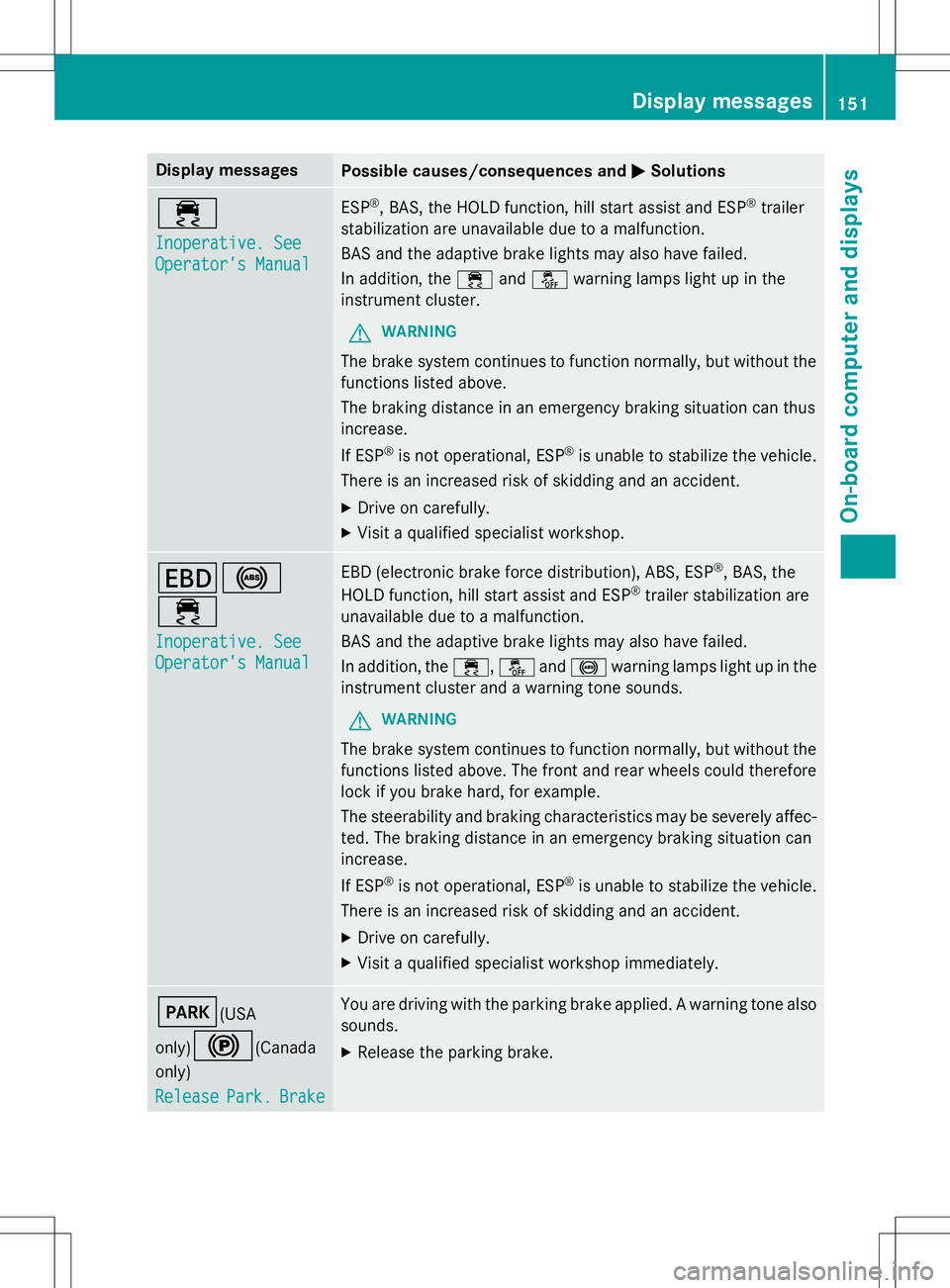

Display messagesPossible causes/consequences andMSolutions
÷
Inoperative. See
Operator's Manual
ESP®
, BAS, the HOLD function, hill start assist and ESP ®
trailer
stabilization are unavailable due to a malfunction.
BAS and the adaptive brake lights may also have failed.
In addition, the ÷andå warning lamps light up in the
instrument cluster.
GWARNING
The brake system continues to function normally, but without the functions listed above.
The braking distance in an emergency braking situation can thus
increase.
If ESP ®
is not operational, ESP ®
is unable to stabilize the vehicle.
There is an increased risk of skidding and an accident.
X Drive on carefully.
X Visit a qualified specialist workshop.
T !
÷
Inoperative. See
Operator's Manual
EBD (electronic brake force distribution), ABS, ESP ®
, BAS, the
HOLD function, hill start assist and ESP ®
trailer stabilization are
unavailable due to a malfunction.
BAS and the adaptive brake lights may also have failed.
In addition, the ÷,å and! warning lamps light up in the
instrument cluster and a warning tone sounds.
GWARNING
The brake system continues to function normally, but without the functions listed above. The front and rear wheels could therefore
lock if you brake hard, for example.
The steerability and braking characteristics may be severely affec-ted. The braking distance in an emergency braking situation can
increase.
If ESP ®
is not operational, ESP ®
is unable to stabilize the vehicle.
There is an increased risk of skidding and an accident.
X Drive on carefully.
X Visit a qualified specialist workshop immediately.
F(USA
only)
!(Canada
only)
ReleasePark.Brake
You are driving with the parking brake applied. A warning tone also sounds.
X Release the parking brake.
Display messages151
On-board computer and displays
Z

Display messagesPossible causes/consequences andMSolutions
$(USA
only)
J(Canada
only)

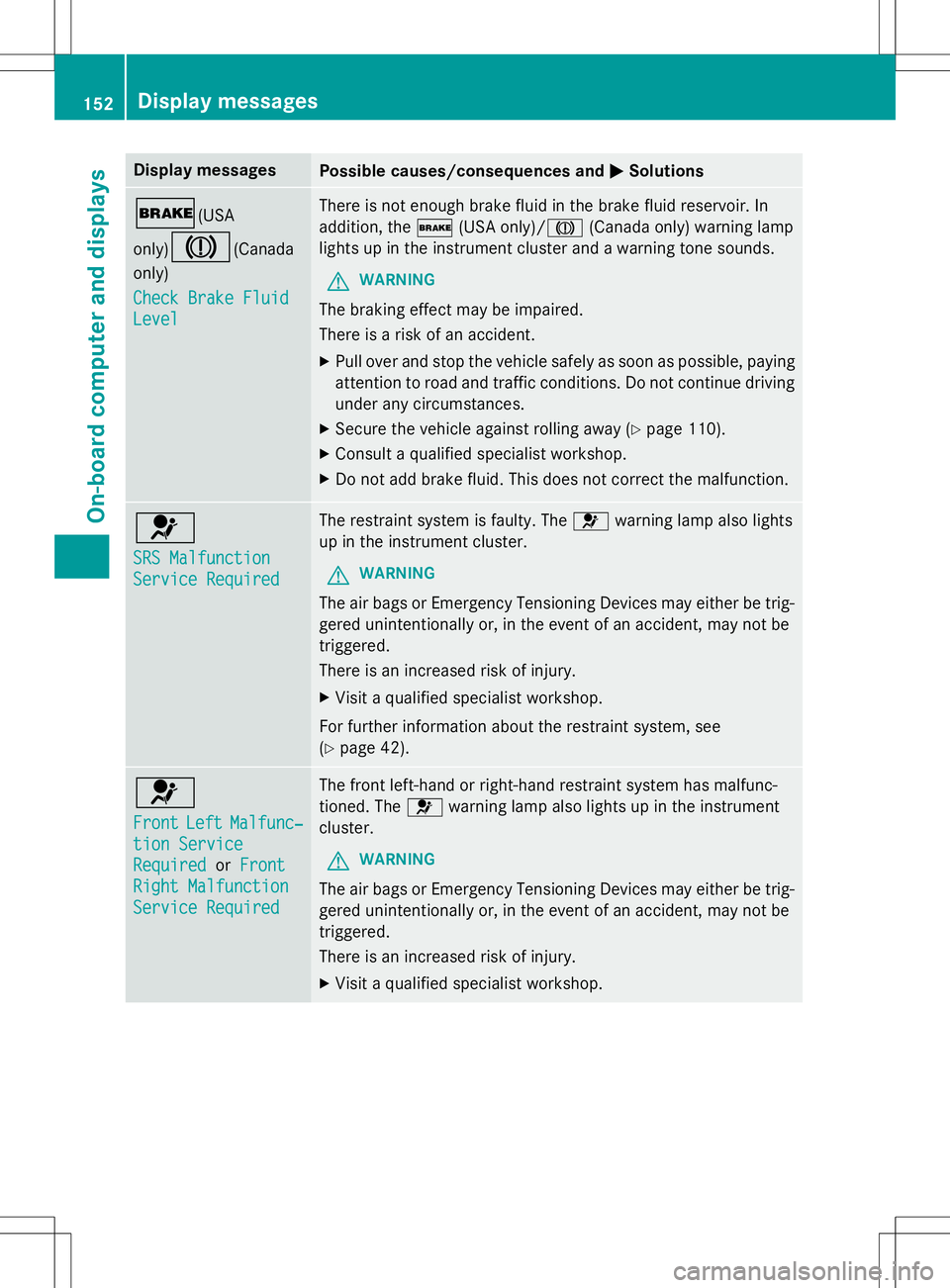

Check Brake Fluid
Level
There is not enough brake fluid in the brake fluid reservoir. In
addition, the $(USA only)/ J(Canada only) warning lamp
lights up in the instrument cluster and a warning tone sounds.
GWARNING
The braking effect may be impaired.
There is a risk of an accident.
X Pull over and stop the vehicle safely as soon as possible, paying
attention to road and traffic conditions. Do not continue driving
under any circumstances.
X Secure the vehicle against rolling away ( Ypage 110).
X Consult a qualified specialist workshop.
X Do not add brake fluid. This does not correct the malfunction.
6
SRS Malfunction
Service Required
The restraint system is faulty. The 6warning lamp also lights
up in the instrument cluster.
GWARNING
The air bags or Emergency Tensioning Devices may either be trig- gered unintentionally or, in the event of an accident, may not be
triggered.
There is an increased risk of injury.
X Visit a qualified specialist workshop.
For further information about the restraint system, see ( Y page 42).
6
FrontLeftMalfuncZ
tion Service
RequiredorFront
Right Malfunction
Service Required
The front left-hand or right-hand restraint system has malfunc-
tioned. The 6warning lamp also lights up in the instrument
cluster.
GWARNING
The air bags or Emergency Tensioning Devices may either be trig- gered unintentionally or, in the event of an accident, may not be
triggered.
There is an increased risk of injury.
X Visit a qualified specialist workshop.
152Display messages
On-board computer and displays

Display messagesPossible causes/consequences andMSolutions
6
Rear Left MalfuncZ
tion Service
RequiredorRear
Right Malfunction
Service Required
The rear left-hand or right-hand restraint system has malfunc-
tioned. The6warning lamp also lights up in the instrument
cluster.
GWARNING
The air bags or Emergency Tensioning Devices may either be trig- gered unintentionally or, in the event of an accident, may not be
triggered.
There is an increased risk of injury.
X Visit a qualified specialist workshop.
6
Rear Center MalZ
function. Service
Required
The rear center restraint system has malfunctioned. The 6
warning lamp also lights up in the instrument cluster.
GWARNING
The air bags or Emergency Tensioning Devices may either be trig- gered unintentionally or, in the event of an accident, may not be
triggered.
There is an increased risk of injury.
X Visit a qualified specialist workshop.
6
Left Side Curtain
Airbag MalfuncZ
tion. Service
RequiredorSide
CurtainAirbagMalZ
function. Service
Required
There is a malfunction in the left-hand or right-hand window cur-
tain air bag. The 6warning lamp also lights up in the instrument
cluster.
GWARNING
The left or right window curtain air bag may either be triggered
unintentionally or, in the event of an accident, may not be trig-
gered.
There is an increased risk of injury.
X Visit a qualified specialist workshop.
Display messages153
On-board computer and displays
Z

Display messagesPossible causes/consequences andMSolutions

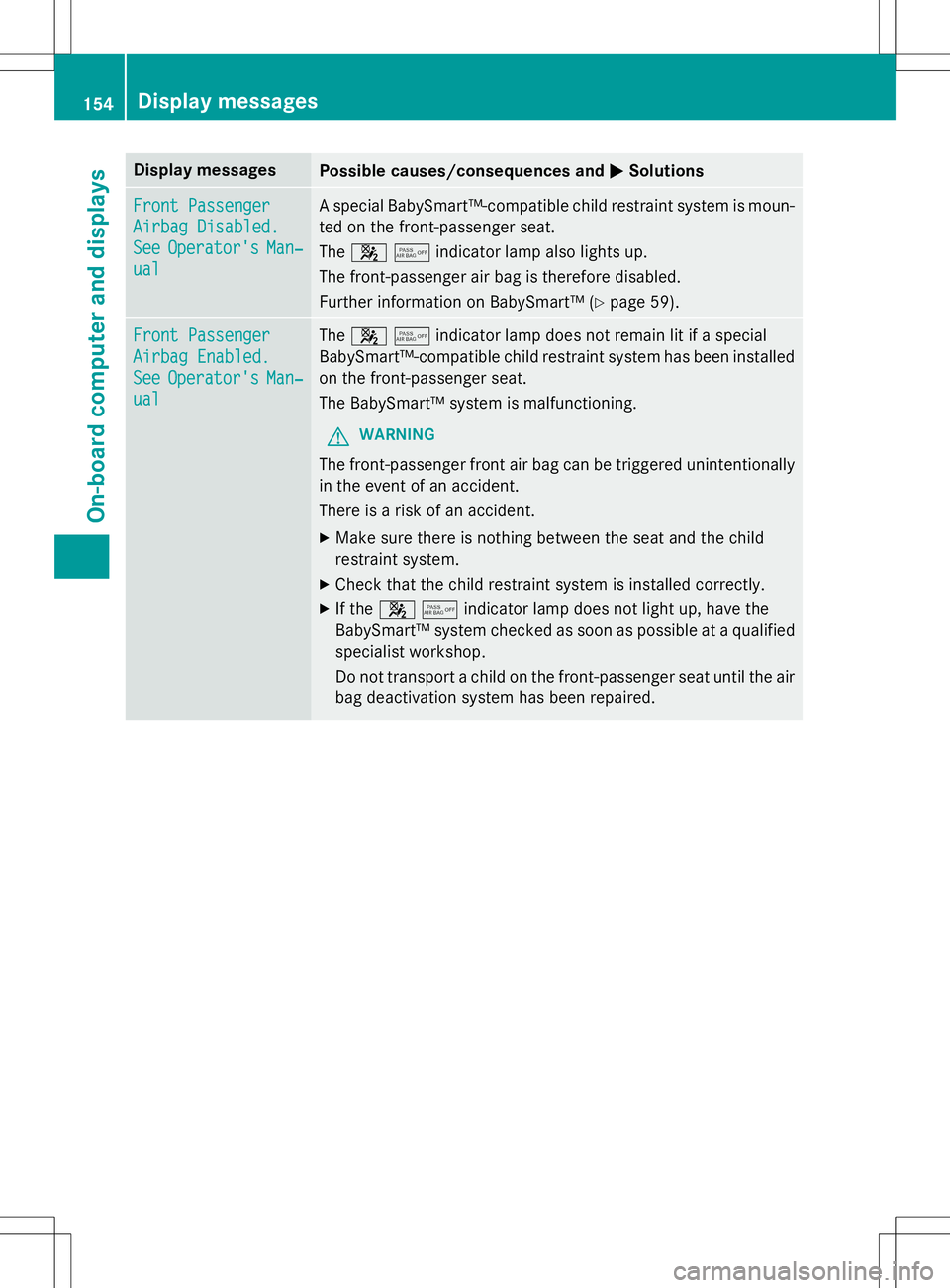

Front Passenger
Airbag Disabled.
SeeOperator'sManZ
ual
A special BabySmart™-compatible child restraint system is moun-
ted on the front-passenger seat. The 45 indicator lamp also lights up.
The front-passenger air bag is therefore disabled.
Further information on BabySmart™ ( Ypage 59).
Front Passenger
Airbag Enabled.
SeeOperator'sManZ
ual
The 45 indicator lamp does not remain lit if a special
BabySmart™-compatible child restraint system has been installed
on the front-passenger seat.
The BabySmart™ system is malfunctioning.
GWARNING
The front-passenger front air bag can be triggered unintentionally in the event of an accident.
There is a risk of an accident.
X Make sure there is nothing between the seat and the child
restraint system.
X Check that the child restraint system is installed correctly.
X If the 45 indicator lamp does not light up, have the
BabySmart™ system checked as soon as possible at a qualified
specialist workshop.
Do not transport a child on the front-passenger seat until the air
bag deactivation system has been repaired.
154Display messages
On-board computer and displays

Engine
Display messagesPossible causes/consequences andMSolutions
?
Coolant Too Hot
Stop Vehicle
Switch Engine Off
The coolant is too hot.
A warning tone also sounds.
GWARNING
Do not drive when your engine is overheated. This can cause some
fluids which may have leaked into the engine compartment to
catch fire.
Steam from the overheated engine can also cause serious burns
which can occur just by opening the hood.
There is a risk of injury. X Pull over and stop the vehicle safely and switch off the engine,
paying attention to road and traffic conditions.
X Secure the vehicle against rolling away ( Ypage 110).
X Leave the vehicle and keep a safe distance from the vehicle until
the engine has cooled down.
X Make sure that the air supply to the engine radiator is not
blocked, e.g. by snow, slush or ice.
X Do not start the engine again until the display message goes out
and the coolant temperature is below 248 ‡ (120 †). Other-
wise, the engine could be damaged.
X Pay attention to the coolant temperature display.
X If the temperature increases again, visit a qualified specialist
workshop immediately.
Under normal operating conditions and with the specified coolant
level, the coolant temperature may rise to 248 ‡ (120 †).
The poly-V-belt may have torn.
X Pull over and stop the vehicle safely and switch off the engine,
paying attention to road and traffic conditions.
X Check the poly-V-belt.
If the poly-V-belt is torn:
!Do not continue driving. The engine could otherwise overheat.
X Consult a qualified specialist workshop.
If the poly-V-belt is not damaged:
X Wait until the display message disappears before restarting the
engine. Otherwise, the engine could be damaged.
X Pay attention to the coolant temperature display.
X Visit a qualified specialist workshop.
Display messages155
On-board computer and displays
Z

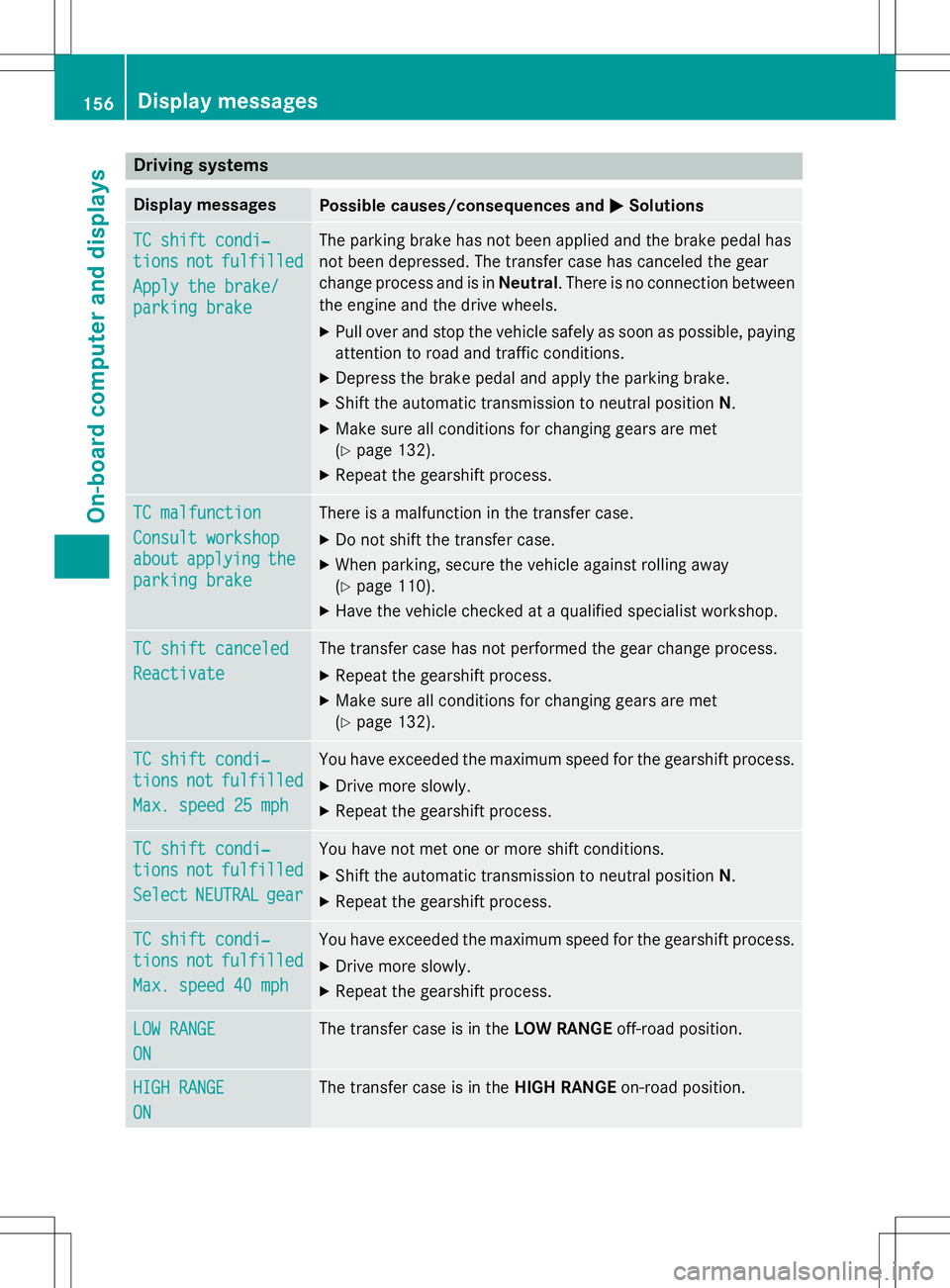

Driving systems
Display messagesPossible causes/consequences andMSolutions
TC shift condiZ
tionsnotfulfilled
Apply the brake/
parking brake
The parking brake has not been applied and the brake pedal has
not been depressed. The transfer case has canceled the gear
change process and is inNeutral. There is no connection between
the engine and the drive wheels.
X Pull over and stop the vehicle safely as soon as possible, paying
attention to road and traffic conditions.
X Depress the brake pedal and apply the parking brake.
X Shift the automatic transmission to neutral position N.
X Make sure all conditions for changing gears are met(Y page 132).
X Repeat the gearshift process.
TC malfunction
Consult workshop
aboutapplyingthe
parking brake
There is a malfunction in the transfer case.
X Do not shift the transfer case.
X When parking, secure the vehicle against rolling away (Y page 110).
X Have the vehicle checked at a qualified specialist workshop.
TC shift canceled
Reactivate
The transfer case has not performed the gear change process. XRepeat the gearshift process.
X Make sure all conditions for changing gears are met (Y page 132).
TC shift condiZ
tionsnotfulfilled
Max. speed 25 mph
You have exceeded the maximum speed for the gearshift process.
X Drive more slowly.
X Repeat the gearshift process.
TC shift condiZ
tionsnotfulfilled
SelectNEUTRALgear
You have not met one or more shift conditions.
X Shift the automatic transmission to neutral position N.
X Repeat the gearshift process.
TC shift condiZ
tionsnotfulfilled
Max. speed 40 mph
You have exceeded the maximum speed for the gearshift process.
X Drive more slowly.
X Repeat the gearshift process.
LOW RANGE
ON
The transfer case is in the LOW RANGEoff-road position.
HIGH RANGE
ON
The transfer case is in the HIGH RANGEon-road position.
156Displaymessages
On-board computer and displays

Display messagesPossible causes/consequences andMSolutions

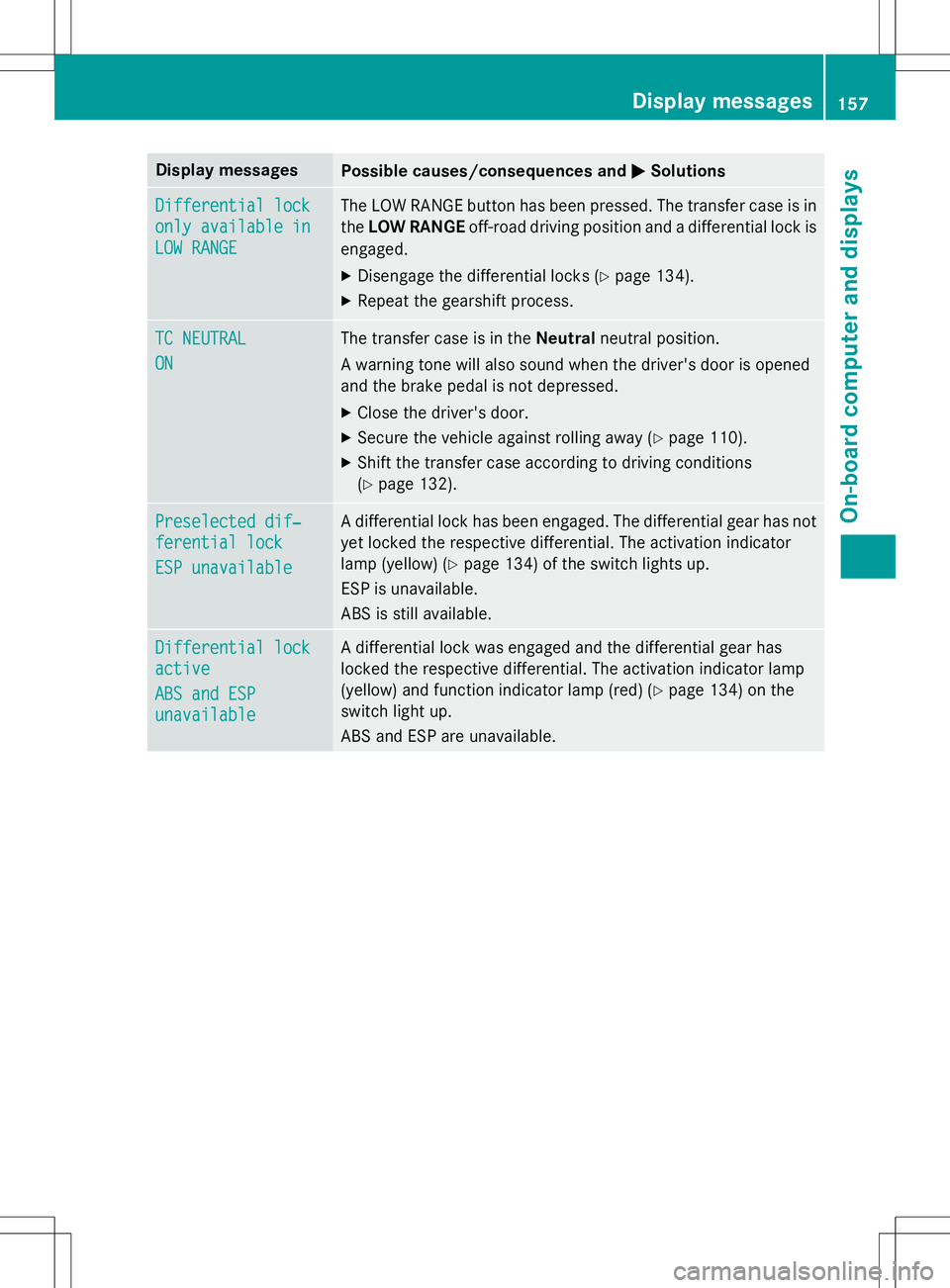

Differential lock
only available in
LOW RANGE
The LOW RANGE button has been pressed. The transfer case is in
the LOW RANGE off-road driving position and a differential lock is
engaged.
X Disengage the differential locks ( Ypage 134).
X Repeat the gearshift process.
TC NEUTRAL
ON
The transfer case is in the Neutralneutral position.
A warning tone will also sound when the driver's door is opened
and the brake pedal is not depressed.
X Close the driver's door.
X Secure the vehicle against rolling away ( Ypage 110).
X Shift the transfer case according to driving conditions(Y page 132).
Preselected difZ
ferential lock
ESP unavailable
A differential lock has been engaged. The differential gear has not
yet locked the respective differential. The activation indicator
lamp (yellow) ( Ypage 134) of the switch lights up.
ESP is unavailable.
ABS is still available.
Differential lock
active
ABS and ESP
unavailable
A differential lock was engaged and the differential gear has
locked the respective differential. The activation indicator lamp
(yellow) and function indicator lamp (red) ( Ypage 134) on the
switch light up.
ABS and ESP are unavailable.
Display messages157
On-board computer and displays
Z

Tires
Display messagesPossible causes/consequences andMSolutions
Check TiresThe tire pressure in one or more tires has dropped significantly.
The wheel position is displayed in the multifunction display.
A warning tone also sounds.
GWARNING
With tire pressures which are too low, there is a risk of the fol-
lowing hazards:
R they may burst, especially as the load and vehicle speed
increase.
R they may wear excessively and/or unevenly, which may greatly
impair tire traction.
R the driving characteristics, as well as steering and braking, may
be greatly impaired.
There is a risk of an accident.
X Stop the vehicle without making any sudden steering or braking
maneuvers. Pay attention to the traffic conditions as you do so.
X Secure the vehicle against rolling away ( Ypage 110).
X If there is a flat tire, inspect the tires ( Ypage 216).
X Check the tire pressure ( Ypage 235).
X If necessary, correct the tire pressure.
Warning Tire MalZ
function
The tire pressure in one or more tires has dropped suddenly. The
wheel position is shown in the multifunction display.
A warning tone also sounds.
GWARNING
If you drive with a flat tire, there is a risk of the following hazards:
R a flat tire affects the ability to steer or brake the vehicle.
R you could lose control of the vehicle.
R continued driving with a flat tire will cause excessive heat build-
up and possibly a fire.
There is a risk of an accident.
X Stop the vehicle without making any sudden steering or braking
maneuvers. Pay attention to the traffic conditions as you do so.
X Secure the vehicle against rolling away ( Ypage 110).
X If there is a flat tire, inspect the tires ( Ypage 216).
158Display messages
On-board computer and displays
