2015 LEXUS LS600H ECO mode

331-1. For safe use
1
For safety and security
LS600hL_U(OM50E41U)
CAUTION
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering with the
pedals while driving. An unexpectedly high speed may result or it may become diffi-
cult to stop the vehicle. This could lead to an accident, resulting in death or serious
injury.
■When installing the driver’s floor mat
●Do not use floor mats designed for other models or different model year vehicles,
even if they are Lexus Genuine floor mats.
●Only use floor mats designed for the driver’s seat.
●Always install the floor mat securely using the retaining hooks (clips) provided.
●Do not use two or more floor mats on top of each other.
●Do not place the floor mat bo ttom-side up or upside-down.
■Before driving
●Check that the floor mat is securely fixed in
the correct place with all the provided
retaining hooks (clips). Be especially care-
ful to perform this check after cleaning the
floor.
●With the hybrid system stopped and the
shift lever in P, fully depress each pedal to
the floor to make sure it does not interfere
with the floor mat.

841-2. Hybrid system
LS600hL_U(OM50E41U)
CAUTION
■High voltage precautions
The vehicle has high voltage DC and AC systems as well as a 12-volt system. DC
and AC high voltage is very dangerous and can cause severe burns and electric
shock that may result in death or serious injury.
●Never touch, disassemble, remove or re place the high voltage parts, cables or
their connectors.
●The hybrid system will become hot after starting as the system uses high voltage.
Be careful of both the high voltage and the high temperature, and always obey
the caution labels attached to the vehicle.
●Never try to open the service plug access
hole located behind the rear seat. The ser-
vice plug is used only when the vehicle is
serviced and is subject to high voltage.5-seat models
4-seat models

901-3. Theft deterrent system
LS600hL_U(OM50E41U)
The alarm uses light and sound to give an alert when an intrusion is
detected.
The alarm is triggered in the following situations when the alarm is set:
●A locked door or trunk is unlocked or opened in any way other than
using the entry function, wireless remote control or mechanical key.
(The doors will lock again automatically.)
●The hood is opened.
Close the doors, trunk and hood,
and lock all the doors. The system
will be set automatically after 30
seconds.
The indicator light changes from
being on to flashing when the system
is set.
Do one of the following to deactivate or stop the alarms:
●Unlock the doors or open the trunk.
●Turn the power switch to ACCESS ORY or ON mode, or start the
hybrid system. (The alarm will be deactivated or stopped after a few
seconds.)
Alarm
The alarm
Setting the alarm system
Deactivating or stopping the alarm

962. Instrument cluster
LS600hL_U(OM50E41U)
*1: These lights come on when the power switch is turned to ON mode to indicatethat a system check is being performed. They will go off after the hybrid system is
on, or after a few seconds. There may be a malfunction in a system if the lights do
not come on, or go off. Have the vehicle inspected by your Lexus dealer.
*2: The light flashes to indicate a malfunction.

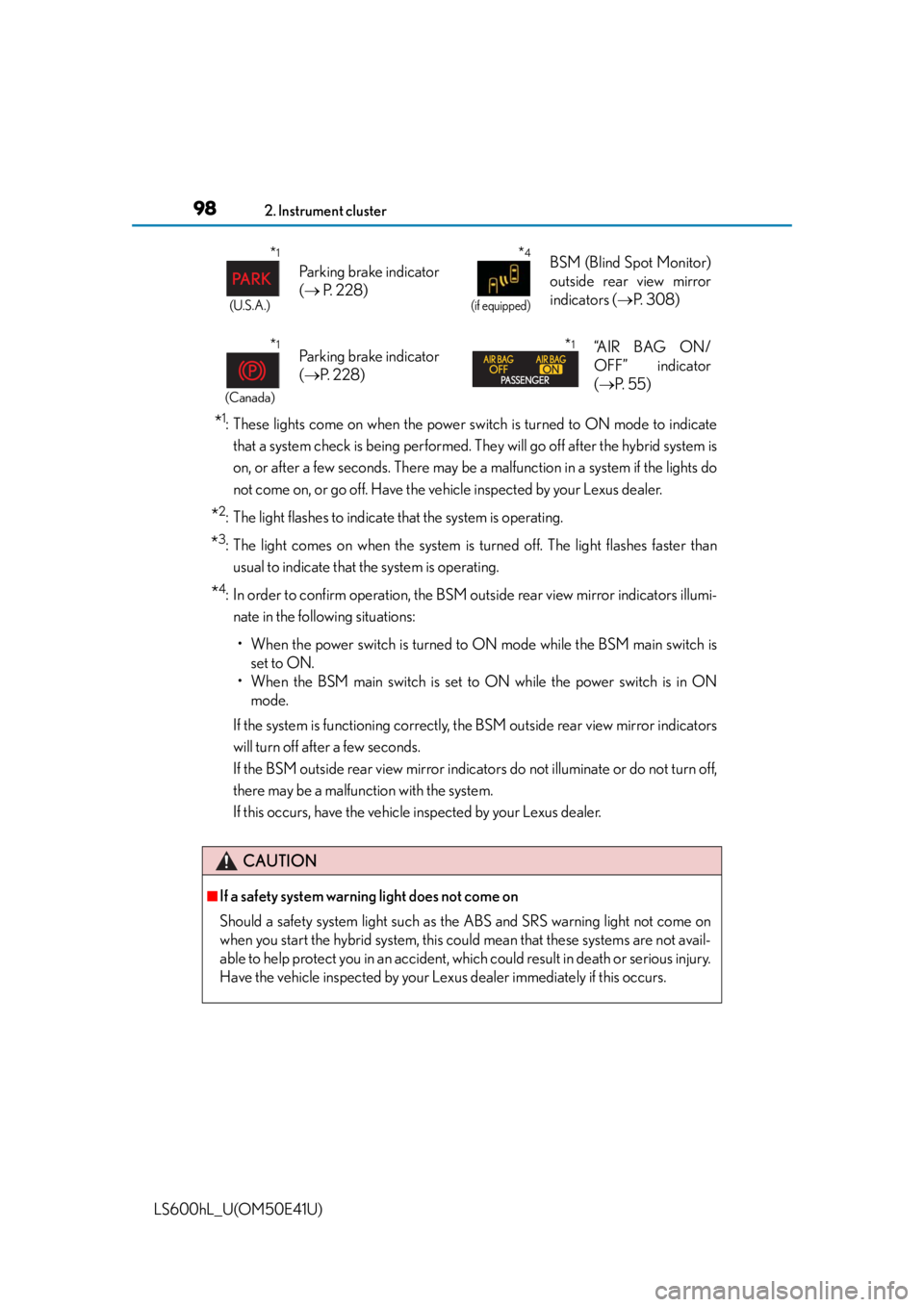

*1
(U.S.A.)
ABS warning light
( P. 4 9 4 )Low fuel level warning light
( P. 4 9 6 )
*1
(Canada)
ABS warning light
( P. 4 9 4 )Seat belt reminder light
( P. 4 9 6 )
*1Electric power steering
system warning light
( P. 4 9 4 )*1Master warning light
( P. 4 9 6 )
*1, 2
(if equipped)
Pre-collision system warn-
ing light ( P. 495)*1
Tire pressure warning light
( P. 4 9 7 )

982. Instrument cluster
LS600hL_U(OM50E41U)
*1: These lights come on when the power switch is turned to ON mode to indicatethat a system check is being performed. They will go off after the hybrid system is
on, or after a few seconds. There may be a malfunction in a system if the lights do
not come on, or go off. Have the vehicle inspected by your Lexus dealer.
*2: The light flashes to indicate that the system is operating.
*3: The light comes on when the system is turned off. The light flashes faster than
usual to indicate that the system is operating.
*4: In order to confirm operation, the BSM ou tside rear view mirror indicators illumi-
nate in the following situations:
• When the power switch is turned to ON mode while the BSM main switch is set to ON.
• When the BSM main switch is set to ON while the power switch is in ON mode.
If the system is functioning correctly, the BSM outside rear view mirror indicators
will turn off after a few seconds.
If the BSM outside rear view mirror indicato rs do not illuminate or do not turn off,
there may be a malfunction with the system.
If this occurs, have the vehicle inspected by your Lexus dealer.
*1
(U.S.A.)
Parking brake indicator
(  P. 2 2 8 )
*4
(if equipped)
BSM (Blind Spot Monitor)
outside rear view mirror
indicators ( P. 3 0 8 )
*1
(Canada)
Parking brake indicator
( P. 2 2 8 )*1“A I R B A G O N /
OFF” indicator
( P. 5 5 )
CAUTION
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not come on
when you start the hybrid system, this co uld mean that these systems are not avail-
able to help protect you in an accident, wh ich could result in death or serious injury.
Have the vehicle inspected by your Lexus dealer immediately if this occurs.

1002. Instrument cluster
LS600hL_U(OM50E41U)
Engine coolant temperature gauge
Displays the engine coolant temperature
Hybrid System Indicator
Displays hybrid system output or regeneration level ( P. 1 0 3 )
ECO lamp and SPORT lamp
Changes colors or brightness according to driving mode or way of driving
( P. 1 0 3 )
Speedometer
Displays the vehicle speed
Fuel gauge
Displays the quantity of fuel remaining in the tank
Odometer/trip meter and trip meter reset switches
Multi-information display
Presents the driver with a variety of driving-related data ( P. 105)
Outside Temperature
Displays the outside temperature within the range of -40°F (-40°C) to 122°F
(50°C)
Odometer and trip meter display
Odometer:
Displays the total distance the vehicle has been driven
Tr i p m e t e r :
Displays the distance the vehicle has been driven since the meter was last reset.
Trip meters “A” and “B” can be used to record and display different distances inde-
pendently.
Shift position and shift range
Displays the selected shift position or selected shift range ( P. 2 2 3 )
Instrument panel light control switches
Tachometer
Displays the engine speed in revolutions per minute
1
2
3
4
5
6
7
8
9
10
11
12

1032. Instrument cluster
2
Instrument cluster
LS600hL_U(OM50E41U)
■Hybrid System Indicator
●Hybrid System Indicator is displayed when the driving mode is other than the sport
mode.
●By keeping the indicator needle within Ec o area, more Eco-friendly driving can be
achieved.
●Charge area indicates regeneration* status. Regenerated energy will be used to
charge the battery.
*: When used in this manual, “regeneration” refers to the conversion of energy cre-
ated by the movement of the vehicle into electrical energy.
■ECO lamp and SPORT lamp
●When all of the following conditions are satisfied and Eco-friendly driving is being
performed, ECO lamp (blue) will illuminate. (ECO lamp will become brighter the
more Eco-friendly your driving is. Also, while the vehicle is stopped or the acceler-
ation exceeds Zone of Eco driving, ECO lamp turns off. ( P. 103) However, when
Eco drive mode is selected, while the vehicle is stopped or the acceleration
exceeds Zone of Eco driving, ECO lamp does not turn off.):
• Driving with the shift lever in D.
• Normal mode, comfort mode or Eco dr ive mode is selected, and EV drive
mode and snow mode is not in use.
• The vehicle speed is approximately 80 mph (130 km/h) or below.
●When sport mode is selected, SPORT lamp (red) will illuminate. Charge area
Shows regenerative charging.
Hybrid Eco area
Shows that gasoline engine power is not
being used very often.
The gasoline engine will automatically stop
and restart under various conditions.
Eco area
Shows that the vehicle is being driven in an
Eco-friendly manner.
Po w e r a r e a
Shows that an Eco-friendly driving range is
being exceeded (during full power driving
etc.)
1
2
3
4

1042. Instrument cluster
LS600hL_U(OM50E41U)
■Tachometer
Hybrid System Indicator switches to the tachometer when driving mode is in sport
mode.
■Engine speed
On hybrid vehicles, engine speed is precis ely controlled in order to help improve
fuel efficiency and reduce exhaust emissions etc.
There are times when the engine speed that is displayed may differ even when vehi-
cle operation and driving conditions are the same.
■Outside temperature display
In the following situations, the correct outside temperature may not be displayed, or
the display may take longer than normal to change.
●When stopped, or driving at low speeds (less than 12 mph [20 km/h])
●When the outside temperature has changed suddenly (at the entrance/exit of a
garage, tunnel, etc.)
■Customization
Settings (e.g. on/off operatio n of ECO lamp) can be changed.
(Customizable features P. 565)
NOTICE
■To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which indi-
cates the maximum engine speed.
●The engine may be overheating if the engine coolant temperature gauge is in the
red zone (H). In this case, immediately stop the vehicle in a safe place, and check
the engine after it has cooled completely. ( P. 5 3 0 )
