2015 LEXUS LS600H light

4075-6. Other interior features
5
Interior features
LS600hL_U(OM50E41U)
Press the appropriate HomeLink button. The HomeLink indicator light
should turn on.
The HomeLink compatible transceiver in your vehicle continues to send a
signal for up to 20 seconds as long as the button is pressed.
Press and hold the desired HomeLink button. After 20 seconds, the
HomeLink
 indicator light will start flashing slowly. Next, while still press-
ing and holding the HomeLink
 button, press and hold the button on the
transmitter until the HomeLink
 indicator light changes from a slow to a
rapid flash.
Press and hold the 2 outside buttons
for 10 seconds until the indicator
light flashes.
If you sell your vehicle, be sure to
erase the programs stored in the
HomeLink
 memory.
Operating HomeLink®
Reprogramming a HomeLink® button
Erasing the entire HomeLink® memory (all three programs)

4105-6. Other interior features
LS600hL_U(OM50E41U)
■System componentsMicrophone
“SOS” button
LED light indicators
LEXUS Enform Safety Connect
: If equipped
Safety Connect is a subscripti on-based telematics service that uses
Global Positioning System (GPS ) data and embedded cellular technol-
ogy to provide safety and security fe atures to subscribers. Safety Con-
nect is supported by Lexus’ designated response center, which
operates 24 hours per day, 7 days per week.
Safety Connect service is available by subscription on select, telemat-
ics hardware-equipped vehicles.
By using the Safety Connect servic e, you are agreeing to be bound by
the Telematics Subscription Service Agreement and its Terms and
Conditions, as in effect and amen ded from time to time, a current copy
of which is available at Lexus.co m. All use of the Safety Connect ser-
vice is subject to such then-applicable Terms and Conditions.
1
2
3

4135-6. Other interior features
5
Interior features
LS600hL_U(OM50E41U)
When the power switch is turned to ON mode, the red indicator light
comes on for 2 seconds then turns off. Afterward, the green indicator light
comes on, indicating that the service is active.
The following indicator light patter ns indicate specific system usage con-
ditions:
●Green indicator light on = Active service
●Green indicator light flashing = Safety Connect call in process
●Red indicator light (except at vehicle start-up) = System malfunction
(contact your Lexus dealer)
●No indicator light (off) = Safety Connect service not active
■Automatic Collision Notification
In case of either airbag deployment or severe rear-end collision, the
system is designed to automatically call the response center. The
responding agent receives the vehicl e’s location and attempts to speak
with the vehicle occupants to assess the level of emergency. If the occu-
pants are unable to communicate, th e agent automatically treats the
call as an emergency, contacts th e nearest emergency services pro-
vider to describe the situation, and re quests that assistance be sent to
the location.
Safety Connect LED light Indicators
Safety Connect services

417
Maintenance and care6
LS600hL_U(OM50E41U)6-1. Maintenance and care
Cleaning and protecting the vehicle exterior.................. 418
Cleaning and protecting the vehicle interior .................. 422
6-2. Maintenance Maintenance requirements............................. 425
General maintena nce .............. 428
Emission inspection and maintenance (I/M)
programs .................................... 432
6-3. Do-it-yourself maintenance
Do-it-yourself service precautions ................................ 433
Hood ............................................... 436
Positioning a floor jack ............. 437
Engine compartment ............... 439
12-volt battery.............................. 450
Tires .................................................. 454
Tire inflation pressure ............... 464
Wheels ........................................... 467
Air conditioning filter ............... 469
Electronic key battery ...............472
Checking and replacing fuses ............................................... 474
Headlight aim .............................. 479
Light bulbs...................................... 481

4216-1. Maintenance and care
6
Maintenance and care
LS600hL_U(OM50E41U)
NOTICE
■To prevent paint deterioration and corrosion on the body and components (alu-
minum wheels etc.)
●Wash the vehicle immediately in the following cases:
• After driving near the sea coast
• After driving on salted roads
• If coal tar or tree sap is present on the paint surface
• If dead insects, insect droppings or bird droppings are present on the paintsurface
• After driving in an area contaminated with soot, oily smoke, mine dust, iron
powder or chemical substances
• If the vehicle becomes heavily soiled with dust or mud
• If liquids such as benzene and gasoline are spilled on the paint surface
●If the paint is chipped or scratched, have it repaired immediately.
●To prevent the wheels from corroding, remove any dirt and store in a place with
low humidity when storing the wheels.
■Cleaning the exterior lights
●Wash carefully. Do not use organic subs tances or scrub with a hard brush.
This may damage the surfaces of the lights.
●Do not apply wax to the surfaces of the lights.
Wax may cause damage to the lenses.
■When using an automatic car wash
Set the wiper switch to the off position.
If the wiper switch is in “AUTO”, the wipers may operate and the wiper blades may
be damaged.
■When using a high pressure car wash
●When washing the vehicle, do not spray the camera or its surrounding area
directly with a high pressure washer. Shock applied from high pressure water may
cause the device to not operate normally.
●Do not bring the nozzle tip close to joinin g parts, boots (rubber or plastic covers),
or connectors of the following as they may be damaged if they come into contact
with high pressure water.
•Drivetrain
•Steering •Suspension
•Brakes

4246-1. Maintenance and care
LS600hL_U(OM50E41U)
NOTICE
■Cleaning detergents
●Do not use the following types of detergent, as they may discolor the vehicle inte-
rior or cause streaks or damage to painted surfaces:
• Non-seat portions: Organic substances such as benzene or gasoline, alkalineor acidic solutions, dye, and bleach
• Seats: Alkaline or acidic solutions, such as thinner, benzene, and alcohol
●Do not use polish wax or polish cleaner. The instrument panel’s or other interior
part’s painted surf ace may be damaged.
■Preventing damage to leather surfaces
Observe the following precautions to avoid damage to and deterioration of
leather surfaces:
●Remove any dust or dirt from leather surfaces immediately.
●Do not expose the vehicle to direct sunlight for extended periods of time. Park
the vehicle in the shade, especially during summer.
●Do not place items made of vinyl, plastic, or containing wax on the upholstery, as
they may stick to the leather surface if the vehicle interior heats up significantly.
■Water on the floor
Do not wash the vehicle floor with water.
Vehicle systems such as the audio syst em may be damaged if water comes into
contact with electrical components such as the audio system above or under the
floor of the vehicle. Water may also cause the body to rust.
■When cleaning the inside of the windsh ield (vehicles with LKA [Lane-Keeping
Assist])
Be careful not to touch the camera sensor ( P. 273).
If the camera is accidentally scratched or hit, LKA may not operate properly or
may cause a malfunction.
■Cleaning the inside of the rear window
●Do not use glass cleaner to clean the rear window, as this may cause damage to
the rear window defogger heater wires or antenna. Use a cloth dampened with
lukewarm water to gently wipe the window clean. Wipe the window in strokes
running parallel to the heater wires or antenna.
●Be careful not to scratch or damage the heater wires or antenna.

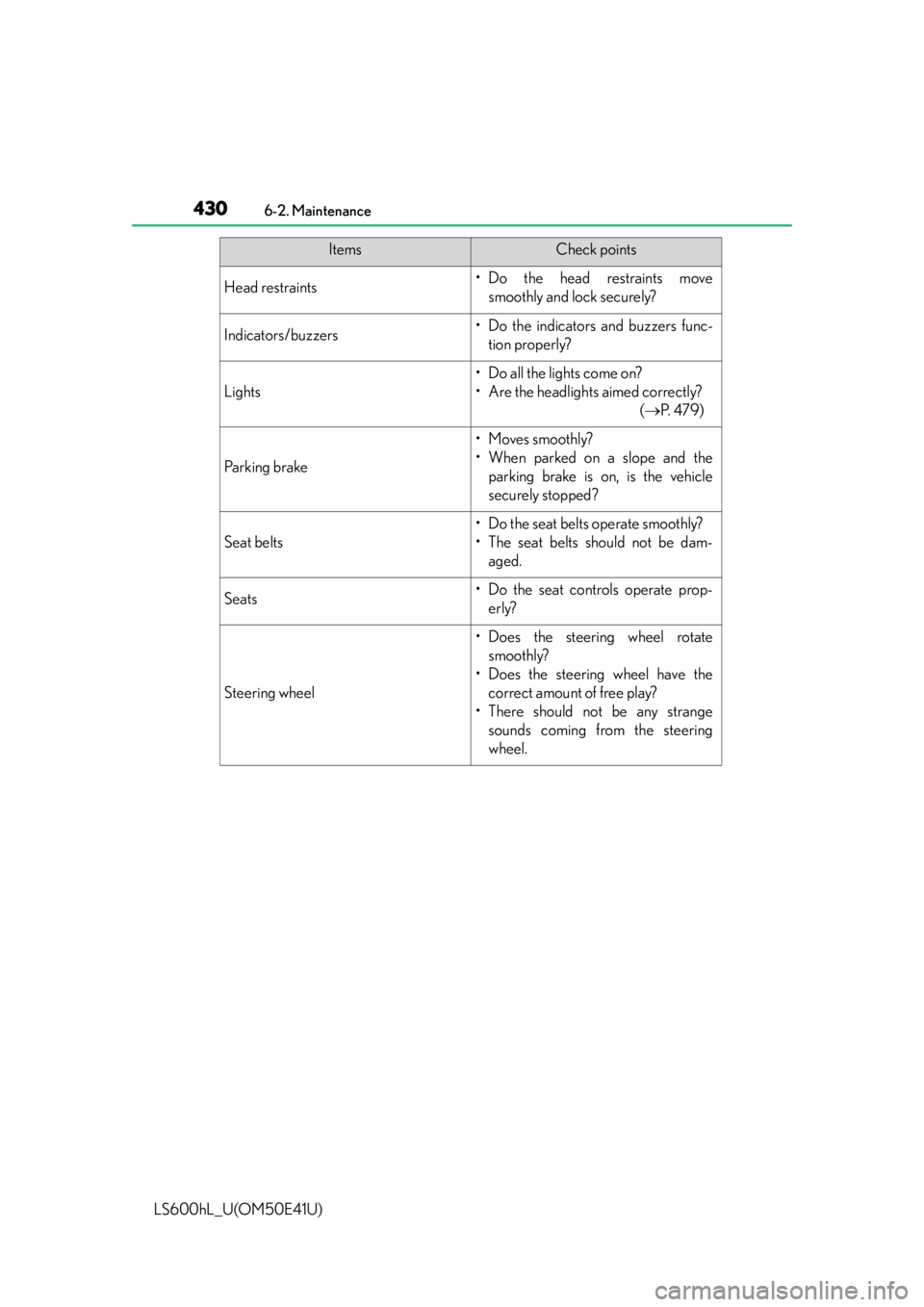

4306-2. Maintenance
LS600hL_U(OM50E41U)
Head restraints•Do the head restraints movesmoothly and lock securely?
Indicators/buzzers• Do the indicators and buzzers func-tion properly?
Lights
• Do all the lights come on?
• Are the headlights aimed correctly? ( P. 4 7 9 )
Parking brake
• Moves smoothly?
• When parked on a slope and the
parking brake is on, is the vehicle
securely stopped?
Seat belts
• Do the seat belts operate smoothly?
• The seat belts should not be dam-aged.
Seats• Do the seat controls operate prop-erly?
Steering wheel
• Does the steering wheel rotatesmoothly?
• Does the steering wheel have the correct amount of free play?
• There should not be any strange sounds coming from the steering
wheel.
ItemsCheck points

433
6
Maintenance and care
LS600hL_U(OM50E41U)
6-3. Do-it-yourself maintenance
Do-it-yourself service precautions
If you perform maintenance by yourself, be sure to follow the correct
procedure as given in these sections.
ItemsPa r t s a n d t o o l s
12-volt battery condition (P. 4 5 0 )
•Grease
• Conventional wrench
(for terminal clamp bolts)
Brake fluid level ( P. 448)
• FMVSS No.116 DOT 3 or SAE J1703
brake fluid
•Rag or paper towel
• Funnel (used only for adding brake fluid)
Engine/power control unit
coolant level ( P. 445)
•“To y o t a Super Long Life Coolant” or
a similar high quality ethylene glycol-
based non-silicate, non-amine, non-
nitrite and non-borate coolant with
long-life hybrid organic acid technol-
ogy
For the U.S.A.:
“Toyota Super Long Life Coolant” is
pre-mixed with 50% coolant and
50% deionized water.
For Canada:
“Toyota Super Long Life Coolant” is
pre-mixed with 55% coolant and
45% deionized water.
• Funnel (used only for adding coolant)
Engine oil level ( P. 4 4 2 )
• “Toyota Genuine Motor Oil” or
equivalent
•Rag or paper towel
• Funnel (used only for adding engine oil)
Fuses ( P. 4 74 )• Fuse with same amperage rating as
original
Headlight aim ( P. 4 7 9 )• Phillips-head screwdriver
