■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may need
replacement. (P. 4 8 1 )
●If the replaced fuse blows again, have the vehicle inspected by your Lexus dealer.
■If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than that indicated, or use any
other object in place of a fuse.
●Always use a genuine Lexus fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
●Do not modify the fuses or fuse boxes.
■Fuse box near the power control unit
Never check or replace the fuses as there are high voltage parts and wiring near
the fuse box.
Doing so may cause electric shock, resulting in death or serious injury.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your Lexus
dealer as soon as possible.

4796-3. Do-it-yourself maintenance
6
Maintenance and care
LS600hL_U(OM50E41U)
P. 4 4 0
Adjustment bolt A
Adjustment bolt B
Make sure the vehicle has a full ta nk of gasoline and the area around
the headlight is not deformed.
Park the vehicle on level ground.
Sit in the driver’s seat.
Bounce the vehicle several times.
Headlight aim
Removing the engine compartment cover
Vertical movement adjusting bolts
1
2
Before checking the headlight aim
1
2
3
4

4806-3. Do-it-yourself maintenance
LS600hL_U(OM50E41U)
Using a Phillips-head screw-
driver, turn bolt A in either direc-
tion.
Remember the turning direction and
the number of turns.
Turn bolt B the same number of
turns and in the same direction as
step .
If the headlight cannot be adjusted
using this procedure, take the vehicle
to your Lexus dealer to adjust the
headlight aim.

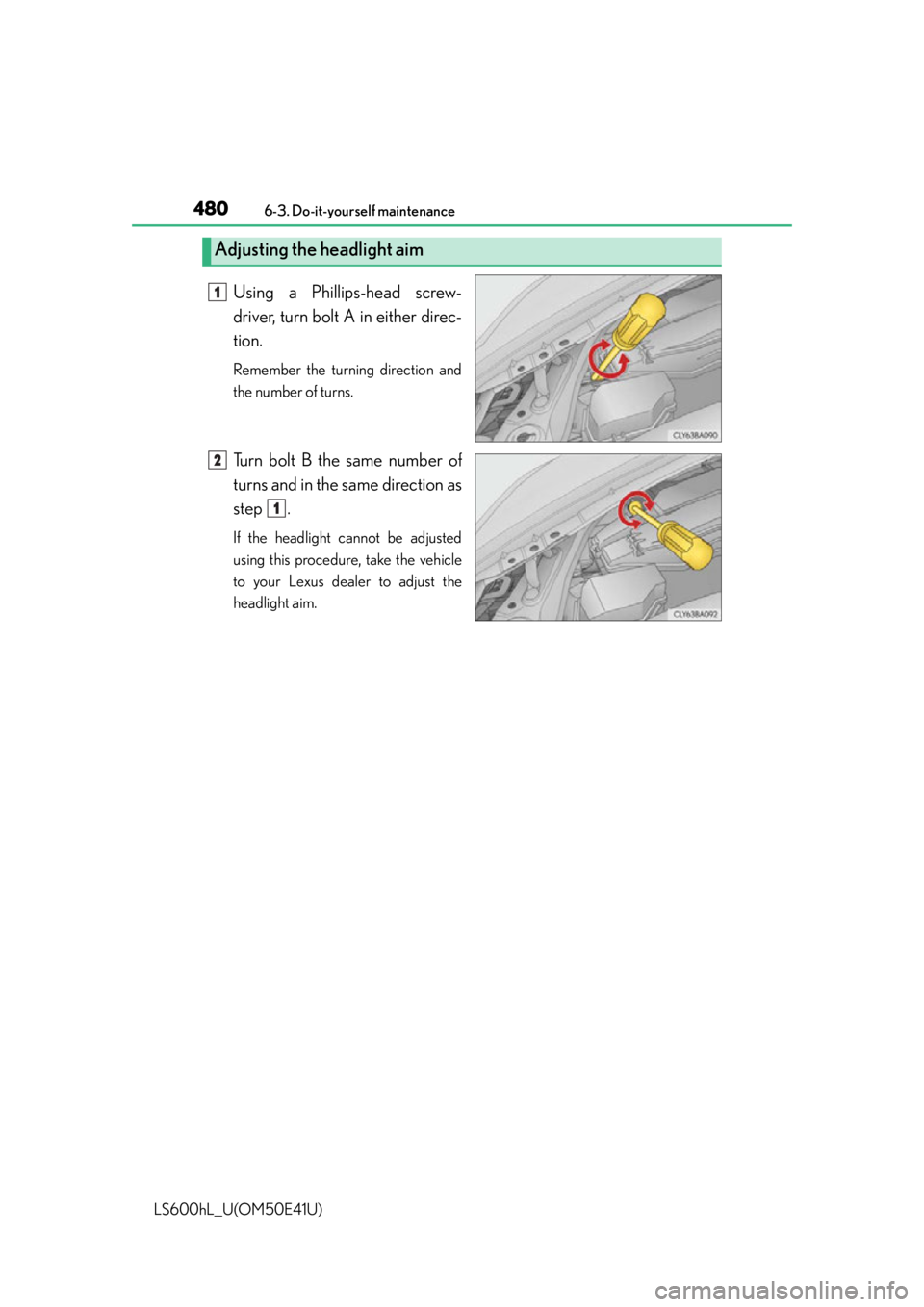

Adjusting the headlight aim
1
2
1

4816-3. Do-it-yourself maintenance
6
Maintenance and care
LS600hL_U(OM50E41U)
■LED Lights
The following lights consist of a number of LEDs. If any of the LEDs burn out, take
your vehicle to your Lexus dealer to have the light replaced.
●Headlight low beams
●Headlight low/high beams
●Headlight high beams (vehicles without LKA [Lane-Keeping Assist])
●Parking lights and daytime running lights
●Front side marker lights
●Front turn signal lights
●Front fog lights
●Side turn signal lights
●Outer foot lights
●Tail lights
●Stop lights
●Back-up lights
●Rear side marker lights
●Rear turn signal lights
●High mounted stoplight
●License plate lights
■Condensation build-up on the inside of the lens
Temporary condensation build-up on the insi de of the headlight lens does not indi-
cate a malfunction. Contact your Lexus dealer for more information in the following
situations:
●Large drops of water have built up on the inside of the lens.
●Water has built up inside the headlight.
Light bulbs
If any lights burn out, have it replaced by your Lexus dealer.

4826-3. Do-it-yourself maintenance
LS600hL_U(OM50E41U)
CAUTION
■Handling lights
Do not touch the lights while they are on or immediately after they have been
turned off. Doing so may result in burns.

483
When trouble arises7
LS600hL_U(OM50E41U)7-1. Essential information
Emergency flas hers.................. 484
If your vehicle has to be stopped in an
emergency ................................ 485 7-2. Steps to take in an
emergency
If your vehicle needs to be towed ...........................................486
If you think something is wrong ........................................... 492
If a warning light turns on or a warning buzzer
sounds.......................................... 493
If a warning message is displayed.....................................503
If you have a flat tire (vehicles with
a spare tire)................................506
If you have a flat tire (vehicles with
run-flat tires)............................... 515
If the hybrid system will not start .........................................517
If the shift lever cannot be shifted from P............................. 519
If the parking brake cannot be released................. 520
If the electronic key does not operate properly ............. 524
If the 12-volt battery is discharged ................................. 527
If your vehicle overheats .........530
If the vehicle becomes stuck ............................................. 535

4937-2. Steps to take in an emergency
7
When trouble arises
LS600hL_U(OM50E41U)
The following warning indicates a possible problem in the brake system.
Immediately stop the vehicle in a safe place and contact your Lexus
dealer.
If a warning light turns on or a warning buzzer
sounds
Calmly perform the following actions if any of the warning lights comes
on or flashes. If a light comes on or flashes, but then goes off, this does
not necessarily indicate a malfunction in the system. However, if this
continues to occur, have the vehicle inspected by your Lexus dealer.
Stop the vehicle immediately. Cont inuing to drive the vehicle may
be dangerous.
Warning lightWarning light/Details
(U.S.A.)
(Canada)Brake system warning light (warning buzzer) •Low brake fluid
• Malfunction in the electronically controlled brake system

4947-2. Steps to take in an emergency
LS600hL_U(OM50E41U)
The following warning indicates the possibility of damage to the vehicle
that may lead to an acc ident. Immediately stop th e vehicle in a safe place
and contact your Lexus dealer.
Failure to investigate the cause of th e following warnings may lead to the
system operating abnormally and possib ly cause an accident. Have the
vehicle inspected by your Lexus dealer immediately.
Stop the vehicl e immediately.
Warning lightWarning light/Details
Charging system warning light
Indicates a malfunction in the vehicle’s charging system
Have the vehicle inspected by your Lexus dealer immediately.
Warning lightWarning light/Details
(U.S.A.)
(Canada)
Malfunction indicator lamp Indicates a malfunction in:
• The hybrid system;
• The electronic engine control system;
• The electronic throttle control system; or
• The electronic hybrid transmission control system
SRS warning lightIndicates a malfunction in:
• The SRS airbag system;
• The front passenger occupant classification system;
• The seat belt pretensioner system; or
• The active head restraints system
(U.S.A.)
(Canada)
ABS warning light Indicates a malfunction in:
•The ABS; or
• The brake assist system
Electric power steering system warning lightIndicates a malfunction in the EPS (Electric Power Steering)
system
