2015 Lexus ES300h Opening, closing and locking the doors and trunk / Owner's Manual (OM33B99U)

6498-2. Steps to take in an emergency
ES350_300h_OM_OM33B99U_(U)
8
When trouble arises
A warning message is shown on the multi-information display. After taking
the specified steps to correct the suspected problem, check that the
warning message goes off.
Follow the correction procedures.
Wa r n i n g m e s s a g eDetailsCorrection procedure
Indicates that the Auto-
matic High Beam switch
is pressed while the head-
lights are in low beam.Turn the high beam on
and press the Automatic
High Beam switch again.
Indicates that the washer
fluid level is lowAdd washer fluid.
Indicates that all mainte-
nance according to the
driven distance on the
maintenance schedule
*
should be performed
soon.If necessary, perform
maintenance.
Comes on approxi-
mately 4500 miles
(7200 km) after the mes-
sage has been reset.
(If equipped)
(U.S.A. only)

6508-2. Steps to take in an emergency
ES350_300h_OM_OM33B99U_(U)
Wa r n i n g m e s s a g eDetailsCorrection procedure
Indicates that all mainte-
nance is required to cor-
respond to the driven
distance on the mainte-
nance schedule
*.Pe r f o r m t h e n e c e s s a r y
maintenance. Please
reset the message after
the maintenance is per-
formed
( P. 5 3 0 )
Comes on approxi-
mately 5000 miles
(8000 km) after the
message has been reset.
(The indicator will not
work properly unless the
message has been reset.)
Indicates that the tire
inflation pressure is lowCheck the tire inflation
pressure, and adjust to
the appropriate level.
Indicates a malfunction in
the tire pressure warning
system
Stop the vehicle in a safe
place and turn the
“START STOP ENGINE”
<“POWER”> switch off
then on again.
If the tire pressure
warning indicator
flashes for 1 minute
then illuminates, there
is a malfunction in the
system. Have the vehi-
cle inspected at your
Lexus dealer.
(U.S.A. only)

6518-2. Steps to take in an emergency
ES350_300h_OM_OM33B99U_(U)
8
When trouble arises
*: Refer to the separate “Scheduled Maintenance” or “Owner’s Manual Supple-ment” for the maintenance interval applicable to your vehicle.
Wa r n i n g m e s s a g eDetailsCorrection procedure
Indicates that the tire
position information can-
not be recognized
Drive for a short while
and check if the display
updates. If the radio wave condi-
tions improve, the dis-
play may return to
normal. If the tire pres-
sure is still not dis-
played after driving for
several minutes, stop
the vehicle in a safe
place, turn the “START
STOP ENGINE”
<“POWER”> switch off
then on again, and start
driving.
If the tire pressure is still
not displayed even
after repeating this sev-
eral times, have the
vehicle inspected at
your Lexus dealer.
Indicates that the pre-col-
lision system is not cur-
rently functional because
the grille cover or the
sensor is dirtyThis message also
appears when the pre-
collision system is not
functional due to over-
heating.
• Check the grille coverand the sensor and
clean them if they are
dirty.
• In case of overheating, the system will become
functional once the sys-
tem cools down.
(Flashes)
(If equipped)

6528-2. Steps to take in an emergency
ES350_300h_OM_OM33B99U_(U)
After taking the specified steps to correct the suspected problem, check
that the warning message and light go off.
Have the malfunction repaired immediately.
Interior buzzerExterior
buzzerWa r n i n g m e s s a g eDetailsCorrection procedure
Once
The electronic key
is not detected
when an attempt is
made to start the
engine tem>.Start the
engine
system>
with the
electronic
key present.
Once3
times
The electronic key
was carried out-
side the vehicle and
a door other than
the driver’s door
was opened and
closed while the
“START STOP
ENGINE”
<“POWER”> switch
was in a mode
other than off.
Bring the
electronic
key back
into the
vehicle.
The driver’s door
was opened and
closed while the
electronic key was
not in the vehicle,
the shift lever was in
P and the “START
STOP ENGINE”
<“POWER”> switch
was not turned off.Tu r n t h e
“START
STOP
ENGINE”
<“POWER”>
switch off or
bring the
electronic
key back
into the
vehicle.
(Flashes)
(Flashes)

6538-2. Steps to take in an emergency
ES350_300h_OM_OM33B99U_(U)
8
When trouble arises
InteriorbuzzerExterior
buzzerWa r n i n g m e s s a g eDetailsCorrection procedure
OnceCon-
tinuous
An attempt was
made to exit the
vehicle with the
electronic key and
lock the doors with-
out first turning the
“START STOP
ENGINE”
<“POWER”> switch
off when the shift
lever was in P.
Tu r n t h e
“START
STOP
ENGINE”
<“POWER”>
switch off
and lock the
doors again.
9
times
An attempt was
made to drive when
the regular key was
not inside the vehi-
cle.Confirm
that the
electronic
key is inside
the vehicle.
Con-
tinuous
The driver’s door
was opened when
the shift lever was
not in P and the
“START STOP
ENGINE”
<“POWER”> switch
was not turned off.
Shift the
shift lever to
P.
(Displayed alternately)
(Flashes)
(Flashes)
(Flashes)

6548-2. Steps to take in an emergency
ES350_300h_OM_OM33B99U_(U)
InteriorbuzzerExterior
buzzerWa r n i n g m e s s a g eDetailsCorrection procedure
Con-
tinuousCon-
tinuous
The driver’s door
was opened and
closed while the
electronic key was
not in the vehicle,
the shift lever was
not in P and the
“START STOP
ENGINE”
<“POWER”> switch
was not turned off.
• Shift the shift lever
to P.
•Bring the elec-
tronic key
back into
the vehi-
cle.
Con-
tinuous
An attempt was
made to lock the
doors using the
smart access sys-
tem with push-but-
ton start while the
electronic key was
still inside the vehi-
cle.
Retrieve the
electronic
key from the
vehicle and
lock the
doors again.
OnceCon-
tinuous
An attempt was
made to lock either
front door by open-
ing a door and put-
ting the inside lock
button into the lock
position, then clos-
ing the door with
the electronic key
still inside the vehi-
cle.
Retrieve the
electronic
key from the
vehicle and
lock the
doors again.
(Displayed alternately)
(Flashes)
(Flashes)
(Flashes)

6558-2. Steps to take in an emergency
ES350_300h_OM_OM33B99U_(U)
8
When trouble arises
InteriorbuzzerExterior
buzzerWa r n i n g m e s s a g eDetailsCorrection procedure

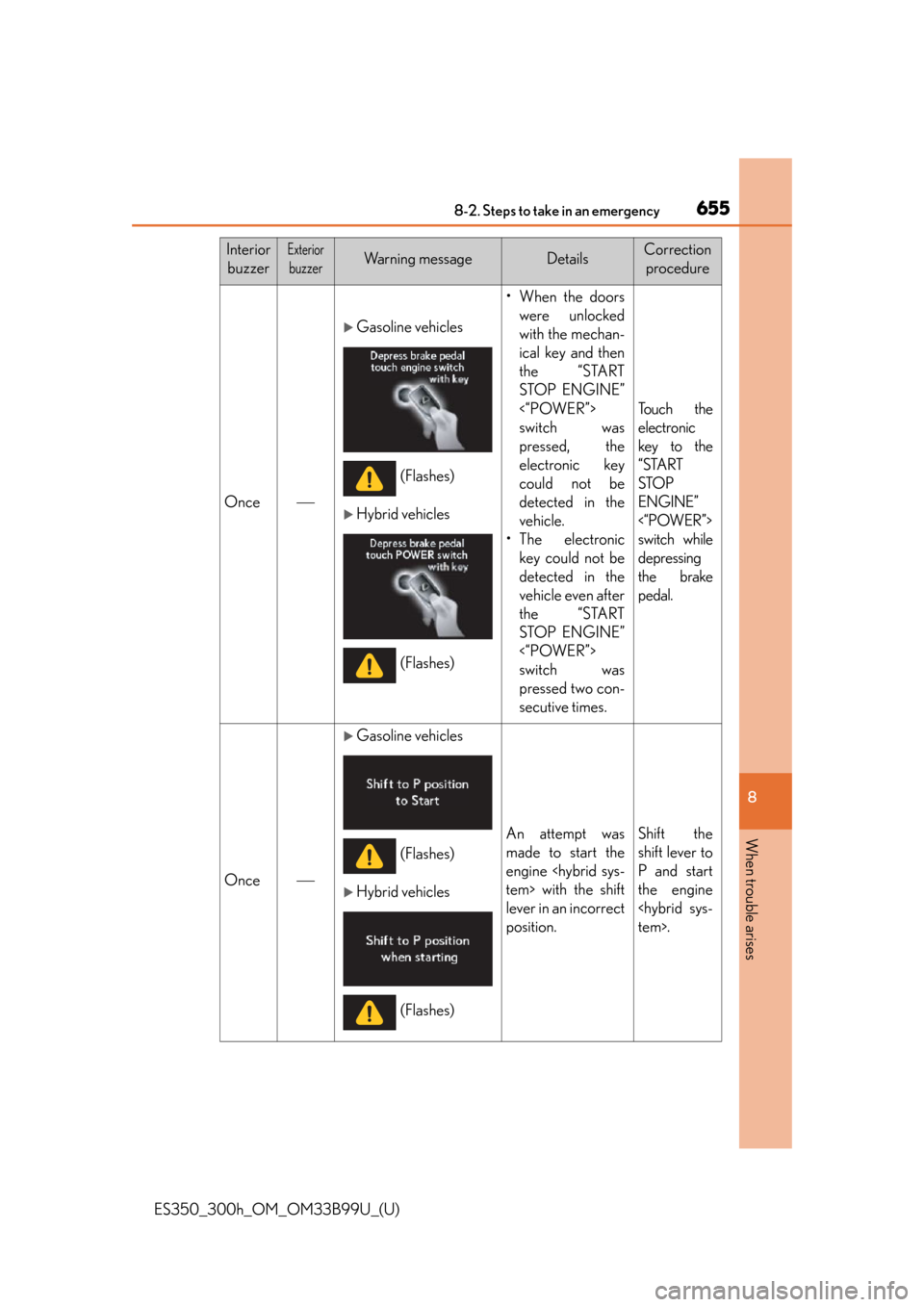

Once
Gasoline vehicles
Hybrid vehicles
•When the doors were unlocked
with the mechan-
ical key and then
the “START
STOP ENGINE”
<“POWER”>
switch was
pressed, the
electronic key
could not be
detected in the
vehicle.
• The electronic key could not be
detected in the
vehicle even after
the “START
STOP ENGINE”
<“POWER”>
switch was
pressed two con-
secutive times.
To u c h t h e
electronic
key to the
“START
STOP
ENGINE”
<“POWER”>
switch while
depressing
the brake
pedal.
Once
Gasoline vehicles
Hybrid vehicles
An attempt was
made to start the
engine tem> with the shift
lever in an incorrect
position.Shift the
shift lever to
P and start
the engine
tem>.
(Flashes)
(Flashes)
(Flashes)
(Flashes)

6568-2. Steps to take in an emergency
ES350_300h_OM_OM33B99U_(U)
InteriorbuzzerExterior
buzzerWa r n i n g m e s s a g eDetailsCorrection procedure

Power was turned
off due to the auto-
matic power off
function.
Next time
when start-
ing the
engine
tem>,
increase the
engine
speed
slightly and
maintain
that level for
approxi-
mately 5
minutes to
recharge
the 12-volt
battery.
OnceThe electronic key
has a low battery.
Replace the
electronic
key batter y.
(  P. 5 8 4 )
