Specifications & Consumer information
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . 8-4
Weight and volume . . . . . . . . . . . . . . . . . . . . . . . . . 8-5
Bulb wattage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-6
Tyres and wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-7
Recommended lubricants and capacities . . . . . . . 8-8 Recommended SAE viscosity number . . . . . . . . . . . . 8-10
Vehicle identification number (VIN) . . . . . . . . . . . 8-11
Vehicle certification label . . . . . . . . . . . . . . . . . . . . 8-11
Tyre specification and pressure label . . . . . . . . . . . 8-12
Engine number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-12
Air conditioner compressor label . . . . . . . . . . . . . . 8-12
Refrigerant label . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-13
Declaration of conformity . . . . . . . . . . . . . . . . . . . . 8-13
8
JD RHD 8.QXP 2/17/2015 10:27 AM Page 1

Specifications & Consumer information
2
8
DIMENSIONS
Itemmm (in)
3 Door 5 DoorWagon
Overall length4,310 (169.7)4,310 (169.7)4,505 (177.4)
Overall width1,780 (70.1)
2,035 (80.1) * 11,780 (70.1)
2,035 (80.1) * 11,780 (70.1)
2,035 (80.1) * 1
Overall height Except Russia1,430 (56.3)
1,425 (56.1) * 21,470 (57.9)
1,465 (57.7) * 21,485 (58.5)
1,480 (58.3) * 2
For Russia1,440 (56.7)1,480 (58.3)1,495 (58.9)
Front tread
195/65R15Steel wheel1,563 (61.5)1,563 (61.5)1,563 (61.5)
205/55R16Steel wheel1,553 (61.1)1,553 (61.1)1,553 (61.1)
Aluminum wheel1,555 (61.2)1,555 (61.2)1,555 (61.2)
225/45R17Aluminum wheel1,549 (61.0)1,549 (61.0)1,549 (61.0)
225/40R18Aluminum wheel1,545 (60.8)1,545 (60.8)-
Rear tread
195/65R15Steel wheel1,571 (61.9)1,571 (61.9)1,571 (61.9)
205/55R16Steel wheel1,561 (61.5)1,561 (61.5)1,561 (61.5)
Aluminum wheel1,563 (61.5)1,563 (61.5)1,563 (61.5)
225/45R17Aluminum wheel1,557 (61.3)1,557 (61.3)1,557 (61.3)
225/40ZR18Aluminum wheel1,553 (61.1)1,553 (61.1)-
Wheelbase2,650 (104.3)
*
1
: Width including outside mirrors (except T-GDI engine)
* 2
: Emission Package
JD RHD 8.QXP 2/17/2015 10:27 AM Page 2

83
Specifications & Consumer information

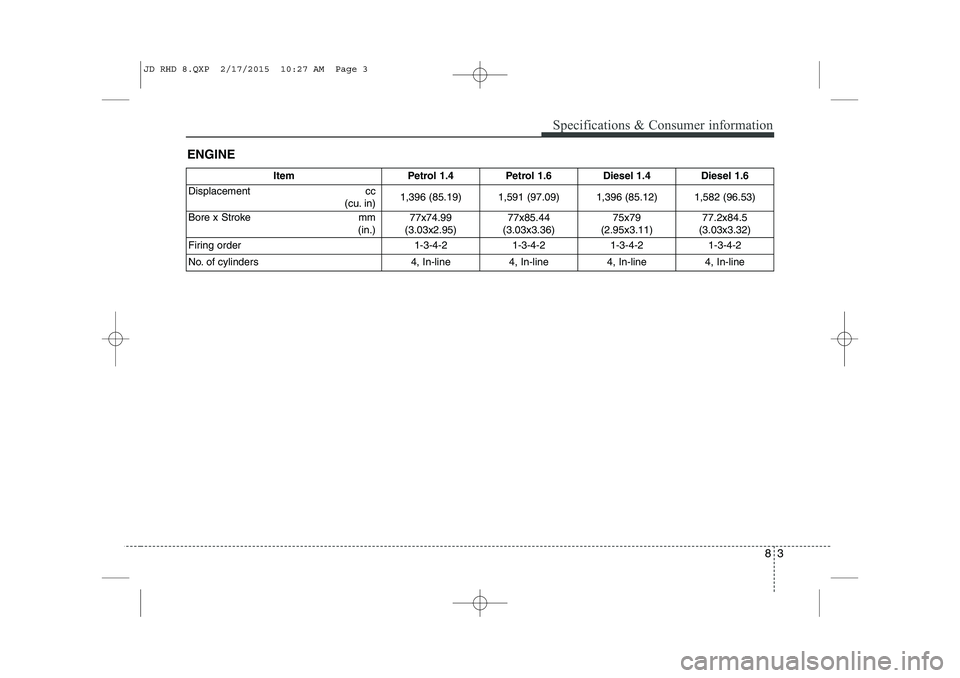

ENGINEItem Petrol 1.4 Petrol 1.6 Diesel 1.4
Diesel 1.6
Displacement cc (cu. in) 1,396 (85.19) 1,591 (97.09) 1,396 (85.12)
1,582 (96.53)
Bore x Stroke mm (in.)77x74.99
(3.03x2.95) 77x85.44
(3.03x3.36) 75x79
(2.95x3.11)
77.2x84.5
(3.03x3.32)
Firing order 1-3-4-2 1-3-4-2 1-3-4-2
1-3-4-2
No. of cylinders 4, In-line 4, In-line 4, In-line
4, In-line
JD RHD 8.QXP 2/17/2015 10:27 AM Page 3

Specifications & Consumer information
4
8

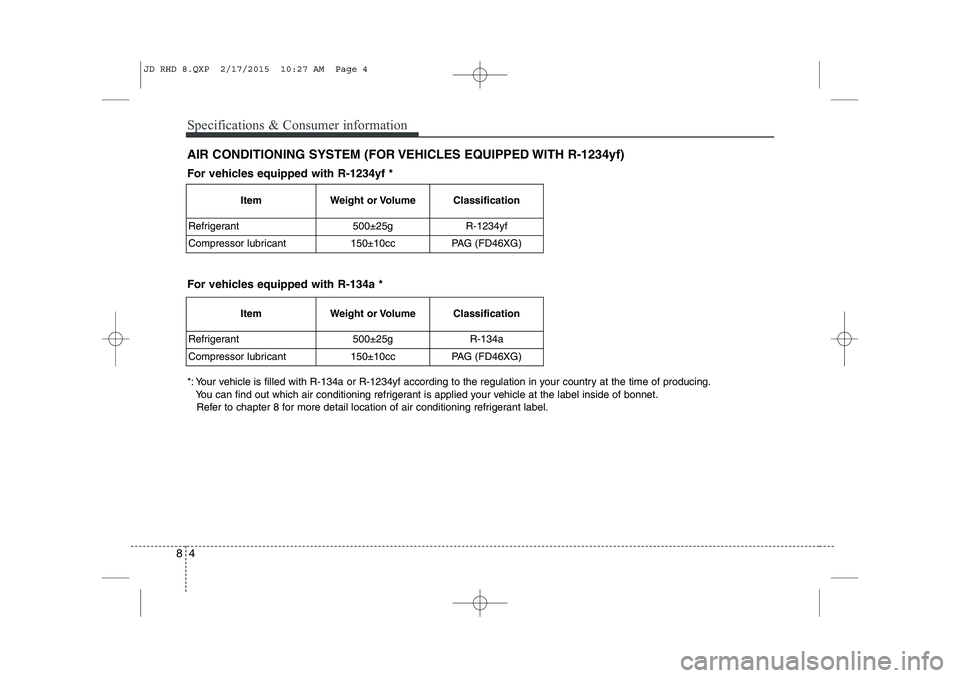

AIR CONDITIONING SYSTEM (FOR VEHICLES EQUIPPED WITH R-1234yf)
Item Weight or Volume Classification
Refrigerant 500±25g R-1234yf
Compressor lubricant 150±10cc PAG (FD46XG)
For vehicles equipped with R-1234yf *
For vehicles equipped with R-134a *
Item Weight or Volume Classification
Refrigerant 500±25g R-134a
Compressor lubricant 150±10cc PAG (FD46XG)
*: Your vehicle is filled with R-134a or R-1234yf according to the regulation in your country at the time of producing. You can find out which air conditioning refrigerant is applied your vehicle at the label inside of bonnet.Refer to chapter 8 for more detail location of air conditioning refrigerant label.
JD RHD 8.QXP 2/17/2015 10:27 AM Page 4

85
Specifications & Consumer information

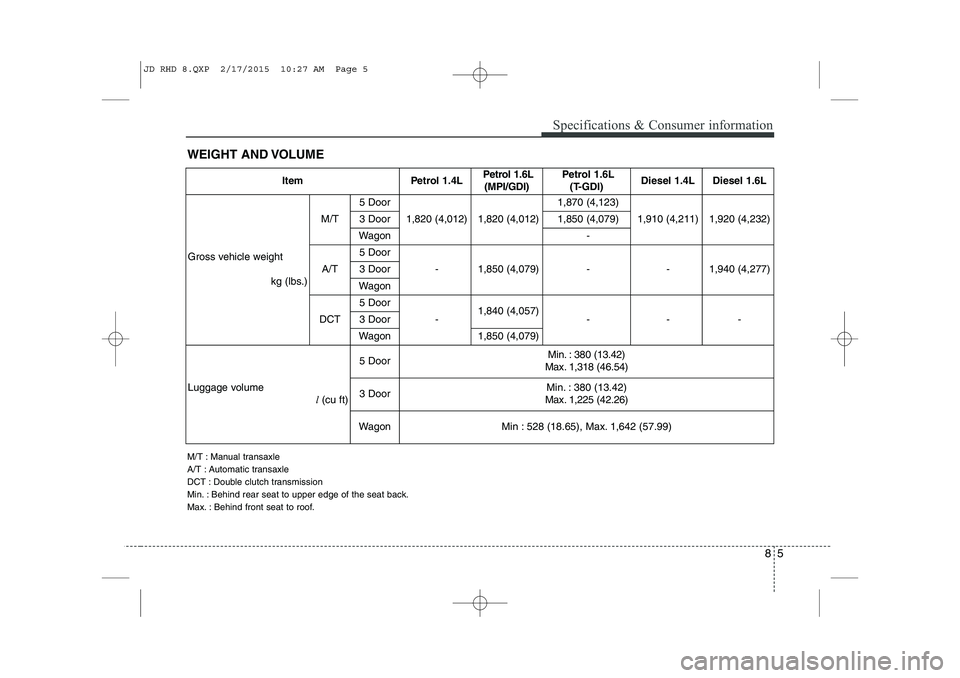

WEIGHT AND VOLUME
M/T : Manual transaxle
A/T : Automatic transaxle
DCT : Double clutch transmission
Min. : Behind rear seat to upper edge of the seat back.
Max. : Behind front seat to roof.Item Petrol 1.4L
Petrol 1.6L
(MPI/GDI) Petrol 1.6L
(T-GDI) Diesel 1.4L Diesel 1.6L
Gross vehicle weight kg (lbs.)M/T
5 Door
1,820 (4,012) 1,820 (4,012) 1,870 (4,123)
1,910 (4,211) 1,920 (4,232)
3 Door1,850 (4,079)
Wagon -
A/T 5 Door
- 1,850 (4,079) - - 1,940 (4,277)
3 Door
Wagon
DCT 5 Door
- 1,840 (4,057)
- - -
3 Door
Wagon 1,850 (4,079)
Luggage volume l(cu ft) 5 Door
Min. : 380 (13.42)
Max. 1,318 (46.54)
3 Door Min. : 380 (13.42)
Max. 1,225 (42.26)
Wagon Min : 528 (18.65), Max. 1,642 (57.99)
JD RHD 8.QXP 2/17/2015 10:27 AM Page 5

Specifications & Consumer information
6
8
BULB WATTAGE
Light Bulb5 Door and 3 DoorWagon
WattageBulb typeWattageBulb type
Front
HeadlightsLow55 or 35
(AFLS with HID)H7LL or D1S*55 or 35
(AFLS with HID)H7LL or D1S*
High55H7LL55H7LL
Static bending light*55H7LL55H7LL
Daytime running light21/LEDP21/5WXL/LED21/LEDP21/5WXL/LED
Daytime running light +
Position lights*LEDLEDLEDLED
Front turn signal lights21PY21WLL21PY21WLL
Position lights5/LEDW5WLL/LED5/LEDW5WLL/LED
Side repeater lights55W55W
Puddle lamps*LEDLEDLEDLED
Front fog lights35H8L21P21WL
Rear
Rear fog light21P21WL21P21WL
Stop and tail lights 21/5 or LEDP21/5WL or LED21/5 or LEDP21/5WL or LED
Rear turn signal lights 21P21WL21P21WL
Tail light 5 or LEDP21/5WL or LED5 or LEDP21WL or LED
Back-up lights 16W16W21P21WL
High mounted stop lightLEDLEDLEDLED
License plate lights5W5W5W5W
Interior
Map lamps8FESTOON8FESTOON
Room lamps8FESTOON8FESTOON
Luggage lamp8FESTOON8FESTOON
Glove box lamp5FESTOON5FESTOON
Vanity mirror lamps5FESTOON5FESTOON
HID : High Intensity Discharge
AFLS : Adaptive Front-Lighting System * : if equipped
JD RHD 8.QXP 2/17/2015 10:27 AM Page 6

87
Specifications & Consumer information
✽✽NOTICE
We recommend that when replacing tyres, use the same originally supplied with the veh icles.
If not, that affects driving performance.
TYRES AND WHEELS * 1
: Load Index
* 2
: Speed Symbol
* 3
: For eco dynamics trim
ItemTyre sizeWheel
sizeLoad CapacitySpeed capacityInflation pressure bar(psi, kPa)Wheel lug nuttorque Kgf·m (lb·ft, N·m)
Normal loadMaximum load
LI * 1KgSS * 2Km/hFrontRear FrontRear
Full size
tyre
195/65R15* 36.0J×15 91615H2102.5
(36,250)2.5
(36,250)2.5
(36,250)2.5
(36,250)
9~11 (65~79, 88~107)
195/65R156.0J×15 91615H2102.2
(32,220)2.2
(32,220)2.2
(32,220)2.2
(32,220)
205/55R166.5J×1691615H2102.2
(32,220)2.2
(32,220)2.2
(32,220)2.2
(32,220)
225/45R177.0J×1791615V2402.2
(32,220)2.2
(32,220)2.2
(32,220)2.2
(32,220)
225/40ZR187.5J×1892630Y3002.2
(32,220)2.2
(32,220)2.2
(32,220)2.2
(32,220)
Compact
spare tyreT125/80D154.0T×1595690M1304.2
(60, 420)4.2
(60, 420)4.2
(60, 420)4.2
(60, 420)
T125/80D164.0T×1697730M1304.2
(60, 420)4.2
(60, 420)4.2
(60, 420)4.2
(60, 420)
JD RHD 8.QXP 2/17/2015 10:27 AM Page 7

Specifications & Consumer information
8
8

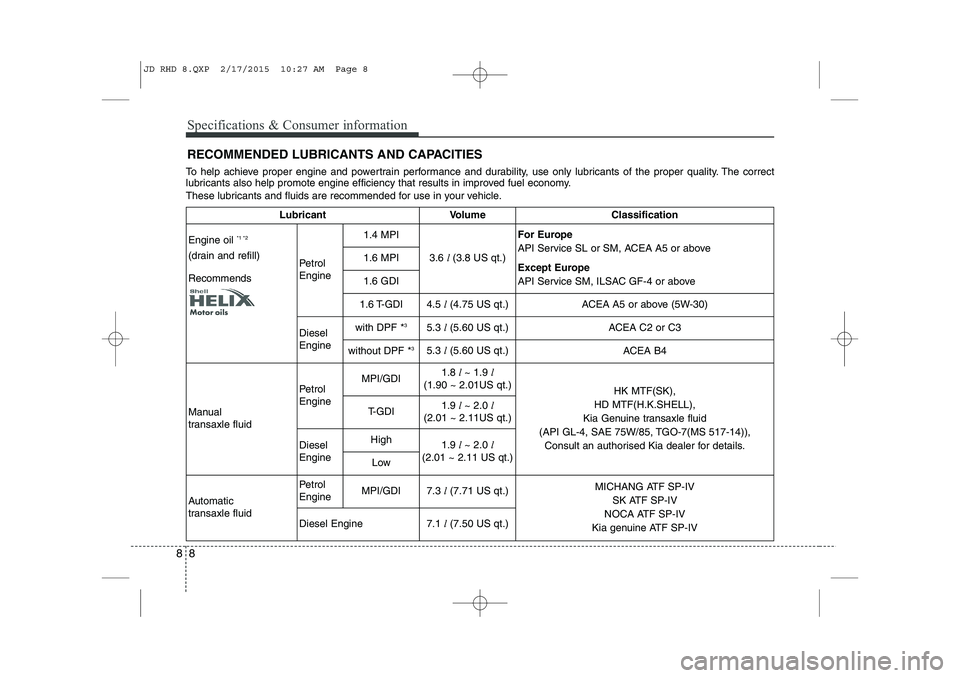

To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality. The correct
lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle. RECOMMENDED LUBRICANTS AND CAPACITIES
Lubricant Volume Classification
Engine oil *1 *2
(drain and refill) Recommends Petrol Engine1.4 MPI
3.6 l(3.8 US qt.) For Europe
API Service SL or SM, ACEA A5 or above
Except Europe
API Service SM, ILSAC GF-4 or above
1.6 MPI 1.6 GDI
1.6 T-GDI 4.5
l(4.75 US qt.)
ACEA A5 or above (5W-30)
Diesel Engine with DPF *
3
5.3 l(5.60 US qt.)
ACEA C2 or C3
without DPF * 3
5.3 l(5.60 US qt.)
ACEA B4
Manual
transaxle fluid PetrolEngine
MPI/GDI
1.8
l ~ 1.9 l
(1.90 ~ 2.01US qt.) HK MTF(SK),
HD MTF(H.K.SHELL),
Kia Genuine transaxle fluid
(API GL-4, SAE 75W/85, TGO-7(MS 517-14)), Consult an authorised Kia dealer for details.
T-GDI
1.9
l ~ 2.0 l
(2.01 ~ 2.11US qt.)
DieselEngine High
1.9 l ~ 2.0 l
(2.01 ~ 2.11 US qt.)
Low
Automatic
transaxle fluid PetrolEngine
MPI/GDI
7.3
l(7.71 US qt.) MICHANG ATF SP-IV
SK ATF SP-IV
NOCA ATF SP-IV
Kia genuine ATF SP-IV
Diesel Engine7.1 l(7.50 US qt.)
JD RHD 8.QXP 2/17/2015 10:27 AM Page 8
