2015 KIA CEED Owners Manual

Maintenance
98
7
With AFLS
1. Turn off the engine
2. Turn the light switch to the low beam
position.
3. Position the tyres straight ahead with the steering wheel.
4. Turn on the engine.
5. Inflate the tyres to the specified pres- sure and remove any loads from the
vehicle except the driver, spare tyre,
and tools.
6. The vehicle should be placed on a flat floor.
7. Draw vertical lines (Vertical lines pass- ing through respective head lamp cen-
tres) and a horizontal line (Horizontalline passing through centre of headlamps) on the screen.
8. With the head lamp and battery in nor- mal condition, aim the head lamps so
the brightest portion falls on the hori-
zontal and vertical lines.
9. To aim the low beam left or right, turn the driver (1) clockwise or counter-
clockwise. To aim the low beam up or
down, turn the driver (2) clockwise or
counterclockwise. To aim the high
beam up or down, turn the driver (3)
clockwise or counterclockwise.Front fog light aiming
The front fog lamp can be aimed as the same manner of the head lamps aiming.
With the front fog lamps and battery nor-
mal condition, aim the front fog lamps. To
aim the front fog lamp up or down, turn
the driver (1) clockwise or counterclock-
wise.
OJD072028
OJD073070
OJD073082
■Type A
■Type B
■Type C
JD RHD 7.QXP 4/14/2015 6:33 PM Page 98

799
Maintenance
Aiming point
OJD073051
< Ground Height >< Distance between lamps >
H1 : Height between the head lamp bulb centre and ground (Low beam)
H2 : Height between the head lamp bulb centre and ground (High beam)
H3 : Height between the fog lamp bulb centre and ground
W1 : Distance between the two head lamp bulbs centres (Low beam)
W2 : Distance between the two head lamp bulbs centres (High beam)
W3 : Distance between the two fog lamp bulbs centres
JD RHD 7.QXP 4/14/2015 6:33 PM Page 99

Maintenance
100
7

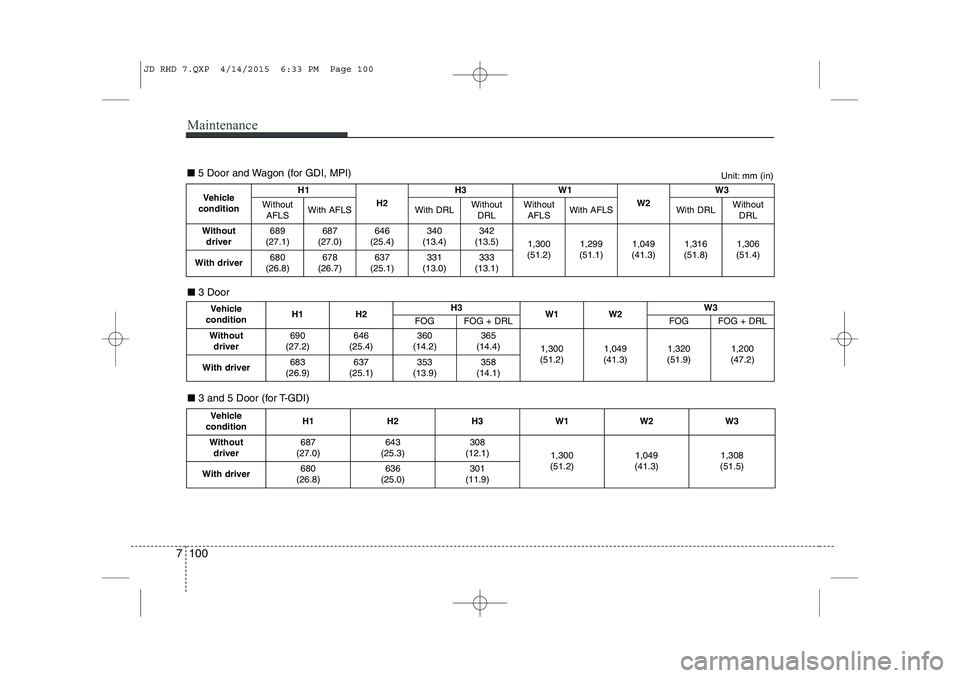

Vehicle
condition H1H2
H3
W1
W2W3
Without AFLS With AFLS With DRLWithout
DRLWithoutAFLSWith AFLS With DRL Without
DRL
Without driver 689
(27.1) 687
(27.0)
646
(25.4) 340
(13.4)342
(13.5)
1,300
(51.2)1,299
(51.1)1,049
(41.3) 1,316
(51.8) 1,306
(51.4)
With driver 680
(26.8) 678
(26.7)
637
(25.1) 331
(13.0)333
(13.1)
■ 5 Door and Wagon (for GDI, MPI)
Vehicle
condition H1
H2 H3W1W2W3
FOGFOG + DRL FOG FOG + DRL
Without driver 690
(27.2)
646
(25.4) 360
(14.2)365
(14.4)
1,300
(51.2)1,049
(41.3) 1,320
(51.9) 1,200
(47.2)
With driver 683
(26.9)
637
(25.1) 353
(13.9)358
(14.1)
■ 3 Door
Vehicle
condition H1
H2 H3W1W2 W3
Without driver 687
(27.0)
643
(25.3) 308
(12.1)
1,300
(51.2)1,049
(41.3) 1,308
(51.5)
With driver 680
(26.8)
636
(25.0) 301
(11.9)
■ 3 and 5 Door (for T-GDI) Unit: mm (in)
JD RHD 7.QXP 4/14/2015 6:33 PM Page 100

7 101
Maintenance

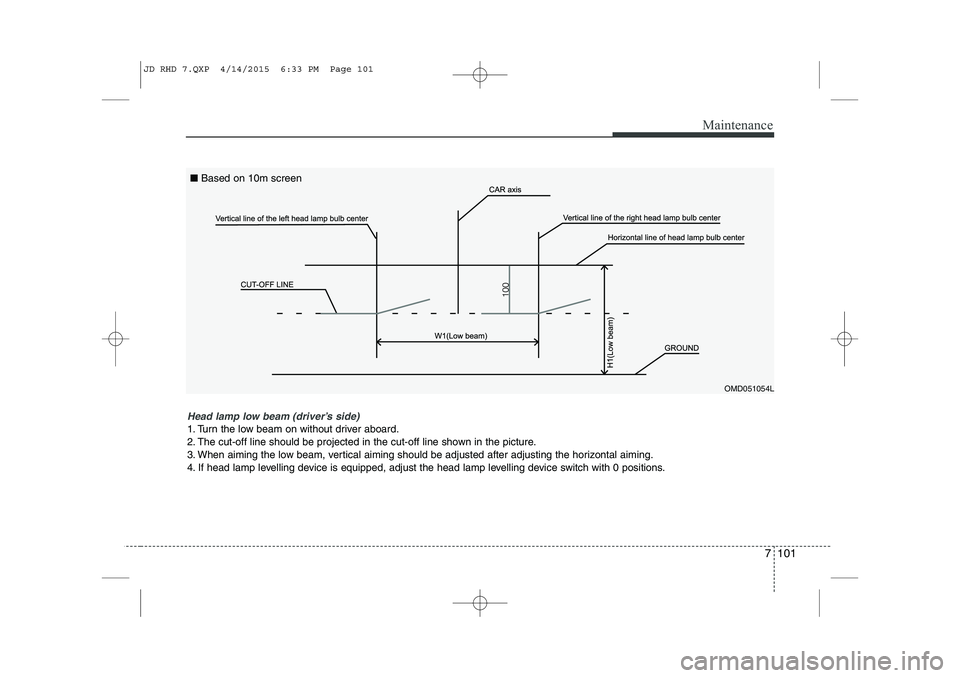

Head lamp low beam (driver’s side)
1. Turn the low beam on without driver aboard.
2. The cut-off line should be projected in the cut-off line shown in the picture.
3. When aiming the low beam, vertical aiming should be adjusted after adjusting the horizontal aiming.
4. If head lamp levelling device is equipped, adjust the head lamp levelling device switch with 0 positions.
OMD051054L
■
Based on 10m screen
JD RHD 7.QXP 4/14/2015 6:33 PM Page 101

Maintenance
102
7
OMD051055L

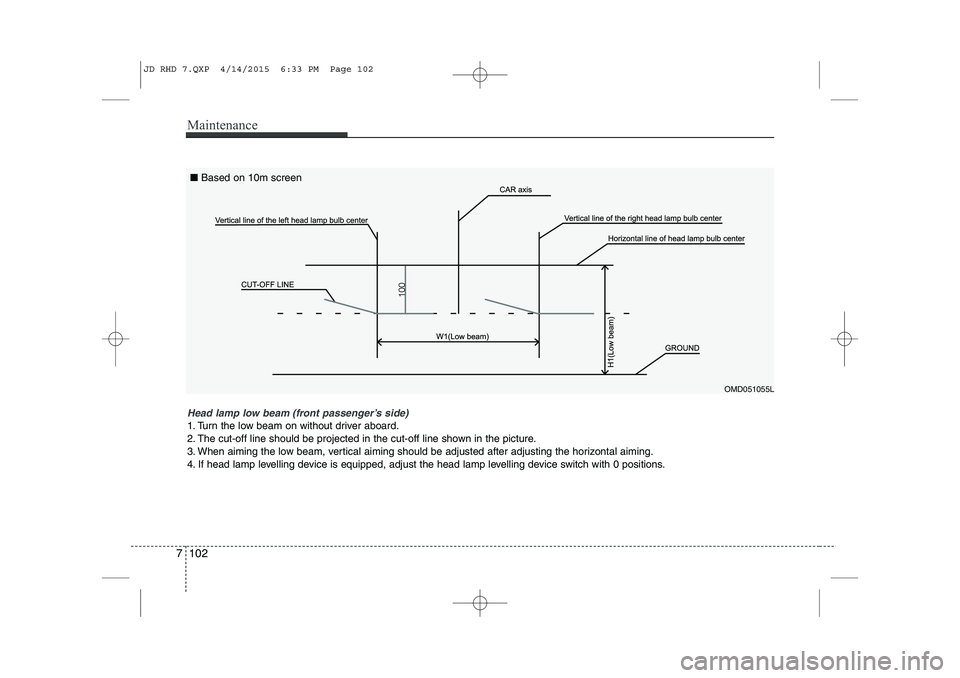

Head lamp low beam (front passenger’s side)
1. Turn the low beam on without driver aboard.
2. The cut-off line should be projected in the cut-off line shown in the picture.
3. When aiming the low beam, vertical aiming should be adjusted after adjusting the horizontal aiming.
4. If head lamp levelling device is equipped, adjust the head lamp levelling device switch with 0 positions. ■
Based on 10m screen
JD RHD 7.QXP 4/14/2015 6:33 PM Page 102

7 103
Maintenance
OGDE071056-JD

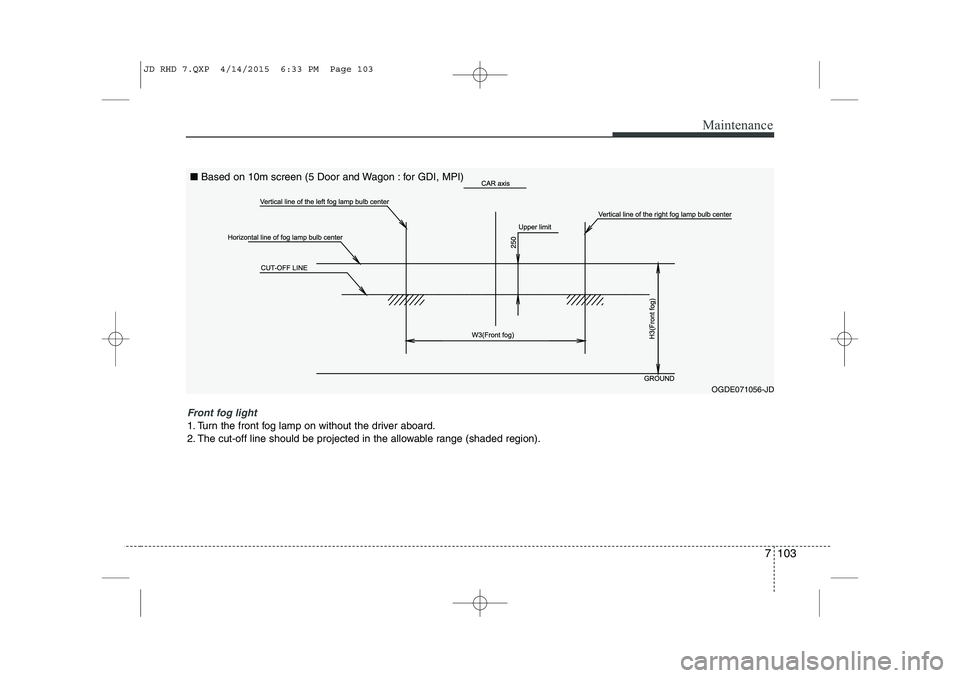

Front fog light
1. Turn the front fog lamp on without the driver aboard.
2. The cut-off line should be projected in the allowable range (shaded region).■
Based on 10m screen (5 Door and Wagon : for GDI, MPI)
JD RHD 7.QXP 4/14/2015 6:33 PM Page 103

Maintenance
104
7
OGDE071056-JD1

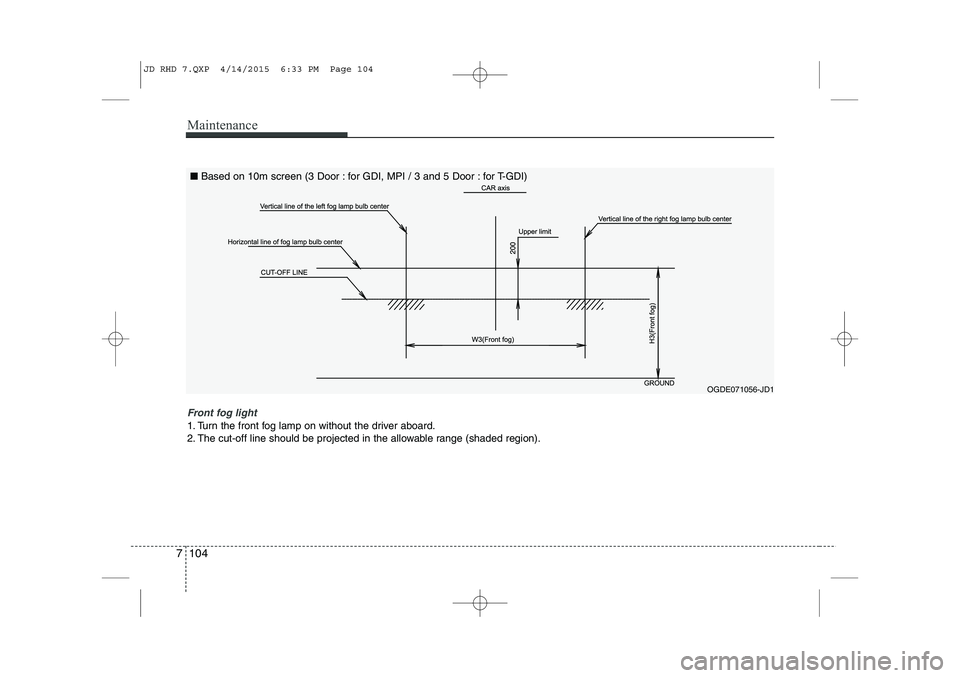

Front fog light
1. Turn the front fog lamp on without the driver aboard.
2. The cut-off line should be projected in the allowable range (shaded region). ■
Based on 10m screen (3 Door : for GDI, MPI / 3 and 5 Door : for T-GDI)
JD RHD 7.QXP 4/14/2015 6:33 PM Page 104

7 105
Maintenance

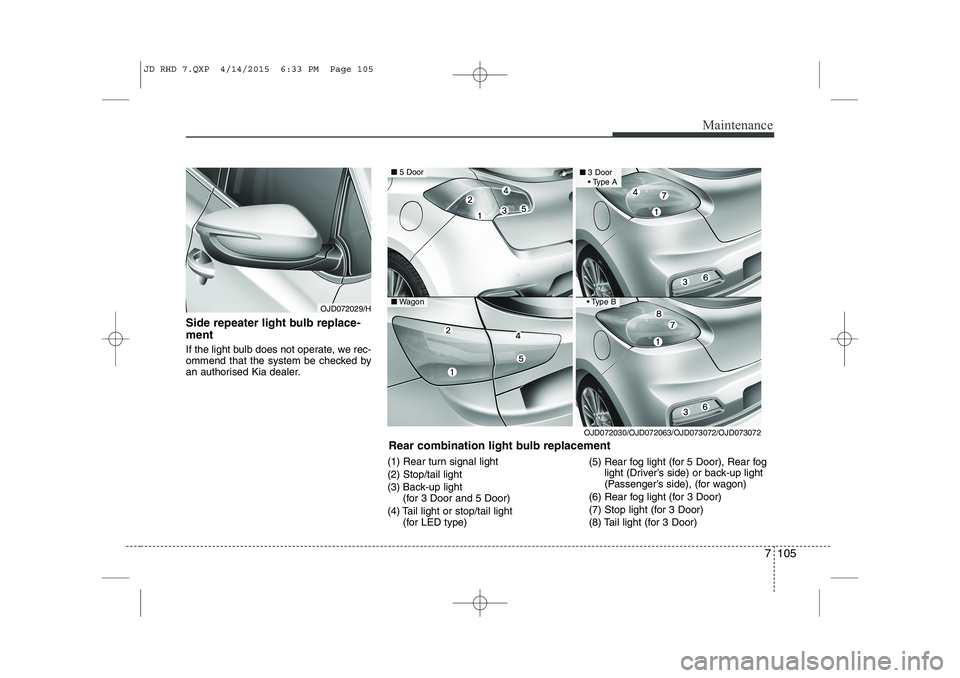

Side repeater light bulb replace- ment
If the light bulb does not operate, we rec-
ommend that the system be checked by
an authorised Kia dealer.(1) Rear turn signal light (2) Stop/tail light
(3) Back-up light (for 3 Door and 5 Door)
(4) Tail light or stop/tail light (for LED type) (5) Rear fog light (for 5 Door), Rear fog
light (Driver’s side) or back-up light
(Passenger’s side), (for wagon)
(6) Rear fog light (for 3 Door)
(7) Stop light (for 3 Door)
(8) Tail light (for 3 Door)
OJD072029/H
Rear combination light bulb replacement
■5 Door
■Wagon
■ 3 Door
 Type A
 Type B
OJD072030/OJD072063/OJD073072/OJD073072
