2015 KIA CEED Owners Manual

Features of your vehicle
164
4
To install the barrier net
1. Open the cover (if equipped) for the
holder position (1) or (2) you want to install.
2. Compress the one side net upper shaft to length direction before insert the net upper shaft into the large hole (3) and
then secure by sliding into the small hole (4).
3. Hang the net strap hooks in the corre-sponding hook holders on the floorbehind the front seat or rear seat. This symbol indicates theposition of the hook holderson the floor behind the rearseat.
OJD032057
OGDE042302
OJD043500
JD RHD 4a(~171).QXP 4/14/2015 7:06 PM Page 164

4 165
Features of your vehicle
4. Fasten the straps, by using theadjuster (1).
To remove the barrier net
1. Loosen the straps by using the strapadjusters and remove the strap hooks
from the hook holders.
2. Remove the net upper shaft by pulling it through the large holes.
3. Remove the barrier net.
OGDE042303
WARNING
• Make sure that there is no slack in the barrier net by fastening the
strap securely when installing the
net. The strap should be fastenedafter confirming that the hook is
inserted into the upper hook
holder securely.
• Make sure that the seatbacks are locked securely.
WARNING
• Do not put passengers in the rear seat or cargo area behind the bar- rier net.
• Do not put passenger in the rear centre seat when the barrier netis installed behind the rear seats.
The barrier net may interfere with
use of the rear centre safety belt.
• Do not load cargo in the area higher than the barrier net'supper end.
• Do not load heavy cargo in the area higher than the seatback to
avoid accident even if the barriernet is installed.
• Do not load cargo which has sharp edge that can pass through the barrier net.
• Do not apply excessive force to the barrier net by hanging on to
the net or by suspending heavy
cargo and so on.
JD RHD 4a(~171).QXP 4/14/2015 7:06 PM Page 165

Features of your vehicle
166
4
Cargo security screen (wagon) (if equipped)
Use the cargo security screen to hide items stored in the cargo area.To use the cargo security screen
1. Pull the cargo security screen towards
the rear of the vehicle by the handle (1).
2. Insert the guide pin into the guide (2).
✽NOTICE
Pull out the cargo security screen with
the handle in the centre to prevent the
guide pin from falling out of the guide.
When the cargo security screen is not in
use:
1. Pull the cargo security screen rear and down to release it from the guides.
2. The cargo security screen will auto- matically slide back in.
✽NOTICE
The cargo security screen may not auto-
matically slide back in if the cargo secu-
rity screen is not fully pulled out. Fully
pull it out and then let go.
OGDE042304OGDE042305
JD RHD 4a(~171).QXP 4/14/2015 7:06 PM Page 166

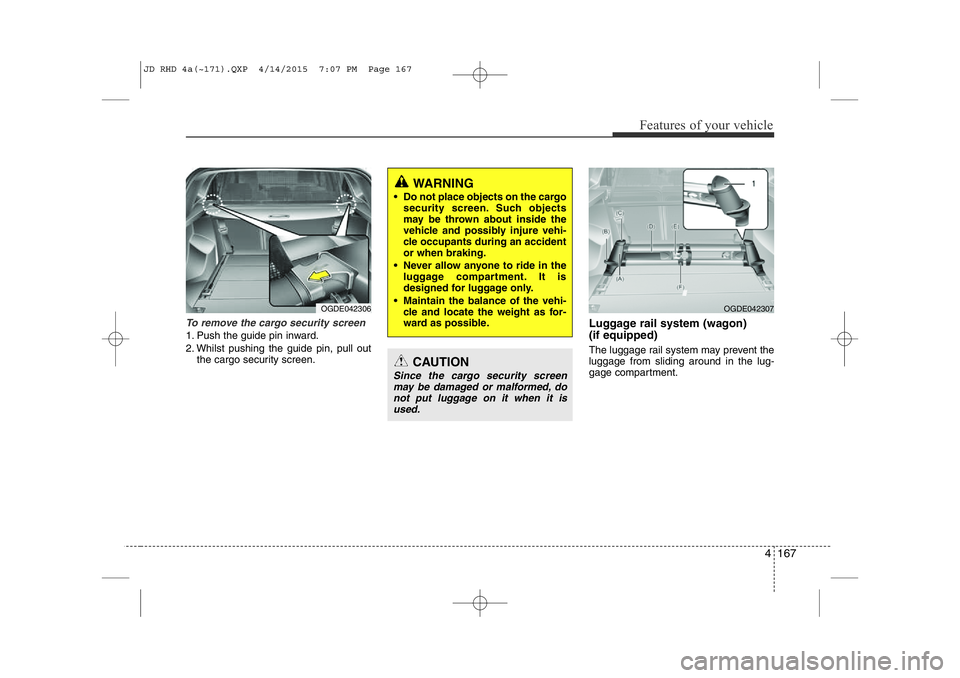

4 167
Features of your vehicle
To remove the cargo security screen
1. Push the guide pin inward.
2. Whilst pushing the guide pin, pull outthe cargo security screen. Luggage rail system (wagon) (if equipped)
The luggage rail system may prevent the luggage from sliding around in the lug-
gage compartment.
WARNING
• Do not place objects on the cargo security screen. Such objects
may be thrown about inside the
vehicle and possibly injure vehi-
cle occupants during an accidentor when braking.
• Never allow anyone to ride in the luggage compartment. It is
designed for luggage only.
• Maintain the balance of the vehi- cle and locate the weight as for-
ward as possible.
CAUTION
Since the cargo security screen
may be damaged or malformed, do not put luggage on it when it isused.
OGDE042306OGDE042307
JD RHD 4a(~171).QXP 4/14/2015 7:07 PM Page 167

Features of your vehicle
168
4
Build in segmentation bar
• Put both pillars (A) from the segmenta-
tion bar in the openings from the rail.
• To move the segmentation bar, put your hand on the side of the pillar and
push down the lever arm (B).
• Make sure the pillars click into place.
• To release the belt, turn the upper ele- ment (C) to the left or right until it
clicks.
• Now you can pull the belt (D) and secure your luggage by putting the beltaround the luggage and put the hook(E) into the middle of the segmentationbar (F).
• For bulky luggage, you can hook both hooks into each other.
• To make sure the belt locks, put the upper element (C) back into the lockposition (1).
Applying the shackle on the guide rail
• Put the shackle (A) in the positionwhere the shackle is put in the rail.
• To move the shackle, press the button (1) and move the shackle along the rail.
• Make sure the shackle is clicked into place.
• To fix the luggage, pull up the hook (2) in the middle cargo bay.
• Now you can mount e.g. belt to fix the luggage in the hook.
• The shackle cannot be used in the position where the shackle is put in and
out of the rail (3). ❈
The actual luggage room in the vehicle may
differ from the illustration.
Shopping bag holder
CAUTION
• The segmentation bar must be mounted and demounted withboth pillars simultaneously.
• Max. load: 30 kg with one belt 40 kg with two belts
OGDE042308
CAUTION
• Do not hang a bag weighing morethan 3 kg (7 lbs.). It may causedamage to the shopping bag
holder.
• Do not hang the frail objects when you drive rough road, theobjects may be damaged.
OJD042151
CAUTION
Tensile force : max. 30 kgf. for
1 shackle
JD RHD 4a(~171).QXP 4/14/2015 7:07 PM Page 168

4 169
Features of your vehicle
Mounting bracket for roof carrier (if equipped)
To install or remove a roof carrier, you
can use the mounting bracket and cover
on the roof.
When you install a roof carrier, use the
following procedure.
1. Insert a slim tool(coin or flat blade driv-er) into the slot and slide the cover
toward the arrow on the cover. 2. Rotate the cover half way and insert
the cover on the roof hole as the illus-
tration.
✽NOTICE
To prevent loosing the roof carrier
cover, install the cover on the roof before
you install the roof carrier.
3. After using the roof carrier, install the cover back on the roof in the reverse
order.
✽NOTICE
If the vehicle is equipped with a sunroof,
be sure not to position cargo onto the
roof in such a way that it could interfere
with sunroof operation.
EXTERIOR FEATURES
OED046090OED046091
WARNING
Use a coin or flat blade driver when
you remove the roof carrier cover.
If you use your fingernail, it may
damage your fingernail.
CAUTION
• When carrying cargo on the roof, take the necessary precautions tomake sure the cargo does not damage the roof of the vehicle.
• When carrying large objects on the roof, make sure they do notexceed the overall roof length or width.
JD RHD 4a(~171).QXP 4/14/2015 7:07 PM Page 169

Features of your vehicle
170
4
Roof rack (for wagon)
If the vehicle has a roof rack, you can
load cargo on top of your vehicle.
We recommend to obtain the crossbars and fixing components needed to install
the roof rack on your vehicle from an
authorised Kia dealer.
✽NOTICE
• The crossbars (if equipped) should be placed in the proper load carrying
positions prior to placing items onto
the roof rack.
• If the vehicle is equipped with a sun-
roof, be sure not to position cargo onto
the roof rack in such a way that it
could
interfere with sunroof operation.
• When the roof rack is not being used to
carry cargo, the crossbars may need to
be repositioned if wind noise is detected.
WARNING
• The vehicle centre of gravity will be higher when items are loaded
onto the roof. Avoid sudden
starts, braking, sharp turns,
abrupt manoeuvres or high speeds
that may result in loss of vehicle
control or rollover resulting in anaccident.
• Always drive slowly and turn cor- ners carefully when carrying
items on the roof. Severe wind
updrafts, caused by passing
vehicles or natural causes, can
cause sudden upward pressure
on items loaded on the roof. This
is especially true when carrying
large, flat items such as wood
panels or mattresses. This could
cause the items to fall off the roof
and cause damage to your vehi-
cle or others around you.
• To prevent damage or loss of cargo whilst driving, check fre-
quently before or whilst driving to
make sure the items on the roof
are securely fastened.
OJD042245
CAUTION
• When carrying cargo on the roof
rack, take the necessary precau-tions to make sure the cargo does
not damage the roof of the vehicle.
• When carrying large objects on the roof rack, make sure they donot exceed the overall roof lengthor width.
• When you are carrying cargo on the roof rack, do not operate thesunroof (if equipped).
JD RHD 4a(~171).QXP 4/14/2015 7:07 PM Page 170

4 171
Features of your vehicle
(Continued)
• Always drive slowly and turn cor-ners carefully when carrying
items on the roof rack. Severe
wind updrafts, caused by passing
vehicles or natural causes, can
cause sudden upward pressure
on items loaded on the roof rack.
This is especially true when car-
rying large, flat items such as
wood panels or mattresses. Thiscould cause the items to fall off
the roof rack and cause damage
to your vehicle or others around
you.
• To prevent damage or loss of cargo whilst driving, check fre-
quently before or whilst driving to
make sure the items on the roof
rack are securely fastened.WARNING
• The following specification is the maximum weight that can be
loaded onto the roof rack.
Distribute the load as evenly as
possible across the crossbars (if
equipped) and roof rack and
secure the load firmly.
Loading cargo or luggage in
excess of the specified weight
limit on the roof rack may dam-
age your vehicle.
• The vehicle centre of gravity will be higher when items are loaded
onto the roof rack. Avoid sudden
starts, braking, sharp turns, abrupt manoeuvres or high
speeds that may result in loss of
vehicle control or rollover result-ing in an accident.
(Continued)
ROOF 100 kg (220 lbs.)
RACK EVENLY DISTRIBUTED
