2015 JEEP GRAND CHEROKEE Owners Manual

▫Normal (Fixed Speed) Electronic Speed Control
Mode..............................215
!FORWARD COLLISION WARNING (FCW) WITH
MITIGATION — IF EQUIPPED............219
▫Forward Collision Warning (FCW) With
Mitigation Operation...................219
▫Turning FCW ON Or OFF...............221
▫Changing FCW And Active Braking Status. . . .222
▫FCW Limited Warning..................223
▫Service FCW Warning..................223
!PARKSENSE® REAR PARK ASSIST — IF
EQUIPPED...........................223
▫ParkSense® Sensors....................224
▫ParkSense® Warning Display.............224
▫ParkSense® Display....................225
▫Enabling And Disabling ParkSense®........229
▫Service The ParkSense® Rear Park Assist
System.............................229
▫Cleaning The ParkSense® System..........230
▫ParkSense® System Usage Precautions.......230
!PARKSENSE® FRONT AND REAR PARK ASSIST
— IF EQUIPPED.......................233
▫ParkSense® Sensors....................233
▫ParkSense® Warning Display.............234
▫ParkSense® Display....................234
▫Enabling And Disabling ParkSense®........238
▫Service The ParkSense® Park Assist System . . .239
▫Cleaning The ParkSense® System..........240
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 119

▫ParkSense® System Usage Precautions.......240
!PARKVIEW® REAR BACK UP CAMERA — IF
EQUIPPED...........................243
!OVERHEAD CONSOLE..................245
▫Front Map/Reading Lights — If Equipped . . .246
▫Courtesy Lights.......................247
▫Sunglasses Bin Door...................247
!GARAGE DOOR OPENER — IF EQUIPPED . . .248
▫Before You Begin Programming HomeLink® . .249
▫Programming A Rolling Code.............249
▫Programming A Non-Rolling Code.........251
▫Canadian/Gate Operator Programming......253
▫Using HomeLink®....................254
▫Security............................254
▫Troubleshooting Tips...................255
▫General Information....................256
!POWER SUNROOF — IF EQUIPPED........257
▫Opening Sunroof — Express..............258
▫Opening Sunroof — Manual Mode.........258
▫Closing Sunroof — Express...............258
▫Closing Sunroof — Manual Mode..........258
▫Pinch Protect Feature...................259
▫Venting Sunroof — Express..............259
▫Sunshade Operation....................259
▫Wind Buffeting.......................259
▫Sunroof Maintenance...................260
120 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

▫Ignition Off Operation..................260
!COMMANDVIEW® SUNROOF WITH POWER
SHADE — IF EQUIPPED.................260
▫Opening Sunroof — Express..............261
▫Opening Sunroof — Manual Mode.........261
▫Closing Sunroof — Express...............262
▫Closing Sunroof — Manual Mode..........262
▫Opening Power Shade — Express..........262
▫Opening Power Shade — Manual Mode.....262
▫Closing Power Shade — Express...........263
▫Closing Power Shade — Manual Mode......263
▫Venting Sunroof — Express..............263
▫Pinch Protect Feature...................263
▫Wind Buffeting.......................264
▫Sunroof Maintenance...................264
▫Ignition Off Operation..................264
▫Sunroof Fully Closed...................264
!ELECTRICAL POWER OUTLETS...........265
!POWER INVERTER — IF EQUIPPED........269
!CUPHOLDERS........................271
!STORAGE............................272
▫Glove Compartment...................272
▫Door Storage.........................273
▫Console Features.....................273
!CARGO AREA FEATURES................275
▫Rechargeable Flashlight.................275
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 121

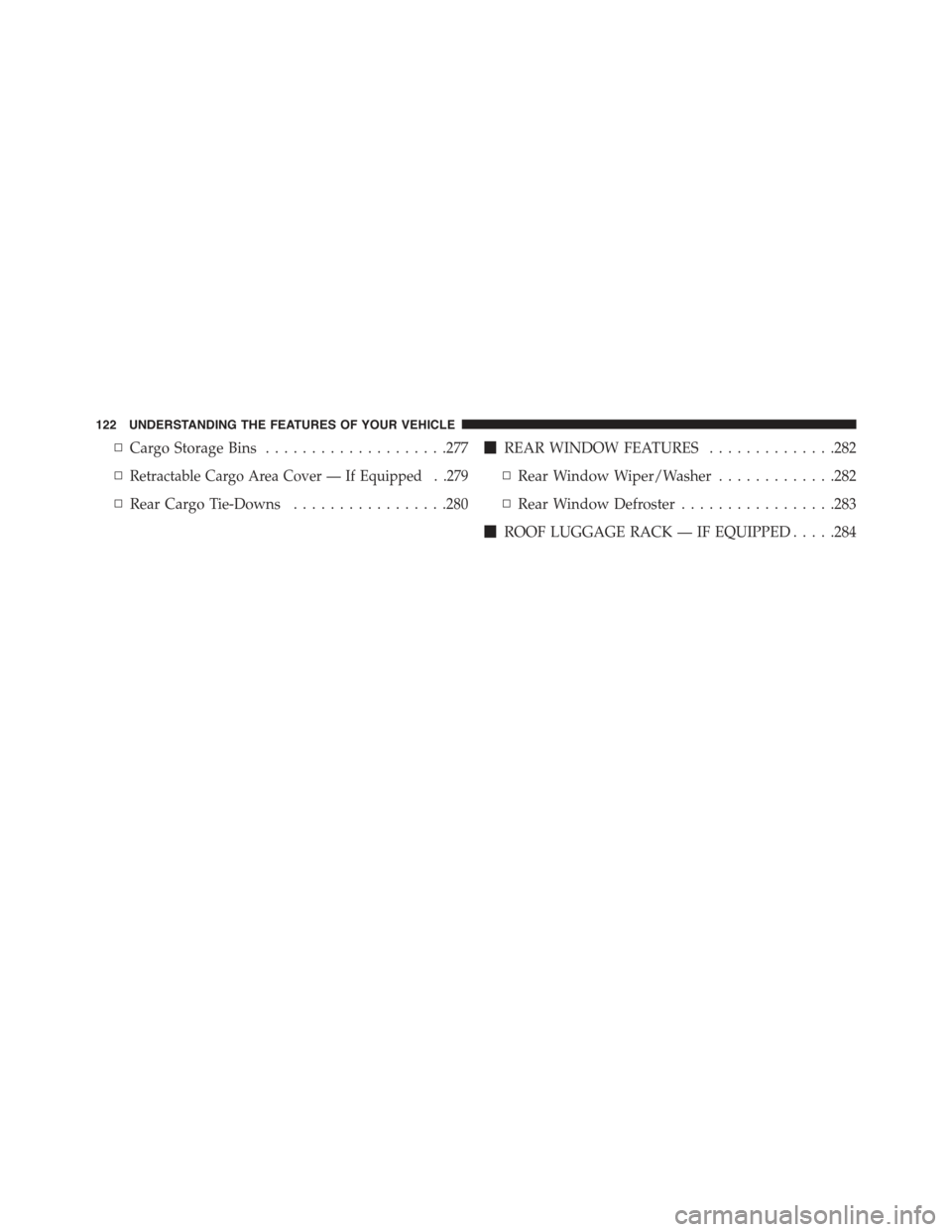

▫Cargo Storage Bins....................277
▫Retractable Cargo Area Cover — If Equipped . .279
▫Rear Cargo Tie-Downs.................280
!REAR WINDOW FEATURES..............282
▫Rear Window Wiper/Washer.............282
▫Rear Window Defroster.................283
!ROOF LUGGAGE RACK — IF EQUIPPED.....284
122 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

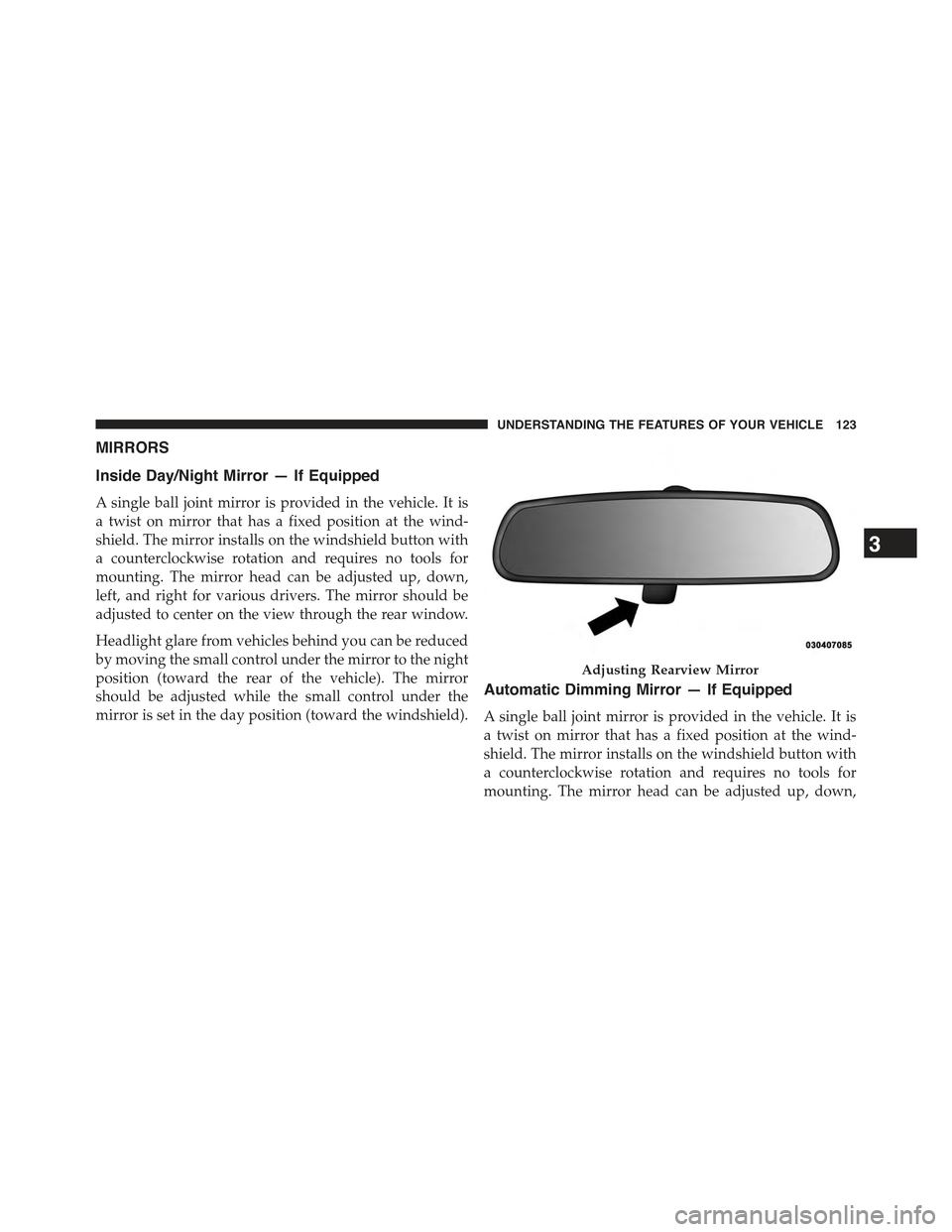

MIRRORS
Inside Day/Night Mirror — If Equipped
A single ball joint mirror is provided in the vehicle. It is
a twist on mirror that has a fixed position at the wind-
shield. The mirror installs on the windshield button with
a counterclockwise rotation and requires no tools for
mounting. The mirror head can be adjusted up, down,
left, and right for various drivers. The mirror should be
adjusted to center on the view through the rear window.
Headlight glare from vehicles behind you can be reduced
by moving the small control under the mirror to the night
position (toward the rear of the vehicle). The mirror
should be adjusted while the small control under the
mirror is set in the day position (toward the windshield).
Automatic Dimming Mirror — If Equipped
A single ball joint mirror is provided in the vehicle. It is
a twist on mirror that has a fixed position at the wind-
shield. The mirror installs on the windshield button with
a counterclockwise rotation and requires no tools for
mounting. The mirror head can be adjusted up, down,
Adjusting Rearview Mirror
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 123

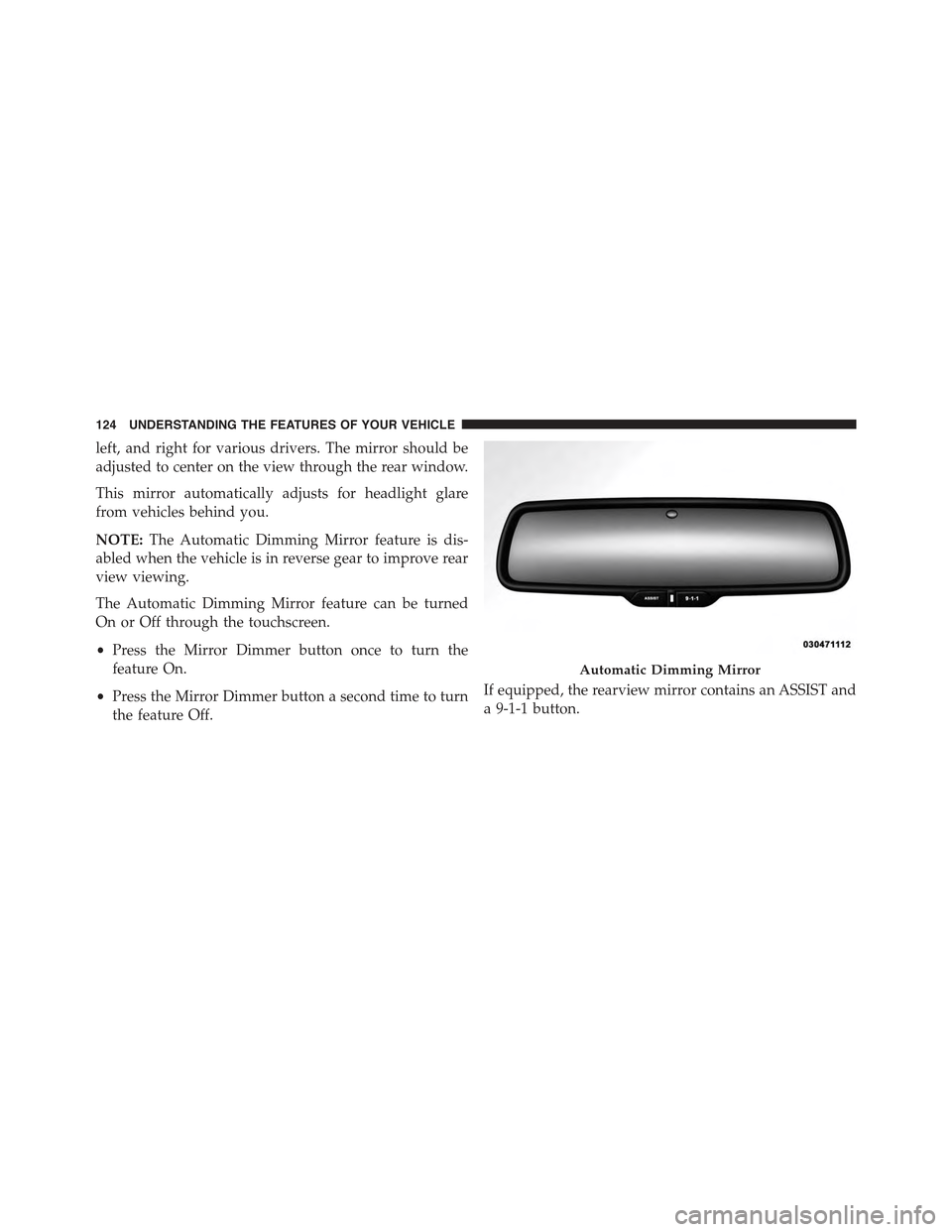

left, and right for various drivers. The mirror should be
adjusted to center on the view through the rear window.
This mirror automatically adjusts for headlight glare
from vehicles behind you.
NOTE:The Automatic Dimming Mirror feature is dis-
abled when the vehicle is in reverse gear to improve rear
view viewing.
The Automatic Dimming Mirror feature can be turned
On or Off through the touchscreen.
•Press the Mirror Dimmer button once to turn the
feature On.
•Press the Mirror Dimmer button a second time to turn
the feature Off.
If equipped, the rearview mirror contains an ASSIST and
a 9-1-1 button.
Automatic Dimming Mirror
124 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

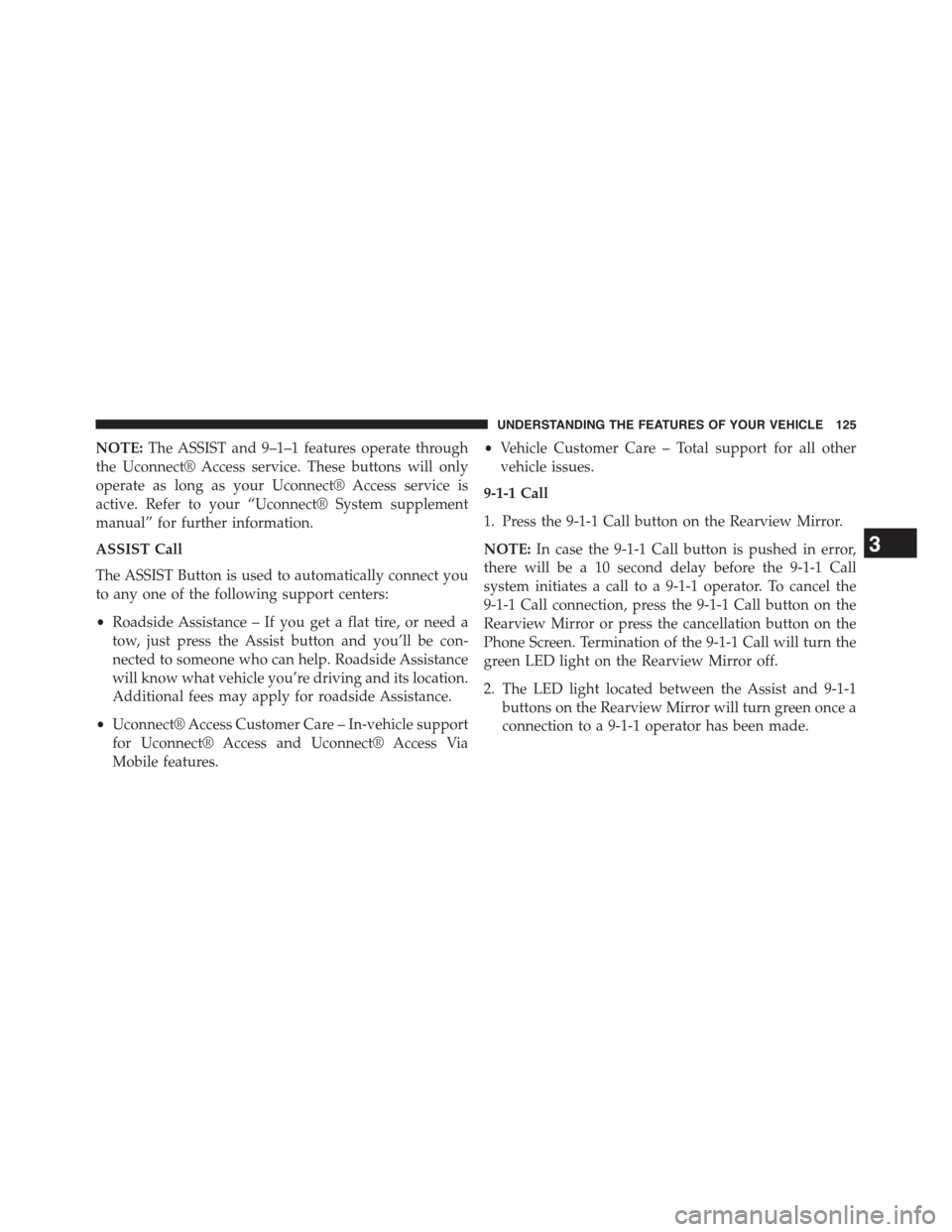

NOTE:The ASSIST and 9–1–1 features operate through
the Uconnect® Access service. These buttons will only
operate as long as your Uconnect® Access service is
active. Refer to your “Uconnect® System supplement
manual” for further information.
ASSIST Call
The ASSIST Button is used to automatically connect you
to any one of the following support centers:
•Roadside Assistance – If you get a flat tire, or need a
tow, just press the Assist button and you’ll be con-
nected to someone who can help. Roadside Assistance
will know what vehicle you’re driving and its location.
Additional fees may apply for roadside Assistance.
•Uconnect® Access Customer Care – In-vehicle support
for Uconnect® Access and Uconnect® Access Via
Mobile features.
•Vehicle Customer Care – Total support for all other
vehicle issues.
9-1-1 Call
1. Press the 9-1-1 Call button on the Rearview Mirror.
NOTE:In case the 9-1-1 Call button is pushed in error,
there will be a 10 second delay before the 9-1-1 Call
system initiates a call to a 9-1-1 operator. To cancel the
9-1-1 Call connection, press the 9-1-1 Call button on the
Rearview Mirror or press the cancellation button on the
Phone Screen. Termination of the 9-1-1 Call will turn the
green LED light on the Rearview Mirror off.
2. The LED light located between the Assist and 9-1-1
buttons on the Rearview Mirror will turn green once a
connection to a 9-1-1 operator has been made.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 125

3. Once a connection between the vehicle and a 9-1-1
operator is made, the 9-1-1 Call system may transmit
the following important vehicle information to a 9-1-1
operator:
•Indication that the occupant placed a 9-1-1 Call.
•The vehicle brand.
•The last known GPS coordinates of the vehicle.
4. You should be able to speak with the 9-1-1 operator
through the vehicle audio system to determine if
additional help is needed.
NOTE:Once a connection is made between the vehicle’s
9-1-1 Call system and the 9-1-1 operator, the 9-1-1 opera-
tor may be able to open a voice connection with the
vehicle to determine if additional help is needed. Once
the 9-1-1 operator opens a voice connection with the
vehicle’s 9-1-1 Call system, the operator should be able to
speak with you or other vehicle occupants and hear
sounds occurring in the vehicle. The vehicle’s 9-1-1 Call
system will attempt to remain connected with the 9-1-1
operator until the 9-1-1 operator terminates the connec-
tion.
5. The 9-1-1 operator may attempt to contact appropriate
emergency responders and provide them with impor-
tant vehicle information and GPS coordinates.
126 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
