2015 JEEP GRAND CHEROKEE Owners Manual

CavityCartridge Fuse Micro FuseDescription
F56–15 Amp Blue Additional Content (Diesel engine only)
F57–15 Amp Blue HID Headlamps LH - If Equipped
F59–10 Amp Red Purging Pump (Diesel engine only)
F60–15 Amp BlueTransmission Control Module
F61–10 Amp Red Transmission Control Module/PM Sensor
(diesel engine only)
F62–10 Amp RedAir Conditioning Clutch
F63–20 Amp Yellow Ignition Coils (Gas), Urea Heater (Diesel)
F64–25 Amp ClearFuel Injectors / Powertrain
F66–10 Amp Red Sunroof / Passenger Window Switches /
Rain Sensor
F67–15 Amp Blue CD / DVD / Bluetooth Hands-free
Module - If Equipped
F68–20 Amp YellowRear Wiper Motor
F69–15 Amp BlueSpotlight Feed - If Equipped
7
MAINTAINING YOUR VEHICLE 655

CavityCartridge Fuse Micro FuseDescription
F70–20 Amp YellowFuel Pump Motor
F71–30 Amp GreenAudio Amplifier
F73–15 Amp BlueHID Headlamp RH - If Equipped
F74–20 Amp Yellow Brake Vacuum Pump - If Equipped
F76–10 Amp Red Anti-lock Brakes/Electronic Stability
Control
F77–10 Amp Red Drivetrain Control Module/Front Axle
Disconnect Module
F78–10 Amp Red Engine Control Module / Electric Power
Steering - If Equipped
F80–10 Amp Red Universal Garage Door Opener / Compass
/ Anti-Intrusion Module
F81–20 Amp Yellow Trailer Tow Right Turn/Stop Lights
F82–10 Amp Red Steering Column Control Module/ Cruise
Control
656 MAINTAINING YOUR VEHICLE

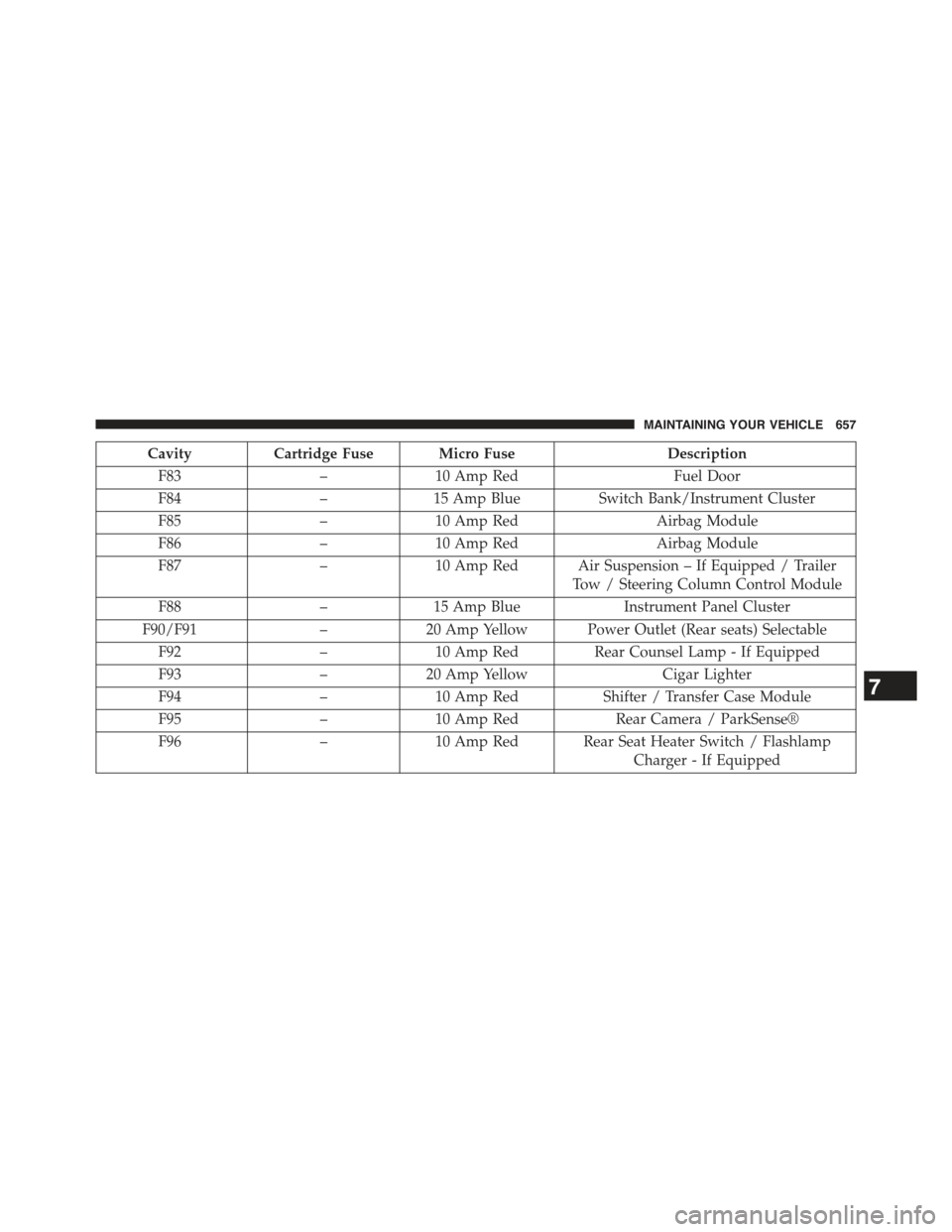

CavityCartridge Fuse Micro FuseDescription
F83–10 Amp RedFuel Door
F84–15 Amp BlueSwitch Bank/Instrument Cluster
F85–10 Amp RedAirbag Module
F86–10 Amp RedAirbag Module
F87–10 Amp Red Air Suspension – If Equipped / Trailer
Tow / Steering Column Control Module
F88–15 Amp BlueInstrument Panel Cluster
F90/F91–20 Amp Yellow Power Outlet (Rear seats) Selectable
F92–10 Amp RedRear Counsel Lamp - If Equipped
F93–20 Amp YellowCigar Lighter
F94–10 Amp RedShifter / Transfer Case Module
F95–10 Amp RedRear Camera / ParkSense®
F96–10 Amp Red Rear Seat Heater Switch / Flashlamp
Charger - If Equipped
7
MAINTAINING YOUR VEHICLE 657

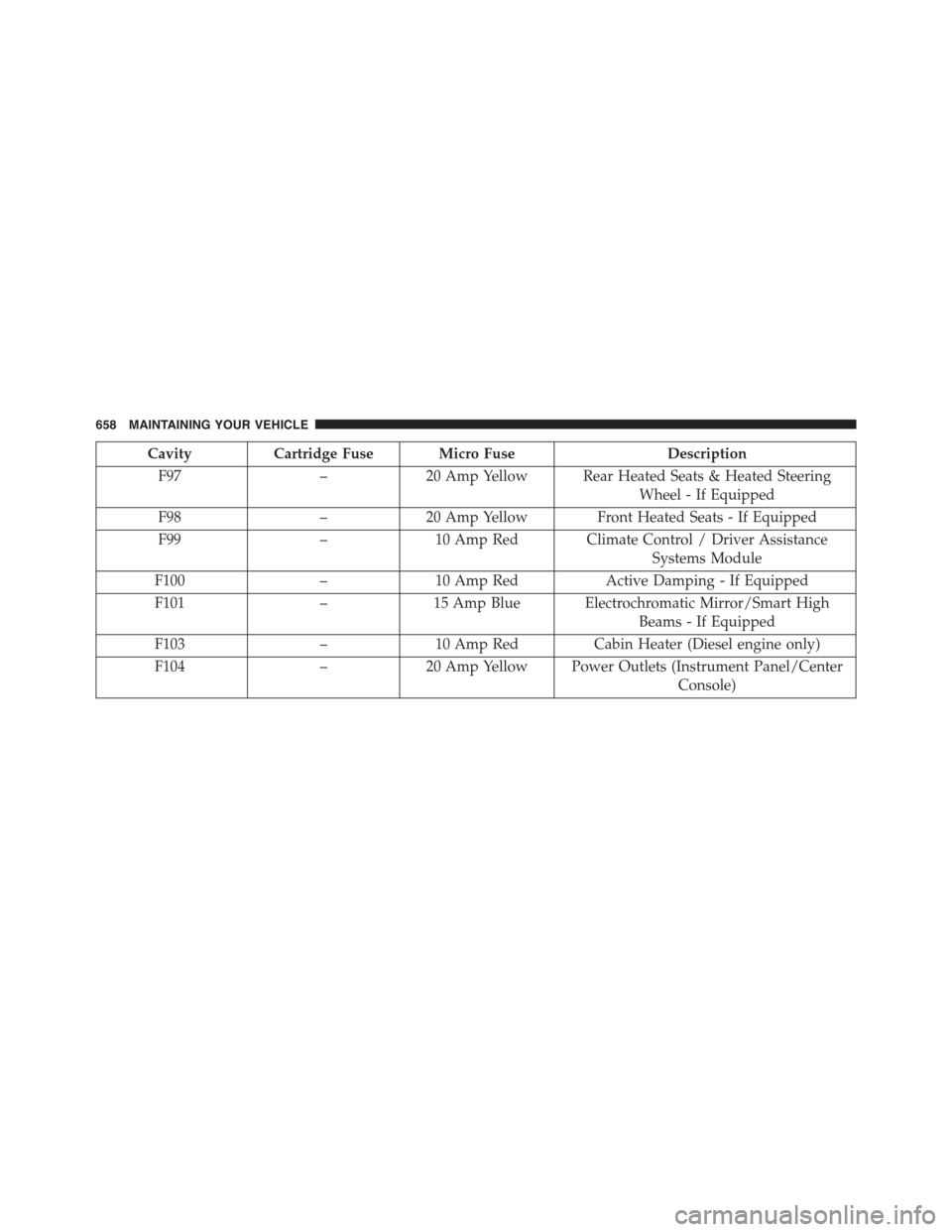

CavityCartridge Fuse Micro FuseDescription
F97–20 Amp Yellow Rear Heated Seats & Heated Steering
Wheel - If Equipped
F98–20 Amp Yellow Front Heated Seats - If Equipped
F99–10 Amp Red Climate Control / Driver Assistance
Systems Module
F100–10 Amp RedActive Damping - If Equipped
F101–15 Amp Blue Electrochromatic Mirror/Smart High
Beams - If Equipped
F103–10 Amp RedCabin Heater (Diesel engine only)
F104–20 Amp Yellow Power Outlets (Instrument Panel/Center
Console)
658 MAINTAINING YOUR VEHICLE

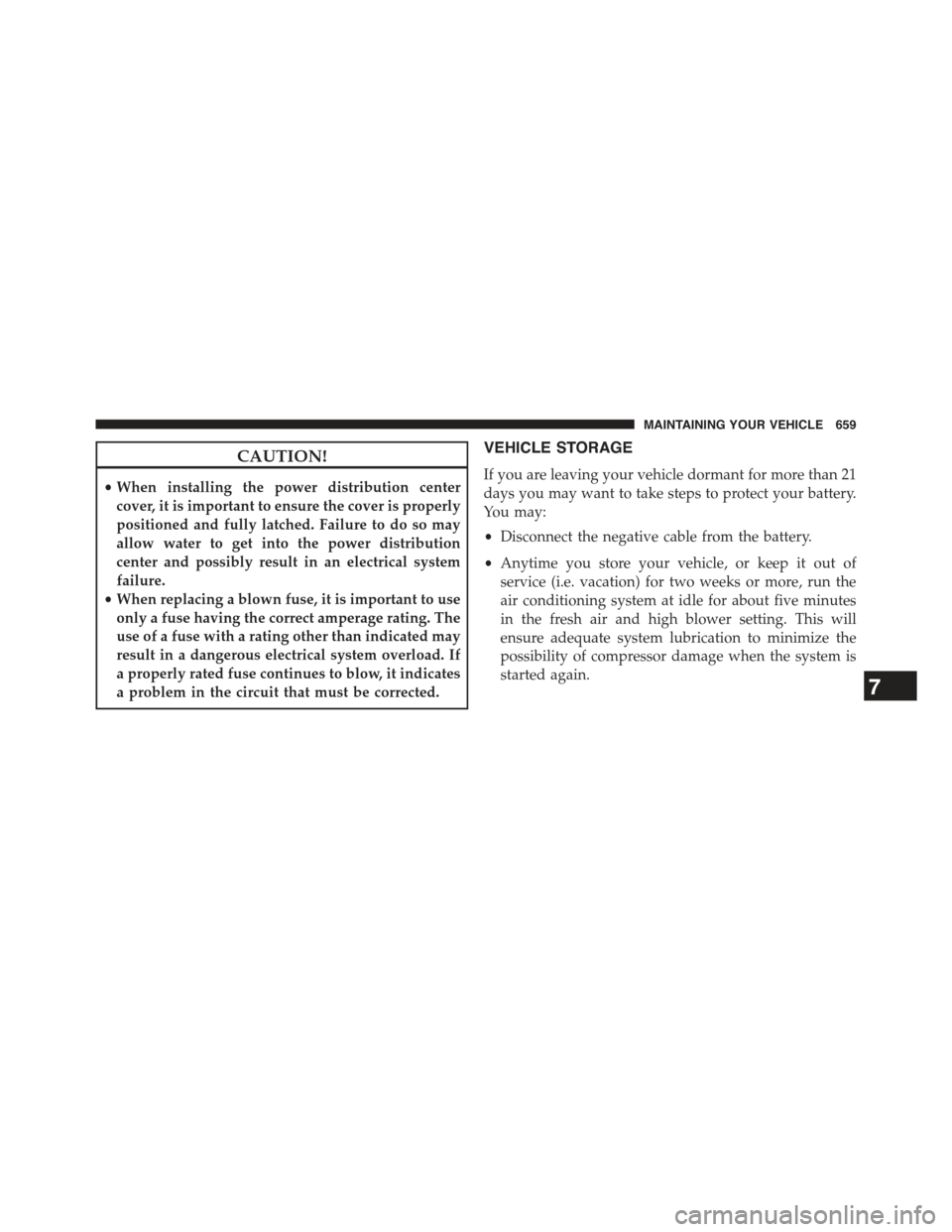

CAUTION!
•When installing the power distribution center
cover, it is important to ensure the cover is properly
positioned and fully latched. Failure to do so may
allow water to get into the power distribution
center and possibly result in an electrical system
failure.
•When replacing a blown fuse, it is important to use
only a fuse having the correct amperage rating. The
use of a fuse with a rating other than indicated may
result in a dangerous electrical system overload. If
a properly rated fuse continues to blow, it indicates
a problem in the circuit that must be corrected.
VEHICLE STORAGE
If you are leaving your vehicle dormant for more than 21
days you may want to take steps to protect your battery.
You may:
•Disconnect the negative cable from the battery.
•Anytime you store your vehicle, or keep it out of
service (i.e. vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.7
MAINTAINING YOUR VEHICLE 659

REPLACEMENT BULBS
Interior Bulbs
Bulb Number
Glove Box Lamp194
Grab Handle LampL002825W5W
Overhead Console Reading LampsVT4976
Rear Cargo Lamp214–2
Visor Vanity LampV26377
Underpanel Courtesy Lamps906
Instrument Cluster (General Illumination)103
Telltale/Hazard Lamp74
Exterior Bulbs
Bulb Number
Headlamps (Low Beam) - If EquippedH11
Premium Headlamps (Low/High Beam)D3S (Serviced at Authorized Dealer)
660 MAINTAINING YOUR VEHICLE

Bulb Number
Headlamps (High Beam) - If Equipped9005
Premium Park/Turn Signal LampLED - (Service at Authorized Dealer)
Premium Daytime Running Lamp (DRL)LED - (Service at Authorized Dealer)
Front Fog LampsH11
Front Side Marker - If EquippedW5W
Premium Front Side Marker - If EquippedLED - (Service at Authorized Dealer)
Front Park/Turn Lamp - If Equipped7444NA (WY27/8W)
Rear Body Side Turn Signal Lamps7440NA (WY21W)
Auxiliary Liftgate Tail LampsLED - (Service at Authorized Dealer)
Liftgate Backup Lamps921 (W16W)
Rear License LampsLED - (Service at Authorized Dealer)
Rear Body Side Stop Lamps3157KRD LCP
7
MAINTAINING YOUR VEHICLE 661

Bulb Number
Rear Body Side Tail LampsLED - (Service at Authorized Dealer)
CHMSL - Center High Mounted Stop LampLED - (Service at Authorized Dealer)
NOTE:
Numbers refer to commercial bulb types that can be purchased from your authorized dealer.
If a bulb needs to be replaced, visit your authorized dealer or refer to the applicable Service Manual.
BULB REPLACEMENT
NOTE:Lens fogging can occur under certain atmo-
spheric conditions. This will usually clear as atmospheric
conditions change to allow the condensation to change
back into a vapor. Turning the lamps on will usually
accelerate the clearing process.
High Intensity Discharge Headlamps (HID) — If
Equipped
The headlamps are a type of high voltage discharge tube.
High voltage can remain in the circuit even with the
headlamp switch off and the key removed.Because of
this, you should not attempt to service a headlamp bulb
yourself. If a headlamp bulb fails, take your vehicle to
an authorized dealer for service.
