●The sensor will not detect:
1. Pedestrians or objects in the roadway
2. Oncoming vehicles in the same lane
3. Motorcycles traveling offset in the travel lane as illustrated
WARNING
●This system is only an aid to assist brak-
ing operation and is not a collision
warning or avoidance device. It is the
driver’s responsibility to stay alert, drive
safely and be in control of the vehicle at
all times. ●
As there is a performance limit to the
Preview Function, never rely solely on
this system. This system does not cor-
rect careless inattentive or absent-
minded driving, or overcome poor vis-
ibility in rain, fog, or other bad weather.
Reduce vehicle speed by depressing the
brake pedal, in order to maintain a safe
distance between vehicles.
● The system may not detect the vehicle
in front of you in certain road or weather
conditions. The Preview Function may
not operate properly under the follow-
ing conditions. The vehicle is still drive-
able under normal conditions and the
Brake Assist will operate.
– When rain, snow or dirt adhere to the system sensor
– When strong light (for example, at sunrise or sunset) is directly shining
on the front of the vehicle
– Winding or hilly roads may cause the sensor to temporarily not detect a
vehicle in the same lane or may de-
tect objects or vehicles in other
lanes. – Vehicle position in the lane may
cause the sensor to temporarily not
detect a vehicle in the same lane or
may detect objects or vehicles in
other lanes.
SSD0338
Starting and driving5-73

The Distance Control Assist (DCA) system
brakes and moves the accelerator pedal upward
according to the distance from and the relative
speed of the vehicle ahead to help assist the
driver to maintain a following distance.
WARNING
●DCA helps maintain a distance to the
vehicle in front under certain condi-
tions. It is not a collision avoidance sys-
tem. Failure to apply the brakes could
result in an accident.
● Always drive carefully and attentively
when using the DCA system. Read and
understand the Owner’s Manual thor-
oughly before using the DCA system.
Do not use the Distance Control Assist
system except in appropriate road and
traffic conditions.
● If the vehicle ahead comes to a stop, the
vehicle decelerates to a standstill
within the limitations of the system. The
system will cancel once it judges that
the vehicle has come to a standstill with
a warning chime. To prevent the vehicle
from moving, the driver must depress
the brake pedal. ●
The DCA system will not apply brake
control while the driver’s foot is on the
accelerator pedal.
PRECAUTIONS ON DCA SYSTEM
Throughout the DCA System section, the system
is intended to assist the driver to maintain a
following distance from the vehicle ahead travel-
ing in the same lane and direction.
The distance sensor is located behind the front
bumper
A. If the distance sensorAdetects a
slower moving vehicle ahead, the system will
reduce the vehicle speed to help assist the driver
to maintain an appropriate following distance.
The system automatically controls the throttle
and applies the brakes (up to 40% of vehicle
braking power) if necessary.
LSD2098
DISTANCE CONTROL ASSIST (DCA)
SYSTEM (if so equipped)
5-74Starting and driving

The detection range of the sensor is approxi-
mately 490 ft (150 m) ahead.
WARNING
●This system is only an aid to assist the
driver and is not a collision warning or
avoidance device. It is the driver’s re-
sponsibility to stay alert, drive safely
and be in control of the vehicle at all
times.
● This system will not adapt automatically
to road conditions.
The distance sensor will not detect the following
objects: ● Stationary and slow moving vehicles
● Pedestrians or objects in the roadway
● Oncoming vehicles in the same lane
● Motorcycles traveling offset in the travel lane
WARNING
●As there is a performance limit to the
distance control function, never rely
solely on the Distance Control Assist
system. This system does not correct
careless, inattentive or absent-minded
driving, or overcome poor visibility in
rain, fog, or other bad weather. Deceler-
ate the vehicle speed by depressing the
brake pedal, depending on the distance
to the vehicle ahead and the surround-
ing circumstances in order to maintain a
safe distance between vehicles.
● The system may not detect the vehicle
in front of you in certain road or weather
conditions. To avoid accidents, never
use the Distance Control Assist system
under the following conditions:
– On roads with sharp curves
– On slippery road surfaces such as on ice or snow, etc.
– During bad weather (rain, fog, snow, etc.)
– When rain, snow or dirt adhere to the sensor area of the front bumper – On steep downhill roads (frequent
braking may result in overheating the
brakes)
– On repeated uphill and downhill roads
● Do not use the Distance Control Assist
system if you are towing a trailer. The
system may not detect a vehicle ahead.
● In some road or traffic conditions, a
vehicle or object can unexpectedly
come into the sensor detection zone
and cause automatic braking. You may
need to control the distance from other
vehicles using the accelerator pedal. Al-
ways stay alert and avoid using the DCA
system where not recommended in this
warning section.
Starting and driving5-75

DCA OPERATION
Always pay attention to the operation of the ve-
hicle and be ready to manually decelerate to
maintain the proper following distance. The DCA
system may not be able to decelerate the vehicle
under some circumstances.
The DCA system uses a sensor
Alocated be-
hind the front bumper of the vehicle to detect
vehicles traveling ahead. The sensor generally
detects the signals returned from the vehicle
ahead. Therefore, if the sensor cannot detect the
reflection from the vehicle ahead, the DCA sys-
tem may not operate. The following are some conditions in which the
sensor cannot detect the signals:
● When the reflector of the vehicle ahead is
covered with dirt, snow and road spray
● When dense exhaust or other smoke (black
smoke) from vehicles reduces the sensor’s
detection
● When excessively heavy baggage is loaded
in the rear seat or the luggage room of your
vehicle
The DCA system is designed to automatically
check the sensor’s operation. When the front
bumper area around the distance sensor is cov-
ered with dirt or is obstructed, the system will
automatically cancel. If the front bumper area of
the distance sensor is covered with ice, a trans-
parent or translucent vinyl bag, etc., the DCA
system may not detect them. In these instances,
the vehicle-to-vehicle distance control mode may
not cancel and may not be able to maintain the
selected following distance from the vehicle
ahead. Be sure to check and clean the front
bumper area around the distance sensor regu-
larly. The DCA system is designed to help assist the
driver to maintain a following distance from the
vehicle ahead. The system will decelerate as nec-
essary and if the vehicle ahead comes to a stop,
the vehicle decelerates to a standstill. However,
the DCA system can only apply up to 40% of the
vehicle’s total braking power. If a vehicle moves
into the traveling lane ahead or if a vehicle travel-
ing ahead rapidly decelerates, the distance be-
tween vehicles may become closer because the
DCA system cannot decelerate the vehicle
quickly enough. If this occurs, the DCA system
will sound a warning chime and blink the system
display to notify the driver to take necessary
action.
For additional information, refer to “Approach
warning” in this section.
This system only brakes and moves the accelera-
tor pedal upward to help assist the driver to
maintain a following distance from the vehicle
ahead. Acceleration should be operated by the
driver.
The DCA system does not control vehicle speed
or warn you when you approach stationary and
slow moving vehicles. You must pay attention to
vehicle operation to maintain proper distance
from vehicles ahead.
LSD2098
5-76Starting and driving

The detection zone of the sensor is limited. A
vehicle ahead must be in the detection zone for
the system to operate.
A vehicle ahead may move outside of the detec-
tion zone due to its position within the same lane
of travel. Motorcycles may not be detected in the
same lane ahead if they are traveling offset from
the centerline of the lane. A vehicle that is enter-
ing the lane ahead may not be detected until the
vehicle has completely moved into the lane.If
this occurs, the system may warn you by
blinking the system indicator and sounding
the chime. The driver may have to manually control the proper distance away from ve-
hicle traveling ahead.
DCA Detection Zone
SSD0252
Starting and driving5-77

When driving on some roads, such as winding,
hilly, curved, narrow roads, or roads which are
under construction, the sensor may detect ve-
hicles in a different lane, or may temporarily not
detect a vehicle traveling ahead. This may cause
the system to work inappropriately.
The detection of vehicles may also be affected by
vehicle operation (steering maneuver or traveling
position in the lane, etc.) or vehicle condition.If
this occurs, the system may warn you by
blinking the system indicator and sounding
the chime unexpectedly. You will have to
manually control the proper distance away
from the vehicle traveling ahead.DCA system display and indicators
The display is located between the speedometer
and tachometer.
1. DCA system switch indicator: Indicates that the dynamic driver assistance
switch is on.
DCA Detection Zones On Winding Roads
SSD0253
DCA Indicators
LSD2068
5-78Starting and driving

2. Vehicle ahead detection indicator:Indicates whether it detects a vehicle in front
of you. To turn on the DCA system, push the dynamic
driver assistance switch
1on the steering wheel
after starting the engine. The DCA system switch
indicator light
2in the vehicle information dis-
play will illuminate. Push the dynamic driver as-
sistance switch again to turn off the DCA system.
The DCA system switch indicator light will turn
off.
The system will start to operate after the vehicle
speed becomes above approximately 3 MPH
(5 km/h).
The dynamic driver assistance switch is used for
the LDP, DCA and BCI systems. When the dy-
namic driver assistance switch is pushed, the LDP system will also turn on or off simultaneously.
The DCA system can be individually set to on or
off on the display. If the system is set to off, the
system will not turn on even if the dynamic driver
assistance switch is pushed to on. To set the
system to on or off on the display, refer to “Setting
DCA system to ON/OFF” in this section.
Setting DCA system to ON/OFF:
The DCA can be turned on/off in the vehicle
information display using the buttons on the
steering wheel.
1. Press the
button, and select the “Set-
tings” using the
button. Then press
the ENTER button.
2. Select the “Driver Aids”, and press the EN- TER button.
3. Select “Forward”, and press the ENTER but- ton.
4. To turn on the “Assistance (DCA)” check the box using the ENTER button.
If the LDP, BSI and DCA systems are set to off on
the information display and the dynamic driver
assistance switch is pushed, the LDP ON indica-
tor light, BSI ON indicator light, and the DCA
system switch indicator light will blink for approxi-
mately 2 seconds.LIC2889LSD2215
Starting and driving5-79

For additional information on LDP and BSI, refer
to “Lane Departure Warning (LDW) system/Lane
Departure Prevention (LDP) system (if so
equipped)” and “Blind Spot Warning
(BSW)/Blind Spot Intervention® (BSI) systems”
in this section.

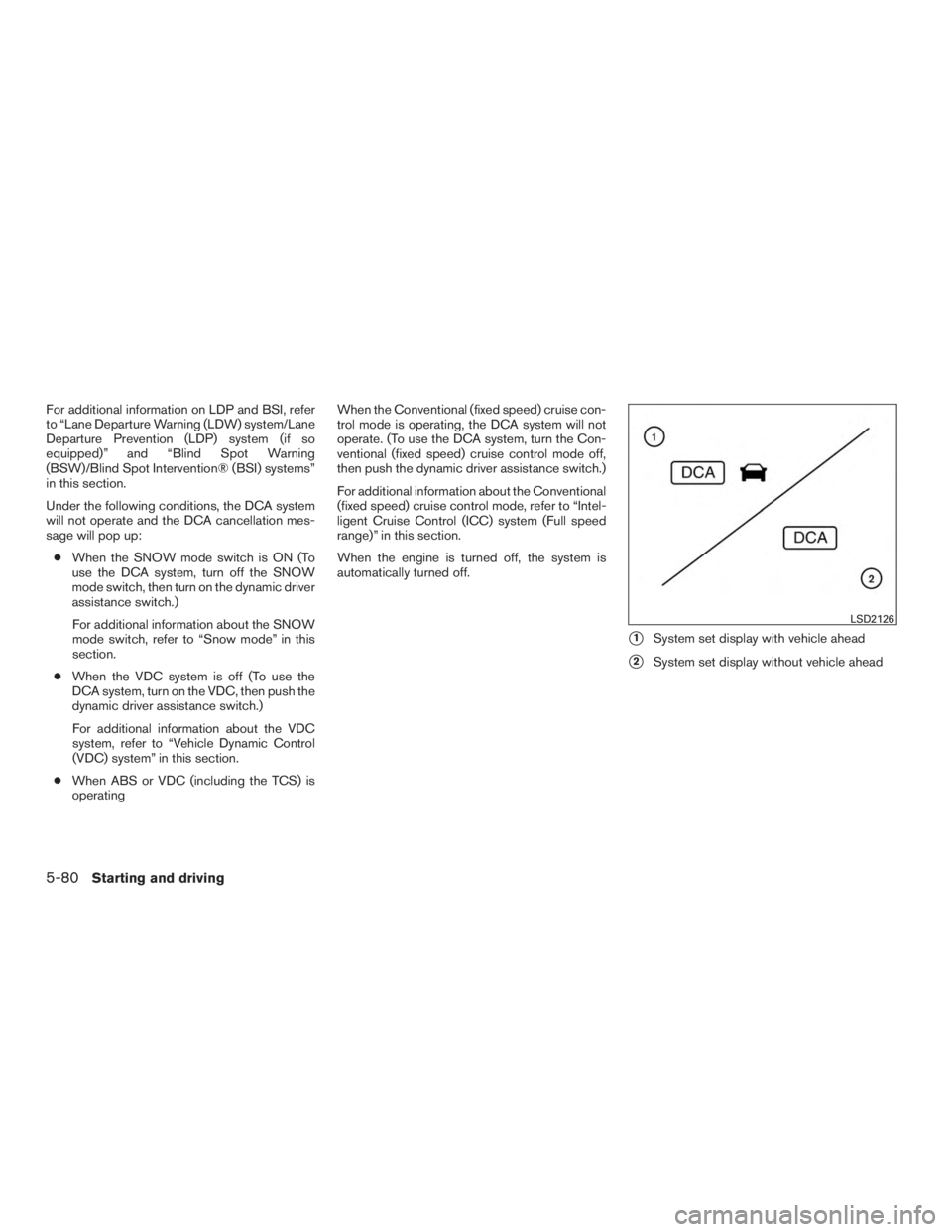

Under the following conditions, the DCA system
will not operate and the DCA cancellation mes-
sage will pop up:● When the SNOW mode switch is ON (To
use the DCA system, turn off the SNOW
mode switch, then turn on the dynamic driver
assistance switch.)
For additional information about the SNOW
mode switch, refer to “Snow mode” in this
section.
● When the VDC system is off (To use the
DCA system, turn on the VDC, then push the
dynamic driver assistance switch.)
For additional information about the VDC
system, refer to “Vehicle Dynamic Control
(VDC) system” in this section.
● When ABS or VDC (including the TCS) is
operating When the Conventional (fixed speed) cruise con-
trol mode is operating, the DCA system will not
operate. (To use the DCA system, turn the Con-
ventional (fixed speed) cruise control mode off,
then push the dynamic driver assistance switch.)
For additional information about the Conventional
(fixed speed) cruise control mode, refer to “Intel-
ligent Cruise Control (ICC) system (Full speed
range)” in this section.
When the engine is turned off, the system is
automatically turned off.
1System set display with vehicle ahead
2System set display without vehicle ahead
LSD2126
5-80Starting and driving
