2015 INFINITI QX60 HYBRID Owner's Manual

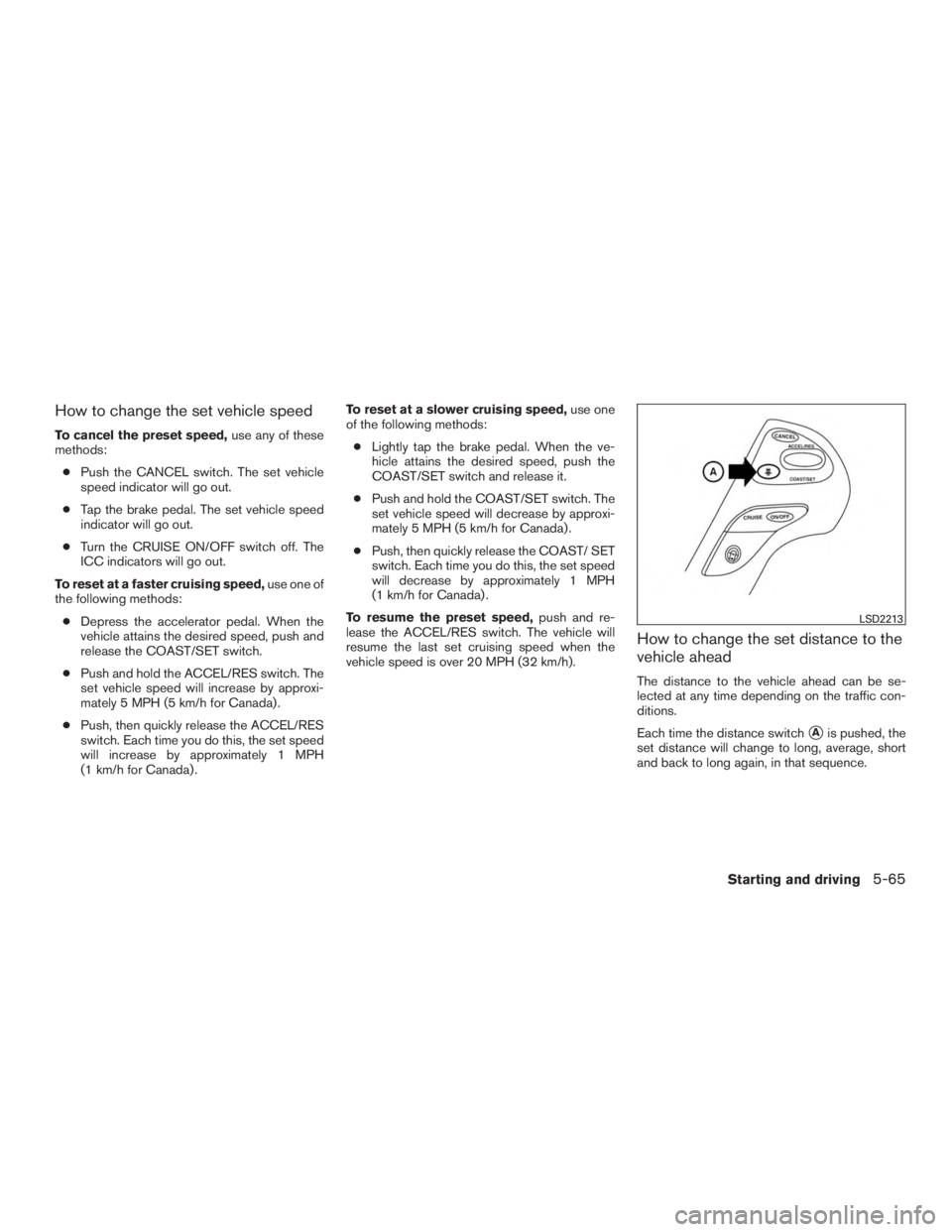

How to change the set vehicle speed
To cancel the preset speed,use any of these
methods:
● Push the CANCEL switch. The set vehicle
speed indicator will go out.
● Tap the brake pedal. The set vehicle speed
indicator will go out.
● Turn the CRUISE ON/OFF switch off. The
ICC indicators will go out.
To reset at a faster cruising speed, use one of
the following methods:
● Depress the accelerator pedal. When the
vehicle attains the desired speed, push and
release the COAST/SET switch.
● Push and hold the ACCEL/RES switch. The
set vehicle speed will increase by approxi-
mately 5 MPH (5 km/h for Canada) .
● Push, then quickly release the ACCEL/RES
switch. Each time you do this, the set speed
will increase by approximately 1 MPH
(1 km/h for Canada) . To reset at a slower cruising speed,
use one
of the following methods:
● Lightly tap the brake pedal. When the ve-
hicle attains the desired speed, push the
COAST/SET switch and release it.
● Push and hold the COAST/SET switch. The
set vehicle speed will decrease by approxi-
mately 5 MPH (5 km/h for Canada) .
● Push, then quickly release the COAST/ SET
switch. Each time you do this, the set speed
will decrease by approximately 1 MPH
(1 km/h for Canada) .
To resume the preset speed, push and re-
lease the ACCEL/RES switch. The vehicle will
resume the last set cruising speed when the
vehicle speed is over 20 MPH (32 km/h).
How to change the set distance to the
vehicle ahead
The distance to the vehicle ahead can be se-
lected at any time depending on the traffic con-
ditions.
Each time the distance switch
Ais pushed, the
set distance will change to long, average, short
and back to long again, in that sequence.
LSD2213
Starting and driving5-65

Distance Approximate distance at60 MPH (100 km/h) [ft (m)]
1. Long 180 (55)
2. Average 130 (40)
3. Short 80 (25)
● The distance to the vehicle ahead will
change according to the vehicle speed. The
higher the vehicle speed, the longer the dis-
tance.
● If the engine is stopped, the set distance
becomes “long”. (Each time the engine is
started, the initial setting becomes “long”.)
Approach warning
If your vehicle comes closer to the vehicle ahead,
due to rapid deceleration of that vehicle or if
another vehicle cuts in, the system warns the
driver with the chime and ICC system display.
Decelerate by depressing the brake pedal to
maintain a safe vehicle distance if:
● The chime sounds.
● The vehicle ahead detection indicator blinks
in orange.
The warning chime may not sound in some cases
when there is a short distance between vehicles.
Some examples are: ● When the vehicles are traveling at the same
speed and the distance between vehicles is
not changing
● When the vehicle ahead is traveling faster
and the distance between vehicles is in-
creasing
● When a vehicle cuts in near your vehicle
The warning chime will not sound when: ● The vehicle approaches other vehicles that
are parked or moving slowly.
● The accelerator pedal is depressed, overrid-
ing the system. NOTE:
The approach warning chime may sound
and the system display may blink when the
ICC sensor detects objects on the side of
the vehicle
Aor on the side of the roadA.
This may cause the ICC system to deceler-
ate or accelerate the vehicle. The ICC sen-
sor may detect these objects when the ve-
hicle is driven on winding roads, narrow
roads, hilly roads, or when entering or exit-
ing a curve. In these cases you will have to
manually control the proper distance
ahead of your vehicle.
LSD2124SSD0284A
5-66Starting and driving

Also, the sensor sensitivity can be affected by
vehicle operation (steering maneuver or driving
position in the lane) or traffic or vehicle condition
(for example, if a vehicle is being driven with some
damage) .
Automatic cancellation
A chime sounds under the following conditions
and the control is automatically canceled.● When the vehicle ahead is not detected and
your vehicle is traveling below the speed of
15 MPH (24 km/h)
● When the system judges the vehicle is at
standstill
● When the shift lever is not in the D (Drive) or
Manual mode
● When the parking brake is applied
● When the SNOW mode switch is turned on
● When the VDC system is turned off
● When ABS or VDC (including the TCS)
operates
● When the radar signal is temporarily inter-
rupted
● When distance measurement becomes im-
paired due to adhesion of dirt or obstruction
to the sensor area
● When a wheel slips
Warning light and display
Condition A:
Under the following conditions, the ICC system is
automatically canceled. The chime will sound and
the system will not be able to be set.
● When the VDC system is turned off
● When the VDC or ABS (including the TCS)
operates
● When a tire slips
● When the SNOW mode switch is turned on Action to take:
When the conditions listed above are no longer
present, turn the system off using the ICC
CRUISE ON/OFF switch. Turn the ICC system
back on to use the system.
Condition B:
When the sensor area of the front bumper is dirty
making it impossible to detect a vehicle ahead,
the ICC system is automatically canceled.
The chime sounds and the system warning light
(orange) will come on and the “Sensor Blocked”
indicator will appear.
LSD2063
Starting and driving5-67

Action to take:
If the warning light comes on, park the vehicle in a
safe place, turn the engine off. When the radar
signal is temporarily interrupted, clean the sensor
area of the front bumper and perform the settings
again.
Condition C:
When the ICC system is not operating properly,
the chime sounds and the system warning light
(orange) will come on.Action to take:
If the warning light comes on, park the vehicle in a
safe place. Turn the engine off, restart the engine,
resume driving and set the ICC system again.
If it is not possible to set the system or the
indicator stays on, it may indicate that the
system is malfunctioning. Although the ve-
hicle is still driveable under normal condi-
tions, have the vehicle checked at an
INFINITI retailer.Sensor maintenance
The sensor for the ICC systemAis located
behind the front bumper.
To keep the ICC system operating properly, be
sure to observe the following:
● Always keep the sensor area of the front
bumper clean.
● Do not strike or damage the areas around
the sensor.
● Do not cover or attach stickers or similar
objects on the front bumper near the sensor
area. This could cause failure or malfunction.
LSD2174LSD2175LSD2098
5-68Starting and driving

●Do not attach metallic objects near the sen-
sor area (brush guard, etc.) This could cause
failure or malfunction.
● Do not alter, remove, or paint the front bum-
per. Before customizing or restoring the
front bumper, please contact an INFINITI
retailer.

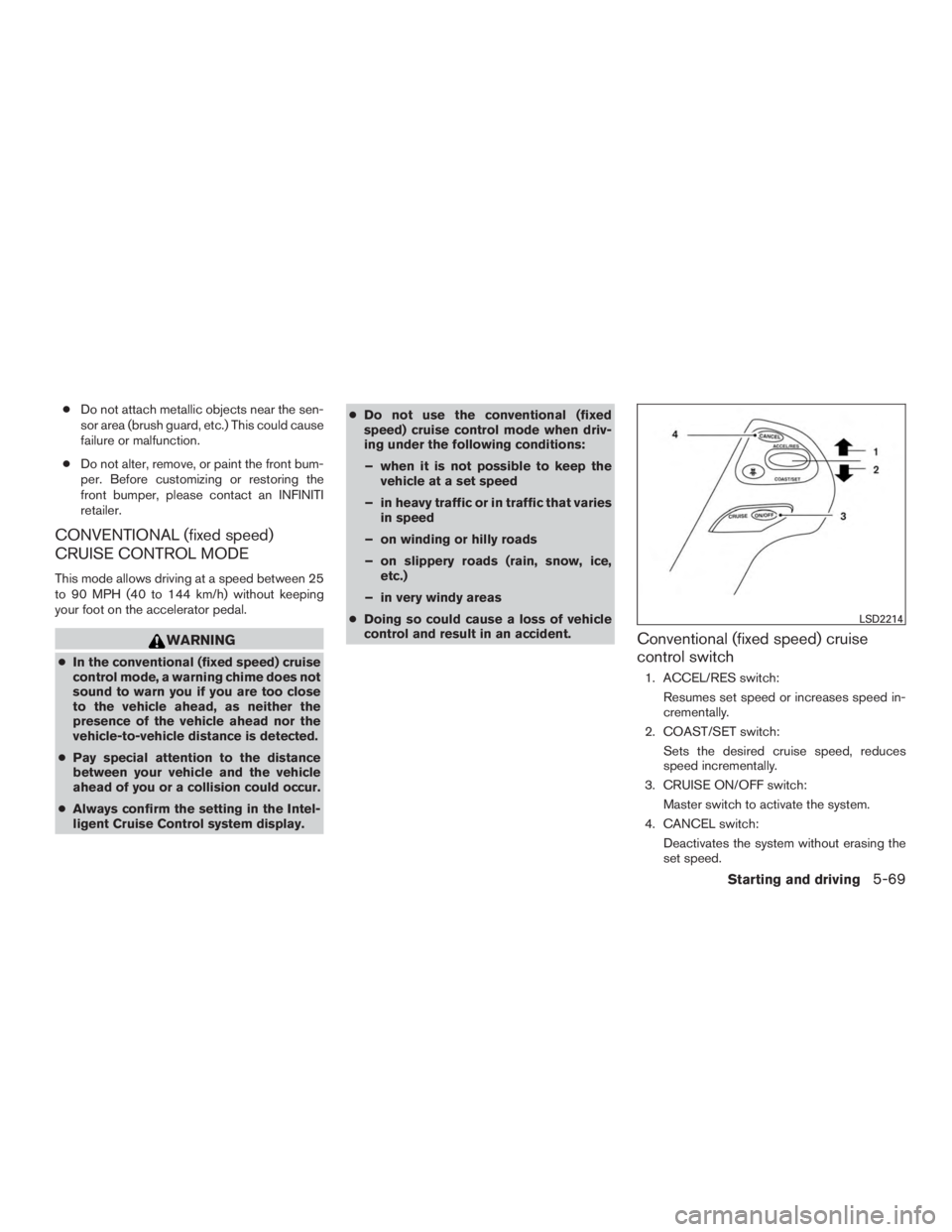

CONVENTIONAL (fixed speed)
CRUISE CONTROL MODE
This mode allows driving at a speed between 25
to 90 MPH (40 to 144 km/h) without keeping
your foot on the accelerator pedal.
WARNING
●In the conventional (fixed speed) cruise
control mode, a warning chime does not
sound to warn you if you are too close
to the vehicle ahead, as neither the
presence of the vehicle ahead nor the
vehicle-to-vehicle distance is detected.
● Pay special attention to the distance
between your vehicle and the vehicle
ahead of you or a collision could occur.
● Always confirm the setting in the Intel-
ligent Cruise Control system display. ●
Do not use the conventional (fixed
speed) cruise control mode when driv-
ing under the following conditions:
– when it is not possible to keep the vehicle at a set speed
– in heavy traffic or in traffic that varies in speed
– on winding or hilly roads
– on slippery roads (rain, snow, ice, etc.)
– in very windy areas
● Doing so could cause a loss of vehicle
control and result in an accident.
Conventional (fixed speed) cruise
control switch
1. ACCEL/RES switch:
Resumes set speed or increases speed in-
crementally.
2. COAST/SET switch: Sets the desired cruise speed, reduces
speed incrementally.
3. CRUISE ON/OFF switch: Master switch to activate the system.
4. CANCEL switch: Deactivates the system without erasing the
set speed.
LSD2214
Starting and driving5-69

Conventional (fixed speed) cruise
control mode display and indicators
The display is located between the speedometer
and tachometer.1. CRUISE ON/OFF switch indicator: Indicates that the CRUISE ON/OFF switch
is on.
2. Cruise set switch indicator: Displays while the vehicle speed is con-
trolled by the conventional (fixed speed)
cruise control mode of the ICC system. 3. Cruise system warning light:
Comes on if there is a malfunction in the
cruise control system.
Operating conventional (fixed speed)
cruise control mode
To turn on the conventional (fixed speed)
cruise control mode, push and hold the
CRUISE ON/OFF switch
Afor longer than
about 1.5 seconds.
When pushing the CRUISE ON/OFF switch on,
the ICC system display and the CRUISE indica-
tor are displayed in the vehicle information dis-
play. After you hold the CRUISE ON/OFF switch
on for longer than about 1.5 seconds, the ICC
system display goes out. The CRUISE indicator
stays lit. You can now set your desired cruising
speed. Pushing the CRUISE ON/OFF switch
again will turn the system completely off.
LSD2075LSD2076
5-70Starting and driving

When the ignition switch is pushed to the OFF
position, the system is also automatically turned
off. To use the ICC again, quickly push and re-
lease the CRUISE ON/OFF switch (vehicle-to-
vehicle distance control mode) or push and hold
it (conventional cruise control mode) again to turn
it on.
When the Distance Control Assist (DCA) system
is on, the conventional (fixed speed) cruise con-
trol mode cannot be turned on even though the
CRUISE ON/OFF switch is pushed and held.
To turn on the conventional (fixed speed) cruise
control mode, turn off the DCA system. For addi-
tional information, refer to “Distance Control As-
sist (DCA) system” in this section.
CAUTION
To avoid accidentally engaging cruise con-
trol, make sure to turn the ON/OFF switch
off when not using the Intelligent Cruise
Control.To set cruising speed,
accelerate your vehicle
to the desired speed, push the COAST/SET
switch and release it. (The SET indicator will
come on in the display.) Take your foot off the
accelerator pedal. Your vehicle will maintain the
set speed.
● To pass another vehicle, depress the ac-
celerator pedal. When you release the
pedal, the vehicle will return to the previously
set speed.
● The vehicle may not maintain the set speed
when going up or down steep hills. If this
happens, manually maintain vehicle speed. To cancel the preset speed,
use any of the
following three methods:
1. Push the CANCEL button. The SET indica- tor will go out.
2. Tap the brake pedal. The SET indicator will go out.
3. Turn the CRUISE ON/OFF switch off. Both the CRUISE indicator and SET indicator will
go out.
To reset at a faster cruising speed, use one of
the following three methods:
1. Depress the accelerator pedal. When the vehicle attains the desired speed, push and
release the COAST/SET switch.
2. Push and hold the ACCEL/RES set switch. When the vehicle attains the speed you de-
sire, release the switch.
3. Push, then quickly release the ACCEL/ RES switch. Each time you do this, the set speed
will increase by about 1 MPH (1.6 km/h).
To reset at a slower cruising speed, use one
of the following three methods:
1. Lightly tap the brake pedal. When the ve- hicle attains the desired speed, push the
COAST/SET switch and release it.
LSD2066
Starting and driving5-71

2. Push and hold the COAST/SET switch. Re-lease the switch when the vehicle slows
down to the desired speed.
3. Push, then quickly release the COAST/SET switch. Each time you do this, the set speed
will decrease by about 1 MPH (1.6 km/h).
To resume the preset speed, push and re-
lease the ACCEL/RES switch. The vehicle will
resume the last set cruising speed when the
vehicle speed is over 25 MPH (40 km/h).
Automatic cancellation
Under the following conditions, a chime will
sound and the system control is automatically
canceled:
● When the vehicle slows down more than
8 MPH (13 km/h) below the set speed
● When the vehicle speed falls below approxi-
mately 20 MPH (32 km/h)
● When the shift lever is not in the D (Drive) or
Manual mode
● When the parking brake is applied
● When the VDC (including the TCS) oper-
ates
● When a wheel slips
Warning light
When the system is not operating properly, the
chime sounds and the system warning light (or-
ange) will come on.
Action to take:
If the warning light comes on, park the vehicle in a
safe place. Turn the engine off, restart the engine,
resume driving and then perform the setting
again. If it is not possible to set or the indicator
stays on, it may indicate that the system is
malfunctioning. Although the vehicle is still
driveable under normal conditions, have
the vehicle checked at an INFINITI retailer.
PREVIEW FUNCTION (Intelligent
Cruise Control system equipped
models)
When the Preview Function identifies the need to
apply emergency braking by sensing a vehicle
ahead in the same lane and the distance and
relative speed from it, it applies the brake pre-
pressure before the driver depresses the brake
pedal and helps improve brake response by re-
ducing pedal free play.
● This system will not operate when the ve-
hicle is moving at approximately 32 km/h
(20 MPH) or less.
● The pre-pressure function ceases when the
following conditions are met:
1. When the driver depresses the accelerator pedal or the brake pedal.
2. If the driver does not operate the accelerator or brake pedal within approximately 1 sec-
ond.
LSD2067
5-72Starting and driving
