2015 FORD TAURUS Owners Manual

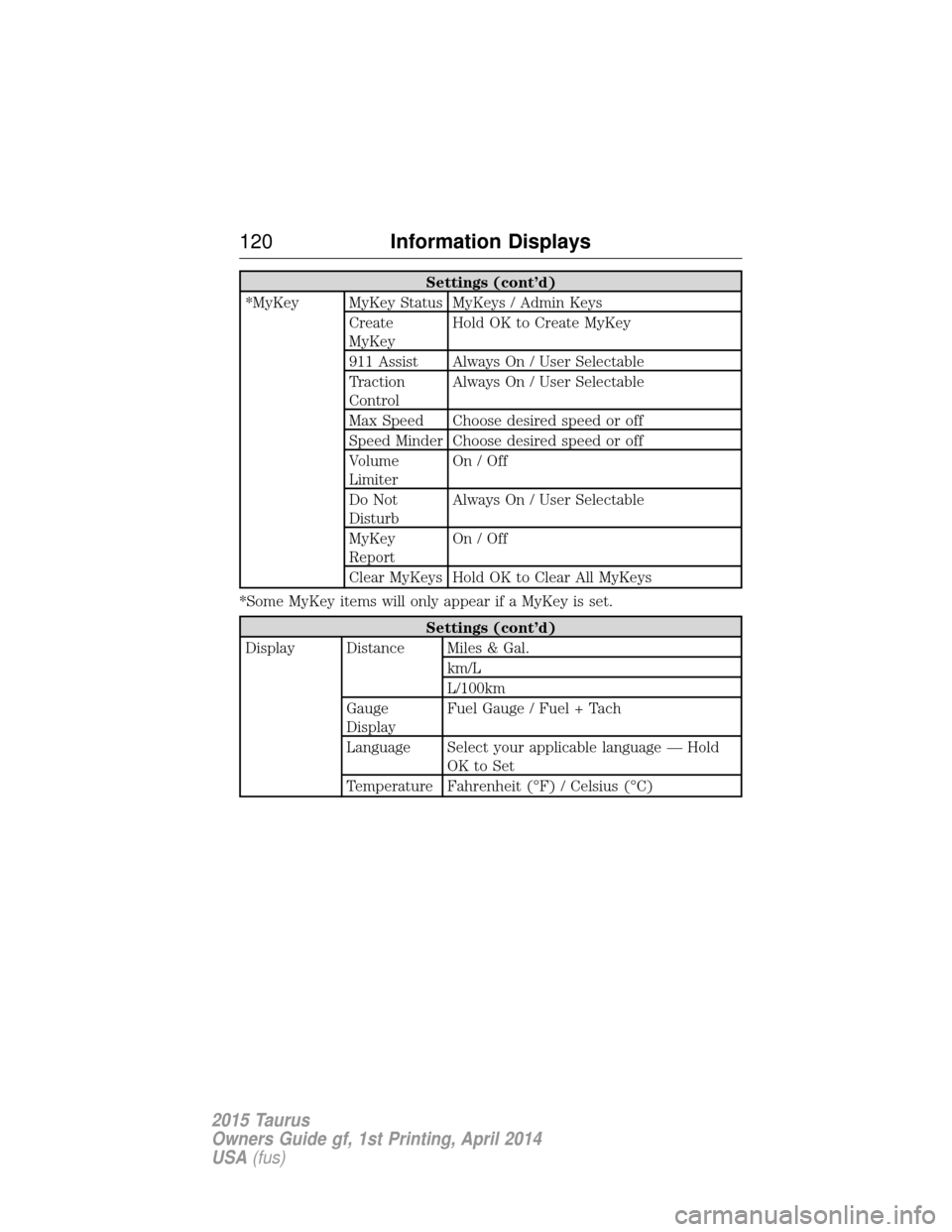

Settings (cont’d)
*MyKey MyKey Status MyKeys / Admin Keys Create
MyKeyHold OK to Create MyKey
911 Assist Always On / User Selectable
Traction
Control Always On / User Selectable
Max Speed Choose desired speed or off
Speed Minder Choose desired speed or off
Volume
Limiter On/Off
Do Not
Disturb Always On / User Selectable
MyKey
Report On/Off
Clear MyKeys Hold OK to Clear All MyKeys
*Some MyKey items will only appear if a MyKey is set.
Settings (cont’d)
Display Distance Miles & Gal. km/L
L/100km
Gauge
Display Fuel Gauge / Fuel + Tach
Language Select your applicable language — Hold OK to Set
Temperature Fahrenheit (°F) / Celsius (°C)
120 Information Displays
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

INFORMATION MESSAGES
Note:Depending on the vehicle options equipped with your vehicle, not
all of the messages will display or be available. Certain messages may be
abbreviated or shortened depending upon which cluster type you have.
Press the OK button to
acknowledge and remove some
messages from the information
display. Other messages will be
removed automatically after a short
time. Certain messages need to be
confirmed before you can access
the menus.
Message indicators: Some messages will be supplemented by a system
specific symbol.
Adaptive Cruise
Control Messages Action / Description
Adaptive Cruise
Malfunction Displayed when a radar malfunction is
preventing the ACC from engaging.
Adaptive Cruise Not
Available Displayed when conditions exist such that the
adaptive cruise cannot function properly.
Adaptive Cruise Not
Available Sensor
Blocked Displayed when the radar is blocked because
of poor radar visibility due to bad weather or
ice/mud/water in front of radar. Driver can
typically clean the sensor to resolve.
AdvanceTrac® /
Traction Control Messages Action / Description
Service AdvanceTrac Displayed when the AdvanceTrac® system has detected a condition that requires service.
Contact your authorized dealer as soon as
possible.
Traction control off Displayed when the traction control has been disabled by the driver.
Information Displays 121
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

Alarm/SecurityMessages Action / Description
Vehicle Alarm To Stop
Alarm, Start Vehicle Displayed when the perimeter alarm system is
armed and the vehicle is entered using the key
on the driver’s side door. In order to prevent
the perimeter alarm system from triggering,
the ignition must be turned to start or on
before the 12 second chime expires.
Automatic Engine
Shutdown Messages Action / Description
Engine Shuts Off in
XX Seconds Displays when the engine is getting ready to
shut off.
Engine Shut Off for
Fuel Economy Displays when the engine has shut off to help
increase fuel economy.
Engine Shuts Off in
XX Seconds Press OK
to Override Displays when the engine is getting ready to
shut off. You can press OK on the left steering
wheel button to override the shut down.
AWD Messages
Action / Description
AWD Off Displayed when the AWD system has been
automatically disabled to protect itself. This is
caused by operating the vehicle with the
compact spare tire installed or if the system is
overheating. The AWD system will resume
normal function and clear this message after
driving a short distance with the road tire
re-installed or after the system is allowed to
cool.
Check AWD Displayed in conjunction with the Throttle
Control/Transmission/AWD light when the
AWD system is not operating properly. If the
warning stays on or continues to come on,
contact your authorized dealer as soon as
possible.
122 Information Displays
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

AWD MessagesAction / Description
Change AWD Power
Transfer Unit Lube Displayed when the AWD system needs its
power transfer unit lubrication changed. This
message may be set if a vehicle has
experienced extended periods of
extreme/severe duty cycle driving. See your
authorized dealer for service. (Taurus SHO
Performance Package Only)
Battery and
Charging System Messages Action / Description
Check Charging
System Displayed when the charging system needs
servicing. If the warning stays on or continues
to come on, contact your authorized dealer as
soon as possible.
Turn Power Off to
Save Battery Displayed when the battery management
system determines that:
•
the battery is at a low state of charge or,
• the ignition has been in accessory position
or on position with the engine off for
approximately 45 minutes.
Turn the ignition off as soon as possible to
protect the battery. This message will clear
once the vehicle has been started and the
battery state of charge has recovered. Turning
off unnecessary electrical loads will allow
faster battery state-of-charge recovery.
Transport Mode
Contact Dealer Contact your authorized dealer as soon as
possible.
Factory Mode Contact
Dealer Contact your authorized dealer as soon as
possible.
Information Displays
123
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

BLIS® MessagesAction / Description
Blindspot Not
Available Sensor
Blocked See Manual Displayed when the blind spot information
system/cross traffic alert system sensors are
blocked. Driver can typically clean the sensor
to resolve.
Blindspot System Fault Displayed when a fault with the blind spot information system has occurred. Contact your
authorized dealer as soon as possible.
Cross Traffic Not
Available Sensor
Blocked Displayed when the blind spot information
system/cross traffic alert system sensors are
blocked. Driver can typically clean the sensor
to resolve.
Cross Traffic System
Fault Displayed when a fault with the cross traffic
alert system has occurred. Contact your
authorized dealer as soon as possible.
Vehicle Coming From
X Displayed when the blind spot information
system with cross traffic alert (CTA) system is
operating and senses a vehicle.
Brake System
Messages Action / Description
Brake Fluid Level
LOW Indicates the brake fluid level is low and the
brake system should be inspected immediately.
Check Brake System Displayed when the brake system needs servicing. If the warning stays on or continues
to come on, contact your authorized dealer as
soon as possible.
Park Brake Engaged Displayed when the parking brake is set, the engine is running and the vehicle is driven
more than 3 mph (5 km/h). If the warning
stays on after the parking brake is released,
contact your authorized dealer as soon as
possible.
124Information Displays
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

Collision WarningSystem Messages Action / Description
Collision Warning Not
Available Displayed when there is a system malfunction
with the collision warning system. The system
will be disabled. Contact your authorized
dealer as soon as possible.
Collision Warning Not
Available Sensor
Blocked See Manual Displayed when the collision warning system
radar is blocked because of poor radar
visibility due to bad weather or ice/mud/water
in front of the radar. Driver can typically clean
the sensor to resolve. Contact your authorized
dealer as soon as possible.
Collision Warning
Malfunction Displayed when there is a system malfunction
with the collision warning system. The system
will be disabled. Contact your authorized
dealer as soon as possible.
Door Messages
Action / Description
X Door Ajar Displayed when a door is not completely
closed.
Trunk Ajar Displayed when the trunk is not completely
closed.
Fuel Messages Action / Description
Check Fuel Fill Inlet Displayed when the fuel fill inlet may not be properly closed.
Fuel Level LOW Displayed as an early reminder of a low fuel condition.
Information Displays 125
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

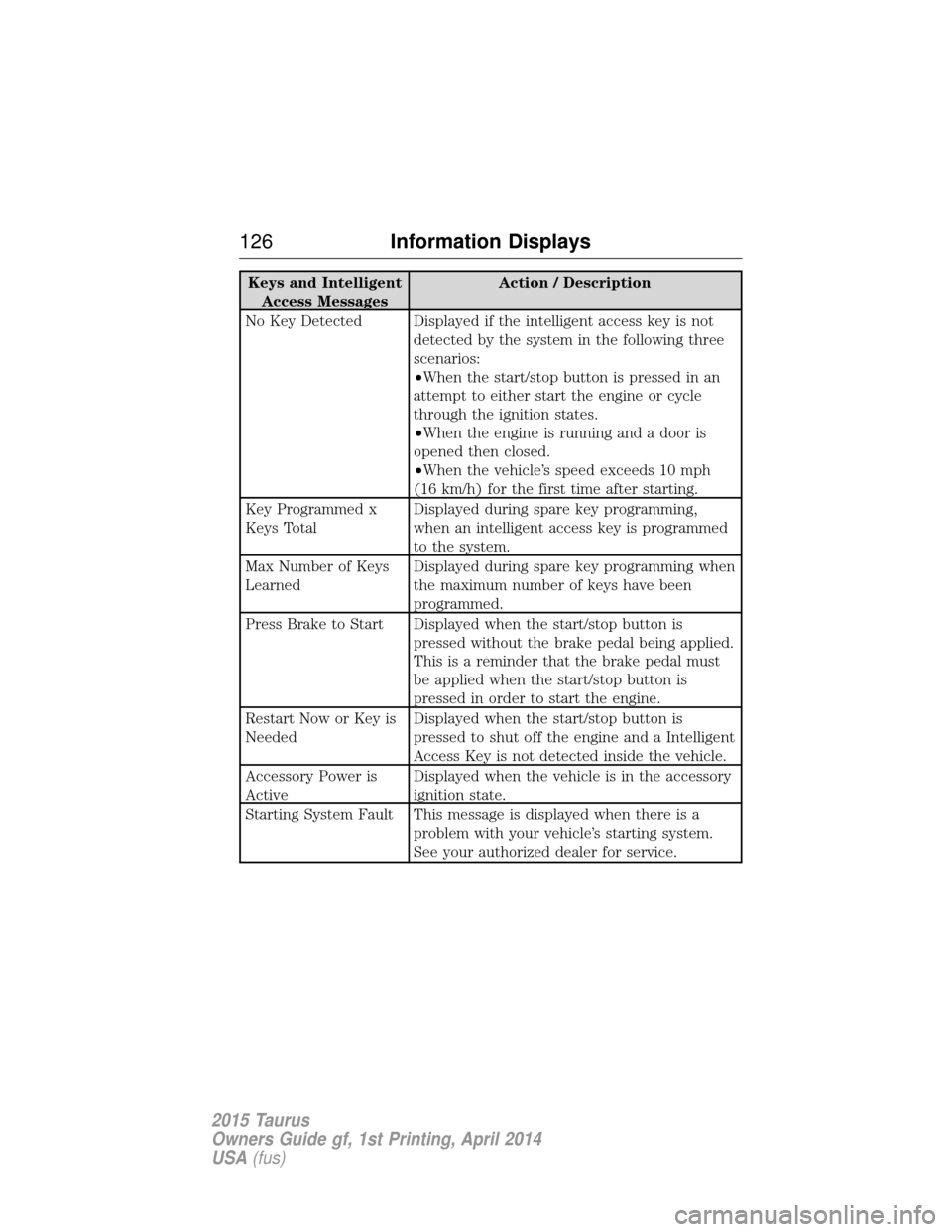

Keys and IntelligentAccess Messages Action / Description
No Key Detected Displayed if the intelligent access key is not detected by the system in the following three
scenarios:
•When the start/stop button is pressed in an
attempt to either start the engine or cycle
through the ignition states.
•When the engine is running and a door is
opened then closed.
•When the vehicle’s speed exceeds 10 mph
(16 km/h) for the first time after starting.
Key Programmed x
Keys Total Displayed during spare key programming,
when an intelligent access key is programmed
to the system.
Max Number of Keys
Learned Displayed during spare key programming when
the maximum number of keys have been
programmed.
Press Brake to Start Displayed when the start/stop button is pressed without the brake pedal being applied.
This is a reminder that the brake pedal must
be applied when the start/stop button is
pressed in order to start the engine.
Restart Now or Key is
Needed Displayed when the start/stop button is
pressed to shut off the engine and a Intelligent
Access Key is not detected inside the vehicle.
Accessory Power is
Active Displayed when the vehicle is in the accessory
ignition state.
Starting System Fault This message is displayed when there is a problem with your vehicle’s starting system.
See your authorized dealer for service.
126Information Displays
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

Lane Keeping
System Messages Action / Description
Lane keeping Sys.
Malfunction Service
required The system has malfunctioned. Contact your
authorized dealer as soon as possible.
Front Camera
Temporarily Not
Available The system has detected a condition that has
caused the system to be temporarily
unavailable.
Front Camera Low
Visibility Clean Screen The system has detected a condition the
requires the windshield to be cleaned to
operate properly.
Front Camera
Malfunction Service
Required The system has malfunctioned. Contact your
authorized dealer as soon as possible.
Keep Hands on
Steering Wheel Displayed when the system requests the driver
to keep their hands on the steering wheel.
Maintenance
Messages Action / Description
LOW Engine Oil
Pressure Stop the vehicle as soon as safely possible,
turn off the engine. Check the oil level. If the
warning stays on or continues to come on with
your engine running, contact your authorized
dealer as soon as possible.
Change Engine Oil
Soon Displayed when the engine oil life remaining is
10% or less.
Oil Change Required Displayed when the oil life left reaches 0%.
Engine Coolant
Overtemperature Displayed when the engine coolant
temperature is excessively high.
Washer Fluid Level
LOW Indicates the washer fluid reservoir is less than
one quarter full. Check the washer fluid level.
Steering Malfunction
Service Now Displays when the steering system needs
service. See your authorized dealer.
Information Displays
127
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)
