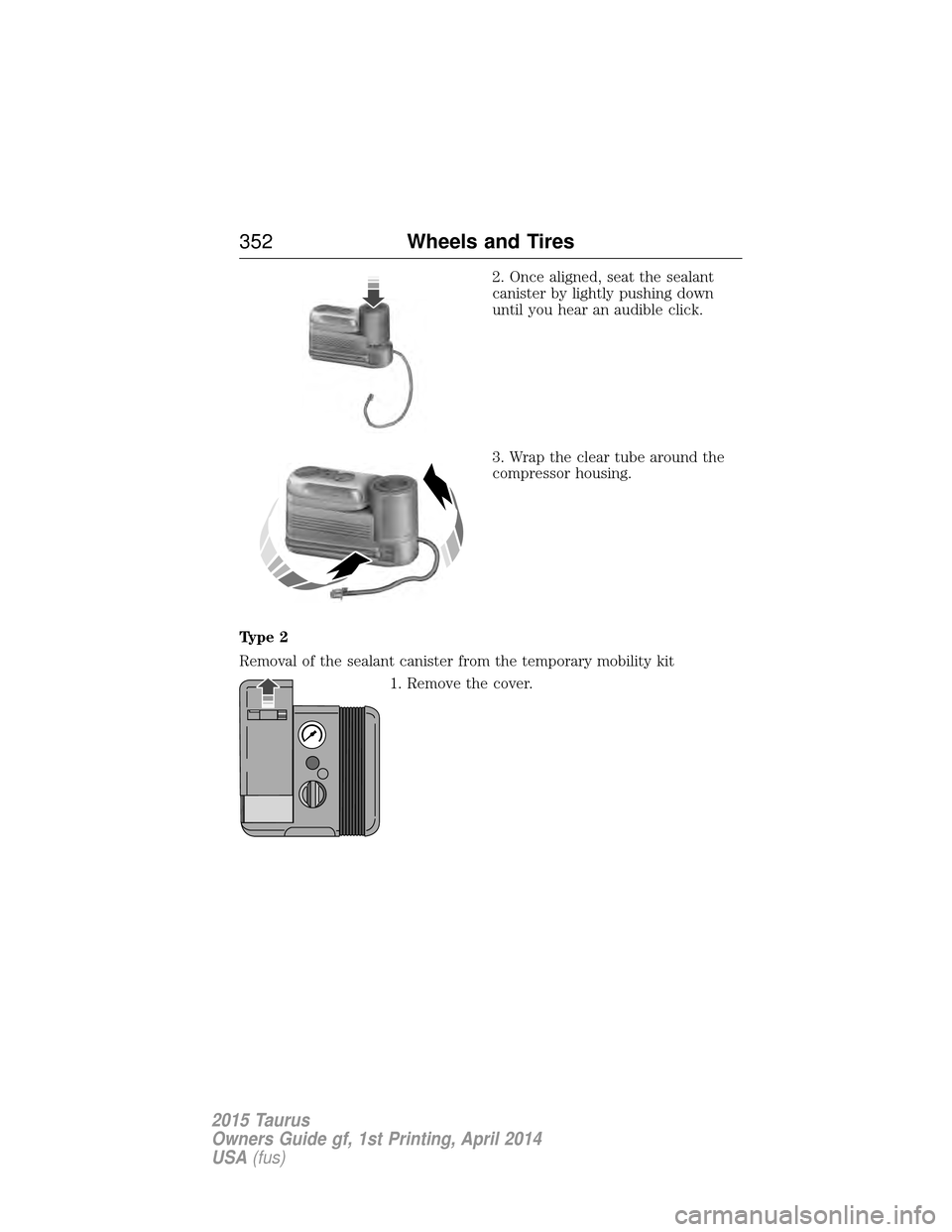

2. Once aligned, seat the sealant
canister by lightly pushing down
until you hear an audible click.
3. Wrap the clear tube around the
compressor housing.
Type 2
Removal of the sealant canister from the temporary mobility kit 1. Remove the cover.
352Wheels and Tires
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

2. Unwrap the power cord.
3. Remove the hose from the storage
channel. 4. Turn the hex connector
counterclockwise to loosen.
5. Make sure the connection is
separated.
Wheels and Tires 353
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

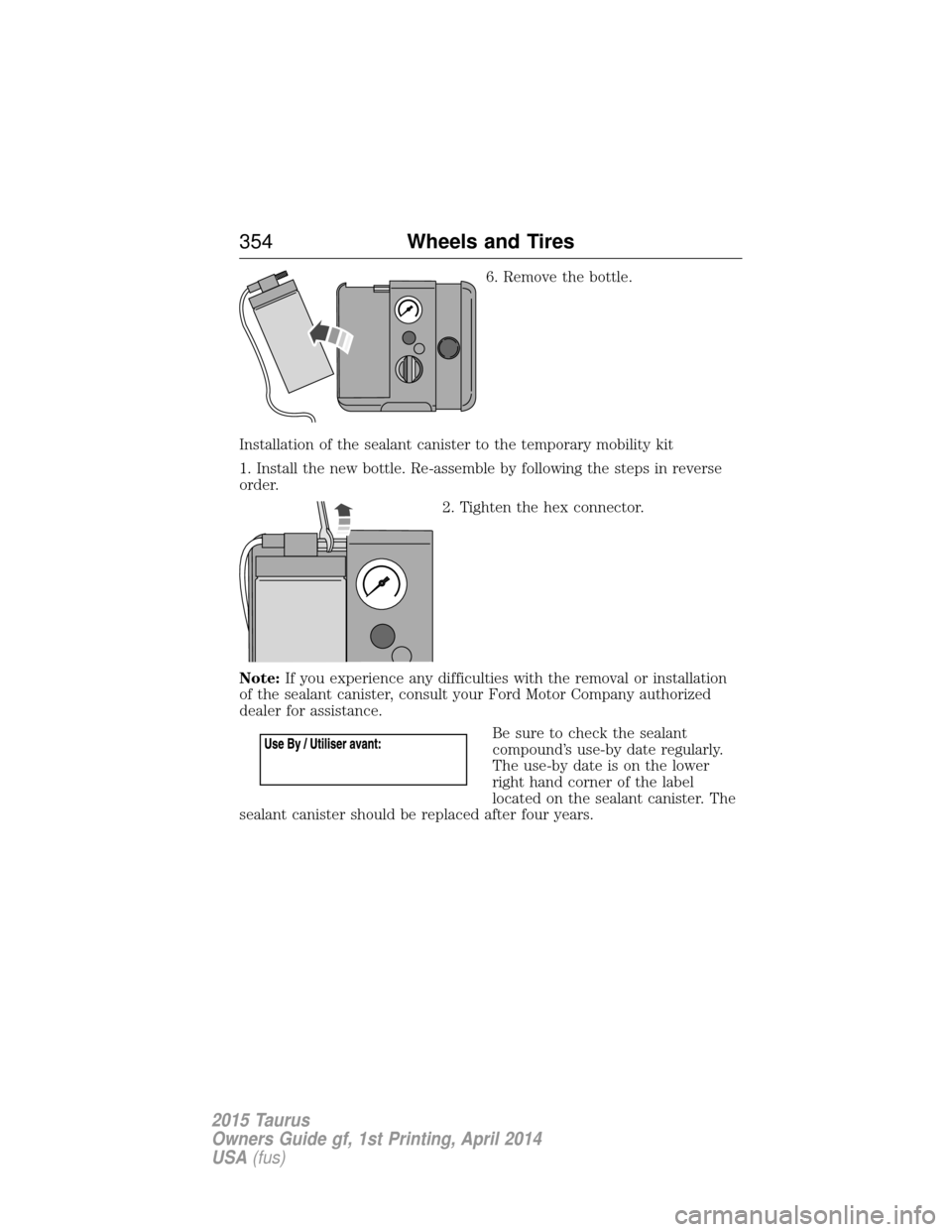

6. Remove the bottle.
Installation of the sealant canister to the temporary mobility kit
1. Install the new bottle. Re-assemble by following the steps in reverse
order. 2. Tighten the hex connector.
Note: If you experience any difficulties with the removal or installation
of the sealant canister, consult your Ford Motor Company authorized
dealer for assistance.
Be sure to check the sealant
compound’s use-by date regularly.
The use-by date is on the lower
right hand corner of the label
located on the sealant canister. The
sealant canister should be replaced after four years.
354 Wheels and Tires
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

TECHNICAL SPECIFICATIONS
Wheel Lug Nut Torque Specifications
WARNING:When a wheel is installed, always remove any
corrosion, dirt or foreign materials present on the mounting
surfaces of the wheel or the surface of the wheel hub, brake drum or
brake disc that contacts the wheel. Make sure that any fasteners that
attach the rotor to the hub are secured so they do not interfere with
the mounting surfaces of the wheel. Installing wheels without correct
metal-to-metal contact at the wheel mounting surfaces can cause the
wheel nuts to loosen and the wheel to come off while your vehicle is in
motion, resulting in loss of control.
Retighten the lug nuts to the specified torque within 100 miles
(160 kilometers) after any wheel disturbance (such as rotation, flat tire,
wheel removal).
Lug nut socket size/Bolt size Wheel lug nut torque*
ft-lb N•m
12x 20 100 135
* Torque specifications are for nut and bolt threads free of dirt and
rust. Use only Ford recommended replacement fasteners.
Note:Inspect the wheel pilot hole
and mounting surface prior to
installation. Remove any visible
corrosion or loose particles.
Wheels and Tires 355
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

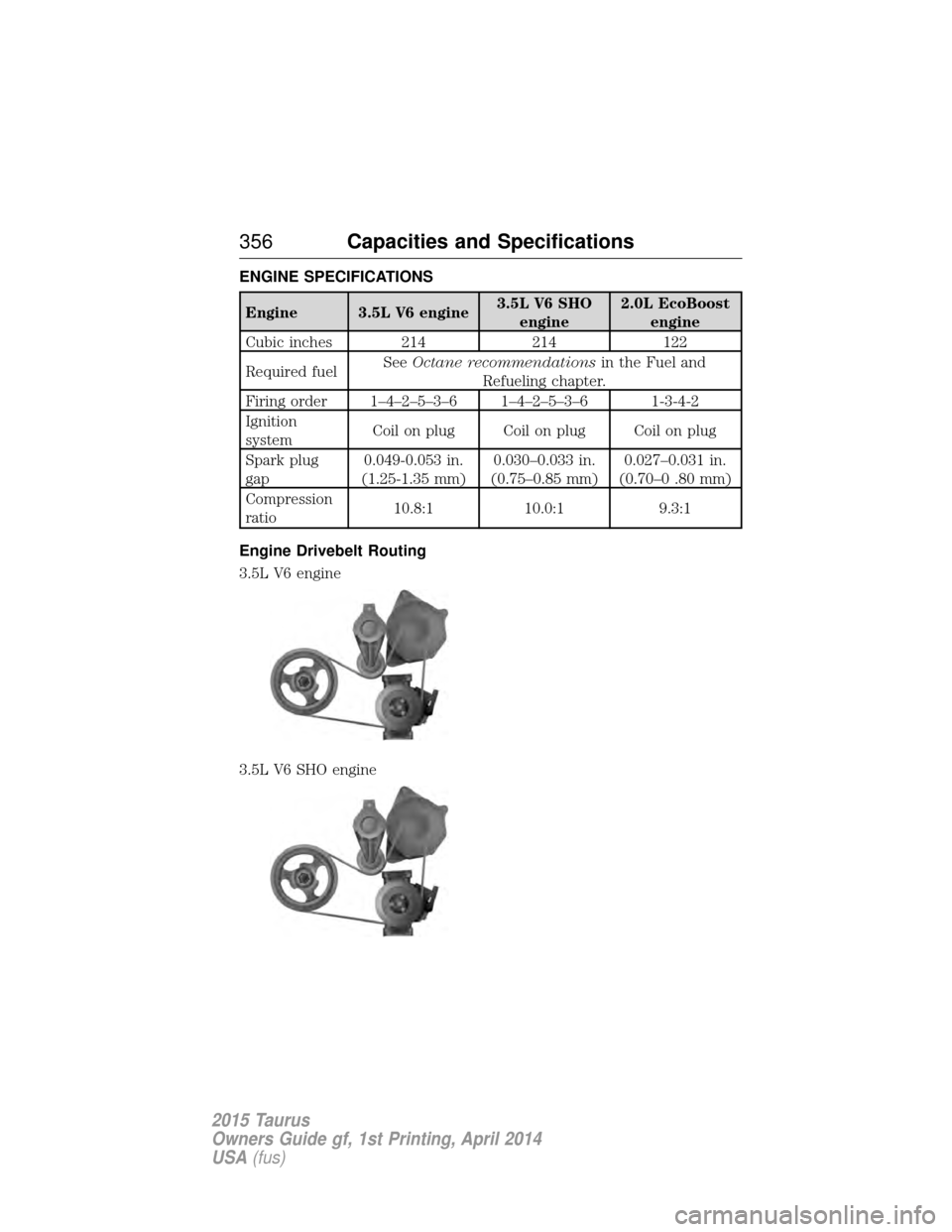

ENGINE SPECIFICATIONS
Engine 3.5L V6 engine3.5L V6 SHO
engine 2.0L EcoBoost
engine
Cubic inches 214 214 122
Required fuel See
Octane recommendations in the Fuel and
Refueling chapter.
Firing order 1–4–2–5–3–6 1–4–2–5–3–6 1-3-4-2
Ignition
system Coilonplug Coilonplug Coilonplug
Spark plug
gap 0.049-0.053 in.
(1.25-1.35 mm) 0.030–0.033 in.
(0.75–0.85 mm) 0.027–0.031 in.
(0.70–0 .80 mm)
Compression
ratio 10.8:1 10.0:1 9.3:1
Engine Drivebelt Routing
3.5L V6 engine
3.5L V6 SHO engine
356 Capacities and Specifications
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

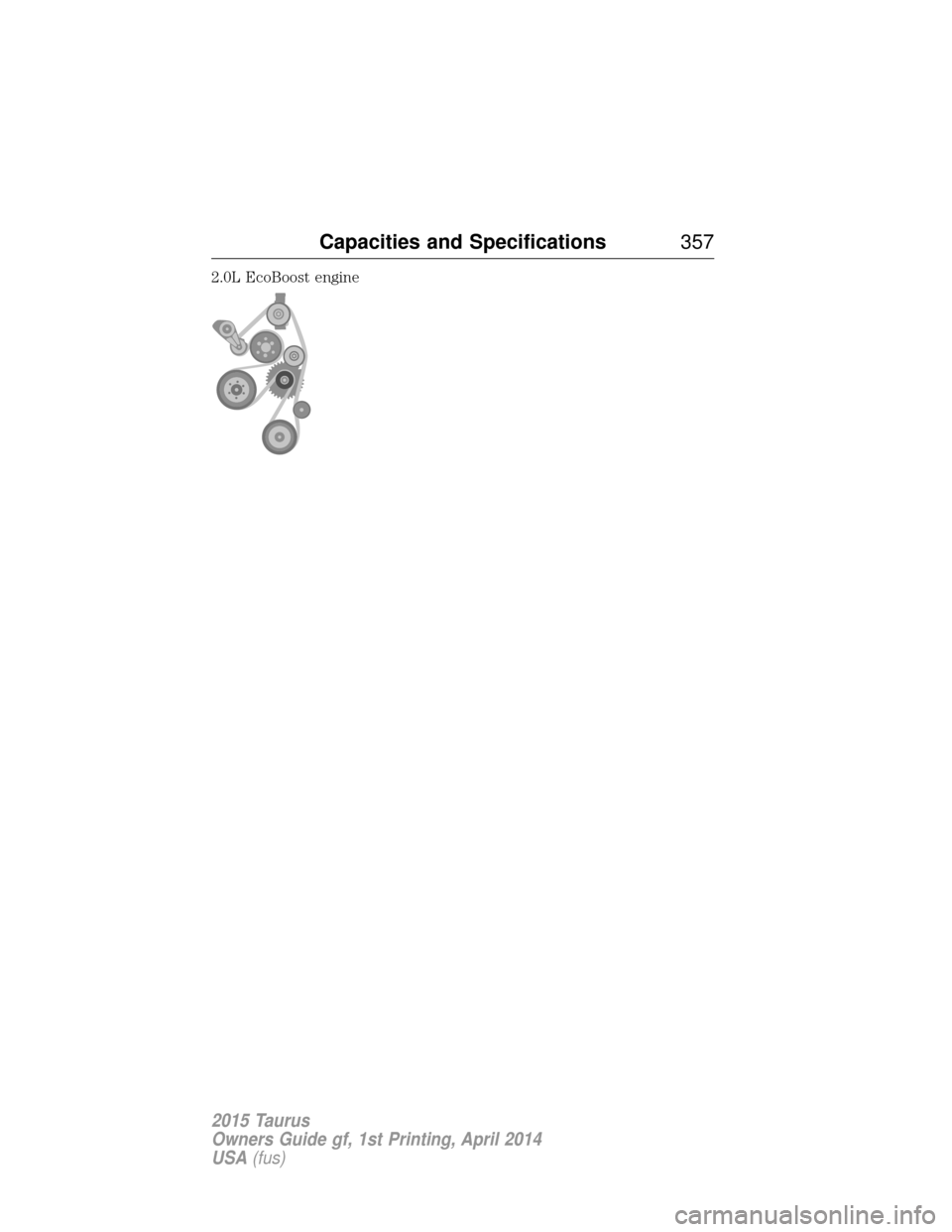

2.0L EcoBoost engine
Capacities and Specifications357
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

TECHNICAL SPECIFICATIONS
ItemsCapacityFord part name or
equivalent Ford part number / Ford
specification
Brake fluid
1
Between MAX and MIN on reservoir Motorcraft DOT 4 Low
Viscosity High Performance Motor Vehicle Brake Fluid PM-20 / WSS-M6C65-A2
Door latch, hood latch, auxiliary hood latch,
seat tracks, trunk and liftgate latches —
Multi-Purpose Grease
(Lithium grease) XL-5 (aerosol) (U.S.);
CRCSL3151 (Canada) / ESB-M1C93-B
Lock cylinders — Motorcraft Penetrating and
Lock Lubricant XL-1 /
None
Automatic transmission fluid
2,3
10.9 quarts(10.3L)(6F50)
Motorcraft
MERCON LV
2
XT-10-QLVC (U.S.);
CXT-10-LV12 (Canada) / MERCON LV
11.6 quarts
(11.0L)(6F55)
9.0 quarts (8.5L)
(6F35)
Rear differential (All Wheel Drive) fluid 2.4 pints (1.15L)Motorcraft SAE 80W-90
Premium Rear Axle Lubricant XY-80W90-QL /
WSP-M2C197-A
358 Capacities and Specifications
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

ItemsCapacityFord part name or
equivalent Ford part number / Ford
specification
Power Transfer Unit
(PTU) fluid (All Wheel Drive)
4
18 ounces(0.53L) Motorcraft SAE 75W-140
Synthetic Rear Axle Lubricant XY-75W140-QL /
WSL-M2C192-A
Engine oil
5,6,7
3.5L V6 engine 6.0 quarts(5.7L) Motorcraft SAE 5W-20
Synthetic Blend Motor Oil or Motorcraft SAE 5W-20Fully Synthetic Motor Oil XO–5W20–QSP or
XO-5W20–QFS (U.S.); CXO-5W20–LSP12 or
CXO-5W20–LFS12 (Canada) / WSS-M2C945-A
3.5L V6 Super High Output
(SHO) engine 6.0 quarts(5.7L) Motorcraft SAE 5W-30
Synthetic Blend Motor Oil or Motorcraft SAE 5W-30Fully Synthetic Motor Oil XO–5W30–QSP or
XO-5W30–QFS (U.S.); CXO-5W30–LSP12 or
CXO-5W30–LFS12 (Canada) / WSS-M2C946-A
2.0L EcoBoost
engine
5.7 quarts (5.4L)
Capacities and Specifications 359
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)
