2015 FORD TAURUS Owners Manual

WINDSHIELD WASHERS
Note:Do not operate the wipers on a dry windshield. This may scratch
the glass, damage the wiper blades or cause the wiper motor to burn out.
Always use the windshield washer before wiping a dry windshield.
Note: Do not operate the washer when the washer reservoir is empty.
This may cause the washer pump to overheat.
Press the end of the stalk to
activate the washer.
• A brief press causes a single wipe without washer fluid.
• A quick press and hold causes the wipers to swipe three times with
washer fluid.
• A long press and hold will activate the wipers and washer fluid for up
to 10 seconds.
A wipe will occur a few seconds after washing to clear any remaining
washer fluid. You can switch this feature on and off in the information
display.
88 Wipers and Washers
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

LIGHTING CONTROLA. Off
B. Parking lamps, instrument panel
lamps, license plate lamps and tail
lamps
C. Headlamps
High Beams •Push the lever toward the
instrument panel to activate.
• Push the lever toward the
instrument panel again or pull
the lever towards you to
deactivate.
Headlamp Flasher •Pull toward you slightly to activate
and release to deactivate.
Lighting89
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

AUTOLAMPS
WARNING:The daytime running lamps system does not activate
the tail lamps and may not provide adequate lighting during low
visibility driving conditions. Also, the autolamps switch position may not
activate the headlamps in all low visibility conditions, such as daytime
fog. Always ensure that your headlamps are switched to auto or on, as
appropriate, during all low visibility conditions. Failure to do so may
result in a collision.
When the lighting control is in the autolamps position, the headlamps
will automatically turn on in low light situations or when wipers are
activated.
The headlamps remain on for a period of time after you switch the
ignition off. Use the information display controls to adjust the period of
time that the headlamps remain on.
Note: If your vehicle is equipped
with autolamps, it will have the
windshield wiper activated
headlamps. The windshield wiper
activated headlamps turn on within
10 seconds when you switch the
windshield wipers on and the lighting
control switch is in the autolamps
position. They will turn off
approximately 60 seconds after you
switch the windshield wipers off.
The headlamps will not turn on by wiper activation:
• During a mist wipe.
• When the wipers are on to clear washer fluid during a wash condition.
• If the wipers are in intermittent mode.
Note: If you have autolamps and autowipers switched on, the low beam
headlamps will turn on automatically when the windshield wipers operate
continuously.
90 Lighting
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

INSTRUMENT LIGHTING DIMMER•Tapthetoporbottomofthe
control to brighten or dim all
interior lit components
incrementally.
• Press and hold the top of the
control to activate the “dome on”
feature. This will turn on the
interior courtesy lights. Fully
press and hold the bottom of the control to turn off the interior
courtesy lights.
HEADLAMP EXIT DELAY
You can set the delay time to keep the headlamps on for up to three
minutes after the ignition is turned off.
Follow the steps below to change the delay time (Steps 1 through 6
must be done within 10 seconds):
1. Turn the ignition off.
2. Turn the lighting control to the autolamp position.
3. Turn the lighting control to the off position.
4. Turn the ignition on.
5. Turn the ignition off.
6. Turn the lighting control to the autolamp position. The headlamps and
parking lamps will turn on.
7. Turn the lighting control to the off position when the desired delay
time has been reached. The headlamps and parking lamps will turn off.
You can set the headlamp exit delay to one of the following settings:
• Off
• 10 seconds
• 20 seconds
• 120 seconds
Note: You can also adjust the time delay using the display controls in
the instrument cluster. See the Information Displayschapter.
Lighting 91
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

DAYTIME RUNNING LAMPS (IF EQUIPPED)
WARNING:Always remember to turn on your headlamps at
dusk or during inclement weather. The Daytime Running Lamp
(DRL) system does not activate the tail lamps and generally may not
provide adequate lighting during these conditions. Failure to activate
your headlamps under these conditions may result in a collision.
The system turns the headlamps on with a reduced output.
To activate:
• the ignition must be in the on position and
• the lighting control is in the off, autolamp, or parking lamp position
and
• the transmission is not in PARK.
AUTOMATIC HIGH BEAM CONTROL (IF EQUIPPED)
The system will automatically turn on your high beams if it is dark
enough and no other traffic is present. When it detects an approaching
vehicle’s headlights, a preceding vehicle’s tail lamps or street lighting, the
system will turn off the high beams (low beams remain on) before they
distract other drivers.
Note: If it appears that automatic control of the high beams is not
functioning properly, check the windshield in front of the camera for
blockage. A clear view of the road is required for proper system
operation. Any windshield damage in the area of the camera field-of-view
should be repaired.
Note: If a blockage is detected (e.g. bird dropping, bug splatter, snow, or
ice) and no changes are observed, the system will go into low beam
mode until the blockage is cleared. A message may also appear in the
instrument cluster display noting the front camera is blocked.
Note: Typical road dust, dirt and water spots will not affect the
automatic high beam system’s performance. However, in cold or
inclement weather conditions, the automatic high beam system’s
availability may be decreased. If the driver wants to change the beam
state independently of the system, the driver may turn the high beams
on or off using the multifunction switch stalk. Automatic control will
resume when conditions are correct.
Note: Modification of the vehicle ride height (e.g. using much larger
tires) may degrade feature performance.
92 Lighting
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

A camera sensor is centrally mounted behind the windshield of the
vehicle, and monitors the conditions to decide when to switch the high
beams off and on.
Once the system is active the high beams will switch on if:
•The ambient light level is low enough that high beams are needed.
• There is no traffic in front of the vehicle.
• Vehicle speed is greater than 32 mph (52 km/h).
• Severe weather is not detected.
The high beams will switch off if:
• An approaching vehicle’s headlights or a preceding vehicle’s tail lamps
are detected.
• The vehicle speed falls below 27 mph (44 km/h).
• The ambient light level is high enough that high beams are not
needed.
• Severe rain, snow or fog is detected.
• The camera is blocked.
Activating the system
Switch the system on within the information display. See Information
displays.
Turn the lighting control to the
autolamps position.
Lighting93
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

Manually overriding the systemWhen the automatic control has
activated high beams, pushing or
pulling the stalk will provide a
temporary override to low beam.
To permanently deactivate the system use the information display menu
or turn the lighting control switch from autolamps to headlamps.
DIRECTION INDICATORS •To operate the left direction
indicator, push the lever down
until it stops.
• To operate the right direction
indicator, push the lever up until
it stops.
Note: Tap the lever up or down to make the direction indicators flash
only three times to indicate a lane change.
94 Lighting
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)

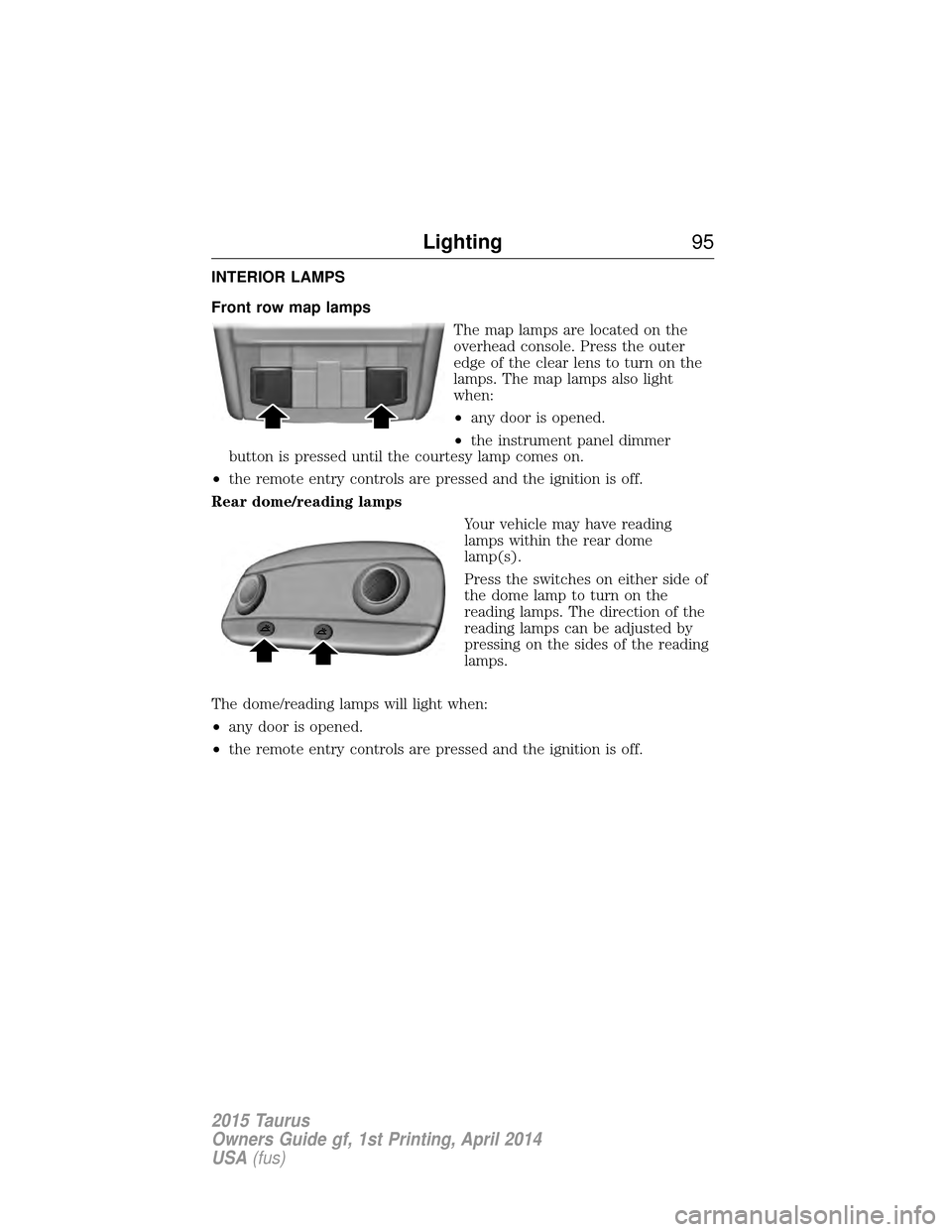

INTERIOR LAMPS
Front row map lampsThe map lamps are located on the
overhead console. Press the outer
edge of the clear lens to turn on the
lamps. The map lamps also light
when:
•any door is opened.
• the instrument panel dimmer
button is pressed until the courtesy lamp comes on.
• the remote entry controls are pressed and the ignition is off.
Rear dome/reading lamps Your vehicle may have reading
lamps within the rear dome
lamp(s).
Press the switches on either side of
the dome lamp to turn on the
reading lamps. The direction of the
reading lamps can be adjusted by
pressing on the sides of the reading
lamps.
The dome/reading lamps will light when:
• any door is opened.
• the remote entry controls are pressed and the ignition is off.
Lighting 95
2015 Taurus
Owners Guide gf, 1st Printing, April 2014
USA(fus)
