2015 FIAT 500L LIVING Owners Manual

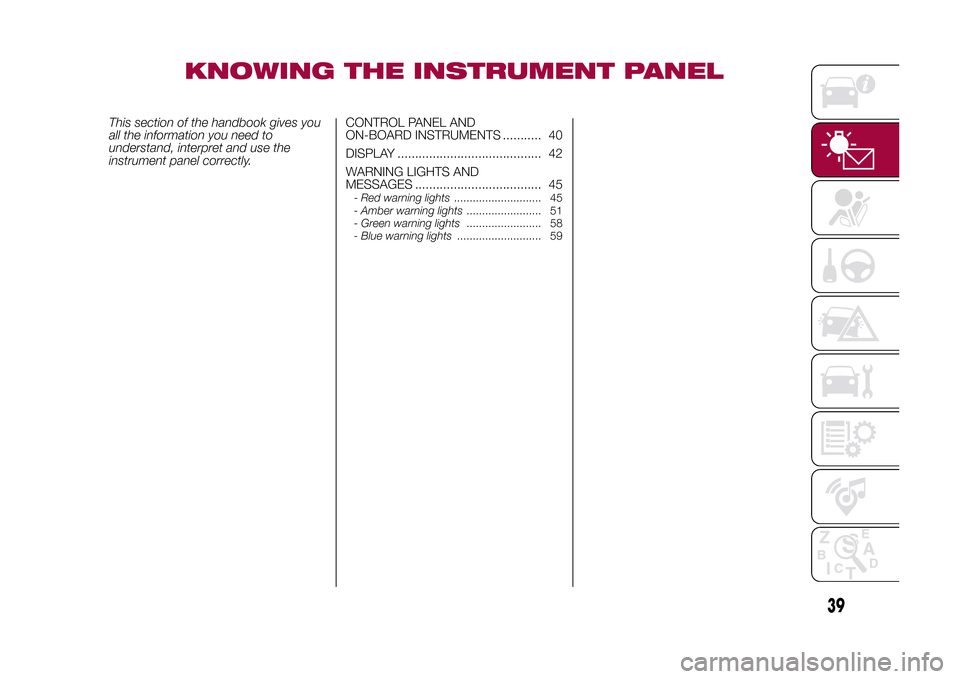

KNOWING THE INSTRUMENT PANEL
This section of the handbook gives you
all the information you need to
understand, interpret and use the
instrument panel correctly.CONTROL PANEL AND
ON-BOARD INSTRUMENTS ........... 40
DISPLAY ......................................... 42
WARNING LIGHTS AND
MESSAGES .................................... 45
-Red warning lights............................ 45
-Amber warning lights........................ 51
-Green warning lights........................ 58
-Blue warning lights........................... 59
39
9-1-2015 12:9 Pagina 39

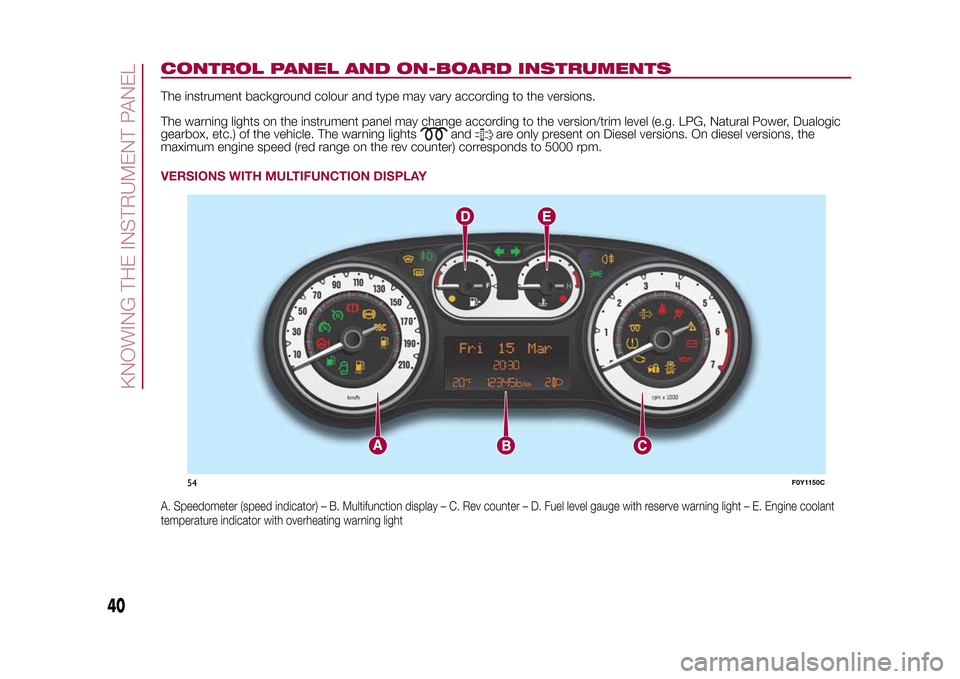

CONTROL PANEL AND ON-BOARD INSTRUMENTSThe instrument background colour and type may vary according to the versions.
The warning lights on the instrument panel may change according to the version/trim level (e.g. LPG, Natural Power, Dualogic
gearbox, etc.) of the vehicle. The warning lights
and
are only present on Diesel versions. On diesel versions, the
maximum engine speed (red range on the rev counter) corresponds to 5000 rpm.
VERSIONS WITH MULTIFUNCTION DISPLAYA. Speedometer (speed indicator) – B. Multifunction display – C. Rev counter – D. Fuel level gauge with reserve warning light – E. Engine coolant
temperature indicator with overheating warning light
54
F0Y1150C
40
KNOWING THE INSTRUMENT PANEL
9-1-2015 12:9 Pagina 40

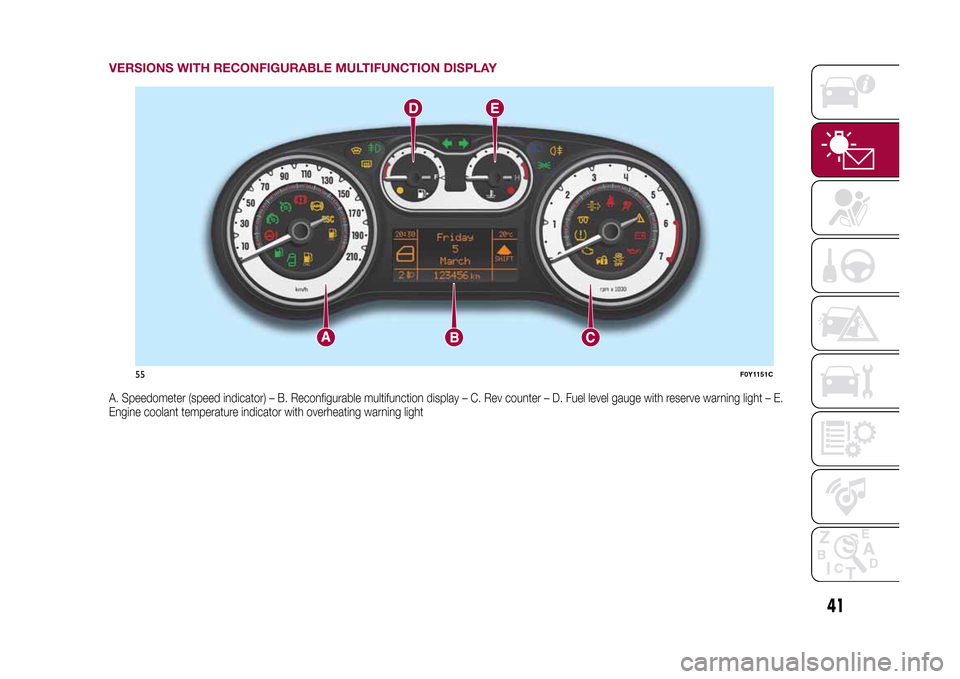

VERSIONS WITH RECONFIGURABLE MULTIFUNCTION DISPLAYA. Speedometer (speed indicator) – B. Reconfigurable multifunction display – C. Rev counter – D. Fuel level gauge with reserve warning light – E.
Engine coolant temperature indicator with overheating warning light
55
F0Y1151C
41
9-1-2015 12:9 Pagina 41

DISPLAYMULTIFUNCTION
DISPLAYThe following information is shown on
the display fig. 56:A
Date
B
Activation of Dualdrive electric power
steering (CITY indication) or of ECO
driving mode (ECO indication)
C
Gear Shift Indicator (for versions/
markets, where provided)
D
Headlight alignment position (only
with dipped beam headlights on)
EOdometer (display of distance
travelled in kilometres/miles)FTime (always displayed, even with key
removed and doors closed)G
Stop/Start function indication (for
versions/markets where provided)
H
Outside temperature (for versions/
markets, where provided)
I"Speed limiter" display (for versions/
markets, where provided)RECONFIGURABLE
MULTIFUNCTION
DISPLAYThe following information is shown on
the display fig. 57:A
Time
B
Date or trip distance display in
kilometres (or miles)
C
Gear Shift Indicator (for versions/
markets, where provided) or
Stop/Start function indication (for
versions/markets, where provided)
D
"Speed limiter" display (for versions/
markets, where provided)
EOdometer (display of distance
travelled in kilometres/miles)
FHeadlight alignment position (only
with dipped beam headlights on)G
Outside temperature (for versions/
markets, where provided)
H
Vehicle status indication (e.g. doors
open, possible ice on road, etc.)
GEAR SHIFT INDICATORThe GSI (Gear Shift Indicator) system
advises the driver to change gear
through a specific indication on the
instrument panel. Through the GSI, the
driver is informed that the gear change
will allow a reduction in fuel
consumption.
"SHIFT UP" icon(
SHIFT): the GSI
suggests to make an upshifting
"SHIFT DOWN" icon(
SHIFT): the
GSI suggests to make a downshifting.
The icon remains displayed until a
gear is shifted or the driving conditions
go back to a situation where
gearshifting is not required, to improve
consumption.
CONTROL BUTTONSThe
and
buttons are located
in the instrument panel fig. 58. The
buttons are
and
on some
versions.
To scroll up through the screen and the
related options or to increase the
displayed value.
56
F0Y1101C
57
F0Y1103C
42
KNOWING THE INSTRUMENT PANEL
9-1-2015 12:9 Pagina 42

Briefly press: access to the Menu
and/or go to next screen or confirm the
required menu option.
Long press: go back to the standard
screen.To scroll through the screen and the
options downwards or to decrease the
value displayed.SETUP MENUMenu activation: briefly press the
button
.
Menu item selection: the Menu
comprises a series of options which
can be selected using buttons
and
, to access the different selection
and setting operations (Setup) indicated
below. Some options have a submenu.
The Menu includes the following items:
❒MENU
❒LIGHTING❒SPEED BUZZER
❒HEADLIGHT SENSOR (for versions/
markets where provided)
❒CORNERING LIGHTS (for versions/
markets, where provided)
❒RAIN SENSOR (for versions/markets,
where provided)
❒TRIP B ACTIVATION/DATA
❒SET TIME
❒SET DATE
❒FIRST PAGE (for versions/markets
where provided)
❒AUTOCLOSE
❒MEASUREMENT UNIT
❒LANGUAGE
❒BUZZER VOLUME
❒BELT BUZZER
❒SERVICE
❒AIRBAG/PASSENGER BAG (for
versions/markets, where provided)
❒DAYTIME RUNNING LIGHTS (for
versions/markets, where provided)
❒CITY BRAKE C./COLLISION
MITIGATION (for versions/markets,
where provided)
❒TYRE RESET (for versions/markets,
where provided)
❒EXIT MENU
TRIP COMPUTERThe Trip Computer can be used to
display information on vehicle operation
when the key is turned to MAR.
This function comprises two separate
trips, called “Trip A” and “Trip B”, where
the vehicle's "complete missions"
(journeys) are monitored in a
reciprocally independent manner.
“Trip A”displays the following values:
"Outside temperature (for versions/
markets, where provided)", "Range",
"Distance travelled", "Average
consumption", "Instantaneous
consumption", "Average speed", "Trip
time (driving time)"
“Trip B”displays the following values:
"Distance travelled B", "Average
consumption B", "Average speed B",
"Trip time (driving time) B". The “Trip B”
function may be excluded.
58
F0Y0777C
59
F0Y0045C
43
9-1-2015 12:9 Pagina 43

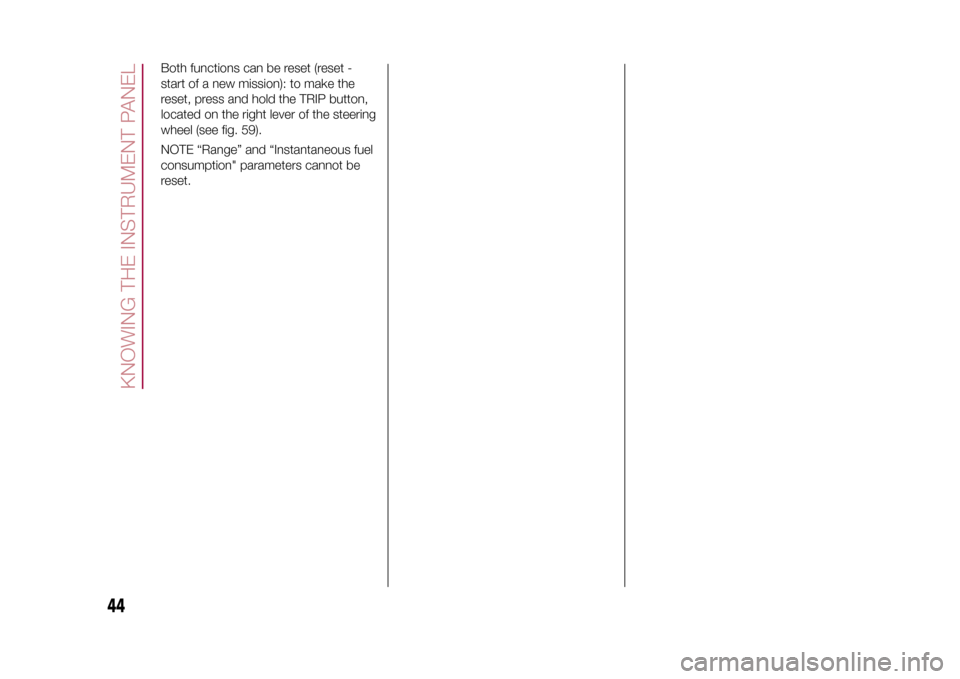

Both functions can be reset (reset -
start of a new mission): to make the
reset, press and hold the TRIP button,
located on the right lever of the steering
wheel (see fig. 59).
NOTE “Range” and “Instantaneous fuel
consumption" parameters cannot be
reset.
44
KNOWING THE INSTRUMENT PANEL
9-1-2015 12:9 Pagina 44

WARNING LIGHTS AND MESSAGESIMPORTANT The warning light switches on together with a dedicated message and/or acoustic signal when applicable. These
indications are indicative and precautionary and as such must not be considered as exhaustive and/or alternative to the
information contained in the Owner Handbook, which you are advised to read carefully in all cases. Always refer to the
information in this chapter in the event of a failure indication.
IMPORTANT The failure indicators appearing on the display are divided into two categories: very serious and less serious faults.
Serious faults are indicated by a repeated and prolonged warning "cycle". Less serious faults are indicated by a warning
"cycle" with a shorter duration. The display cycle of both categories can be interrupted. The instrument panel warning light will
stay on until the cause of the failure is eliminated.WARNING LIGHTS ON INSTRUMENT PANELRed warning lights
Warning light What it means
LOW BRAKE FLUID/HANDBRAKE ENGAGED
Low brake fluid level
The warning light switches on when the brake fluid in the reservoir falls below the minimum level, possibly
due to a leak in the circuit. On some versions, a message is displayed along with a symbol. Restore the
brake fluid level, then check that the warning light has switched off. If the warning light stays on, contact a
Fiat Dealership.
Handbrake engaged
The warning light (or symbol on the display) switches on when the handbrake is engaged. If the vehicle is
moving the buzzer will also sound. Release the handbrake, then check that the warning light has switched
off. If the warning light stays on, contact a Fiat Dealership.
IMPORTANT If the warning light comes on when the vehicle is in motion, check that the handbrake is not
on.
45
9-1-2015 12:9 Pagina 45

Warning light What it means
EBD FAILURE
The simultaneous switching on of the
(red) and
(amber) warning lights andESCwith the engine
on indicates either a fault of the EBD system or that the system is not available. In this case, the rear
wheels may suddenly lock and the vehicle may swerve when braking sharply. On certain versions a
dedicated message is displayed.
Drive very carefully to the nearest Fiat Dealership to have the system inspected immediately.
LOW BATTERY CHARGE
(for versions/markets, where provided)
If the warning light (or, on some versions, a message and a symbol on the display) remains on constantly or
flashing, contact a Fiat Dealership.DOORS/BONNET/LUGGAGE COMPARTMENT OPEN
The warning light switches on (on some versions together with some messages and symbols in the display)
when one or more doors, the bonnet or the tailgate are not properly closed.
An acoustic signal is activated with the doors open and the vehicle moving.
46
KNOWING THE INSTRUMENT PANEL
9-1-2015 12:9 Pagina 46
