2015 FIAT 500L LIVING Owners Manual

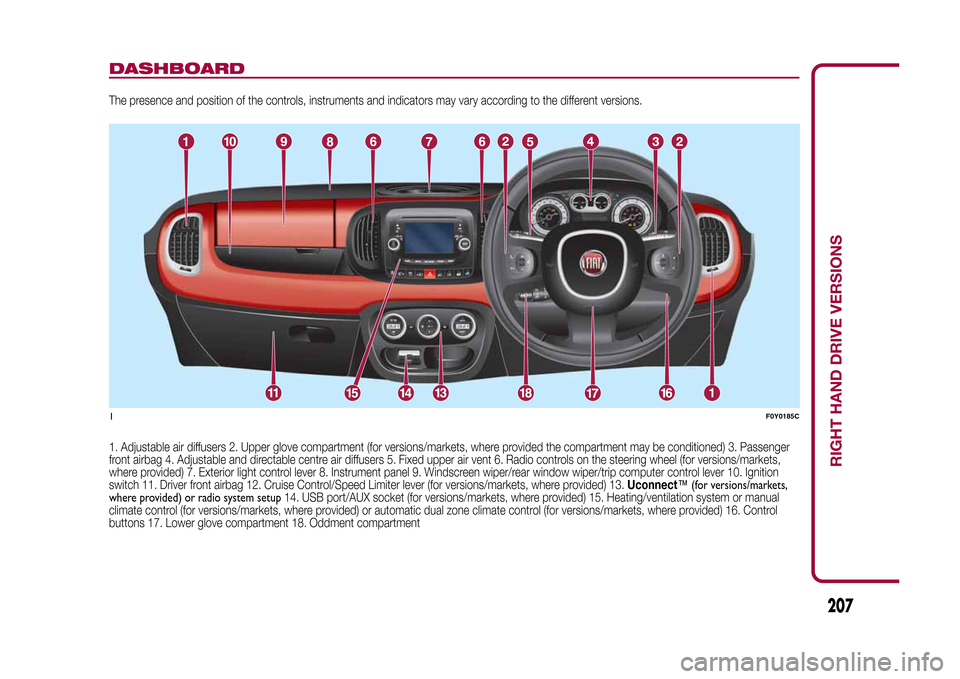

DASHBOARDThe presence and position of the controls, instruments and indicators may vary according to the different versions.
1. Adjustable air diffusers 2. Upper glove compartment (for versions/markets, where provided the compartment may be conditioned) 3. Passenger
front airbag 4. Adjustable and directable centre air diffusers 5. Fixed upper air vent 6. Radio controls on the steering wheel (for versions/markets,
where provided) 7. Exterior light control lever 8. Instrument panel 9. Windscreen wiper/rear window wiper/trip computer control lever 10. Ignition
switch 11. Driver front airbag 12. Cruise Control/Speed Limiter lever (for versions/markets, where provided) 13.Uconnect™ (for versions/markets,
where provided) or radio system setup14. USB port/AUX socket (for versions/markets, where provided) 15. Heating/ventilation system or manual
climate control (for versions/markets, where provided) or automatic dual zone climate control (for versions/markets, where provided) 16. Control
buttons 17. Lower glove compartment 18. Oddment compartment1
F0Y0185C
RIGHT HAND DRIVE VERSIONS
207

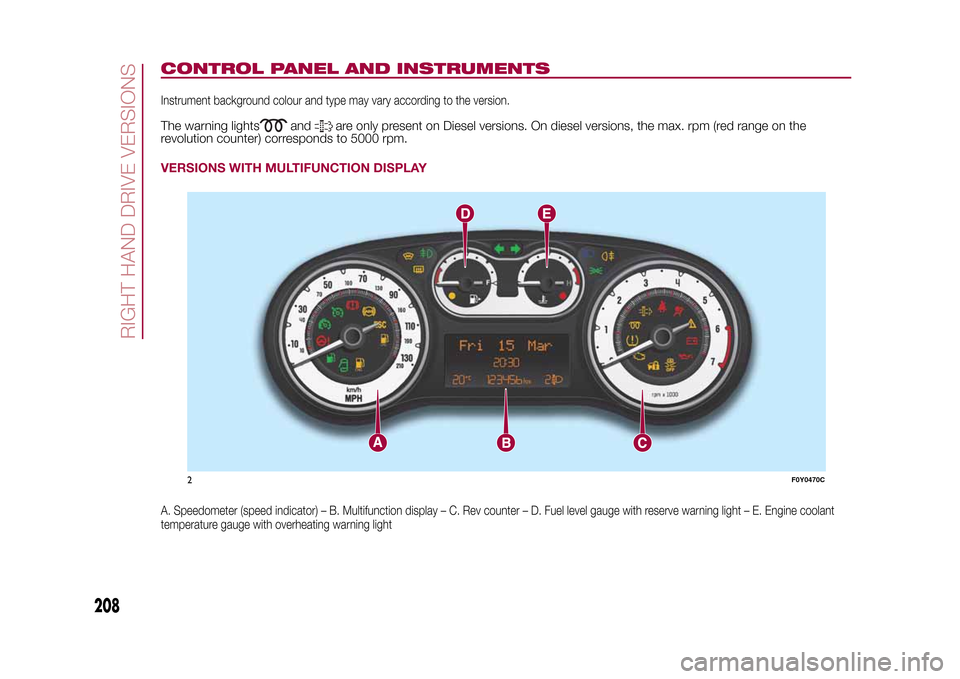

CONTROL PANEL AND INSTRUMENTSInstrument background colour and type may vary according to the version.The warning lights
and
are only present on Diesel versions. On diesel versions, the max. rpm (red range on the
revolution counter) corresponds to 5000 rpm.
VERSIONS WITH MULTIFUNCTION DISPLAYA. Speedometer (speed indicator) – B. Multifunction display – C. Rev counter – D. Fuel level gauge with reserve warning light – E. Engine coolant
temperature gauge with overheating warning light
2
F0Y0470C
RIGHT HAND DRIVE VERSIONS
208

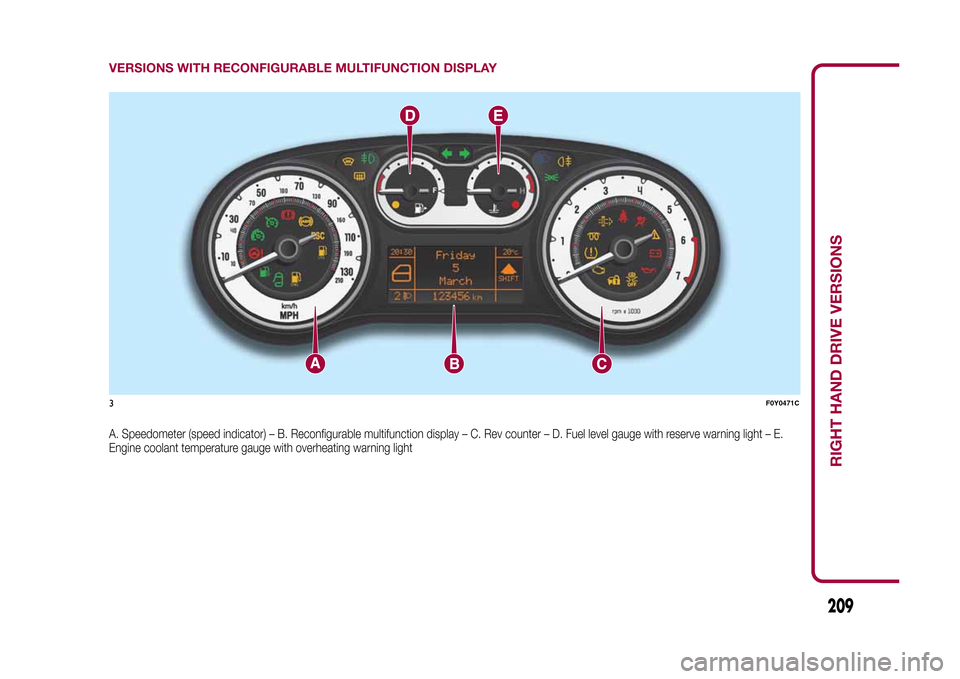

VERSIONS WITH RECONFIGURABLE MULTIFUNCTION DISPLAYA. Speedometer (speed indicator) – B. Reconfigurable multifunction display – C. Rev counter – D. Fuel level gauge with reserve warning light – E.
Engine coolant temperature gauge with overheating warning light3
F0Y0471C
RIGHT HAND DRIVE VERSIONS
209

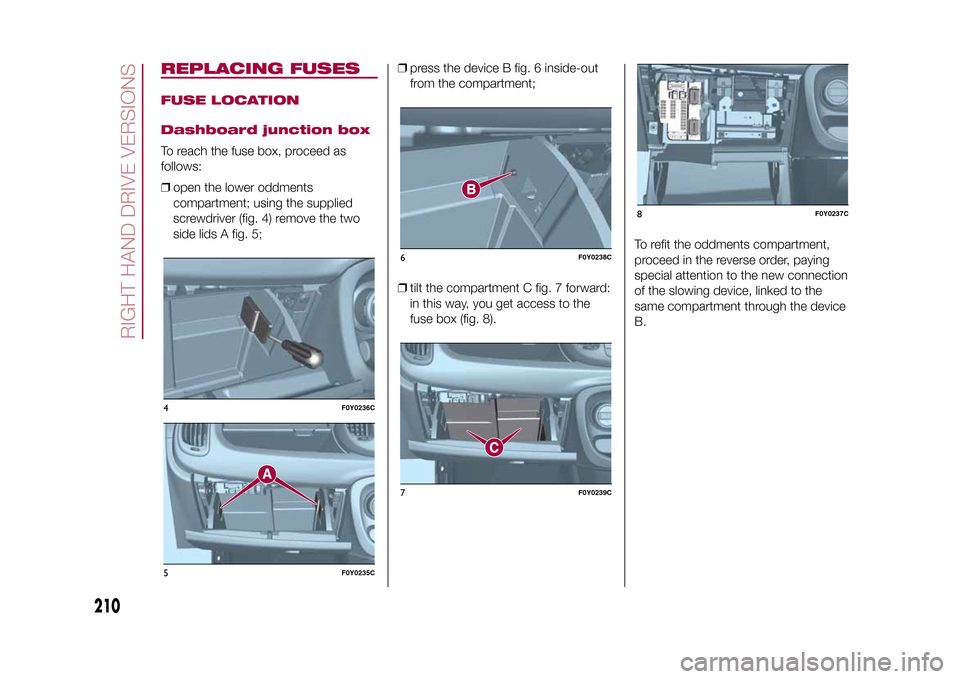

REPLACING FUSESFUSE LOCATION
Dashboard junction boxTo reach the fuse box, proceed as
follows:
❒open the lower oddments
compartment; using the supplied
screwdriver (fig. 4) remove the two
side lids A fig. 5;❒press the device B fig. 6 inside-out
from the compartment;
❒tilt the compartment C fig. 7 forward:
in this way, you get access to the
fuse box (fig. 8).To refit the oddments compartment,
proceed in the reverse order, paying
special attention to the new connection
of the slowing device, linked to the
same compartment through the device
B.4
F0Y0236C
5
F0Y0235C
6
F0Y0238C
7
F0Y0239C
8
F0Y0237C
RIGHT HAND DRIVE VERSIONS
210

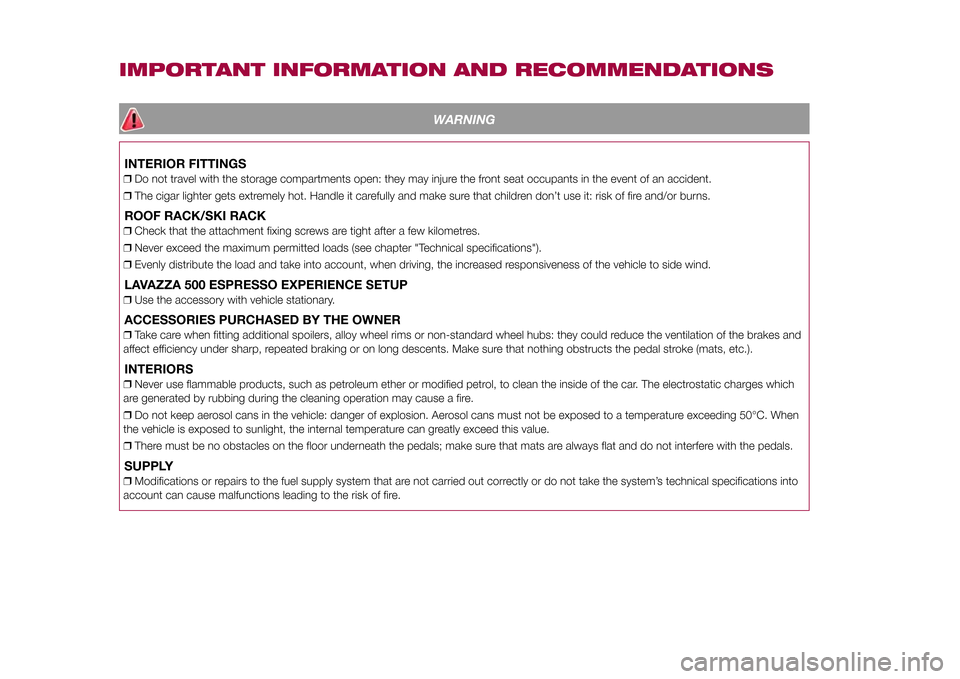

IMPORTANT INFORMATION AND RECOMMENDATIONS
WARNING
INTERIOR FITTINGS❒Do not travel with the storage compartments open: they may injure the front seat occupants in the event of an accident.
❒The cigar lighter gets extremely hot. Handle it carefully and make sure that children don’t use it: risk of fire and/or burns.ROOF RACK/SKI RACK❒Check that the attachment fixing screws are tight after a few kilometres.
❒Never exceed the maximum permitted loads (see chapter "Technical specifications").
❒Evenly distribute the load and take into account, when driving, the increased responsiveness of the vehicle to side wind.LAVAZZA 500 ESPRESSO EXPERIENCE SETUP❒Use the accessory with vehicle stationary.ACCESSORIES PURCHASED BY THE OWNER❒Take care when fitting additional spoilers, alloy wheel rims or non-standard wheel hubs: they could reduce the ventilation of the brakes and
affect efficiency under sharp, repeated braking or on long descents. Make sure that nothing obstructs the pedal stroke (mats, etc.).INTERIORS❒Never use flammable products, such as petroleum ether or modified petrol, to clean the inside of the car. The electrostatic charges which
are generated by rubbing during the cleaning operation may cause a fire.
❒Do not keep aerosol cans in the vehicle: danger of explosion. Aerosol cans must not be exposed to a temperature exceeding 50°C. When
the vehicle is exposed to sunlight, the internal temperature can greatly exceed this value.
❒There must be no obstacles on the floor underneath the pedals; make sure that mats are always flat and do not interfere with the pedals.SUPPLY❒Modifications or repairs to the fuel supply system that are not carried out correctly or do not take the system’s technical specifications into
account can cause malfunctions leading to the risk of fire.
9-1-2015 12:9 Pagina 206

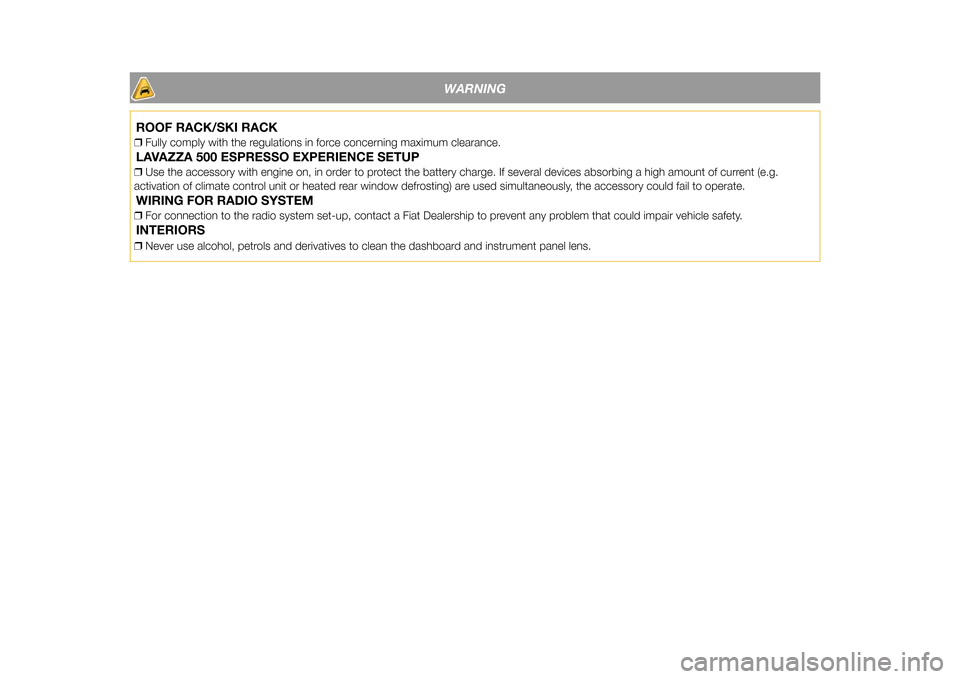

WARNING
ROOF RACK/SKI RACK❒Fully comply with the regulations in force concerning maximum clearance.LAVAZZA 500 ESPRESSO EXPERIENCE SETUP❒Use the accessory with engine on, in order to protect the battery charge. If several devices absorbing a high amount of current (e.g.
activation of climate control unit or heated rear window defrosting) are used simultaneously, the accessory could fail to operate.WIRING FOR RADIO SYSTEM❒For connection to the radio system set-up, contact a Fiat Dealership to prevent any problem that could impair vehicle safety.INTERIORS❒Never use alcohol, petrols and derivatives to clean the dashboard and instrument panel lens.
9-1-2015 12:9 Pagina 207

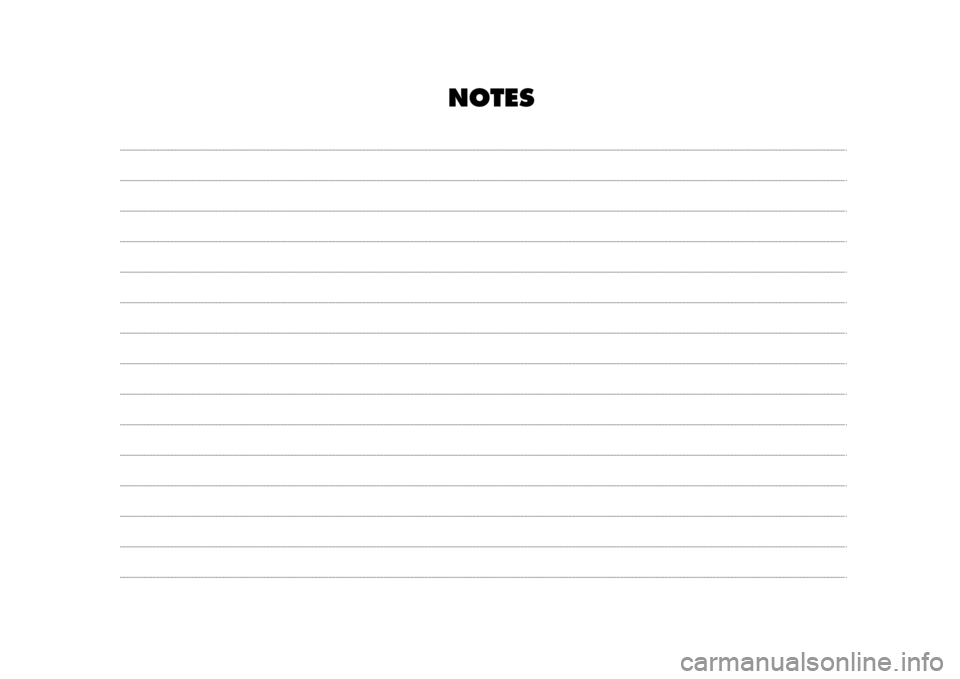

NOTE
S
